POWER WINDOW MAIN SWITCH

PWC-47

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

It changes to condition before initialization and the following functions do not operate when switched to fail-

safe control.

• Auto-up operation

• Anti-pinch function

• Retained power function

Perform initial operation to recover when switched to fail-safe mode. However, it switches back to fail-safe

control when malfunction is found in power window switch or in motor.

Glass recognition position
malfunction 2

When it detects pulse count more than the value of glass full stroke during glass open/close operation.

Malfunction of not yet up-
dated closed position of
glass

When glass open/close operation is continuously performed without fully closing more than the specified
value (approximately 10 strokes).

Error

Error condition

2011 Pathfinder

PWC-48

< ECU DIAGNOSIS INFORMATION >

FRONT POWER WINDOW SWITCH

FRONT POWER WINDOW SWITCH

Reference Value

INFOID:0000000006243512

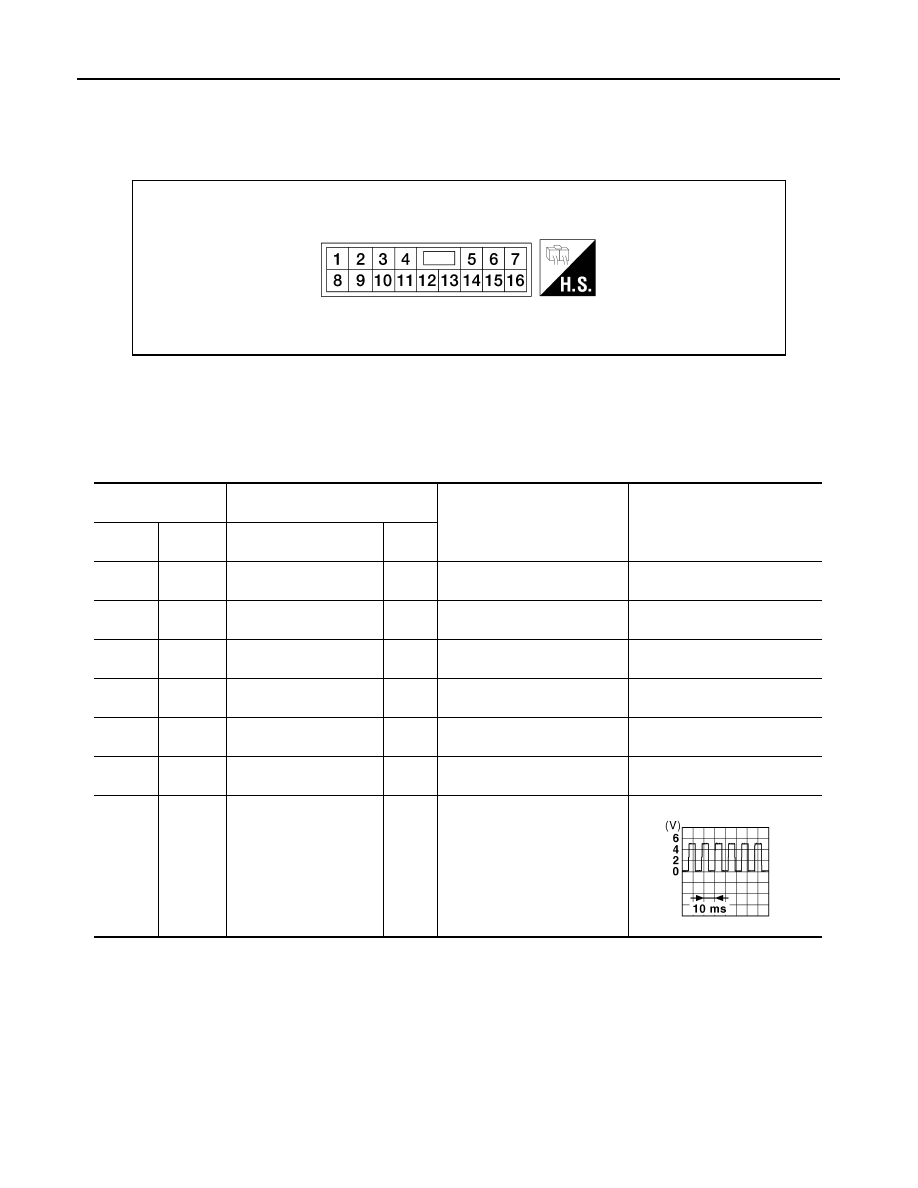

TERMINAL LAYOUT

PHYSICAL VALUES

POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH

LIIA2454E

Terminal No.

(Wire color)

Description

Condition

Voltage [V]

(Approx.)

+

–

Signal name

Input/

Output

3

(BR)

Ground

Encoder ground

—

—

0

4

(W/R)

Ground

Encoder power supply

Output

When ignition switch ON or
power window timer operates

10

8

(L)

9

Power window motor
UP signal

Output

When power window motor is
UP at operated.

 Battery voltage

9

(G)

8

Power window motor
DOWN signal

Output

When power window motor is
DOWN at operated.

Battery voltage

10

(Y)

Ground

Battery power supply

Input

—

Battery voltage

11

(B)

Ground

Ground

—

—

0

12

(LB)

3

Encoder pulse signal 1

Input

When power window motor op-
erates.

JMKIA0070GB

2011 Pathfinder

FRONT POWER WINDOW SWITCH

PWC-49

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

Fail Safe

INFOID:0000000006243514

FAIL-SAFE CONTROL

Switches to fail-safe control when malfunction is detected in encoder signal that detects up/down speed and

direction of door glass. Switches to fail-safe control when error beyond regulation value is detected between

the fully closed position and the actual position of the glass.

It changes to condition before initialization and the following functions do not operate when switched to fail-

safe control.

• Auto-up operation

• Anti-pinch function

• Retained power function

Perform initial operation to recover when switched to fail-safe mode. However, it switches back to fail-safe

control when malfunction is found in power window switch or in motor.

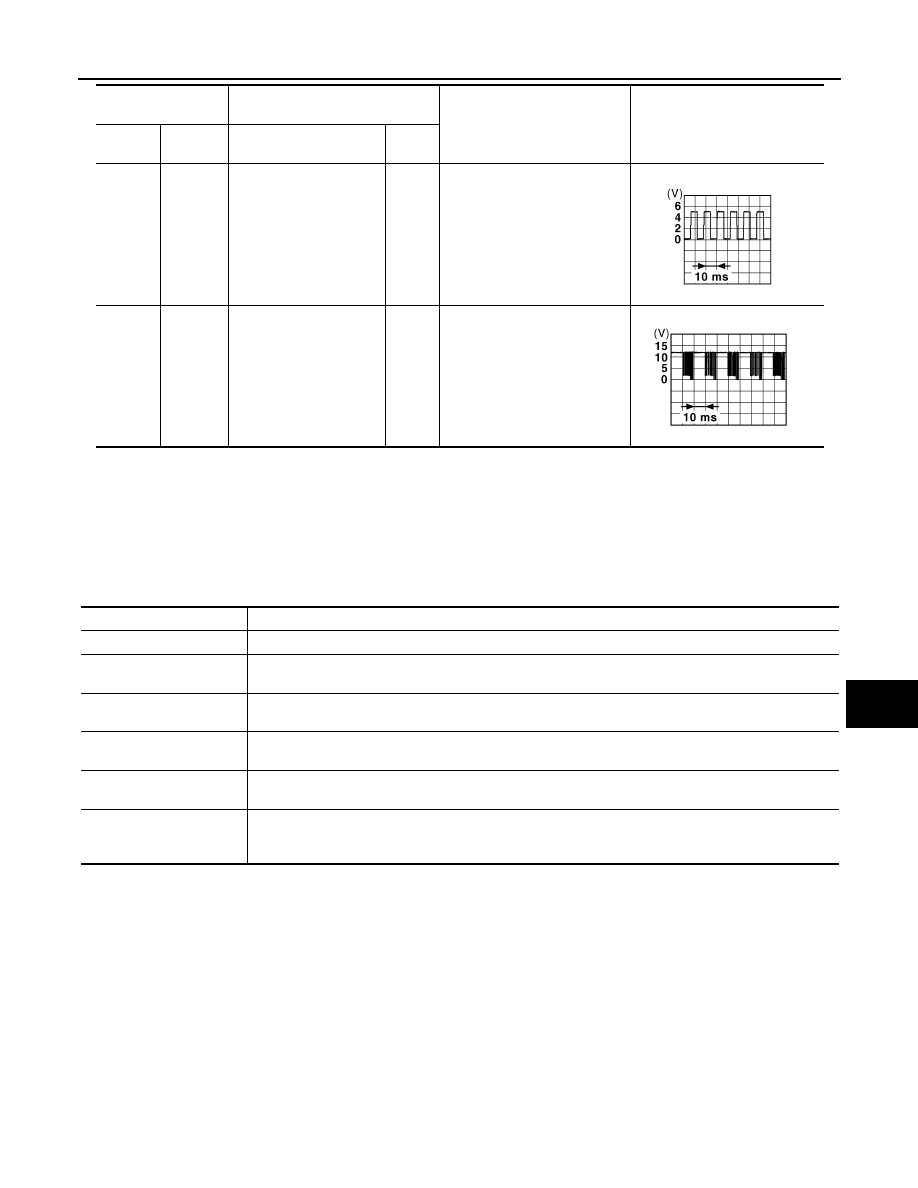

15

(Y)

3

Encoder pulse signal 2

Input

When power window motor op-
erates.

16

(V)

Ground

Power window serial link

Input/

Output

IGN SW ON or power window
timer operating.

Terminal No.

(Wire color)

Description

Condition

Voltage [V]

(Approx.)

+

–

Signal name

Input/

Output

JMKIA0070GB

JPMIA0013GB

Error

Error condition

Pulse sensor malfunction

When only one side of pulse signal is being detected for more than the specified value.

Both pulse sensors mal-
function

When both pulse signals have not been detected for more than the specified value during glass open/
close operation.

Pulse direction malfunction

When the pulse signal that is detected during glass open/close operation detects the opposite condition
of power window motor operating direction.

Glass recognition position
malfunction 1

When it detects the error between glass fully closed position in power window switch memory and actual
fully closed position during glass open/close operation is more than the specified value.

Glass recognition position
malfunction 2

When it detects pulse count more than the value of glass full stroke during glass open/close operation.

Malfunction of not yet up-
dated closed position of
glass

When glass open/close operation is continuously performed without fully closing more than the specified
value (approximately 10 strokes).

2011 Pathfinder

PWC-50

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

BCM (BODY CONTROL MODULE)

Reference Value

INFOID:0000000006706199

NOTE:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II

User Guide for additional information.

• Activate and display TPMS transmitter IDs

• Display tire pressure reported by the TPMS transmitter

• Read TPMS DTCs

• Register TPMS transmitter IDs

• Check Intelligent Key relative signal strength

• Confirm vehicle Intelligent Key antenna signal strength

• Test remote keyless entry keyfob relative signal strength

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

ACC ON SW

Ignition switch OFF or ON

Off

Ignition switch ACC

On

AIR COND SW

A/C switch OFF

Off

A/C switch ON

On

AIR PRESS FL

Front left tire air pressure value

kPa, kg/cm

2

, psi

AIR PRESS FR

Front right tire air pressure value

kPa, kg/cm

2

, psi

AIR PRESS RL

Rear left tire air pressure value

kPa, kg/cm

2

, psi

AIR PRESS RR

Rear right tire air pressure value

kPa, kg/cm

2

, psi

AUTO LIGHT SW

Lighting switch OFF

Off

Lighting switch AUTO

On

BACK DOOR SW

Back door closed

Off

Back door opened

On

BRAKE SW

Brake pedal released

Off

Brake pedal applied

On

BUCKLE SW

Seat belt buckle unfastened

Off

Seat belt buckle fastened

On

BUZZER

Buzzer in combination meter OFF

Off

Buzzer in combination meter ON

On

CDL LOCK SW

Door lock/unlock switch does not operate

Off

Press door lock/unlock switch to the LOCK side

On

CDL UNLOCK SW

Door lock/unlock switch does not operate

Off

Press door lock/unlock switch to the UNLOCK side

On

DOOR SW-AS

Front door RH closed

Off

Front door RH opened

On

DOOR SW-DR

Front door LH closed

Off

Front door LH opened

On

DOOR SW-RL

Rear door LH closed

Off

Rear door LH opened

On

DOOR SW-RR

Rear door RH closed

Off

Rear door RH opened

On

2011 Pathfinder

BCM (BODY CONTROL MODULE)

PWC-51

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

FAN ON SIG

Blower motor fan switch OFF

Off

Blower motor fan switch ON

On

FR FOG SW

Front fog lamp switch OFF

Off

Front fog lamp switch ON

On

FR WASHER SW

Front washer switch OFF

Off

Front washer switch ON

On

FR WIPER LOW

Front wiper switch OFF

Off

Front wiper switch LO

On

FR WIPER HI

Front wiper switch OFF

Off

Front wiper switch HI

On

FR WIPER INT

Front wiper switch OFF

Off

Front wiper switch INT

On

FR WIPER STOP

Any position other than front wiper stop position

Off

Front wiper stop position

On

HAZARD SW

When hazard switch is not pressed

Off

When hazard switch is pressed

On

HEAD LAMP SW 1

Headlamp switch OFF

Off

Headlamp switch 1st

On

HEAD LAMP SW 2

Headlamp switch OFF

Off

Headlamp switch 1st

On

HI BEAM SW

High beam switch OFF

Off

High beam switch HI

On

ID REGST FL1

ID registration of front left tire incomplete

YET

ID registration of front left tire complete

DONE

ID REGST FR1

ID registration of front right tire incomplete

YET

ID registration of front right tire complete

DONE

ID REGST RL1

ID registration of rear left tire incomplete

YET

ID registration of rear left tire complete

DONE

ID REGST RR1

ID registration of rear right tire incomplete

YET

ID registration of rear right tire complete

DONE

IGN ON SW

Ignition switch OFF or ACC

Off

Ignition switch ON

On

IGN SW CAN

Ignition switch OFF or ACC

Off

Ignition switch ON

On

INT VOLUME

Wiper intermittent dial is in a dial position 1 - 7

1 - 7

I-KEY LOCK

1

LOCK button of Intelligent Key is not pressed

Off

LOCK button of Intelligent Key is pressed

On

I-KEY PANIC

1

PANIC button of Intelligent Key is not pressed

Off

PANIC button of Intelligent Key is pressed

On

I-KEY PW DWN

1

UNLOCK button of Intelligent Key is not pressed

Off

UNLOCK button of Intelligent Key is pressed for greater than 3 sec-
onds and driver’s window operating in DOWN direction

On

I-KEY UNLOCK

1

UNLOCK button of Intelligent Key is not pressed

Off

UNLOCK button of Intelligent Key is pressed

On

Monitor Item

Condition

Value/Status

2011 Pathfinder

PWC-52

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

1: With Intelligent Key
2: With remote keyless entry system

KEY CYL LK-SW

Door key cylinder LOCK position

Off

Door key cylinder other than LOCK position

On

KEY CYL UN-SW

Door key cylinder UNLOCK position

Off

Door key cylinder other than UNLOCK position

On

KEY ON SW

Mechanical key is removed from key cylinder

Off

Mechanical key is inserted to key cylinder

On

KEYLESS LOCK

2

LOCK button of key fob is not pressed

Off

LOCK button of key fob is pressed

On

KEYLESS PANIC

2

PANIC button of key fob is not pressed

Off

PANIC button of key fob is pressed

On

KEYLESS UNLOCK

2

UNLOCK button of key fob is not pressed

Off

UNLOCK button of key fob is pressed

On

LIGHT SW 1ST

Lighting switch OFF

Off

Lighting switch 1st

On

OIL PRESS SW

• Ignition switch OFF or ACC
• Engine running

Off

Ignition switch ON

On

OPTICAL SENSOR

Bright outside of the vehicle

Close to 5V

Dark outside of the vehicle

Close to 0V

PASSING SW

Other than lighting switch PASS

Off

Lighting switch PASS

On

PUSH SW

1

Return to ignition switch to LOCK position

Off

Press ignition switch

On

REAR DEF SW

Rear window defogger switch OFF

Off

Rear window defogger switch ON

On

RR WASHER SW

Rear washer switch OFF

Off

Rear washer switch ON

On

RR WIPER INT

Rear wiper switch OFF

Off

Rear wiper switch INT

On

RR WIPER ON

Rear wiper switch OFF

Off

Rear wiper switch ON

On

RR WIPER STOP

Rear wiper stop position

Off

Other than rear wiper stop position

On

TURN SIGNAL L

Turn signal switch OFF

Off

Turn signal switch LH

On

TURN SIGNAL R

Turn signal switch OFF

Off

Turn signal switch RH

On

VEHICLE SPEED

While driving

Equivalent to speedometer reading

WARNING LAMP

Low tire pressure warning lamp in combination meter OFF

Off

Low tire pressure warning lamp in combination meter ON

On

Monitor Item

Condition

Value/Status

2011 Pathfinder

BCM (BODY CONTROL MODULE)

PWC-53

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

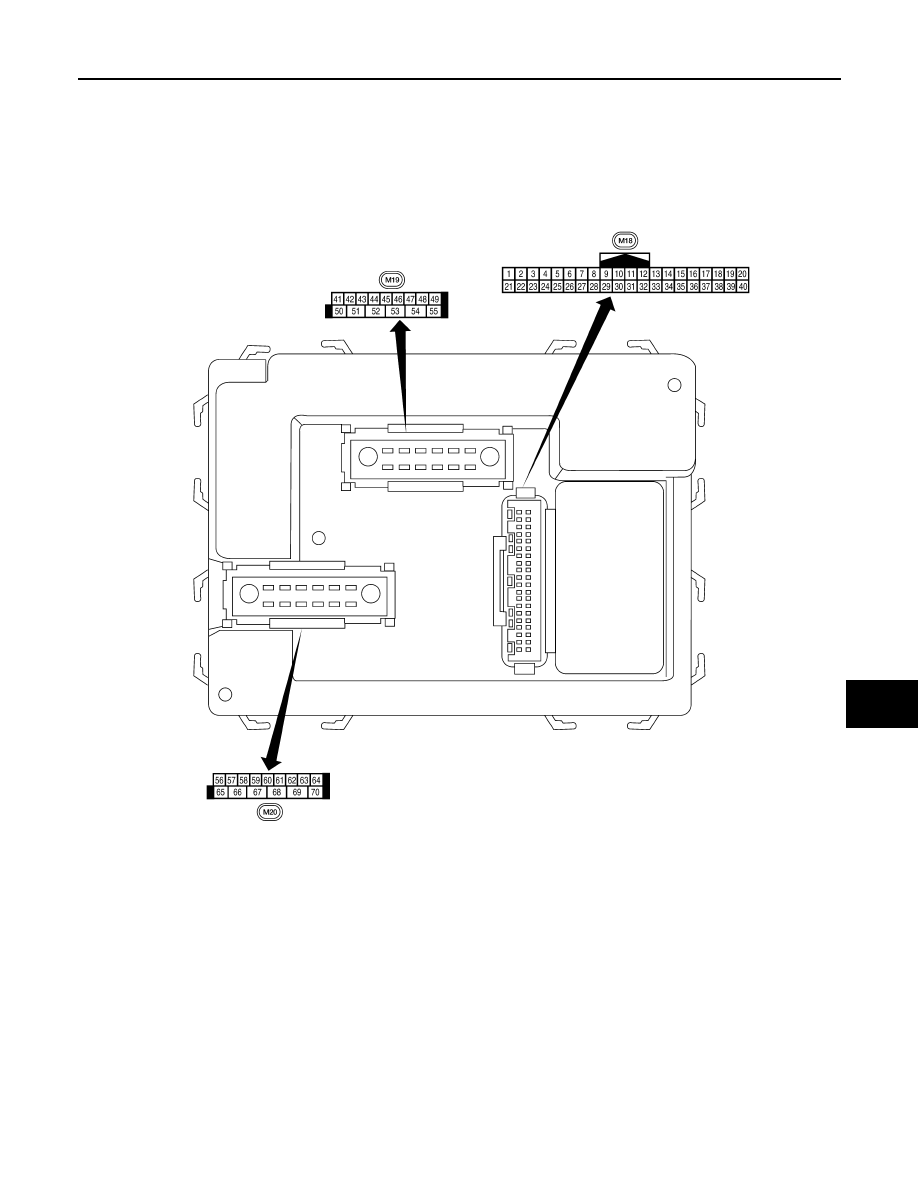

Terminal Layout

INFOID:0000000006706200

Physical Values

INFOID:0000000006706201

LIIA2443E

2011 Pathfinder

PWC-54

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

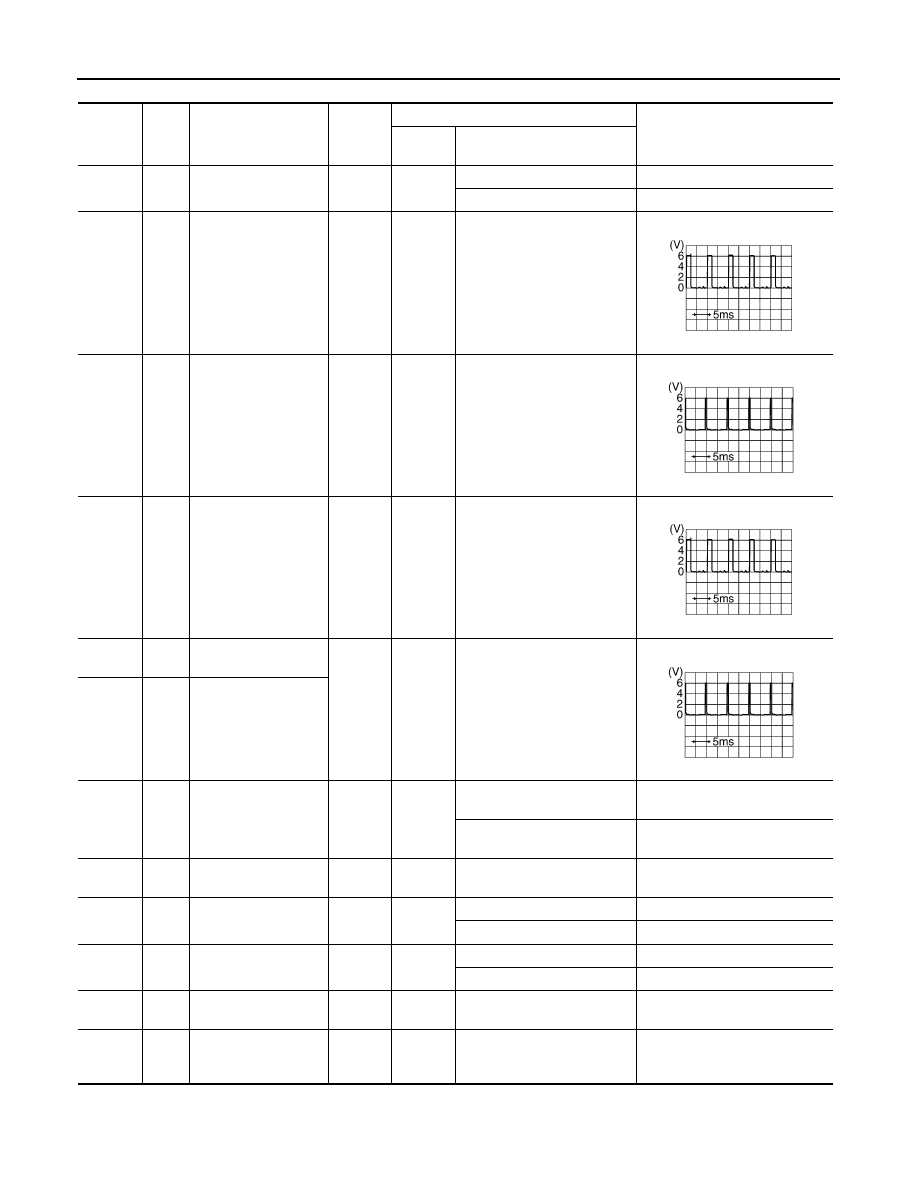

Terminal

Wire

color

Signal name

Signal

input/

output

Measuring condition

Reference value or waveform

(Approx.)

Ignition

switch

Operation or condition

1

BR

Ignition keyhole illumi-
nation

Output

OFF

Door is locked (SW OFF)

Battery voltage

Door is unlocked (SW ON)

0V

2

P

Combination switch
input 5

Input

ON

Lighting, turn, wiper OFF
Wiper dial position 4

3

SB

Combination switch
input 4

Input

ON

Lighting, turn, wiper OFF
Wiper dial position 4

4

V

Combination switch
input 3

Input

ON

Lighting, turn, wiper OFF
Wiper dial position 4

5

L

Combination switch
input 2

Input

ON

Lighting, turn, wiper OFF
Wiper dial position 4

6

R

Combination switch
input 1

9

Y

Rear window defogger
switch

Input

ON

Rear window defogger switch
ON

0V

Rear window defogger switch
OFF

5V

11

G/B

Ignition switch (ACC
or ON)

Input

ACC or

ON

Ignition switch ACC or ON

Battery voltage

12

LG

Front door switch RH

Input

OFF

ON (open)

0V

OFF (closed)

Battery voltage

13

L

Rear door switch RH

Input

OFF

ON (open)

0V

OFF (closed)

Battery voltage

15

W

Tire pressure warning
check connector

Input

OFF

—

5V

18

BR

Remote keyless entry
receiver and optical
sensor (ground)

Output

OFF

—

0V

SKIA5291E

SKIA5292E

SKIA5291E

SKIA5292E

2011 Pathfinder
