HARNESS

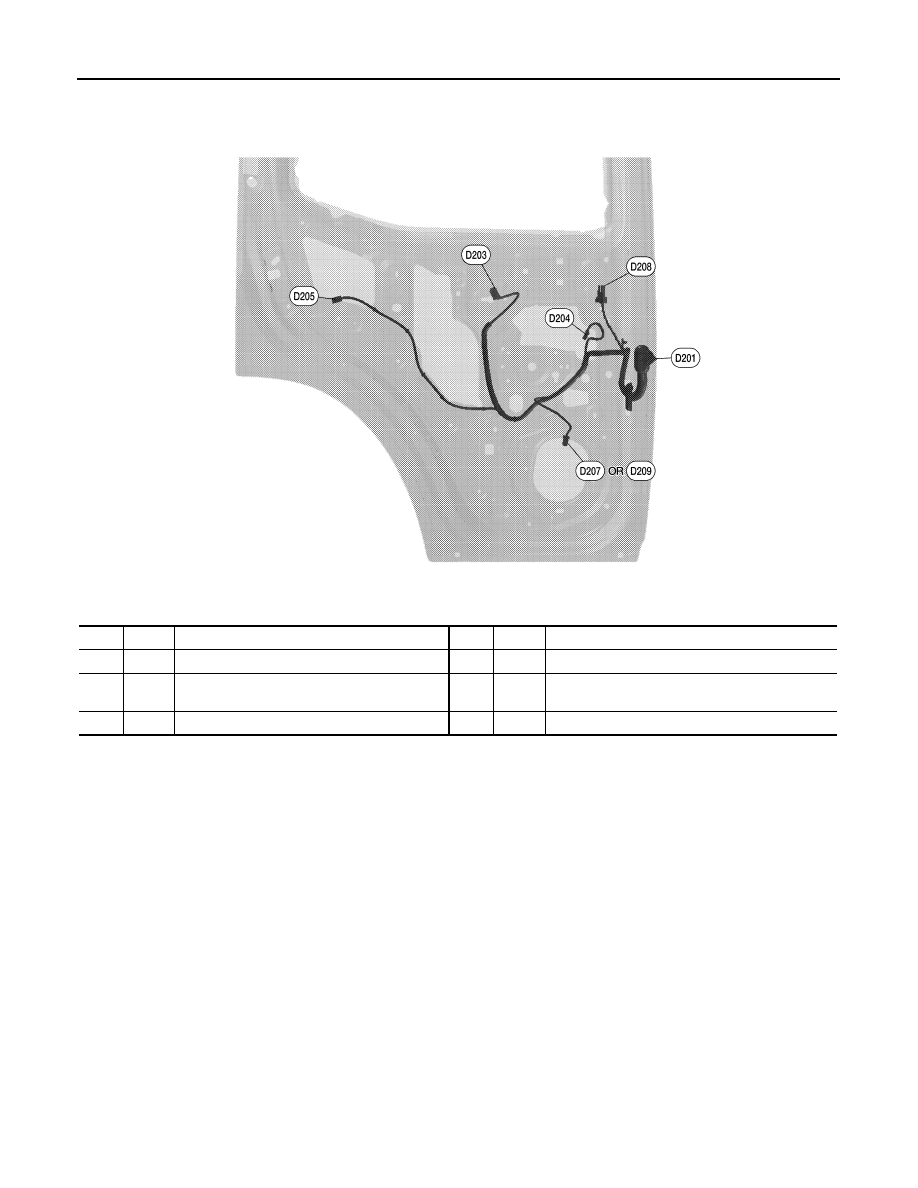

REAR DOOR LH HARNESS

ABMIA1379GB

D201

W/12

: To B6

D207 BR/2

: Rear door speaker LH (with BOSE audio system)

D203

W/8

: Rear power window switch LH

D208 BR/2

: Rear tweeter LH

D204

B/2

: Rear power window motor LH

D209 W/2

: Rear door speaker LH (without BOSE
  audio system)

D205

GR/2

: Rear door lock actuator LH

2011 Pathfinder

PG

HARNESS

PG-61

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

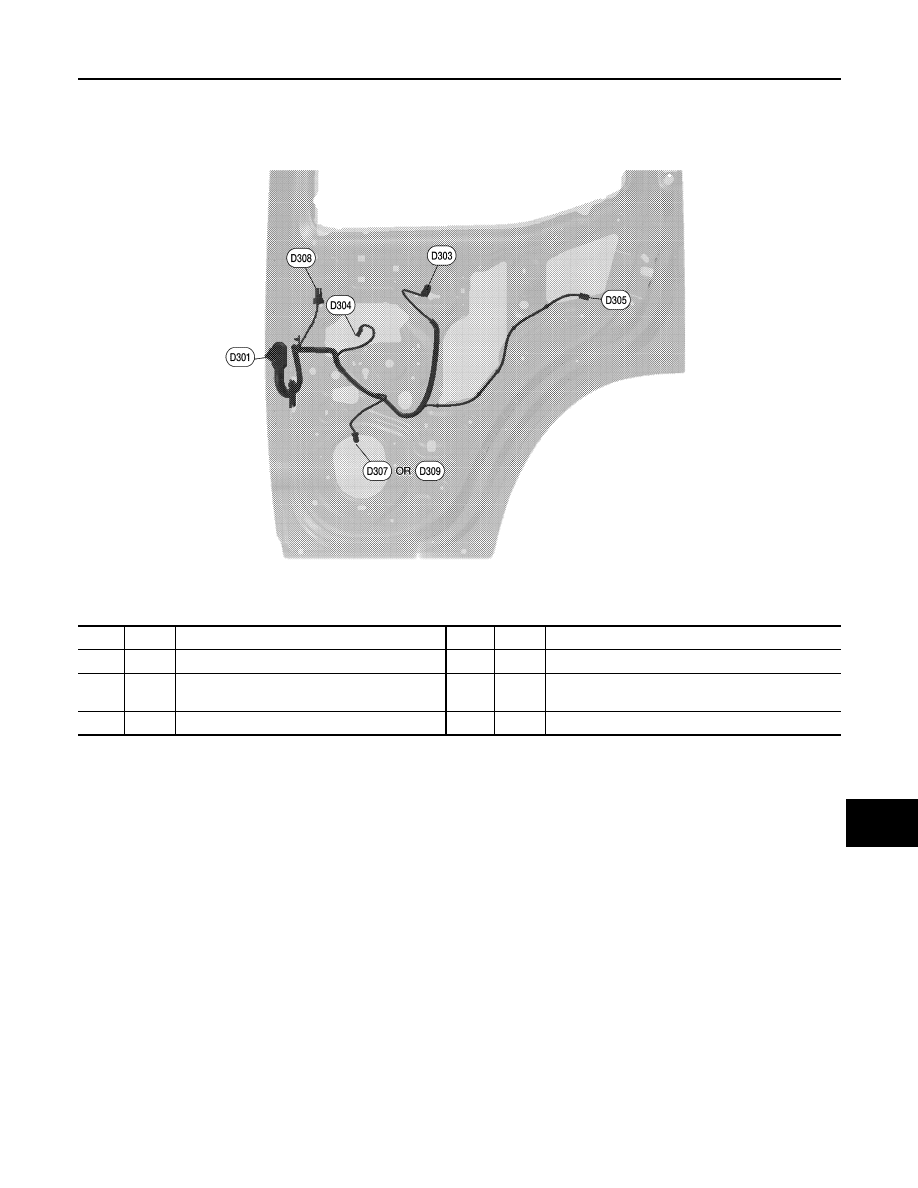

REAR DOOR RH HARNESS

ABMIA1380GB

D301

W/12

: To B106

D307

BR/2

: Rear door speaker RH (with BOSE audio system)

D303

W/8

: Rear power window switch RH

D308

BR/2

: Rear tweeter RH

D304

B/2

: Rear power window motor RH

D309

W/2

: Rear door speaker RH (without BOSE
  audio system)

D305

GR/2

: Rear door lock actuator RH

2011 Pathfinder

PG-62

< DTC/CIRCUIT DIAGNOSIS >

HARNESS

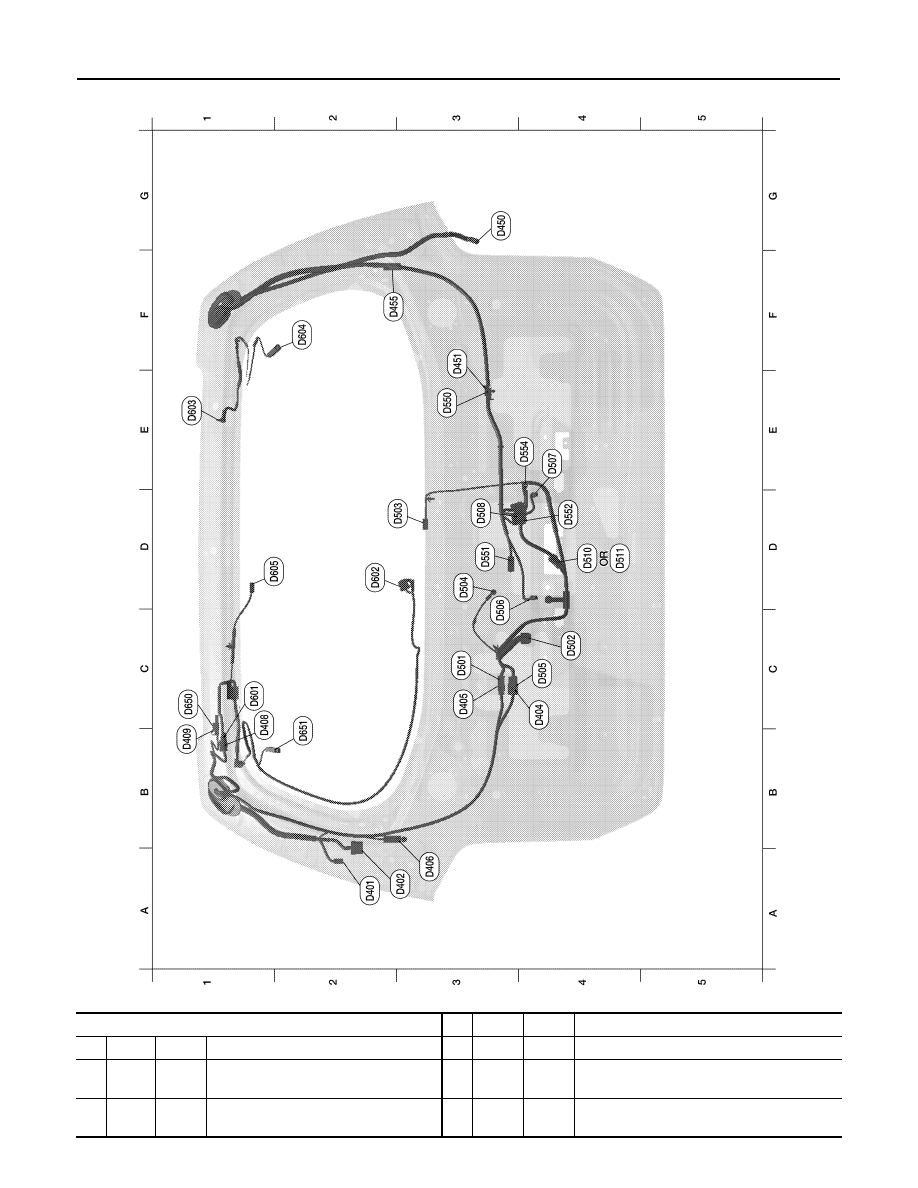

BACK DOOR HARNESS

ABMIA2599GB

Back door No. 2 harness

E4

D507

BR/2

: License plate lamp RH

A2

D401

W/8

: To B43

D3 D508

W/4

: Glass hatch lock actuator

A2

D402

W/6

: To B48

D4 D510

BR/2

: Back door opener switch (without Intelligent
  key system)

C4 D404

W/4

: To D505

D4 D511

BR/2

: Back door opener switch (with Intelligent
  key system)

2011 Pathfinder

PG

HARNESS

PG-63

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

C3 D405

W/8

: To D501

Back door RH harness

A3

D406

—

: Body ground

D3 D550

W/8

: To D451

B1

D408

W/4

: To D601

D3 D551

W/4

: Rear view camera

C1 D409

W/1

: To D650

D4 D552

GR/2

: Back door request switch

Back door No. 2 RH harness

E4

D554

—

: Body ground

F3

D450

W/8

: To B107

Rear window sub-harness

E3

D451

W/8

: To D550

C1 D601

W/4

: To D408

E3

D455

—

: Body ground

D2 D602

W/4

: Rear wiper motor

Back door harness

E1

D603

—

: Body ground

C3 D501

W/8

: To D405

F2

D604

B/1

: Rear window defogger

C4 D502

W/4

: Back door latch

D1 D605

W/2

: High-mounted stop lamp

D2 D503

B/1

: Glass hatch ajar switch

Rear window defogger harness

D3 D504

—

: Body ground

B1

D650

W/1

: To D409

C4 D505

W/4

: To D404

B2

D651

B/1

: Rear window defogger

D4 D506

BR/2

: License plate lamp LH

2011 Pathfinder

PG-64

< DTC/CIRCUIT DIAGNOSIS >

ELECTRICAL UNITS LOCATION

ELECTRICAL UNITS LOCATION

Electrical Units Location

INFOID:0000000006247503

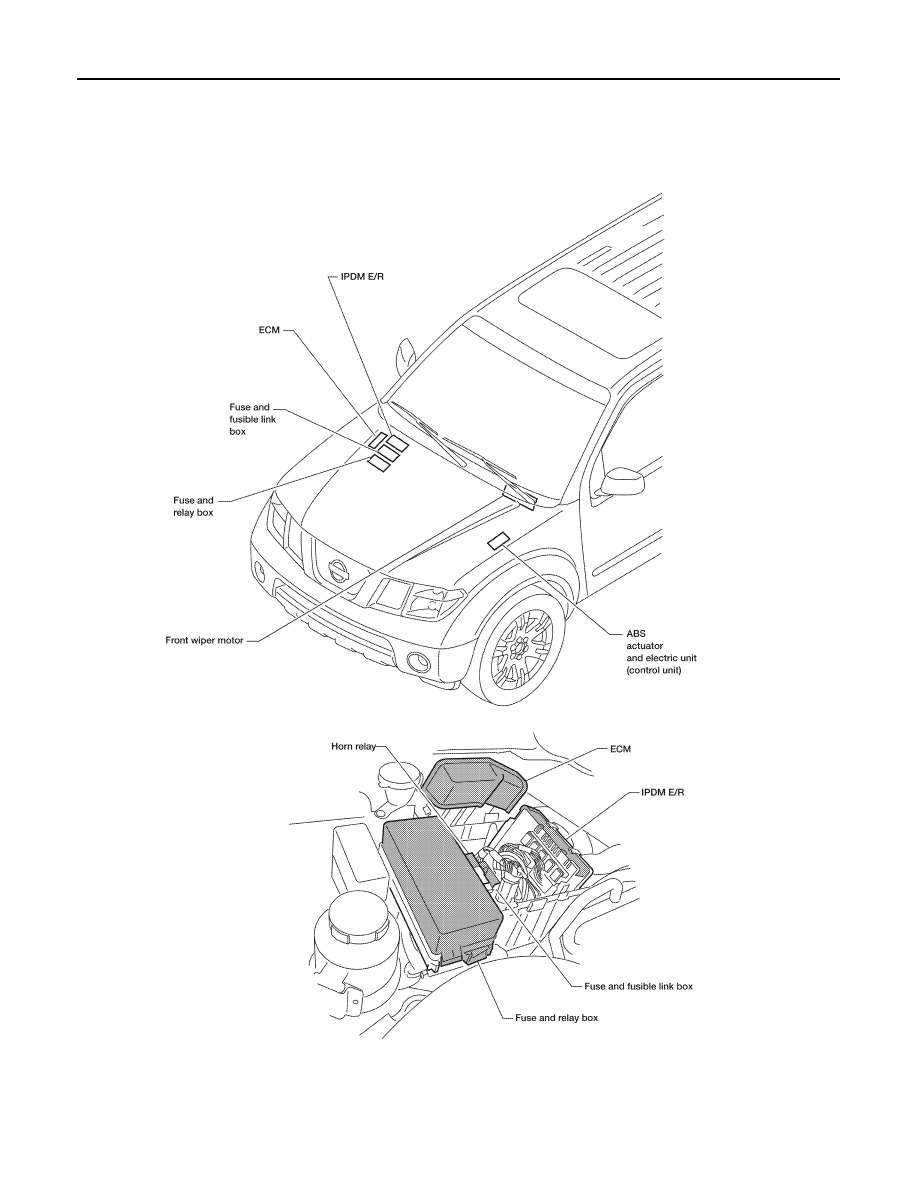

ENGINE COMPARTMENT

ABMIA0309GB

2011 Pathfinder

PG

ELECTRICAL UNITS LOCATION

PG-65

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

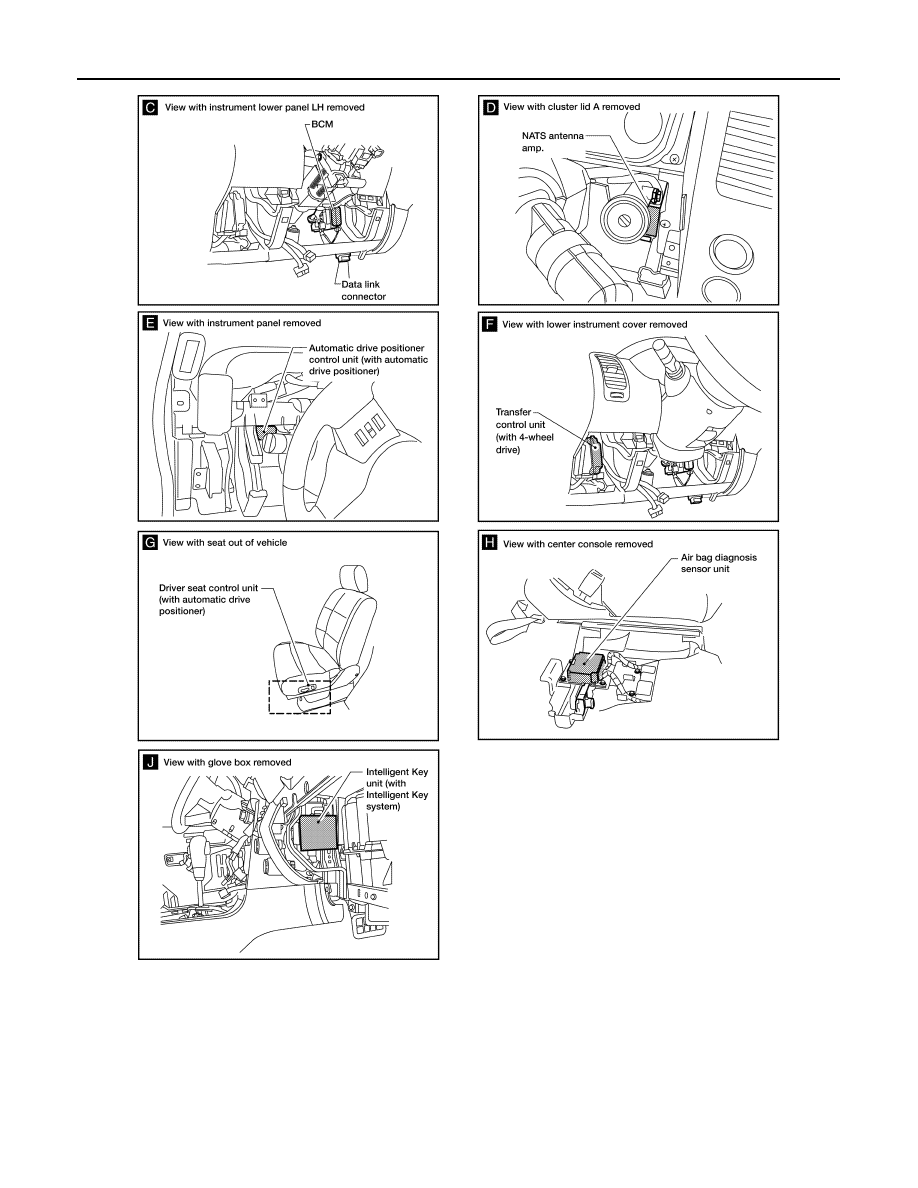

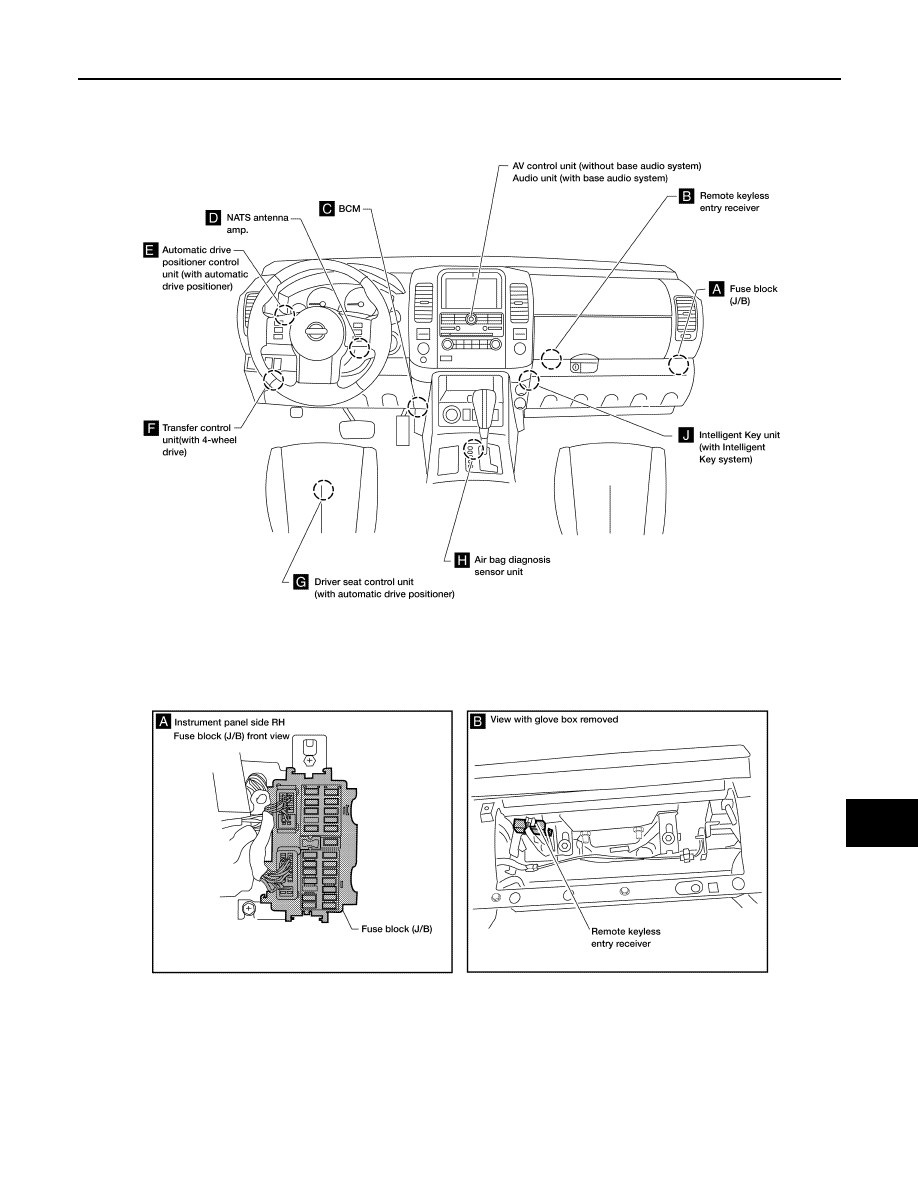

PASSENGER COMPARTMENT

ABMIA3700GB

2011 Pathfinder

PG-66

< DTC/CIRCUIT DIAGNOSIS >

ELECTRICAL UNITS LOCATION

ABMIA3701GB

2011 Pathfinder

PG

HARNESS CONNECTOR

PG-67

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

HARNESS CONNECTOR

Description

INFOID:0000000006247504

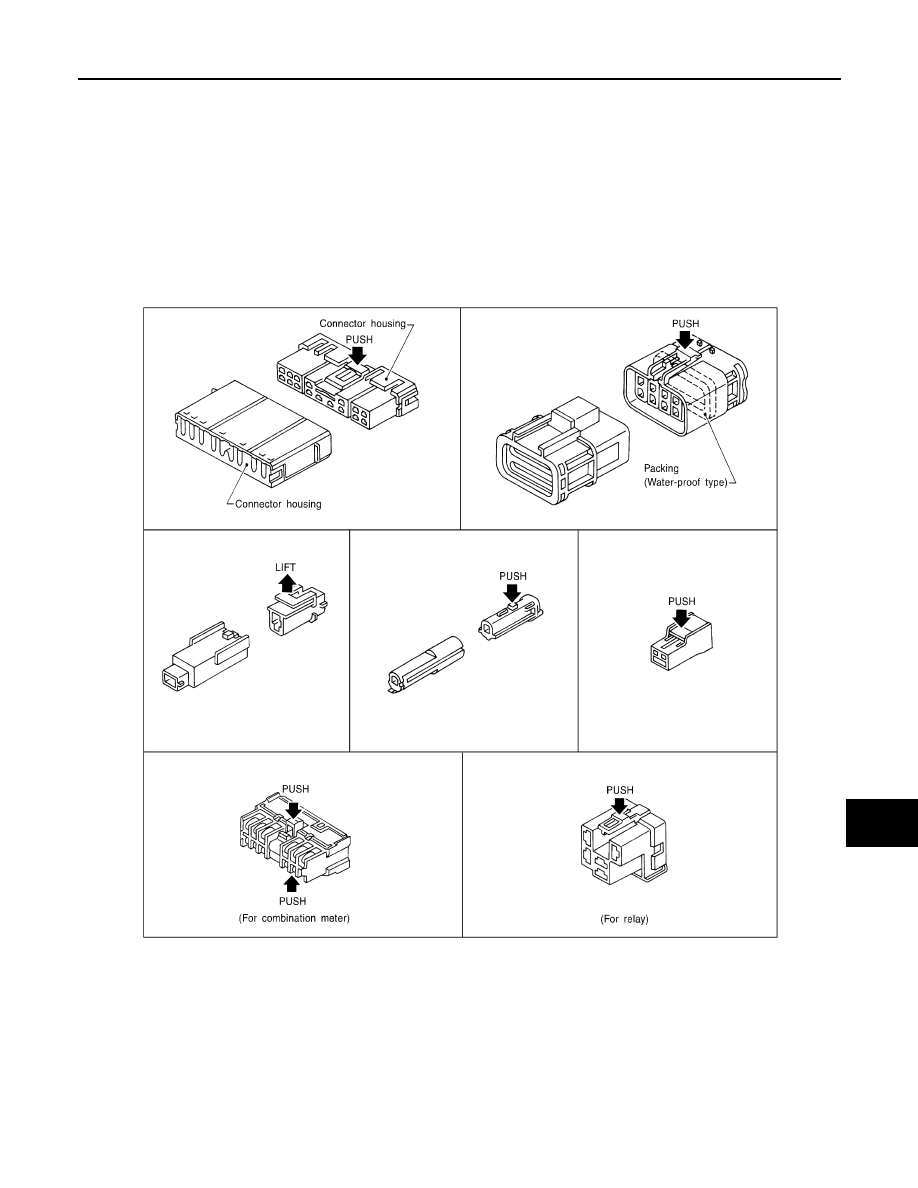

HARNESS CONNECTOR (TAB-LOCKING TYPE)
