GW-18

< UNIT REMOVAL AND INSTALLATION >

FRONT DOOR GLASS AND REGULATOR

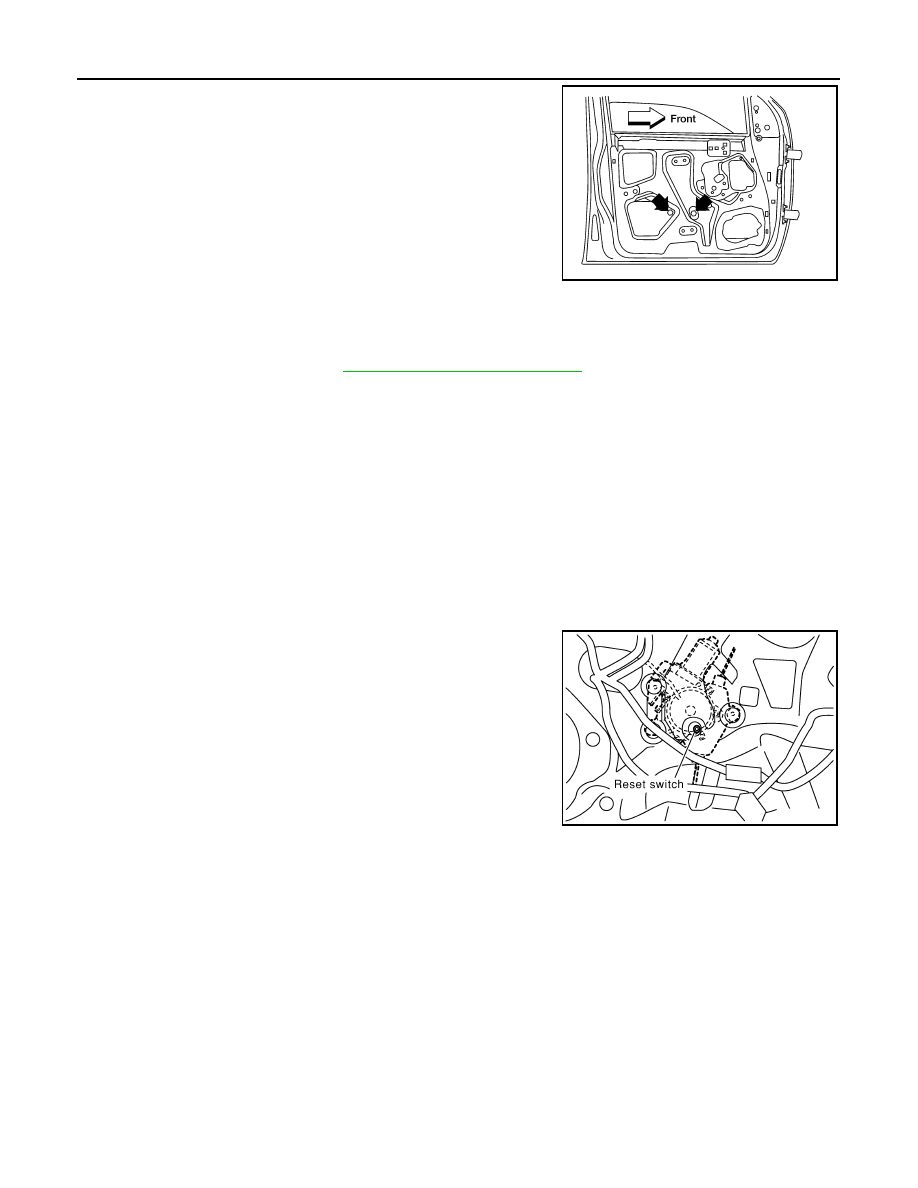

3. Lower the glass and ensure that it is in both the front and rear

glass channels. Tighten glass bolts.

4. Check the glass for proper fit.
5. On the drivers door, reset the motor. Follow the "Setting of Limit Switch" procedure.
6. Reposition the vapor barrier.
7. Install front door finisher. Refer to

INT-15, "Removal and Installation"

SETTING AFTER INSTALLATION

Setting of Limit Switch

If any of the following work has been done, set the limit switch (integrated in the motor).

• Battery cable is disconnected.

• Power window switch connector disconnected.

• Removal and installation of the regulator.

• Removal and installation of the motor from the regulator.

• Removal and installation of the glass.

• Removal and installation of the glass run.

• Window is partly opened and/or closed many times without being fully closed.

Resetting

After installing each component, perform the following procedure to reset the limit switch.

1. Raise the glass to the top position.

2. While pressing and holding the reset switch, lower the glass to

the bottom position.

3. Release the reset switch. Verify that the reset switch returns to

the original position, if not, pull the switch using suitable tool.

4. Raise the glass to the top position.

CAUTION:

Do not operate the glass automatically to raise the glass to

the top position.

Glass mounting bolts : 6.1 N·m (0.62 kg-m, 54 in-lb)

LIIA1686E

SIIA0347E

2011 Pathfinder

REAR DOOR GLASS AND REGULATOR

GW-19

< UNIT REMOVAL AND INSTALLATION >

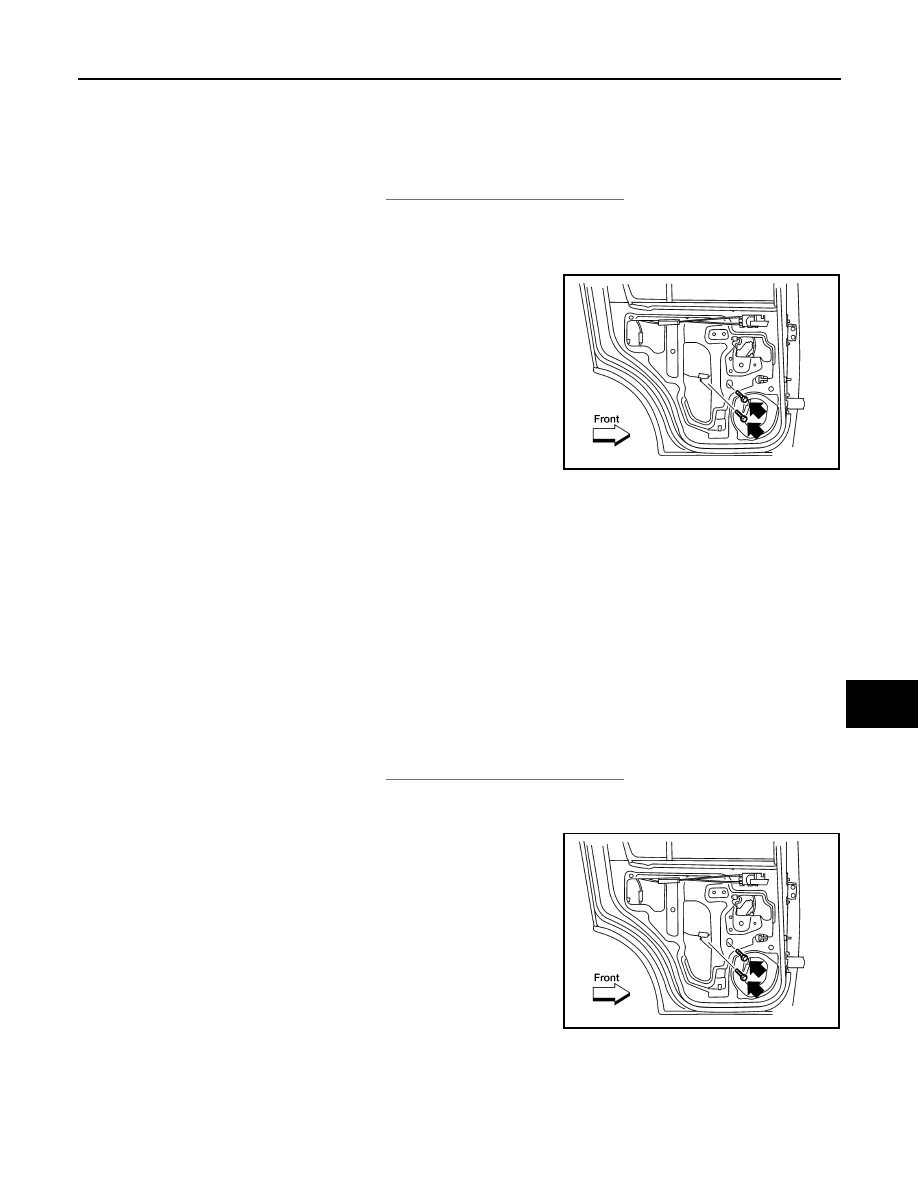

REAR DOOR GLASS AND REGULATOR

Rear Door Glass

INFOID:0000000006247198

REMOVAL

1. Remove the rear door finisher. Refer to

INT-15, "Removal and Installation"

2. Position aside the vapor barrier.
3. Temporarily reconnect the power window switch.
4. Remove the glass run from the partition glass.
5. Operate the power window switch to raise/lower the door win-

dow until the glass bolts can be seen.

6. Remove the partition sash bolt (lower) and screw (upper) to

remove the sash.

7. Remove the bolts and the glass.

INSTALLATION

Installation is in the reverse order of removal.

• Check the glass alignment. Refer to "FITTING INSPECTION".

FITTING INSPECTION

• Check that the glass is securely fit into the glass run groove.

• Lower the glass slightly [approximately 10 to 20 mm (0.39 to 0.79 in)], and check that the clearance to the

sash is parallel. If the clearance between the glass and sash is not parallel, loosen the regulator bolts, guide

rail bolts, and glass carrier plate bolts to correct the glass position.

Rear Door Glass Regulator

INFOID:0000000006247199

REMOVAL

1. Remove the rear door finisher. Refer to

INT-15, "Removal and Installation"

2. Position aside the vapor barrier.
3. Temporarily reconnect the power window switch.
4. Operate the power window switch to raise/lower the door win-

dow until the glass bolts can be seen.

LIIA1689E

Glass bolts

: 6.1 N·m (0.62 kg-m, 54 in-lb)

LIIA1689E

2011 Pathfinder

GW-20

< UNIT REMOVAL AND INSTALLATION >

REAR DOOR GLASS AND REGULATOR

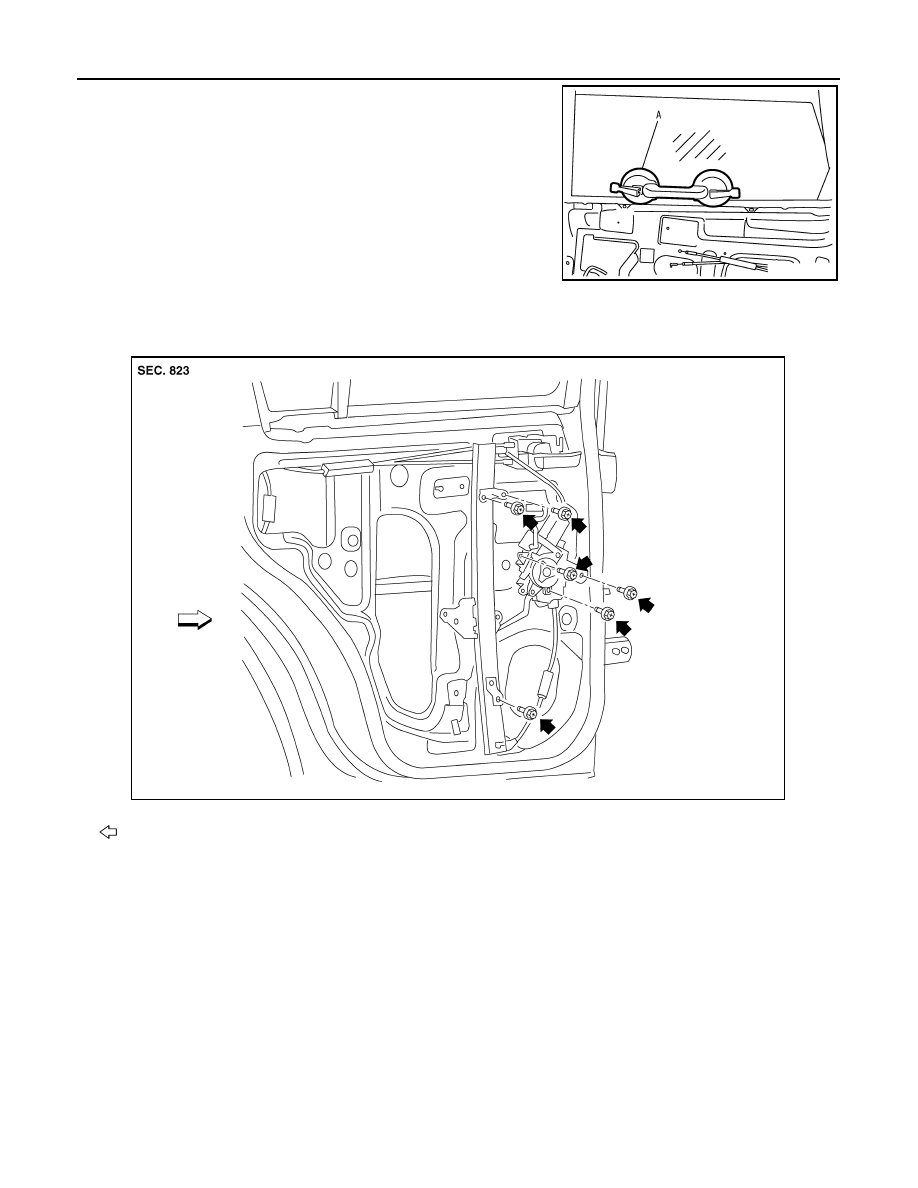

5. Raise the rear door glass and hold it in place with suitable tool

(A).

6. Remove the bolts and the regulator assembly.

• Disconnect the connector from the regulator assembly.

INSPECTION AFTER REMOVAL

Check the regulator assembly for the following items. If a malfunction is detected, replace or grease it.

• Gear wear

• Regulator deformation

• Spring damage

• Grease condition for each sliding part

INSTALLATION

1. Connect the harness connector and install the regulator assembly.

PIIB3511J

Front

WIIA1034E

2011 Pathfinder

REAR DOOR GLASS AND REGULATOR

GW-21

< UNIT REMOVAL AND INSTALLATION >

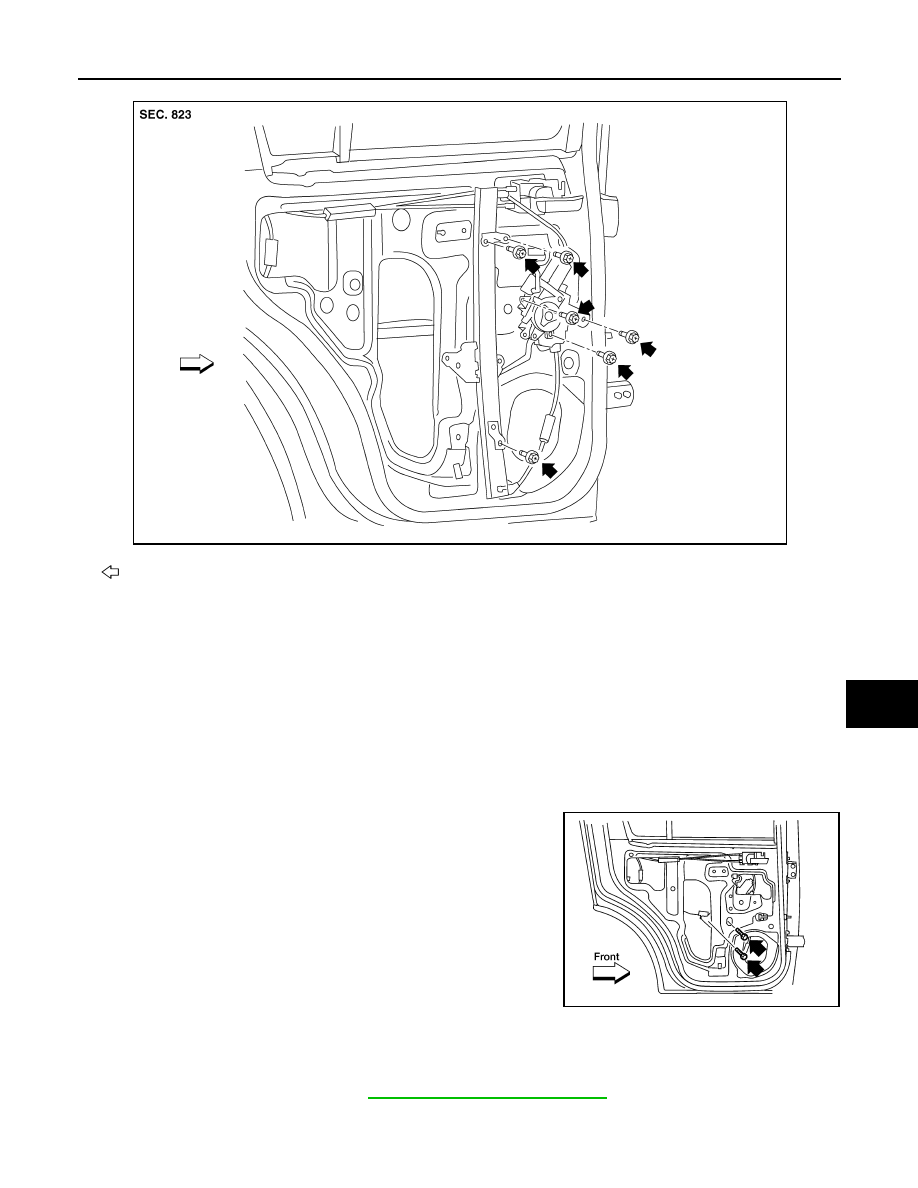

a. Loosely install the top rear regulator bolt to use along with the temporary holds on the window motor to

install the assembly in the door.

b. Install the top front regulator bolt.
c. Install the bottom regulator bolt.
d. Tighten the top rear regulator bolt.
e. Install the top window motor bolt.
f.

Install the lower window motor bolt.

g. Install the front window motor bolt.

2. Lower the glass and ensure that it is in both the front and rear

glass channels. Tighten the bolts.

3. Install the partition sash
4. Check the glass alignment.
5. Reposition the vapor barrier.
6. Install the rear door finisher. Refer to

INT-15, "Removal and Installation"

Front

Regulator assembly

: 7.5 N·m (0.77 kg-m, 66 in-lb)

Glass bolts

: 6.1 N·m (0.62 kg-m, 54 in-lb)

WIIA1034E

LIIA1689E

2011 Pathfinder

GW-22

< UNIT REMOVAL AND INSTALLATION >

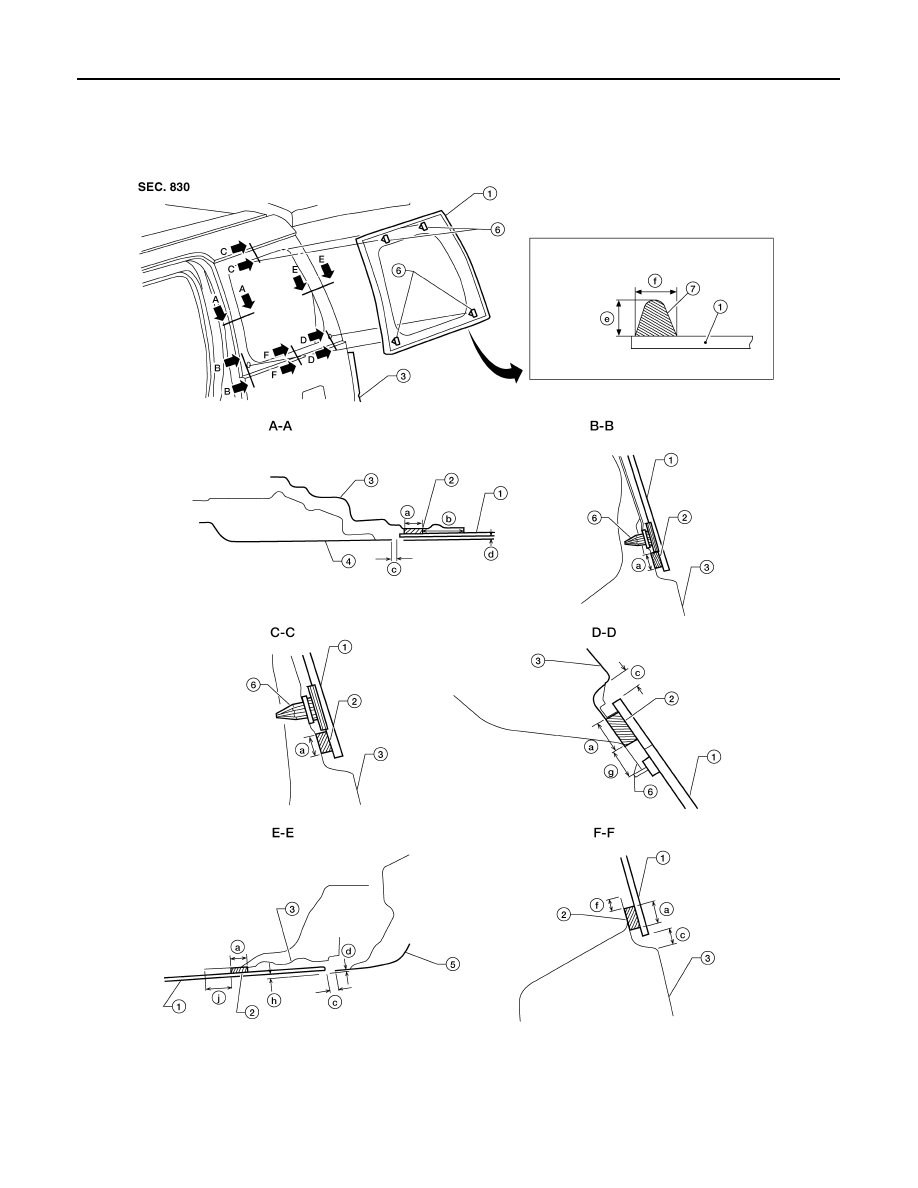

SIDE WINDOW GLASS

SIDE WINDOW GLASS

Removal and Installation

INFOID:0000000006247200

Glass

Primer area

Body side outer

Rear door assembly

Back door assembly

Locating clips

Urethane

15 mm (0.59 in)

42.5 mm (1.67 in)

WIIA1035E

2011 Pathfinder

SIDE WINDOW GLASS

GW-23

< UNIT REMOVAL AND INSTALLATION >

REMOVAL

1. Remove the luggage side lower and upper finisher. Refer to

INT-25, "Removal and Installation"

2. Disconnect the antenna.
3. If the window glass is to be reused, mark the body and the glass with mating marks.

WARNING:

When cutting the glass from the vehicle, always wear safety glasses and heavy gloves to help prevent

glass splinters from entering your eyes or cutting your hands.

4. Remove the glass using piano wire or power cutting tool and an inflatable pump bag.

CAUTION:

• When the side window glass is to be reused, do not use a cutting knife or power cutting tool.

• Be careful not to scratch the glass when removing.

• Do not set or stand the glass on its edge. Small chips may develop into cracks.

INSTALLATION

Installation is in the reverse order of removal.

• Use a genuine NISSAN Urethane Adhesive Kit (if available) or equivalent and follow the instructions fur-

nished with it.

• While the urethane adhesive is curing, open a door window. This will prevent the glass from being forced out

by passenger compartment air pressure when a door is closed.

• Check gap along bottom to confirm that glass does not contact sheet metal.

• Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely

cured (preferably 24 hours). Curing time varies with temperature and humidity.

WARNING:

• Keep heat and open flames away as primers and adhesive are flammable.

• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid

contact with the skin and eyes.

• Use in an open, well ventilated location. Avoid breathing the vapors. They can be harmful if inhaled.

If affected by vapor inhalation, immediately move to an area with fresh air.

• Driving the vehicle before the urethane adhesive has completely cured may affect the performance

of the glass in case of an accident.

CAUTION:

• Do not use an adhesive which is past its usable term. Shelf life of this product is limited to six

months after the date of manufacture. Carefully adhere to the expiration or manufacture date printed

on the box.

• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.

• Do not leave primers or adhesive cartridge unattended with their caps open or off.

• The vehicle should not be driven for at least 24 hours or until the urethane adhesive has completely

cured. Curing time varies depending on temperature and humidity. The curing time will increase

under lower temperatures and lower humidities.

Repairing Water Leaks for Side Window Glass

Leaks can be repaired without removing or reinstalling glass.

If water is leaking between urethane adhesive material and body or glass, determine the extent of leakage.

This can be done by applying water to the side window area while pushing glass outward.

To stop leak, apply primer (if necessary) and then urethane adhesive to the leak point.

3.0 mm (0.12 in)

2.5 mm (0.1 in)

12 mm (0.47 in)

7.0 mm (0.28 in)

11.5 mm (0.45 in)

3.3 mm (0.13 in)

30 mm (1.2 in)

2011 Pathfinder

GW-24

< UNIT REMOVAL AND INSTALLATION >

GLASS HATCH

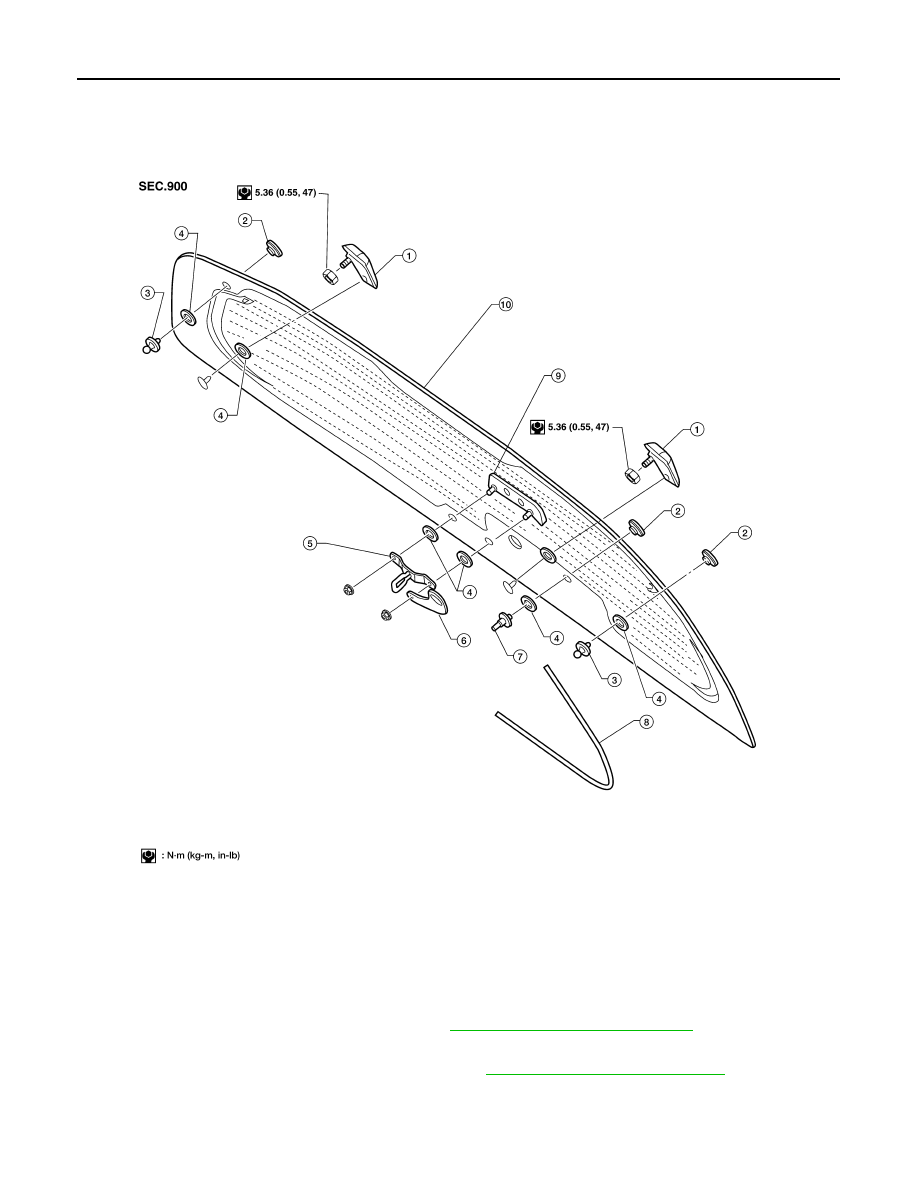

GLASS HATCH

Removal and Installation

INFOID:0000000006247201

Removal

1. Remove the rear wiper motor assembly. Refer to

WW-75, "Removal and Installation"

2. Disconnect the rear defroster electrical connectors.
3. Remove the back door top garnish assembly. Refer to

INT-27, "Removal and Installation"

4. Remove the glass hatch stays.
5. Remove the glass hatch assembly.

CAUTION:

Glass hatch hinge RH/LH

Glass hatch stud

Gas stay ball stud RH/LH

Bushing

Glass hatch striker

Wiper motor bracket

Wiper motor stud

Harness protector

Glass hatch

10. Glass hatch handle assembly

WIIA0743E

2011 Pathfinder

GLASS HATCH

GW-25

< UNIT REMOVAL AND INSTALLATION >

• Be careful not to scratch the glass when removing.

• Do not set or stand the glass on its edge. Small chips may develop into cracks.

Installation

Installation is in the reverse order of removal.

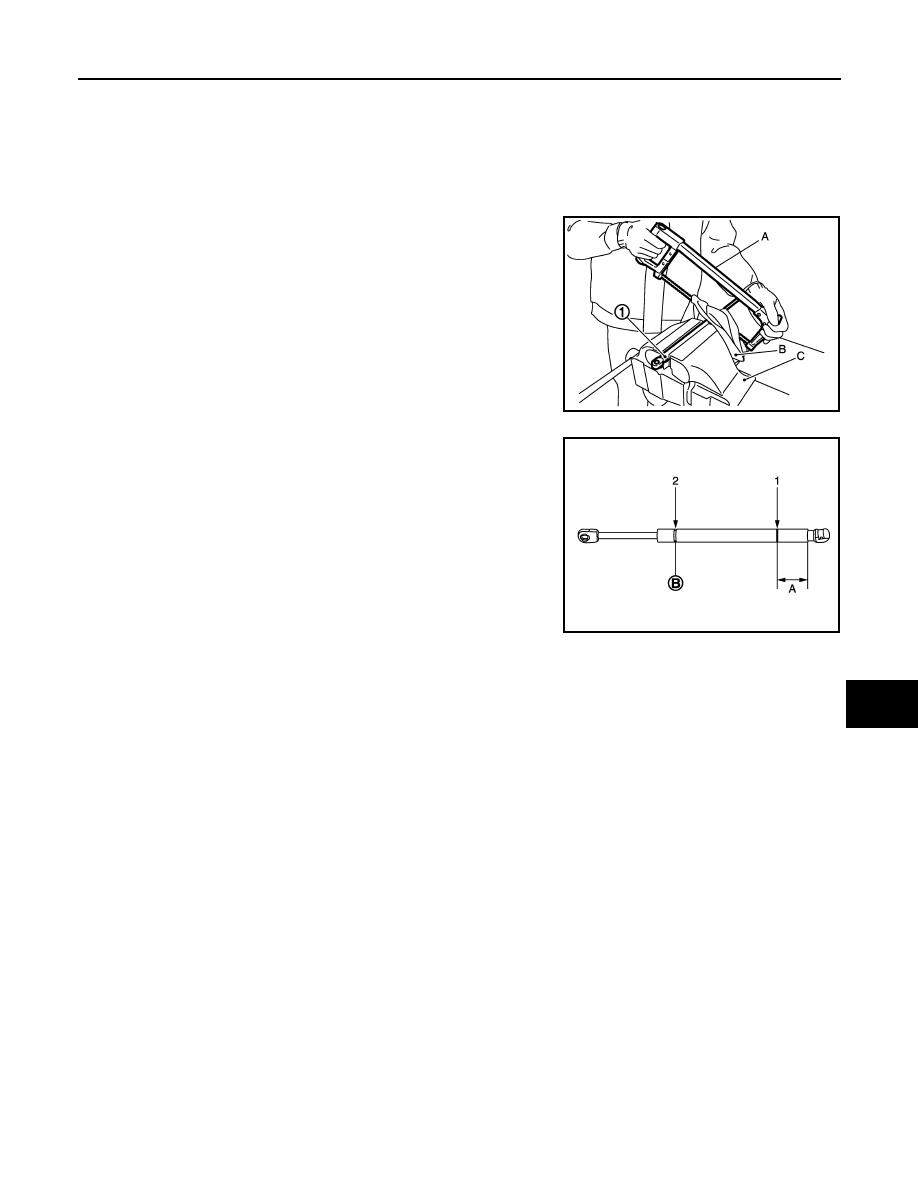

Rear Window Stay Disposal

INFOID:0000000006247202

1. Fix window stay (1) using a vise (C).
2. Using hacksaw (A) slowly make two holes in the window stay, in

numerical order as shown in the figure.

CAUTION:

• When cutting a hole on window stay, always cover a hack-

saw using a shop cloth (B) to avoid scattering metal frag-

ments or oil.

• Wear eye protection (safety glasses).

• Wear gloves.

JMKIA3336ZZ

A: 20 mm (0.787 in)
B: Cut in numerical order as

shown at the groove.

JMKIA3609ZZ
