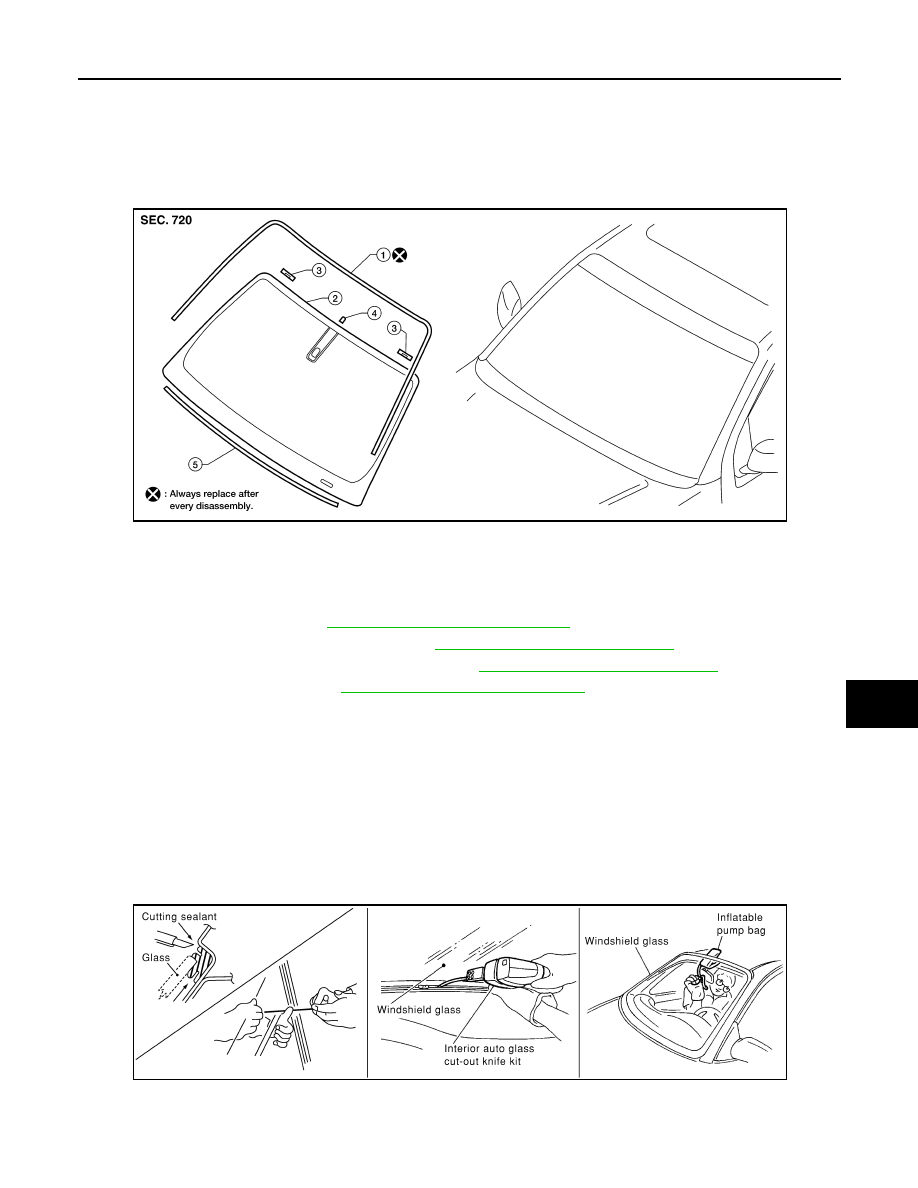

5. Apply a protective tape around the windshield glass to protect the painted surface from damage.
6. Remove glass using piano wire or power cutting tool and an inflatable pump bag.
• If the windshield glass is to be reused, mark the body and the glass with mating marks.

WARNING:

When cutting the glass from the vehicle, always wear safety glasses and heavy gloves to help prevent

glass splinters from entering your eyes or cutting your hands.

CAUTION:

• When the windshield glass is to be reused, do not use a cutting knife or power cutting tool.

• Be careful not to scratch the glass when removing.

• Do not set or stand glass on its edge. Small chips may develop into cracks.

INSTALLATION

Installation is in the reverse order of removal.

Molding

Windshield

Windshield position pins

Mirror base

Insulator

LIIA1684E

PIIA0186E

2011 Pathfinder

GW-12

< UNIT REMOVAL AND INSTALLATION >

WINDSHIELD GLASS

• Use a genuine NISSAN Urethane Adhesive Kit (if available) or equivalent and follow the instructions fur-

nished with it.

• While the urethane adhesive is curing, open a door window. This will prevent the glass from being forced out

by passenger compartment air pressure when a door is closed.

• The molding must be installed securely so that it is in position and leaves no gap.

• Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely

cured (preferably 24 hours). Curing time varies with temperature and humidity.

WARNING:

• Keep heat and open flames away as primers and adhesive are flammable.

• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid

contact with the skin and eyes.

• Use in an open, well ventilated location. Avoid breathing the vapors. They can be harmful if inhaled.

If affected by vapor inhalation, immediately move to an area with fresh air.

• Driving the vehicle before the urethane adhesive has completely cured may affect the performance

of the windshield in case of an accident.

CAUTION:

• Do not use an adhesive which is past its usable term. Shelf life of this product is limited to six

months after the date of manufacture. Carefully adhere to the expiration or manufacture date printed

on the box.

• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.

• Do not leave primers or adhesive cartridge unattended with their caps open or off.

• The vehicle should not be driven for at least 24 hours or until the urethane adhesive has completely

cured. Curing time varies depending on temperature and humidities. The curing time will increase

under lower temperatures and lower humidities.

2011 Pathfinder

WINDSHIELD GLASS

GW-13

< UNIT REMOVAL AND INSTALLATION >

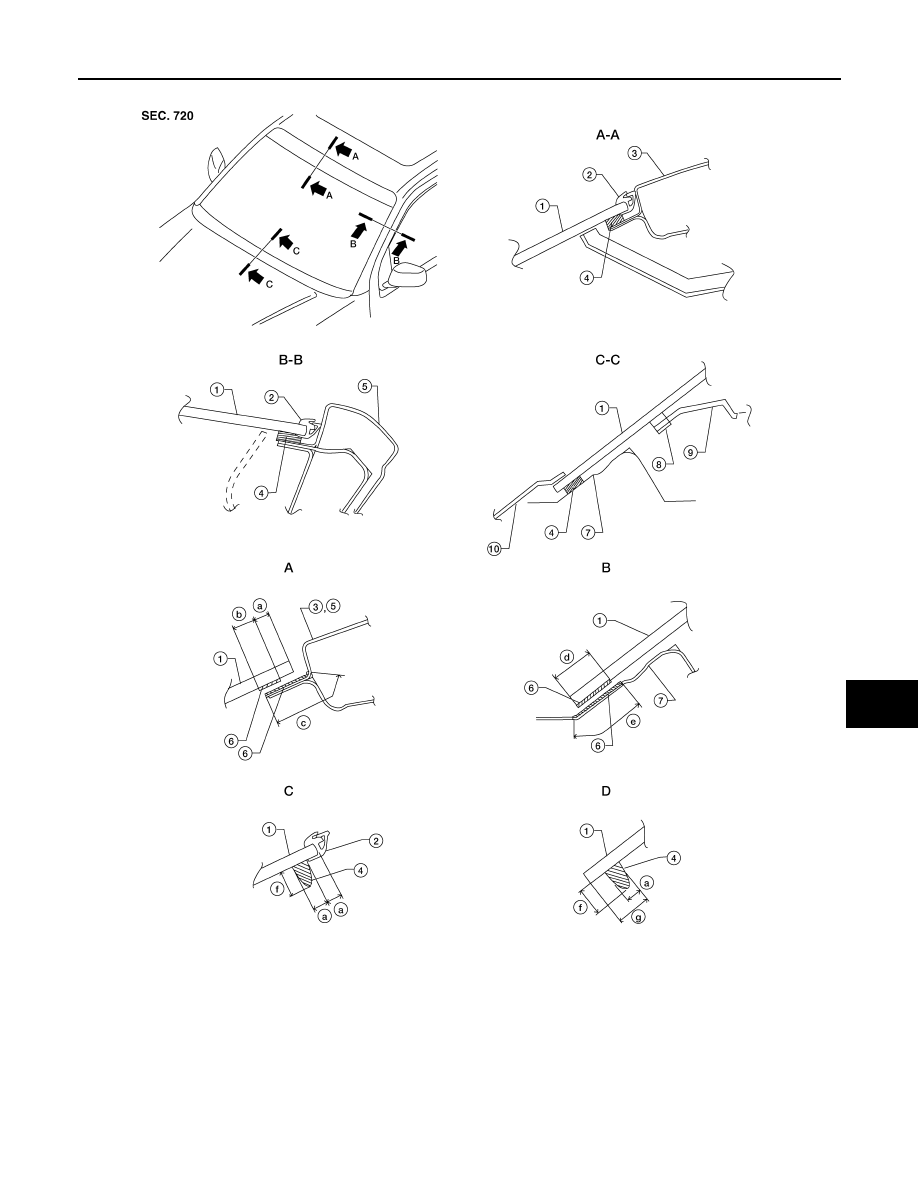

Windshield glass

Molding

Roof

Urethane

A-pillar

Primer

Cowl top panel

Insulator

Instrument panel

10. Cowl top cover

Primer area (top and sides)

Primer area (bottom)

Bond area (top and sides)

Bond area (bottom)

7.0 mm (0.27 in)

WIIA1032E

2011 Pathfinder

GW-14

< UNIT REMOVAL AND INSTALLATION >

WINDSHIELD GLASS

Repairing Water Leaks for Windshield

Leaks can be repaired without removing and reinstalling glass.

If water is leaking between the urethane adhesive material and body or glass, determine the extent of leakage.

This can be done by applying water to the windshield area while pushing glass outward.

To stop the leak, apply primer (if necessary) and then urethane adhesive to the leak point.

10.0 mm (0.39 in)

22.0 mm (0.78 in)

20.0 mm (0.78 in)

28.0 mm (1.10 in)

12.0 mm (0.47 in)

15.0 mm (0.59 in)

2011 Pathfinder

FRONT DOOR GLASS AND REGULATOR

GW-15

< UNIT REMOVAL AND INSTALLATION >

FRONT DOOR GLASS AND REGULATOR

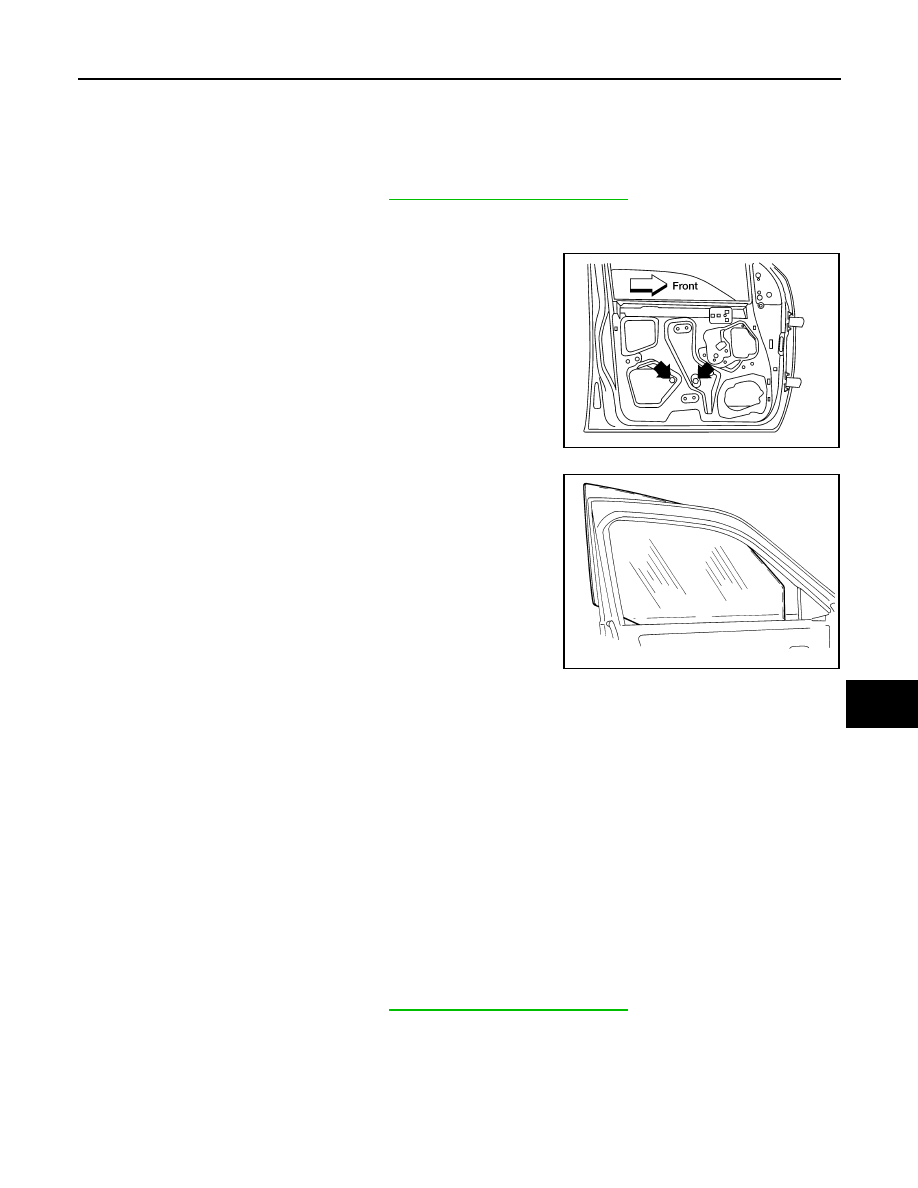

Front Door Glass

INFOID:0000000006247196

REMOVAL

1. Remove the front door finisher. Refer to

INT-15, "Removal and Installation"

2. Position aside the vapor barrier.
3. Temporarily reconnect the power window switch.

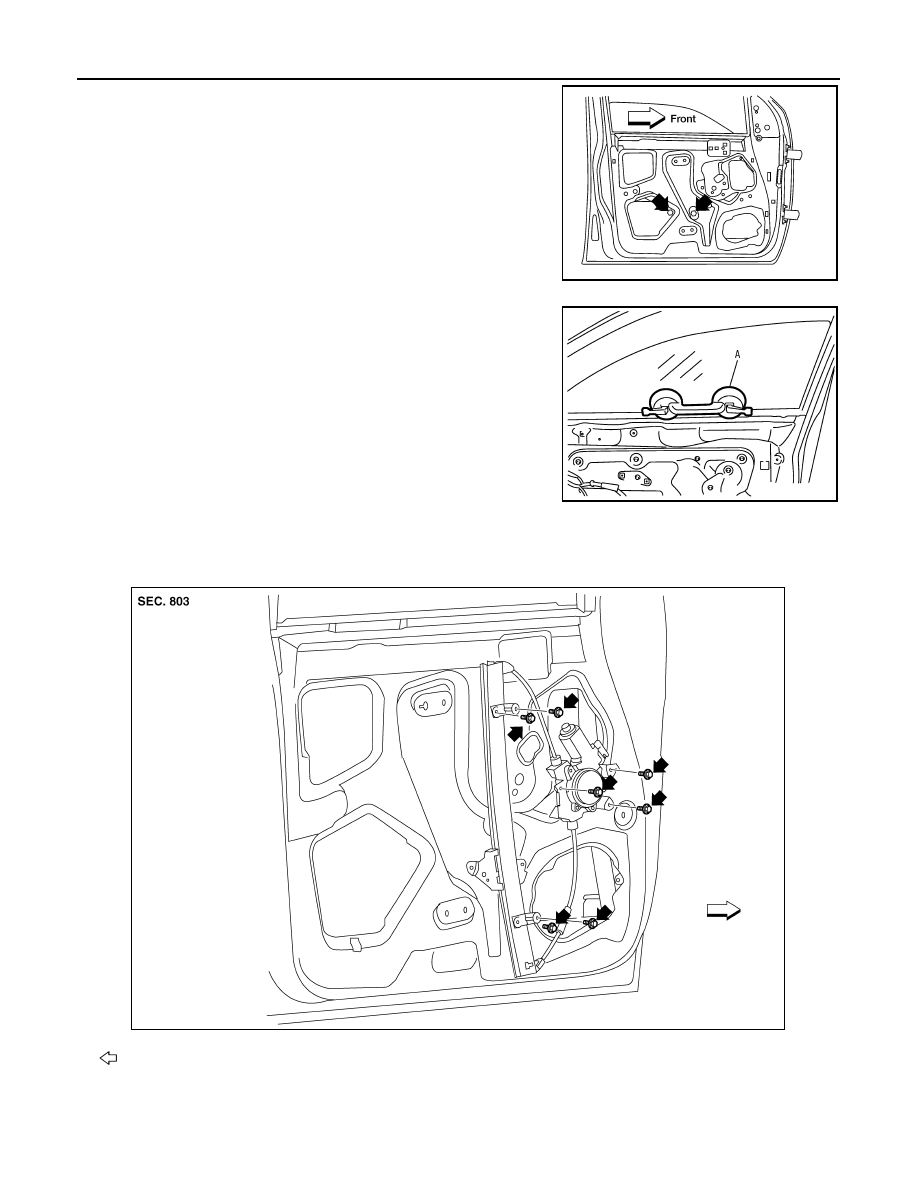

4. Operate the power window main switch to raise/lower the door

window until the glass bolts can be seen.

5. Partially remove the inside seal.
6. Remove the glass bolts.

7. While holding the door window, raise it at the rear and pull the

glass out of the sash toward the outside of the door.

INSTALLATION

Installation is in the reverse order of removal.

• Check the glass for proper fit. Follow the "FITTING INSPECTION" procedure.

• On the drivers door, reset the motor.

FITTING INSPECTION

• Check that the glass is securely fit into the glass run groove.

• Lower the glass slightly [approximately 10 to 20 mm (0.39 to 0.79 in)] and check that the clearance to the

sash is parallel. If the clearance between the glass and sash is not parallel, loosen the regulator bolts, guide

rail bolts, and glass and guide rail bolts to correct the glass position.

Front Door Glass Regulator

INFOID:0000000006247197

REMOVAL

1. Remove the front door finisher. Refer to

INT-15, "Removal and Installation"

2. Position aside the vapor barrier.
3. Temporarily reconnect the power window switch.

LIIA1686E

LIIA1687E

Glass bolts

: 6.1 N·m (0.62 kg-m, 54 in-lb)

2011 Pathfinder

GW-16

< UNIT REMOVAL AND INSTALLATION >

FRONT DOOR GLASS AND REGULATOR

4. Operate the power window main switch to raise/lower the door

window until the glass bolts can be seen.

5. Remove the glass bolts.

6. Raise the front door glass and hold it in place with suitable tool

(A) .

7. Disconnect the harness connector from the regulator assembly.
8. Remove the bolts and the regulator assembly.

DISASSEMBLY AND ASSEMBLY

Remove the regulator motor from the regulator assembly.

INSPECTION AFTER REMOVAL

LIIA1686E

PIIB3510J

Front

WIIA1033E

2011 Pathfinder

FRONT DOOR GLASS AND REGULATOR

GW-17

< UNIT REMOVAL AND INSTALLATION >

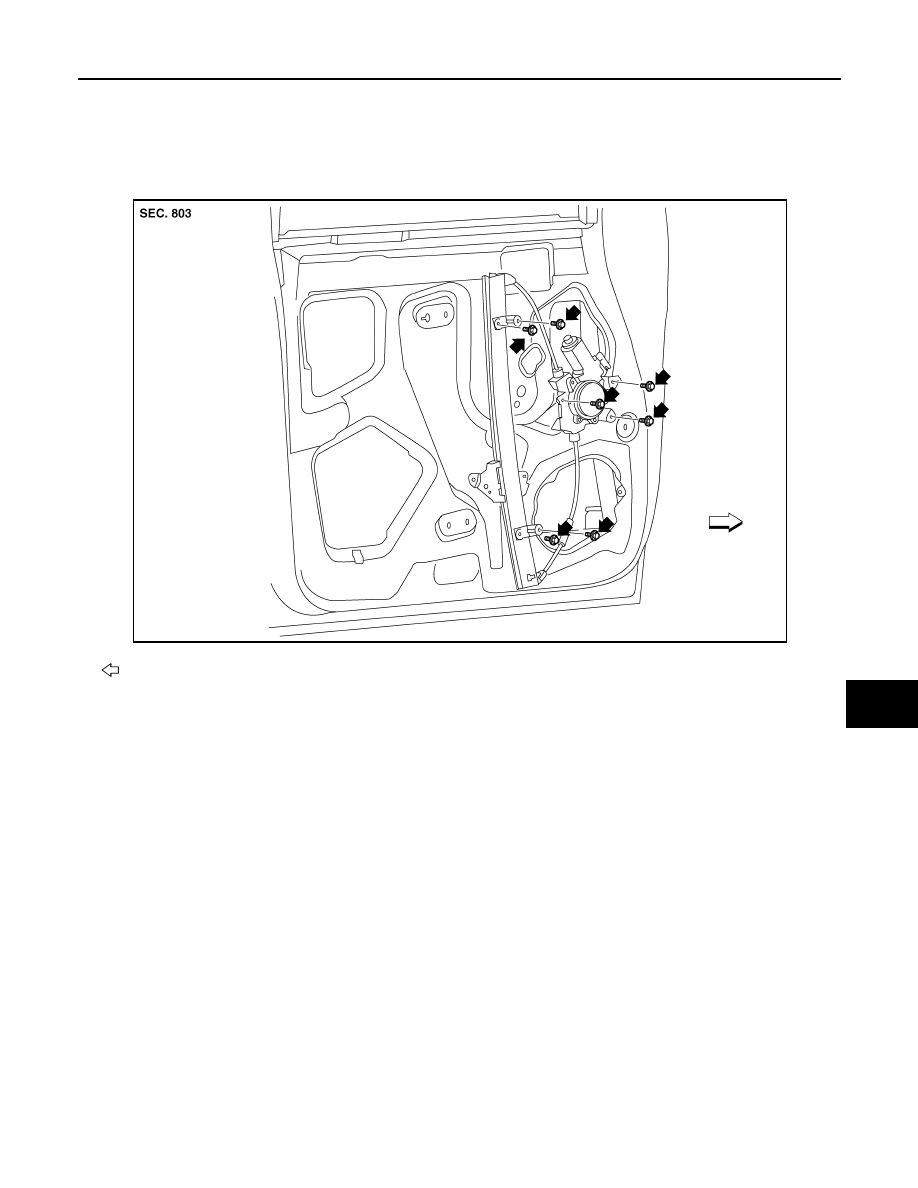

Check the regulator assembly for the following items. If a malfunction is detected, replace or grease it.

• Wire wear

• Regulator deformation

• Grease condition for each sliding part

INSTALLATION

1. Install the regulator assembly.
a. Loosely install the top rear regulator bolt to use along with the temporary holds on the window motor to

install the assembly in the door.

b. Install the top front regulator bolt.
c. Install the bottom front regulator bolt.
d. Install the bottom rear regulator bolt.
e. Tighten the top rear regulator bolt.
f.

Install the top window motor bolt.

g. Install the lower window motor bolt
h. Install the rear window motor bolt.

2. Connect the harness connector to the regulator assembly.

Front

Regulator and motor bolts : 5.1 N·m (0.58 kg-m, 50 in-lb)

WIIA1033E

2011 Pathfinder
