FRONT TIMING CHAIN CASE

EM-55

< REMOVAL AND INSTALLATION >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

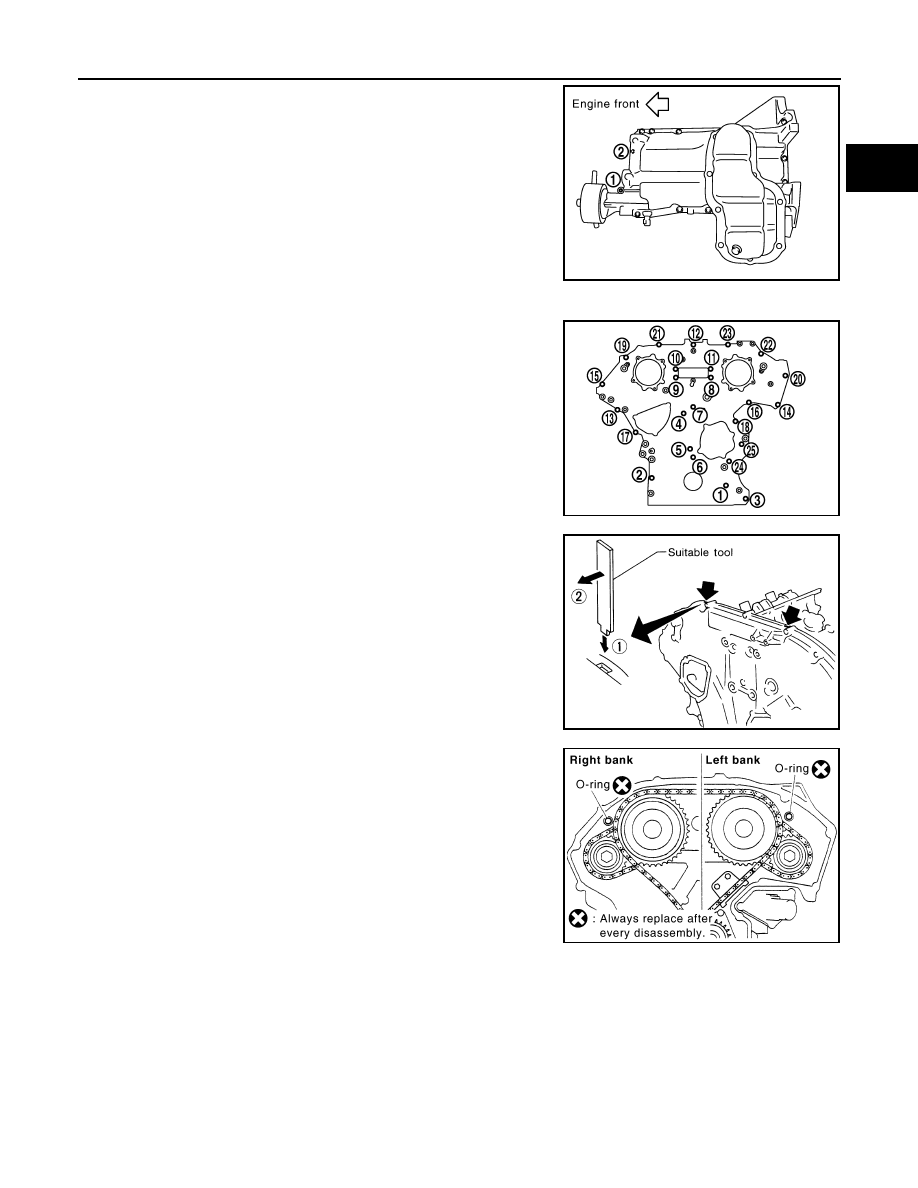

19. Loosen two bolts in front of oil pan (upper) in reverse order as

shown.

20. Remove front timing chain case as follows:
a. Loosen bolts with power tool in reverse order as shown.

b. Insert suitable tool into the notch at the top of the front timing

chain case as shown (1).

c. Pry off case by moving tool as shown (2).

• Cut liquid gasket for removal using Tool.

CAUTION:

• Do not use screwdriver or something similar.

• After removal, handle front timing chain case carefully so

it does not twist, bend, or warp under a load.

21. Remove O-rings from rear timing chain case.

CAUTION:

Do not reuse O-rings.

22. If necessary, remove water pump cover and chain tensioner cover from front timing chain case.

• Cut liquid gasket for removal using Tool.

PBIC2907E

PBIC2908E

Tool number

: KV10111100 (J-37228)

SEM156F

PBIC2548E

Tool number

: KV10111100 (J-37228)

2011 Pathfinder

EM-56

< REMOVAL AND INSTALLATION >

[VQ40DE]

FRONT TIMING CHAIN CASE

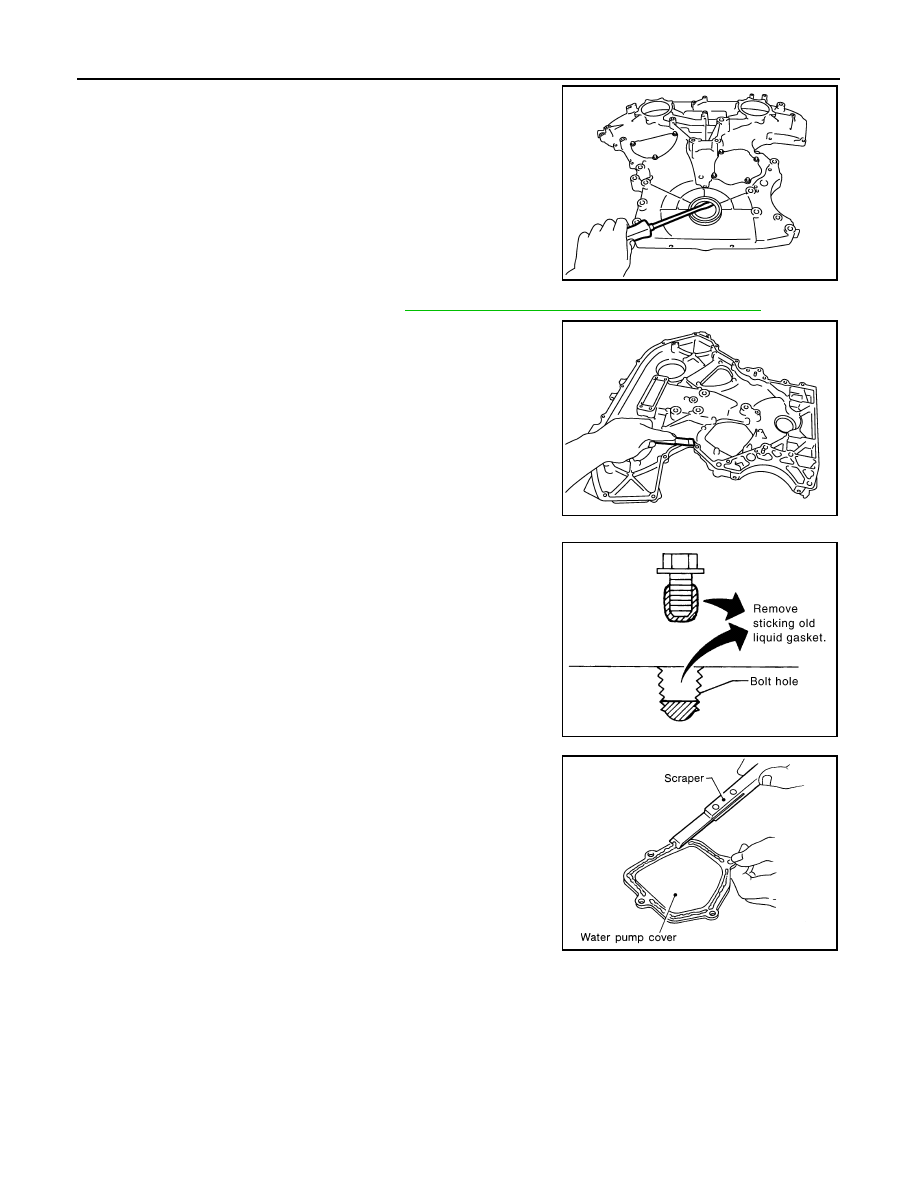

23. Remove front oil seal from front timing chain case using suitable

tool.

CAUTION:

Be careful not to damage front timing chain case.

24. Remove idler pulley, if necessary. Refer to

EM-15, "Drive Belt Auto Tensioner and Idler Pulley"

.

25. Use a scraper to remove all traces of old liquid gasket from front

and rear timing chain cases, oil pan (upper), and liquid gasket

mating surfaces.

CAUTION:

Be careful not to allow gasket fragments to enter oil pan.

• Remove old liquid gasket from bolt hole and thread.

26. Use a scraper to remove all traces of old liquid gasket from

water pump cover, chain tensioner cover (if necessary) and

intake valve timing control covers.

INSTALLATION

PBIC2909E

PBIC2910E

PBIC2084E

SEM926E

2011 Pathfinder

FRONT TIMING CHAIN CASE

EM-57

< REMOVAL AND INSTALLATION >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

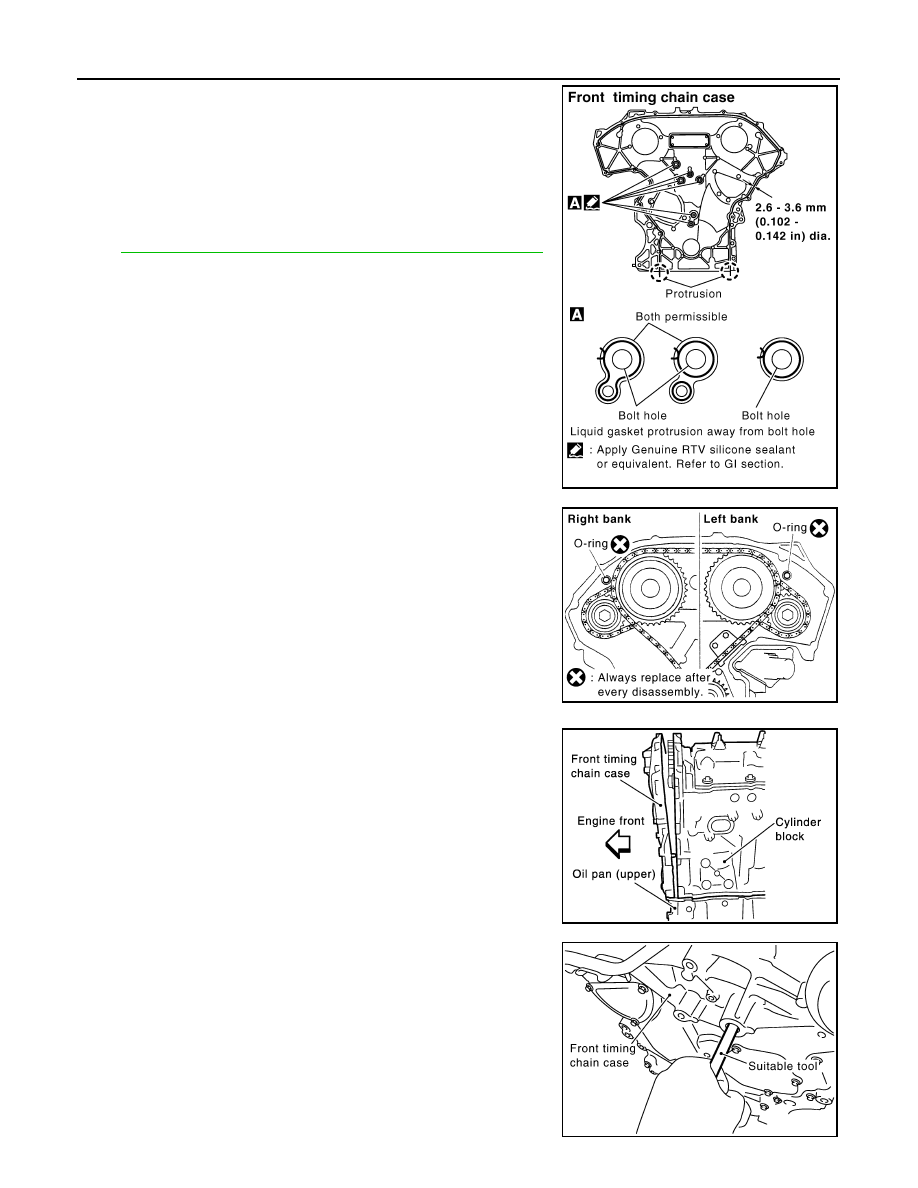

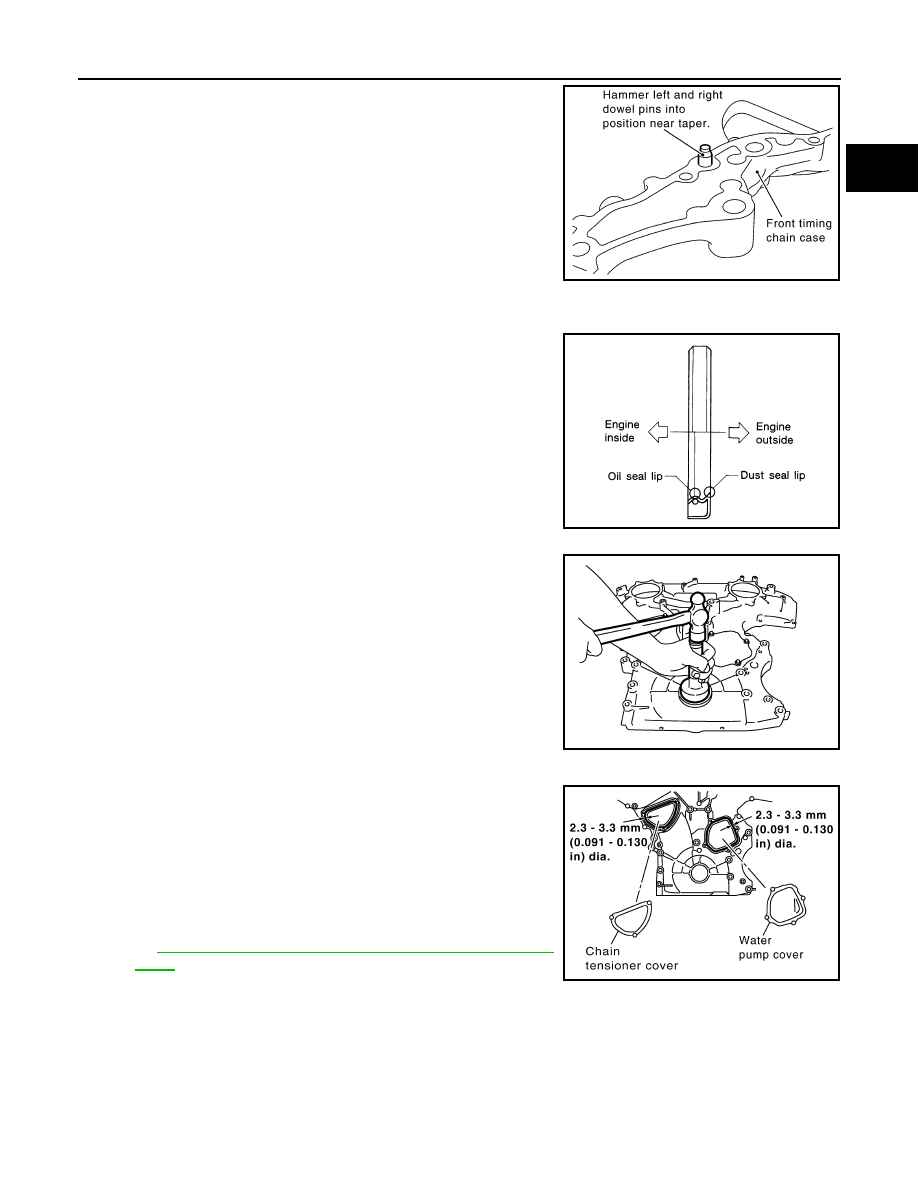

1. Hammer dowel pins (right and left) into their original positions in

the front timing chain case up to a point close to taper in order to

shorten protrusion length.

NOTE:

Be sure to place the dowel pins in original hole locations in the

front timing chain case.

2. Install new front oil seal on the front timing chain case.

• Apply new engine oil to both oil seal lip and dust seal lip.

• Install it so that each seal lip is oriented as shown.

• Press-fit oil seal until it becomes flush with front timing chain

case end face using suitable drift [outer diameter: 60 mm (2.36

in)].

• Make sure the garter spring is in position and seal lip is not

inverted.

CAUTION:

• Be careful not to damage front timing chain case and

crankshaft.

• Press-fit straight and avoid causing burrs or tilting oil

seal.

3. Install water pump cover and chain tensioner cover to front timing chain case, if removed.

• Apply a continuous bead of liquid gasket using Tool to front

timing chain case as shown.

CAUTION:

• Remove water, oil, dust, dirt, or other foreign material on

all sealing surfaces prior to installation.

• The components must be installed within 5 minutes of

the liquid gasket application. Then allow 30 minutes for

the liquid gasket to set before operating the engine.

• Use Genuine RTV Silicone Sealant or equivalent. Refer

to

GI-14, "Recommended Chemical Products and Seal-

ants"

.

4. Install idler pulley, if removed.
5. Install front timing chain case as follows:

PBIC2615E

SEM715A

PBIC2911E

PBIC2912E

2011 Pathfinder

EM-58

< REMOVAL AND INSTALLATION >

[VQ40DE]

FRONT TIMING CHAIN CASE

a. Apply a continuous bead of liquid gasket using Tool to front tim-

ing chain case back side as shown.

CAUTION:

• Remove water, oil, dust, dirt, or other foreign material on

all sealing surfaces prior to installation.

• The components must be installed within 5 minutes of the

liquid gasket application. Then allow 30 minutes for the

liquid gasket to set before operating the engine.

• Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-14, "Recommended Chemical Products and Sealants"

.

b. Install new O-rings on rear timing chain case.

CAUTION:

Do not reuse O-rings.

c.

Assemble front timing chain case as follows:

i.

Fit lower end of front timing chain case tightly onto top face of oil

pan (upper). From the fitting point, make entire front timing chain

case contact rear timing chain case completely.

ii.

Since front timing chain case is offset for difference of bolt holes,

tighten bolts temporarily while holding front timing chain case

from front and top as shown.

iii. Same as the previous step, insert dowel pin while holding front

timing chain case from front and top completely.

PBIC2913E

PBIC2548E

PBIC1100E

PBIC2915E

2011 Pathfinder

FRONT TIMING CHAIN CASE

EM-59

< REMOVAL AND INSTALLATION >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

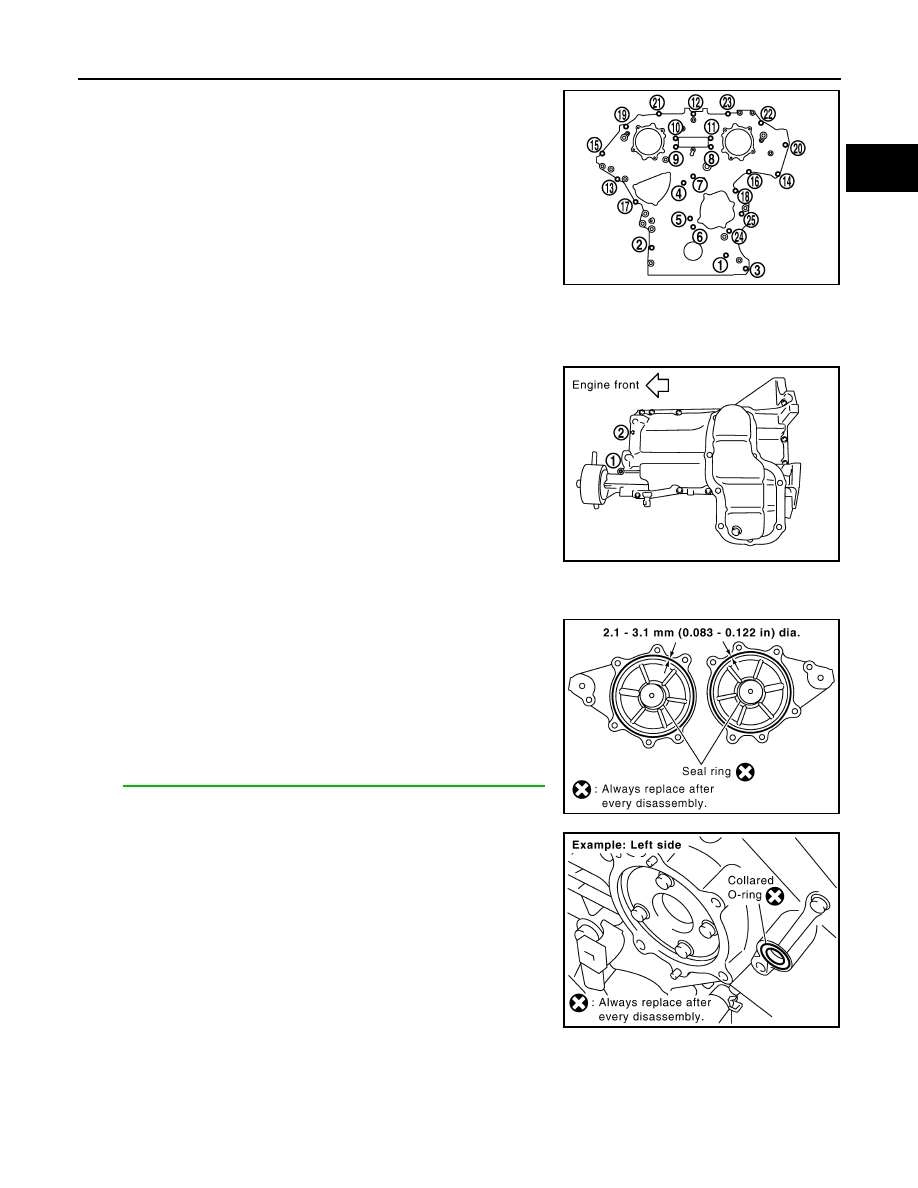

d. Tighten bolts to the specified torque in numerical order as

shown.

e. After all bolts are tightened, retighten them to the specified

torque in numerical order as shown.

• There are two type of bolts.

6. Install two bolts in front of oil pan (upper) in numerical order as

shown.

7. Install right and left intake valve timing control covers as follows:
a. Install new seal rings in shaft grooves.
b. Apply a continuous bead of liquid gasket using Tool to intake

valve timing control covers as shown.

CAUTION:

• Remove water, oil, dust, dirt, or other foreign material on

all sealing surfaces prior to installation.

• The components must be installed within 5 minutes of the

liquid gasket application. Then allow 30 minutes for the

liquid gasket to set before operating the engine.

• Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-14, "Recommended Chemical Products and Sealants"

.

c. Install new collared O-rings in front timing chain case oil hole

(left and right sides).

CAUTION:

Do not reuse O-rings.

d. Being careful not to move seal ring from the installation groove, align dowel pins on front timing chain

case with the holes to install intake valve timing control covers.

Bolt position Bolt diameter
1 - 5

: 10 mm (0.39 in)

6 – 25

: 6 mm (0.24 in)

Bolt position Tightening specification
1 - 5

: 55.0 N·m (5.6 kg-m, 41 ft-lb)

6 – 25

: 12.7 N·m (1.3 kg-m, 9 ft-lb)

Front oil pan bolt : 22.0 N·m (2.2 kg-m, 16 ft-lb)

PBIC2908E

PBIC2907E

SBIA0492E

PBIC2631E

2011 Pathfinder

EM-60

< REMOVAL AND INSTALLATION >

[VQ40DE]

FRONT TIMING CHAIN CASE

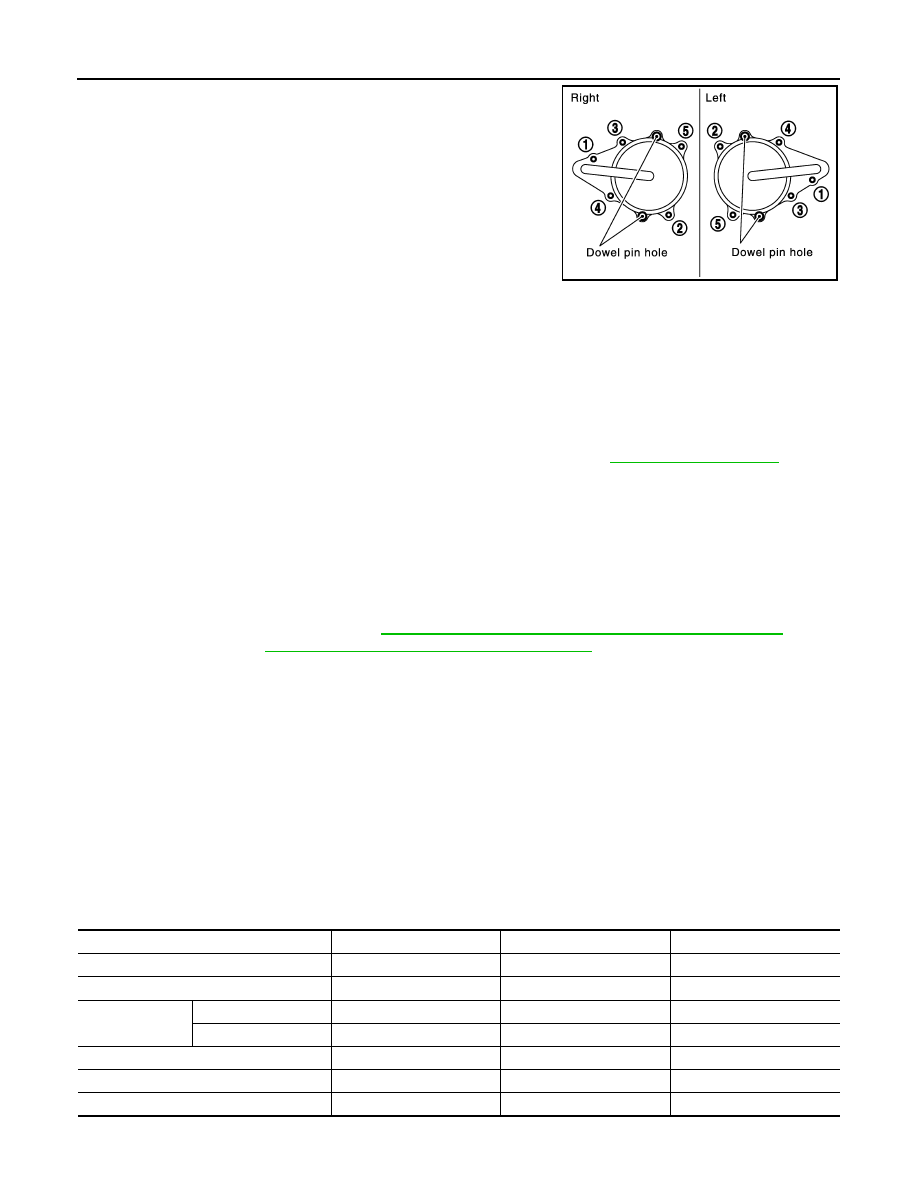

e. Tighten bolts in numerical order as shown.

8. Install crankshaft pulley as follows:
a. Install crankshaft pulley, taking care not to damage front oil seal.

• When press-fitting crankshaft pulley with plastic hammer, tap on its center portion (not circumference).

b. Tighten crankshaft pulley bolt in two steps.

c.

Remove Tool to release the ring gear and install the rear cover. Refer to

EM-61, "Exploded View"

.

9. Rotate crankshaft pulley in normal direction (clockwise when viewed from front) to confirm it turns

smoothly.

10. Installation of the remaining components is in the reverse order of removal.

INSPECTION AFTER INSTALLATION

• Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required

quantity, fill to the specified level. Refer to

MA-18, "FOR USA AND CANADA : Fluids and Lubricants"

 (United

States and Canada) and

MA-20, "FOR MEXICO : Fluids and Lubricants"

 (Mexico).

• Use procedure below to check for fuel leakage.

• Turn ignition switch ON (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leak-

age at connection points.

• Start engine. With engine speed increased, check again for fuel leakage at connection points.

• Run engine to check for unusual noise and vibration.

NOTE:

If hydraulic pressure inside timing chain tensioner drops after removal and installation, slack in the guide

may generate a pounding noise during and just after engine start. However, this is normal. Noise will stop

after hydraulic pressure rises.

• Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gas, or any oils/fluids including

engine oil and engine coolant.

• Bleed air from passages in lines and hoses, such as in cooling system.

• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to spec-

ified level, if necessary.

• Summary of the inspection items:

*Power steering fluid, brake fluid, etc.

PBIC0918E

Step 1

: 44.1 N·m (4.5 kg-m, 33 ft-lb)

Step 2

: 84

°

 - 90

°

 degrees clockwise

Tool number

:   —   (J-48761)

Item

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leakage

Level

Engine oil

Level

Leakage

Level

Transmission/
transaxle fluid

A/T and CVT Models

Leakage

Level/Leakage

Leakage

M/T Models

Level/Leakage

Leakage

Level/Leakage

Other oils and fluids*

Level

Leakage

Level

Fuel

Leakage

Leakage

Leakage

Exhaust gas

—

Leakage

—

2011 Pathfinder

TIMING CHAIN

EM-61

< REMOVAL AND INSTALLATION >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

TIMING CHAIN

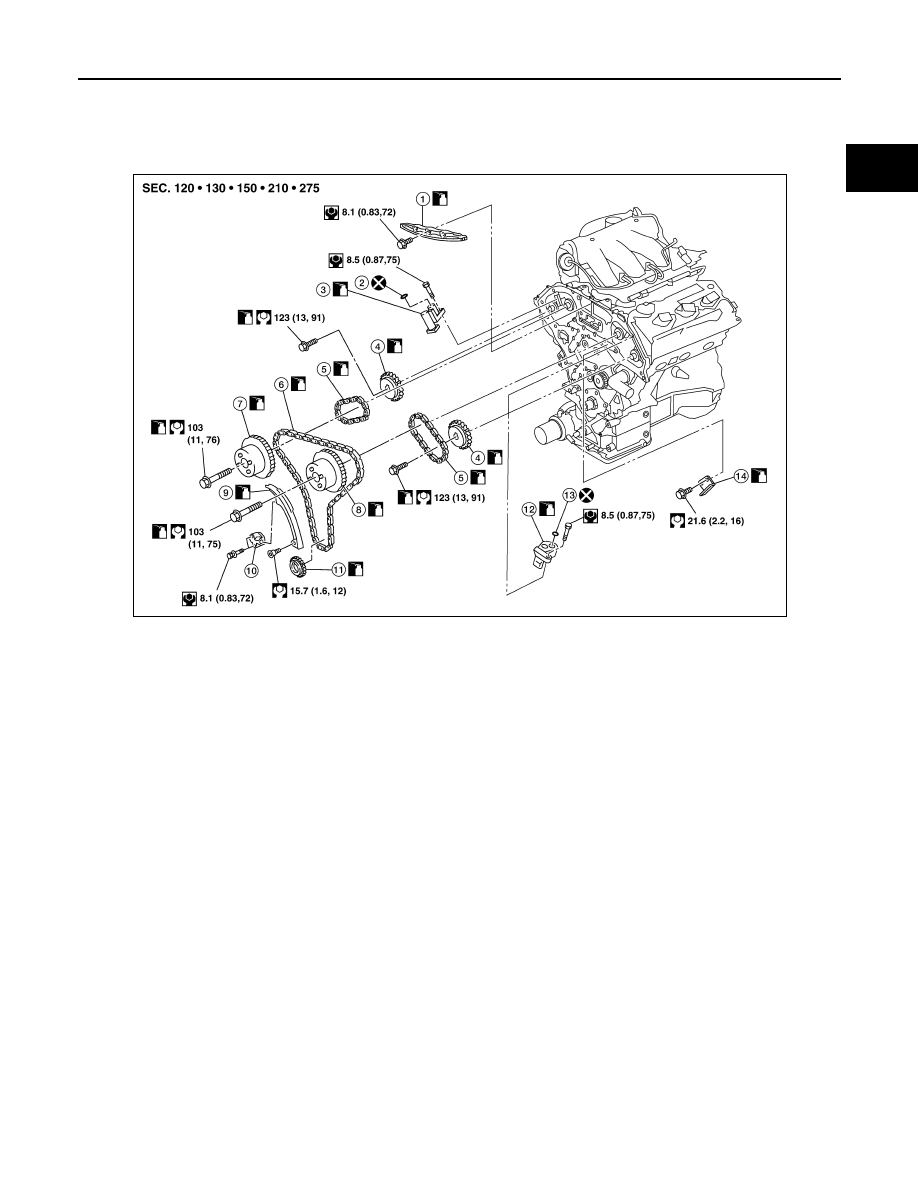

Exploded View

INFOID:0000000006247020

Removal and Installation

INFOID:0000000006247021

CAUTION:

• After removing timing chains, do not turn the crankshaft and camshaft separately, or the valves will

strike the pistons.

• When installing camshafts, chain tensioners, oil seals, or other sliding parts, lubricate contacting

surfaces with new engine oil.

• Apply new engine oil to bolt threads and seat surfaces when installing camshaft sprockets, camshaft

brackets, and crankshaft pulley.

NOTE:

It is not necessary to remove the rocker covers or intake manifold collector to remove or install the timing

chain(s).

REMOVAL

AWBIA0859GB

1.

Internal chain guide

2.

O-ring

3.

Timing chain tensioner (secondary) (RH)

4.

Camshaft sprocket (EXH)

5.

Timing chain (secondary)

6.

Timing chain (primary)

7.

Camshaft sprocket RH (INT)

8.

Camshaft sprocket LH (INT)

9.

Slack guide

10. Timing chain tensioner (primary)

11. Crankshaft sprocket

12.

Timing chain tensioner (secondary) (LH)

13. O-ring

14. Tension guide

2011 Pathfinder

EM-62

< REMOVAL AND INSTALLATION >

[VQ40DE]

TIMING CHAIN

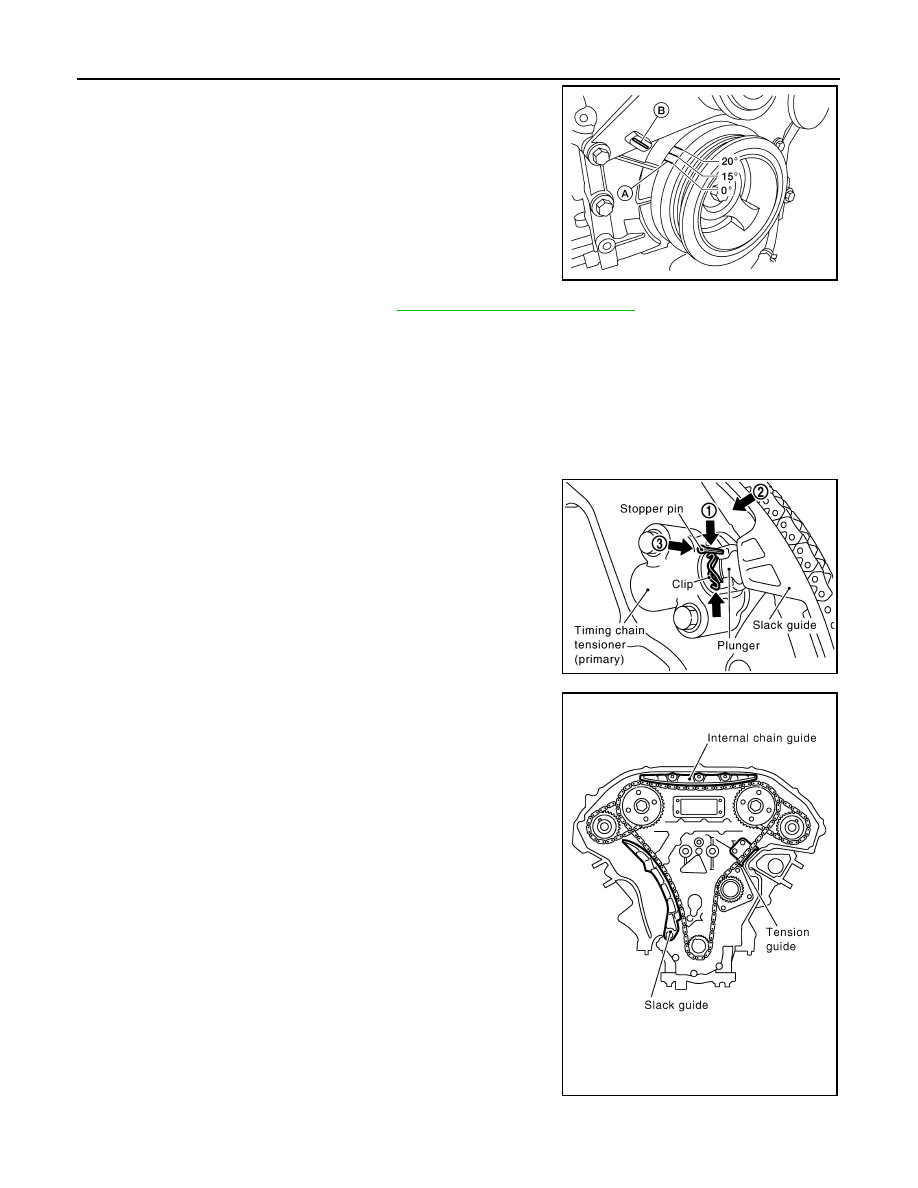

1. Set No. 1 cylinder to TDC.

• Rotate crankshaft pulley clockwise to align timing mark (A)

(grooved line without color) with timing indicator (B).

2. Remove front timing chain case. Refer to

EM-53, "Removal and Installation"

.

3. Check timing chain markings to confirm No. 1 cylinder is at TDC of its compression stroke.

• If not, remove Ring Gear Stopper Tool and turn crankshaft clockwise 360

°

 (one revolution).

• Re-install Ring Gear Stopper Tool.

• If the original timing chain markings are not legible, use paint or equivalent to mark the timing chains to

the sprockets.

4. If removing the secondary timing chains, loosen camshaft sprocket bolts.
5. Compress the primary timing chain tensioner.

1. Loosen clip of primary timing chain tensioner, and release

plunger stopper (1).

2. Depress plunger into tensioner body by pressing slack

guide (2).

3. Keep slack guide pressed and insert stopper pin through

the tensioner body hole and plunger groove (3) to hold

plunger in.

-

Use stopper pin included with Tool J-50246.

6. Remove internal chain guide.

7. Remove timing chain (primary).

CAUTION:

AWBIA0719ZZ

Tool number

: — (J-48761)

PBIC2919E

PBIC2266E
