Nissan Pathfinder (2011 year). Manual - part 226





DLN-346

< PREPARATION >

[FRONT FINAL DRIVE: R180A]

PREPARATION

PREPARATION

PREPARATION

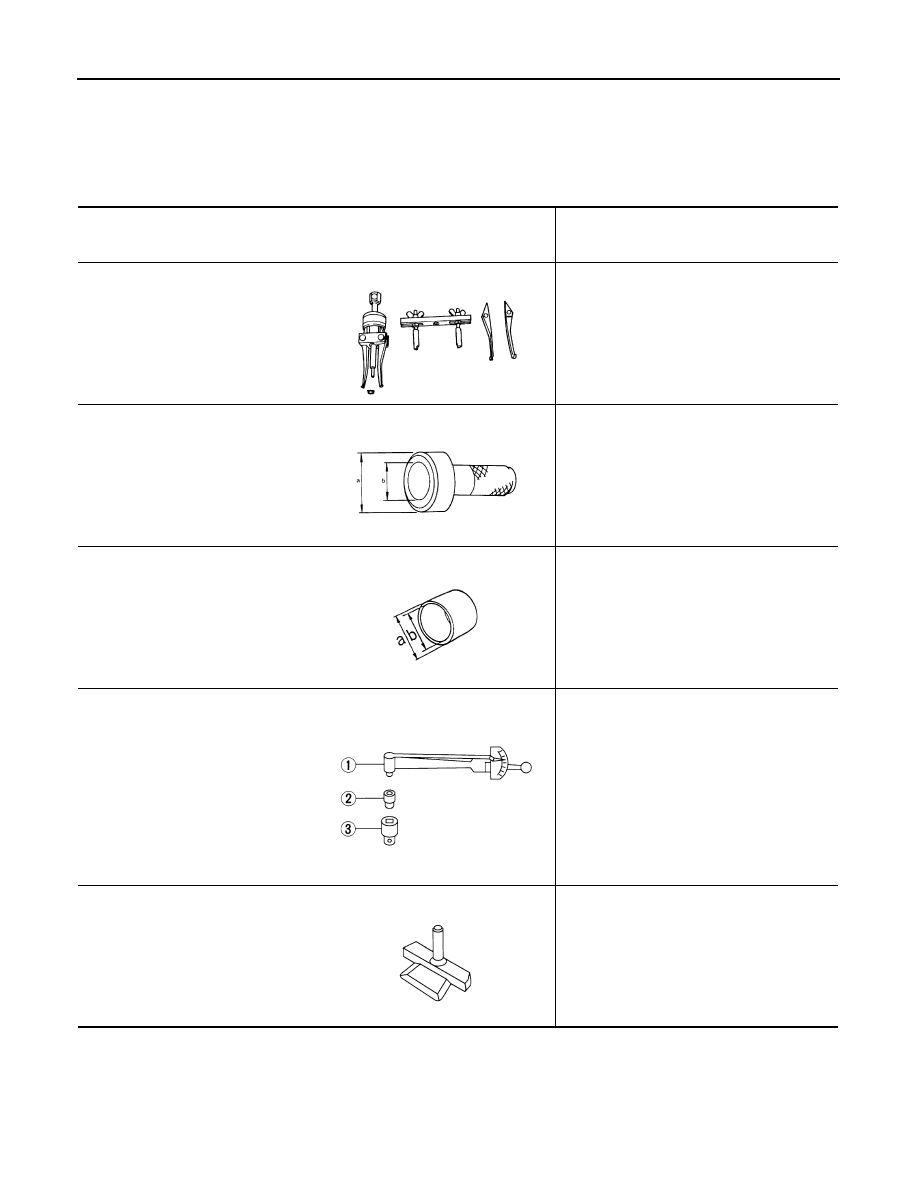

Special Service Tool

INFOID:0000000006245173

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

KV381054S0
(J-34286)
Puller

Removing front oil seal

ST30720000
(J-25405)
Drift

• Installing front oil seal
• Installing side oil seal

a: 77 mm (3.03 in) dia.
b: 55.5 mm (2.185 in) dia.

ST27863000
(

)

Drift

• Installing front oil seal
• Installing side oil seal

a: 74.5 mm (2.933 in) dia.
b: 62.5 mm (2.461 in) dia.

ST3127S000
(J-25765-A)
Preload gauge
1: GG91030000

(J-25765)
Torque wrench

2: HT62940000

(

)

Socket adapter (1/2

)

3: HT62900000

(

)

Socket adapter (3/8

)

Measuring drive pinion bearing preload torque
and total preload torque

KV10111100
(J-37228)
Seal cutter

Removing carrier cover

ZZA0601D

ZZA0811D

ZZA1003D

NT124

S-NT046

2011 Pathfinder

PREPARATION

DLN-347

< PREPARATION >

[FRONT FINAL DRIVE: R180A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

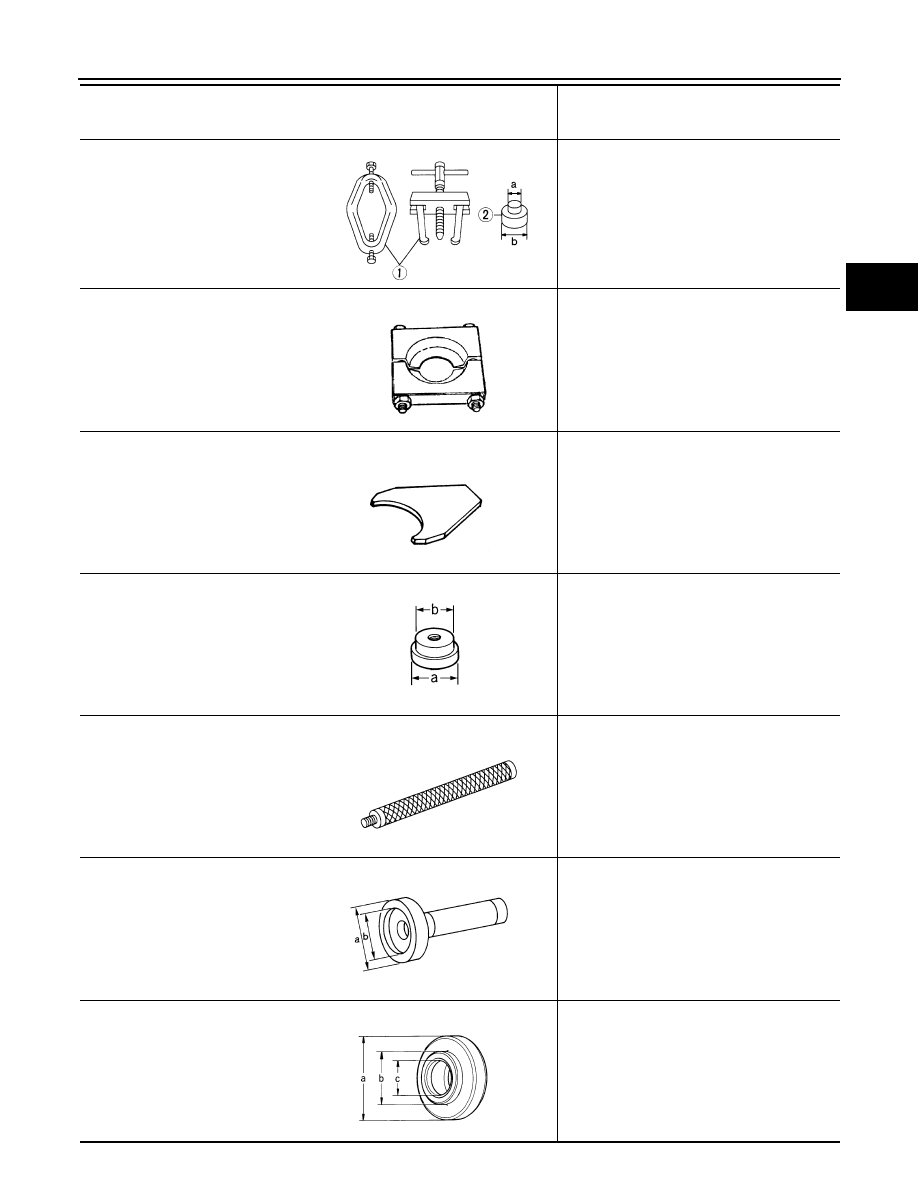

ST3306S001
(

)

Differential side bearing puller set
1: ST33051001

(J-22888-20)
Puller

2: ST33061000

(J-8107-2)
Base

Removing and installing side bearing inner
race

a: 28.5 mm (1.122 in) dia.
b: 38 mm (1.50 in) dia.

ST30031000
(J-22912-01)
Replacer

Removing drive pinion rear bearing inner race

KV38100600
(J-25267)
Drift

Installing side bearing adjusting washer

ST30613000
(J-25742-3)
Drift

Installing drive pinion rear bearing outer race

a: 72 mm (2.83 in) dia.
b: 48 mm (1.89 in) dia.

ST30611000
(J-25742-1)
Drift bar

Installing drive pinion rear bearing outer race
(Use with ST30613000)

KV38100200
(J-26233)
Drift

Installing drive pinion front bearing outer race

a: 65 mm (2.56 in) dia.
b: 49 mm (1.93 in) dia.

ST30901000
(J-26010-01)
Drift

Installing drive pinion rear bearing inner race

a: 79 mm (3.11 in) dia.
b: 45 mm (1.77 in) dia.
c: 35.2 mm (1.386 in) dia.

Tool number
(Kent-Moore No.)
Tool name

Description

NT072

ZZA0700D

SDIA0429J

ZZA1000D

S-NT090

ZZA1143D

ZZA0978D

2011 Pathfinder

DLN-348

< PREPARATION >

[FRONT FINAL DRIVE: R180A]

PREPARATION

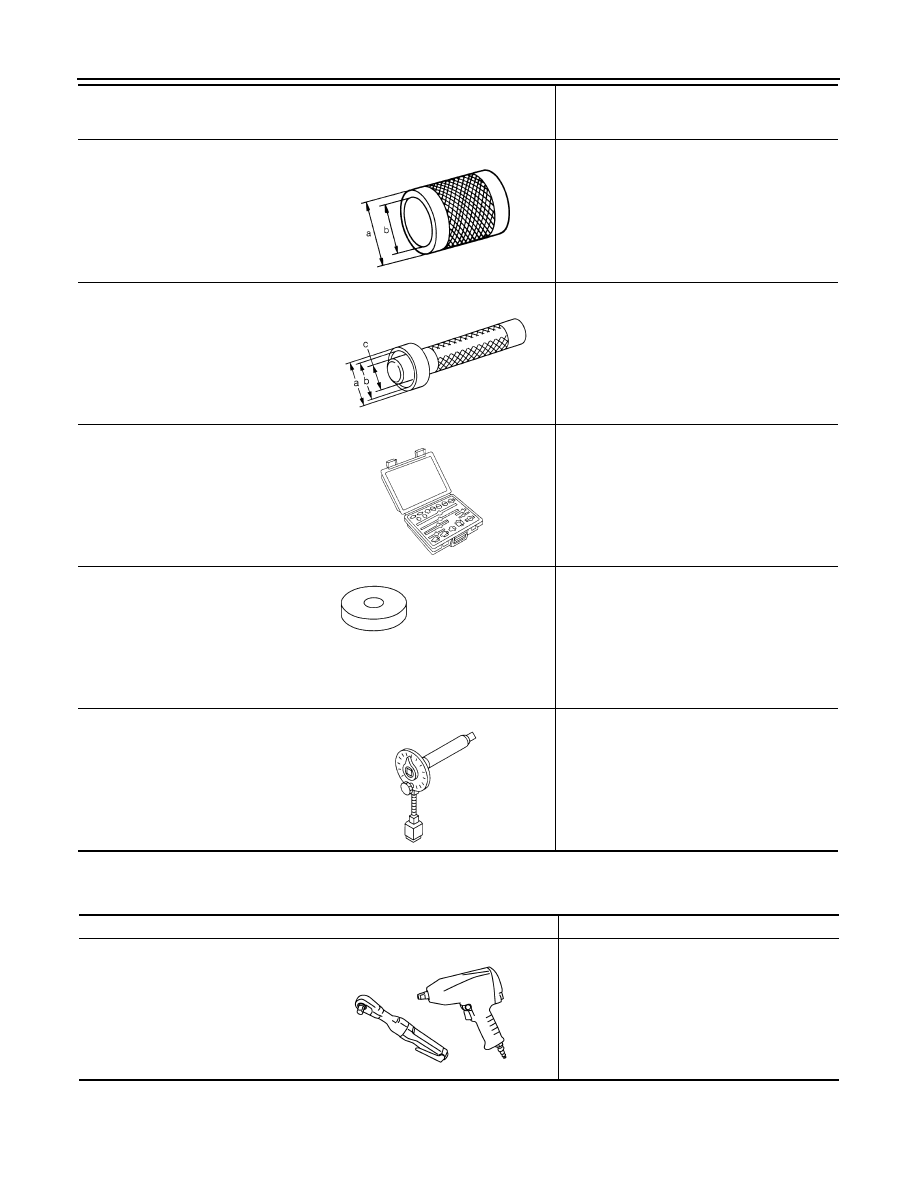

Commercial Service Tool

INFOID:0000000006245174

ST33200000
(J-26082)
Drift

Installing drive pinion front bearing inner race

a: 60 mm (2.36 in) dia.
b: 44.5 mm (1.752 in) dia.

ST33230000
(J-35867)
Drift

Installing side bearing inner race

a: 51 mm (2.01 in) dia.
b: 41 mm (1.61 in) dia.
c: 28 mm (1.10 in) dia.

(

)

(J-34309)
Differential shim selector tool

Adjusting bearing preload and drive pinion
height

(

)

(J-25269-18)
Side bearing disc (2 Req'd)

Selecting drive pinion height adjusting washer

KV10112100
(BT-8653-A)
Angle wrench

Tightening bolts for drive gear

Tool number
(Kent-Moore No.)
Tool name

Description

ZZA1002D

ZZA1046D

NT134

NT135

NT014

Tool name

Description

Power tool

Loosening nuts and bolts

PBIC0190E

2011 Pathfinder

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

DLN-349

< SYSTEM DESCRIPTION >

[FRONT FINAL DRIVE: R180A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

SYSTEM DESCRIPTION

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000006245175

Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

×

: Applicable

Reference page

DLN-359

DLN-359

DLN-359

DLN-359

DLN-359

DLN-351

DL

N-33

7,

"NVH T

ro

ub

les

ho

ot

ing

 Cha

rt"

F

AX-5,

 "NVH T

rou

bl

es

ho

ot

in

g Cha

rt"

FSU-6,

 "NVH T

ro

ub

les

ho

ot

ing

 Ch

art"

WT

-4

8,

"NVH T

rou

bl

es

ho

ot

ing

 Cha

rt"

WT

-4

8,

"NVH T

rou

bl

es

ho

ot

ing

 Cha

rt"

RA

X-5,

"NVH T

rou

bl

es

ho

ot

ing

 Cha

rt"

BR-6,

"NVH T

rou

bl

es

ho

oti

ng

 Cha

rt"

ST

-1

2,

"NVH T

rou

bl

es

ho

oti

ng

 Cha

rt"

Possible cause and SUSPECTED PARTS

G

e

ar t

oo

th

rou

gh

Gea

r co

nt

ac

t i

mp

rop

er

To

ot

h s

u

rf

ac

es

 w

o

rn

Ba

ck

la

sh

 in

co

rrec

t

Co

mp

an

io

n f

lan

ge

 e

xc

es

si

ve

 run

ou

t

Gea

r oi

l i

mp

rop

er

PR

OP

EL

LE

R

 S

H

A

F

T

FRO

N

T A

X

L

E

F

R

ONT

 SUSPENSI

ON

TI

RE

S

ROAD W

H

EEL

DRIV

E SHAFT

BR

AK

E

S

S

T

EERING

Symptom

Noise

×

×

×

×

×

×

×

×

×

×

×

×

×

×

2011 Pathfinder

DLN-350

< SYSTEM DESCRIPTION >

[FRONT FINAL DRIVE: R180A]

DESCRIPTION

DESCRIPTION

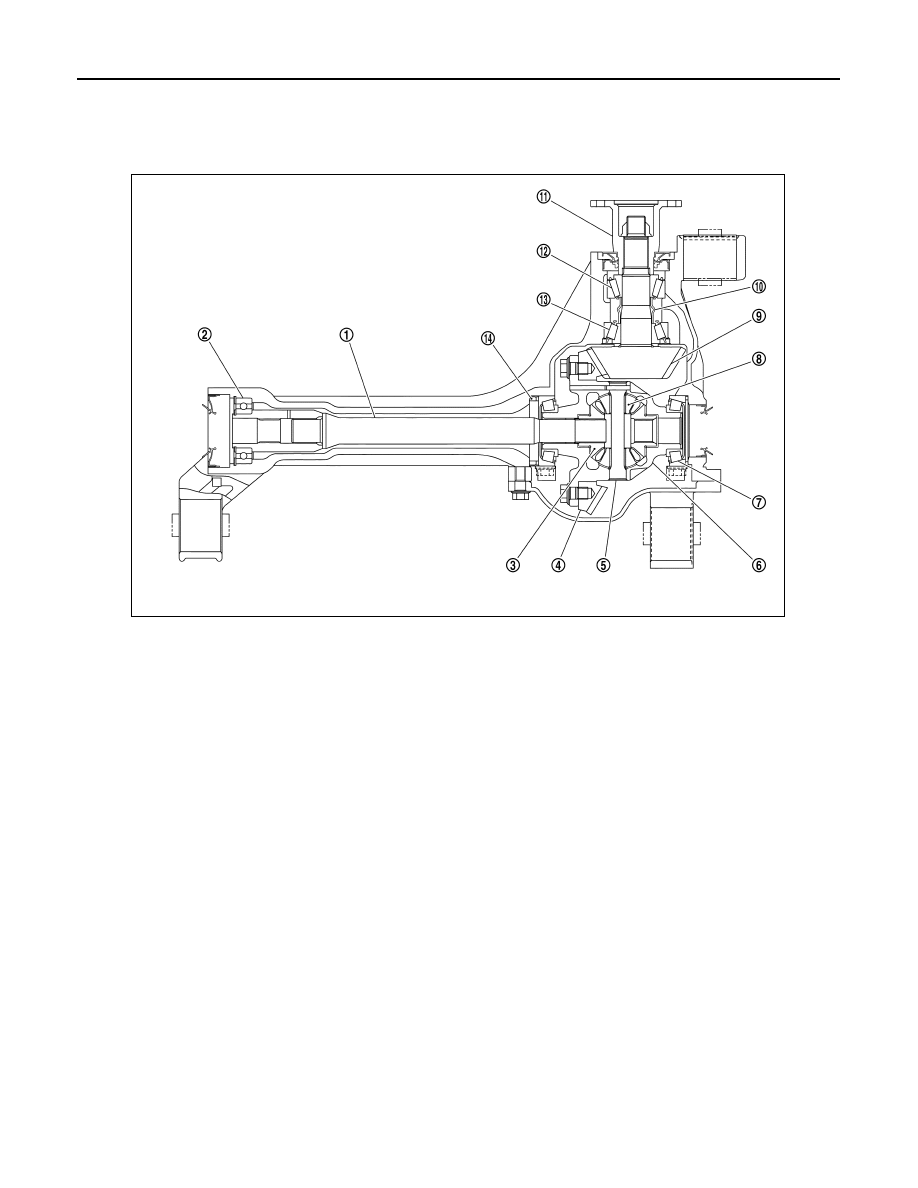

Cross-Sectional View

INFOID:0000000006245176

1.

Differential side shaft

2.

Differential side shaft bearing

3.

Side gear

4.

Drive gear

5.

Pinion mate shaft

6.

Differential case

7.

Side bearing

8.

Pinion mate gear

9.

Drive pinion

10. Collapsible spacer

11. Companion flange

12. Drive pinion front bearing

13. Drive pinion rear bearing

14. Housing spacer

PDIA0695E

2011 Pathfinder

DIFFERENTIAL GEAR OIL

DLN-351

< PERIODIC MAINTENANCE >

[FRONT FINAL DRIVE: R180A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

PERIODIC MAINTENANCE

DIFFERENTIAL GEAR OIL

Changing Differential Gear Oil

INFOID:0000000006245177

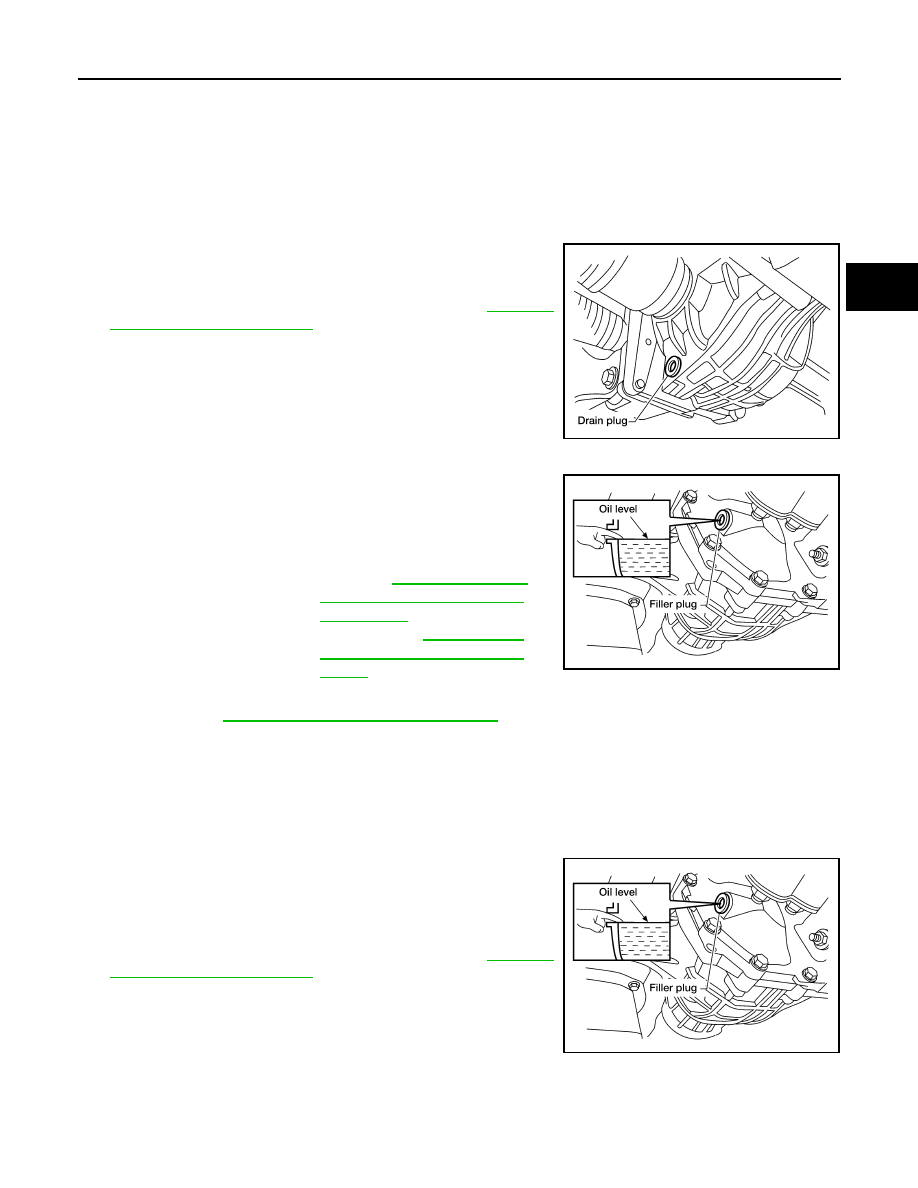

DRAINING

1. Stop the engine.
2. Remove the drain plug and gasket from the front final drive

assembly to drain the differential gear oil.

3. Install the drain plug with a new gasket to the front final drive

assembly. Tighten to the specified torque. Refer to

DLN-359,

"Disassembly and Assembly"

.

CAUTION:

Do not reuse gasket.

FILLING

1. Remove the filler plug and gasket from the front final drive

assembly.

2. Fill the front final drive assembly with new differential gear oil

until the level reaches the specified level near the filler plug hole.

3. Install the filler plug with a new gasket on it to the front final drive assembly. Tighten to the specified

torque. Refer to

DLN-359, "Disassembly and Assembly"

.

CAUTION:

Do not reuse gasket.

Checking Differential Gear Oil

INFOID:0000000006245178

DIFFERENTIAL GEAR OIL LEAKAGE AND LEVEL

1. Make sure that differential gear oil is not leaking from the front final drive assembly or around it.
2. Check the differential gear oil level from the filler plug hole as

shown.

CAUTION:

Do not start engine while checking differential gear oil level.

3. Install the filler plug with a new gasket on it to the front final drive

assembly. Tighten to the specified torque. Refer to

DLN-359,

"Disassembly and Assembly"

.

CAUTION:

Do not reuse gasket.

LDIA0175E

Differential gear oil
grade and capacity

: Refer to

MA-18, "FOR USA

AND CANADA : Fluids and
Lubricants"

 (United States

and Canada),

MA-20, "FOR

MEXICO : Fluids and Lubri-
cants"

 (Mexico).

LDIA0176E

LDIA0176E

2011 Pathfinder

DLN-352

< REMOVAL AND INSTALLATION >

[FRONT FINAL DRIVE: R180A]

FRONT OIL SEAL

REMOVAL AND INSTALLATION

FRONT OIL SEAL

Removal and Installation

INFOID:0000000006245179

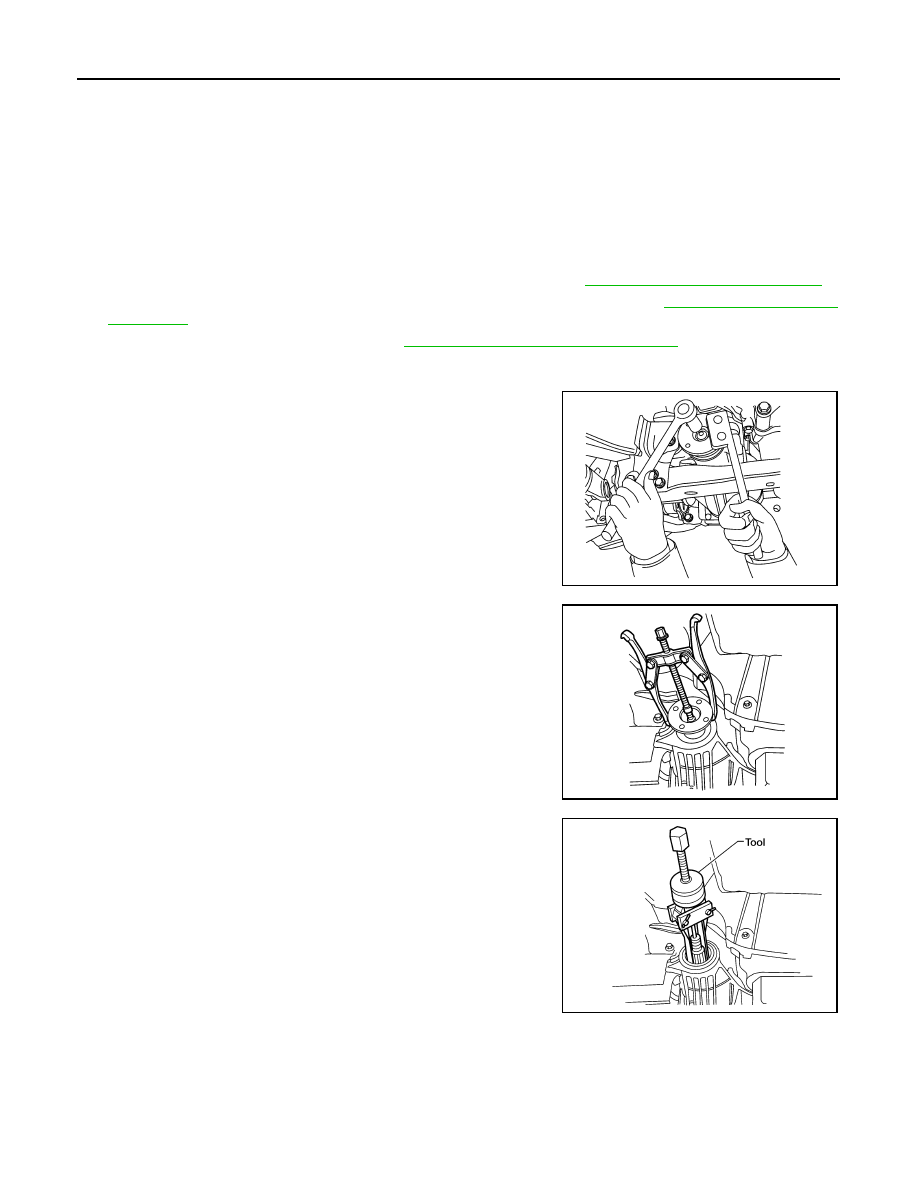

REMOVAL

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.
1. Remove the drive shafts from the front final drive assembly. Refer to

RAX-8, "Removal and Installation"

.

2. Remove the front propeller shaft from the front final drive assembly. Refer to

DLN-318, "Removal and

Installation"

.

3. Measure the total preload torque. Refer to

DLN-359, "Disassembly and Assembly"

.

NOTE:

Record the total preload torque measurement.

4. Remove the drive pinion lock nut using suitable tool.
5. Put matching marks on the companion flange and drive pinion

using paint.

CAUTION:

Use paint to make the matching marks. Do not damage the

companion flange or drive pinion.

6. Remove the companion flange using suitable tool.

7. Remove the front oil seal using Tool.

INSTALLATION

BDIA0001E

LDIA0171E

Tool number

: KV381054S0 (J-34286)

LDIA0172E

2011 Pathfinder

FRONT OIL SEAL

DLN-353

< REMOVAL AND INSTALLATION >

[FRONT FINAL DRIVE: R180A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

1. Apply multi-purpose grease to the lips and differential gear oil to

the circumference of the new front oil seal. Then drive the new

front oil seal in evenly until it becomes flush with the gear carrier

using Tools.

CAUTION:

• Do not reuse front oil seal.

• Do not incline the new front oil seal when installing.

• Apply multi-purpose grease to the lips and differential

gear oil to the circumference of the new front oil seal.

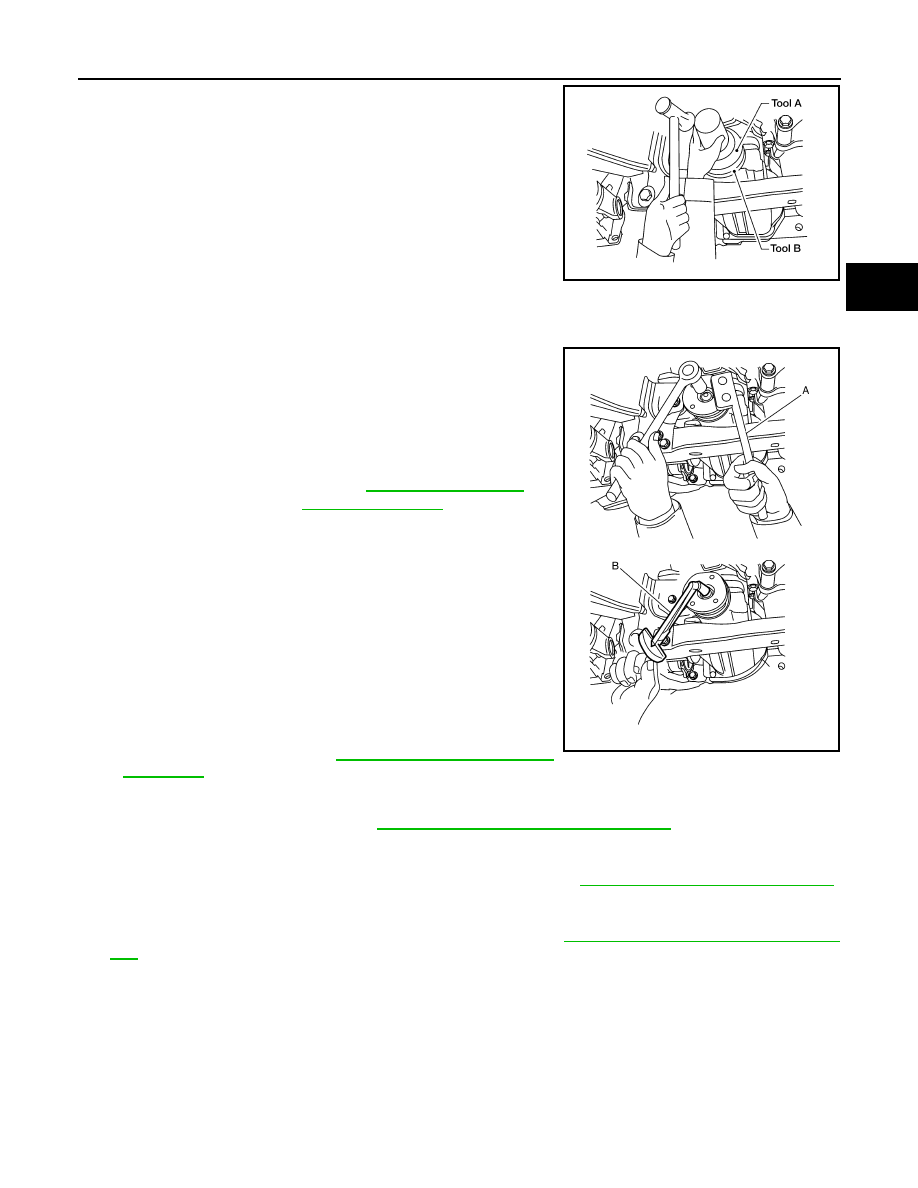

2. Install the companion flange to the drive pinion while aligning the matching marks.
3. Apply anti-corrosive oil to the threads of the drive pinion and the

seating surface of the new drive pinion lock nut. Then adjust the

drive pinion lock nut tightening torque using suitable tool A, and

check the total preload torque using Tool B.

• The total preload torque should be within the total preload

torque specification. When not replacing the collapsible

spacer, it should also be equal to the measurement taken dur-

ing removal plus an additional 0.56 N·m (0.06 Kg-m, 5 in-lb).

• If the total preload torque is low, tighten the drive pinion lock

nut in 6.8 N·m (0.69 Kg-m, 5ft-lb) increments until the total pre-

load torque is met.

CAUTION:

• Do not reuse drive pinion lock nut.

• Apply anti-corrosive oil to the threads of the drive pinion

and the seating surface of the new drive pinion lock nut.

• Adjust the drive pinion lock nut tightening torque to the

lower limit first. Do not exceed the drive pinion lock nut

specified torque. Refer to

DLN-359, "Disassembly and

Assembly"

.

• Do not loosen drive pinion lock nut to adjust the total preload torque. If the drive pinion lock nut

torque or the total preload torque exceeds the specifications, replace the collapsible spacer and

tighten it again to adjust. Refer to

DLN-359, "Disassembly and Assembly"

.

• After adjustment, rotate drive pinion back and forth 2 to 3 times to check for unusual noise, rota-

tion malfunction, and other malfunctions.

4. Install new side oil seals into the front final drive assembly. Refer to

DLN-354, "Removal and Installation"

.

5. Installation of the remaining components is in the reverse order of removal.

CAUTION:

Check the differential gear oil level after installation. Refer to

DLN-351, "Checking Differential Gear

Oil"

.

Tool number

A: ST30720000 (J-25405)
B: ST27863000 ( — )

WDIA0147E

Tool number

B: ST3127S000 (J-25765-A)

Total preload torque: Refer to

DLN-359, "Disassem-

bly and Assembly"

.

WDIA0381E

2011 Pathfinder















Content      ..     224      225      226      227     ..
