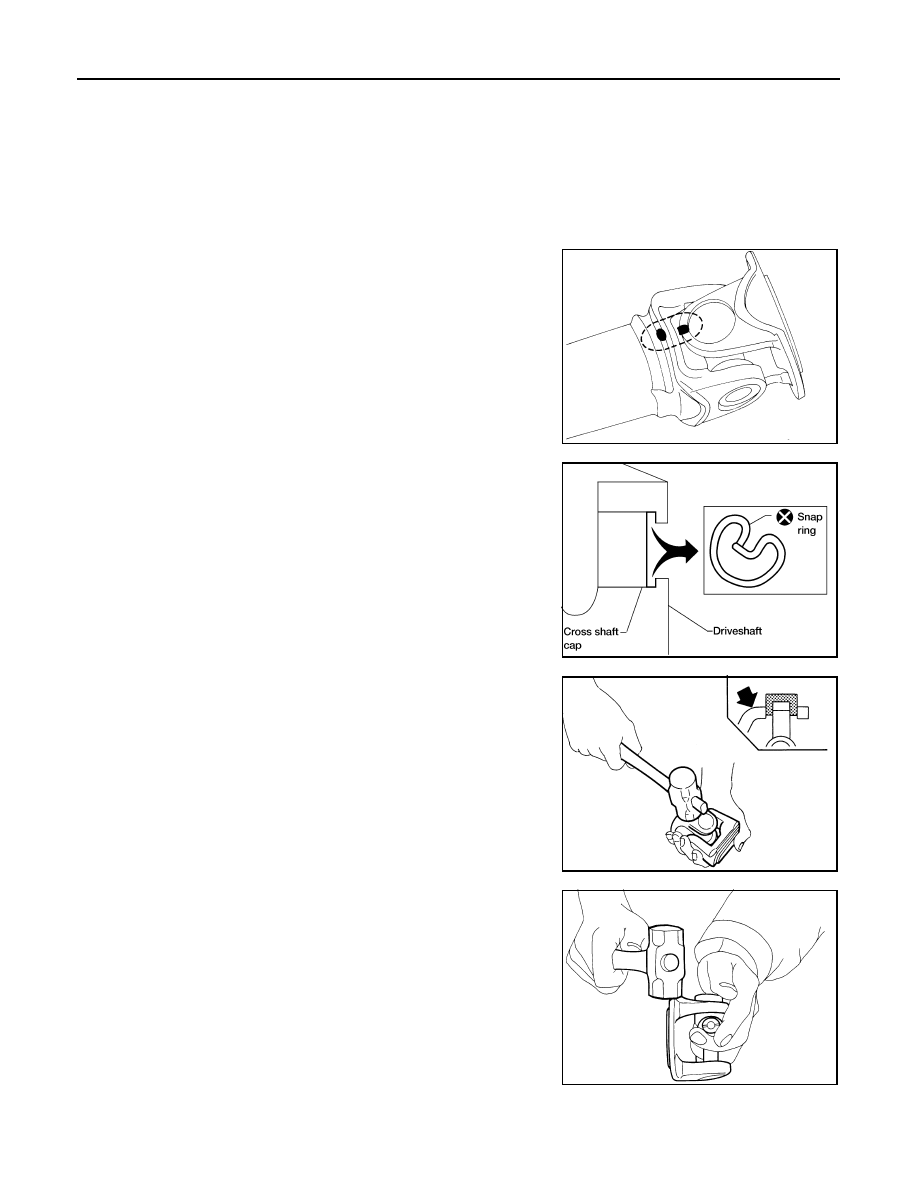

DLN-330 < UNIT DISASSEMBLY AND ASSEMBLY > [PROPELLER SHAFT: 2S1330] PROPELLER SHAFT UNIT DISASSEMBLY AND ASSEMBLY PROPELLER SHAFT Disassembly and Assembly INFOID:0000000006245158 DISASSEMBLY Journal 1. Put matching marks on the rear propeller shaft and flange yoke as shown. CAUTION: For matching marks use paint. Never damage the rear pro- peller shaft or flange yoke. 2. Remove the snap rings. 3. Push out and remove the journal bearings by lightly tapping the flange yoke with a hammer, taking care not to damage the jour- nal or flange yoke hole. NOTE: Put marks on the disassembled parts so that they can be rein- stalled in their original positions from which they were removed. 4. Push out and remove the remaining journal bearings at the opposite side by lightly tapping the flange yoke with a hammer, taking care not to damage the journal or flange yoke hole. NOTE: Put marks on the disassembled parts so that they can be rein- stalled in their original positions from which they were removed. ASSEMBLY SPD128 APD011 SPD732 SPD131 2011 Pathfinder |
