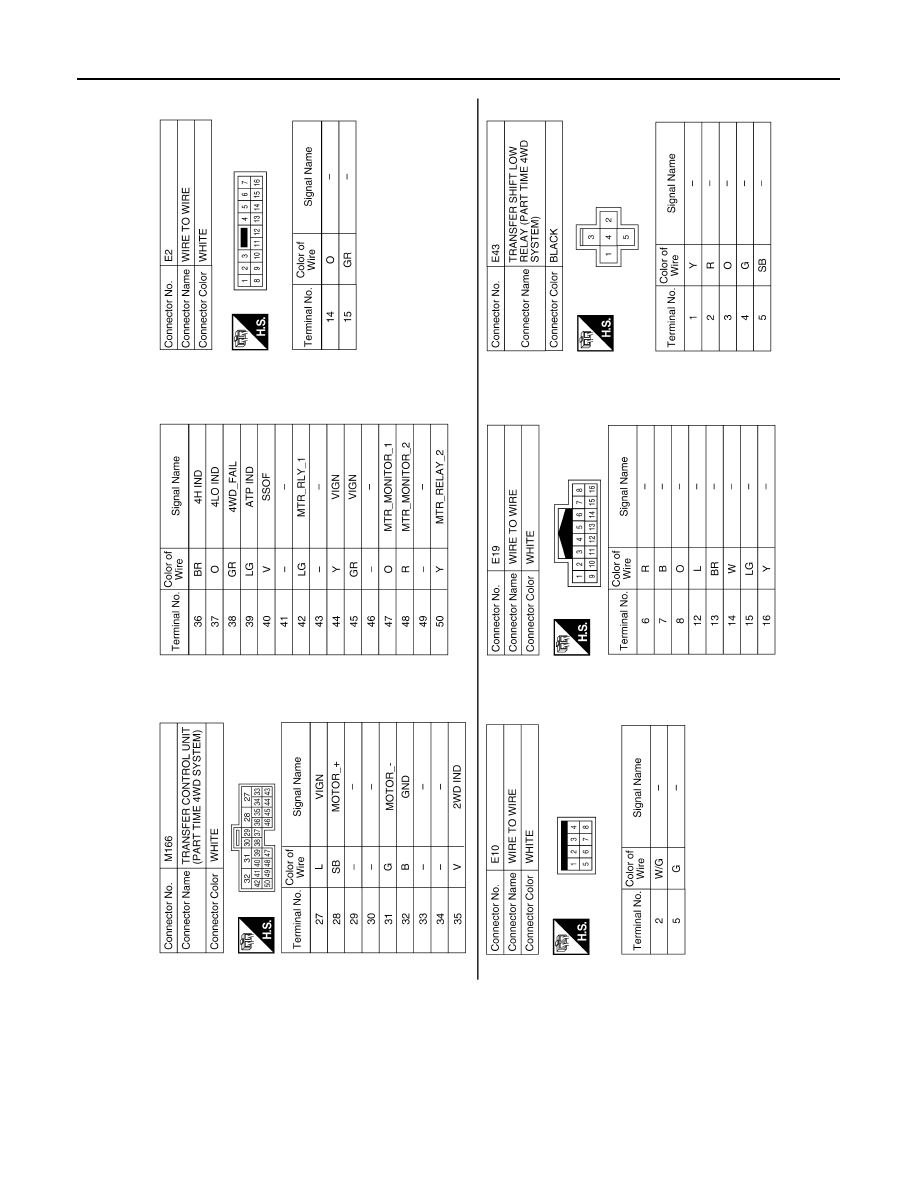

DLN-250

< WIRING DIAGRAM >

[TRANSFER: TX15B]

PART TIME 4WD SYSTEM

ABDIA0892GB

2011 Pathfinder

PART TIME 4WD SYSTEM

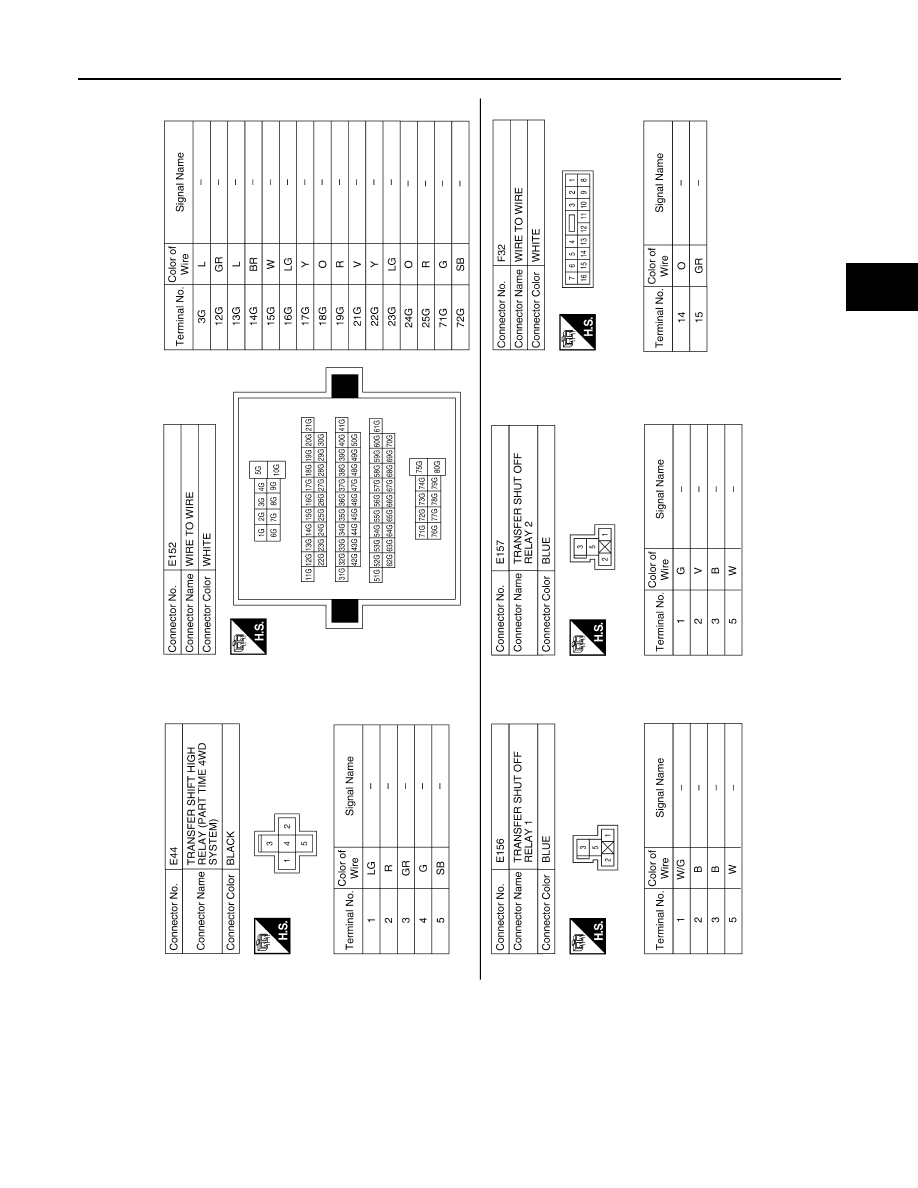

DLN-251

< WIRING DIAGRAM >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

ABDIA0120GB

2011 Pathfinder

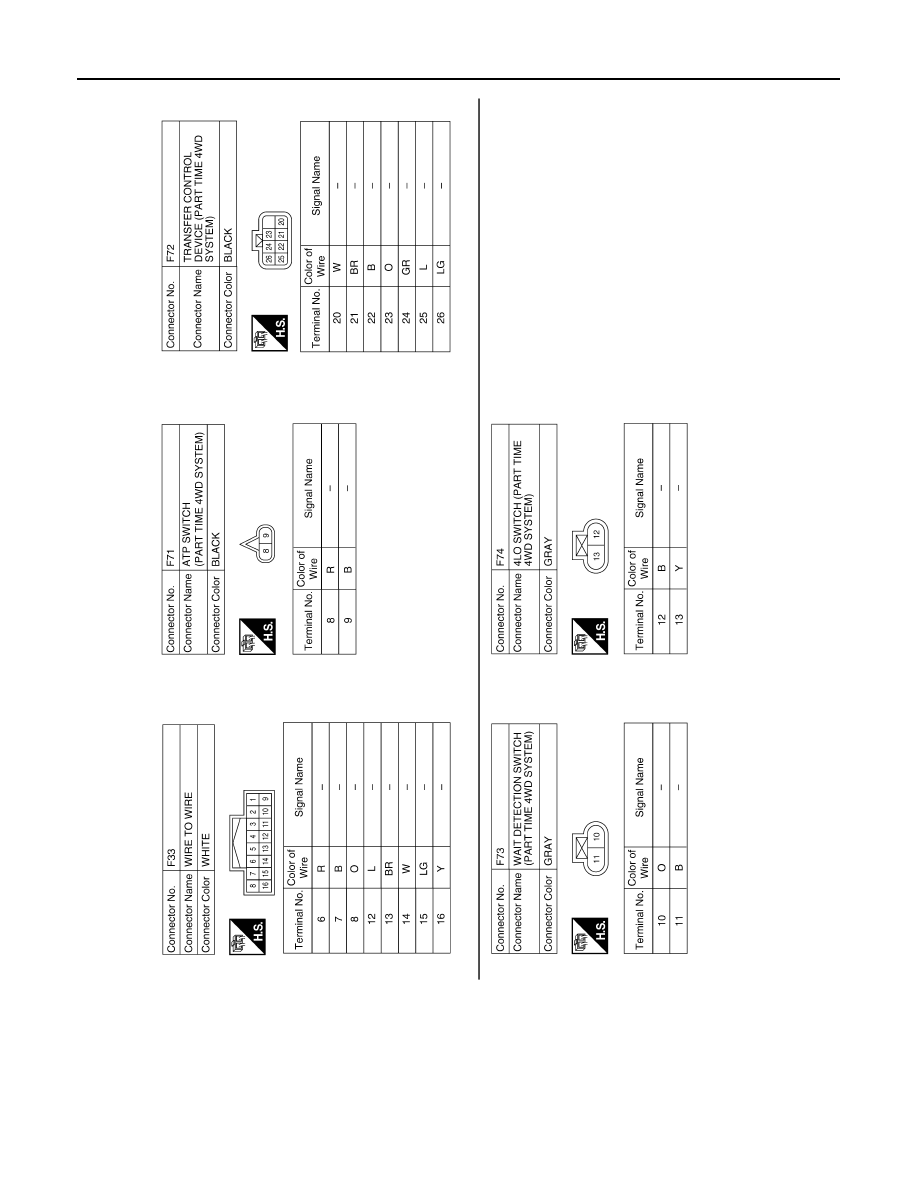

DLN-252

< WIRING DIAGRAM >

[TRANSFER: TX15B]

PART TIME 4WD SYSTEM

ABDIA0121GB

2011 Pathfinder

4WD SYSTEM SYMPTOMS

DLN-253

< SYMPTOM DIAGNOSIS >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

SYMPTOM DIAGNOSIS

4WD SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000006245105

Symptom

Condition

Reference page

4WD shift indicator lamp and 4LO indicator lamp do not turn ON (lamp check)

Ignition switch: ON

DLN-256

4WD warning lamp does not turn ON (lamp check)

DLN-254

4WD shift indicator lamp or 4LO indicator lamp does not change

Engine running

DLN-258

ATP warning lamp does not turn ON

DLN-260

ATP switch is malfunctioning

DLN-264

4WD shift indicator lamp repeats flashing

While driving

DLN-262

4WD warning lamp flashes slowly (1 time/2 seconds)

DLN-263

2011 Pathfinder

DLN-254

< SYMPTOM DIAGNOSIS >

[TRANSFER: TX15B]

4WD WARNING LAMP DOES NOT TURN ON

4WD WARNING LAMP DOES NOT TURN ON

Description

INFOID:0000000006245106

4WD warning lamp does not turn ON when turning ignition switch to ON.

Diagnosis Procedure

INFOID:0000000006245107

Regarding Wiring Diagram information, refer to

DLN-245, "Wiring Diagram"

.

1.

CHECK TRANSFER CONTROL UNIT POWER SUPPLY AND GROUND CIRCUITS

Refer to

DLN-206, "Diagnosis Procedure"

.

Are the inspection results normal?

YES

>> GO TO 2.

NO

>> Perform repairs as necessary.

2.

CHECK COMBINATION METER POWER SUPPLY CIRCUIT

1. Turn ignition switch “OFF”.  (Stay for at least 5 seconds.)

2. Disconnect combination meter harness connector.

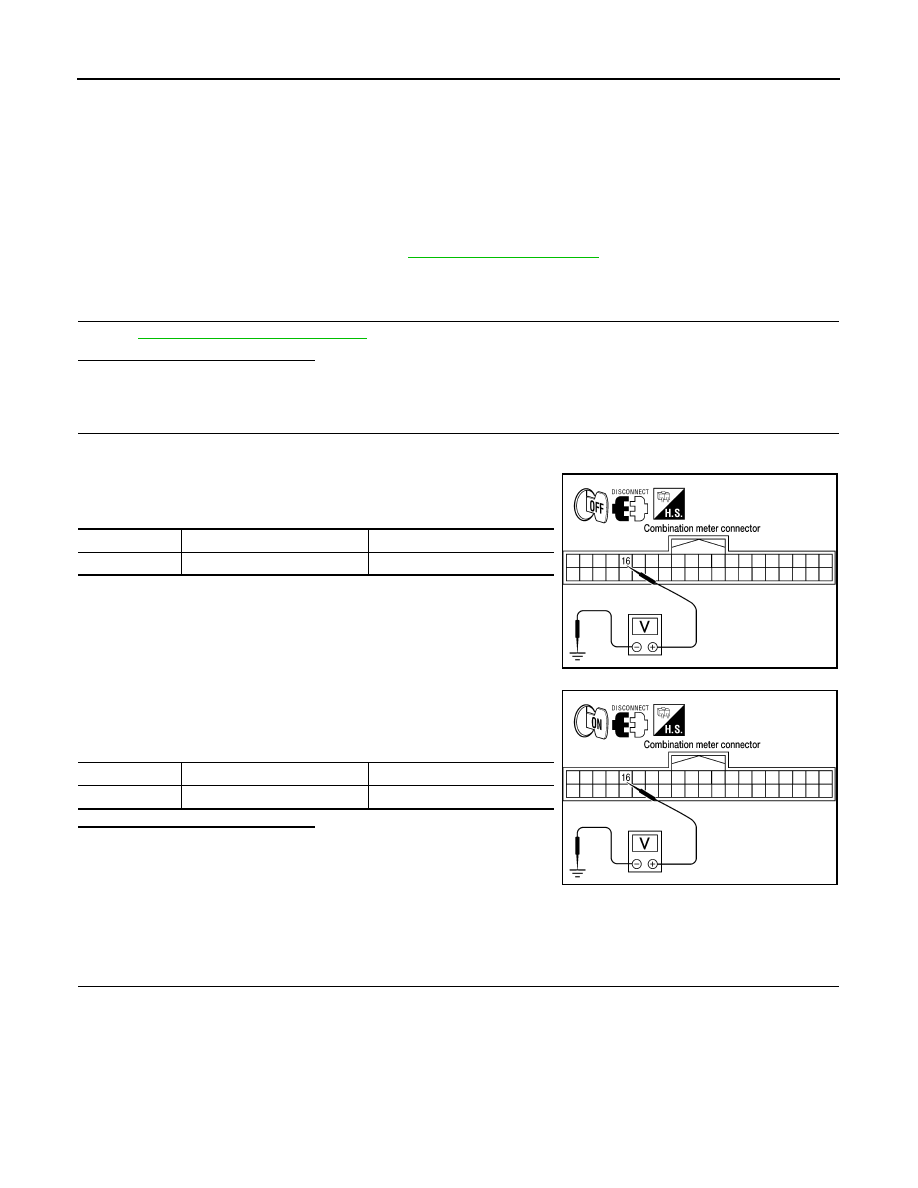

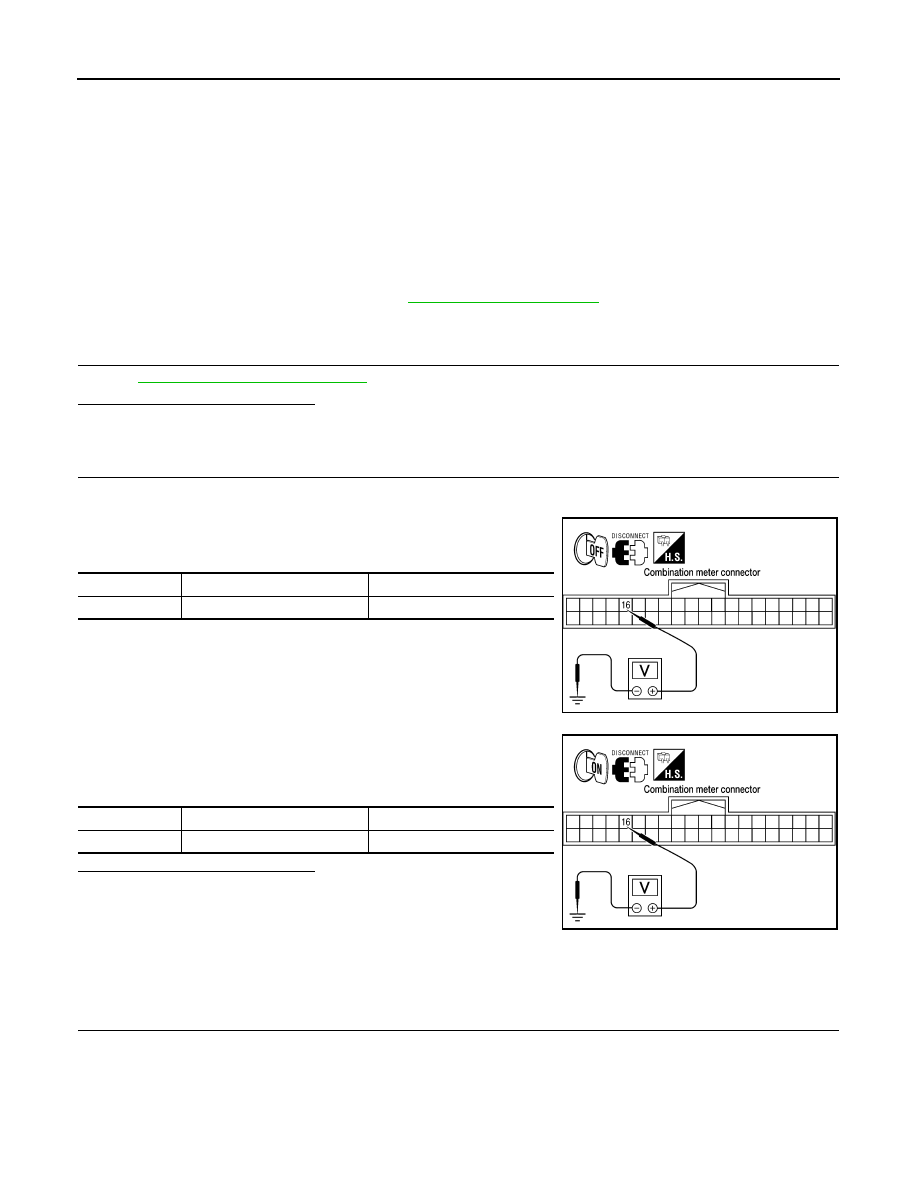

3. Check voltage between combination meter harness connector

terminals and ground.

4. Turn ignition switch “ON”. (Do not start engine.)

5. Check voltage between combination meter harness connector

terminals and ground.

Are the inspection results normal?

YES

>> GO TO 3.

NO

>> Check the following. If any items are damaged, repair

or replace damaged parts.

• 10A fuse [No. 14, located in the fuse block (J/B)] or

ignition switch.

• Harness for short or open between ignition switch and combination meter harness connector

terminal 16

3.

CHECK HARNESS BETWEEN TRANSFER CONTROL UNIT AND COMBINATION METER

1. Turn ignition switch “OFF”.  (Stay for at least 5 seconds.)

Connector

Terminal

Voltage (Approx.)

M24

16 - Ground

0V

WDIA0178E

Connector

Terminal

Voltage (Approx.)

M24

16 - Ground

Battery voltage

WDIA0179E

2011 Pathfinder

4WD WARNING LAMP DOES NOT TURN ON

DLN-255

< SYMPTOM DIAGNOSIS >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

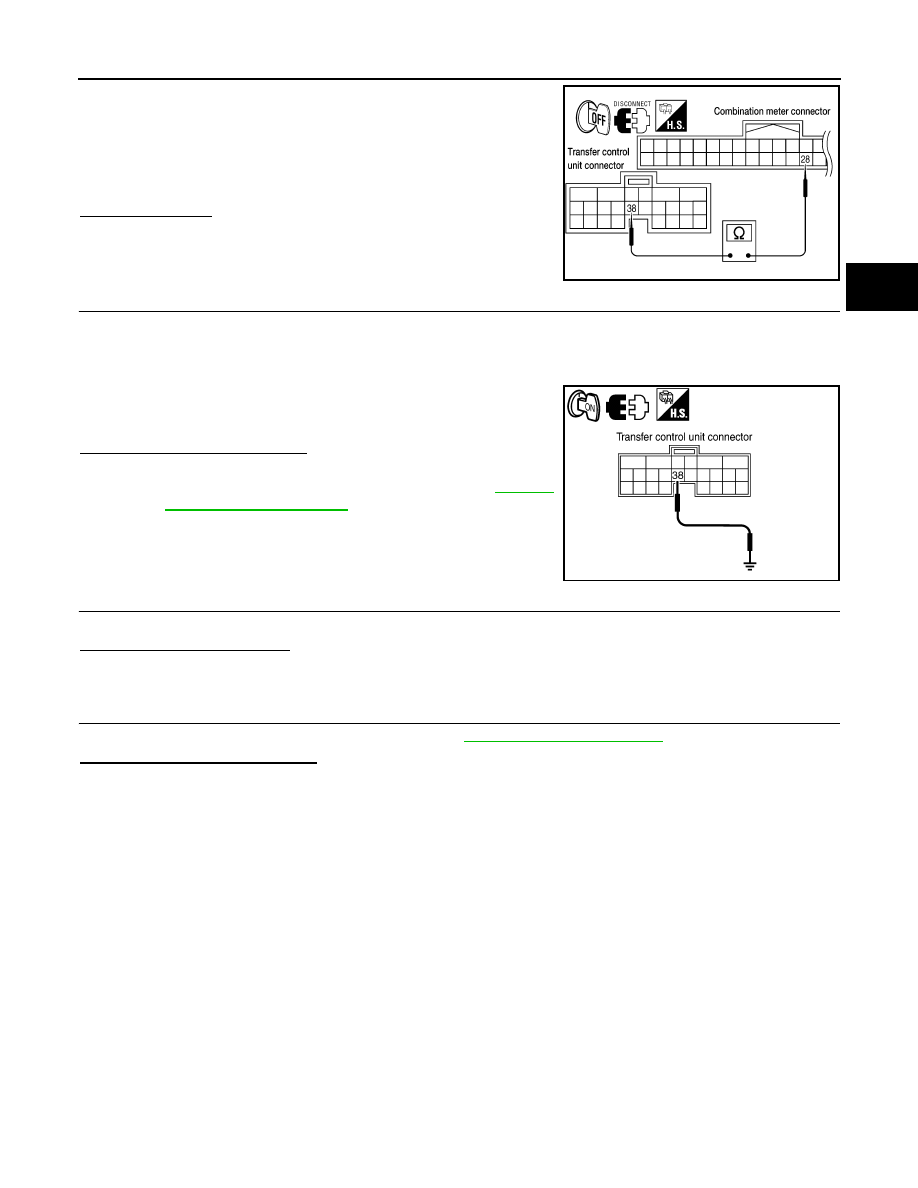

2. Check continuity between transfer control unit harness connec-

tor M166 terminal 38 and combination meter harness connector

M24 terminal 28.

Also check harness for short to ground and short to power.

Is there continuity?

YES

>> GO TO 4.

NO

>> Repair or replace damaged parts.

4.

CHECK INDICATOR LAMP CIRCUIT

1. Turn ignition switch “OFF”.  (Stay for at least 5 seconds.)

2. Connect combination meter harness connector.

3. Disconnect transfer control unit harness connector.

4. Turn ignition switch "ON".  (Do not start engine.)

5. Ground the following terminal using suitable wiring.

-

Transfer control unit harness connector M166 terminal 38 and

ground.

Does the indicator lamp turn on?

YES

>> GO TO 5.

NO

>> Replace the combination meter. Refer to

MWI-88,

"Removal and Installation"

.

5.

SYMPTOM CHECK

Check again.
Does the symptom still occur?

YES

>> GO TO 6.

NO

>> Inspection End.

6.

CHECK TRANSFER CONTROL UNIT

Check transfer control unit input/output signal. Refer to

DLN-238, "Reference Value"

.

Are the inspection results normal?

YES

>> Inspection End.

NO

>> Check transfer control unit pin terminals for damage or loose connection with harness connector.

If any items are damaged, repair or replace damaged parts.

Continuity should exist.

WDIA0180E

SDIA3452E

2011 Pathfinder

DLN-256

< SYMPTOM DIAGNOSIS >

[TRANSFER: TX15B]

4WD SHIFT INDICATOR LAMP AND 4LO INDICATOR LAMP DO NOT TURN ON

4WD SHIFT INDICATOR LAMP AND 4LO INDICATOR LAMP DO NOT
TURN ON

Description

INFOID:0000000006245108

4WD shift indicator lamp and 4LO indicator lamp do not turn ON for approx. 1 second when turning ignition

switch to ON.

Diagnosis Procedure

INFOID:0000000006245109

Regarding Wiring Diagram information, refer to

DLN-245, "Wiring Diagram"

.

1.

CHECK TRANSFER CONTROL UNIT POWER SUPPLY AND GROUND CIRCUITS

Refer to

DLN-206, "Diagnosis Procedure"

.

Are the inspection results normal?

YES

>> GO TO 2.

NO

>> Perform repairs as necessary.

2.

CHECK COMBINATION METER POWER SUPPLY CIRCUIT

1. Turn ignition switch “OFF”.  (Stay for at least 5 seconds.)

2. Disconnect combination meter harness connector.

3. Check voltage between combination meter harness connector

terminals and ground.

4. Turn ignition switch “ON”. (Do not start engine.)

5. Check voltage between combination meter harness connector

terminals and ground.

Are the inspection results normal?

YES

>> GO TO 3.

NO

>> Check the following. If any items are damaged, repair

or replace damaged parts.

• 10A fuse [No. 14, located in the fuse block (J/B) or]

ignition switch.

• Harness for short or open between ignition switch and combination meter harness connector

terminal 16

3.

CHECK HARNESS BETWEEN TRANSFER CONTROL UNIT AND COMBINATION METER

1. Turn ignition switch “OFF”.  (Stay for at least 5 seconds.)

Connector

Terminal

Voltage (Approx.)

M24

16 - Ground

0V

WDIA0178E

Connector

Terminal

Voltage (Approx.)

M24

16 - Ground

Battery voltage

WDIA0179E

2011 Pathfinder

4WD SHIFT INDICATOR LAMP AND 4LO INDICATOR LAMP DO NOT TURN ON

DLN-257

< SYMPTOM DIAGNOSIS >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

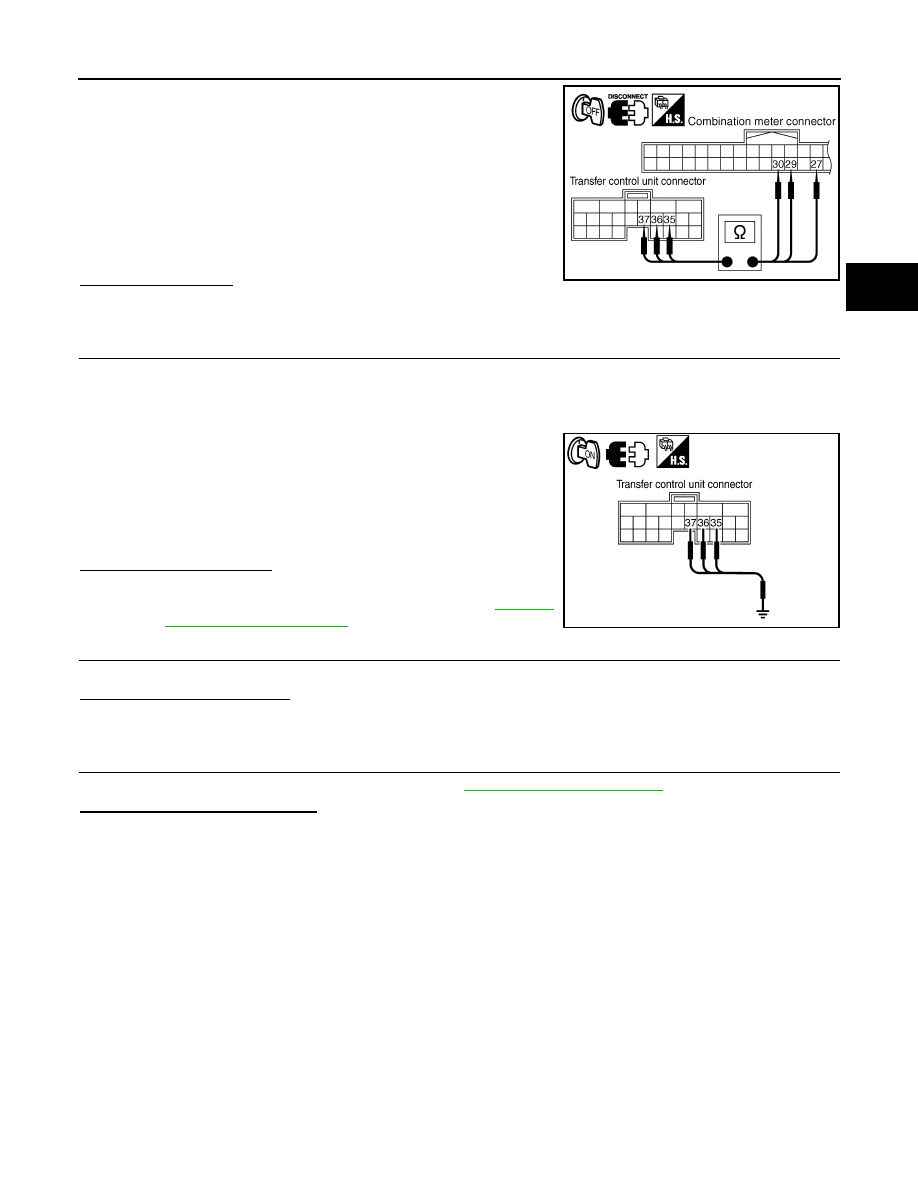

2. Check continuity between the following terminals.

-

Transfer control unit harness connector M166 terminal 35 and

combination meter harness connector M24 terminal 30.

-

Transfer control unit harness connector M166 terminal 36 and

combination meter harness connector M24 terminal 27.

-

Transfer control unit harness connector M166 terminal 37 and

combination meter harness connector M24 terminal 29.

Also check harness for short to ground and short to power.

Does continuity exist?

YES

>> GO TO 4.

NO

>> Repair or replace damaged parts.

4.

CHECK INDICATOR LAMP CIRCUIT

1. Turn ignition switch “OFF”.  (Stay for at least 5 seconds.)

2. Connect combination meter harness connector.

3. Disconnect transfer control unit harness connector.

4. Turn ignition switch "ON".  (Do not start engine.)

5. Ground the following terminals using suitable wiring.

-

Transfer control unit harness connector M166 terminal 35 and

ground.

-

Transfer control unit harness connector M166 terminal 36 and

ground.

-

Transfer control unit harness connector M166 terminal 37 and

ground.

Do indicator lamps turn on?

YES

>> GO TO 5.

NO

>> Replace the combination meter. Refer to

MWI-88,

"Removal and Installation"

.

5.

SYMPTOM CHECK

Check again.
Does the symptom still occur?

YES

>> GO TO 6.

NO

>> Inspection End.

6.

CHECK TRANSFER CONTROL UNIT

Check transfer control unit input/output signal. Refer to

DLN-238, "Reference Value"

.

Are the inspection results normal?

YES

>> Inspection End.

NO

>> Check transfer control unit pin terminals for damage or loose connection with harness connector.

If any items are damaged, repair or replace damaged parts.

Continuity should exist.

SDIA2823E

SDIA3451E
