Nissan Pathfinder (2011 year). Manual - part 168

DLK-210

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

AUTOMATIC DOOR LOCKS

SYSTEM DESCRIPTION

AUTOMATIC DOOR LOCKS

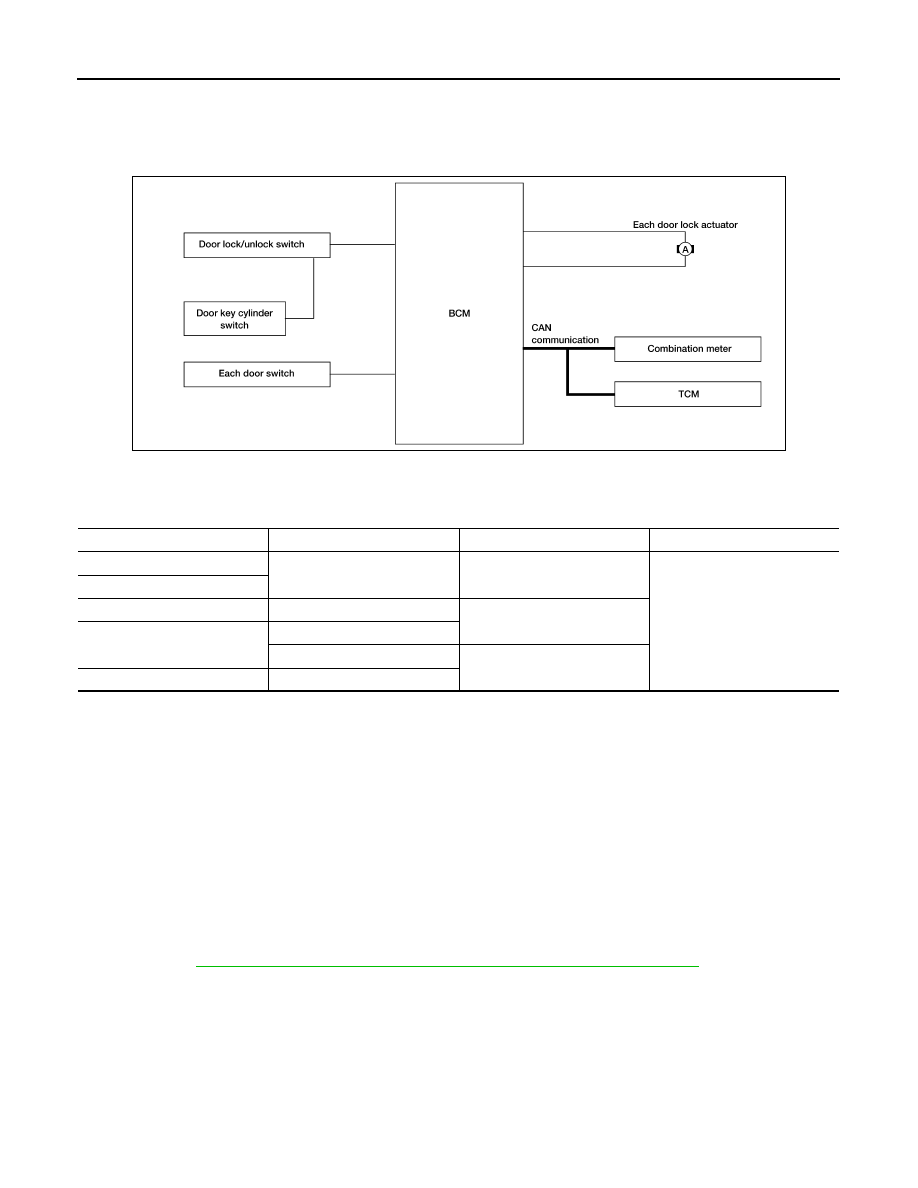

System Diagram

INFOID:0000000006245585

System Description

INFOID:0000000006245586

DOOR LOCK FUNCTION

• The door lock and unlock switch (driver side) is built into power window main switch.

• The door lock and unlock switch (passenger side) is on door trim.

• Interlocked with the locking operation of door lock and unlock switch, door lock actuators of all doors are

locked.

• Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all doors are

unlocked.

Door Key Cylinder

• With the door key inserted in the door key cylinder on driver side, turning it to “LOCK”, will lock door lock

actuator of all doors.

• With the door key inserted in the door key cylinder on driver side, turning it to “UNLOCK” once unlocks the

driver side door lock actuator; turning it to “UNLOCK” again within 5 seconds after the first unlock operation

unlocks all of the other doors. - (SELECTIVE UNLOCK OPERATION)

Selective unlock operation mode can be changed using “DOOR LOCK-UNLOCK SET” mode in “WORK SUP-

PORT”. Refer to

DLK-221, "DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)"

.

AUTOMATIC DOOR LOCKS (LOCK OPERATION)

The interlock door lock function is the function that locks all doors linked with the vehicle speed.

Vehicle Speed Sensing Auto Door Lock*1

All doors are locked when the vehicle speed reaches 24 km/h (15 MPH) or more.

BCM outputs the lock signal to all door lock actuators when it detects that the ignition switch is turned ON, all

doors are closed and the vehicle speed received from the combination meter via CAN communication

becomes 24 km/h (15 MPH) or more.

ALKIA1482GB

Input

Single

Function

Actuator

Door lock/unlock switch

Door lock/unlock signal

Door lock function

Each door lock actuator

Door key cylinder switch

Each door switch

Door open/close signal

Key reminder function

Combination meter

Warning buzzer signal

Vehicle speed signal

Automatic door lock/unlock
function

TCM

Shift position signal

2011 Pathfinder

AUTOMATIC DOOR LOCKS

DLK-211

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

If a door is opened and closed at any time during one ignition cycle (OFF

→

 ON), even after initial auto door

lock has taken place, the BCM will relock all doors when the vehicle speed reaches 24 km/h (15 MPH) or more

again.

Setting change of Automatic Door Locks (LOCK) Function

The lock operation setting of the automatic door locks function can be changed.

With CONSULT-III

The ON/OFF switching of the automatic door locks (LOCK) function and the type selection of the automatic

door locks (LOCK) function can be performed at the WORK SUPPORT setting of CONSULT-III. Refer to

DLK-

221, "DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)"

.

Without CONSULT- III

The automatic door locks (LOCK) function can be switched ON/OFF by performing the following operation.
1. Close all doors (door switch OFF).
2. Turn ignition switch ON.
3. Within 20 seconds of turning the ignition switch ON, press and hold the door lock and unlock switch to the

LOCK position for more than 5 seconds.

4. The switching is completed when the hazard lamps blink.

5. The ignition switch must be turned OFF and ON again between each setting change.

AUTOMATIC DOOR LOCKS (UNLOCK OPERATION)

The automatic door locks (UNLOCK) function is the function that unlocks all doors linked with the key position.

IGN OFF Interlock Door Unlock*1

All doors are unlocked when the power supply position is changed from ON to OFF.

BCM outputs the unlock signal to all door lock actuators when it detects that the power supply position is

changed from ignition switch ON to OFF.

Setting change of Automatic Door Locks (UNLOCK) Function

The lock operation setting of the automatic door locks function can be changed.

With CONSULT-III

The ON/OFF switching of the automatic door locks (UNLOCK) function and the type selection of the automatic

door locks (UNLOCK) function can be performed at the WORK SUPPORT setting of CONSULT-III. Refer to

DLK-221, "DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)"

.

Without CONSULT- III

The automatic door locks (UNLOCK) function can be switched ON/OFF by performing the following operation.
1. Close all doors (door switch OFF).
2. Turn ignition switch ON.
3. Within 20 seconds of turning the ignition switch ON, press and hold the door lock and unlock switch to the

UNLOCK position for more than 5 seconds.

4. The switching is completed when the hazard lamps blink.

5. The ignition switch must be turned OFF and ON again between each setting change.
*1: This function is set to ON before delivery.

OFF

→

 ON

: 2 blinks

ON

→

 OFF

: 1 blink

OFF

→

 ON

: 2 blinks

ON

→

 OFF

: 1 blink

2011 Pathfinder

DLK-212

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

AUTOMATIC DOOR LOCKS

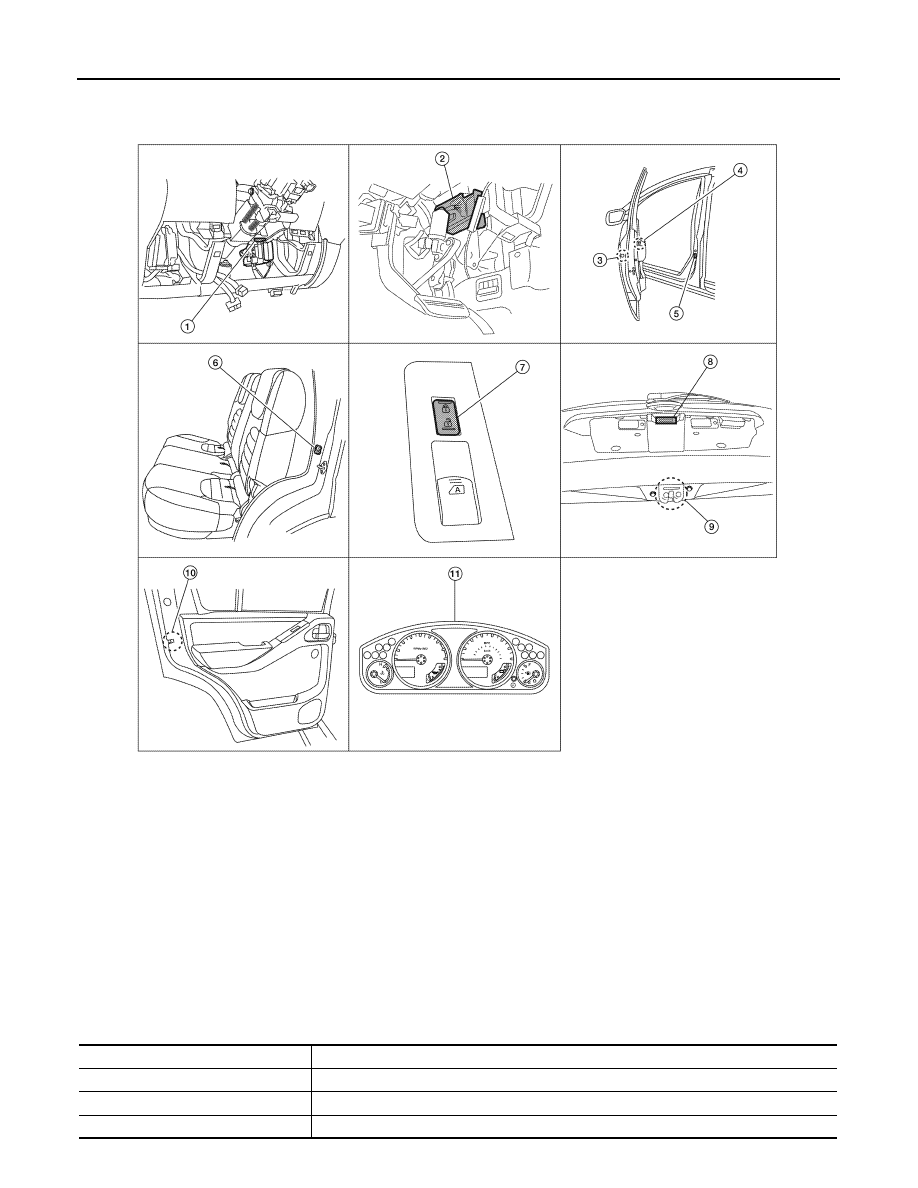

Component Parts Location

INFOID:0000000006245587

Component Description

INFOID:0000000006245588

1.

Key switch M27

2.

BCM M18, M19, M20

3.

Front door lock assembly LH (key
cylinder switch) D14
Front door lock assembly RH (door
lock actuator) D119
Front door lock assembly RH (door
unlock sensor) D103

4.

Main power window and door lock/un-
lock switch D7, D8

5.

Front door switch LH B8
RH B108

6.

Rear door switch LH B18
RH B116

7.

Power window and door lock/unlock
switch RH D105

8.

Back door opener switch D510

9.

Back door latch (door ajar switch)
D502

10. Rear door lock actuator LH D205

RH D305

11. Combination meter M24

ALKIA1700ZZ

Item

Function

BCM

Controls the door lock function and room lamp function.

Door lock and unlock switch

Input lock or unlock signal to BCM.

Door lock actuator

Output lock/unlock signal from BCM and locks/unlocks each door.

2011 Pathfinder

AUTOMATIC DOOR LOCKS

DLK-213

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Door switch

Input door open/close condition to BCM.

Door key cylinder switch

• Input lock or unlock signal to main power window and door lock/unlock switch.
• Main power window and door lock/unlock switch transmits door lock/unlock signal to BCM.

Combination meter

• Receive buzzer signal from BCM via CAN communication line, and sounds the buzzer.
• Transmits vehicle speed signal to CAN communication line.

Item

Function

2011 Pathfinder

DLK-214

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DOOR LOCK FUNCTION

DOOR LOCK FUNCTION

DOOR LOCK AND UNLOCK SWITCH

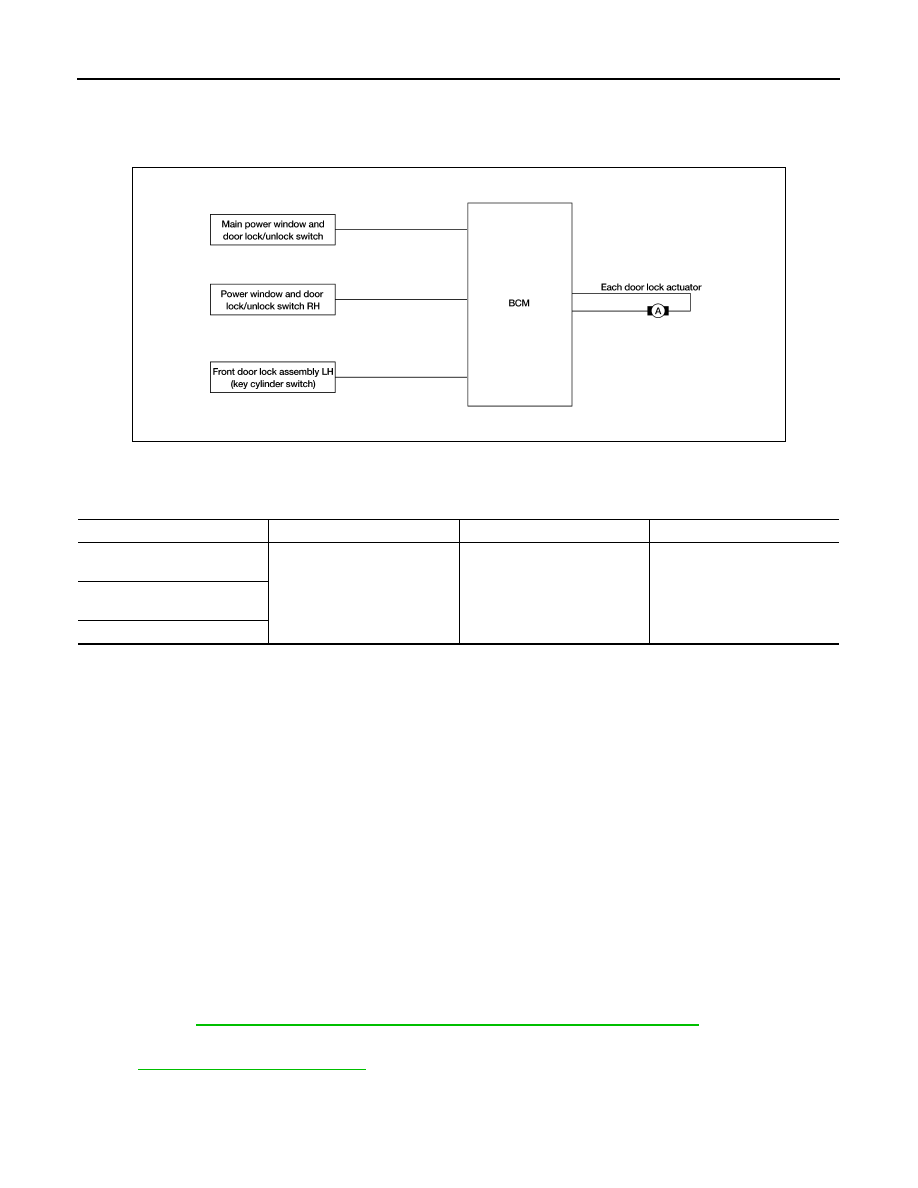

DOOR LOCK AND UNLOCK SWITCH : System Diagram

INFOID:0000000006245589

DOOR LOCK AND UNLOCK SWITCH : System Description

INFOID:0000000006245590

DOOR LOCK FUNCTION

Functions Available by Operating the Door Lock and Unlock Switches on Driver Door and Passenger Door

• Interlocked with the locking operation of door lock and unlock switch, door lock actuators of all doors are

locked, back door opener switch is disabled, and mechanical glass hatch switch is disabled.

• Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all doors are

unlocked, back door opener switch is enabled, and mechanical glass hatch switch is enabled.

• Provided the passenger front door is unlocked, when the back door opener switch is pressed, the BCM ter-

minal 30 receives signal from the back door opener switch terminal 1, through terminal 2, to front door lock

assembly RH (door unlock sensor) terminal 1, through terminal 3, to ground.

• When the BCM receives the signal, if the back door operating enable conditions are met, it sends a signal

through terminal 53 to open the back door latch.

Functions Available by Operating the Key Cylinder Switch on Driver Door

• Interlocked with the locking operation of door key cylinder, door lock actuators of all doors are locked, back

door opener switch is disabled, and mechanical glass hatch switch is disabled.

Selective Unlock Operation

• When door key cylinder is unlocked, door lock actuator driver side is unlocked.

• When door key cylinder is unlocked for the second time within 5 seconds after the first operation, door lock

actuators on all doors are unlocked.

Select unlock operation mode can be changed using DOOR LOCK-UNLOCK SET mode in “WORK SUP-

PORT”. Refer to

DLK-221, "DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)"

.

Key Reminder System

Refer to

DLK-258, "Diagnosis Procedure"

.

ALKIA0178GB

Switch

Input/output signal to BCM

BCM function

Actuator

Main power window and door
lock/unlock switch

Door lock/unlock signal

Door lock/unlock control

Door lock actuator

Power window and door lock/
unlock switch

Door key cylinder switch

2011 Pathfinder

DOOR LOCK FUNCTION

DLK-215

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

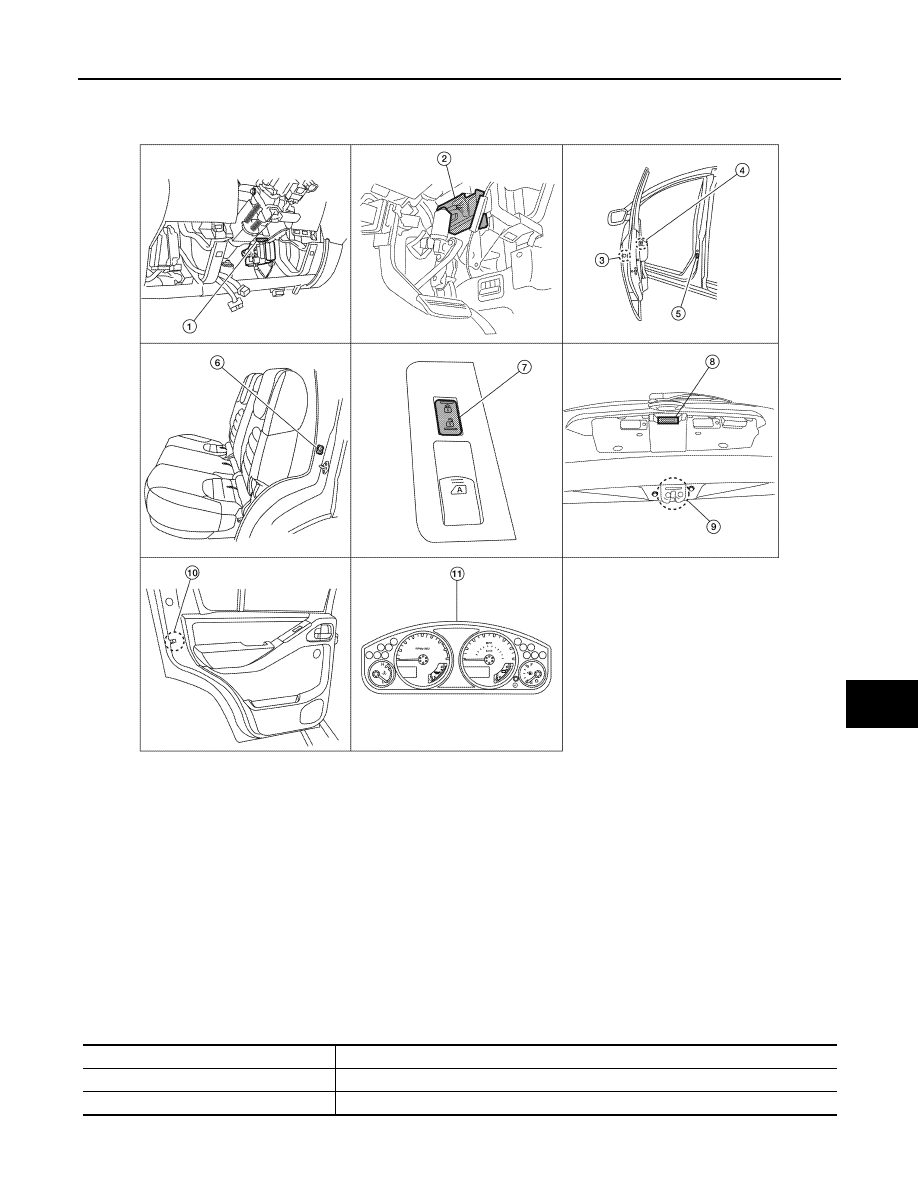

DOOR LOCK AND UNLOCK SWITCH : Component Parts Location

INFOID:0000000006245591

DOOR LOCK AND UNLOCK SWITCH : Component Description

INFOID:0000000006245592

1.

Key switch M27

2.

BCM M18, M19, M20

3.

Front door lock assembly LH (key
cylinder switch) D14
Front door lock assembly RH (door
lock actuator) D119
Front door lock assembly RH (door
unlock sensor) D103

4.

Main power window and door lock/un-
lock switch D7, D8

5.

Front door switch LH B8
RH B108

6.

Rear door switch LH B18
RH B116

7.

Power window and door lock/unlock
switch RH D105

8.

Back door opener switch D510

9.

Back door latch (door ajar switch)
D502

10. Rear door lock actuator LH D205

RH D305

11. Combination meter M24

ALKIA1700ZZ

Item

Function

BCM

Controls the door lock function and room lamp function.

Door lock and unlock switch

Transmits lock or unlock signal to BCM.

2011 Pathfinder

DLK-216

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DOOR LOCK FUNCTION

REMOTE KEYLESS ENTRY

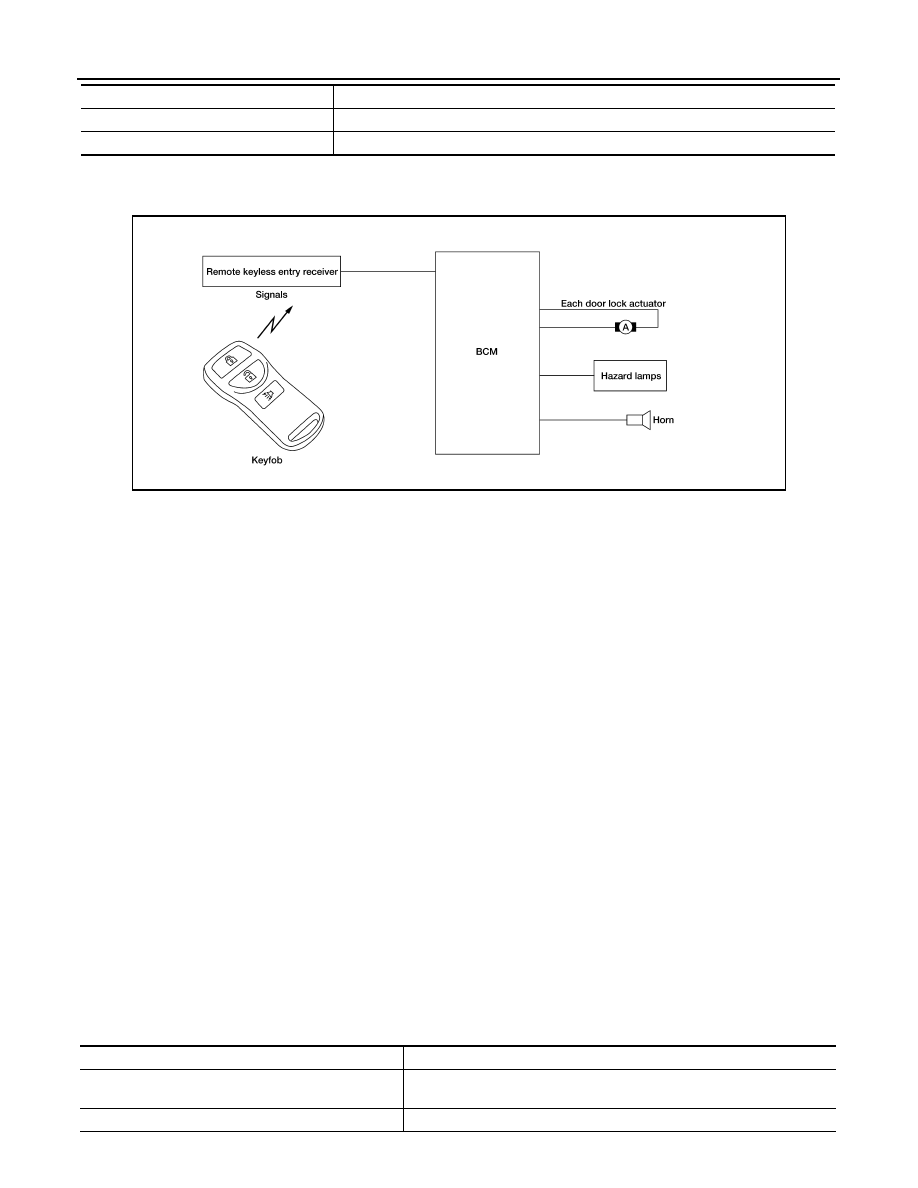

REMOTE KEYLESS ENTRY : System Diagram

INFOID:0000000006245593

REMOTE KEYLESS ENTRY : System Description

INFOID:0000000006245594

OPERATED PROCEDURE

• When the keyfob is operated, the signal from the keyfob is sent and the remote keyless entry receiver

receives the signal and sends it to the BCM. The BCM only locks/unlocks the doors if the ID number

matches. (Remote control entry functions)

• Using the keyfob, the transmitter sends radio waves to the remote keyless entry receiver, which then sends

the received waves to the BCM. Only if the ID number matches does the BCM lock/unlock the doors.

(Remote control door function)

• Unless the key is inserted into the ignition key cylinder or one of the doors is opened within 1 minute after the

UNLOCK switch on the keyfob is pressed, all the doors are automatically locked. (Auto lock function)

• When a door is locked or unlocked, the vehicle turn signal lamps flash and the horn sounds to verify opera-

tion. (Active check function)

• When the key is in the ignition key cylinder (when the key switch is ON) and one of the doors is open, the

door lock function does not work even when the door lock is operated with the keyfob.

• Keyfob ID set up is available.

• If a keyfob is lost, a new keyfob can be set up. A maximum of 5 IDs can be set up simultaneously.

REMOTE CONTROL ENTRY FUNCTIONS

• When a button on the keyfob is operated, the signal is sent from the keyfob and received by the remote key-

less entry receiver.

• The received signal is sent to the BCM and compared with the registered ID number.

• If the ID number matches, the BCM sends the lock/unlock signal to each door lock actuator.

• When the door lock actuators receive this signal, each operates to lock/unlock its door.

• BCM locks all doors with input of LOCK signal from keyfob.

• When an UNLOCK signal is sent from keyfob once, driver's door will be unlocked.

• Then, if an UNLOCK signal is sent from keyfob again within 5 seconds, all other doors will be unlocked.

REMOTE CONTROL ENTRY OPERATION CONDITIONS

Door lock actuator

Receives lock/unlock signal from BCM and locks/unlocks each door.

Door switch

Transmits door open/close condition to BCM.

Item

Function

ALKIA1171GB

Keyfob operation

Operation condition

Door lock operation (locking)

• With key removed (key switch: OFF)
• Closing all doors (door switch: OFF)

Door lock operation (unlocking)

With key removed (key switch: OFF)

2011 Pathfinder

DOOR LOCK FUNCTION

DLK-217

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

AUTO RELOCK FUNCTION

Operation Description

• Unless the key is inserted into the ignition key cylinder, one of the doors is opened, or the keyfob is operated

within 1 minute after a door lock is unlocked by keyfob operation, all the doors are automatically locked.

The 1 minute timer count is executed by the BCM and after 1 minute, the BCM sends the lock signal to all

doors.

Lock operations are the same as for the remote control entry function.

ACTIVE CHECK FUNCTION

Operation Description

When a door is locked or unlocked by keyfob operation, the vehicle turn signals flash and the horn sounds to

verify operation.

• When a button on the keyfob is operated, the signal is sent from the remote controller and received by the

keyless remote entry receiver.

• The received signal is sent to the BCM and compared with the registered ID number.

• If the ID number matches, the BCM uses communication to send the turn signal flashing and horn signal to

the IPDM E/R.

• The IPDM E/R flashes the turn signal lamps and sounds the horn for each keyfob operation.

Operating function of hazard and horn reminder

HAZARD AND HORN REMINDER

BCM output to IPDM E/R for horn reminder signal as DATA LINE (CAN-H line and CAN-L line).

The hazard and horn reminder has C mode (horn chirp mode) and S mode (non-horn chirp mode).

How to change hazard and horn reminder mode

 With CONSULT-III

Hazard and horn reminder can be changed using “WORK SUPPORT” mode in “MULTI ANSWER BACK SET".

 Without CONSULT-III

Refer to Owner's Manual for instructions.

INTERIOR LAMP OPERATION

When the following input signals are both supplied:

• all door switches are in the OFF position. (when all the doors are closed);

• interior lamp switch is in DOOR position.

Remote keyless entry system turns on interior lamp and ignition keyhole illumination (for 30 seconds) with

input of UNLOCK signal from keyfob.

PANIC ALARM OPERATION

When key switch is OFF (when ignition key is not inserted in key cylinder), remote keyless entry system turns

on and off horn and headlamp intermittently with input of PANIC ALARM signal from keyfob.

The alarm automatically turns off after 25 seconds or when BCM receives any signal from keyfob.

KEYLESS POWER WINDOW DOWN (OPEN) OPERATION

When keyfob unlock switch is turned ON with ignition switch OFF, and the switch is detected to be ON contin-

uously for more than 3 second, the driver's door and passenger's door power windows are simultaneously

opened.

Power window is operated to open and the operation continues as long as the keyfob unlock switch is

pressed.

C mode

S mode

Keyfob operation

Lock

Unlock

Lock

Unlock

Hazard warning lamp
flash

Twice

Once

Twice

—

Horn sound

Once

—

—

—

2011 Pathfinder
