TCS

BRC-129

< SYSTEM DESCRIPTION >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

TCS

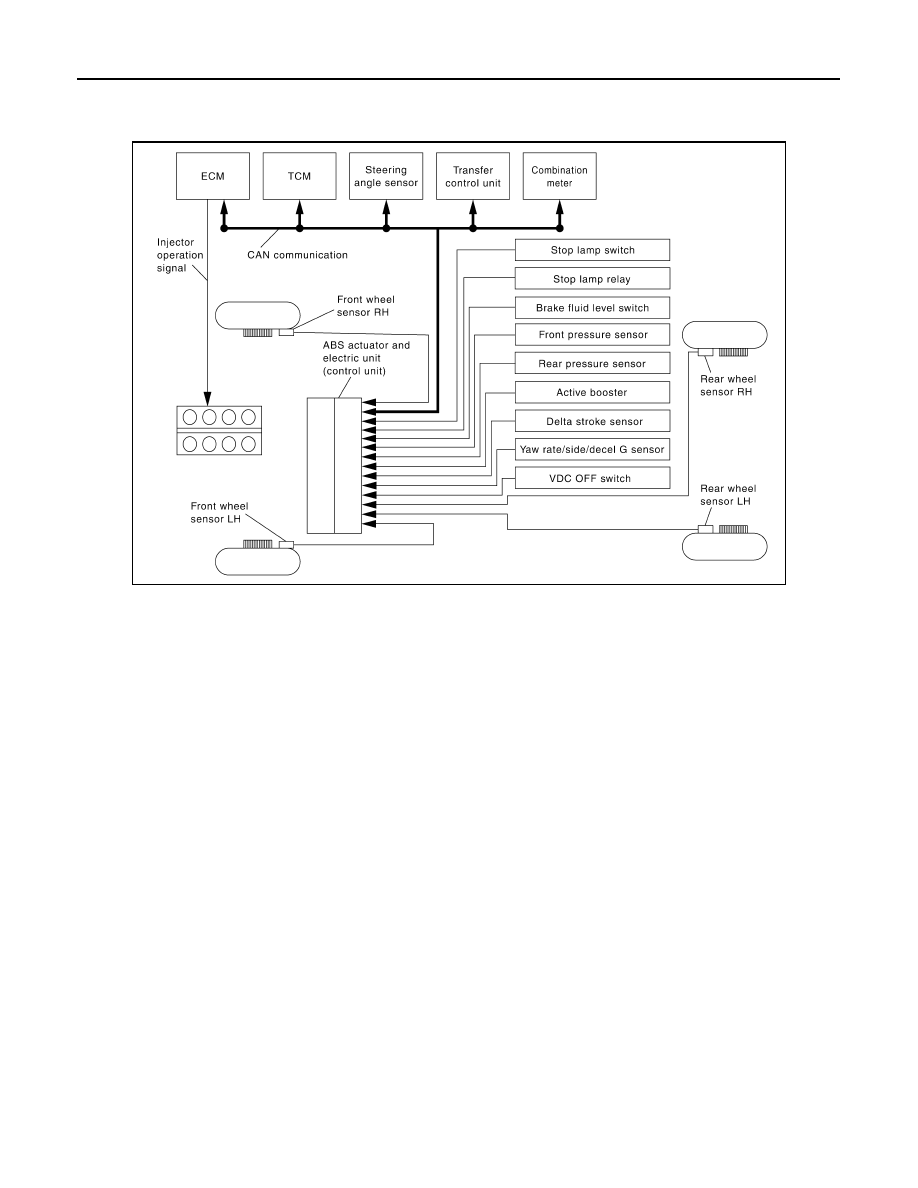

System Diagram

INFOID:0000000006689876

System Description

INFOID:0000000006245992

• Traction Control System is a function that electronically controls engine torque, brake fluid pressure and A/T

gear position to ensure the optimum slippage ratio at drive wheels by computing wheel speed signals from 4

wheel sensors. When ABS actuator and electric unit (control unit) detects a spin at drive wheels (rear

wheels), it compares wheel speed signals from all 4 wheels. At this time, LH and RH rear brake fluid pres-

sure are controlled, while fuel being cut to engine and throttle valve being closed to reduce engine torque by

the control unit. Further more, throttle position is continuously controlled to ensure the optimum engine

torque at all times.

• During TCS operation, it informs driver of system operation by flashing SLIP indicator lamp.

• Electrical system diagnosis by CONSULT-III is available.

AWFIA0737GB

2011 Pathfinder

BRC-130

< SYSTEM DESCRIPTION >

[TYPE 2]

TCS

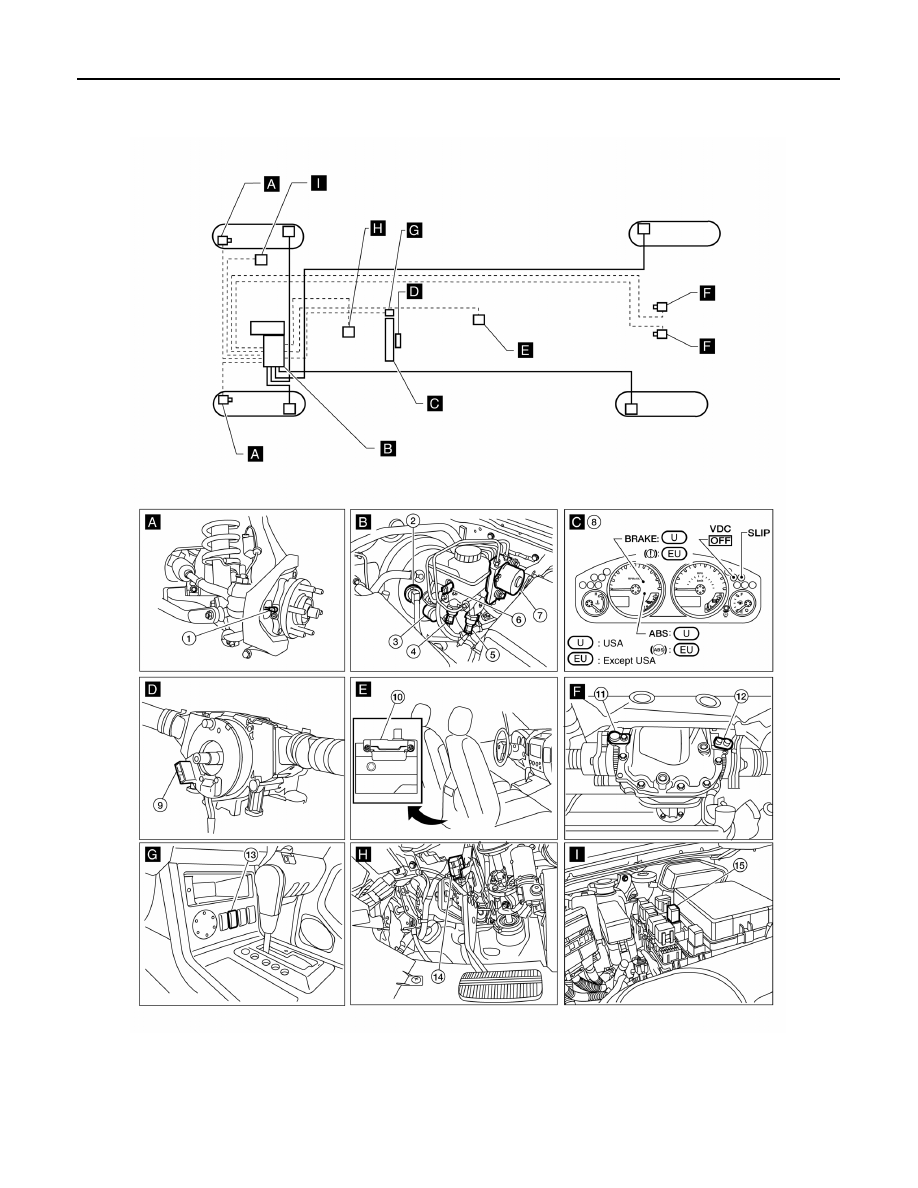

Component Parts Location

INFOID:0000000006689879

AWFIA0678GB

1.

Front wheel sensor LH E18
Front wheel sensor RH E117

2.

Delta stroke sensor E114

3.

Active booster E49

4.

Rear pressure sensor E32

5.

Front pressure sensor E31

6.

Brake fluid level switch E21

7.

ABS actuator and electric unit (control
unit) E127

8.

Combination meter M24

9.

Steering angle sensor (behind spiral
cable) M47

2011 Pathfinder

TCS

BRC-131

< SYSTEM DESCRIPTION >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Component Description

INFOID:0000000006689880

10. Yaw rate/side/decel G sensor B73

11. Rear wheel sensor LH C13

12. Rear wheel sensor RH C13

13. VDC OFF switch M154

14. Stop lamp switch E38

15. Stop lamp relay E12

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-153, "Description"

Motor

Actuator relay

BRC-169, "Description"

Solenoid valve

BRC-162, "Description"

VDC switch-over valve
(CV1, CV2, SV1, SV2)

BRC-184, "Description"

Wheel sensor

BRC-144, "Description"

Yaw rate/side/decel G sensor

BRC-155, "Description"

Stop lamp switch

BRC-160, "Description"

Front pressure sensor

BRC-171, "Description"

Rear pressure sensor

Steering angle sensor

BRC-175, "Description"

Brake fluid level switch

BRC-178, "Description"

Active booster

BRC-187, "Description"

Delta stroke sensor

BRC-190, "Description"

VDC OFF switch

BRC-193, "Description"

ABS warning lamp

BRC-195, "Description"

Brake warning lamp

BRC-196, "Description"

VDC OFF indicator lamp

BRC-197, "Description"

SLIP indicator lamp

BRC-199, "Description"

2011 Pathfinder

BRC-132

< SYSTEM DESCRIPTION >

[TYPE 2]

ABS

ABS

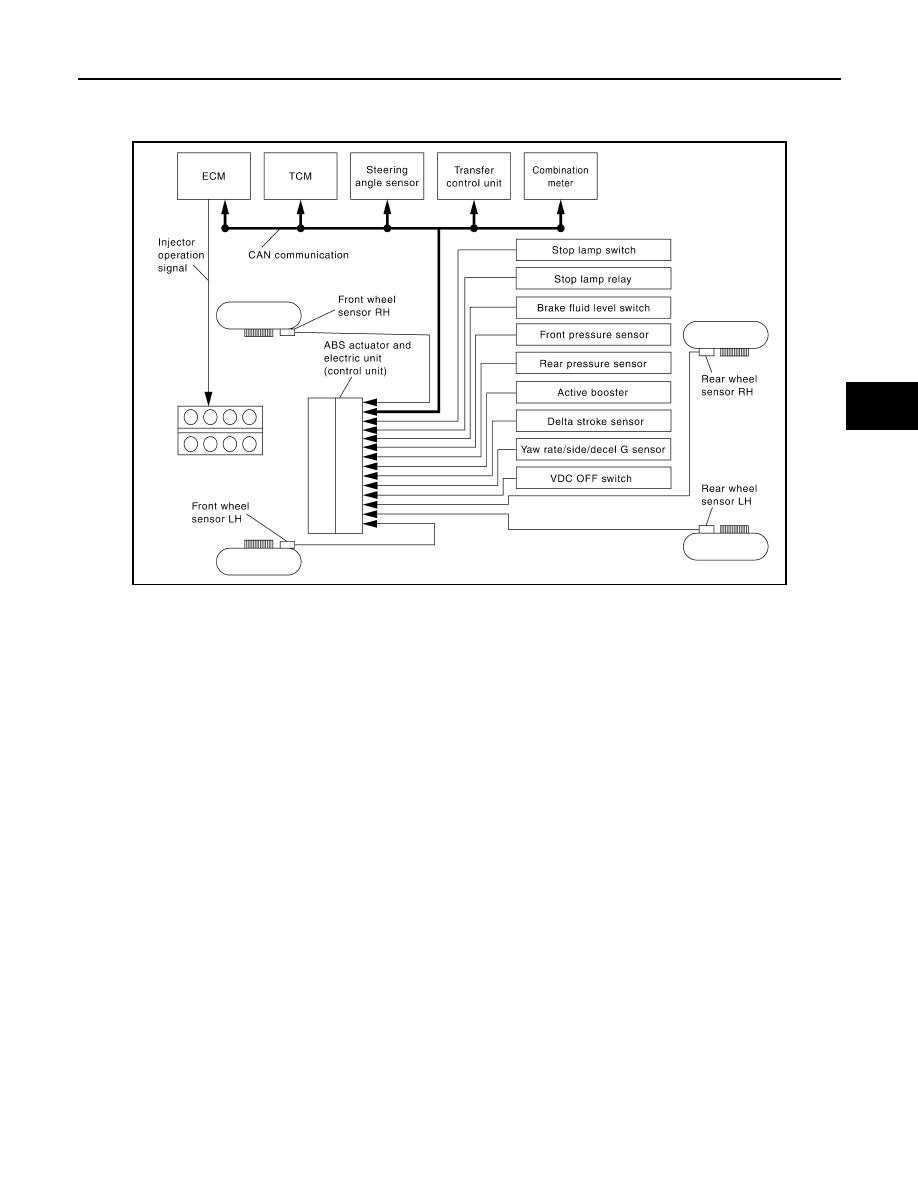

System Diagram

INFOID:0000000006689877

System Description

INFOID:0000000006245996

• Anti-Lock Braking System is a function that detects wheel revolution while braking, electronically controls

braking force, and prevents wheel locking during sudden braking. It improves handling stability and maneu-

verability for avoiding obstacles.

• Electrical system diagnosis by CONSULT-III is available.

AWFIA0737GB

2011 Pathfinder

ABS

BRC-133

< SYSTEM DESCRIPTION >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

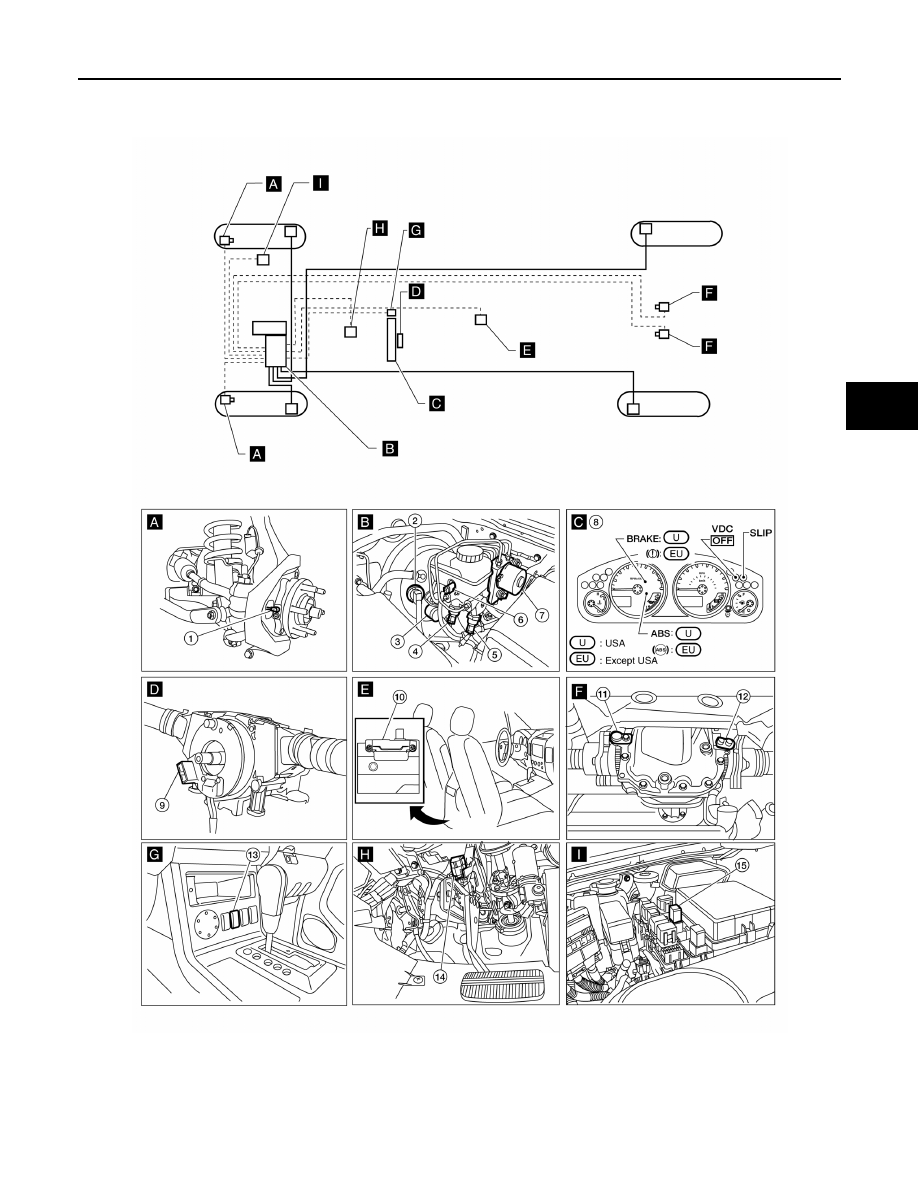

Component Parts Location

INFOID:0000000006689881

AWFIA0678GB

1.

Front wheel sensor LH E18
Front wheel sensor RH E117

2.

Delta stroke sensor E114

3.

Active booster E49

4.

Rear pressure sensor E32

5.

Front pressure sensor E31

6.

Brake fluid level switch E21

7.

ABS actuator and electric unit (control
unit) E127

8.

Combination meter M24

9.

Steering angle sensor (behind spiral
cable) M47

2011 Pathfinder

BRC-134

< SYSTEM DESCRIPTION >

[TYPE 2]

ABS

Component Description

INFOID:0000000006689882

10. Yaw rate/side/decel G sensor B73

11. Rear wheel sensor LH C13

12. Rear wheel sensor RH C13

13. VDC OFF switch M154

14. Stop lamp switch E38

15. Stop lamp relay E12

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-153, "Description"

Motor

Actuator relay

BRC-169, "Description"

Solenoid valve

BRC-162, "Description"

VDC switch-over valve
(CV1, CV2, SV1, SV2)

BRC-184, "Description"

Wheel sensor

BRC-144, "Description"

Yaw rate/side/decel G sensor

BRC-155, "Description"

Stop lamp switch

BRC-160, "Description"

Front pressure sensor

BRC-171, "Description"

Rear pressure sensor

Steering angle sensor

BRC-175, "Description"

Brake fluid level switch

BRC-178, "Description"

Active booster

BRC-187, "Description"

Delta stroke sensor

BRC-190, "Description"

VDC OFF switch

BRC-193, "Description"

ABS warning lamp

BRC-195, "Description"

Brake warning lamp

BRC-196, "Description"

VDC OFF indicator lamp

BRC-197, "Description"

SLIP indicator lamp

BRC-199, "Description"

2011 Pathfinder

EBD

BRC-135

< SYSTEM DESCRIPTION >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

EBD

System Diagram

INFOID:0000000006689878

System Description

INFOID:0000000006246000

• Electric Brake force Distribution is a following function. ABS actuator and electric unit (control unit) detects

subtle slippages between the front and rear wheels during braking. Then it electronically controls the rear

braking force (brake fluid pressure) to reduce rear wheel slippage. Accordingly, it improves vehicle stability.

• Electrical system diagnosis by CONSULT-III is available.

AWFIA0737GB

2011 Pathfinder

BRC-136

< SYSTEM DESCRIPTION >

[TYPE 2]

EBD

Component Parts Location

INFOID:0000000006689883

AWFIA0678GB

1.

Front wheel sensor LH E18
Front wheel sensor RH E117

2.

Delta stroke sensor E114

3.

Active booster E49

4.

Rear pressure sensor E32

5.

Front pressure sensor E31

6.

Brake fluid level switch E21

7.

ABS actuator and electric unit (control
unit) E127

8.

Combination meter M24

9.

Steering angle sensor (behind spiral
cable) M47
