INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description

INFOID:0000000006245979

After replacing the ABS actuator and electric unit (control unit), perform the following procedures:

• Neutral position adjustment for the steering angle sensor

• Calibration of the decel G sensor

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement

INFOID:0000000006245980

1.

PERFORM THE NEUTRAL POSITION ADJUSTMENT FOR THE STEERING ANGLE SENSOR

Perform the neutral position adjustment for the steering angle sensor.

>> Refer to

BRC-121, "ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION :

Special Repair Requirement"

, GO TO 2

2.

PERFORM CALIBRATION OF THE DECEL G SENSOR

Perform calibration of the decel G sensor.

>> Refer to

BRC-122, "CALIBRATION OF DECEL G SENSOR : Special Repair Requirement"

.

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION
ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Description

INFOID:0000000006245981

Refer to the table below to determine if adjustment of steering angle sensor neutral position is required.

×

: Required –: Not required

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Special Re-
pair Requirement

INFOID:0000000006245982

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

CAUTION:

To adjust neutral position of steering angle sensor, make sure to use CONSULT-III

(Adjustment cannot be done without CONSULT-III)

1.

ALIGN THE VEHICLE STATUS

Stop vehicle with front wheels in straight-ahead position.

Situation

Adjustment of steering angle sensor neutral position

Removing/Installing ABS actuator and electric unit (control unit)

—

Replacing ABS actuator and electric unit (control unit)

×

Removing/Installing steering angle sensor

×

Replacing steering angle sensor

×

Removing/Installing steering components

×

Replacing steering components

×

Removing/Installing suspension components

×

Replacing suspension components

×

Change tires to new ones

—

Tire rotation

—

Adjusting wheel alignment

×

Battery disconnection

×

2011 Pathfinder

BRC-122

< BASIC INSPECTION >

[TYPE 2]

INSPECTION AND ADJUSTMENT

>> GO TO 2

2.

PERFORM THE NEUTRAL POSITION ADJUSTMENT FOR THE STEERING ANGLE SENSOR

1. On the CONSULT-III screen, touch “WORK SUPPORT” and “ST ANGLE SENSOR ADJUSTMENT” in

order.

2. Touch “START”.

CAUTION:

Do not touch steering wheel while adjusting steering angle sensor.

3. After approximately 10 seconds, touch “END”.

NOTE:

After approximately 60 seconds, it ends automatically.

4. Turn ignition switch OFF, then turn it ON again.

CAUTION:

Be sure to perform above operation.

>> GO TO 3

3.

CHECK DATA MONITOR

1. Run vehicle with front wheels in straight-ahead position, then stop.

2. Select “DATA MONITOR”. Then make sure “STR ANGLE SIG” is within 0

±

2.5

°

.

Is the steering angle within the specified range?

YES

>> GO TO 4

NO

>> Perform the neutral position adjustment for the steering angle sensor again, GO TO 1

4.

ERASE THE SELF-DIAGNOSIS MEMORY

Erase the self-diagnosis memory of the ABS actuator and electric unit (control unit) and ECM.

• ABS actuator and electric unit (control unit): Refer to

BRC-138, "CONSULT-III Function (ABS)"

.

• ECM: Refer to

EC-530, "CONSULT-III Function"

.

Are the memories erased?

YES

>> Inspection End.

NO

>> Check the items indicated by the self-diagnosis.

CALIBRATION OF DECEL G SENSOR
CALIBRATION OF DECEL G SENSOR : Description

INFOID:0000000006245983

Refer to the table below to determine if calibration of the decel G sensor is required.

×

: Required –: Not required

CALIBRATION OF DECEL G SENSOR : Special Repair Requirement

INFOID:0000000006245984

CALIBRATION OF DECEL G SENSOR

CAUTION:

Situation

Calibration of decel G sensor

Removing/Installing ABS actuator and electric unit (control unit)

—

Replacing ABS actuator and electric unit (control unit)

×

Removing/Installing steering components

—

Replacing steering components

—

Removing/Installing suspension components

—

Replacing suspension components

—

Change tires to new ones

—

Tire rotation

—

Adjusting wheel alignment

—

Removing/Installing yaw rate/side/decel G sensor

×

Replacing yaw rate/side/decel G sensor

×

2011 Pathfinder

INSPECTION AND ADJUSTMENT

BRC-123

< BASIC INSPECTION >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

To calibrate the decel G sensor, make sure to use CONSULT-III

(Calibration cannot be done without CONSULT-III)

1.

ALIGN THE VEHICLE STATUS

Stop vehicle with front wheels in straight-ahead position.

>> GO TO 2

2.

PERFORM CALIBRATION OF DECEL G SENSOR

1. On the CONSULT-III screen, touch “WORK SUPPORT” and “DECEL G SEN CALIBRATION” in order.

2. Touch “START”.

3. After approximately 10 seconds, touch “END”.

NOTE:

After approximately 60 seconds, it ends automatically.

4. Turn ignition switch OFF, then turn it ON again.

CAUTION:

Be sure to perform above operation.

>> GO TO 3

3.

CHECK DATA MONITOR

1. Run vehicle with front wheels in straight-ahead position, then stop.

2. Select “DATA MONITOR”. Then make sure “DECEL G SEN” is within

±

 0.08G.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Perform calibration of decel G sensor again, GO TO 1

4.

ERASE THE SELF-DIAGNOSIS MEMORY

Erase the self-diagnosis memory of the ABS actuator and electric unit (control unit) and ECM.

• ABS actuator and electric unit (control unit): Refer to

BRC-138, "CONSULT-III Function (ABS)"

.

• ECM: Refer to

EC-530, "CONSULT-III Function"

.

Are the memories erased?

YES

>> Inspection End.

NO

>> Check the items indicated by the self-diagnosis.

2011 Pathfinder

BRC-124

< SYSTEM DESCRIPTION >

[TYPE 2]

APPLICATION NOTICE

SYSTEM DESCRIPTION

APPLICATION NOTICE

Application Notice

INFOID:0000000006689872

Service information

Remarks

TYPE 1

VDC/TCS/ABS (VQ40DE)

TYPE 2

VDC/TCS/ABS (VK56DE)

2011 Pathfinder

VDC

BRC-125

< SYSTEM DESCRIPTION >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

VDC

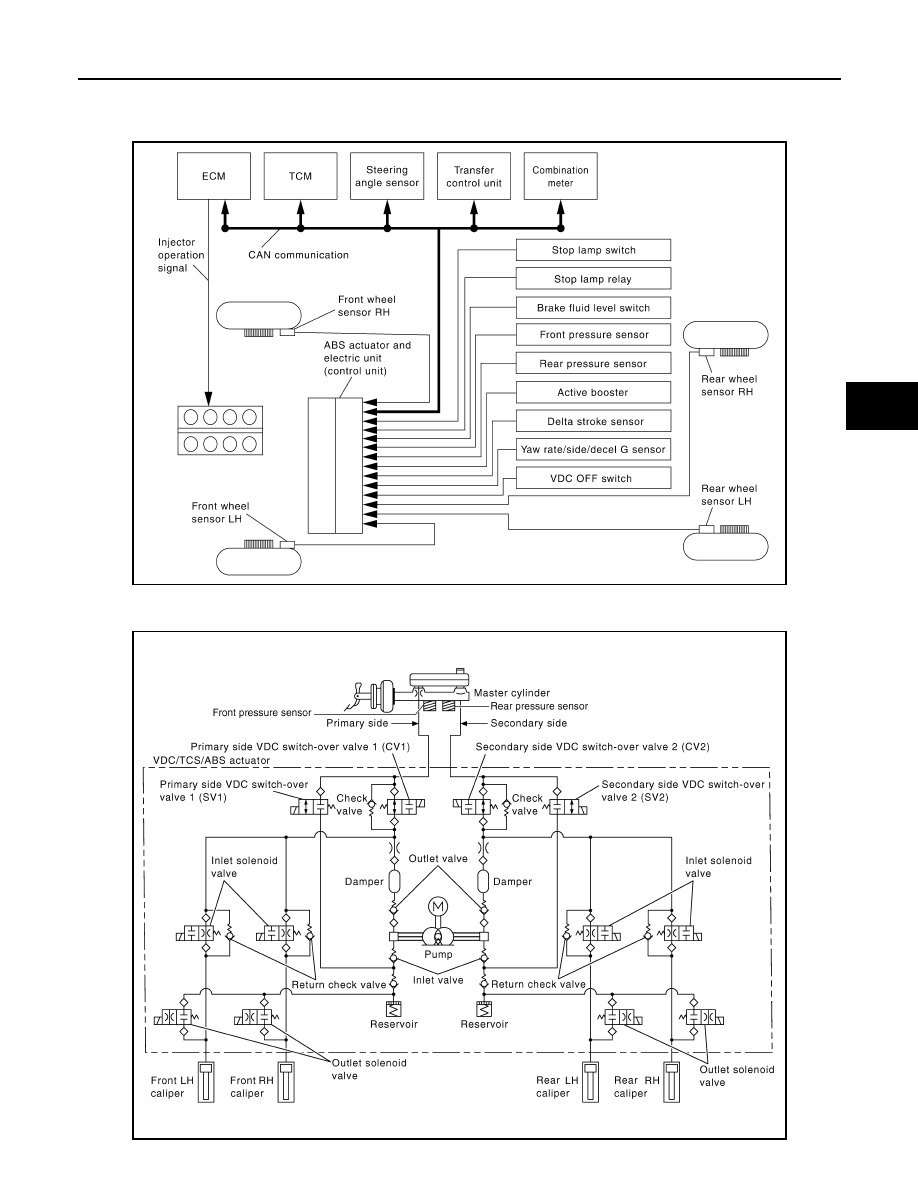

System Diagram

INFOID:0000000006245986

Hydraulic Circuit Diagram

INFOID:0000000006245987

AWFIA0737GB

WFIA0187E

2011 Pathfinder

BRC-126

< SYSTEM DESCRIPTION >

[TYPE 2]

VDC

System Description

INFOID:0000000006245988

• Vehicle Dynamics Control system detects driver

′

s steering operation amount and brake pedal travel from

steering angle sensor and pressure sensors. Using information from yaw rate/side/decel G sensor and

wheel sensor, VDC judges driving condition (conditions of under steer and over steer) to improve vehicle

driving stability by controlling brake application to 4 wheels and engine output.

• During VDC operation, it informs driver of system operation by flashing SLIP indicator lamp.

• Electrical system diagnosis by CONSULT-III is available.

2011 Pathfinder

VDC

BRC-127

< SYSTEM DESCRIPTION >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

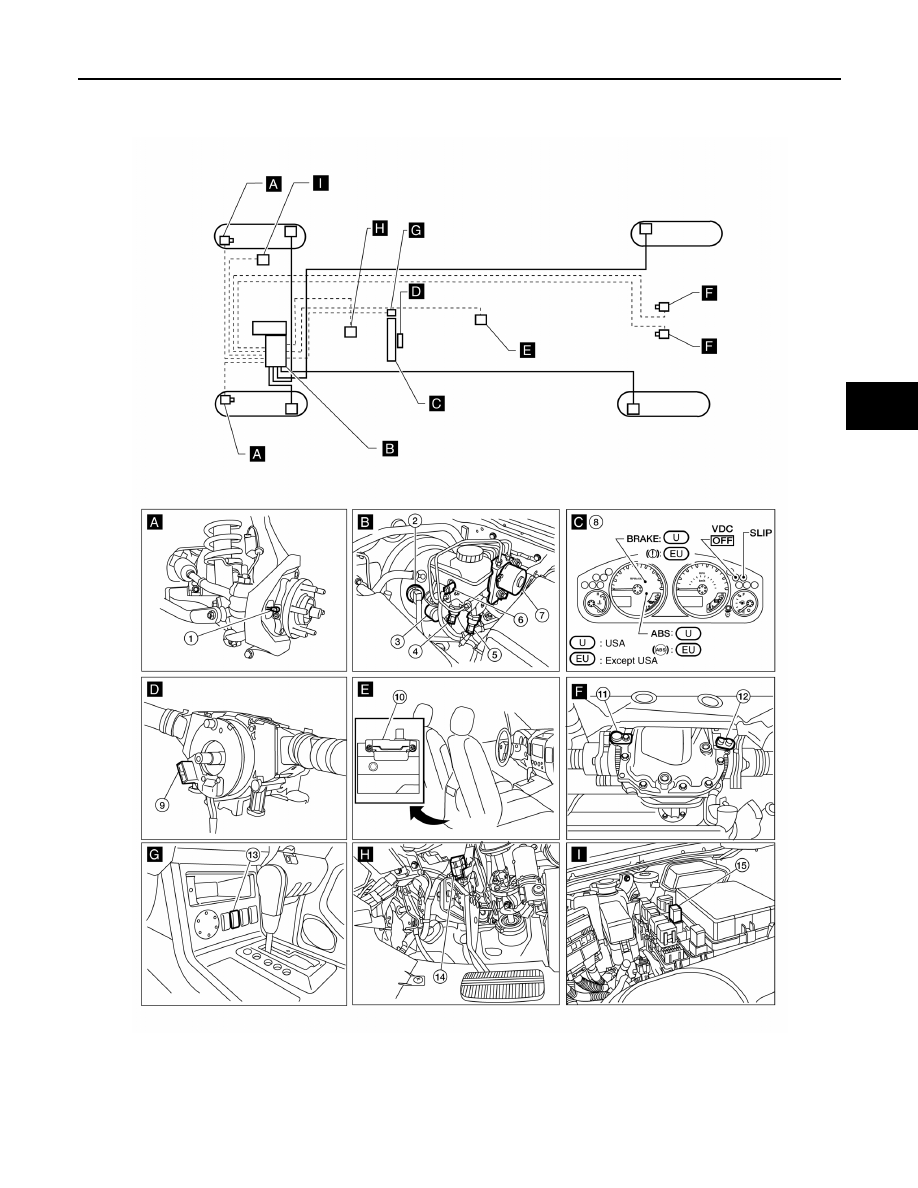

Component Parts Location

INFOID:0000000006245989

AWFIA0678GB

1.

Front wheel sensor LH E18
Front wheel sensor RH E117

2.

Delta stroke sensor E114

3.

Active booster E49

4.

Rear pressure sensor E32

5.

Front pressure sensor E31

6.

Brake fluid level switch E21

7.

ABS actuator and electric unit (control
unit) E127

8.

Combination meter M24

9.

Steering angle sensor (behind spiral
cable) M47

2011 Pathfinder

BRC-128

< SYSTEM DESCRIPTION >

[TYPE 2]

VDC

Component Description

INFOID:0000000006245990

10. Yaw rate/side/decel G sensor B73

11. Rear wheel sensor LH C13

12. Rear wheel sensor RH C13

13. VDC OFF switch M154

14. Stop lamp switch E38

15. Stop lamp relay E12

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-153, "Description"

Motor

Actuator relay

BRC-169, "Description"

Solenoid valve

BRC-162, "Description"

VDC switch-over valve
(CV1, CV2, SV1, SV2)

BRC-184, "Description"

Wheel sensor

BRC-144, "Description"

Yaw rate/side/decel G sensor

BRC-155, "Description"

Stop lamp switch

BRC-160, "Description"

Front pressure sensor

BRC-171, "Description"

Rear pressure sensor

Steering angle sensor

BRC-175, "Description"

Brake fluid level switch

BRC-178, "Description"

Active booster

BRC-187, "Description"

Delta stroke sensor

BRC-190, "Description"

VDC OFF switch

BRC-193, "Description"

ABS warning lamp

BRC-195, "Description"

Brake warning lamp

BRC-196, "Description"

VDC OFF indicator lamp

BRC-197, "Description"

SLIP indicator lamp

BRC-199, "Description"
