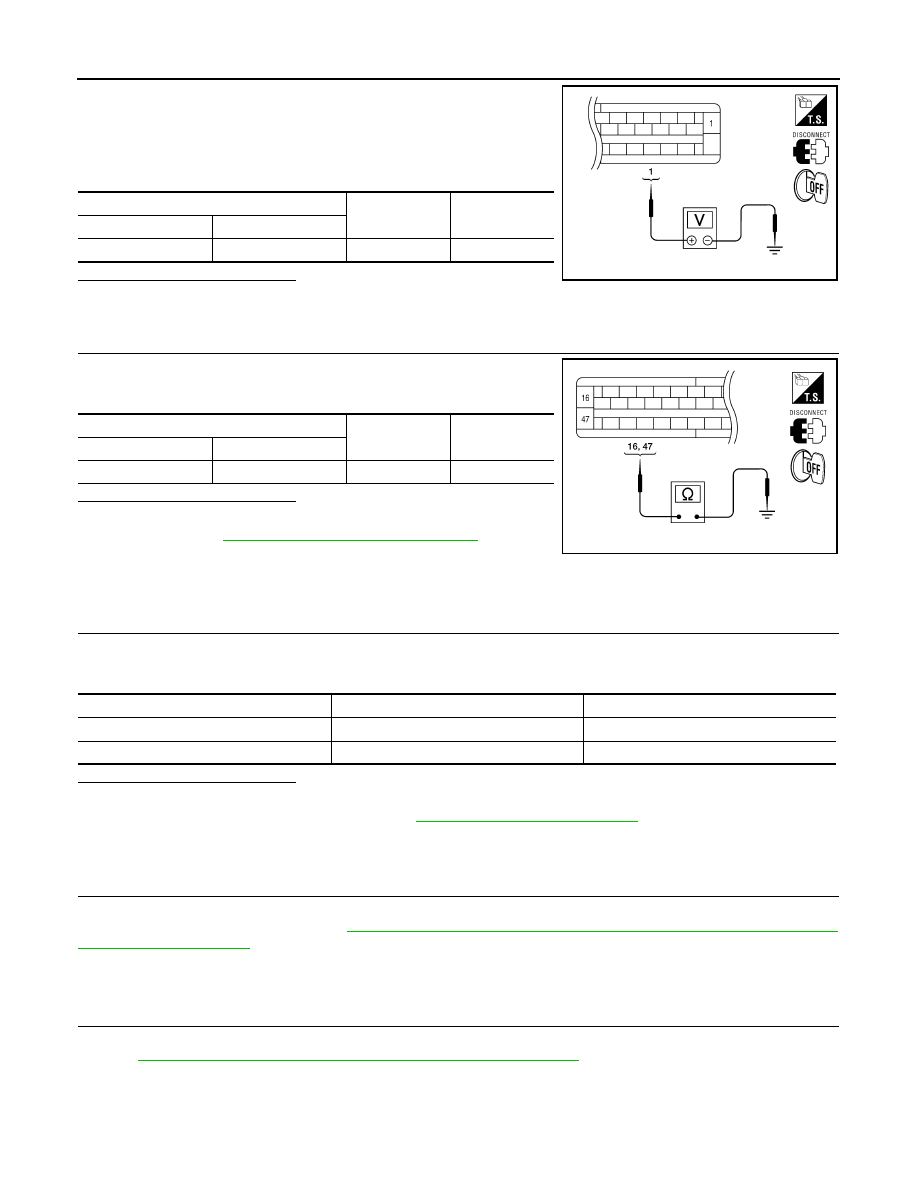

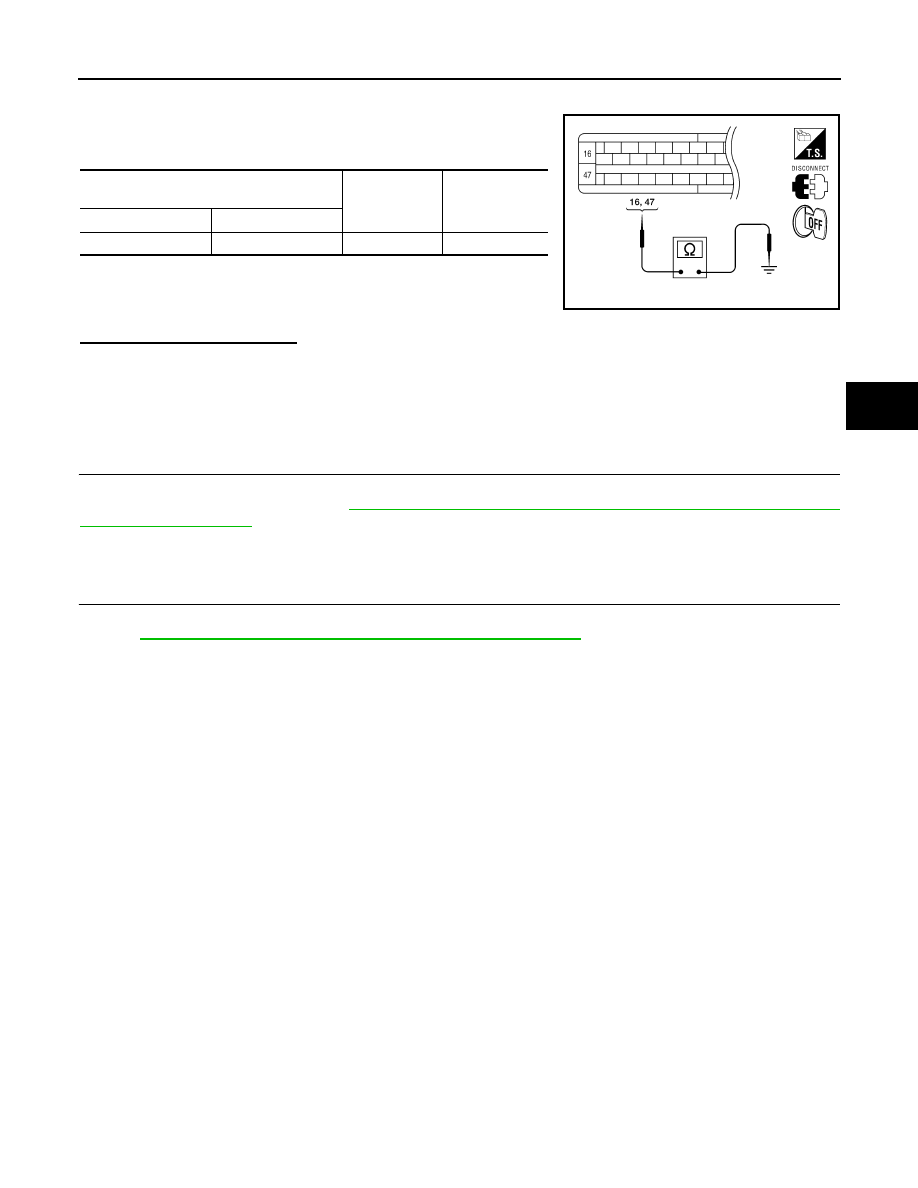

C1109 POWER AND GROUND SYSTEM BRC-41 < DTC/CIRCUIT DIAGNOSIS > [TYPE 1] C D E G H I J K L M A B BRC N O P 4. Turn ignition switch OFF. 5. Check continuity between ABS actuator and electric unit (control unit) connector E125 terminals 16, 47 and ground. Is the inspection result normal? YES >> Check battery for terminal looseness, low voltage, etc. If any malfunction is found, repair malfunc- tioning parts. NO >> Repair or replace malfunctioning components. Special Repair Requirement INFOID:0000000006689848 1. ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION Always perform neutral position adjustment for the steering angle sensor when replacing the ABS actuator and electric unit (control unit). Refer to BRC-12, "ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL . >> GO TO 2 2. CALIBRATION OF DECEL G SENSOR Always perform calibration of decel G sensor when replacing the ABS actuator and electric unit (control unit). BRC-13, "CALIBRATION OF DECEL G SENSOR : Description" . >> END ABS actuator and electric unit (control unit) — Continuity Connector Terminal E125 16, 47 Ground Yes AWFIA0016ZZ 2011 Pathfinder |
