Nissan Pathfinder (2011 year). Manual - part 37

AV

DISPLAY UNIT

AV-115

< REMOVAL AND INSTALLATION >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

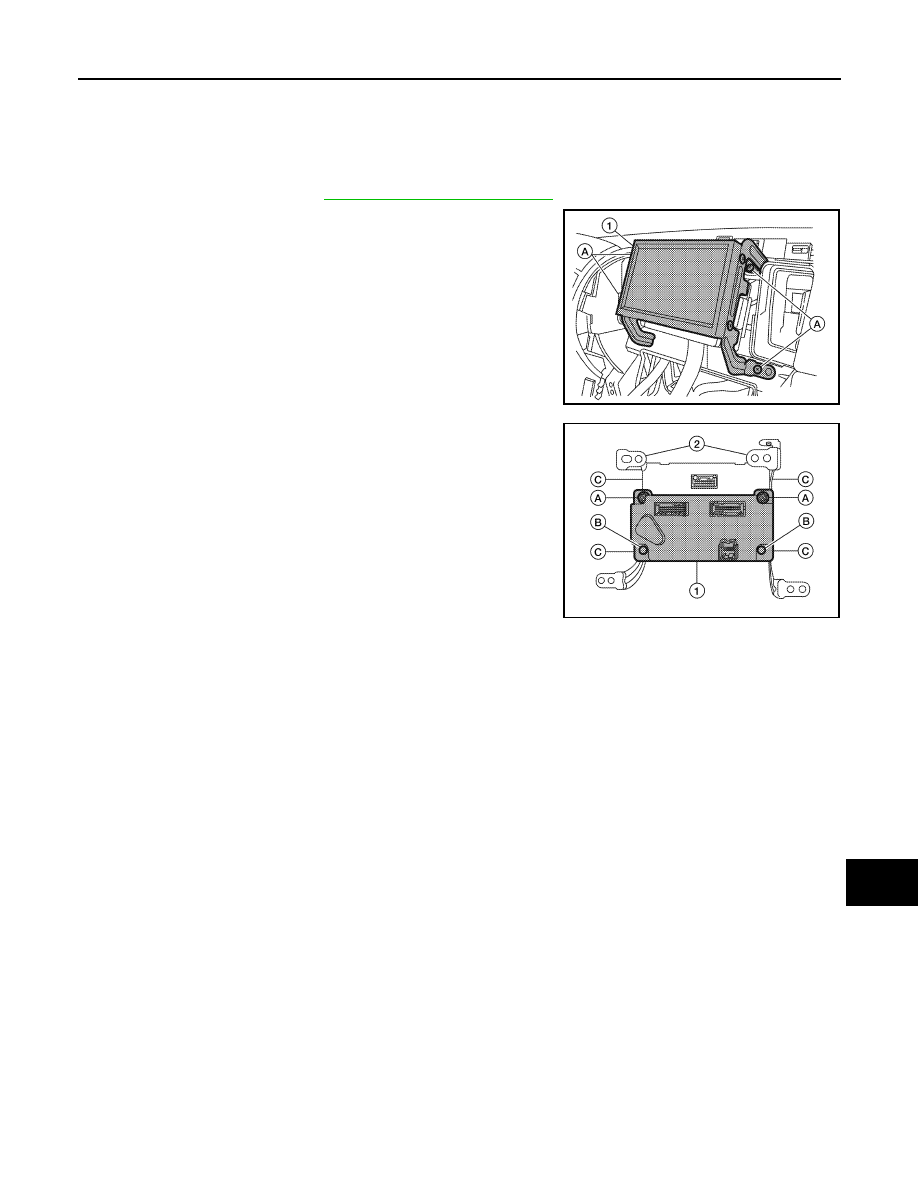

DISPLAY UNIT

Removal and Installation

INFOID:0000000006246523

REMOVAL

1. Remove cluster lid C. Refer to

IP-15, "Removal and Installation"

.

2. Remove the display unit screws (A).
3. Pull out the display unit (1), then disconnect the display unit con-

nectors and remove the display unit (1).

4. Remove the A/C auto amp. screws (A), remove the (C103) fas-

teners (B) from the display unit assembly brackets and remove

the A/C auto amp. (1).

5. Remove the display unit bracket unit screws (C) and remove the

display unit brackets (2).

INSTALLATION

Installation is in reverse order of removal.

ALNIA0358ZZ

ALNIA0359ZZ

2011 Pathfinder

AV-116

< REMOVAL AND INSTALLATION >

[MID AUDIO]

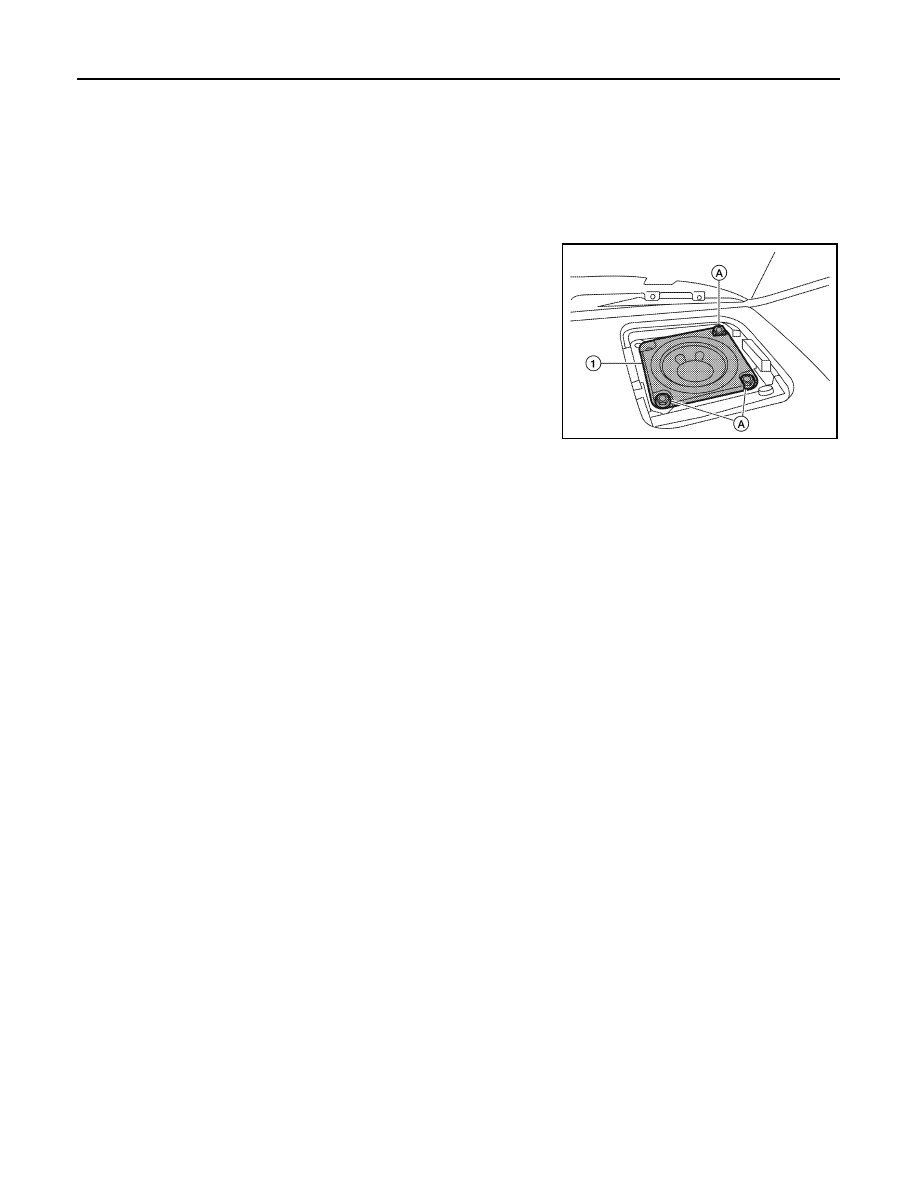

FRONT TWEETER

FRONT TWEETER

Removal and Installation

INFOID:0000000006246524

REMOVAL

CAUTION:

Use a suitable tool to prevent damage to the front tweeter speaker grille trim and the instrument panel.

1. Remove the front tweeter grille, using a suitable tool.
2. Remove the front tweeter screws (A).
3. Pull out the front tweeter speaker (1) and disconnect front

tweeter connector, then remove the front tweeter speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0344ZZ

2011 Pathfinder

AV

FRONT DOOR SPEAKER

AV-117

< REMOVAL AND INSTALLATION >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

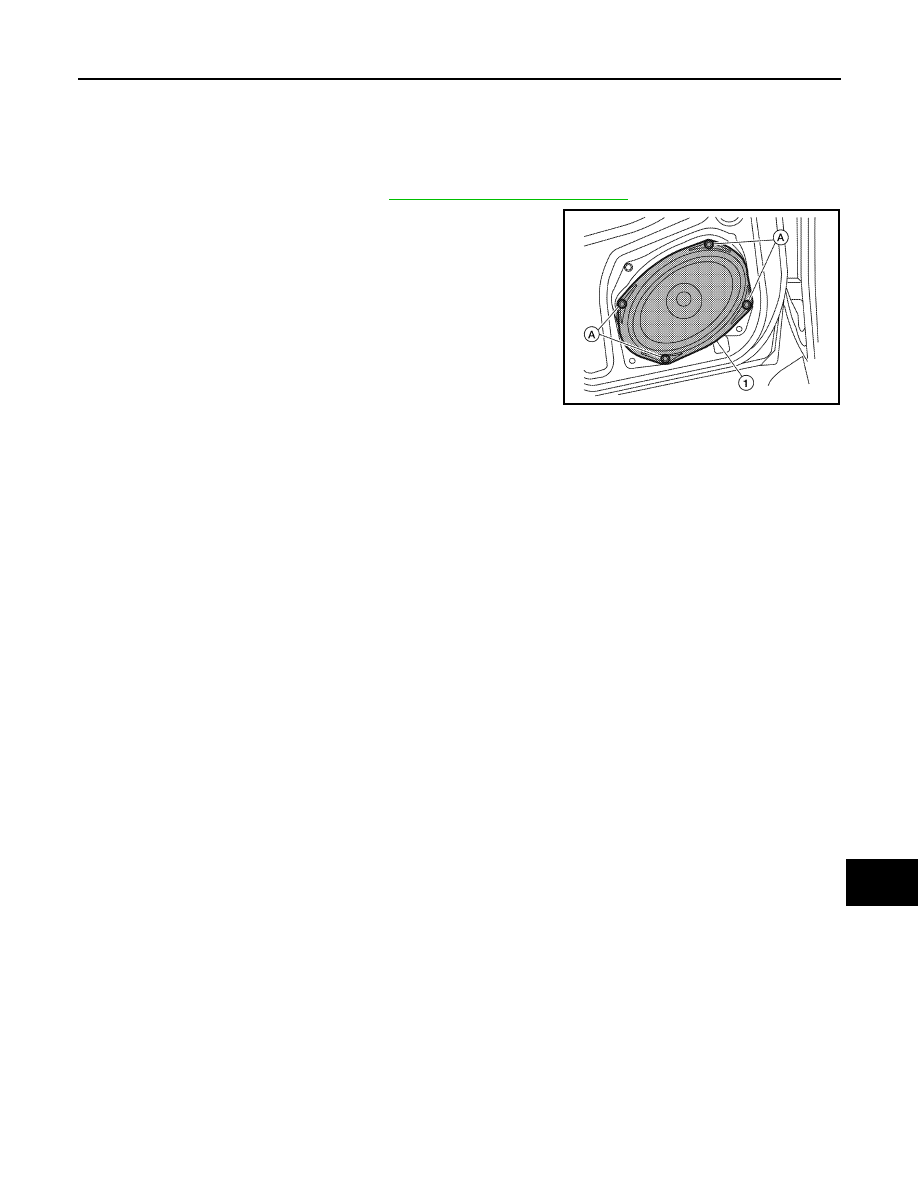

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000006246525

REMOVAL

1. Remove the front door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Remove the front door speaker screws (A).
3. Pull out the front door speaker (1), and disconnect the front door

speaker connector and remove the front door speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0347ZZ

2011 Pathfinder

AV-118

< REMOVAL AND INSTALLATION >

[MID AUDIO]

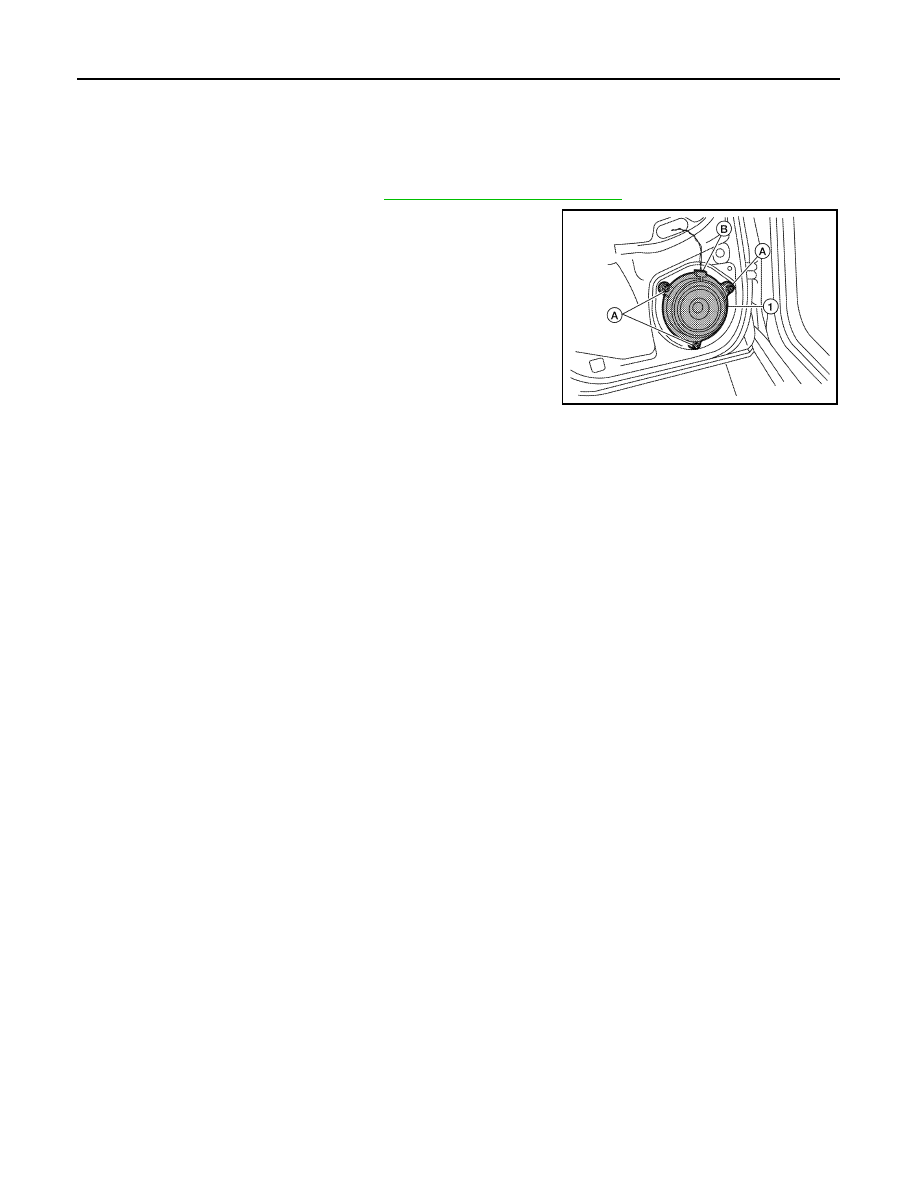

REAR DOOR SPEAKER

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000006246526

REMOVAL

1. Remove the rear door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Remove the rear door speaker screws (A).
3. Disconnect the rear door speaker connector (B) and remove

rear door speaker (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0348ZZ

2011 Pathfinder

AV

STEERING SWITCH

AV-119

< REMOVAL AND INSTALLATION >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

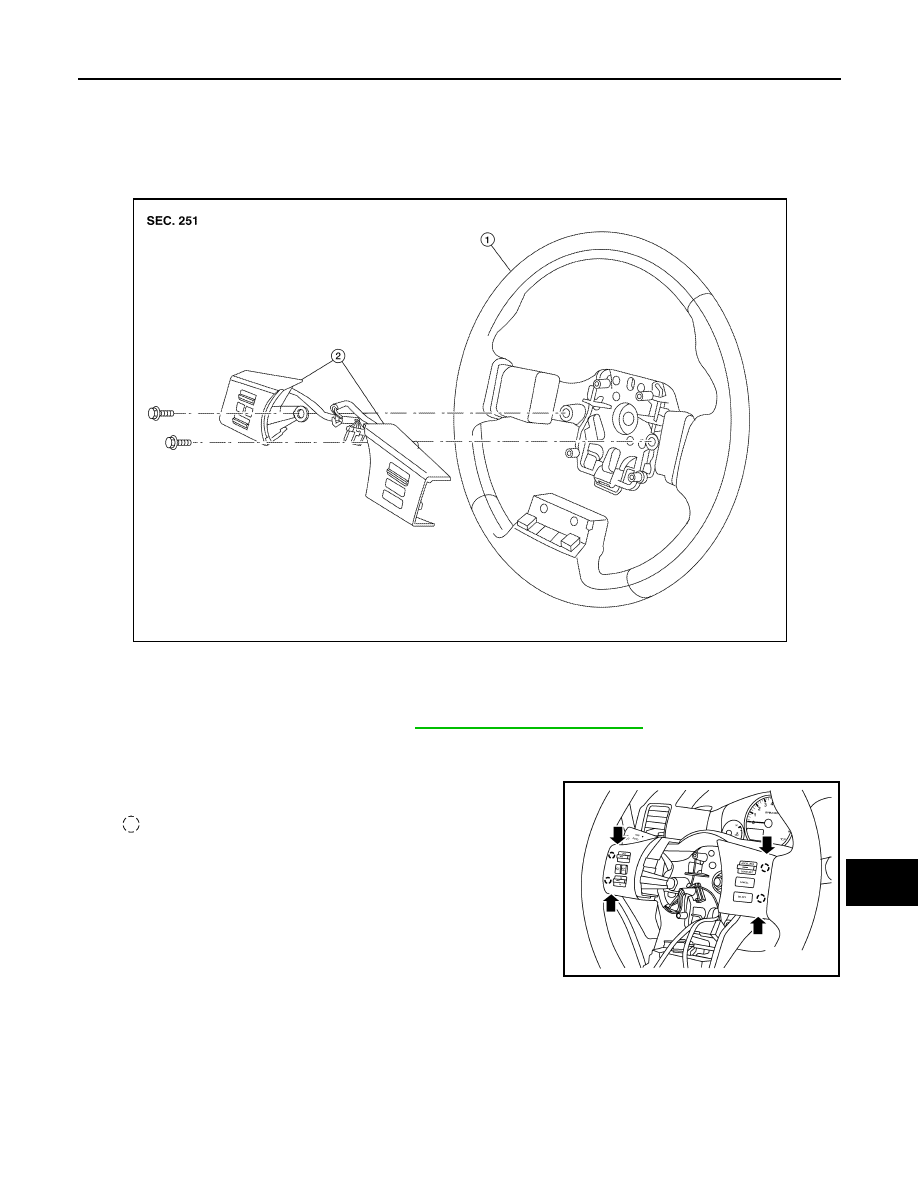

STEERING SWITCH

Removal and Installation

INFOID:0000000006246527

REMOVAL

1. Remove the driver air bag module. Refer to

SR-5, "Removal and Installation"

.

2. Remove the steering wheel audio control switch assembly screws.
3. Disconnect the steering wheel audio control switches connector.
4. Remove the steering wheel audio control switches by pulling on

steering wheel audio control switches to release the pawls.
•

:  Pawl

CAUTION:

Do not tilt steering wheel audio control switches during

removal or damage may occur to the pawls.

INSTALLATION

Installation is in the reverse order of removal.

1. Steering wheel

2.

Steering wheel audio control switches

ALNIA0357ZZ

ALNIA1214ZZ

2011 Pathfinder

AV-120

< REMOVAL AND INSTALLATION >

[MID AUDIO]

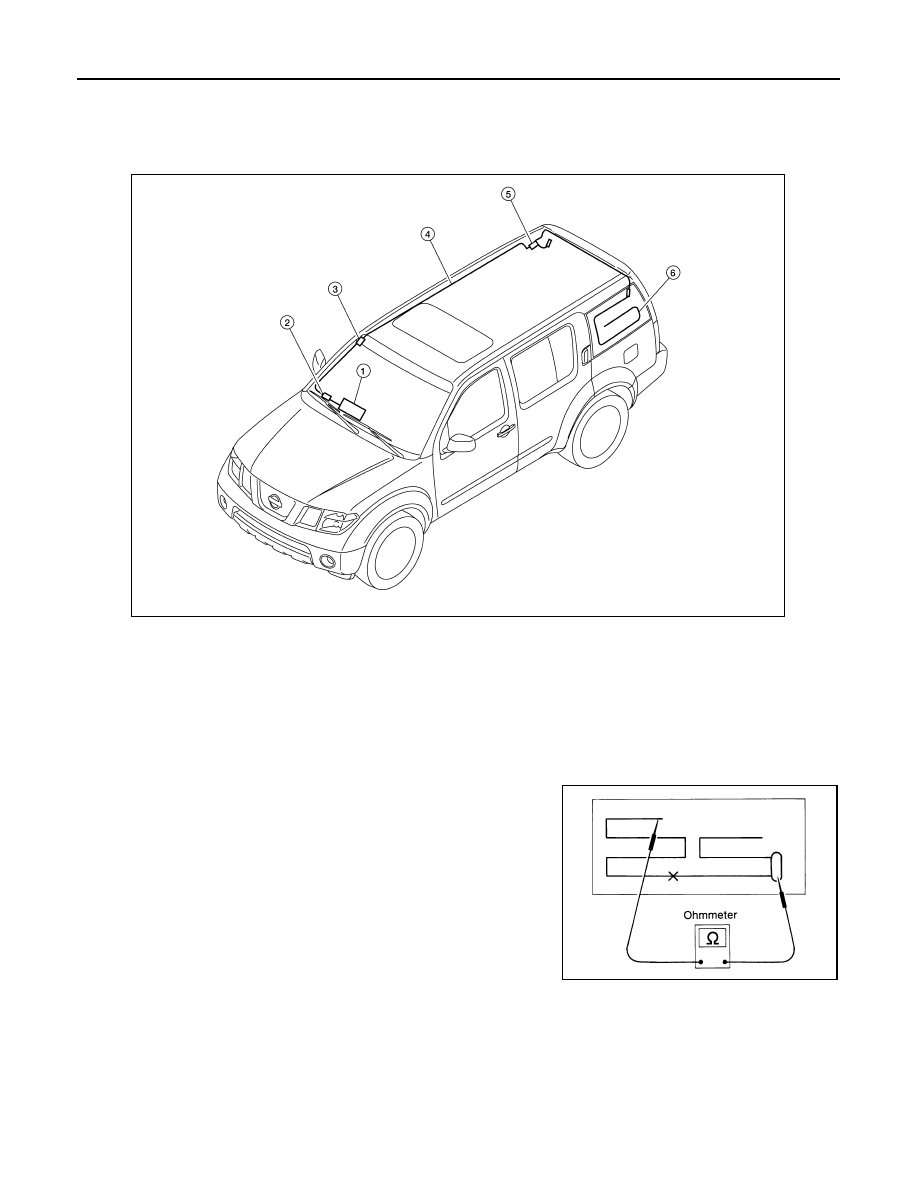

AUDIO ANTENNA

AUDIO ANTENNA

Location of Antenna

INFOID:0000000006246530

Window Antenna Repair

INFOID:0000000006246531

ELEMENT CHECK

1. Attach probe circuit tester (ohm setting) to antenna terminal on

each side.

1.

AV control unit M132

2.

Harness connector
M78, M501

3.

Harness connector
M502, M601

4.

Antenna feeder

5.

Antenna amp.
M602

6.

Window antenna grid

AWNIA1775ZZ

SEL250I

2011 Pathfinder

AV

AUDIO ANTENNA

AV-121

< REMOVAL AND INSTALLATION >

[MID AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

•

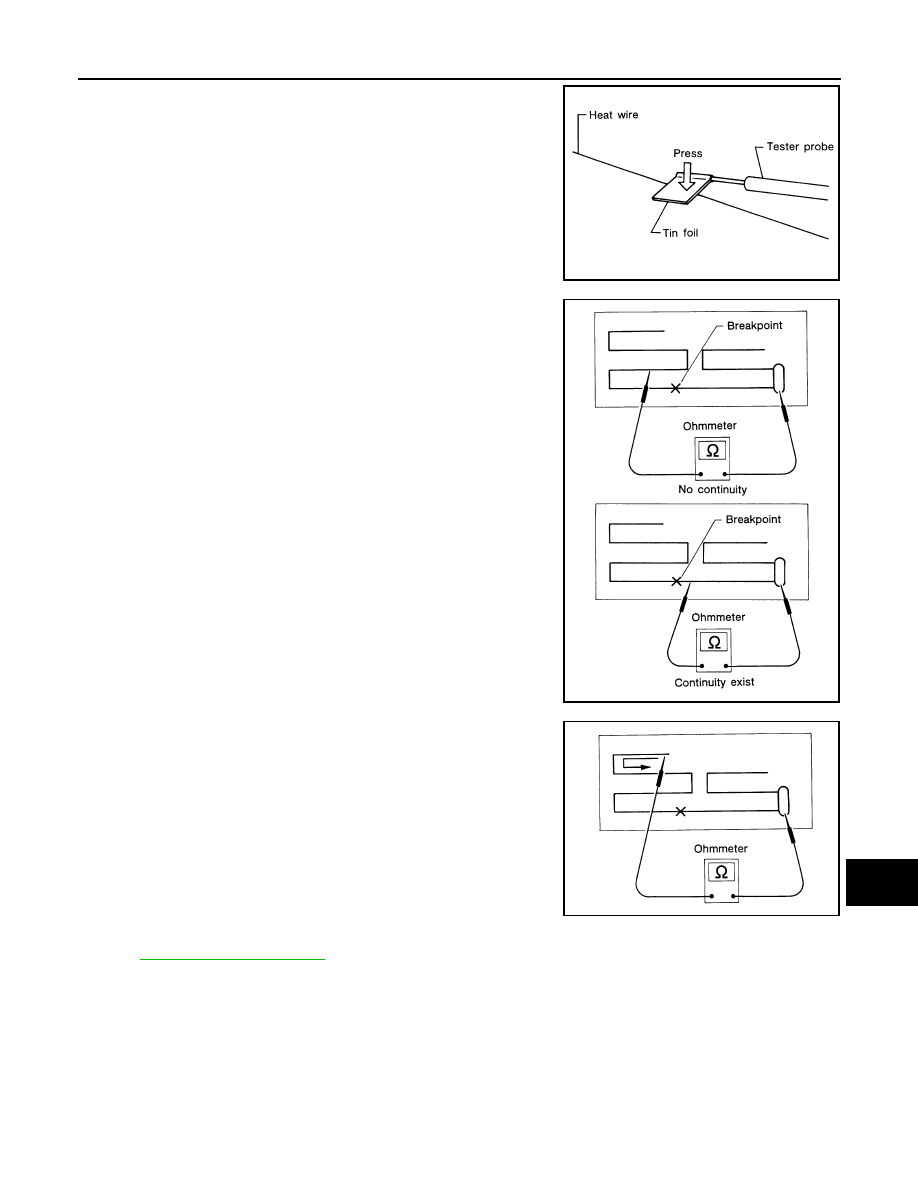

When measuring continuity, wrap tin foil around the top of

probe. Then, press the foil against the wire with your fin-

ger.

2. If an element is broken, no continuity will exist.

3. To locate a break, move probe along element. Tester indication

will change abruptly when probe passes the broken point.

ELEMENT REPAIR

Refer to

DEF-45, "Filament Repair"

.

SEL122R

SEL252I

SEL253I

2011 Pathfinder

AV-122

< REMOVAL AND INSTALLATION >

[MID AUDIO]

AUXILIARY INPUT JACK

AUXILIARY INPUT JACK

Removal and Installation

INFOID:0000000006246532

Removal

1. Remove the A/T finisher. Refer to

IP-20, "Removal and Installation"

.

2. Remove the auxiliary input jack.

Installation

Installation is in the reverse order of removal.

2011 Pathfinder
