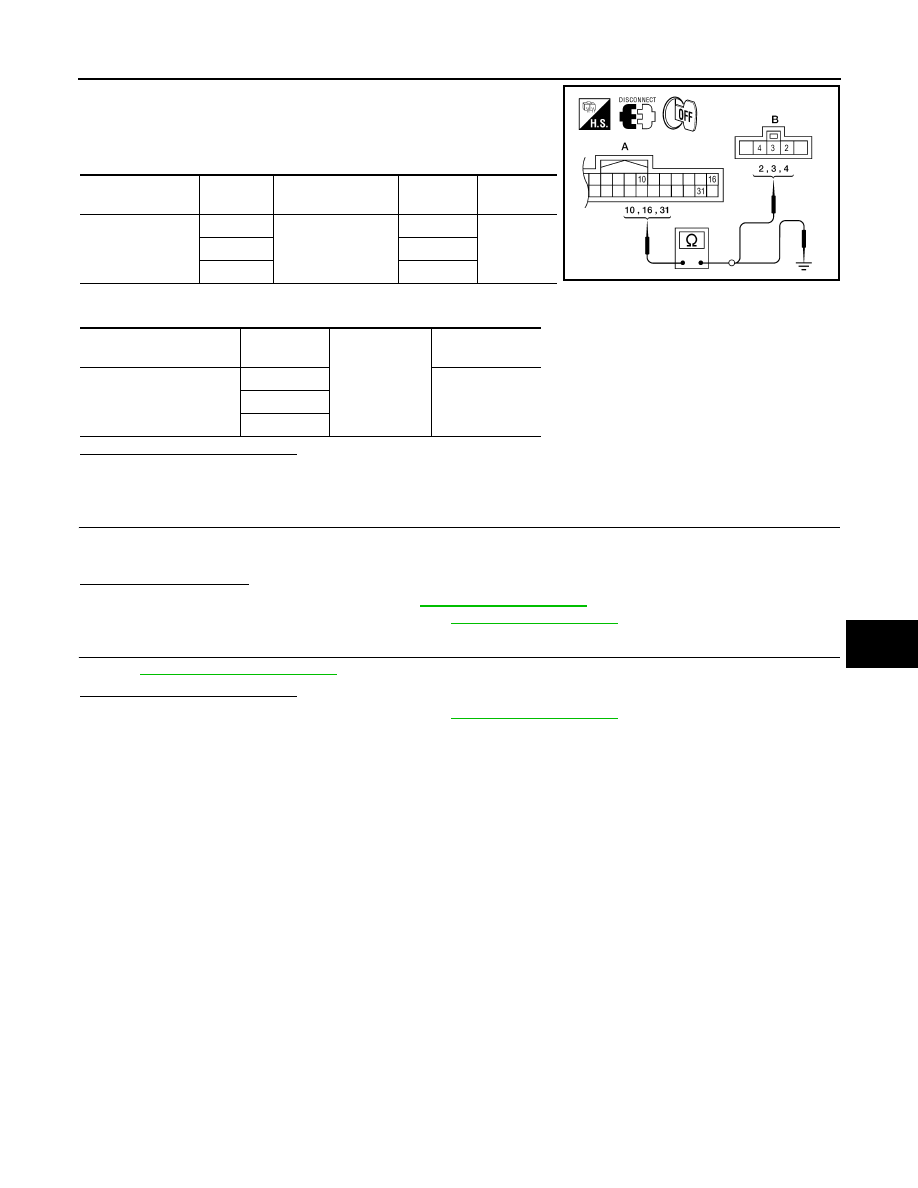

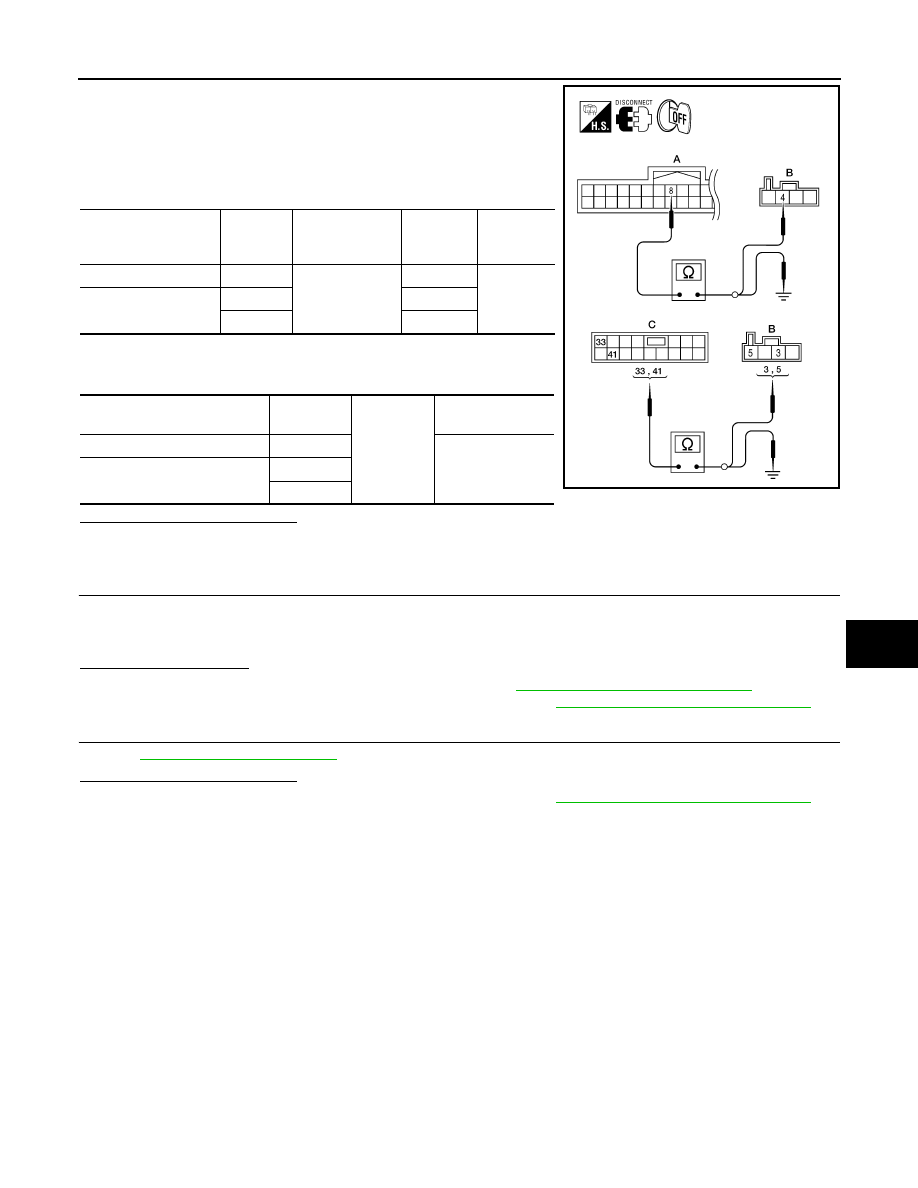

RECLINING SENSOR ADP-81 < DTC/CIRCUIT DIAGNOSIS > C D E F G H I K L M A B ADP N O P 1. Turn ignition switch OFF. 2. Disconnect driver seat control unit and reclining motor LH. 3. Check continuity between driver seat control unit harness con- nector and reclining motor LH harness connector. 4. Check continuity between driver seat control unit harness con- nector and ground. Is the inspection result normal? YES >> GO TO 3 NO >> Repair or replace harness. 3. CHECK SEAT OPERATION 1. Connect driver seat control unit and reclining motor LH. 2. Check seat operation (except reclining operation) with memory function. YES >> Replace reclining motor LH. Refer to NO >> Replace driver seat control unit. Refer to 4. CHECK INTERMITTENT INCIDENT GI-37, "Intermittent Incident" . Is the inspection result normal? YES >> Replace driver seat control unit. Refer to NO >> Repair or replace the malfunctioning part. Driver seat control unit connector Terminal Reclining motor connector Terminal Continuity B202 (A) 9 B232 (B) 1 Yes 31 4 Driver seat control unit connector Terminal Ground Continuity B202 (A) 9 No 31 ALJIA0467ZZ 2011 Pathfinder |
