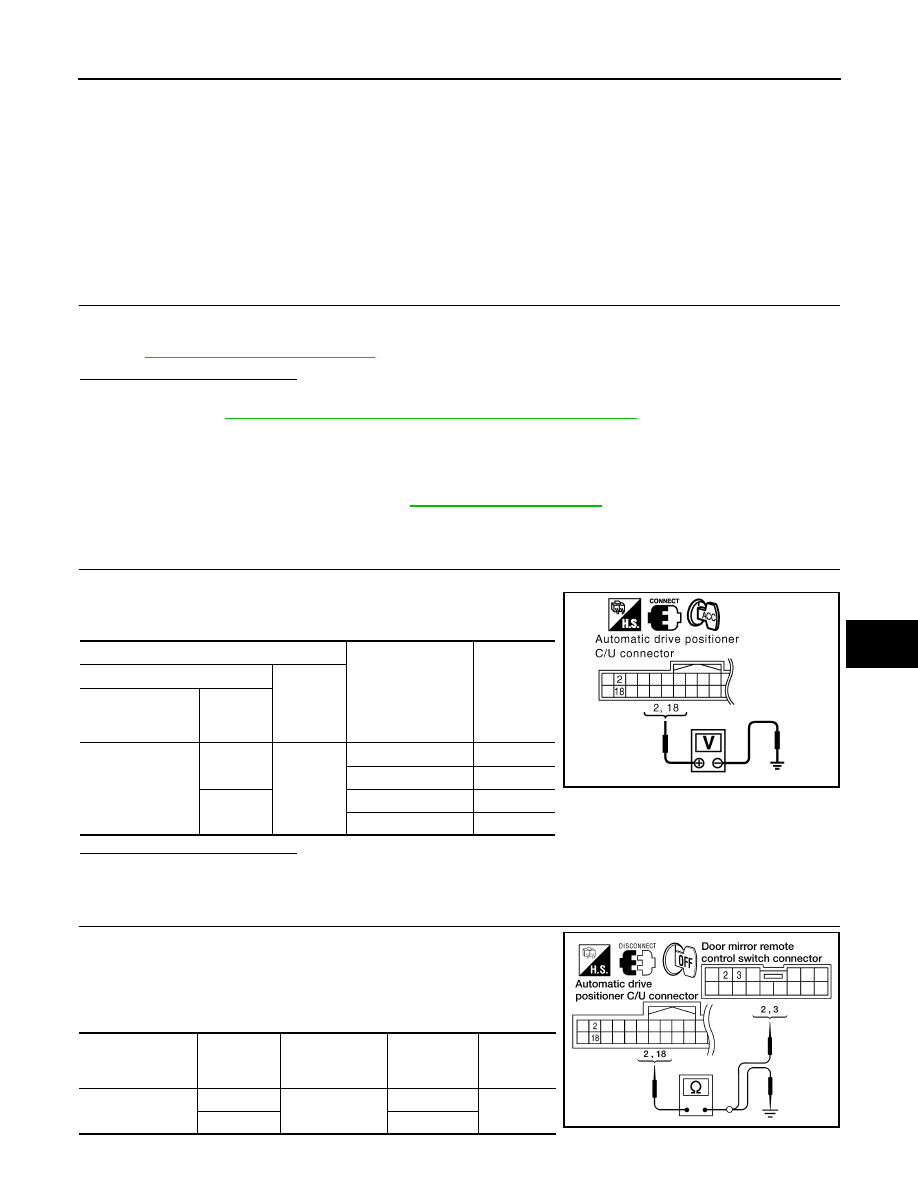

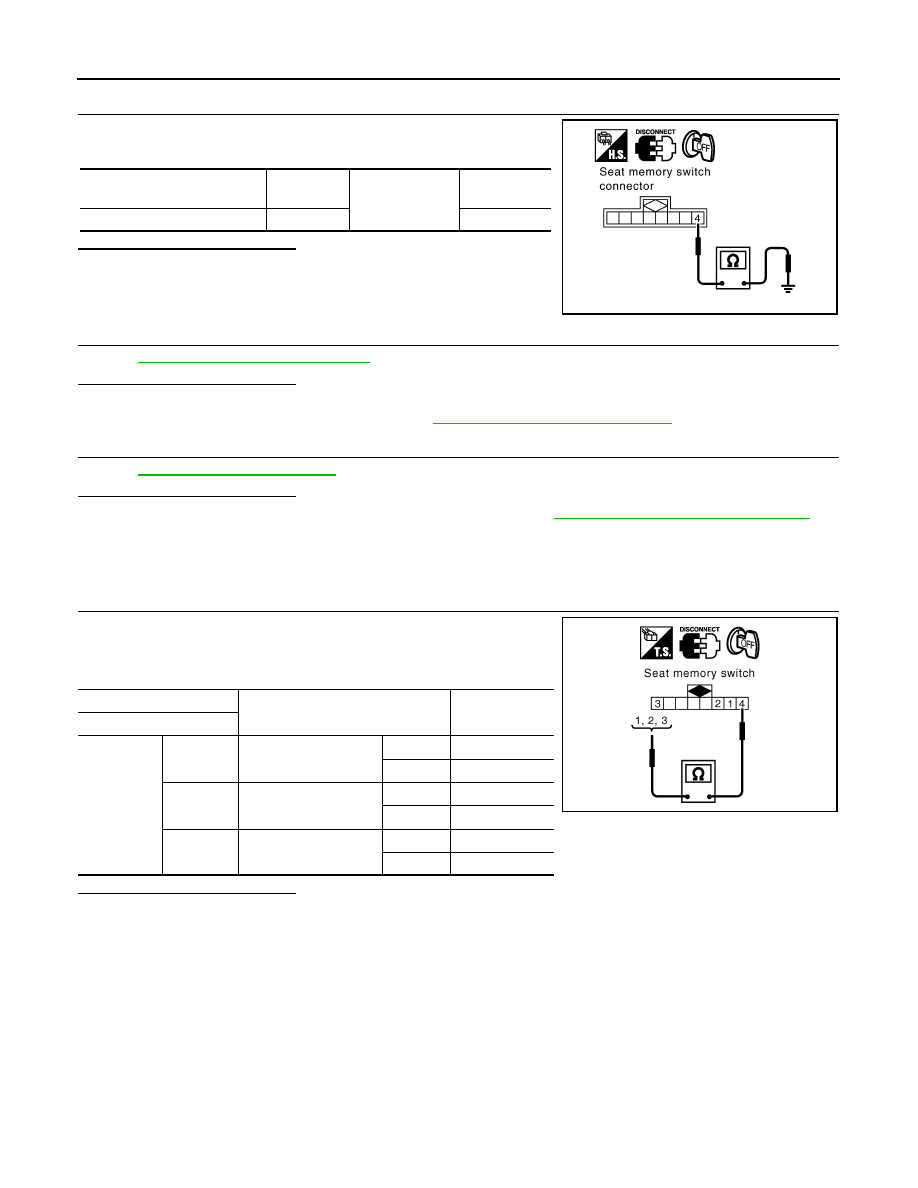

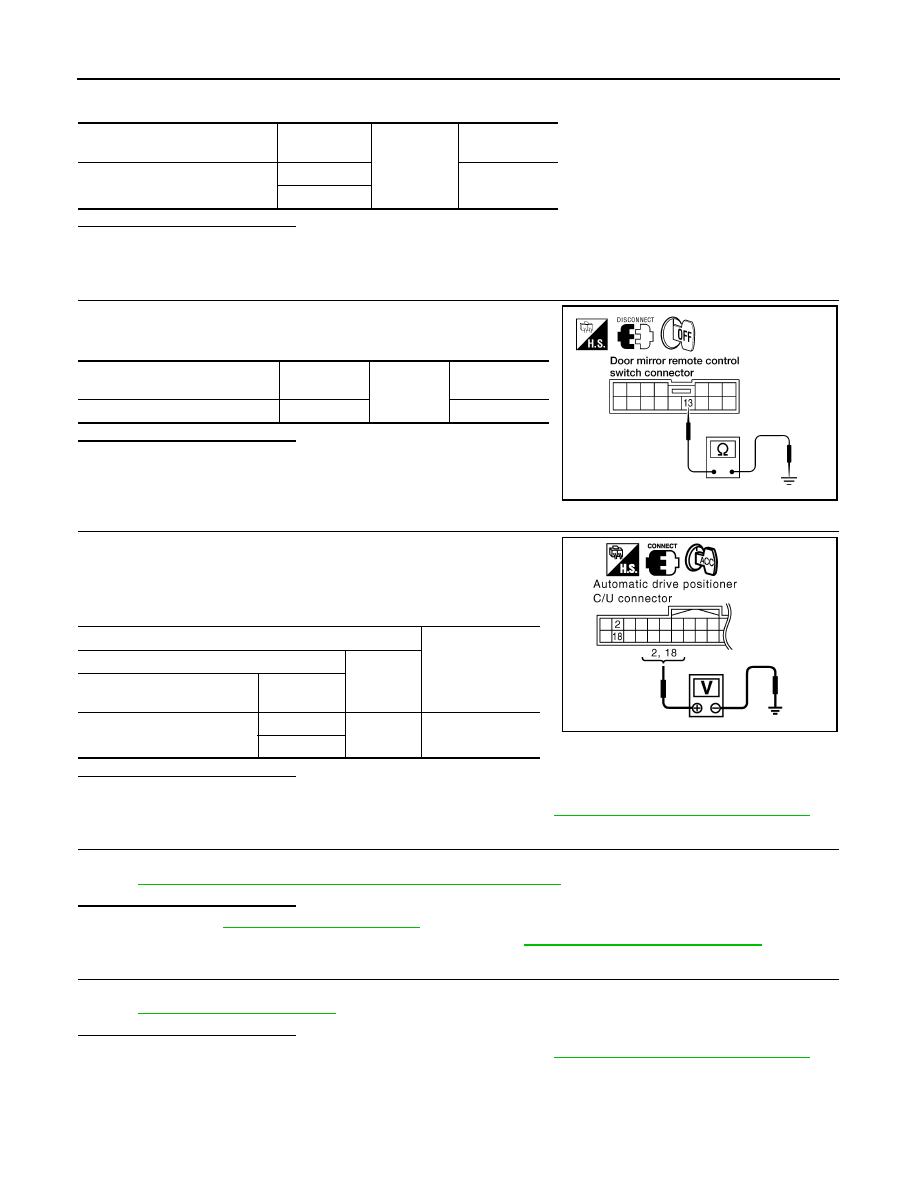

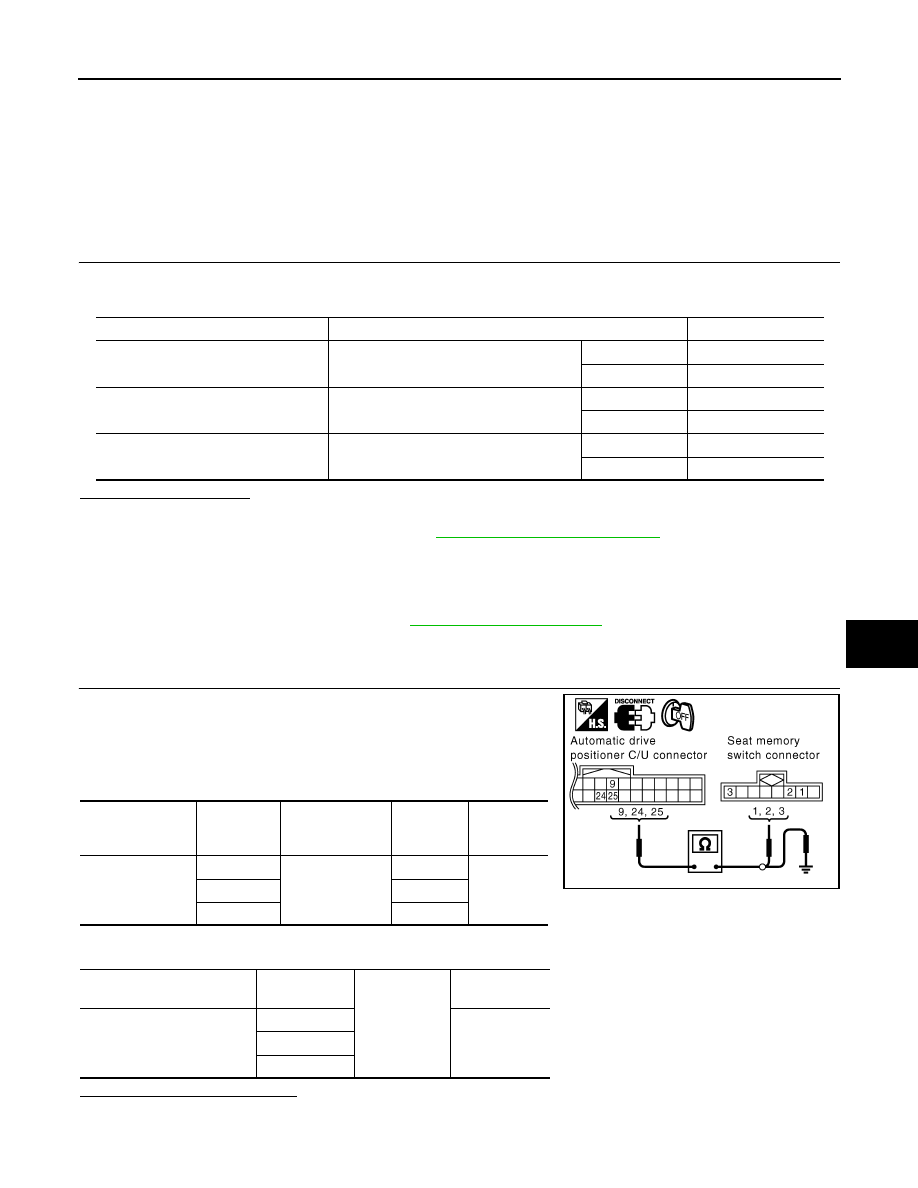

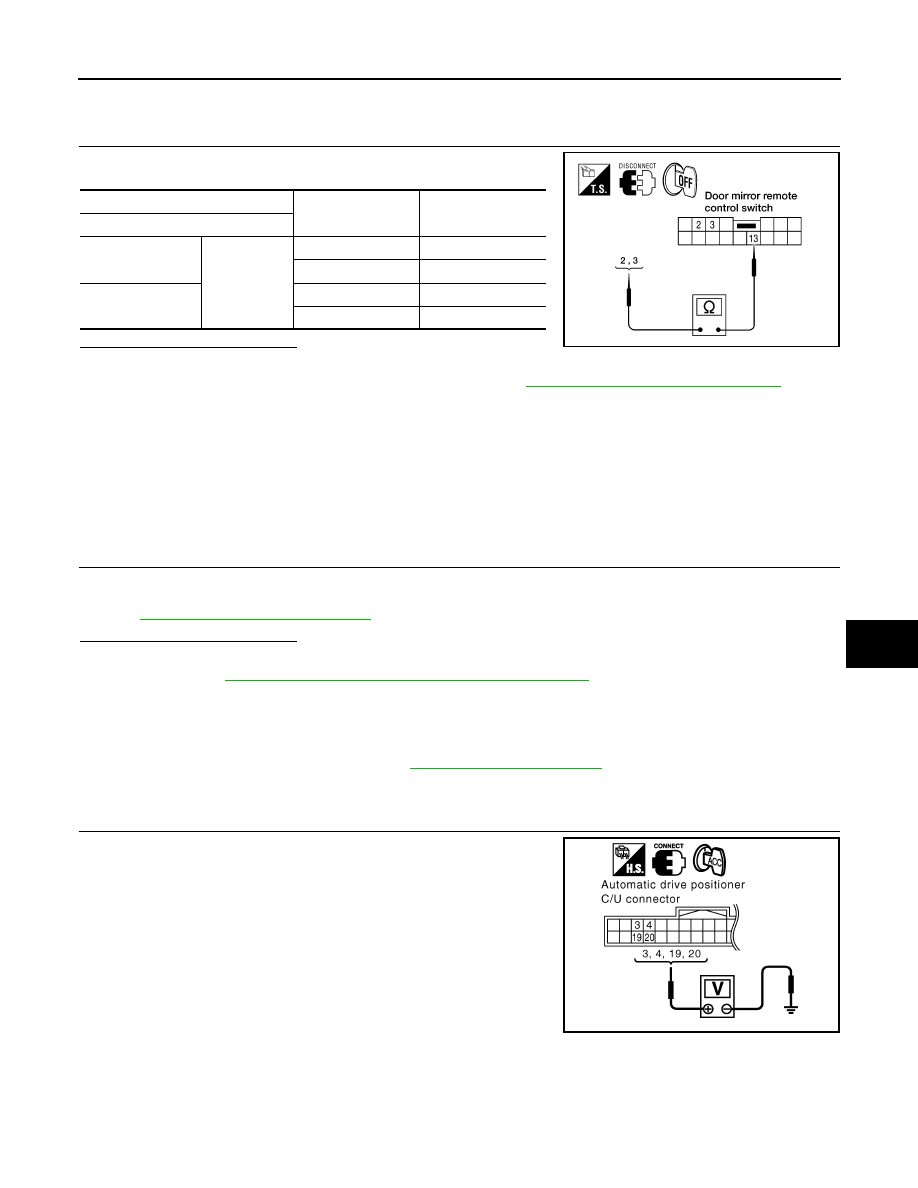

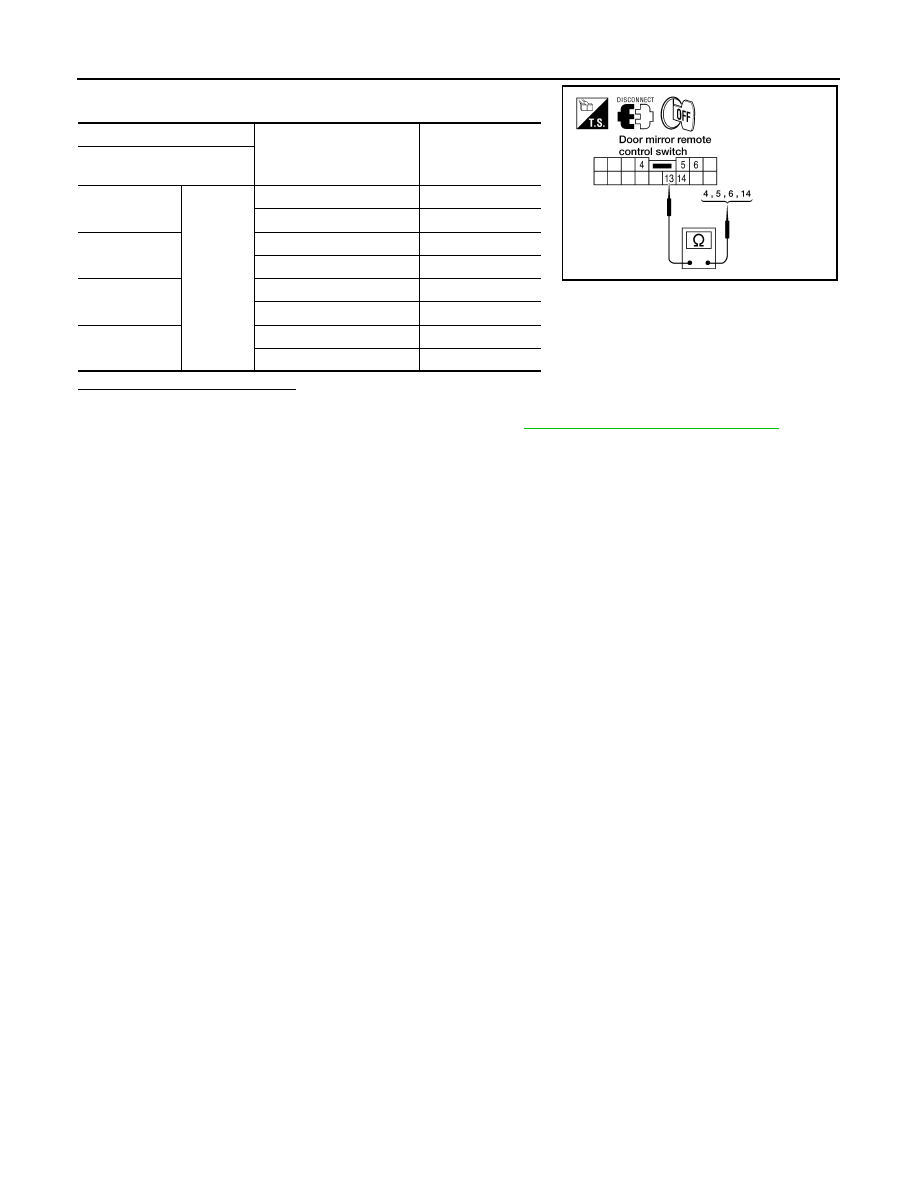

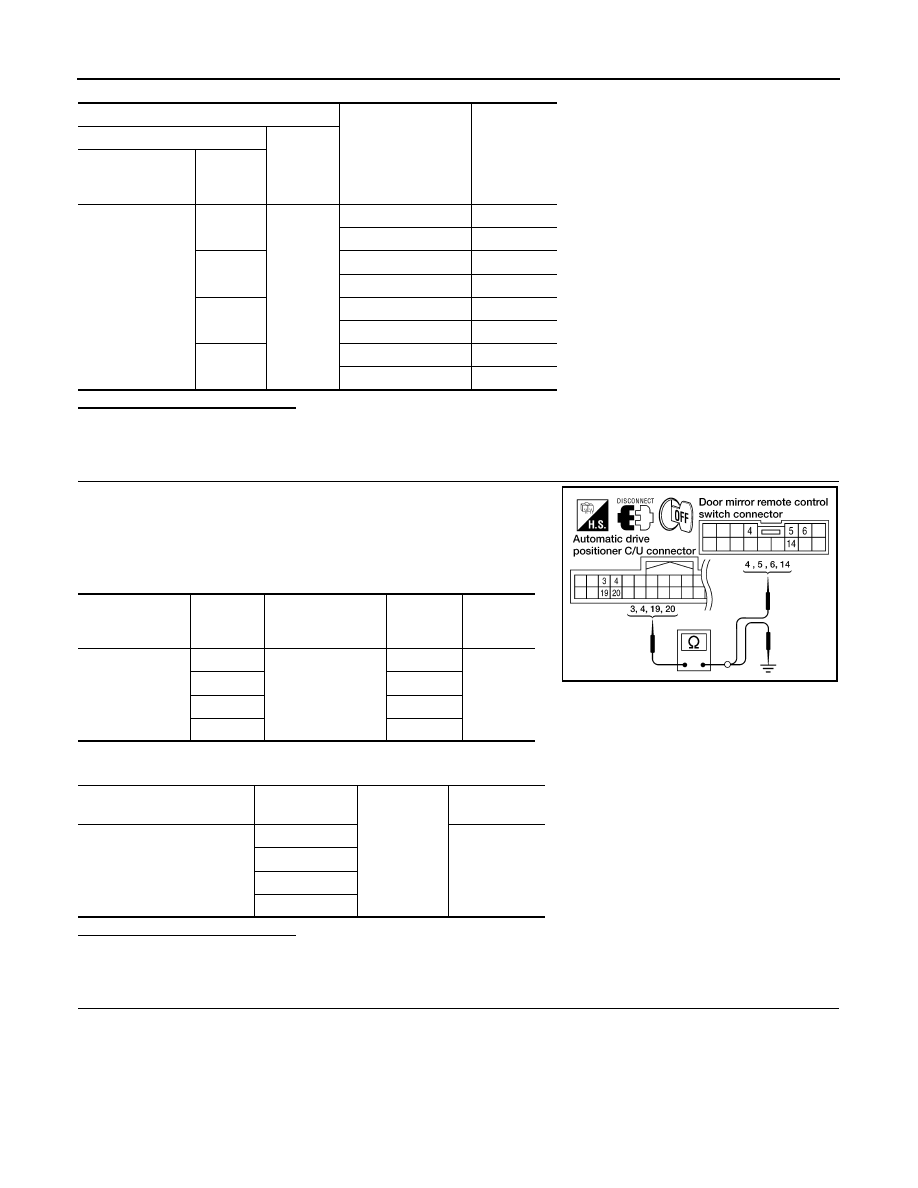

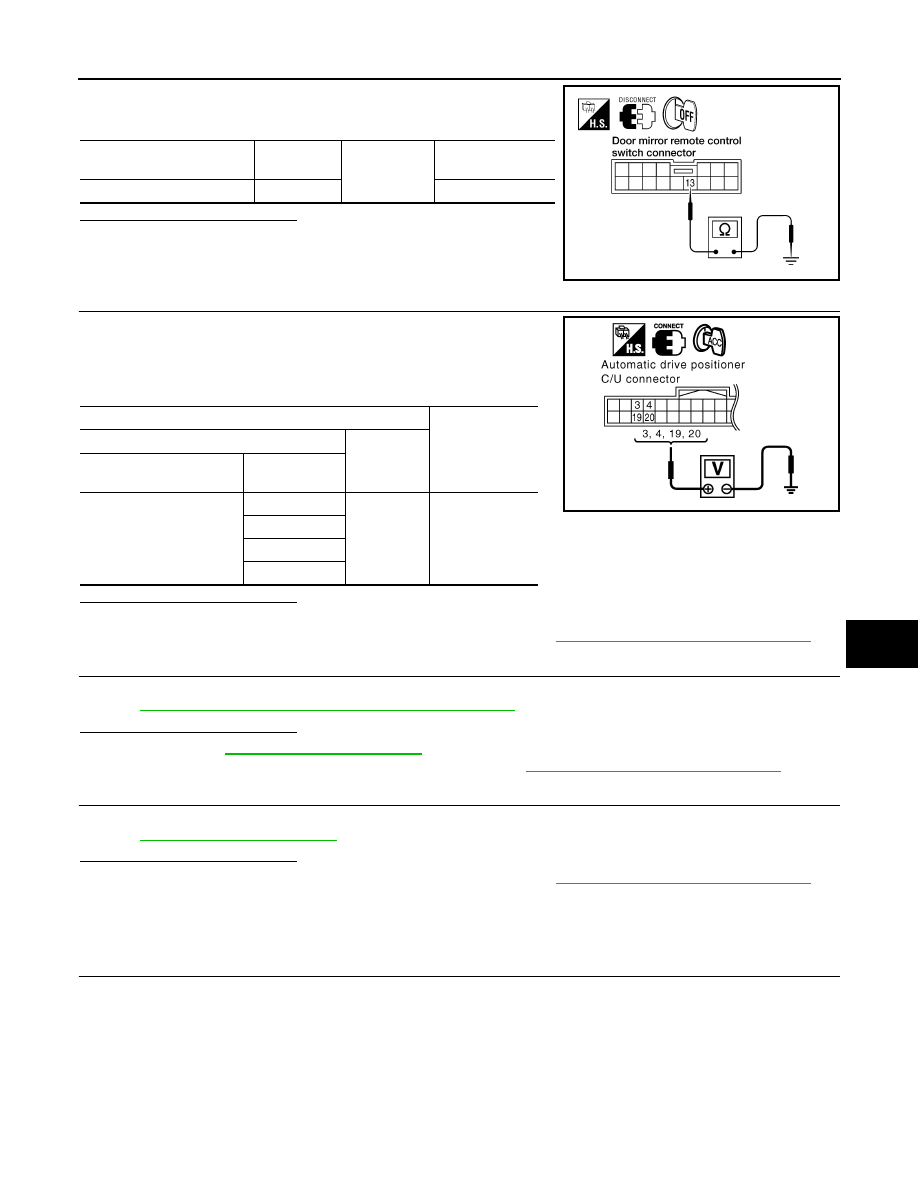

SEAT MEMORY SWITCH ADP-65 < DTC/CIRCUIT DIAGNOSIS > C D E F G H I K L M A B ADP N O P SEAT MEMORY SWITCH Description INFOID:0000000006247336 Memory switch is equipped on the seat memory switch installed to the front door LH trim. The operation signal is input to the automatic drive positioner control unit when the memory switch is operated. Component Function Check INFOID:0000000006247337 1. CHECK FUNCTION 1. Select “MEMORY SW 1”, “MEMORY SW 2”, "SET SW" in “Data monitor” mode with CONSULT-III. 2. Check seat memory switch signal under the following conditions. Is the indication normal? YES >> Inspection End. NO >> Perform diagnosis procedure. Refer to Diagnosis Procedure INFOID:0000000006247338 Regarding Wiring Diagram information, refer to 1. CHECK MEMORY SWITCH CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect automatic drive positioner control unit and seat memory switch. 3. Check continuity between automatic drive positioner control unit harness connector and seat memory switch harness connector. 4. Check continuity between automatic drive positioner control unit harness connector and ground. Is the inspection result normal? YES >> GO TO 2 NO >> Repair or replace harness. Monitor item Condition Status MEMORY SW1 Memory switch 1 Push ON Release OFF MEMORY SW2 Memory switch 2 Push ON Release OFF SET SW Set switch Push ON Release OFF Automatic drive positioner control unit connector Terminal Seat memory switch connector Terminal Continuity M33 9 D5 1 Yes 24 3 25 2 Automatic drive positioner control unit connector Terminal Ground Continuity M33 9 No 24 25 PIIA4576E 2011 Pathfinder |
