Nissan Pathfinder (2010 year). Manual - part 667





FRONT WIPER AUTO STOP SIGNAL CIRCUIT

WW-23

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

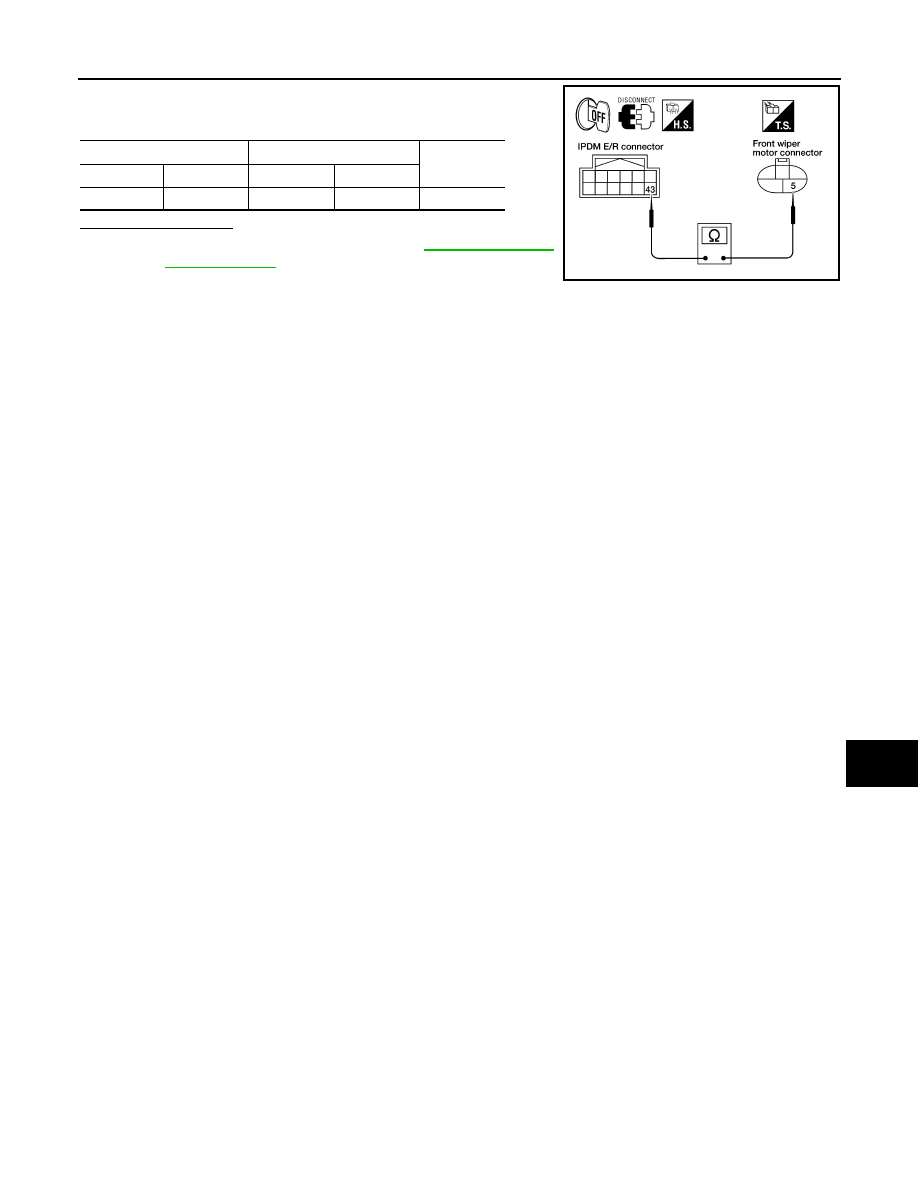

Check continuity between IPDM E/R harness connector and front

wiper motor harness connector.

Does continuity exist?

YES

>> Replace front wiper motor. Refer to

WW-78, "Removal

and Installation"

.

NO

>> Repair or replace harness.

IPDM E/R

Front wiper motor

Continuity

Connector

Terminal

Connector

Terminal

E122

43

E23

5

Yes

WKIA3195E

2010 Pathfinder

WW-24

< COMPONENT DIAGNOSIS >

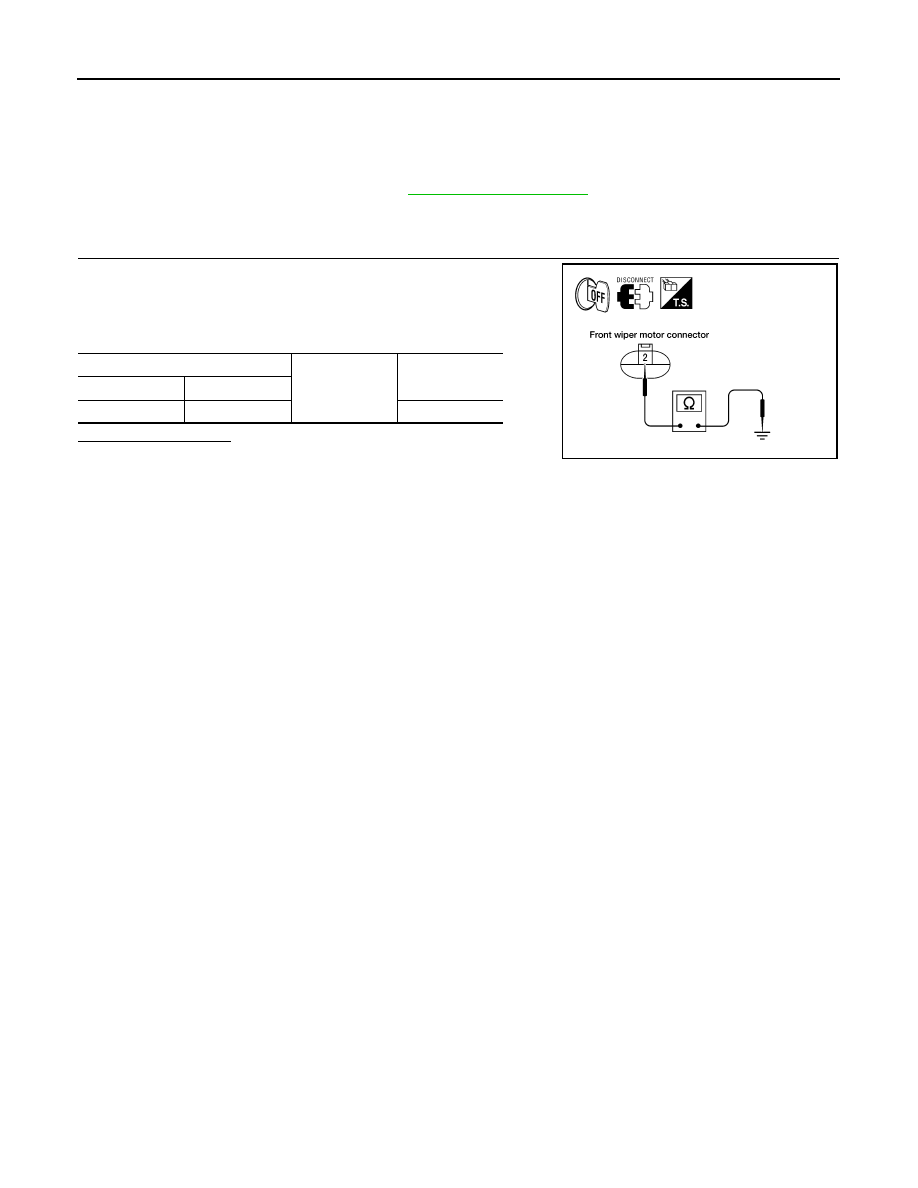

FRONT WIPER MOTOR GROUND CIRCUIT

FRONT WIPER MOTOR GROUND CIRCUIT

Diagnosis Procedure

INFOID:0000000005256368

Regarding Wiring Diagram information, refer to

WW-30, "Wiring Diagram"

.

1.

 CHECK FRONT WIPER MOTOR (GROUND) OPEN CIRCUIT

1. Turn the ignition switch OFF.

2. Disconnect front wiper motor.

3. Check continuity between front wiper motor harness connector

and ground.

Does continuity exist?

YES

>> Front wiper motor ground circuit is normal.

NO

>> Repair or replace harness.

Front wiper motor

Ground

Continuity

Connector

Terminal

E23

2

Yes

WKIA3194E

2010 Pathfinder

WASHER SWITCH

WW-25

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

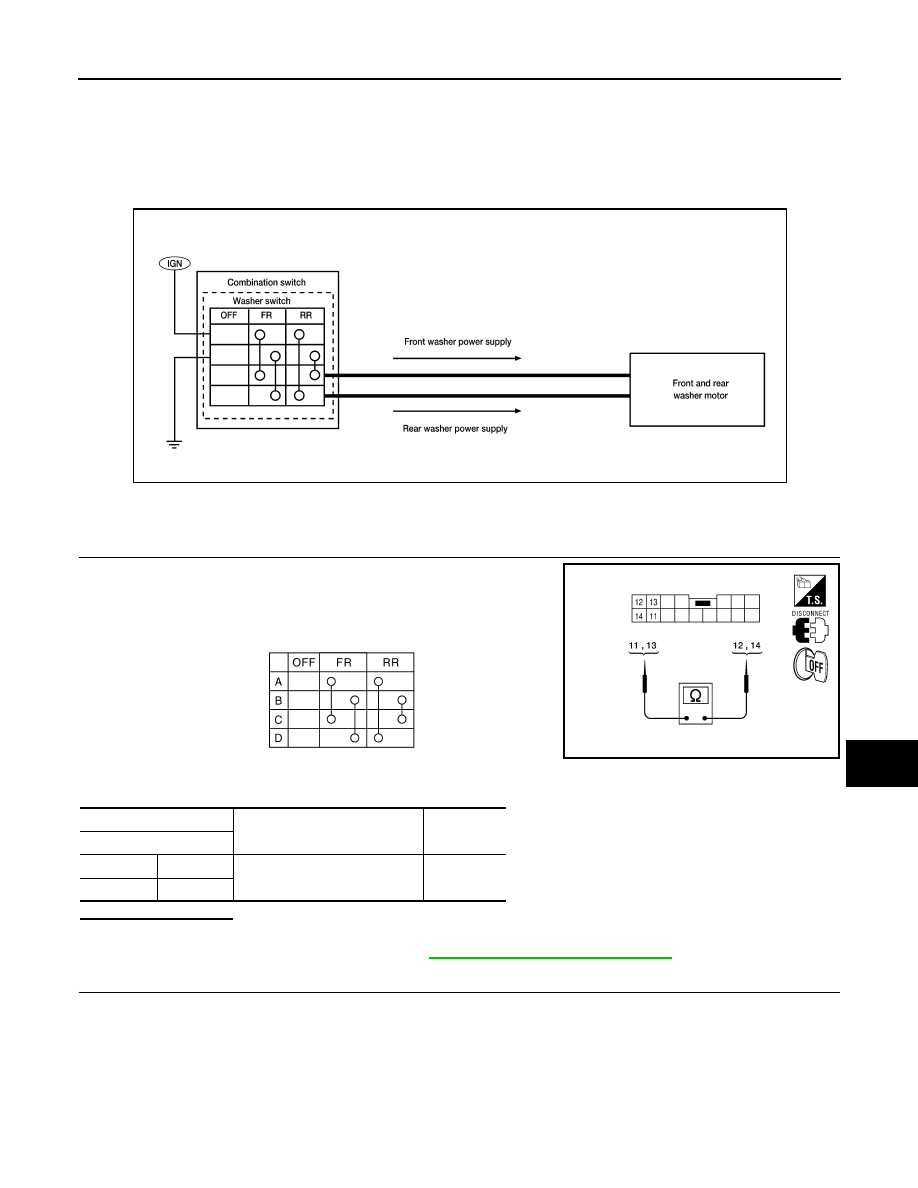

WASHER SWITCH

Description

INFOID:0000000005256369

• Washer switch is integrated with combination switch.

• Combination switch switches polarity between front washer operating and rear washer operating to supply

power to the front and rear washer motor on ground.

Component Inspection

INFOID:0000000005256370

1.

 CHECK FRONT WASHER SWITCH

1. Turn the ignition switch OFF.

2. Disconnect combination switch.

3. Check continuity between the combination switch terminals.

Does continuity exist?

YES

>> GO TO 2

NO

>> Replace combination switch. Refer to

WW-78, "Removal and Installation"

.

2.

 CHECK REAR WASHER SWITCH

ALLIA0350GB

A: Terminal 14
B: Terminal 12
C: Terminal 13

D: Terminal 11

ALLIA0839ZZ

JPLIA0164GB

Combination switch

Condition

Continuity

Terminal

11

12

Front washer switch ON

Yes

13

14

2010 Pathfinder

WW-26

< COMPONENT DIAGNOSIS >

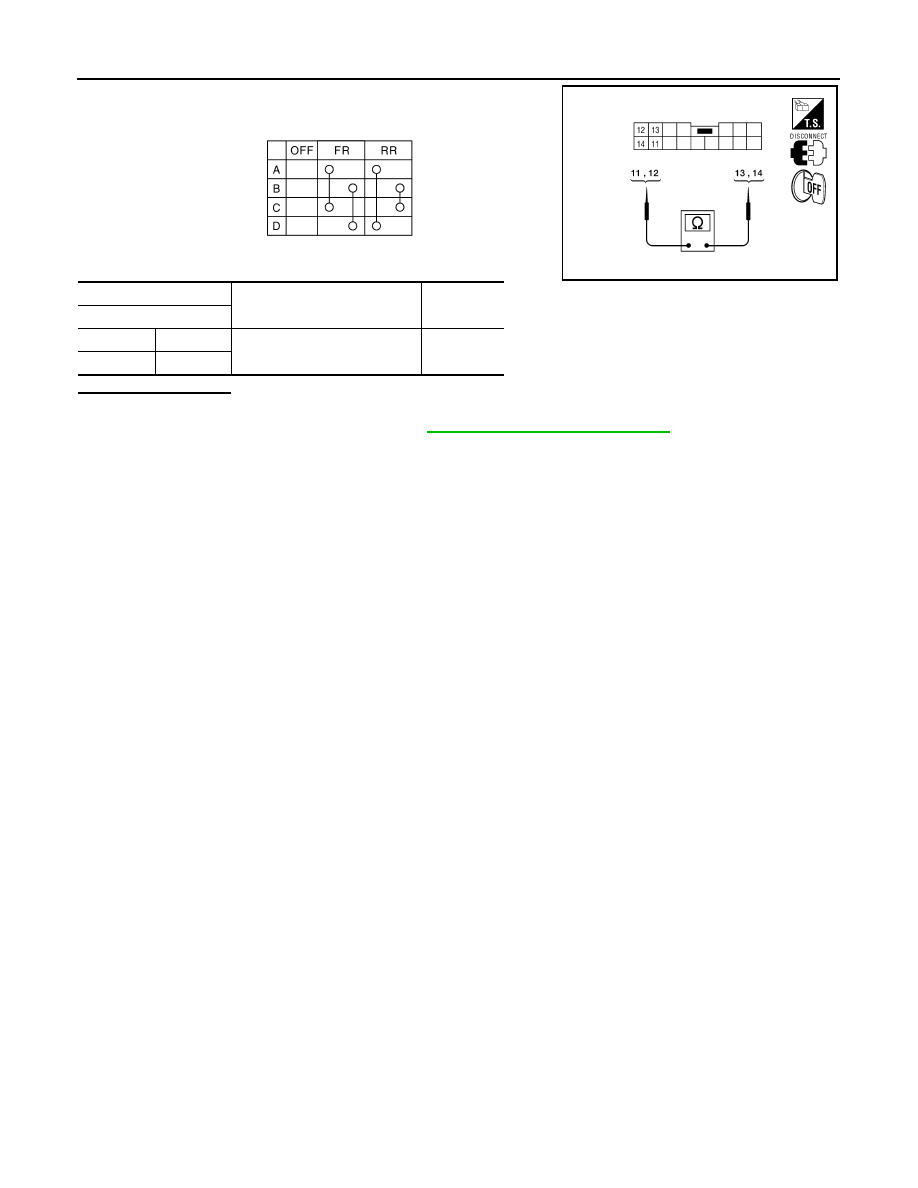

WASHER SWITCH

Check continuity between the combination switch terminals.

Does continuity exist?

YES

>> Wiper and washer switch is normal.

NO

>> Replace combination switch. Refer to

WW-78, "Removal and Installation"

.

A: Terminal 14
B: Terminal 12
C: Terminal 13

D: Terminal 11

Combination switch

Condition

Continuity

Terminal

11

14

Rear washer switch ON

Yes

12

13

ALLIA0840ZZ

JPLIA0164GB

2010 Pathfinder

REAR WIPER MOTOR CIRCUIT

WW-27

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

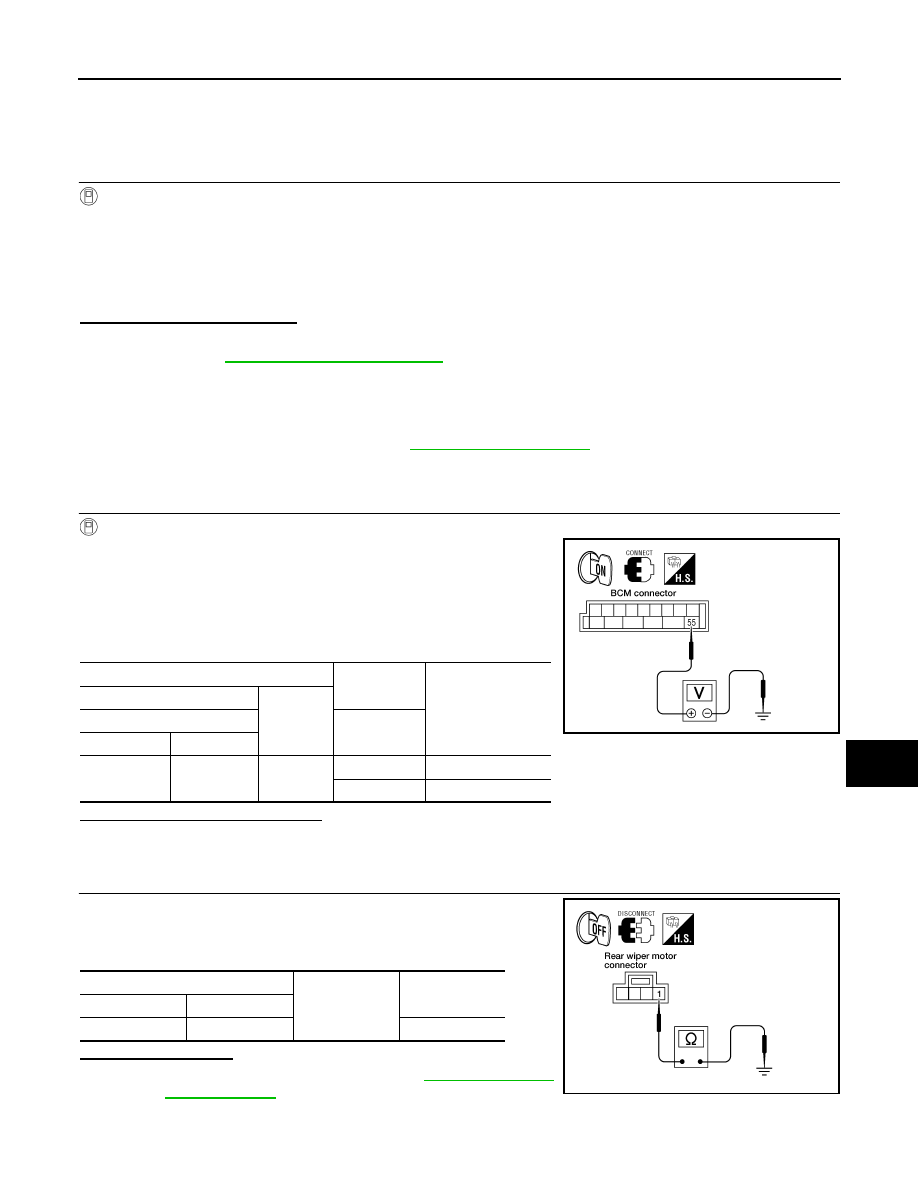

REAR WIPER MOTOR CIRCUIT

Component Function Check

INFOID:0000000005256371

1.

 CHECK REAR WIPER ON OPERATION

CONSULT-III ACTIVE TEST

1. Select "RR WIPER" of BCM active test item.

2. While operating the test item, check rear wiper operation.

Is rear wiper operation normal?

YES

>> Rear wiper motor circuit is normal.

NO

>> Refer to

WW-27, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005256372

Regarding Wiring Diagram information, refer to

WW-35, "Wiring Diagram"

.

1.

 CHECK REAR WIPER MOTOR OUTPUT VOLTAGE

CONSULT-III ACTIVE TEST

1. Turn the ignition switch OFF.

2. Disconnect rear wiper motor.

3. Turn the ignition switch ON.

4. Select "RR WIPER" of BCM active test item.

5. While operating the test item, check voltage between BCM har-

ness connector and ground.

Is the measurement value normal?

YES

>> GO TO 2

NO

>> GO TO 3

2.

 CHECK REAR WIPER MOTOR GROUND CIRCUIT

1. Turn the ignition switch OFF.

2. Check continuity between rear wiper motor harness connector

and ground.

Does continuity exist?

YES

>> Replace rear wiper motor. Refer to

WW-83, "Removal

and Installation"

.

NO

>> Repair or replace harness.

ON

: Rear wiper ON operation

OFF

: Stop the rear wiper.

Terminals

Test item

Voltage

(Approx.)

(+)

(

−

)

BCM

REAR WIPER

Connector

Terminal

M19

55

Ground

ON

Battery voltage

OFF

0V

LKIA0551E

Rear wiper motor

Ground

Continuity

Connector

Terminal

D602

42

Yes

LKIA0550E

2010 Pathfinder

WW-28

< COMPONENT DIAGNOSIS >

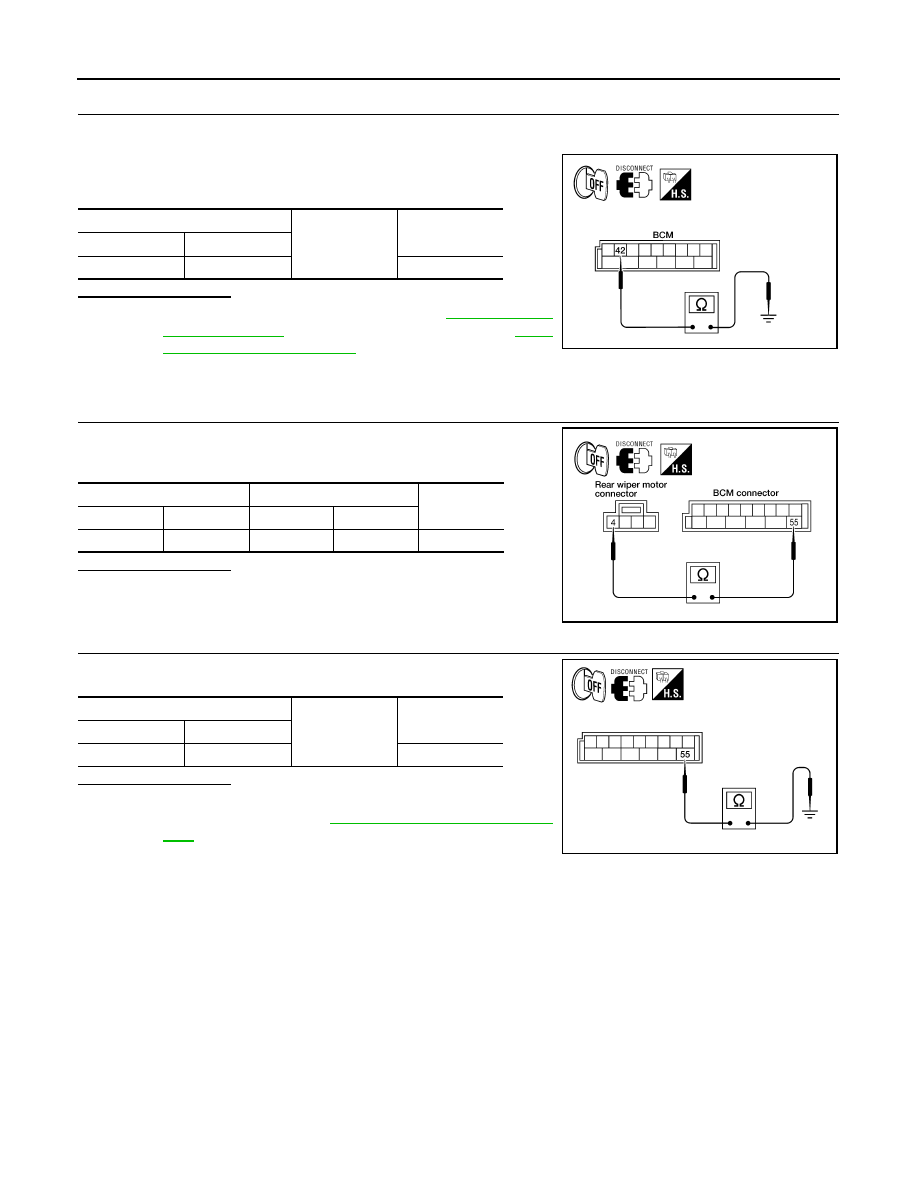

REAR WIPER MOTOR CIRCUIT

3.

 CHECK GLASS HATCH AJAR SWITCH CIRCUIT

1. Disconnect BCM.

2. Turn ignition switch OFF.

3. Make sure hatch glass is closed

4. Check continuity between BCM harness connector and ground.

Does continuity exist?

YES

>> Repair harness if shorted. If not, refer to

SEC-47, "Diag-

nosis Procedure"

 (with Intelligent Key system) or

SEC-

148, "Diagnosis Procedure"

 (without Intelligent Key sys-

tem).

NO

>> GO TO 4

4.

 CHECK REAR WIPER MOTOR OPEN CIRCUIT

1. Check continuity between BCM harness connector and rear

wiper motor harness connector.

Does continuity exist?

YES

>> GO TO 5

NO

>> Repair or replace harness.

5.

 CHECK REAR WIPER MOTOR SHORT CIRCUIT

Check continuity between BCM harness connector and ground.

Does continuity exist?

YES

>> Repair or replace harness.

NO

>> Replace BCM. Refer to

BCS-59, "Removal and Installa-

tion"

.

BCM

Ground

Continuity

Connector

Terminal

M19

42

No

WKIA1414E

BCM

Rear wiper motor

Continuity

Connector

Terminal

Connector

Terminal

M19

55

D602

4

Yes

LKIA0548E

BCM

Ground

Continuity

Connector

Terminal

M19

55

No

ALLIA0650ZZ

2010 Pathfinder

REAR WIPER AUTO STOP SIGNAL CIRCUIT

WW-29

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

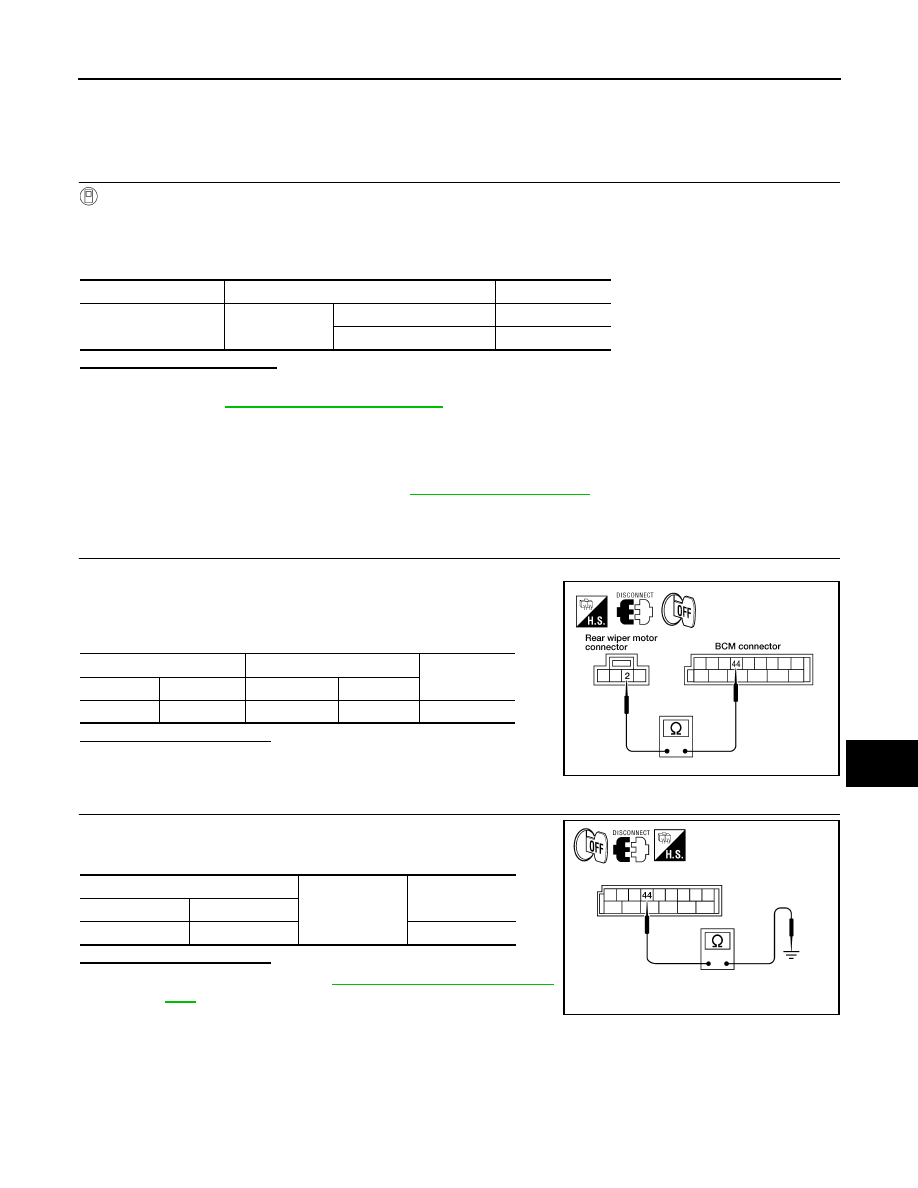

REAR WIPER AUTO STOP SIGNAL CIRCUIT

Component Function Check

INFOID:0000000005256373

1.

 CHECK REAR WIPER (AUTO STOP) OPERATION

CONSULT-III DATA MONITOR

1. Select "WIPER" of BCM data monitor item.

2. Operate the rear wiper.

3. Check that "RR WIPER STOP" changes to "ON" and "OFF" linked with the wiper operation.

Is the status of item normal?

YES

>> Rear wiper auto stop signal circuit is normal.

NO

>> Refer to

WW-29, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005256374

Regarding Wiring Diagram information, refer to

WW-35, "Wiring Diagram"

.

1.

 CHECK REAR WIPER MOTOR AUTO STOP CIRCUITS

1. Turn ignition switch OFF.

2. Disconnect BCM and rear wiper motor.

3. Check continuity between BCM harness connector terminals

and rear wiper motor harness connector terminals.

Is inspection result normal?

YES

>> GO TO 2

NO

>> Repair or replace harness.

2.

 CHECK AUTO STOP CIRCUITS FOR SHORT TO GROUND

Check continuity between BCM harness connector terminals and

ground.

Is inspection result normal?

YES

>> Replace BCM. Refer to

BCS-59, "Removal and Installa-

tion"

.

NO

>> Repair or replace harness.

Monitor item

Condition

Monitor status

RR WIPER STOP

Rear wiper motor

Stop position

ON

Except stop position

OFF

BCM

Rear wiper motor

Continuity

Connector

Terminal

Connector

Terminal

M19

44

D602

2

Yes

LKIA0552E

BCM

Ground

Continuity

Connector

Terminal

M19

44

No

ALLIA0651ZZ

2010 Pathfinder

WW-30

< COMPONENT DIAGNOSIS >

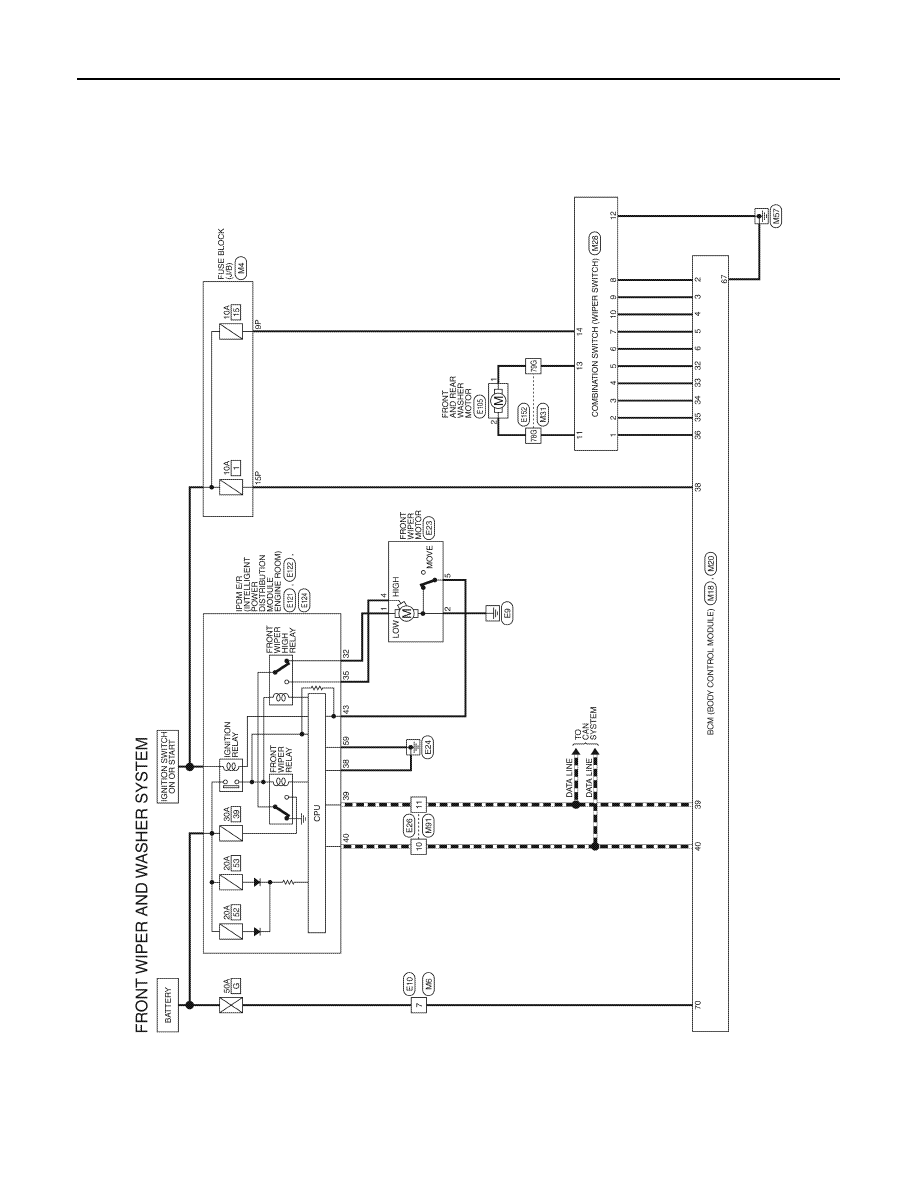

FRONT WIPER AND WASHER SYSTEM

FRONT WIPER AND WASHER SYSTEM

Wiring Diagram

INFOID:0000000005256375

ABLWA0542GB

2010 Pathfinder
