FRONT WIPER AND WASHER SYSTEM

WW-7

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

Component Parts Location

INFOID:0000000005256350

Component Description

INFOID:0000000005256351

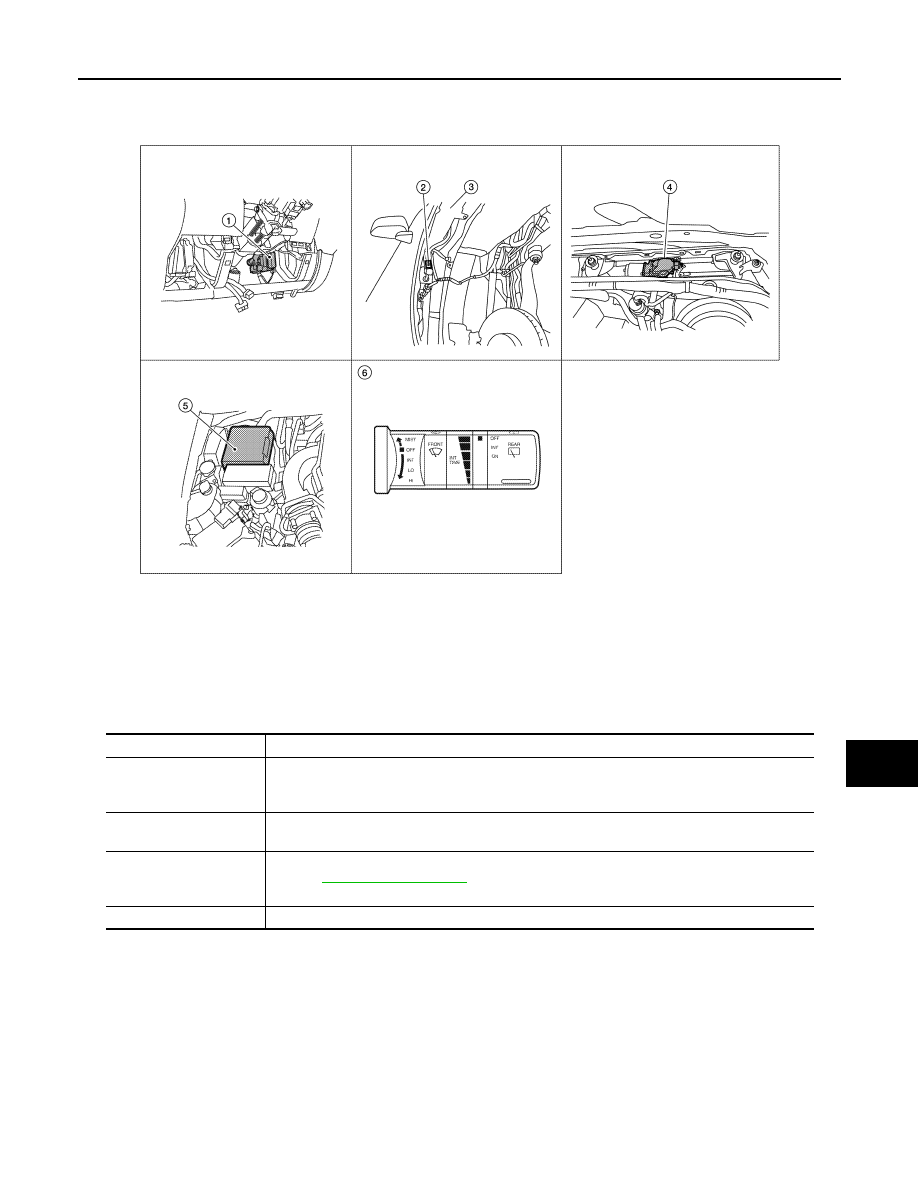

1.

BCM M18, M20 (view with instru-
ment lower panel LH removed)

2.

Front and rear washer motor E105 3.

Washer fluid reservoir

4.

Front wiper motor E23 (view with
cowl top removed)

5.

IPDM E/R E121, E122, E124

6.

Combination switch M28

ALLIA0617ZZ

Part

Description

BCM

• Judges each switch status by the combination switch reading function.
• Requests (with CAN communication) the front wiper relay and the front wiper high relay ON to

IPDM E/R.

IPDM E/R

• Controls the integrated relay according to the request (with CAN communication) from BCM.
• Performs the auto stop control of the front wiper.

Combination switch
(Wiper and washer
switch)

Refer to

WW-4, "System Diagram"

.

Combination meter

Transmits the vehicle speed signal to BCM with CAN communication.

2010 Pathfinder

WW-8

< FUNCTION DIAGNOSIS >

REAR WIPER AND WASHER SYSTEM

REAR WIPER AND WASHER SYSTEM

System Diagram

INFOID:0000000005256352

System Description

INFOID:0000000005256353

OUTLINE

The rear wiper is controlled by each function of BCM.

Control by BCM

• Combination switch reading function

• Rear wiper control function

REAR WIPER BASIC OPERATION

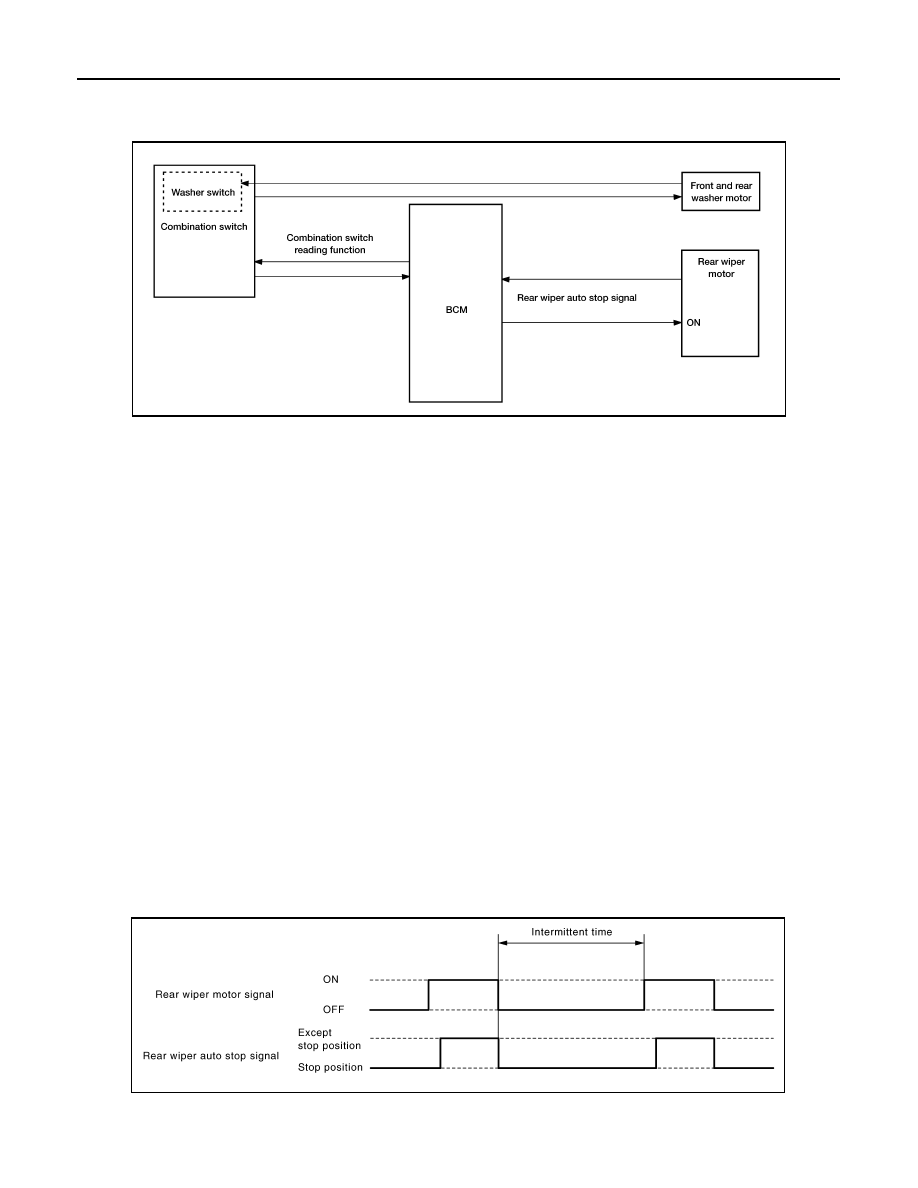

• BCM detects the combination switch condition by the combination switch reading function.

• BCM controls the rear wiper to start or stop.

REAR WIPER ON OPERATION

• BCM supplies power to the rear wiper motor according to the rear wiper ON operating condition.

Rear wiper ON operating condition

- Ignition switch ON

- Rear wiper switch ON

REAR WIPER INT OPERATION

• BCM supplies power to the rear wiper motor according to the INT operating condition.

Rear wiper INT operating condition

- Ignition switch ON

- Rear wiper switch INT

• BCM controls the rear wiper to operate once.

• BCM detects the rear wiper motor stopping position.

• BCM supplies power to the rear wiper motor after an intermittent from the stop of the rear wiper motor.

REAR WIPER AUTO STOP OPERATION

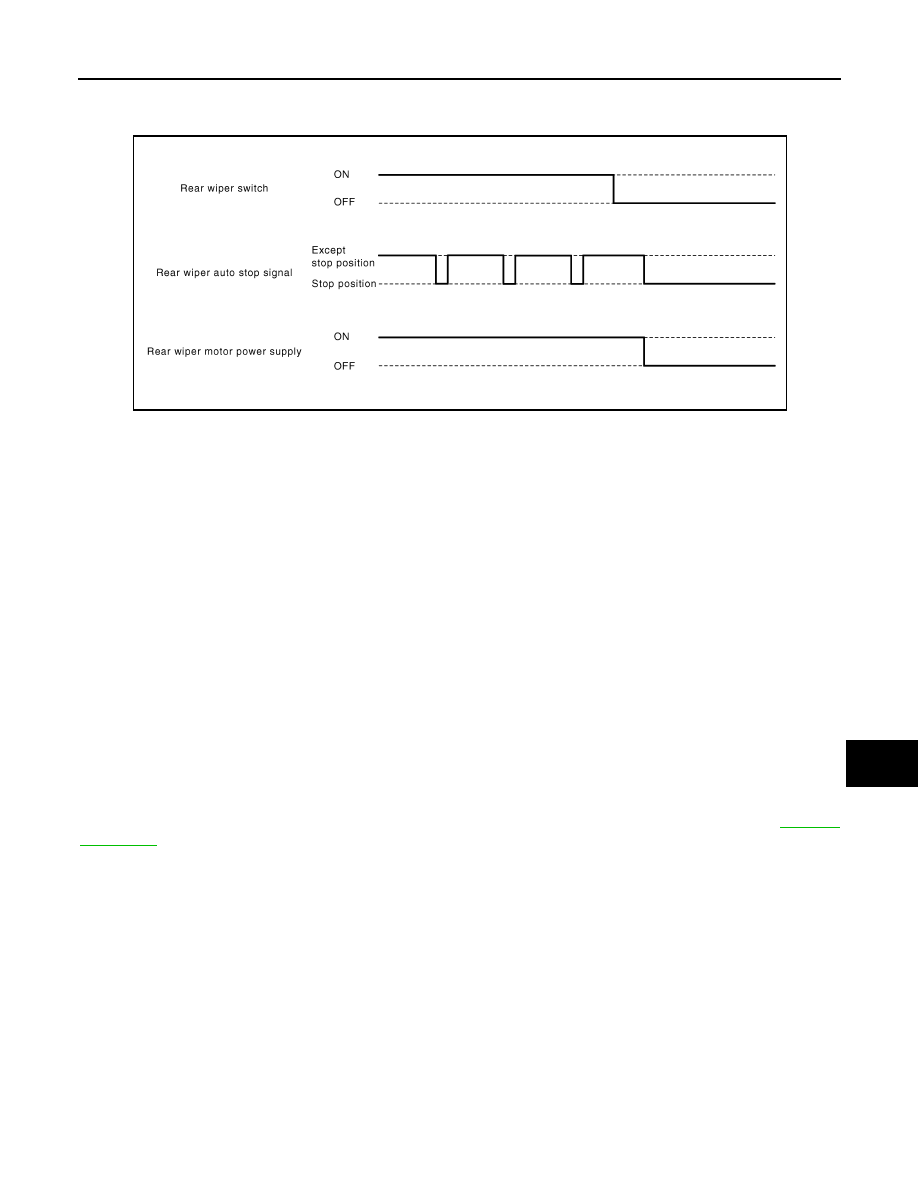

• BCM stops supplying power to the rear wiper motor when the rear wiper switch is turned OFF.

ALLIA0271GB

JPLIA0165GB

2010 Pathfinder

REAR WIPER AND WASHER SYSTEM

WW-9

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

• BCM reads an auto stop signal from the rear wiper motor to detect a rear wiper motor position.

• When the rear wiper motor is at other than the stopping position, BCM continues to supply power to the rear

wiper motor until it returns to the stopping position.

NOTE:

BCM stops supplying power to the rear wiper motor when the ignition switch is turned OFF.

REAR WIPER OPERATION LINKED WITH WASHER

• BCM supplies power to the rear wiper motor according to the washer linked operating condition of rear

wiper. When the rear washer switch is turned OFF, BCM controls rear wiper to operate approximately three

times.

Washer linked operating condition of rear wiper

- Ignition switch ON

- Rear washer switch ON (0.4 second or more)

• Front and rear washer motor becomes grounded through the combination switch when the rear washer

switch is turned ON.

REAR WIPER DROP WIPE OPERATION

• BCM controls the rear wiper to operate once according to the rear wiper drop wipe operating condition.

Rear wiper drop wipe operating condition

- Ignition switch ON

- Rear wiper switch OFF

- Rear washer switch OFF

• BCM controls the rear wiper so that it operates once time approximately three seconds later after the washer

interlocking operation of the rear wiper.

REAR WIPER FAIL

SAFE OPERATION

BCM performs the fail-safe function when the rear wiper auto stop circuit is malfunctioning. Refer to

BCS-53,

"Fail Safe"

.

JPLIA0166GB

2010 Pathfinder

WW-10

< FUNCTION DIAGNOSIS >

REAR WIPER AND WASHER SYSTEM

Component Parts Location

INFOID:0000000005256354

Component Description

INFOID:0000000005256355

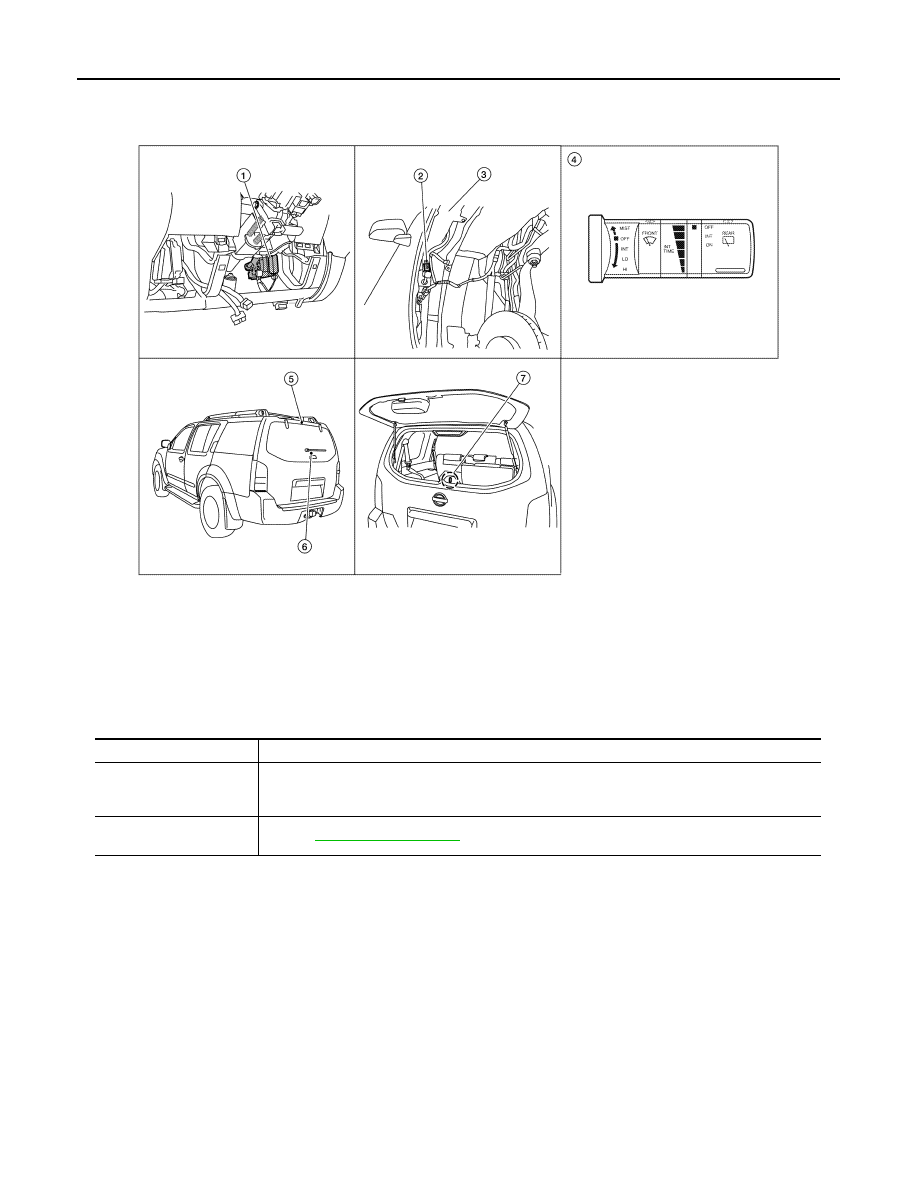

1.

BCM M18, M19, M20 (view with instru-
ment lower panel LH removed)

2.

Front and rear washer motor con-
nector E105

3.

Washer fluid reservoir

4.

Combination switch M28

5.

Rear washer nozzle

6.

Rear wiper motor D602

7.

Glass hatch ajar switch D503

ALLIA0618ZZ

Part

Description

BCM

• Judges each switch status by the combination switch reading function.
• Supplies power to the rear wiper motor.
• Performs the auto stop control of the rear wiper.

Combination switch
(Wiper and washer switch)

Refer to

WW-4, "System Diagram"

.

2010 Pathfinder

DIAGNOSIS SYSTEM (BCM)

WW-11

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000005484553

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.

NOTE:

It can perform the diagnosis modes except the following for all sub system selection items.

1: With remote keyless entry system
2: With Intelligent Key

WIPER

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

SELF-DIAG RESULTS

Displays the diagnosis results judged by BCM. Refer to

BCS-54, "DTC Index"

.

CAN DIAG SUPPORT MNTR

Monitors the reception status of CAN communication viewed from BCM.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

ECU IDENTIFICATION

The BCM part number is displayed.

CONFIGURATION

• Enables to read and save the vehicle specification.
• Enables to write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

BCM

BCM

×

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Remote keyless entry system

1

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

Air conditioner

AIR CONDITONER

×

Intelligent Key system

2

INTELLIGENT KEY

×

Combination switch

COMB SW

×

Immobilizer

IMMU

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Back door open

TRUNK

×

×

RAP (retained accessory power)

RETAINED PWR

×

×

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS (tire pressure monitoring sys-
tem)

AIR PRESSURE MONITOR

×

×

×

Vehicle security system

THEFT ALM

×

×

×

Panic alarm

PANIC ALARM

×

2010 Pathfinder

WW-12

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (BCM)

WIPER : CONSULT-III Function (BCM - WIPER)

INFOID:0000000005484554

WORK SUPPORT

*: Factory setting

DATA MONITOR

ACTIVE TEST

Work Item

Setting

Item

Description

WIPER SPEED
SETTING

ON*

With vehicle speed
(Front wiper intermittent time linked with the vehicle speed and wiper intermittent dial position)

OFF

Without vehicle speed
(Front wiper intermittent time linked with the wiper intermittent dial position)

Monitor Item

[Unit]

Description

IGN ON SW [ON/OFF]

Ignition switch ON status judged from ignition power supply

IGN SW CAN [ON/OFF]

Ignition switch ON status received from IPDM E/R with CAN communication

FR WIPER HI [ON/OFF]

Each switch status that BCM judges from the combination switch reading function

FR WIPER LOW [ON/OFF]

FR WIPER INT [ON/OFF]

FR WASHER SW [ON/OFF]

INT VOLUME [1 - 7]

Each switch status that BCM judges from the combination switch reading function

FR WIPER STOP [ON/OFF]

Front wiper motor (stop position) status received from IPDM E/R with CAN communica-
tion

VEHICLE SPEED [km/h]

The value of the vehicle speed signal received from combination meter with CAN com-
munication

RR WIPER ON [ON/OFF]

Each switch status that BCM judges from the combination switch reading function

RR WIPER INT [ON/OFF]

RR WASHER SW [ON/OFF]

RR WIPER STOP [ON/OFF]

Rear wiper motor (stop position) status input from the rear wiper motor

Test Item

Operation

Description

FR WIPER

HI

Transmits the front wiper request signal (HI) to IPDM E/R with CAN communication to op-
erate the front wiper HI operation.

LO

Transmits the front wiper request signal (LO) to IPDM E/R with CAN communication to
operate the front wiper LO operation.

INT

Transmits the front wiper request signal (INT) to IPDM E/R with CAN communication to
operate the front wiper INT operation.

OFF

Stops transmitting the front wiper request signal to stop the front wiper operation.

RR WIPER

ON

Outputs the voltage to operate the rear wiper motor.

OFF

Stops the voltage to stop.

2010 Pathfinder

DIAGNOSIS SYSTEM (IPDM E/R)

WW-13

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

DIAGNOSIS SYSTEM (IPDM E/R)

Diagnosis Description

INFOID:0000000005484555

AUTO ACTIVE TEST

Description

In auto active test mode, the IPDM E/R sends a drive signal to the following systems to check their operation.

• Oil pressure low warning indicator

• Oil pressure gauge

• Rear window defogger

• Front wipers

• Tail, license and parking lamps

• Front fog lamps (if equipped)

• Headlamps (Hi, Lo)

• A/C compressor (magnetic clutch)

• Cooling fan

Operation Procedure

1. Close the hood and front door RH, and lift the wiper arms from the windshield (to prevent windshield dam-

age due to wiper operation).

NOTE:

When auto active test is performed with hood opened, sprinkle water on windshield before hand.

2. Turn ignition switch OFF.
3. Turn the ignition switch ON and, within 20 seconds, press the front door switch LH 10 times. Then turn the

ignition switch OFF.

4. Turn the ignition switch ON within 10 seconds. After that the horn sounds once and the auto active test

starts.

5. After a series of the following operations is repeated 3 times, auto active test is completed.

NOTE:

When auto active test mode has to be cancelled halfway through test, turn ignition switch OFF.

CAUTION:

• If auto active test mode cannot be actuated, check door switch system. Refer to

DLK-55, "Descrip-

tion"

 (with Intelligent Key system),

DLK-226, "Description"

 (without Intelligent Key system).

• Do not start the engine.

Inspection in Auto Active Test Mode

When auto active test mode is actuated, the following 7 steps are repeated 3 times.

Operation
sequence

Inspection Location

Operation

1

Rear window defogger

10 seconds

2

Front wipers

LO for 5 seconds

 HI for 5 seconds

WKIA4991E

2010 Pathfinder

WW-14

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (IPDM E/R)

Concept of auto active test

• IPDM E/R starts the auto active test with the door switch signals transmitted by BCM via CAN communica-

tion. Therefore, the CAN communication line between IPDM E/R and BCM is considered normal if the auto

active test starts successfully.

• The auto active test facilitates troubleshooting if any systems controlled by IPDM E/R cannot be operated.

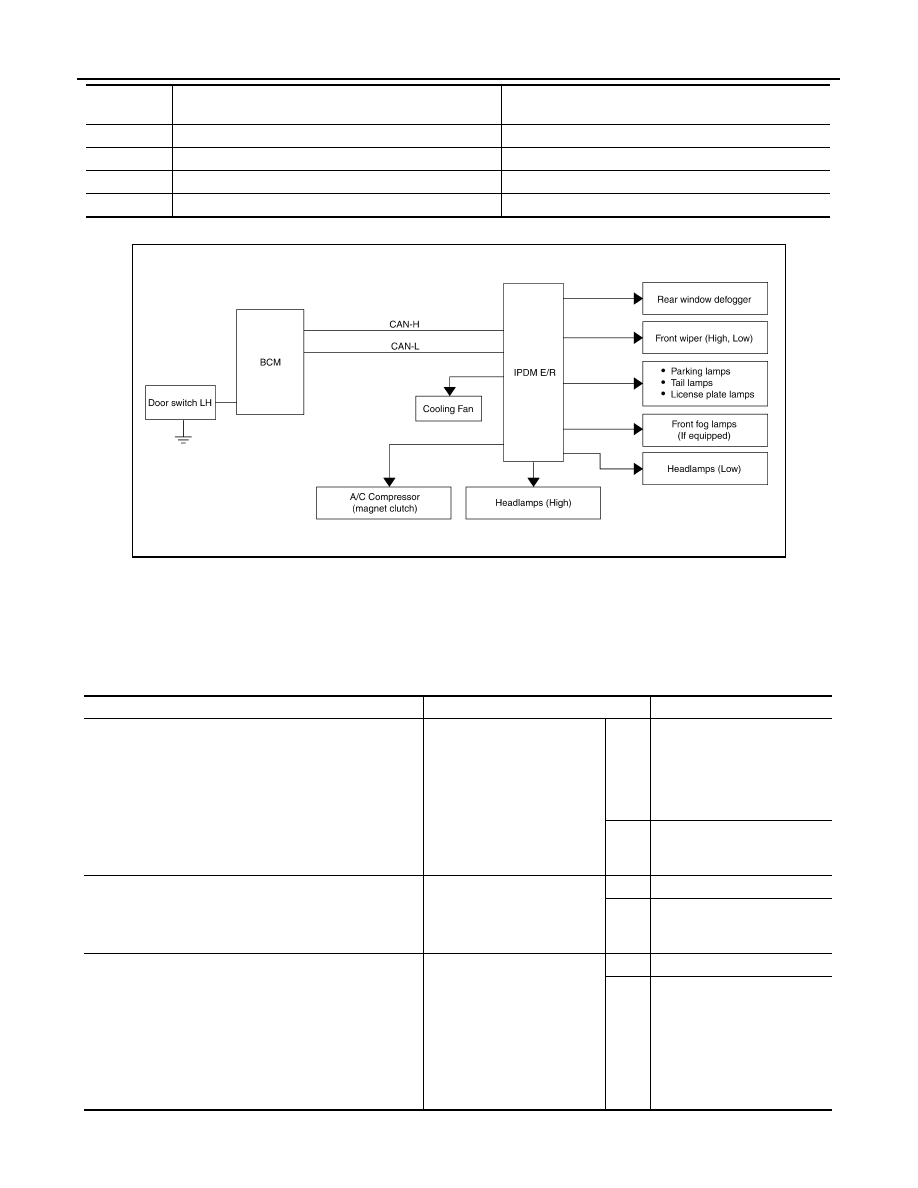

Diagnosis chart in auto active test mode

3

Tail, license, front fog and parking lamps

10 seconds

4

Headlamps

LO for 10 seconds

 HI on-off for 5 seconds

5

A/C compressor (magnetic clutch)

ON

 OFF 5 times

6

Cooling fan

10 seconds

Operation
sequence

Inspection Location

Operation

AWMIA1124GB

Symptom

Inspection contents

Possible cause

Oil pressure low warning indicator does not operate

Perform auto active test.
Does the oil pressure low
warning indicator operate?

YES

• IPDM E/R signal input cir-

cuit

• ECM signal input circuit
• CAN communication signal

between ECM and combi-
nation meter

NO

• CAN communication signal

between IPDM E/R, BCM
and combination meter

Oil pressure gauge does not operate

Perform auto active test.
Does the oil pressure gauge
operate?

YES

IPDM E/R signal input circuit

NO

• CAN communication signal

between IPDM E/R, BCM
and combination meter

Rear window defogger does not operate

Perform auto active test.
Does the rear window defog-
ger operate?

YES

BCM signal input circuit

NO

• Harness or connector be-

tween A/C and AV switch
assembly and AV control
unit

• CAN communication signal

between BCM and IPDM E/
R

2010 Pathfinder















Content      ..     663      664      665      666     ..
