1. Remove wheel and tire using power tool.
2. Check tires for wear and improper inflation.
3. Check wheels for deformation, cracks and other damage. If

deformed, remove wheel and check wheel runout.

a. Remove tire from wheel and mount wheel on a tire balance

machine.

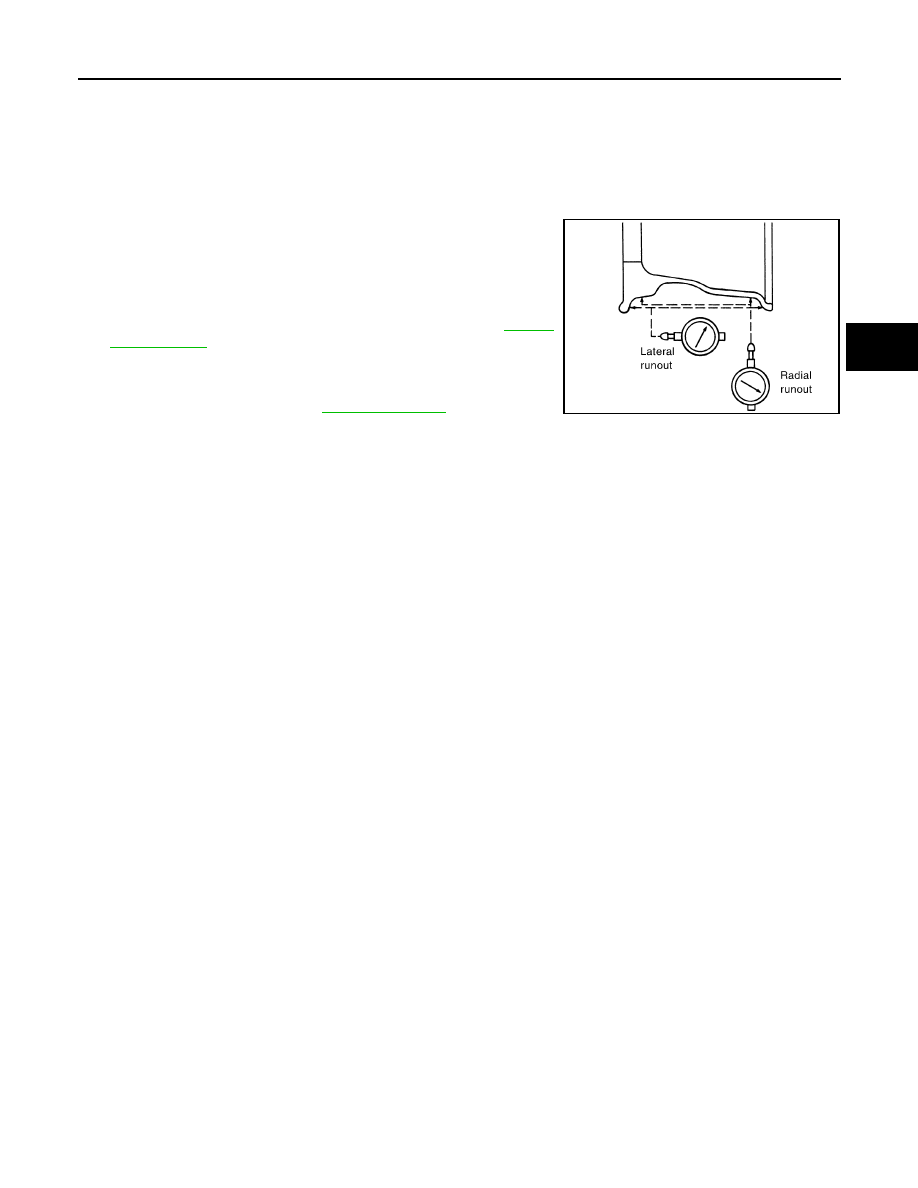

b. Set dial indicator as shown in the illustration. Refer to

WT-53,

"Road Wheel"

4. Check front wheel bearings for looseness.
5. Check front suspension for looseness.
6. Install wheel and tire. Refer to

WT-49, "Rotation"

SFA975B

2010 Pathfinder

WT-48

< ON-VEHICLE REPAIR >

WHEEL AND TIRE ASSEMBLY

ON-VEHICLE REPAIR

WHEEL AND TIRE ASSEMBLY

Balancing Wheels

INFOID:0000000005255833

WHEEL BALANCE REMOVAL

1. Remove wheel and tire using power tool.
2. Using releasing agent, remove double-faced adhesive tape from the wheel.

CAUTION:

• Be careful not to scratch the wheel during removal.

• After removing double-faced adhesive tape, wipe clean traces of releasing agent from the wheel.

WHEEL BALANCE INSTALLATION AND ADJUSTMENT

• If a tire balance machine has adhesion balance weight mode settings and drive-in weight mode setting,

select and adjust a drive-in weight mode suitable for wheels.

1. Set wheel on wheel balancer using the center hole as a guide. Start the tire balance machine.
2. When inner and outer imbalance values are shown on the wheel balancer indicator, multiply outer imbal-

ance value by 1.6 to determine balance weight that should be used. Select the outer balance weight with

a value closest to the calculated value and install it to the designated outer position of, or at the desig-

nated angle in relation to the road wheel.

CAUTION:

• Do not install the inner balance weight before installing the outer balance weight.

• Before installing the balance weight, be sure to clean the mating surface of the wheel.

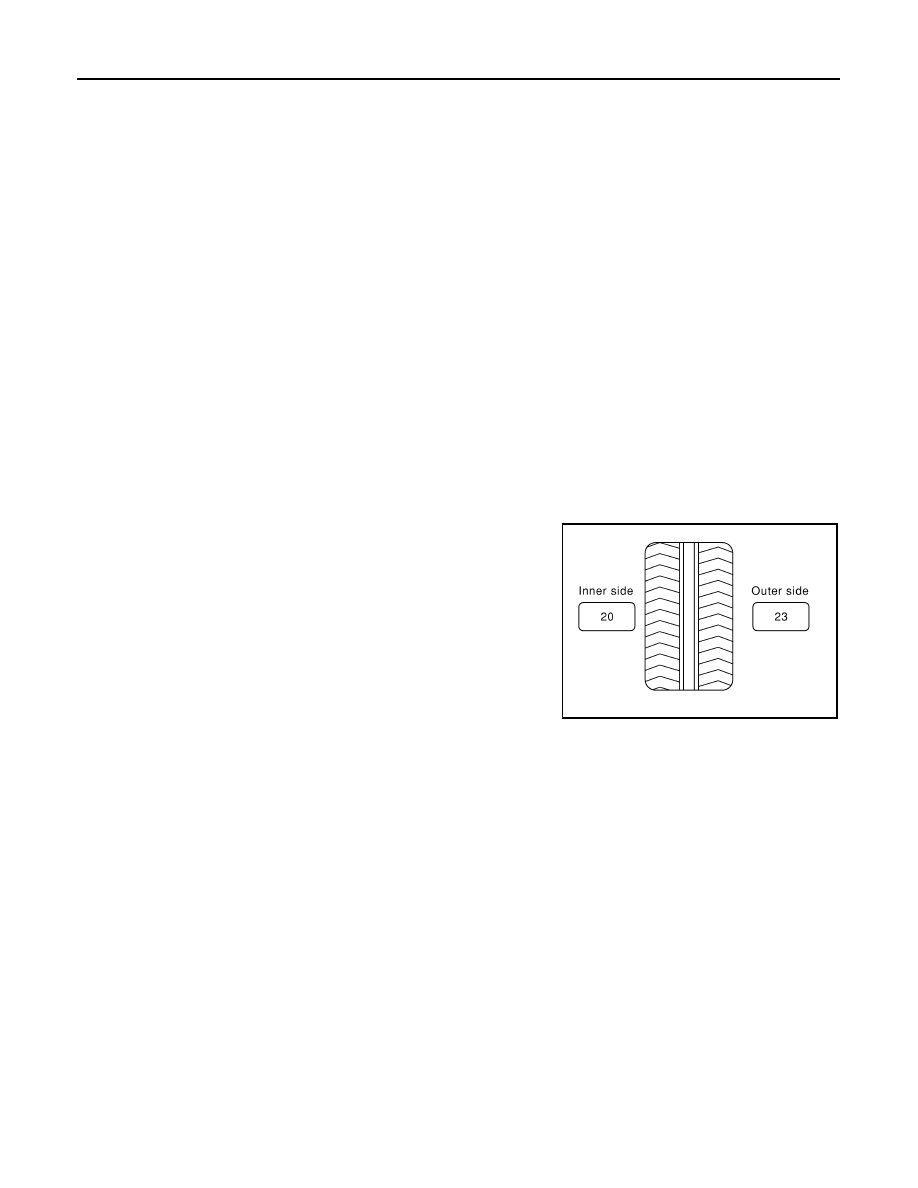

Indicated imbalance value

5/3 = balance weight to be installed

Calculation example:

23 g (0.81 oz)

5/3 = 38.33 g (1.35 oz) = 40 g (1.41 oz) balance

weight (closer to calculated balance weight value)

Note that balance weight value must be closer to the calculated

balance weight value.

Example:

37.4 g = 35 g (1.23 oz)

37.5 g = 40 g (1.41 oz)

SMA054D

2010 Pathfinder

WHEEL AND TIRE ASSEMBLY

WT-49

< ON-VEHICLE REPAIR >

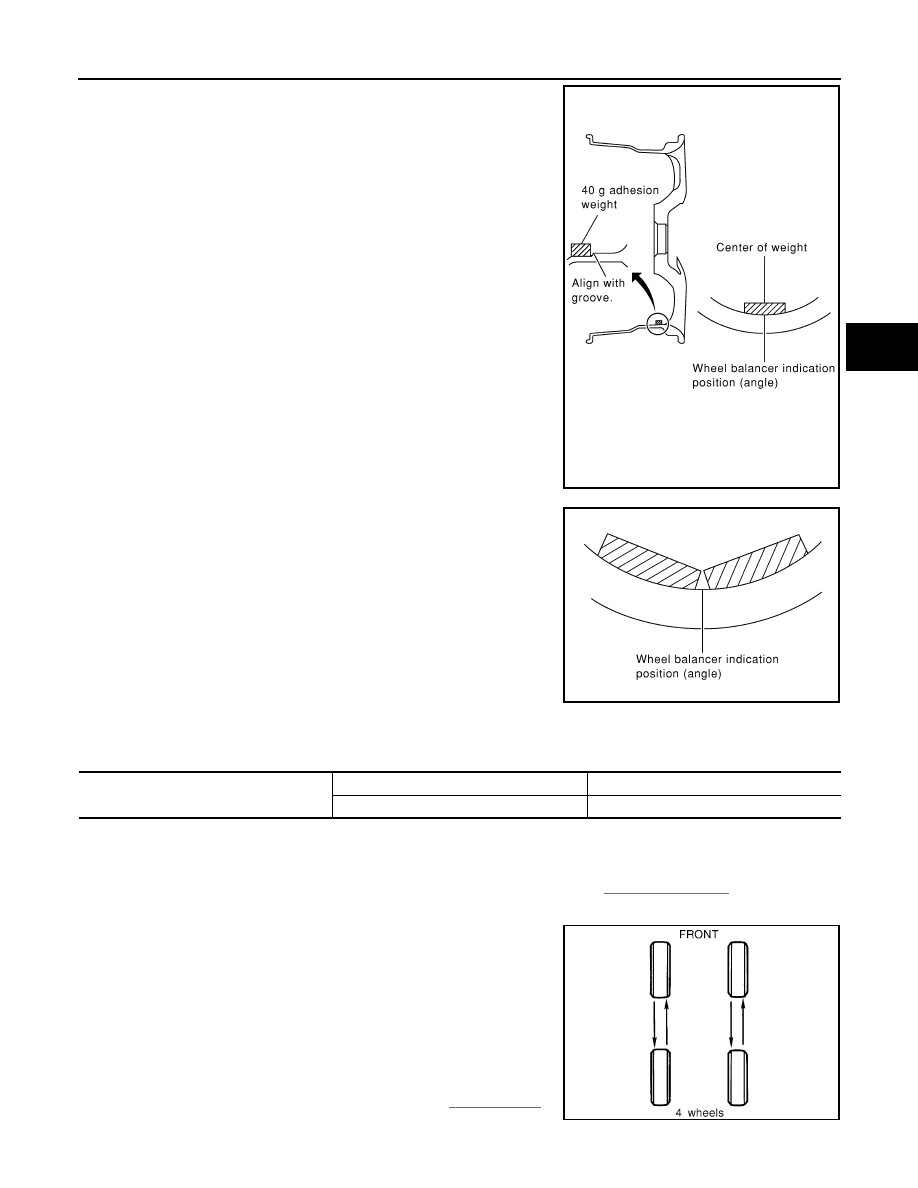

a. Install balance weight in the position shown.
b. When installing balance weight to wheels, set it into the grooved

area on the inner wall of the wheel as shown so that the balance

weight center is aligned with the wheel balancer indication posi-

tion (angle).

CAUTION:

• Always use Genuine NISSAN adhesion balance weights.

• Balance weights are not reusable; always replace with

new ones.

• Do not install more than three sheets of balance weights.

c. If calculated balance weight value exceeds 50 g (1.76 oz), install

two balance weight sheets in line with each other as shown.

CAUTION:

Do not install one balance weight sheet on top of another.

3. Start wheel balancer again.
4. Install drive-in balance weight on inner side of road wheel in the

wheel balancer indication position (angle).

CAUTION:

Do not install more than two balance weights.

5. Start wheel balancer. Make sure that inner and outer residual

imbalance values are 5 g (0.18 oz) each or below.

• If either residual imbalance value exceeds 5 g (0.18 oz),

repeat installation procedures.

Wheel Balance (Maximum Allowable Imbalance)

Rotation

INFOID:0000000005255834

NOTE:

Follow the maintenance schedule for tire rotation service intervals. Refer to

WT-49, "Rotation"

1. Remove wheels and tires.
2. Rotate wheels and tires on each side from front to back as

shown. Do not include the spare wheel and tire when rotating

the wheels and tires.

CAUTION:

When installing wheels and tires, tighten them diagonally

by dividing the work two to three times in order to prevent

the wheels from developing any distortion.

3. Adjust the tire pressure to specification. Refer to

WT-53, "Tire"

WDIA0060E

SMA056D

Maximum allowable imbalance

Dynamic (at rim flange)

5 g (0.18 oz) (one side)

Static

10 g (0.35 oz)

Wheel nut

: 133 N·m (14 kg-m, 98 ft-lb)

SMA829C

2010 Pathfinder

WT-50

< ON-VEHICLE REPAIR >

WHEEL AND TIRE ASSEMBLY

4. After the wheel and tire rotation, retighten the wheel nuts after the vehicle has been driven for 1,000 km

(600 miles), and also after any wheel and tire has been installed, such as after repairing a flat tire.

2010 Pathfinder

REMOVAL AND INSTALLATION

WT-51

< REMOVAL AND INSTALLATION >

REMOVAL AND INSTALLATION

Transmitter (Pressure Sensor)

INFOID:0000000005255835

REMOVAL

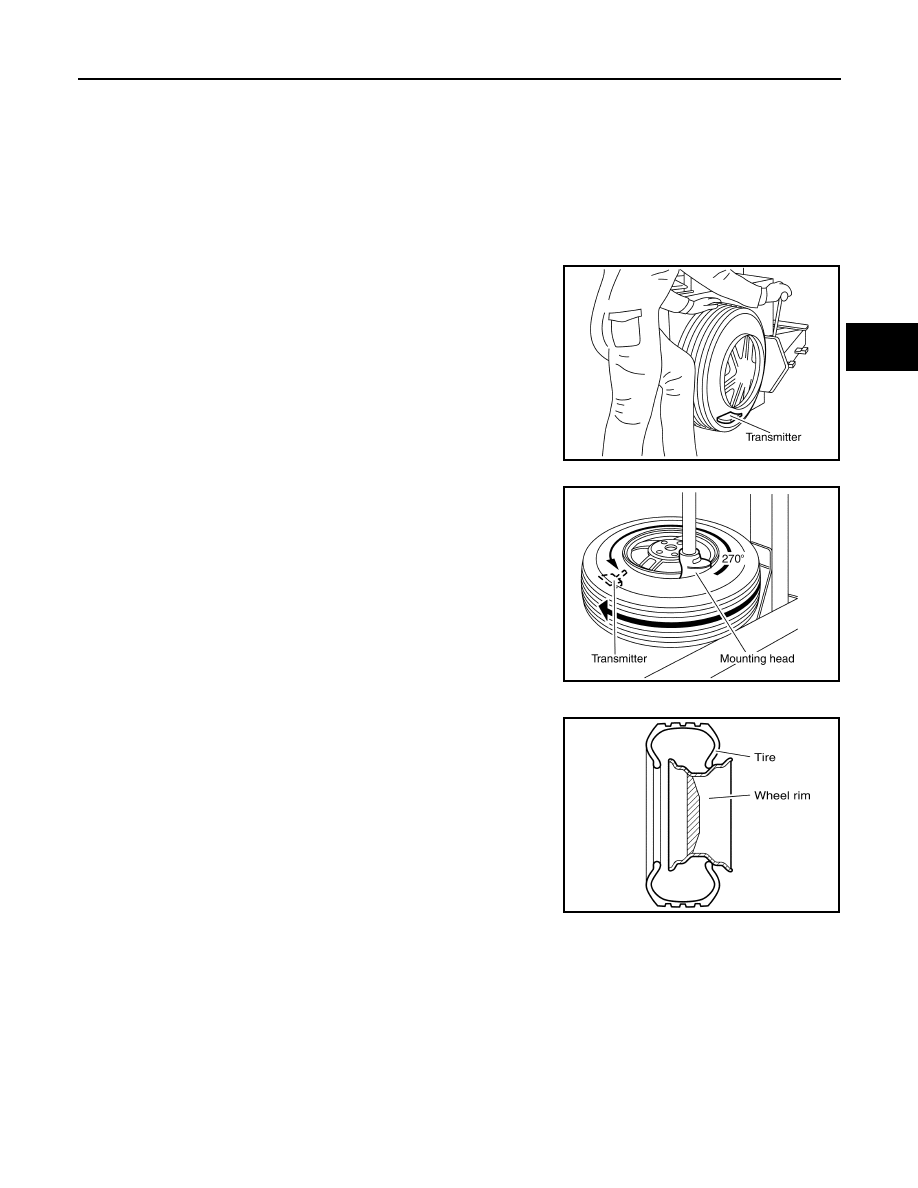

1. Remove wheel and tire using power tool.
2. Deflate tire. Unscrew transmitter retaining nut and allow transmitter to fall into tire.
3. Gently bounce tire so that transmitter falls to bottom of tire.

Place wheel and tire assembly on tire changing machine and

break both tire beads. Ensure that the transmitter remains at the

bottom of the tire while breaking the bead.

4. Turn tire so that valve hole is at bottom, and gently bounce the

tire to ensure transmitter is near valve hole. Carefully lift tire onto

turntable and position valve hole (and transmitter) 270 degrees

from mounting/dismounting head.

5. Lubricate tire well, and remove top side of tire. Reach inside the

tire and remove the transmitter.

6. Remove the second side of the tire as normal.

INSTALLATION

1. Place first side of tire onto rim.

2. Apply suitable silicone lubricant to new transmitter seal then install seal on transmitter.

NOTE:

Always replace the seal after every disassembly.

SEIA0047E

WEIA0046E

SEIA0049E

2010 Pathfinder
