CONTROL UNIT

VTL-7

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

ON-VEHICLE REPAIR

CONTROL UNIT

Removal and Installation

INFOID:0000000005259223

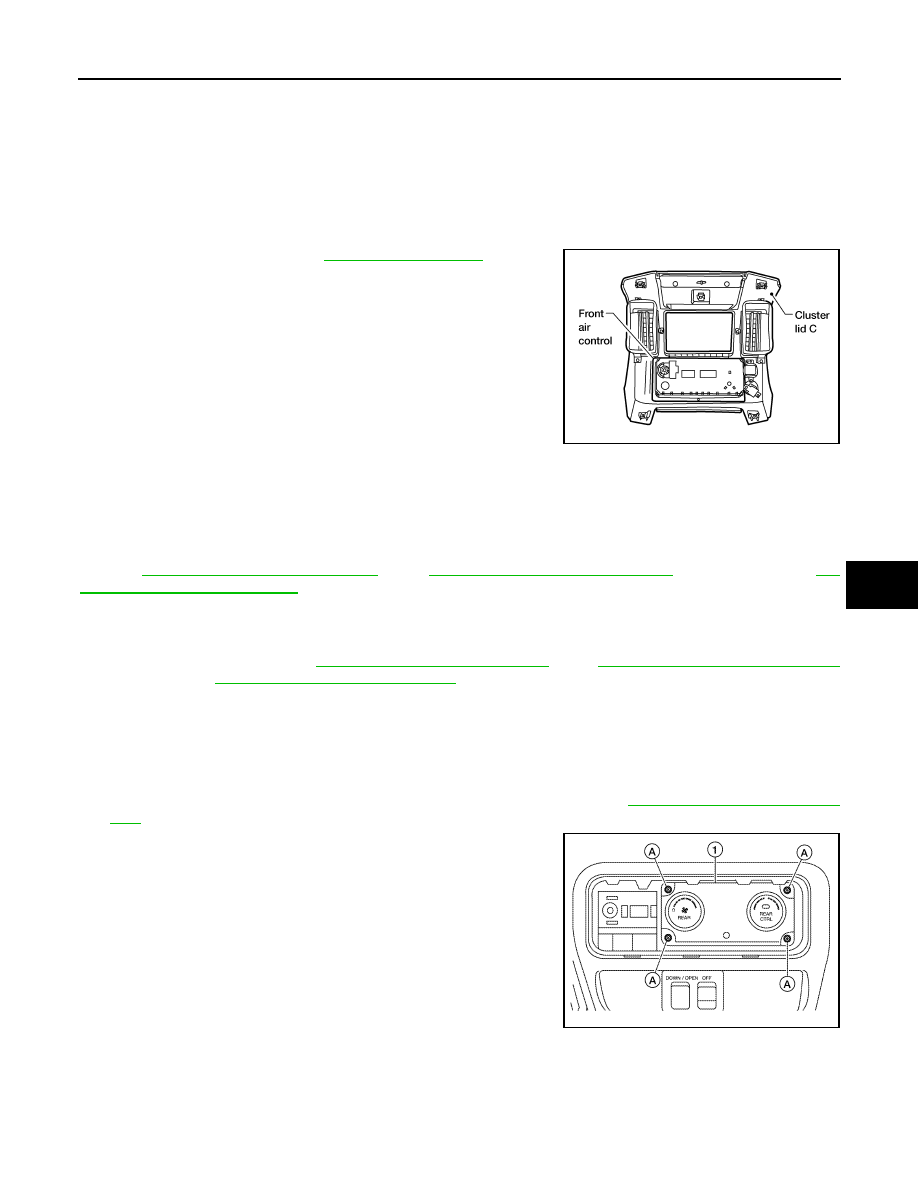

FRONT AIR CONTROL (MANUAL A/C)

Removal

1. Remove cluster lid C. Refer to

IP-11, "Exploded View"

.

2. Remove the four screws securing the front air control to cluster

lid C.

3. Remove the front air control.

Installation

Installation is in the reverse order of removal.

A/C AND AV SWITCH ASSEMBLY (AUTOMATIC A/C)

Removal and Installation

The front A/C switch is integrated into the A/C and AV switch assembly in cluster lid C in the instrument panel.

Refer to

AV-34, "Removal and Installation"

 Base,

AV-291, "Removal and Installation"

 Bose without Navi,

AV-

462, "Removal and Installation"

 Bose with Navi.

A/C AUTO AMP. (AUTOMATIC A/C)

Removal

Remove the display unit. Refer to

AV-34, "Removal and Installation"

 Base,

AV-291, "Removal and Installation"

Bose without Navi,

AV-462, "Removal and Installation"

 Bose with Navi.

Installation

Installation is in the reverse order of removal.

REAR AIR CONTROL (FRONT)

Removal

1. Remove the front roof console finisher from the front roof console. Refer to

INT-19, "Removal and Installa-

tion"

.

2. Remove the four rear air control (front) screws (A), disconnect

the rear air control (front) connector and remove the rear air

control (front) (1) from the front roof console.

Installation

Installation is in the reverse order of removal.

REAR AIR CONTROL (REAR)

Removal

LBIA0416E

ALIIA0135ZZ

2010 Pathfinder

VTL-8

< ON-VEHICLE REPAIR >

CONTROL UNIT

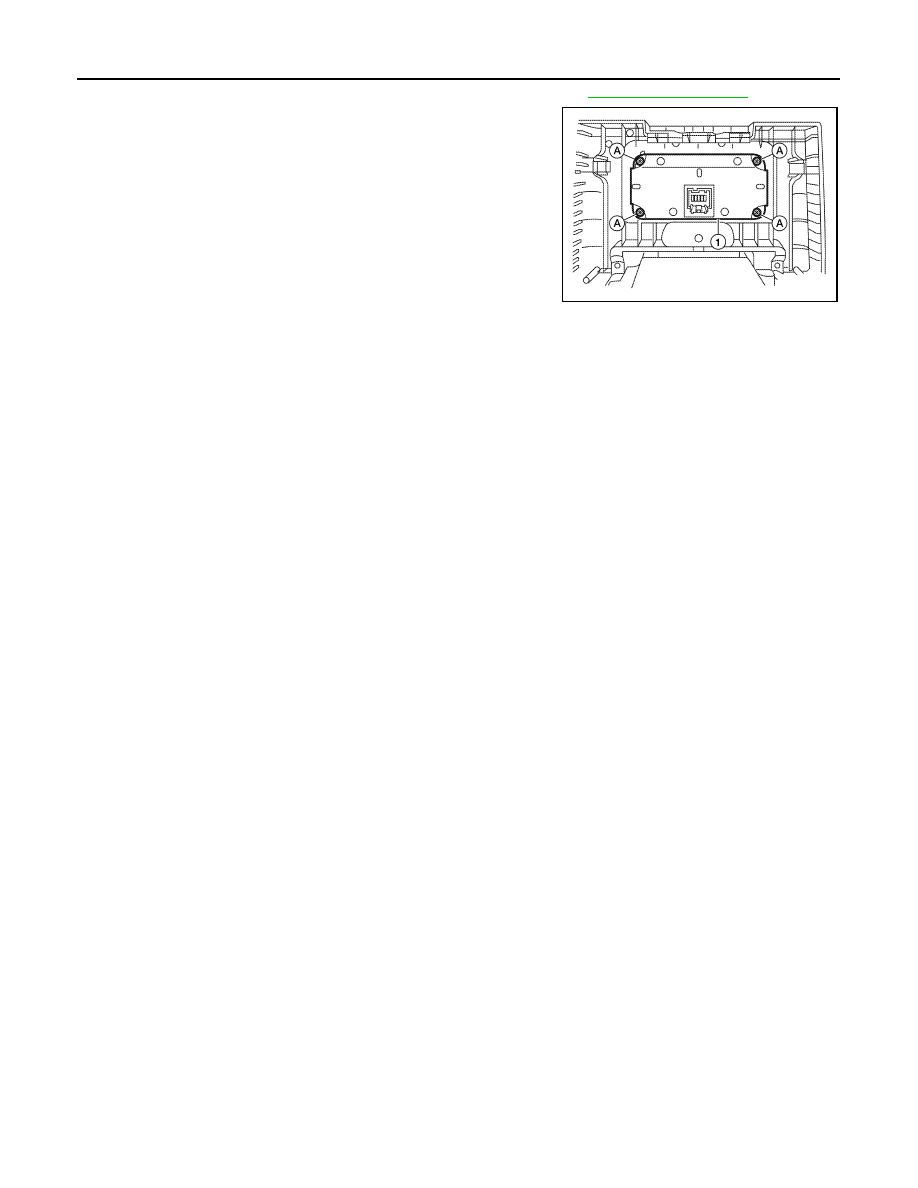

1. Remove the rear finisher assembly from the center console. Refer to

IP-11, "Exploded View"

.

2. Remove the four rear air control (rear) screws (A) and remove

the rear air control (rear) (1) from the rear finisher assembly.

Installation

Installation is in the reverse order of removal.

ALIIA0136ZZ

2010 Pathfinder

IN-VEHICLE SENSOR

VTL-9

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

IN-VEHICLE SENSOR

Removal and Installation

INFOID:0000000005259224

REMOVAL

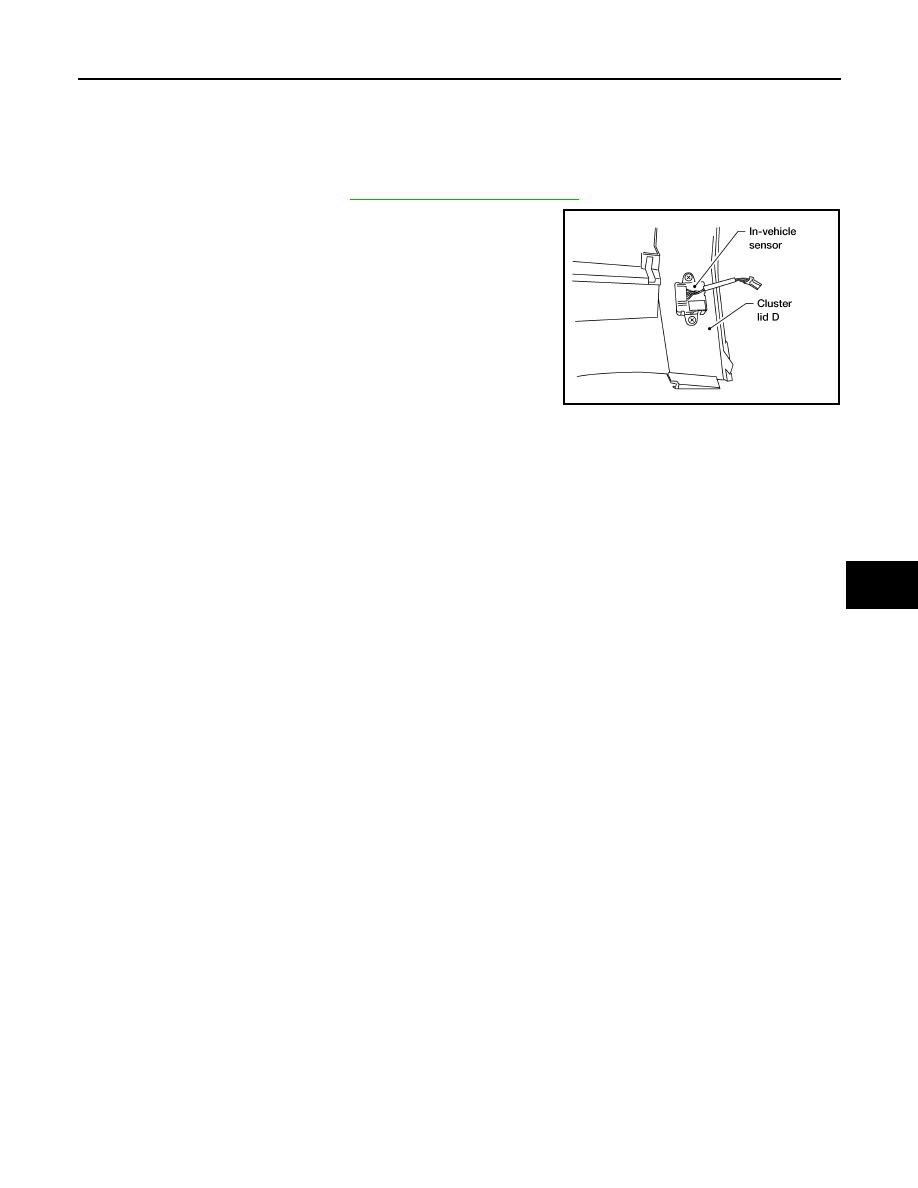

1. Remove the cluster lid D. Refer to

IP-12, "Removal and Installation"

.

2. Remove the two screws and remove the in-vehicle sensor.

INSTALLATION

Installation is in the reverse order of removal.

WJIA1073E

2010 Pathfinder

VTL-10

< ON-VEHICLE REPAIR >

OPTICAL SENSOR

OPTICAL SENSOR

Removal and Installation

INFOID:0000000005259225

REMOVAL

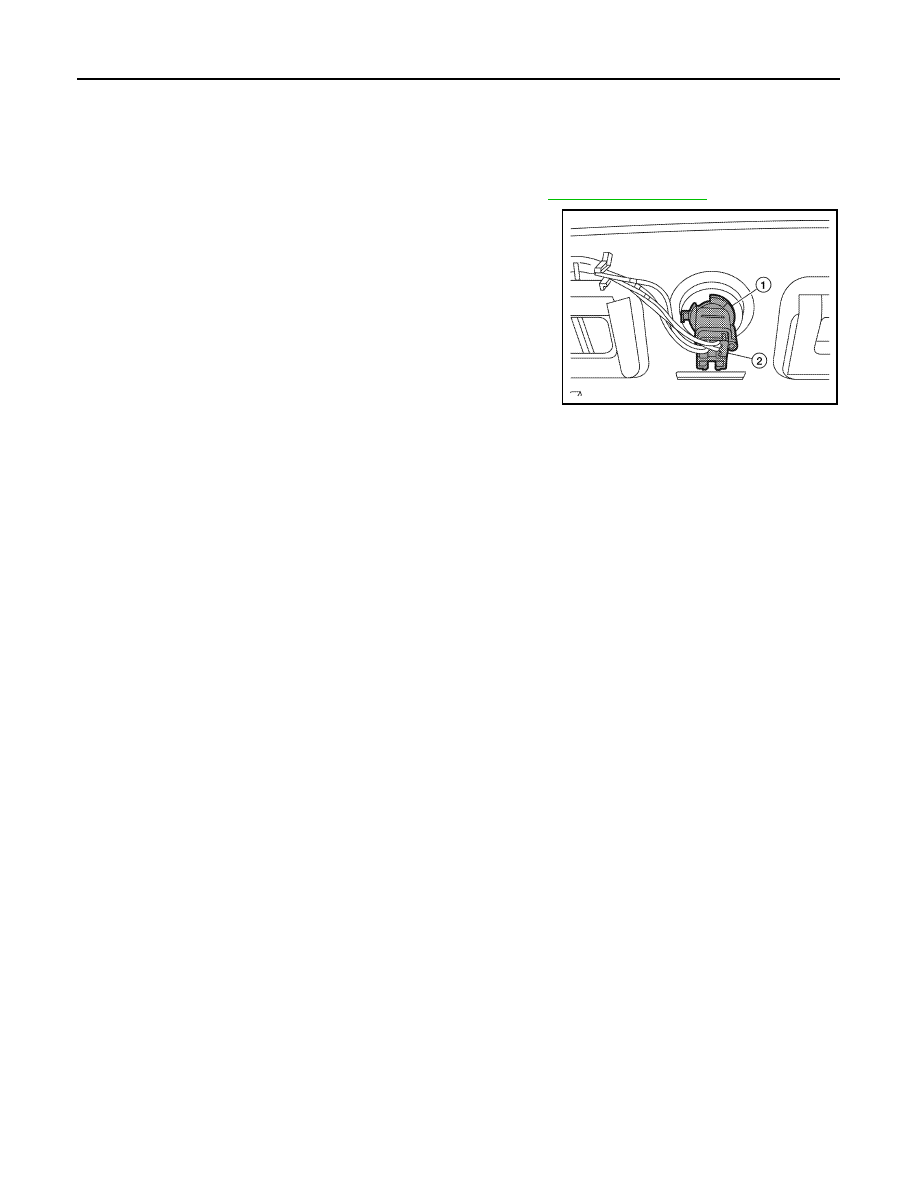

1. Remove the defroster grille from the instrument panel. Refer to

IP-11, "Exploded View"

.

2. Disconnect the optical sensor connector (2).
3. Twist the optical sensor (1) counter clockwise to remove it from

the defroster grille.

INSTALLATION

Installation is in the reverse order of removal.

ALIIA0061ZZ

2010 Pathfinder

INTAKE SENSOR

VTL-11

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

INTAKE SENSOR

Removal and Installation

INFOID:0000000005259226

REMOVAL

1. Remove the front kick plate. Refer to

INT-16, "Component"

.

2. Remove the front pillar lower finisher. Refer to

INT-16, "Component"

.

3. Remove the lower glove box. Refer to

IP-11, "Exploded View"

.

4. Remove the upper glove box (cluster lid E). Refer to

IP-11, "Exploded View"

.

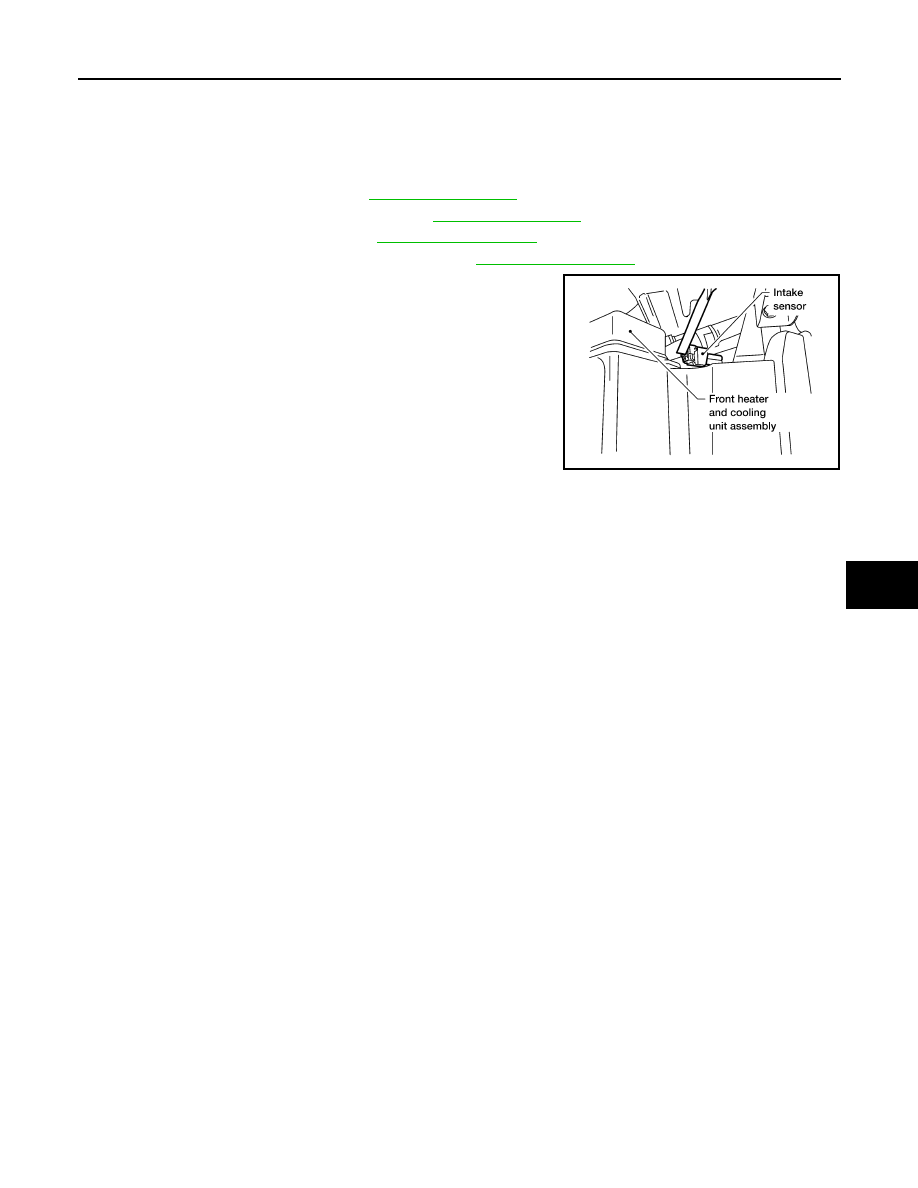

5. Disconnect the intake sensor electrical connector.

NOTE:

The intake sensor is located on the top of the front heater and

cooling unit assembly next to the A/C evaporator cover.

6. Remove the intake sensor from the front heater and cooling unit

assembly.

INSTALLATION

Installation is in the reverse order of removal.

LJIA0133E

2010 Pathfinder

VTL-12

< ON-VEHICLE REPAIR >

BLOWER MOTOR

BLOWER MOTOR

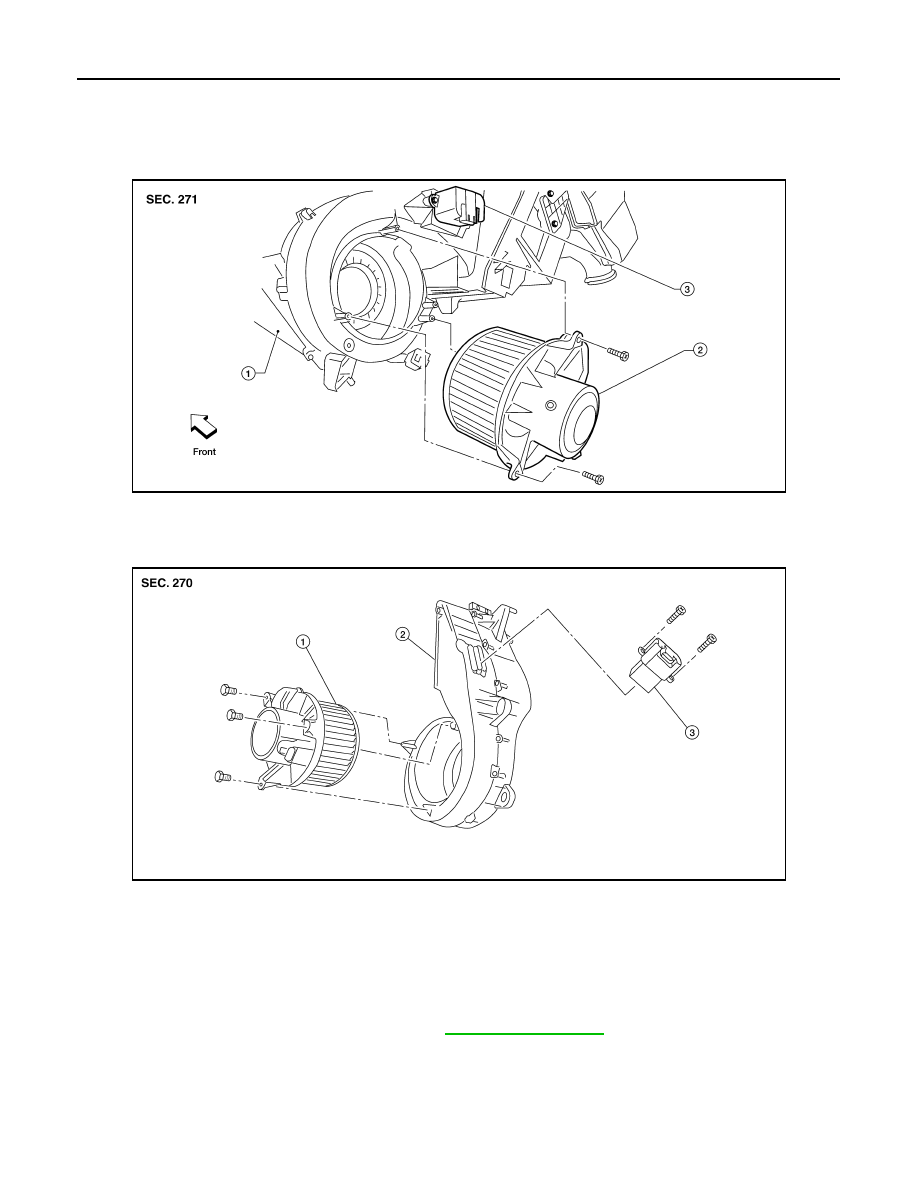

Component

INFOID:0000000005259227

Front Blower Motor

Rear Blower Motor

Removal and Installation

INFOID:0000000005259228

FRONT BLOWER MOTOR

Removal

1. Remove the lower glove box assembly. Refer to

IP-11, "Exploded View"

.

2. Disconnect the front blower motor electrical connector.
3. Remove the three screws and remove the front blower motor.

Installation

Installation is in the reverse order of removal.

LJIA0136E

1.

Front heater and cooling unit assembly

2.

Front blower motor

3.

Variable blower control (front)

AWIIA0646ZZ

1.

Rear blower motor

2.

Rear blower motor case

3.

Variable blower control (rear)

2010 Pathfinder

BLOWER MOTOR

VTL-13

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

REAR BLOWER MOTOR

Removal

1. Remove the rear heater and cooling unit assembly. Refer to

VTL-18, "Removal and Installation"

.

2. Disconnect the rear blower motor electrical connector.
3. Remove the three screws and remove the rear blower motor.

Installation

Installation is in the reverse order of removal.

2010 Pathfinder

VTL-14

< ON-VEHICLE REPAIR >

VARIABLE BLOWER CONTROL

VARIABLE BLOWER CONTROL

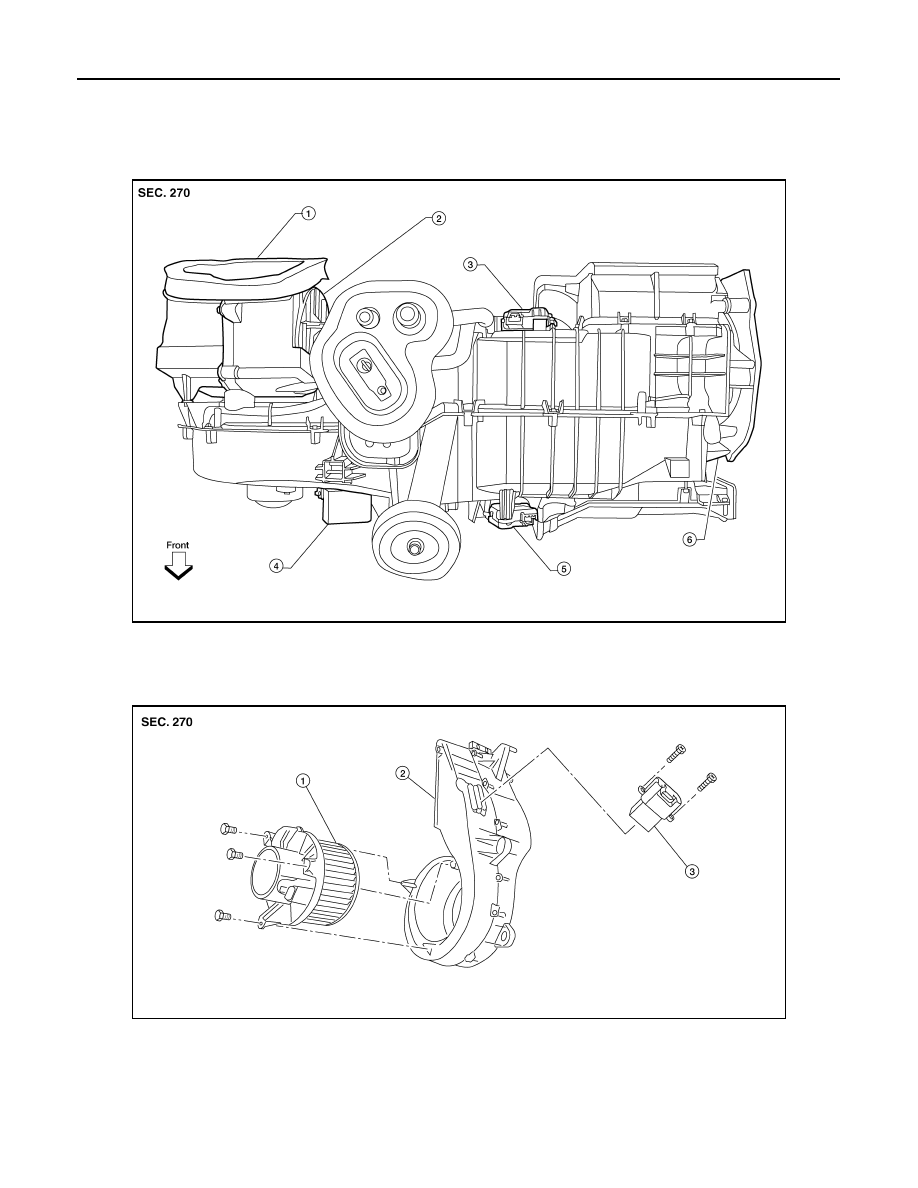

Component

INFOID:0000000005259229

Variable Blower Control (Front)

Variable Blower Control (Rear)

Removal and Installation

INFOID:0000000005259230

FRONT VARIABLE BLOWER CONTROL

LBIA0415E

1.

Front heater and cooling unit assembly

2.

Intake door motor

3.

Air mix door motor (passenger)

4.

Variable blower control (front)

5.

Air mix door motor (driver)

6.

Mode door motor

AWIIA0646ZZ

1.

Rear blower motor

2.

Rear blower motor case

3.

Variable blower control (rear)
