Nissan Pathfinder (2010 year). Manual - part 607





STR-10

< COMPONENT DIAGNOSIS >

B TERMINAL CIRCUIT

COMPONENT DIAGNOSIS

B TERMINAL CIRCUIT

Description

INFOID:0000000005260634

Terminal "2" (B) is constantly supplied with battery power.

Diagnosis Procedure

INFOID:0000000005260635

Regarding Wiring Diagram information, refer to

STR-15, "Wiring Diagram - VQ40DE"

 or

STR-19, "Wiring Dia-

gram - VK56DE"

.

CAUTION:

Perform diagnosis under the condition that the engine cannot start by the following procedure.

1. Remove fuel pump fuse.

2. Crank or start the engine (where possible) until the fuel pressure is depleted.

1.

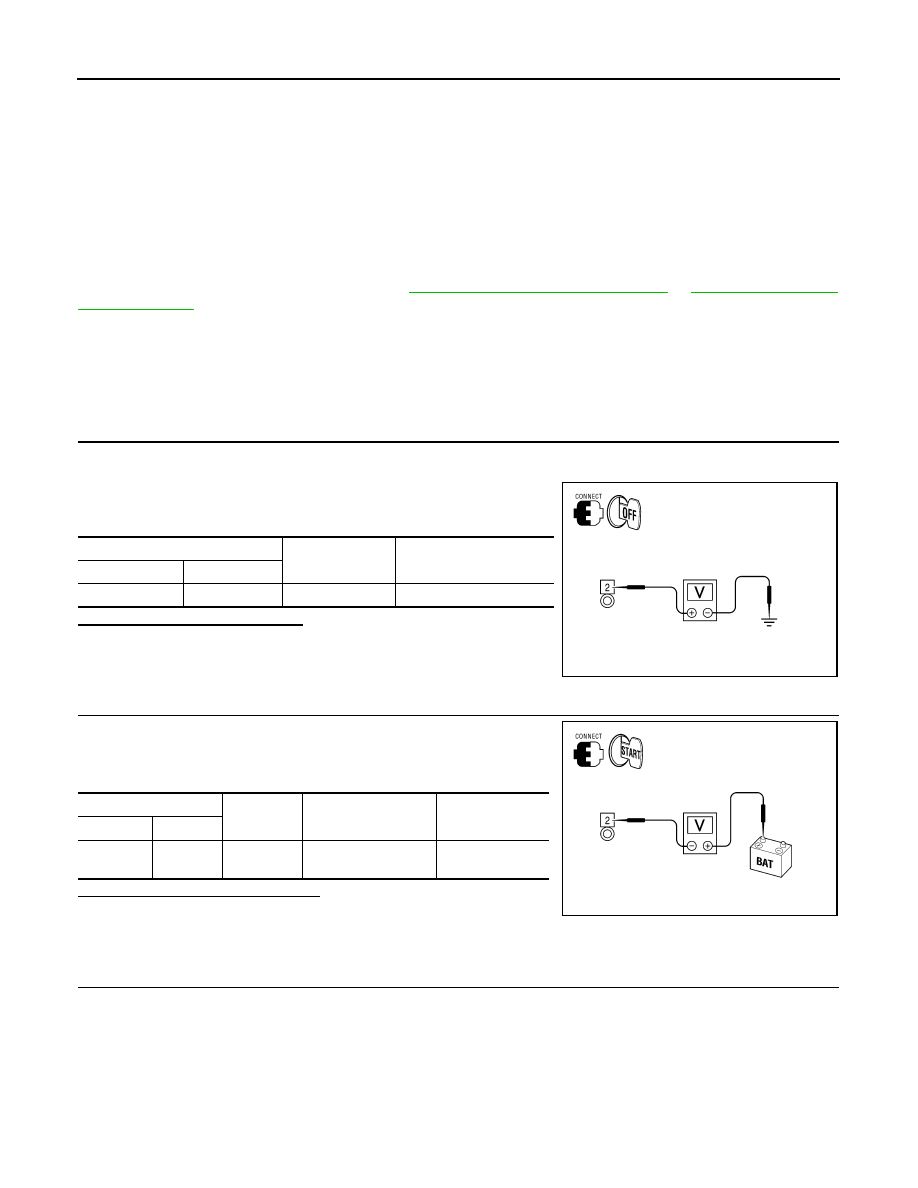

CHECK TERMINAL 2 POWER SUPPLY VOLTAGE

1. Turn ignition switch OFF.

2. Make sure that starter motor connector E210 terminal 2 connection is clean and tight.

3. Check voltage between starter motor connector E210 terminal 2

and ground.

Is there battery voltage present?

YES

>> GO TO 2

NO

>> Check harness between battery and starter motor for

open circuit.

2.

CHECK BATTERY CABLE (VOLTAGE DROP TEST)

1. Shift the transmission into park or neutral.

2. Check voltage between battery positive terminal and starter

motor connector E210 terminal 2 while cranking the engine.

Is the voltage drop less than 0.2V?

YES

>> GO TO 3

NO

>> Check harness between the battery and the starter

motor for high resistance.

3.

CHECK GROUND CIRCUIT STATUS (VOLTAGE DROP TEST)

(+)

(-)

Voltage

Connector

Terminal

E210

2

Ground

Battery voltage

AWBIA0122GB

(-)

(+)

Condition

Voltage

Connector

Terminal

E210

2

Battery (+)

terminal

While cranking the

engine

Less than 0.2V

AWBIA0123GB

2010 Pathfinder

B TERMINAL CIRCUIT

STR-11

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

Check voltage between starter motor case and battery negative ter-

minal while cranking the engine.

Is the voltage drop less than 0.2V?

YES

>> Terminal 2 circuit is OK. Further inspection necessary.

Refer to

STR-5, "Work Flow"

.

NO

>> Check the starter motor case to engine mounting for

high resistance.

(+)

(-)

Condition

Voltage

Starter motor

case

Battery (-) terminal

While cranking the

engine

Less than 0.2V

AWBIA0124GB

2010 Pathfinder

STR-12

< COMPONENT DIAGNOSIS >

S CONNECTOR CIRCUIT

S CONNECTOR CIRCUIT

Description

INFOID:0000000005260636

Terminal "1" (S) is the power supply for the starter motor magnetic switch. Terminal 1 is supplied with power

when the ignition switch is turned to the START position while the selector lever is in the P or N position.

Diagnosis Procedure - VQ40DE

INFOID:0000000005260637

Regarding Wiring Diagram information, refer to

STR-15, "Wiring Diagram - VQ40DE"

.

CAUTION:

Perform diagnosis under the condition that engine cannot start by the following procedure.

1. Remove fuel pump fuse.

2. Crank or start the engine (where possible) until the fuel pressure is released.

1.

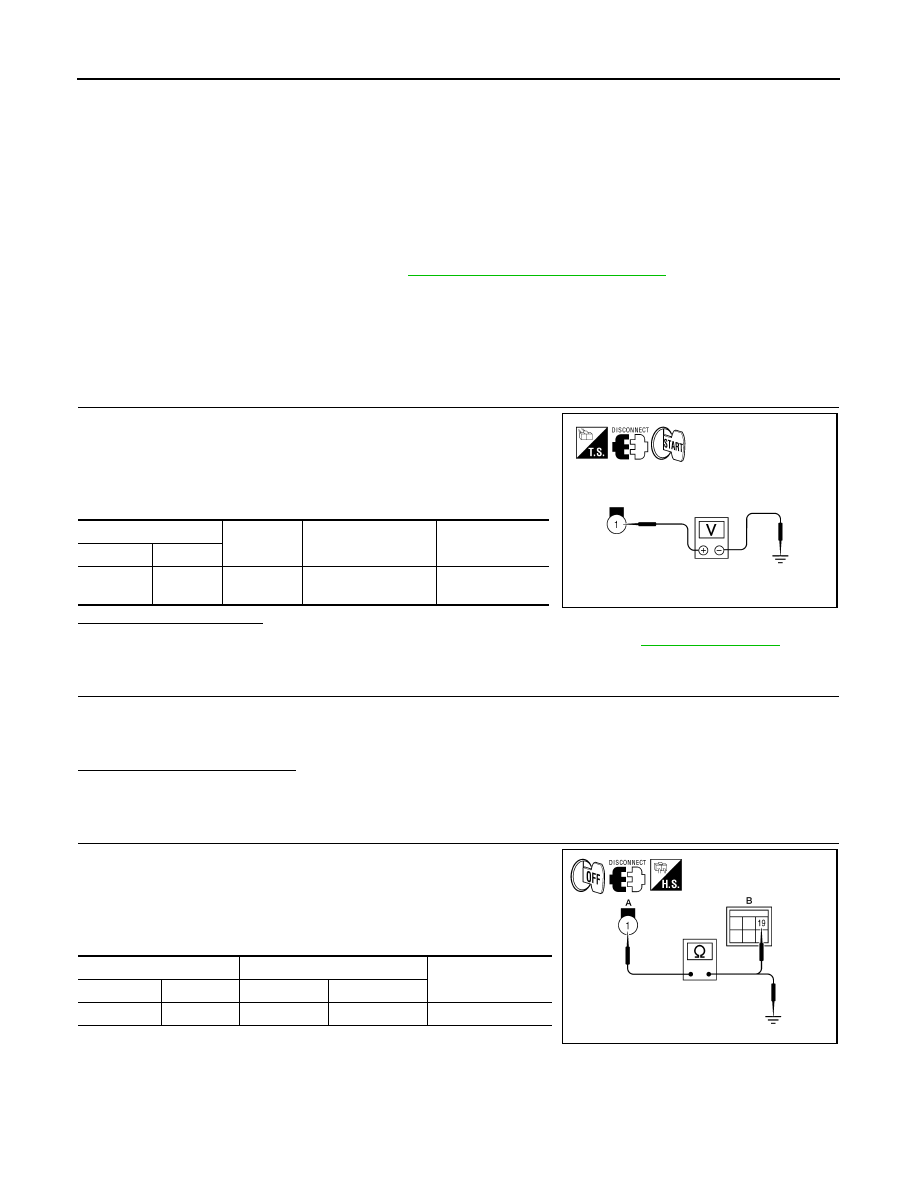

CHECK STARTER MOTOR MAGNETIC SWITCH CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect starter motor connector E207.

3. Shift transmission into park or neutral.

4. Check voltage between starter motor harness connector E207

terminal 1 and ground with the ignition in START.

Is battery voltage present?

YES

>> Magnetic switch circuit is OK. Further inspection necessary. Refer to

STR-5, "Work Flow"

.

NO

>> GO TO 2

2.

CHECK CONNECTOR

1. Turn ignition switch OFF.

2. Check the IPDM E/R harness connector E120 and starter motor harness connector E207 for damage,

bent pins and loose connections.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair the terminal and connector.

3.

CHECK HARNESS CONTINUITY (OPEN CIRCUIT)

1. Disconnect IPDM E/R connector E120 and starter motor con-

nector E207.

2. Check continuity between starter motor harness connector E207

(A) terminal 1 and IPDM E/R harness connector E120 (B) termi-

nal 19.

3. Check continuity between starter motor harness connector E207

(A) terminal 1 and ground.

(+)

(-)

Condition

Voltage

Connector

Terminal

E207

1

Ground

While cranking the

engine

Battery voltage

AWBIA0343ZZ

A

B

Continuity

Connector

Terminal

Connector

Terminal

E207

1

E120

19

Yes

AWBIA0344ZZ

2010 Pathfinder

S CONNECTOR CIRCUIT

STR-13

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

Are the continuity test results as specified?

YES

>> Further inspection necessary. Refer to

STR-5, "Work Flow"

.

NO

>> Repair the harness.

Diagnosis Procedure - VK56DE

INFOID:0000000005260638

Regarding Wiring Diagram information, refer to

STR-19, "Wiring Diagram - VK56DE"

.

CAUTION:

Perform diagnosis under the condition that engine cannot start by the following procedure.

1. Remove fuel pump fuse.

2. Crank or start the engine (where possible) until the fuel pressure is released.

1.

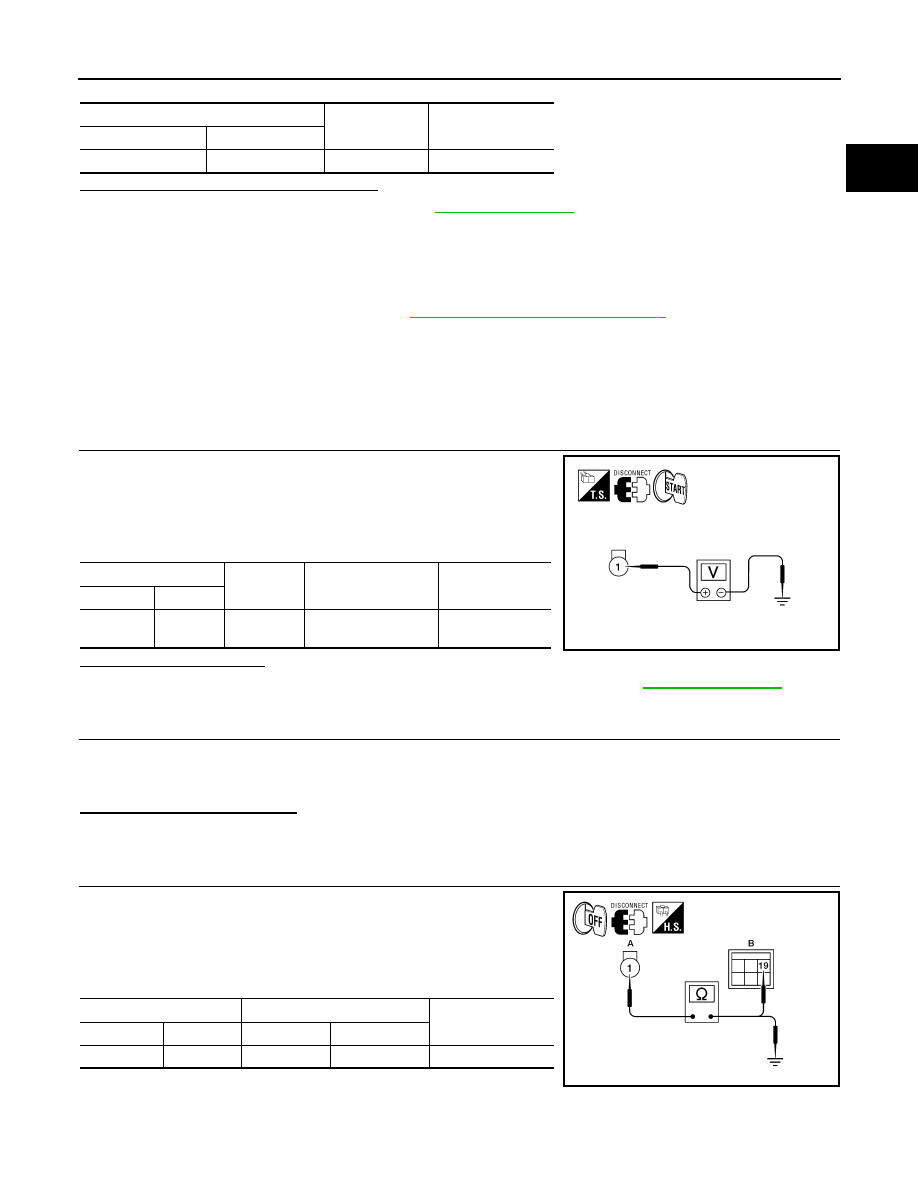

CHECK STARTER MOTOR MAGNETIC SWITCH CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect starter motor connector F17.

3. Shift transmission into park or neutral.

4. Check voltage between starter motor harness connector F17

terminal 1 and ground with the ignition in START.

Is battery voltage present?

YES

>> Magnetic switch circuit is OK. Further inspection necessary. Refer to

STR-5, "Work Flow"

.

NO

>> GO TO 2

2.

CHECK CONNECTOR

1. Turn ignition switch OFF.

2. Check the IPDM E/R harness connector E120 and starter motor harness connector F17 for damage, bent

pins and loose connections.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair the terminal and connector.

3.

CHECK HARNESS CONTINUITY (OPEN CIRCUIT)

1. Disconnect IPDM E/R connector E120 and starter motor con-

nector F17.

2. Check continuity between starter motor harness connector F17

(A) terminal 1 and IPDM E/R harness connector E120 (B) termi-

nal 19.

3. Check continuity between starter motor harness connector F17

(A) terminal 1 and ground.

A

Continuity

Connector

Terminal

E207

1

Ground

No

(+)

(-)

Condition

Voltage

Connector

Terminal

F17

1

Ground

While cranking the

engine

Battery voltage

AWBIA0125GB

A

B

Continuity

Connector

Terminal

Connector

Terminal

F17

1

E120

19

Yes

AWBIA0126GB

2010 Pathfinder

STR-14

< COMPONENT DIAGNOSIS >

S CONNECTOR CIRCUIT

Are the continuity test results as specified?

YES

>> Further inspection necessary. Refer to

STR-5, "Work Flow"

.

NO

>> Repair the harness.

A

Continuity

Connector

Terminal

F17

1

Ground

No

2010 Pathfinder

STARTING SYSTEM

STR-15

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

STARTING SYSTEM

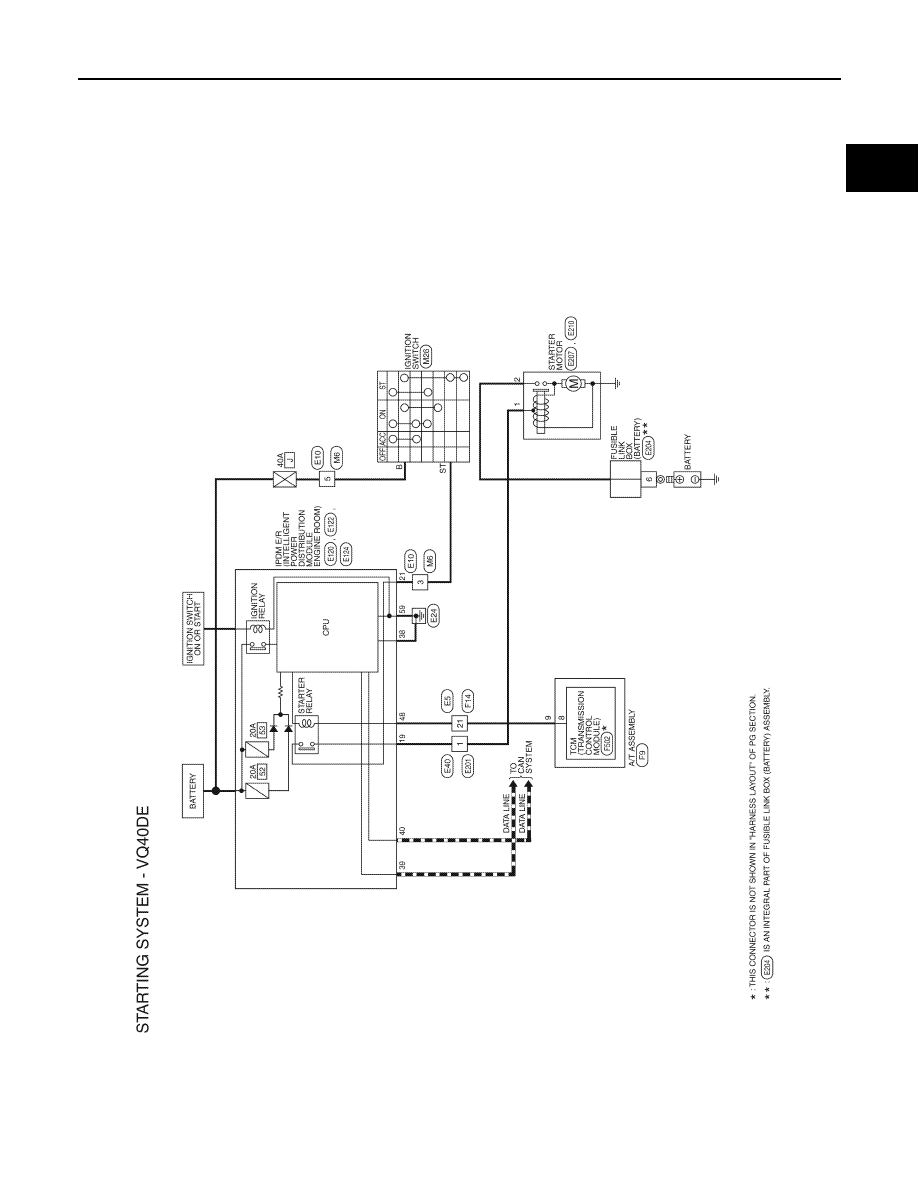

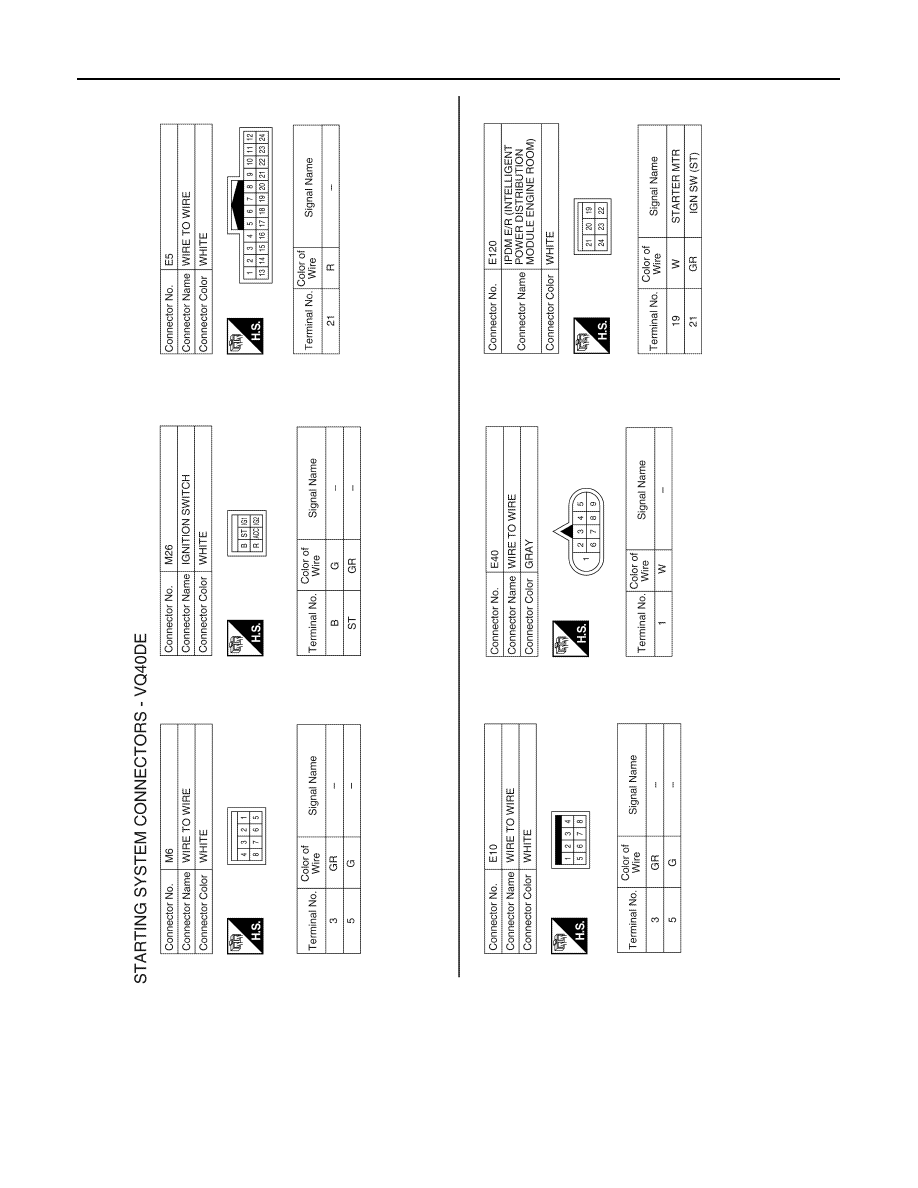

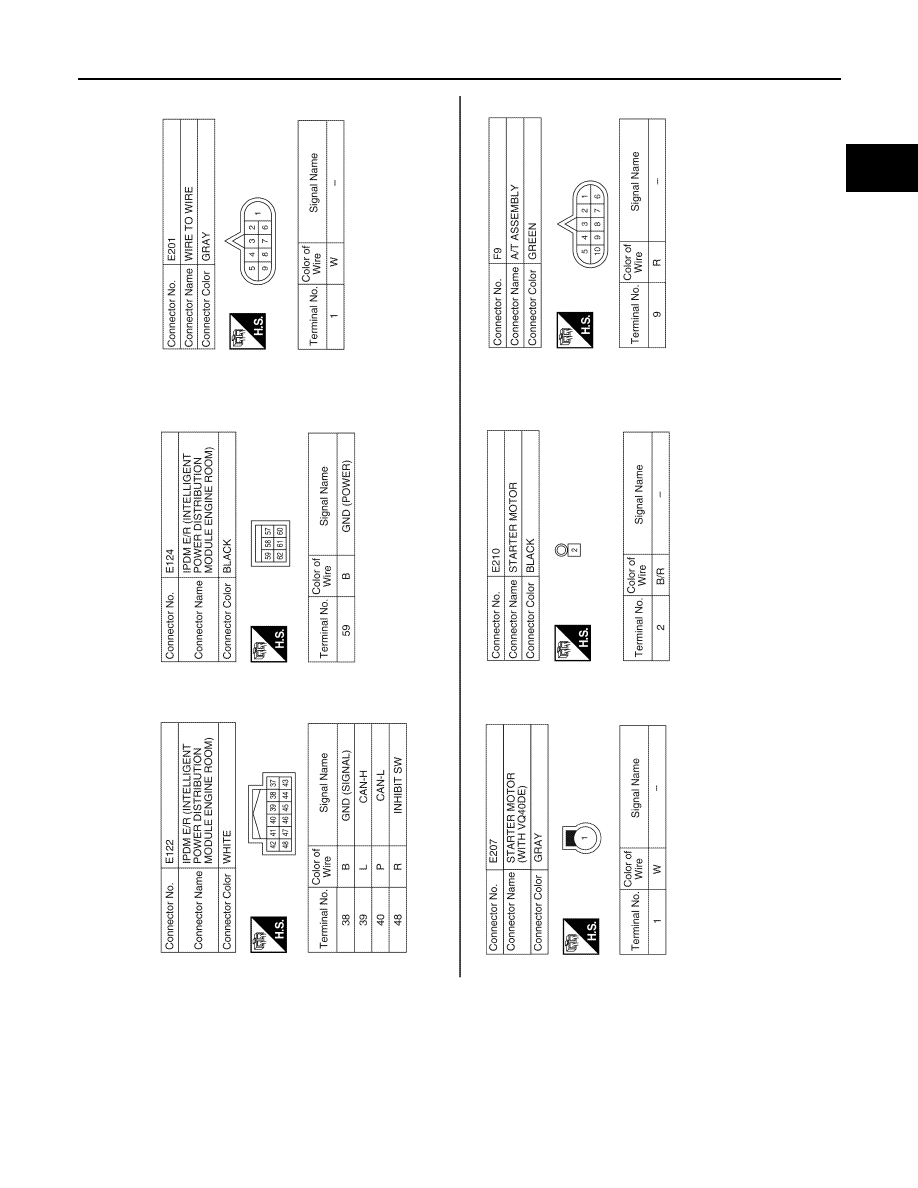

Wiring Diagram - VQ40DE

INFOID:0000000005260639

ABBWA0186GB

2010 Pathfinder

STR-16

< COMPONENT DIAGNOSIS >

STARTING SYSTEM

ABBIA0398GB

2010 Pathfinder

STARTING SYSTEM

STR-17

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

ABBIA0394GB
