Nissan Pathfinder (2010 year). Manual - part 602

ST-6

< PREPARATION >

PREPARATION

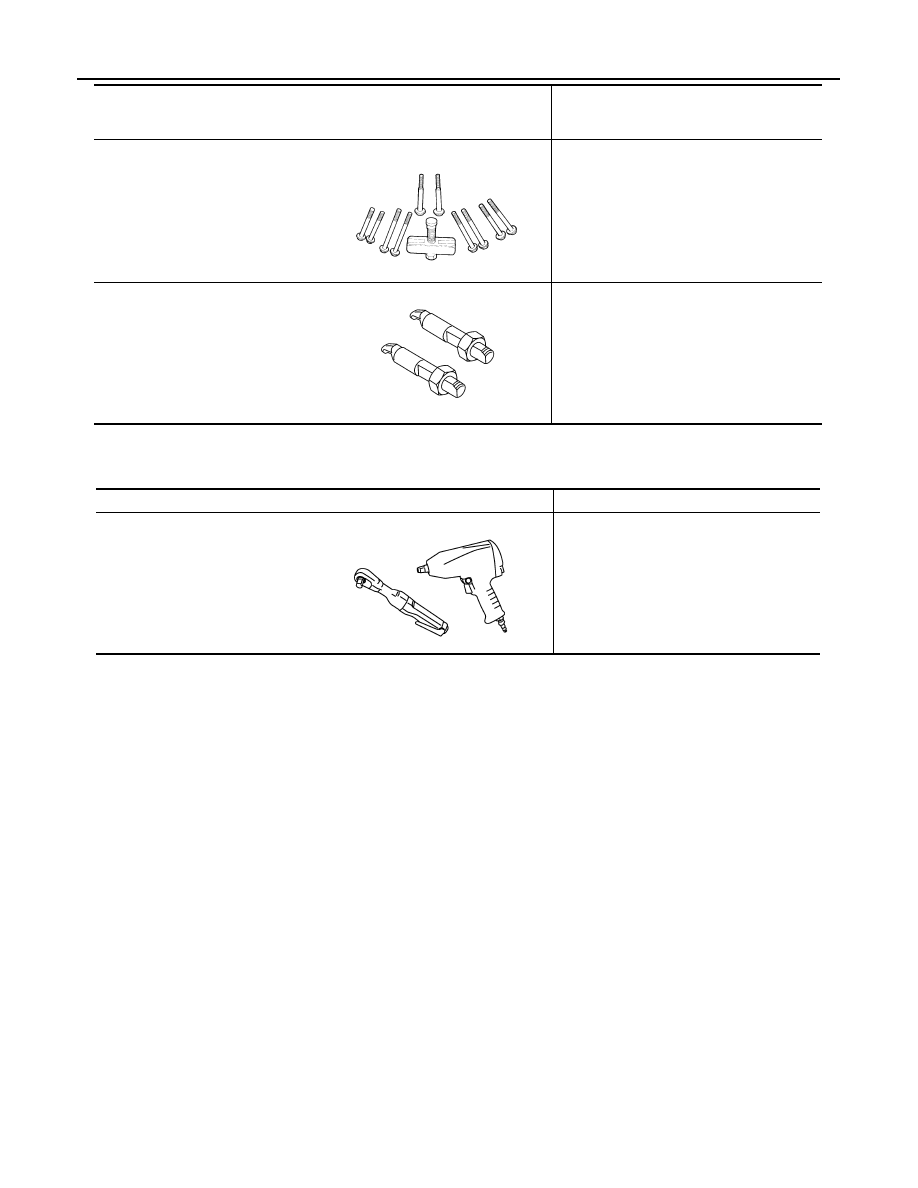

Commercial Service Tool

INFOID:0000000005260159

KV481J0010
(J-1859A)
Steering wheel puller

Removing steering wheel

KV481J0020
(J-42578)
Steering wheel puller legs

Removing steering wheel

Tool number
(Kent-Moore No.)
Tool name

Description

LHIA0043E

LHIA0044E

Tool name

Description

Power tool

Removing nuts and bolts

PBIC0190E

2010 Pathfinder

HEATED STEERING WHEEL

ST-7

< FUNCTION DIAGNOSIS >

FUNCTION DIAGNOSIS

HEATED STEERING WHEEL

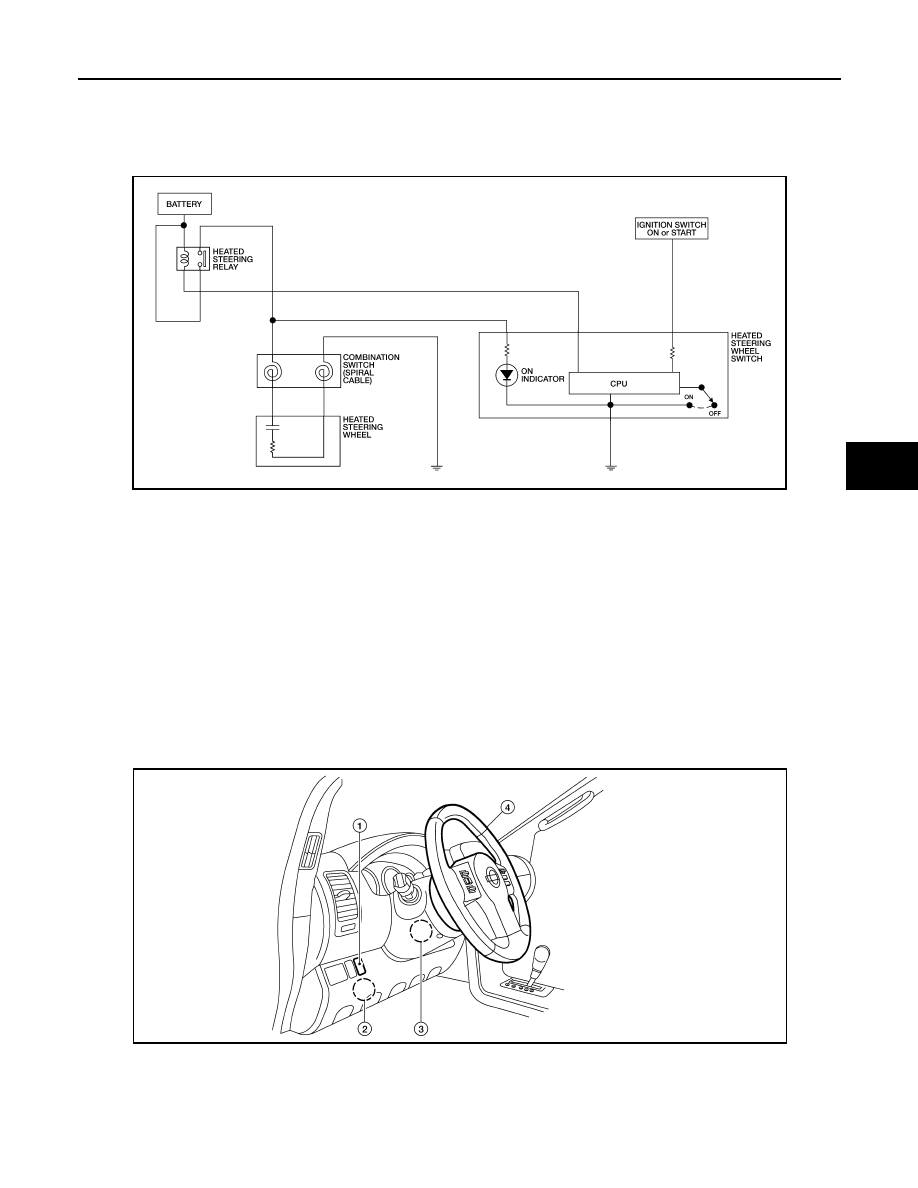

System Diagram

INFOID:0000000005260160

System Description

INFOID:0000000005260161

The heated steering wheel switch controls the heated steering relay. When the switch is turned on, the relay is

energized and the heated steering system will operate. The heated steering system will turn off when the

steering wheel temperature reaches approximately 86

F (30

C). Heated steering system operation can also

be canceled by pressing the heated steering wheel switch again.

NOTE:

If the surface temperature of the steering wheel is below 68

F (20

C), the system will heat the steering wheel

and cycle off and on to maintain a temperature above 68

F (20

C). The indicator light will remain on as long

as the system is on. Push the switch again to turn the heated steering wheel system off manually. The indica-

tor light will go off.

Component Parts Location

INFOID:0000000005260162

AWGIA0022GB

Heated steering wheel switch M7

Heated steering relay M2

Combination switch (spiral cable) M5

Heated steering wheel M114

ALGIA0025ZZ

2010 Pathfinder

ST-8

< FUNCTION DIAGNOSIS >

HEATED STEERING WHEEL

Component Description

INFOID:0000000005260163

Heated steering wheel switch

• Controls the heated steering relay and operates the heated steering system.
• Turns the indicator lamp ON when the system is activated.

Heated steering relay

• Operates the heated steering system with the control signal from the heated steering

wheel switch.

Heated steering wheel

• Heats the heating element with the power supplied from the heated steering relay.

2010 Pathfinder

HEATED STEERING WHEEL

ST-9

< COMPONENT DIAGNOSIS >

COMPONENT DIAGNOSIS

HEATED STEERING WHEEL

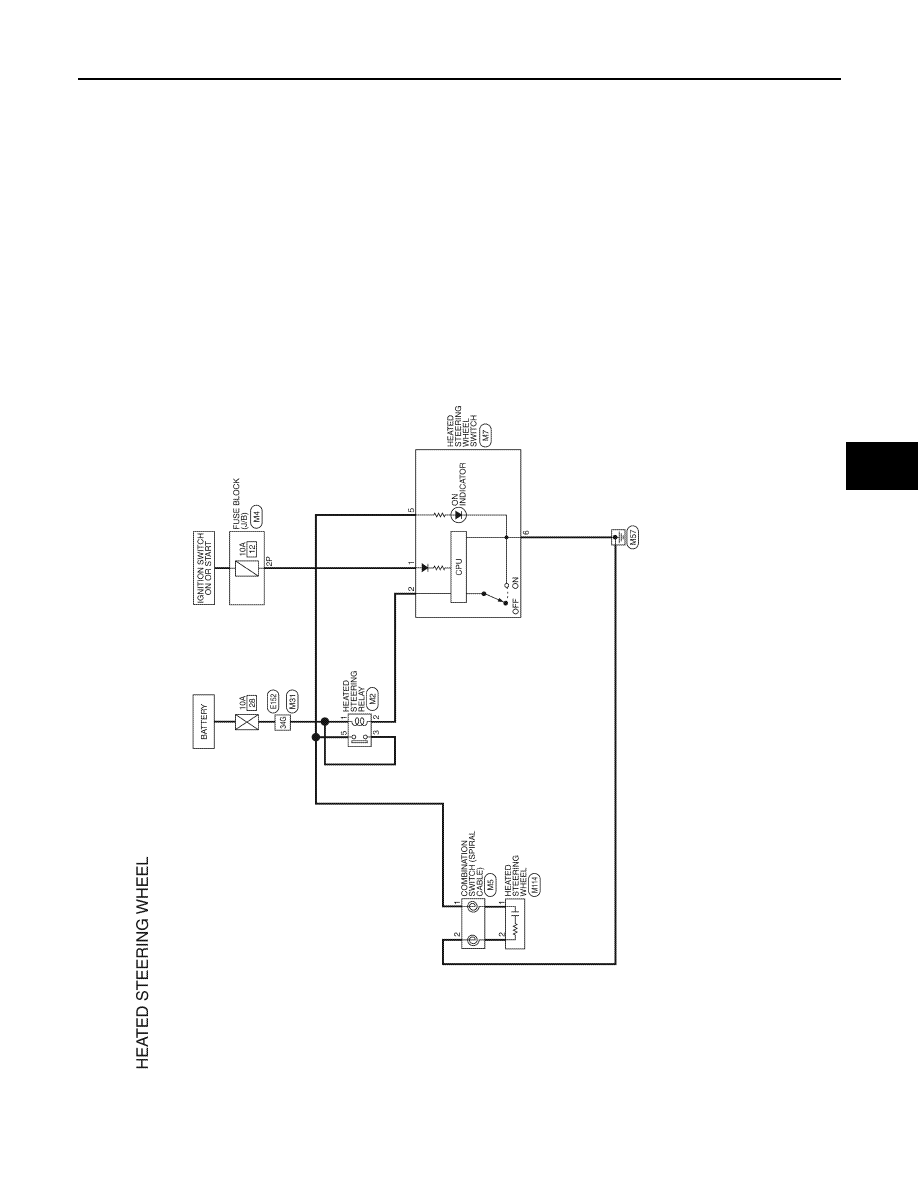

Wiring Diagram

INFOID:0000000005260164

ABGWA0012GB

2010 Pathfinder

ST-10

< COMPONENT DIAGNOSIS >

HEATED STEERING WHEEL

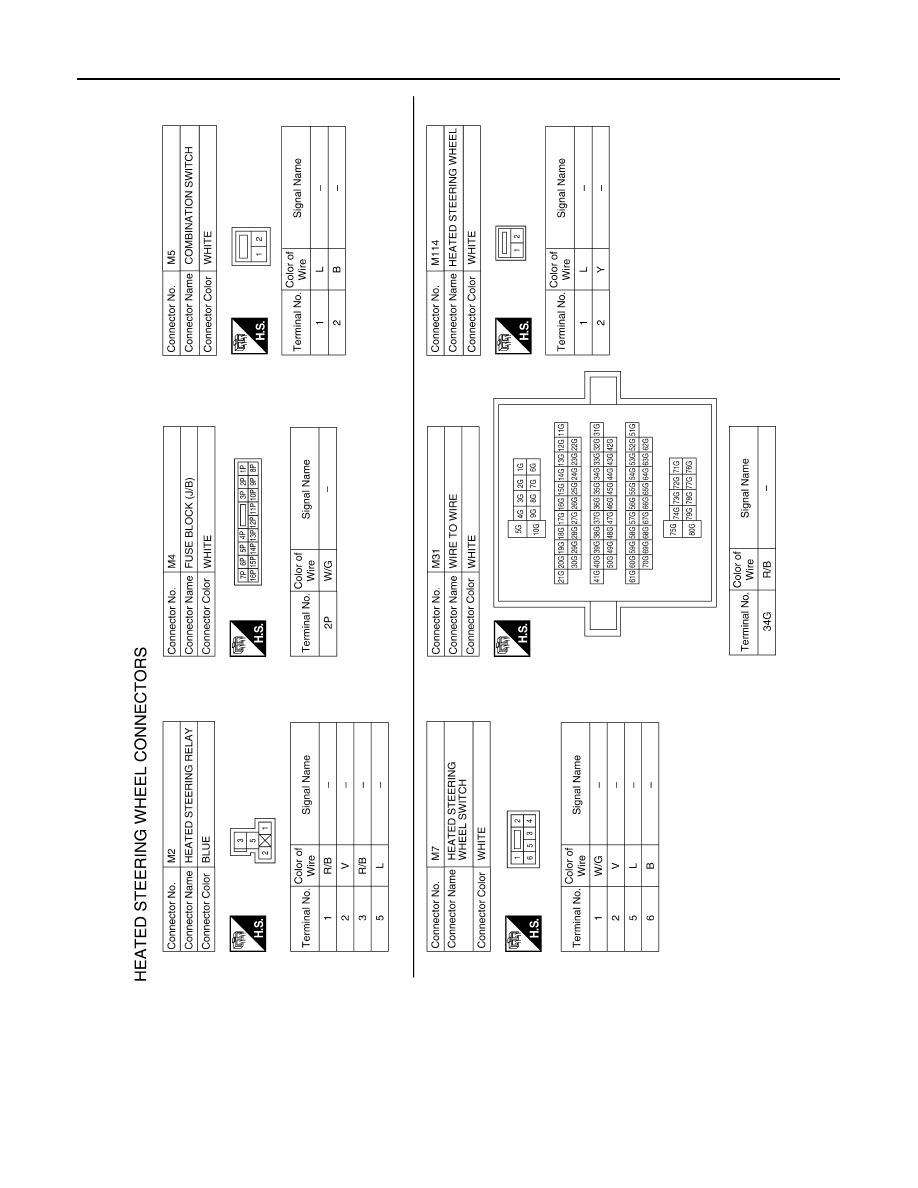

ABGIA0008GB

2010 Pathfinder

HEATED STEERING WHEEL

ST-11

< COMPONENT DIAGNOSIS >

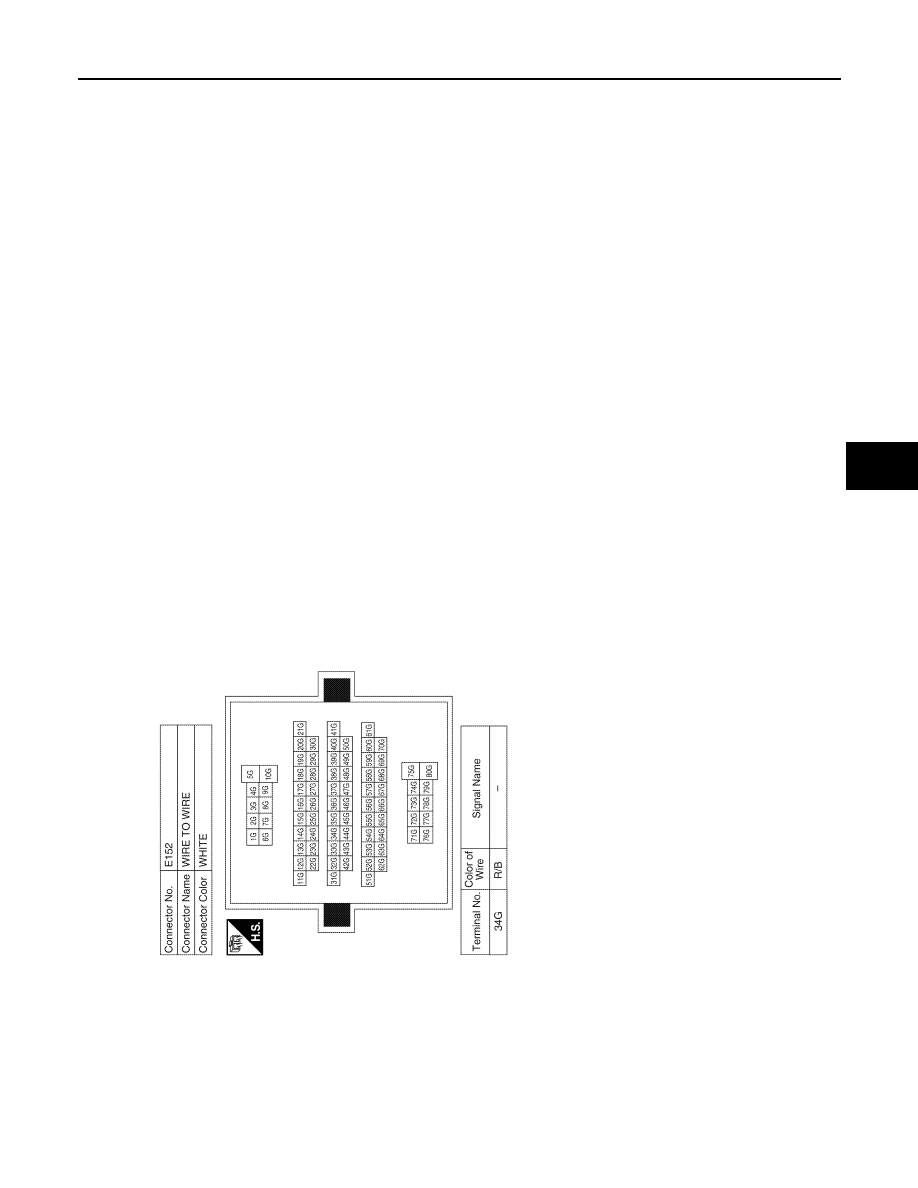

ABGIA0030GB

2010 Pathfinder

ST-12

< SYMPTOM DIAGNOSIS >

NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING

SYMPTOM DIAGNOSIS

NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000005260165

Use chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

: Applicable

Reference page

(VQ40D

(VK

56DE)

(2F1

0),

(2S1

0),

(2S1

(R18

0A),

Possible cause and suspected parts

lui

d l

Air i

dra

lic

ter so

cket

ll joi

nt swi

ing

rce

ter so

cket

ll joi

nt rot

ting torq

ter so

ll joi

nt en

tee

rin

g f

lui

lea

ring

whe

l pl

ring

ar rac

k sl

g f

rce

Dri

loo

sene

rop

er s

erin

whee

rop

er i

tal

tio

n o

r lo

s of

til

t lo

ing

er d

ete

rio

rat

ion

tee

rin

g c

form

ion

r da

rop

er i

tal

tio

n o

r lo

s of

ring

olu

eri

e l

PROPE

LLE

R SHAFT

ONT FINAL

DRIVE

L H

SUS

PENSION

ROAD W

EEL

DRIV

E SHAFT

BRA

KES

Symptom

Noise

× × × × × × × ×

× × × × × ×

Shake

× × ×

× × × × × ×

Vibration

× × × × ×

× × ×

Shimmy

× × ×

× × × ×

Shudder

× × × ×

2010 Pathfinder

POWER STEERING FLUID

ST-13

< ON-VEHICLE MAINTENANCE >

ON-VEHICLE MAINTENANCE

POWER STEERING FLUID

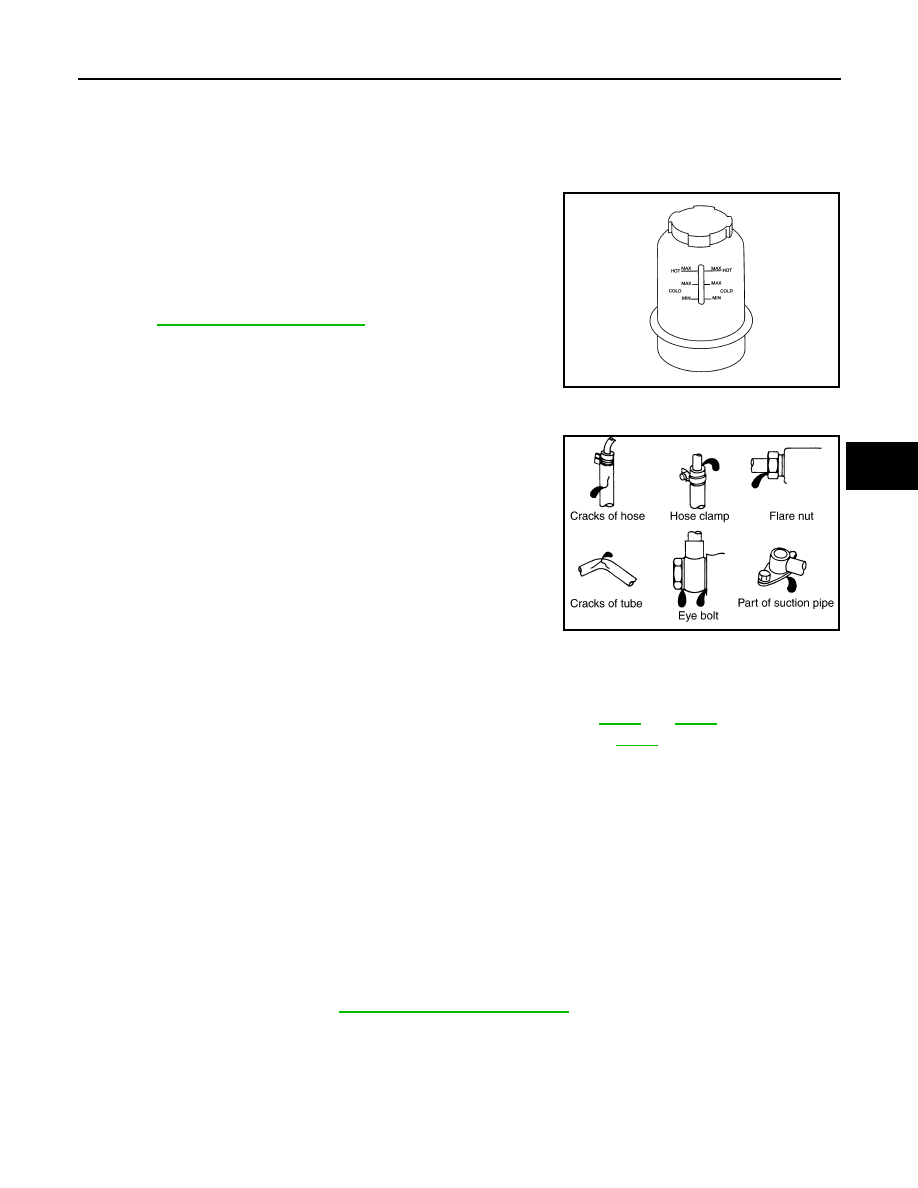

Checking Fluid Level

INFOID:0000000005260166

Check fluid level, referring to the scale on the reservoir tank.

Use HOT range for fluid temperatures of 50

– 80

C (122

– 176

F).

Use COLD range for fluid temperatures of 0

– 30

C (32

– 86

F).

CAUTION:

• Do not overfill.

• Do not reuse any power steering fluid.

• Recommended fluid is Genuine NISSAN PSF or equivalent.

Refer to

MA-16, "For North America"

Checking Fluid Leakage

INFOID:0000000005260167

Check the hydraulic piping lines for improper attachment, leaks,

cracks, damage, loose connections, chafing and deterioration.
1. Run the engine until the fluid temperature reaches 50

– 80

(122

– 176

F) in the reservoir tank. Keep engine speed idle.

CAUTION:

Do not allow steering fluid reservoir tank to go below the

MIN level line. Check tank frequently and add fluid as

needed.

2. Turn the steering wheel to the right and left several times.
3. Hold the steering wheel at each “locked” position for five sec-

onds to check for fluid leakage.

CAUTION:

Do not hold steering wheel in the locked position for more than 10 seconds. (There is the possibil-

ity that the oil pump may be damaged.)

4. If fluid leakage at a connection is noticed, loosen the connection and then retighten. Do not over-tighten

connector as this can damage O-ring, washer and connector. Refer to

ST-17

and

ST-26

5. If fluid leakage from the oil pump is noticed, check the oil pump. Refer to

ST-17

6. Check steering gear boots for accumulation of fluid, indicating a leak from the steering gear.

CAUTION:

Do not reuse copper washers.

Air Bleeding Hydraulic System

INFOID:0000000005260168

Incomplete air bleeding causes the following:

• Air bubbles in reservoir tank

• Clicking noise in oil pump

• Excessive buzzing in oil pump

When this happens bleed the air again.

NOTE:

When the vehicle is stationary or while the steering wheel is being turned slowly, some noise may be heard

from the oil pump or gear. This noise is normal and does not affect any system.
1. Check for fluid leakage. Refer to

ST-13, "Checking Fluid Leakage"

2. Start the engine and turn the steering wheel fully to the right and left several times.

CAUTION:

Do not allow steering fluid reservoir tank to go below the MIN level line. Check tank frequently and

add fluid as needed.

3. Run the engine at idle speed. Hold the steering wheel at each "locked" position for three seconds.

CAUTION:

LGIA0021E

SGIA0506E

2010 Pathfinder
