SB-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000005519025

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution for Seat Belt Service

INFOID:0000000005259697

CAUTION:

• Before removing the seat belt pre-tensioner assembly, turn the ignition switch OFF, disconnect both

battery cables and wait at least 3 minutes.

• After replacing or reinstalling seat belt pre-tensioner assembly, or reconnecting seat belt pre-ten-

sioner assembly connector, ensure entire SRS operates properly. Refer to

SRC-13, "SRS Operation

Check"

.

• Do not disassemble buckle or seat belt assembly.

• Do not reuse seat belt anchor bolts after removal. Replace with new ones.

• Replace anchor bolts if they are deformed or worn out.

• Never oil tongue and buckle.

• If any component of seat belt assembly is questionable, do not repair. Replace the whole seat belt

assembly.

• If webbing is cut, frayed, or damaged, replace seat belt assembly.

• When replacing seat belt assembly, use a genuine NISSAN seat belt assembly.

AFTER A COLLISION

WARNING:

• Inspect all seat belt assemblies including retractors and attaching hardware after any collision.

• NISSAN recommends that all seat belt assemblies in use during a collision be replaced unless the

collision was minor and the belts show no damage and continue to operate properly. Failure to do so

could result in serious personal injury in an accident. Seat belt assemblies not in use during a colli-

sion should also be replaced if either damage or improper operation is noted. Seat belt pre-tensioner

should be replaced even if the seat belts are not in use during a frontal collision in which the air bags

are deployed.

Replace any seat belt assembly (including anchor bolts) if:

2010 Pathfinder

PRECAUTIONS

SB-3

< PRECAUTION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

• The seat belt was in use at the time of a collision (except for minor collisions and the belts, retractors and

buckles show no damage and continue to operate properly).

• The seat belt was damaged in an accident. (i.e., torn webbing, bent retractor or guide, etc.)

• The seat belt attaching point was damaged in an accident. Inspect the seat belt attaching area for damage

or distortion and repair as necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.

• The seat belt pre-tensioner should be replaced even if the seat belts are not in use during the collision in

which the air bags are deployed.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000005259698

NOTE:

• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

LOCK

 position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-

anism is adopted on the key cylinder.

For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and

steering wheel rotation will become impossible.

If steering wheel rotation is required when battery power is interrupted, follow the procedure below before

starting the repair operation.

OPERATION PROCEDURE

1. Connect both battery cables.

NOTE:

Supply power using jumper cables if battery is discharged.

2. Use the Intelligent Key or mechanical key to turn the ignition switch to the

ACC

 position. At this time, the

steering lock will be released.

3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be

rotated.

4. Perform the necessary repair operation.
5. When the repair work is completed, return the ignition switch to the

LOCK

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT-III.

2010 Pathfinder

SB-4

< ON-VEHICLE REPAIR >

SEAT BELTS

ON-VEHICLE REPAIR

SEAT BELTS

Removal and Installation of Front Seat Belt

INFOID:0000000005259699

REMOVAL OF SEAT BELT RETRACTOR

CAUTION:

• Before servicing SRS, turn the ignition switch off, disconnect both battery terminals and wait at least

three minutes.

1. Disconnect the negative and positive battery terminals, then wait at least three minutes.
2. Remove the center pillar upper/lower finishers. Refer to

INT-17, "Removal and Installation"

.

3. Remove the retractor anchor bolt, retractor bolt upper, then remove the retractor and belt assembly.

• On RH side, disconnect the seat belt tension sensor.

4. Disconnect the seat belt pre-tensioner electrical connector.

CAUTION:

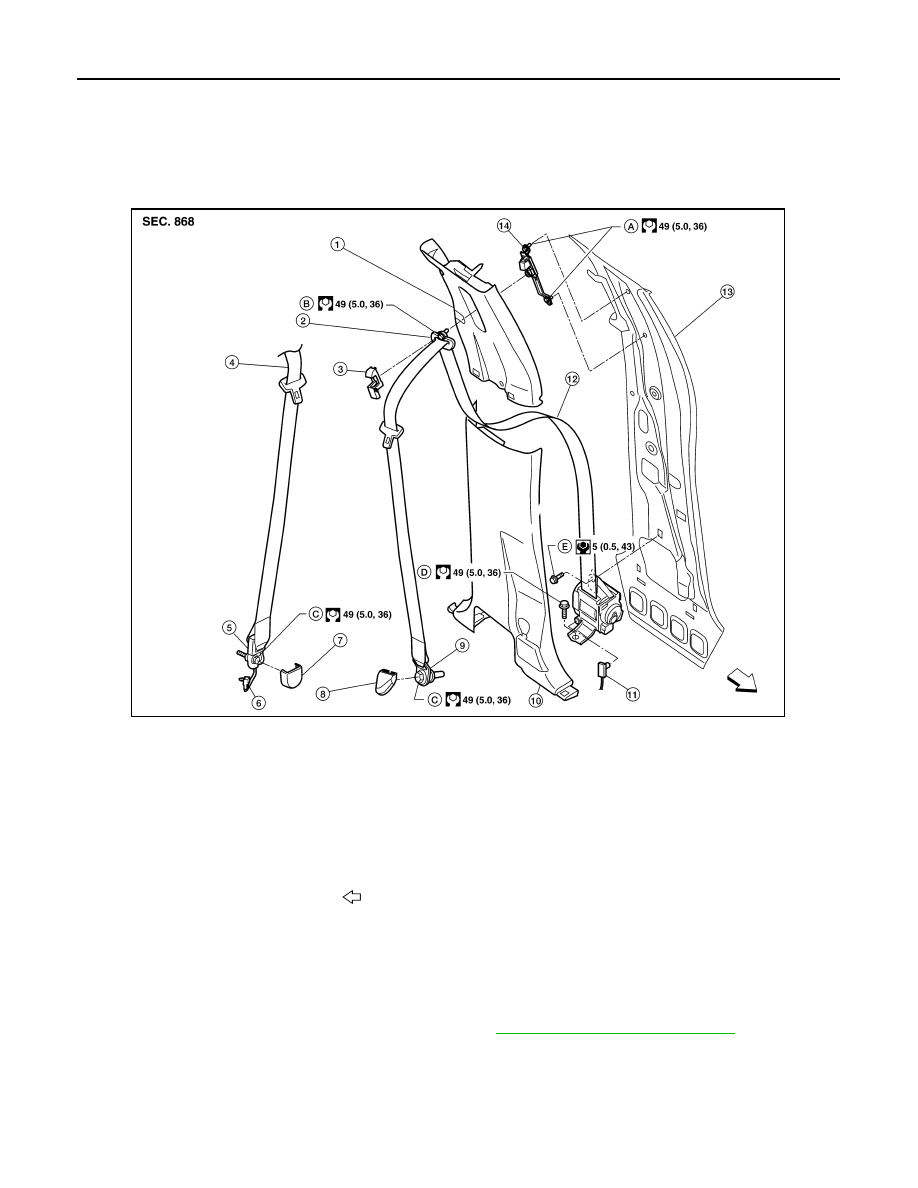

1.

Center pillar upper finisher

2.

 D-ring anchor

3.

 D-ring anchor bolt cover

4.

Seat belt retractor and belt assembly
RH

5.

Seat belt lower anchor RH
(seat belt tension sensor)

6.

Seat belt tension sensor connector

7.

Anchor cover RH

8.

Anchor cover LH

9.

Seat belt lower anchor LH

10. Center pillar lower finisher

11. Seat belt pre-tensioner

connector

12. Seat belt retractor and belt assembly LH

13. Center pillar

14. Seat belt height adjuster

A.

Height adjuster anchor bolt

B.

D-ring anchor bolt

C.

Seat belt lower anchor bolt  D.

Retractor anchor bolt

E.

Retractor bolt upper

Vehicle front

WHIA0344E

2010 Pathfinder

SEAT BELTS

SB-5

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

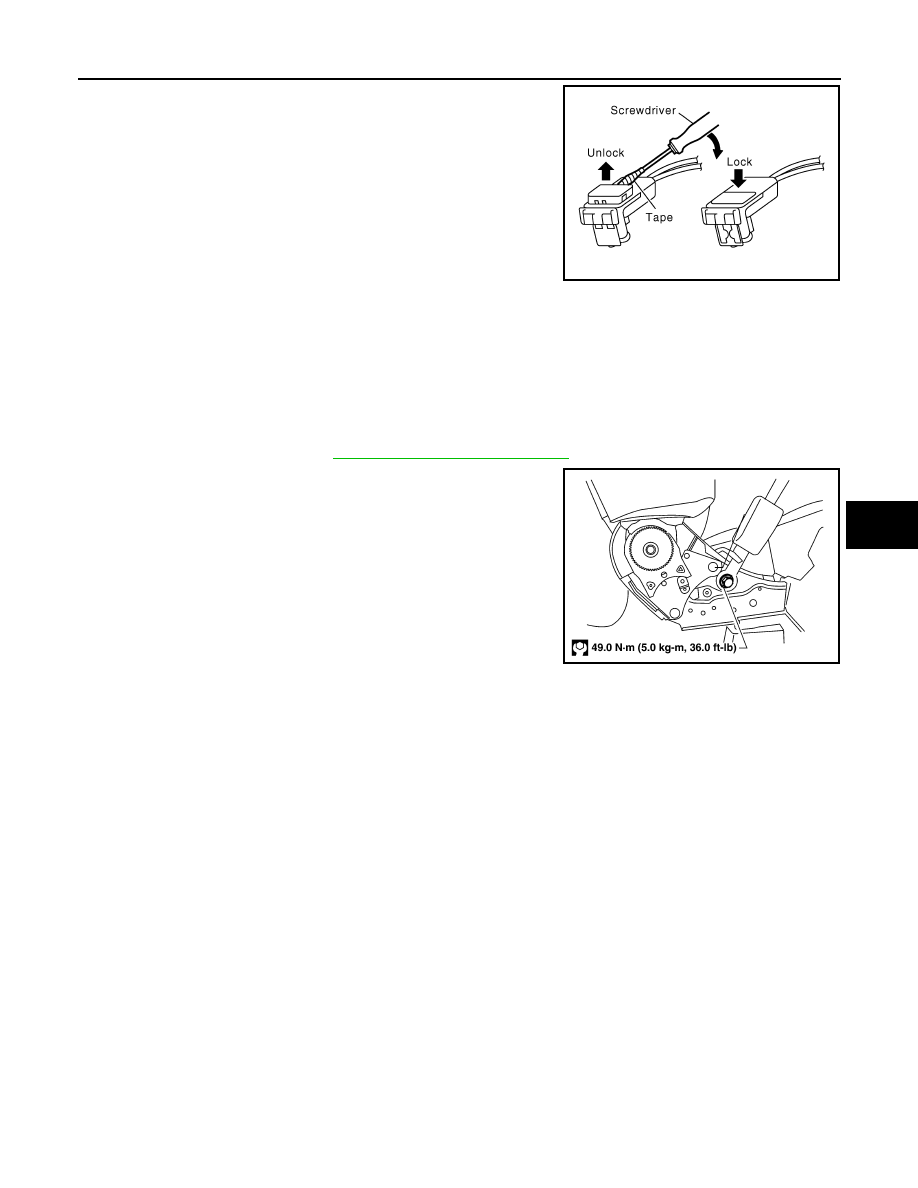

• For installing/removing seat belt pre-tensioner connector,

insert a thin screwdriver wrapped in tape into the notch, lift

the lock and remove the connector.

• Install the connector with the lock raised, and push the lock

into the connector.

INSTALLATION OF SEAT BELT RETRACTOR

CAUTION:

Hold belt tension sensor harness away from being caught or twisted during installation.

 Installation is in the reverse order of removal.

• Install the seat belt retractor upper bolt first.

• Ensure that seat belt height adjuster is locked in the lowest position during installation.

REMOVAL OF SEAT BELT BUCKLE

1. Remove the front seat. Refer to

SE-30, "Removal and Installation"

.

2. Remove screw and seat cushion inner finisher.
3. Remove the anchor bolt and buckle.
4. Disconnect the buckle switch connector from the seat connector.

INSTALLATION OF SEAT BELT BUCKLE

 Installation is in the reverse order of removal.

PHIA0341E

WHIA0128E

2010 Pathfinder

SB-6

< ON-VEHICLE REPAIR >

SEAT BELTS

Removal and Installation of Rear Seat Belt

INFOID:0000000005259700

Second Row

REMOVAL OF SEAT BELT RETRACTOR - OUTBOARD

1. Remove seat belt lower anchor cover and bolt.
2. Remove the D-ring anchor bolt cover and D-ring anchor bolt.
3. Remove the upper and lower luggage area trim. Refer to

INT-17, "Removal and Installation"

.

4. Remove seat belt retractor anchor bolt and the seat belt assembly.
5. Remove the seat belt height adjuster assembly.

INSTALLATION OF SEAT BELT RETRACTOR - OUTBOARD

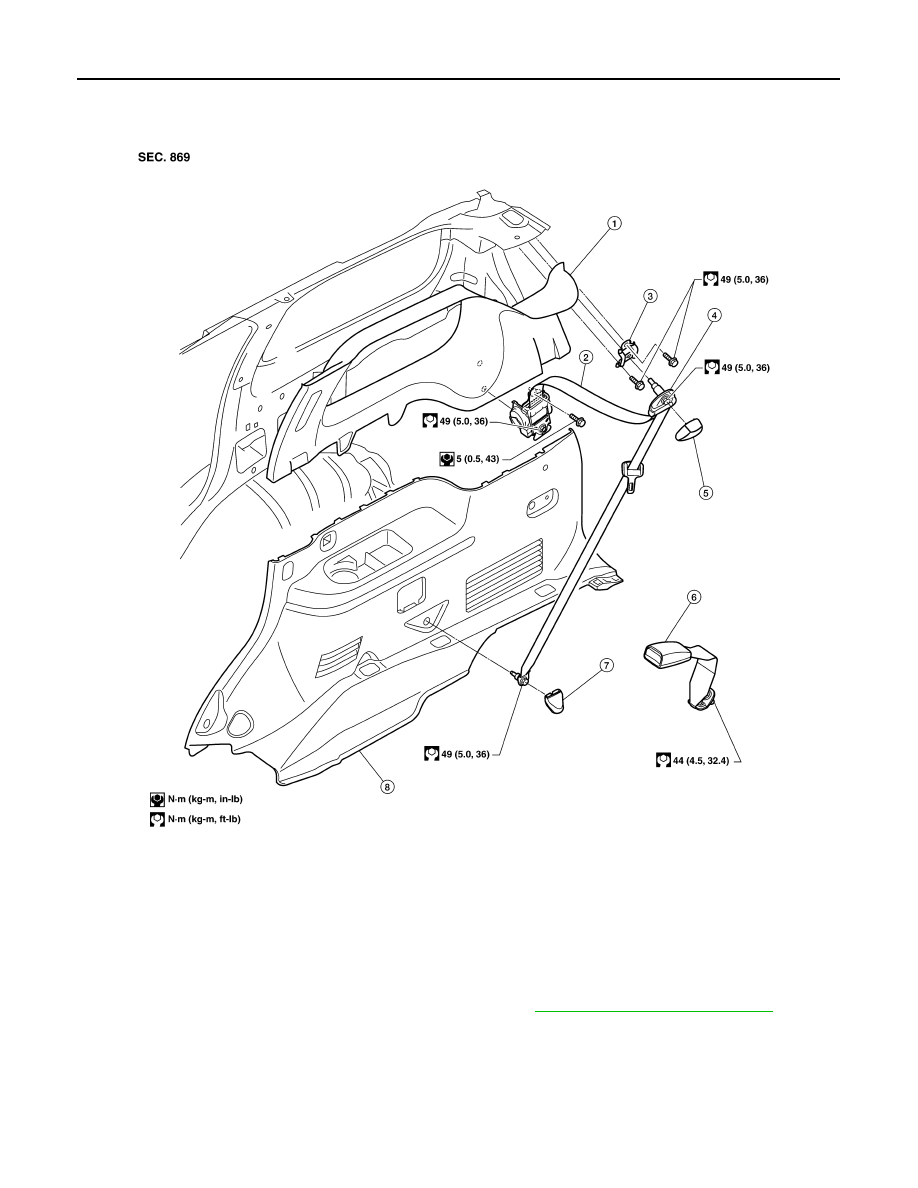

LHIA0082E

1.

Seat belt height adjuster

2.

Seat belt retractor and belt assembly
(Outboard)

3. Seat belt lower anchor

4.

Seat belt buckle (Outboard)

5.

D-ring anchor bolt cover

6. D-ring anchor

7.

Seat belt buckle (Center)

8.

Seat belt retractor and belt assembly
(Center)

2010 Pathfinder

SEAT BELTS

SB-7

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

 Installation is in the reverse order of removal.

• Ensure that seat belt height adjuster is locked in the lowest position during installation.

REMOVAL OF SEAT BELT BUCKLE

1. Remove the rear center seat. Refer to

SE-31, "Removal and Installation"

.

2. Remove the screw and seat cushion inner finisher. Refer to

SE-31, "Removal and Installation"

.

3. Remove the anchor bolt and buckle.

4. Remove the rear outboard seat. Refer to

SE-31, "Removal and Installation"

.

5. Remove the seat cushion finisher.
6. Remove the anchor bolt and buckle.

INSTALLATION OF SEAT BELT BUCKLE

Installation is in the reverse order of removal.

REMOVAL OF SEAT BELT RETRACTOR - CENTER SEAT

1. Remove seat belt anchor.
2. Remove seat belt bezel.
3. Remove seat back upholstery and foam. Refer to

SE-43, "Disassembly and Assembly"

.

4. Remove seat belt retractor cover.
5. Remove bolt and remove seat belt retractor and seat belt assembly.

INSTALLATION OF SEAT BELT RETRACTOR - CENTER SEAT

Installation is in the reverse order of removal.

2010 Pathfinder

SB-8

< ON-VEHICLE REPAIR >

SEAT BELTS

Removal and Installation of Third Row Seat Belt

INFOID:0000000005259701

Third Row

REMOVAL OF SEAT BELT RETRACTOR AND BUCKLE

1. Remove the D-ring anchor bolt cover and D-ring anchor bolt.
2. Remove the lower anchor bolt cover and lower anchor bolt.
3. Remove the upper and lower luggage side finishers. Refer to

INT-17, "Removal and Installation"

.

4. Remove the seat belt retractor anchor bolt and retractor and belt assembly.
5. Remove bolt from seat belt anchor base and remove seat belt buckles.

INSTALLATION OF SEAT BELT RETRACTOR AND BUCKLE

Installation is in the reverse order of removal.

NOTE:

Seat belt anchor base should be flat to the floor during installation and not on the anti-rotation bead.

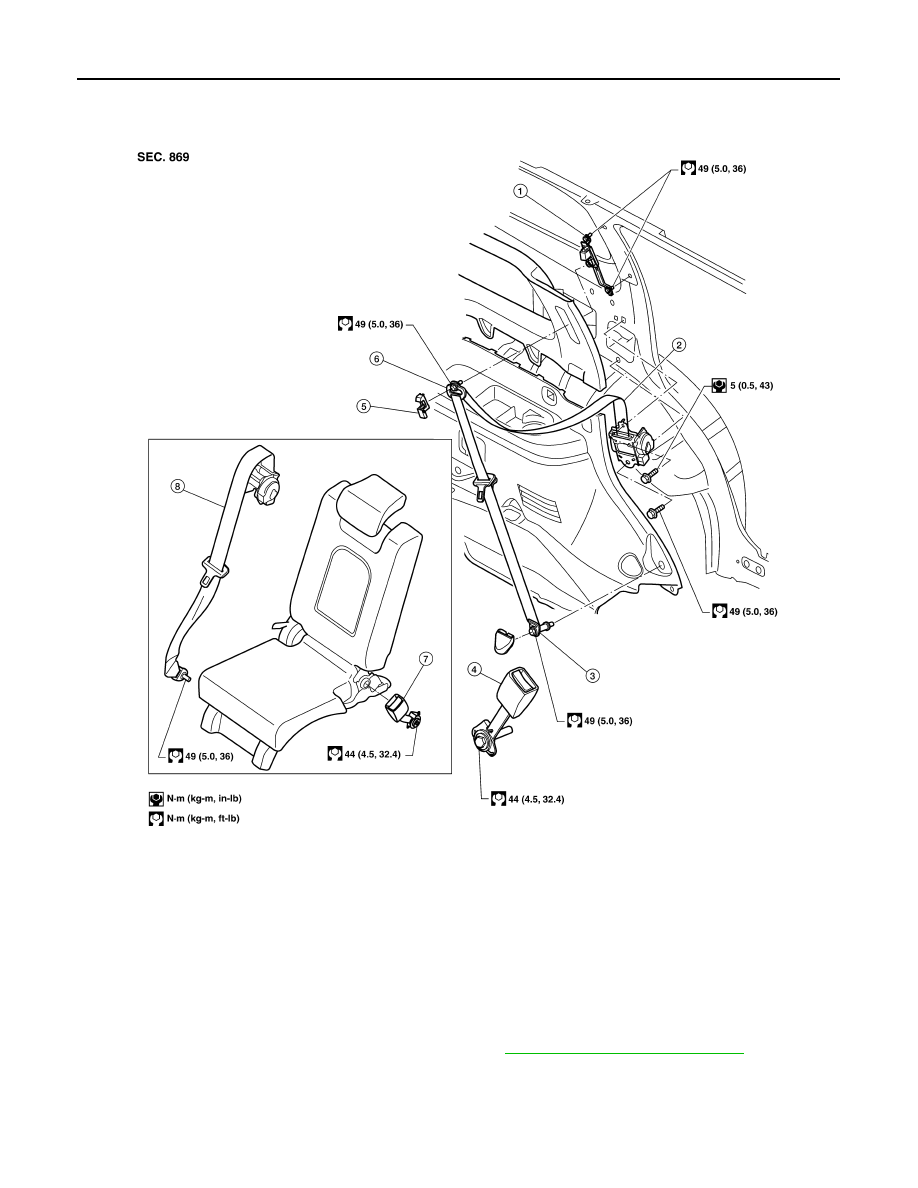

LHIA0083E

1.

Luggage side upper finisher RH

2.

Seat belt retractor and belt assembly

3.

Seat belt anchor

4.

D-ring anchor

5.

D-ring anchor bolt cover

6.

Seat belt buckle

7.

Lower anchor bolt cover

8.

Luggage side lower finisher RH

2010 Pathfinder

SEAT BELTS

SB-9

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

Seat Belt Inspection

INFOID:0000000005259702

AFTER A COLLISION

WARNING:

Inspect all seat belt assemblies including retractors and attaching hardware after any collision.

NISSAN recommends that all seat belt assemblies in use during a collision be replaced unless the col-

lision was minor and the belts show no damage and continue to operate properly. Failure to do so

could result in serious personal injury in an accident. Seat belt assemblies not in use during a colli-

sion should also be replaced if either damage or improper operation is noted. Seat belt pre-tensioners

should be replaced even if the seat belts are not in use during a frontal collision in which the air bags

are deployed.

Replace any seat belt assembly (including anchor bolts) if:

• The seat belt was in use at the time of a collision (except for minor collisions and the belts, retractors and

buckles show no damage and continue to operate properly).

• The seat belt was damaged in an accident. (i.e. torn webbing, bent retractor or guide).

• The seat belt attaching point was damaged in an accident. Inspect the seat belt attaching area for damage

or distortion and repair as necessary before installing a new seat belt assembly.

• Anchor bolts are deformed or worn out.

• The seat belt pre-tensioner should be replaced even if the seat belts are not in use during the collision in

which the air bags are deployed.

PRELIMINARY CHECKS

1. Check the seat belt warning lamp/chime for proper operation as follows:
a. Switch ignition ON. The seat belt warning lamp should illuminate. Also, the seat belt warning chime should

sound for about seven seconds.

b. Fasten driver's seat belt. The seat belt warning lamp should go out and the chime (if sounding) should

stop.

2. If the air bag warning lamp is blinking, conduct self-diagnosis using CONSULT-III, and air bag warning

lamp. Refer to

SRC-13, "SRS Operation Check"

.

3. Check that the seat belt retractor, seat belt anchor and buckle bolts are securely attached.
4. Check the shoulder seat belt guide and shoulder belt height adjuster for front seats. Ensure guide swivels

freely and that belt lays flat and does not bind in guide. Ensure height adjuster operates properly and

holds securely.

5. Check retractor operation:
a. Fully extend the seat belt webbing and check for twists, tears or other damage.
b. Allow the seat belt to retract. Ensure that belt returns smoothly and completely into the retractor. If the

seat belt does not return smoothly, wipe the inside of the loops with a clean paper cloth, because dirt built

up in the loops of the upper anchors can cause the seat belts to retract slowly.

c. Fasten the seat belt. Check the seat belt returns smoothly and completely to the retractor. If the belt does

not return smoothly, the cause may be an accumulation of dust or dirt. Use the “SEAT BELT TAPE SET”

and perform the following steps.

Inspect the front seat belt through-anchor:

1. Pull the seat belt out to a length of 500 mm (19.69 in) or more.

2. Use a clip or other device to hold the seat belt at the center pillar belt opening.

3. Pass a thin wire through the through-anchor belt opening. Hold both ends of the wire and pull taut

while moving it up and down several times along the belt opening surface to remove dirt.

4. Any dirt that cannot be removed with the wire can be removed by cleaning the opening with a clean

cloth.

5. Apply tape at the point where the belt contacts the through-anchor belt opening.

NOTE:

Apply the tape so that there is no looseness or wrinkling.

6. Remove the clip holding the seat belt and check that the belt returns smoothly.

7. Repeat steps above as necessary to check the other seat belts.

SEAT BELT RETRACTOR ON-VEHICLE CHECK

Emergency Locking Retractors (ELR) and Automatic Locking Retractors (ALR)

2010 Pathfinder















Content      ..     554      555      556      557     ..
