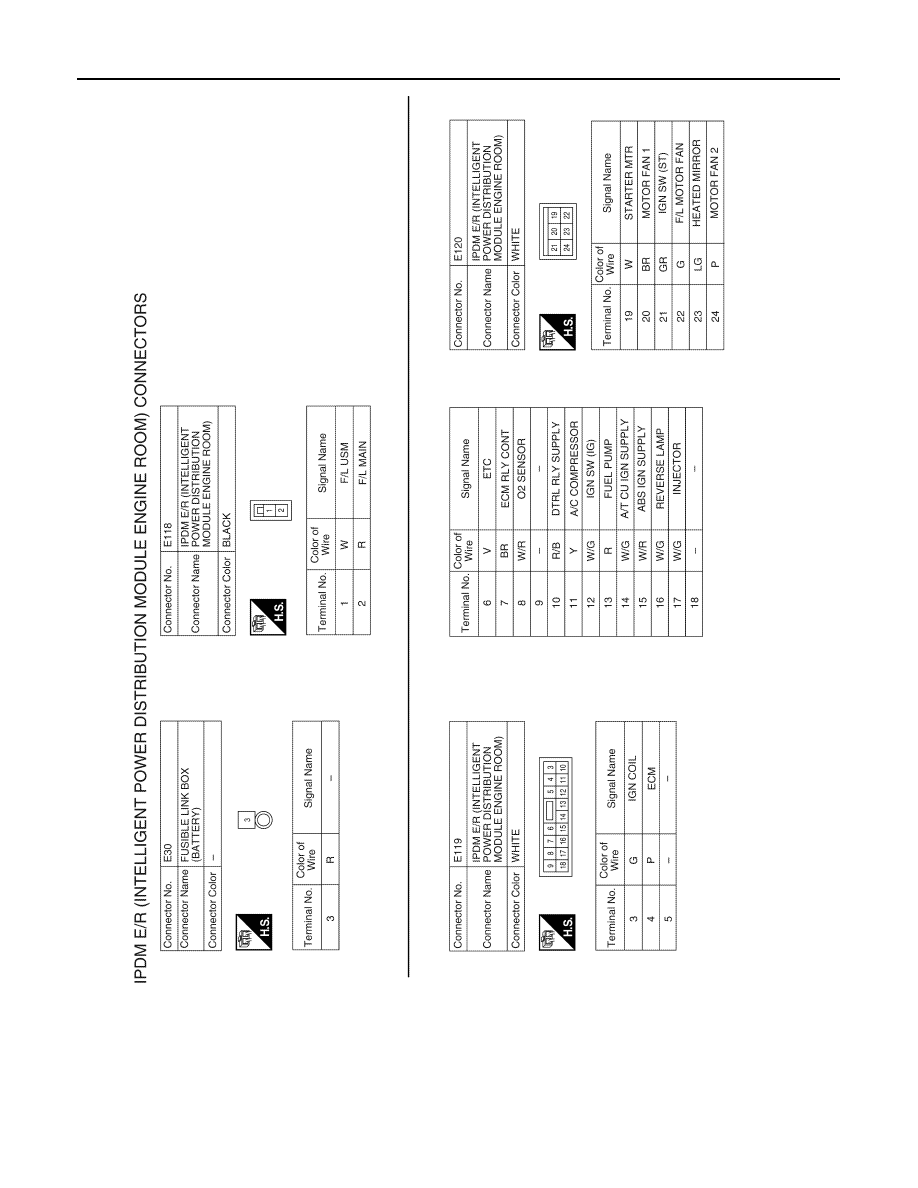

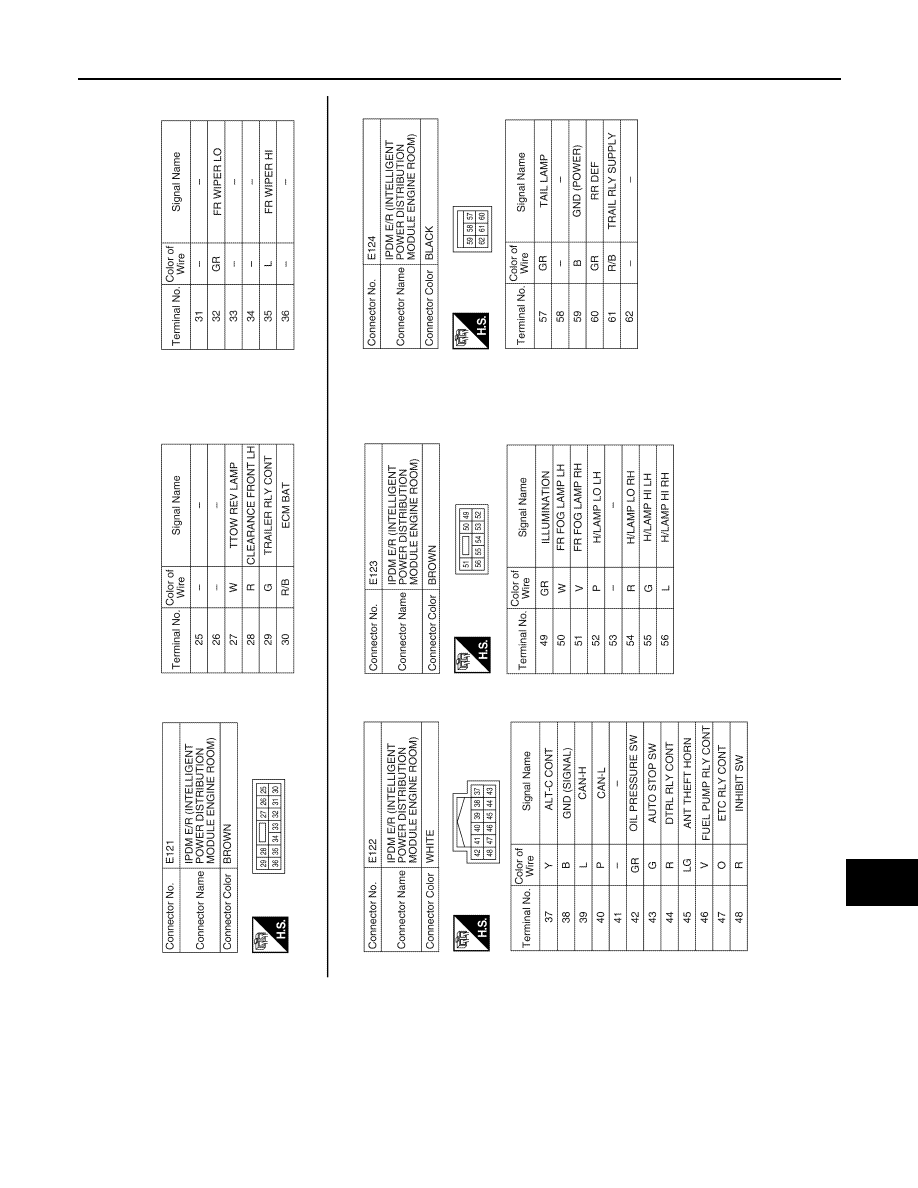

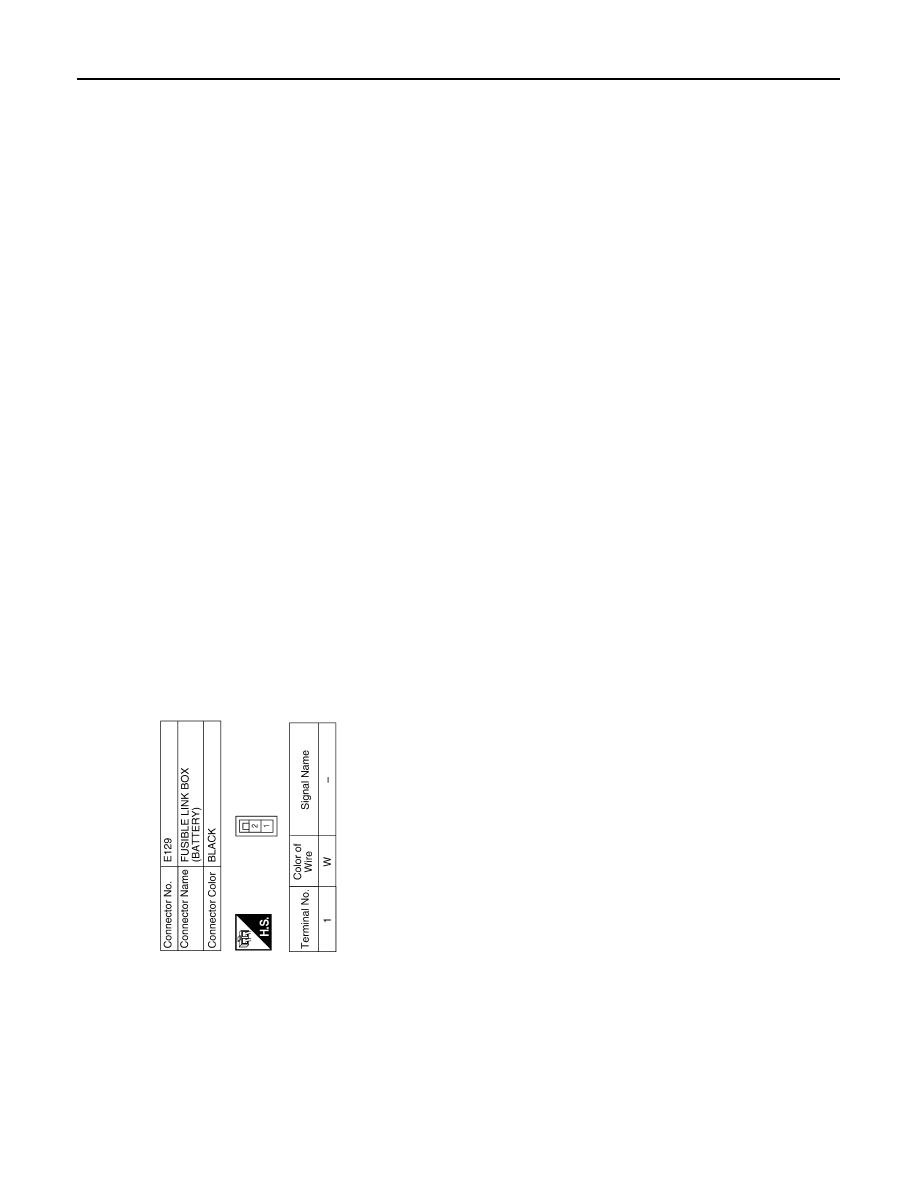

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

ABMIA1290GB

2010 Pathfinder

MWI

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

MWI-85

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ABMIA1291GB

2010 Pathfinder

MWI-86

< ECU DIAGNOSIS >

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

Fail Safe

INFOID:0000000005488343

CAN COMMUNICATION CONTROL

When CAN communication with ECM and BCM is impossible, IPDM E/R performs fail-safe control. After CAN

communication recovers normally, it also returns to normal control.

If No CAN Communication Is Available With ECM

ABMIA1292GB

2010 Pathfinder

MWI

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

MWI-87

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

If No CAN Communication Is Available With BCM

IGNITION RELAY MALFUNCTION DETECTION FUNCTION

• IPDM E/R monitors the voltage at the contact circuit and excitation coil circuit of the ignition relay inside it.

• IPDM E/R judges the ignition relay error if the voltage differs between the contact circuit and the excitation

coil circuit.

• If the ignition relay cannot turn OFF due to contact seizure, it activates the tail lamp relay for 10 minutes to

alert the user to the ignition relay malfunction when the ignition switch is turned OFF.

NOTE:

The tail lamp turns OFF when the ignition switch is turned ON.

FRONT WIPER CONTROL

IPDM E/R detects front wiper stop position by a front wiper auto stop signal.

When a front wiper auto stop signal is in the conditions listed below, IPDM E/R stops power supply to wiper

after repeating a front wiper 10 second activation and 20 second stop five times.

NOTE:

This operation status can be confirmed on the IPDM E/R “DATA MONITOR” that displays “Block” for the item

“WIP PROT” while the wiper is stopped.

STARTER MOTOR PROTECTION FUNCTION

IPDM E/R turns OFF the starter control relay to protect the starter motor when the starter control relay remains

active for 90 seconds.

Control part

Fail-safe in operation

Cooling fan

• Turns ON the cooling fan relay when the ignition switch is turned ON
• Turns OFF the cooling fan relay when the ignition switch is turned OFF

Control part

Fail-safe in operation

Headlamp

• Turns ON the headlamp low relay when the ignition switch is turned ON
• Turns OFF the headlamp low relay when the ignition switch is turned OFF
• Headlamp (LH/RH) high relays OFF

• Parking  lamps
• License plate lamps
• Tail lamps

• Turns ON the tail lamp relay when the ignition switch is turned ON
• Turns OFF the tail lamp relay when the ignition switch is turned OFF

Front wiper

• The status just before activation of fail-safe control is maintained until the ignition

switch is turned OFF while the front wiper is operating at LO or HI speed.

• The wiper is operated at LO speed until the ignition switch is turned OFF if the fail-

safe control is activated while the front wiper is set in the INT mode and the front wiper
motor is operating.

Rear window defogger

Rear window defogger relay OFF

A/C compressor

A/C relay OFF

Front fog lamps (if equipped)

Front fog lamp relay OFF

Ignition switch

Ignition relay

Tail lamp relay

ON

ON

—

OFF

OFF

—

Ignition switch

Front wiper switch

Auto stop signal

ON

OFF

Front wiper stop position signal cannot be
input 10 seconds.

ON

The signal does not change for 10 seconds.

2010 Pathfinder

MWI-88

< ECU DIAGNOSIS >

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

DTC Index

INFOID:0000000005488344

NOTE:

The details of TIME display are as follows.

• CRNT: The malfunctions that are detected now

• 1 - 39: The number is indicated when it is normal at present and a malfunction was detected in the past. It

increases like 0

→

 1

→

 2 ··· 38

→

 39 after returning to the normal condition whenever IGN OFF

→

 ON. It is

fixed to 39 until the self-diagnosis results are erased if it is over 39. It returns to 0 when a malfunction is

detected again in the process.

CONSULT-III display

Fail-safe

TIME

NOTE

Refer to

No DTC is detected.
further testing
may be required.

—

—

—

—

U1000: CAN COMM CIRCUIT

×

CRNT

1 – 39

PCS-16

2010 Pathfinder

MWI

THE FUEL GAUGE POINTER DOES NOT MOVE

MWI-89

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYMPTOM DIAGNOSIS

THE FUEL GAUGE POINTER DOES NOT MOVE

Description

INFOID:0000000005260406

Fuel gauge needle will not move from a certain position.

Diagnosis Procedure

INFOID:0000000005260407

1.

CHECK COMBINATION METER INPUT SIGNAL

1. Select “METER/M&A” on CONSULT-III.

2. Using “FUEL METER” of “DATA MONITOR”, compare the monitor value with the fuel gauge reading on

the combination meter. Refer to

MWI-32, "Component Function Check"

.

Does monitor value match fuel gauge reading?

YES

>> GO TO 2

NO

>> Replace combination meter. Refer to

MWI-96, "Removal and Installation"

.

2.

CHECK FUEL LEVEL SENSOR SIGNAL CIRCUIT

Check the fuel level sensor signal circuit. Refer to

MWI-32, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair harness or connector.

3.

CHECK FUEL LEVEL SENSOR UNIT

Perform a unit check for the fuel level sensor unit. Refer to

MWI-33, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Replace fuel level sensor unit. Refer to

FL-11, "Removal and Installation"

.

4.

CHECK FLOAT INTERFERENCE

Check that the float arm does not interfere or bind with any of the components in the fuel tank.
Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-96, "Removal and Installation"

.

NO

>> Repair or replace malfunctioning parts.

2010 Pathfinder

MWI-90

< SYMPTOM DIAGNOSIS >

THE FUEL GAUGE POINTER DOES NOT MOVE TO "F" WHEN REFUELING

THE FUEL GAUGE POINTER DOES NOT MOVE TO "F" WHEN REFUEL-
ING

Description

INFOID:0000000005260408

The fuel gauge needle will not move to “F” position when refueling.

Diagnosis Procedure

INFOID:0000000005260409

1.

OBSERVE FUEL GAUGE

Does it take a long time for the pointer to move to FULL position?
YES or NO

YES

>> GO TO 2

NO

>> GO TO 3

2.

IDENTIFY FUELING CONDITION

Was the vehicle fueled with the ignition switch ON?
YES or NO

YES

>> Be sure to fuel the vehicle with the ignition switch OFF. Otherwise, it will take a long time to move

to FULL position because of the characteristic of the fuel gauge.

NO

>> GO TO 3

3.

OBSERVE VEHICLE POSITION

Is the vehicle parked on an incline?
YES or NO

YES

>> Check the fuel level indication with vehicle on a level surface.

NO

>> GO TO 4

4.

OBSERVE FUEL GAUGE POINTER

During driving, does the fuel gauge pointer move gradually toward EMPTY position?
YES or NO

YES

>> Check the components. Refer to

MWI-33, "Component Inspection"

.

NO

>> The float arm may interfere or bind with any of the components in the fuel tank.

2010 Pathfinder

MWI

THE OIL PRESSURE WARNING LAMP DOES NOT TURN ON

MWI-91

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

THE OIL PRESSURE WARNING LAMP DOES NOT TURN ON

Description

INFOID:0000000005260410

The oil pressure warning lamp stays off when the ignition switch is turned ON.

Diagnosis Procedure

INFOID:0000000005260411

1.

CHECK OIL PRESSURE WARNING LAMP

Perform IPDM E/R auto active test. Refer to

PCS-12, "Diagnosis Description"

.

Is oil pressure warning lamp illuminated?

YES

>> GO TO 2

NO

>> Replace combination meter. Refer to

MWI-96, "Removal and Installation"

.

2.

CHECK OIL PRESSURE SWITCH SIGNAL CIRCUIT

Check the oil pressure switch signal circuit. Refer to

MWI-35, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair harness or connector.

3.

CHECK OIL PRESSURE SWITCH UNIT

Perform a unit check for the oil pressure switch. Refer to

MWI-35, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-33, "Removal and Installation of IPDM E/R"

.

NO

>> Replace oil pressure switch.
