Nissan Pathfinder (2010 year). Manual - part 499





ENGINE MAINTENANCE (VK56DE)

MA-35

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

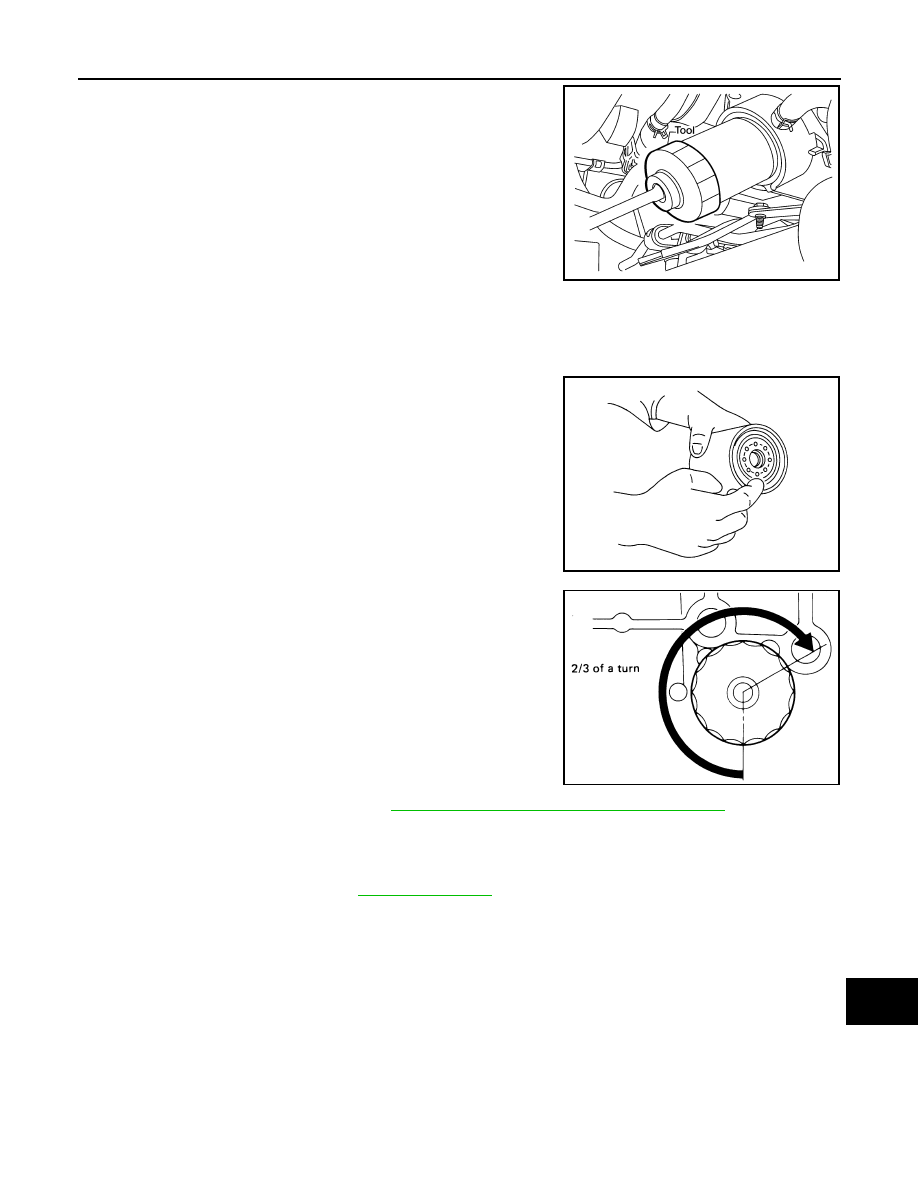

2. Remove the oil filter using Tool as shown.

WARNING:

Be careful not to burn yourself, as the engine and engine oil

may be hot.

CAUTION:

• The oil filter is equipped with a pressure relief valve.

• Use Genuine NISSAN oil filter or equivalent.

• When removing, prepare a shop cloth to absorb any

engine oil leaks or spills.

• Do not allow engine oil to adhere to the drive belts.

• Completely wipe off any engine oil that adheres to the engine and the vehicle.

INSTALLATION

1. Remove foreign materials adhering to the oil filter seal mating surface.
2. Apply clean engine oil to the oil filter seal circumference of the

new oil filter as shown.

3. Screw on the oil filter manually until it touches the installation

surface, then tighten it by 2/3 turn as shown. Or tighten to speci-

fication.

4. Inspect the engine for oil leaks. Refer to

MA-34, "OIL FILTER : Removal and Installation"

.

5. Install the engine front undercover access plate using power tool.

INSPECTION AFTER INSTALLATION

1. Check the engine oil level. Refer to

LU-24, "Inspection"

.

2. Start the engine and check for engine oil leaks.
3. Stop the engine and wait for 10 minutes.
4. Check the engine oil level and add engine oil as required.

SPARK PLUG

Tool number

: KV10115801 (J-38956)

WBIA0388E

SMA010

Oil filter

: 17.7 N·m (1.8 kg-m, 13 ft-lb)

SMA229B

2010 Pathfinder

MA-36

< ON-VEHICLE MAINTENANCE >

ENGINE MAINTENANCE (VK56DE)

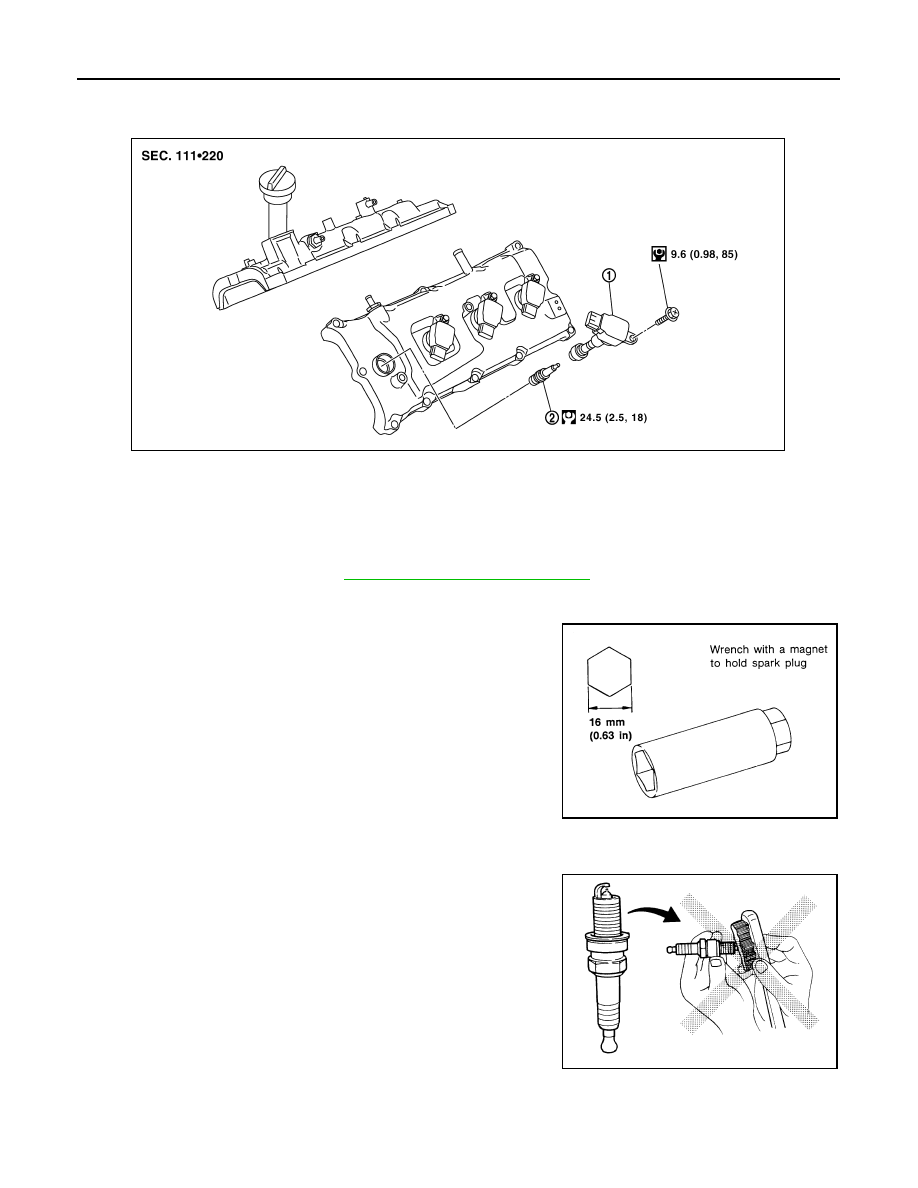

SPARK PLUG : Exploded View

INFOID:0000000005255689

SPARK PLUG : Removal and Installation

INFOID:0000000005255690

REMOVAL

1. Remove the ignition coil. Refer to

EM-173, "Removal and Installation"

.

2. Remove the spark plug using suitable tool.

CAUTION:

Do not drop or shock it.

INSPECTION AFTER REMOVAL

• Do not use a wire brush for cleaning.

• If the spark plug tip is covered with carbon, a spark plug cleaner may be used.

1. Ignition coil

2. Spark plug

WBIA0796E

SEM294A

SMA773C

2010 Pathfinder

ENGINE MAINTENANCE (VK56DE)

MA-37

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

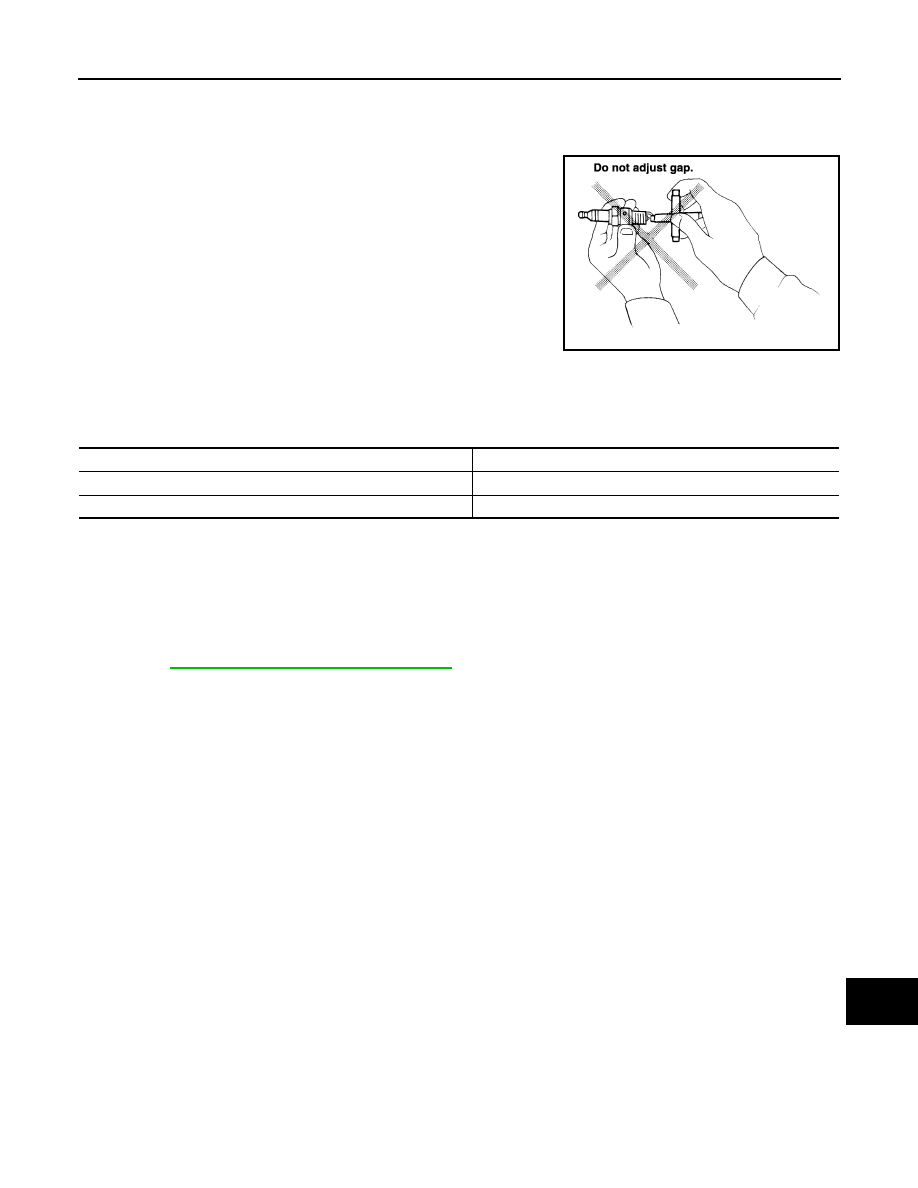

• Checking and adjusting plug gap is not required between change

intervals.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not drop or shock spark plug.

EVAP VAPOR LINES
EVAP VAPOR LINES : Checking EVAP Vapor Line

INFOID:0000000005255691

1. Visually inspect EVAP vapor lines for improper attachment, cracks, damage, loose connections, chafing

or deterioration.

2. Inspect vacuum relief valve of fuel tank filler cap for clogging and sticking.

Refer to

EC-960, "How to Detect EVAP Leakage"

.

Cleaner air pressure

: Less than 588 kPa (5.9 bar, 6 kg/cm

2

, 85 psi)

Cleaning time

: Less than 20 seconds

SMA806CA

Make

NGK

Standard type

DILFR5A-11

Gap (Nominal)

1.1 mm (0.043 in)

2010 Pathfinder

MA-38

< ON-VEHICLE MAINTENANCE >

CHASSIS AND BODY MAINTENANCE

CHASSIS AND BODY MAINTENANCE

IN-CABIN MICROFILTER
IN-CABIN MICROFILTER : Removal and Installation

INFOID:0000000005255692

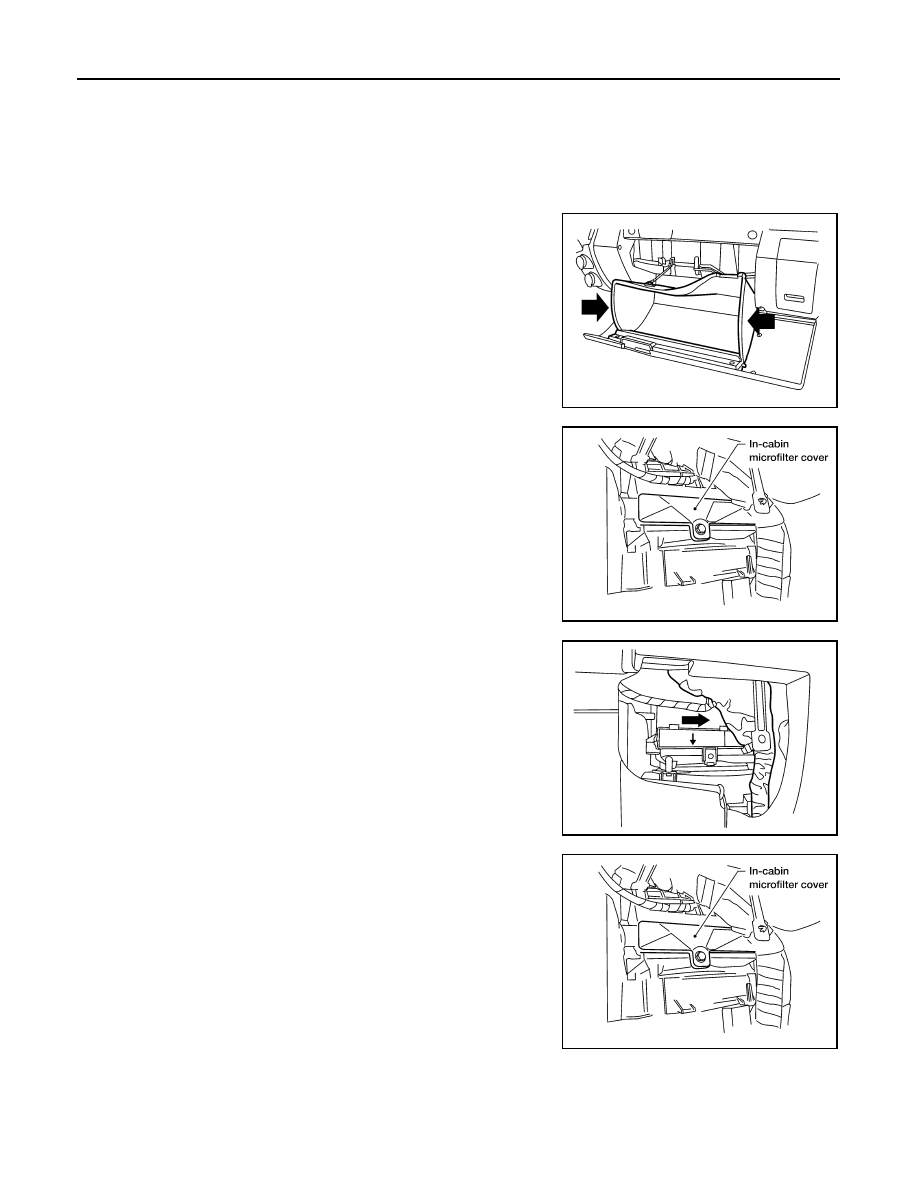

REPLACEMENT PROCEDURE

1. Open the lower glove box and press in on the sides so that it will

open completely allowing it to hang by the cord.

2. Remove the screw and remove the in-cabin microfilter cover.
3. Remove the in-cabin microfilters from the front heater and cool-

ing unit housing.

4. Insert the first new in-cabin microfilter into the front heater and

cooling unit housing and slide it over to the right. Insert the sec-

ond new in-cabin microfilter into the front heater and cooling unit

housing.

NOTE:

The in-cabin microfilters are marked with air flow arrows. The

end of the microfilter with the arrow should face the rear of the

vehicle. The arrows should point downward.

5. Install the in-cabin microfilter cover.

6. Close the lower glove box completely.

EXHAUST SYSTEM

WLIA0023E

LJIA0134E

LJIA0148E

LJIA0134E

2010 Pathfinder

CHASSIS AND BODY MAINTENANCE

MA-39

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

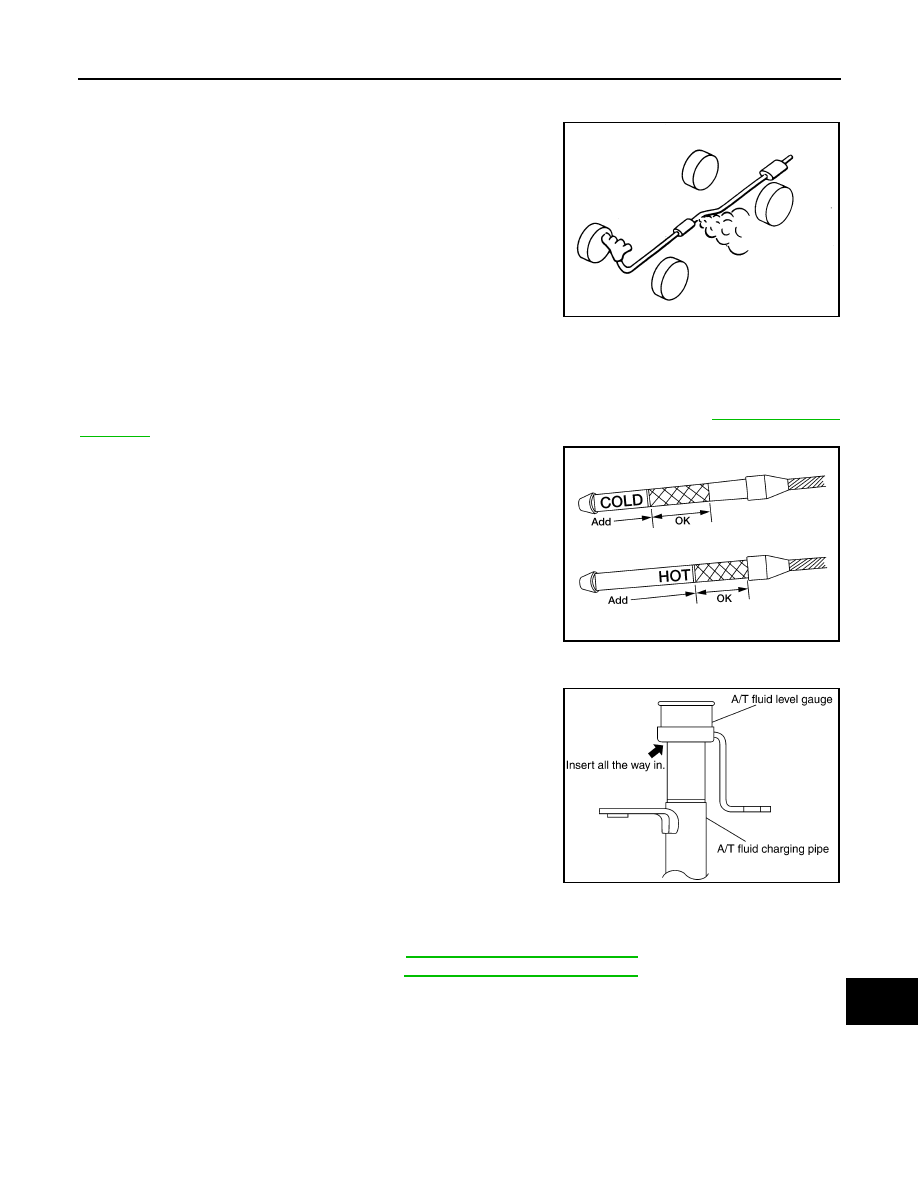

EXHAUST SYSTEM : Checking the Exhaust System

INFOID:0000000005255693

Check exhaust pipes, muffler and mounting for improper attachment,

leaks, cracks, damage, loose connections, chafing or deterioration.

A/T FLUID
A/T FLUID : Checking the A/T Fluid (ATF)

INFOID:0000000005255694

CAUTION:

If using the vehicle for towing, the A/T fluid must be replaced as specified. Refer to

MA-9, "For North

America"

.

1. Before driving, the A/T fluid level can be checked at A/T fluid

temperatures of 30

°

 to 50

°

 C (86

°

 to 122

°

 F) using the “COLD”

range on the A/T fluid level gauge as follows:

a. Park the vehicle on a level surface and set the parking brake.
b. Start the engine and move the selector lever through each gear

position. Shift the selector lever into the “P” position.

c. Check the A/T fluid level with the engine idling.
d. Remove the A/T fluid level gauge and wipe it clean with a lint-

free paper.

CAUTION:

When wiping the A/T fluid from the A/T fluid level gauge,

always use a lint-free paper, not a cloth.

e. Re-insert the A/T fluid level gauge into the A/T fluid charging

pipe until the cap contacts the top of the A/T fluid charging pipe

as shown.

CAUTION:

To check A/T fluid level, insert the A/T fluid level gauge until

the cap contacts the top of the A/T fluid charging pipe, with

the gauge reversed from the normal inserted position.

f.

Remove the A/T fluid level gauge and note the A/T fluid level. If

the A/T fluid level is at low side of range, add A/T fluid to the

transmission through the A/T fluid charging pipe.

CAUTION:

Do not overfill the transmission with A/T fluid.

g. Install the A/T fluid level gauge and the A/T fluid level gauge bolt.

2. Warm up the engine and transmission.
3. Check for any A/T fluid leaks.
4. Drive the vehicle to increase the A/T fluid temperature to 80

°

 C (176

°

 F).

SMA211A

LLIA0071E

A/T fluid level gauge bolt

: Refer to

TM-191, "2WD : Exploded View"



(2WD) or

TM-194, "4WD : Exploded View"



(4WD).

SCIA2899E

2010 Pathfinder

MA-40

< ON-VEHICLE MAINTENANCE >

CHASSIS AND BODY MAINTENANCE

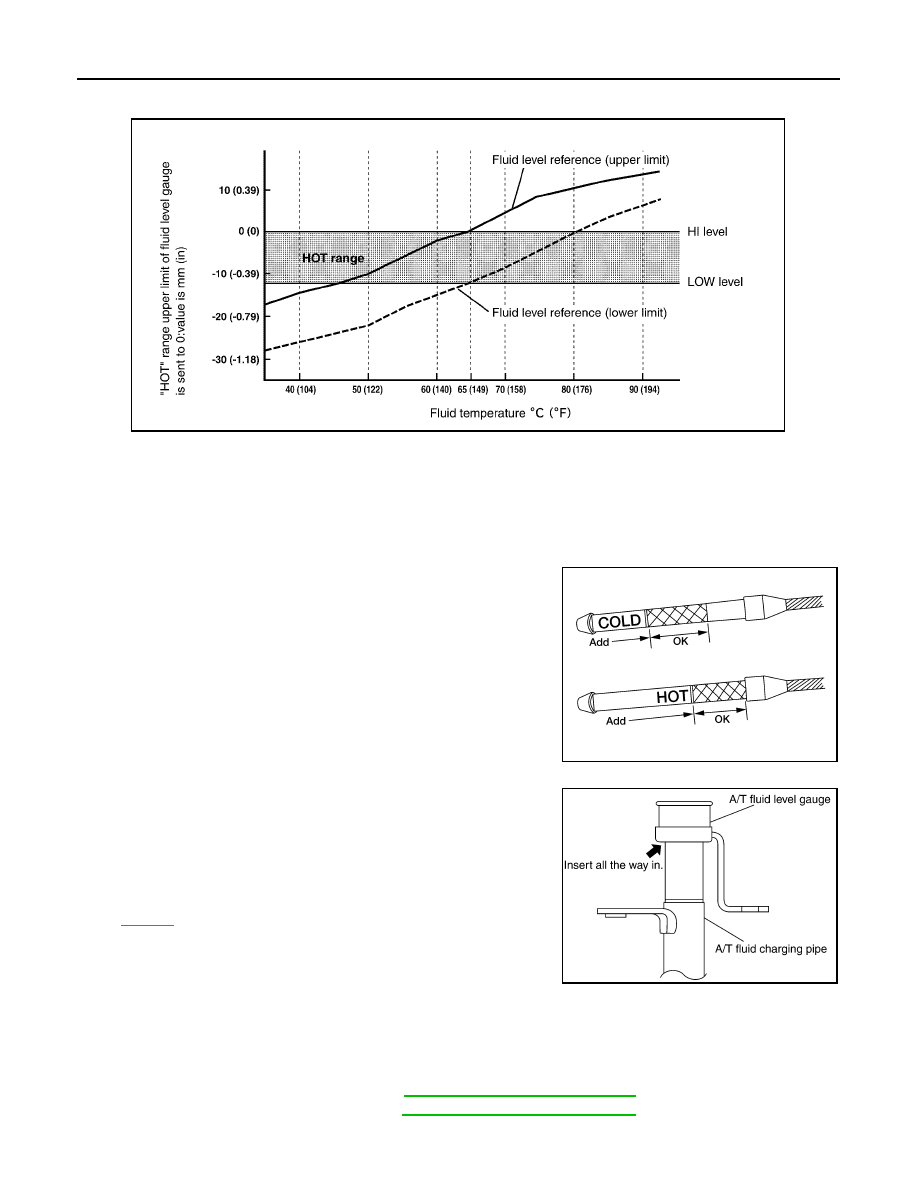

5. Allow the A/T fluid temperature to fall to approximately 65

°

C (149

°

F). Use the CONSULT-III to monitor the

A/T fluid temperature as follows:

NOTE:

The A/T fluid level will be significantly affected by the A/T fluid temperature as shown. Therefore monitor

the A/T fluid temperature data using the CONSULT-III.

a. Connect CONSULT-III to data link connector.
b. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-III.
c.

Read out the value of “ATF TEMP 1”.

6. Re-check the A/T fluid level at A/T fluid temperatures of approxi-

mately 65

°

C (149

°

F) using the “HOT” range on the A/T fluid

level gauge as shown. The HOT range is between 50

°

 - 80

°

 C

(122

°

 - 176

°

 F).

CAUTION:

• When wiping the A/T fluid from the A/T fluid level gauge,

always use lint-free paper, not a cloth.

• To check the A/T fluid level, insert the A/T fluid level

gauge until the cap contacts the top of the A/T fluid charg-

ing pipe, with the gauge reversed from the normal

inserted position as shown.

7. Check the A/T fluid condition.

• If the A/T fluid is very dark or has some burned smell, there

may be an internal problem with the transmission. Refer to

TM-116

. Flush the transmission cooling system after repairing

the transmission.

• If the A/T fluid contains frictional material (clutches, bands,

etc.), replace the radiator and flush the transmission cooler

lines using cleaning solvent and compressed air after repairing

the transmission.

8. Install the A/T fluid level gauge in the A/T fluid charging pipe.
9. Tighten the A/T fluid level gauge bolt to specification.

SLIA0016E

LLIA0071E

A/T fluid level gauge bolt

: Refer to

TM-191, "2WD : Exploded View"



(2WD) or

TM-194, "4WD : Exploded View"



(4WD).

SCIA2899E

2010 Pathfinder

CHASSIS AND BODY MAINTENANCE

MA-41

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

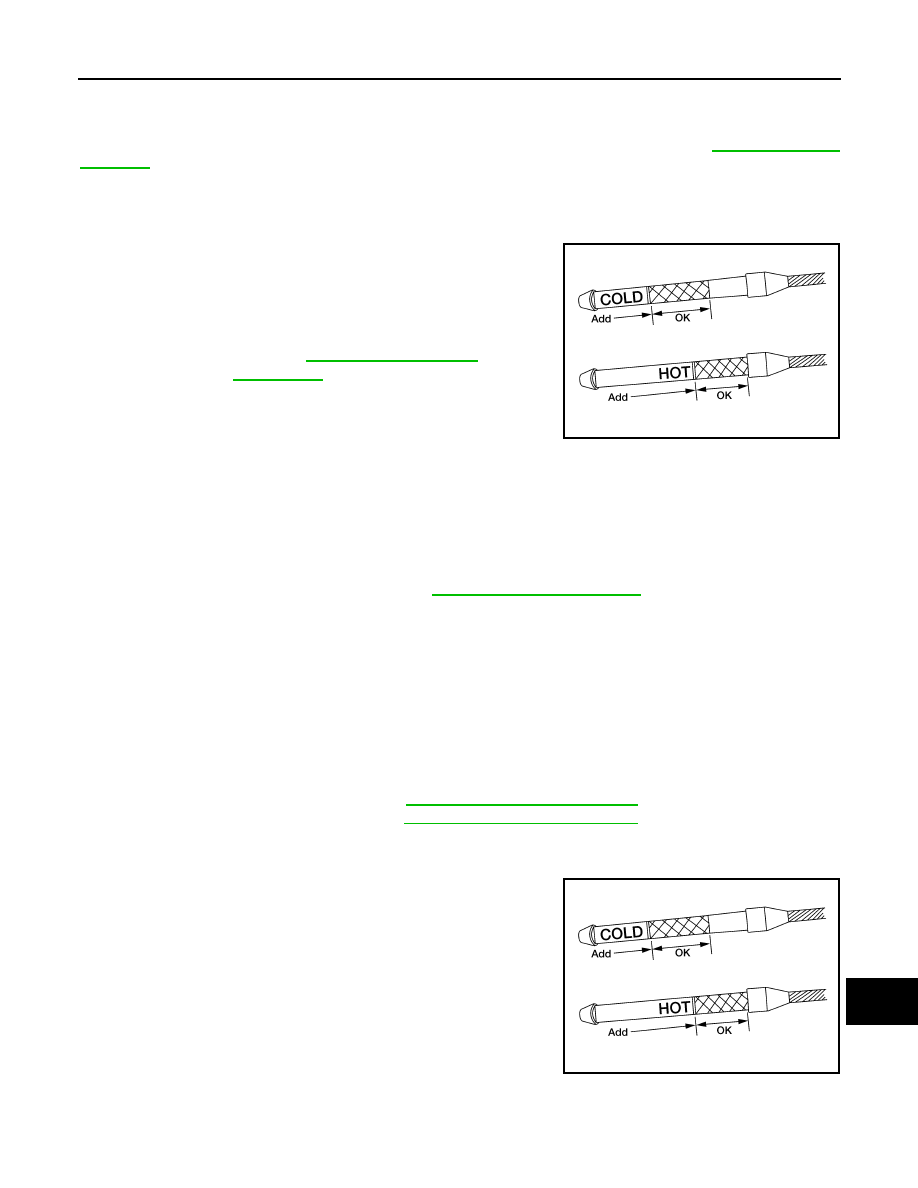

A/T FLUID : Changing the A/T Fluid (ATF)

INFOID:0000000005255695

CAUTION:

If using the vehicle for towing, the A/T fluid must be replaced as specified. Refer to

MA-9, "For North

America"

.

1. Drive the vehicle to warm up the A/T fluid to approximately 80

°

 C (176

°

 F).

2. Stop the engine.
3. Remove the A/T fluid level gauge.
4. Drain the A/T fluid from the drain plug hole, then install the drain

plug with a new gasket. Refill the transmission with new A/T

fluid. Always refill with the same volume as the drained A/T fluid.

Use the A/T fluid level gauge to check the A/T fluid level as

shown. Add A/T fluid as necessary.

• To flush out the old A/T fluid from the transmission oil coolers, pour new A/T fluid into the A/T fluid charg-

ing pipe with the engine idling and at the same time drain the old A/T fluid from the auxiliary transmis-

sion oil cooler hose return line.

• When the color of the A/T fluid coming out of the auxiliary transmission oil cooler hose return line is

about the same as the color of the new A/T fluid, flushing out the old A/T fluid is complete. The amount

of new A/T fluid used for flushing should be 30% to 50% of the specified capacity.

CAUTION:

• Use only Genuine NISSAN Matic J ATF and do not mix with other fluids.

• Using A/T fluid other than Genuine NISSAN Matic J ATF will cause deterioration in driveability

and automatic transmission durability, and may damage the automatic transmission, which is

not covered by the warranty.

• When filling the transmission with A/T fluid, do not spill the A/T fluid on any heat generating

parts such as the exhaust manifold.

• Do not reuse the drain plug gasket.

5. Install the A/T fluid level gauge and tighten the A/T fluid level gauge bolt to specification.

6. Drive the vehicle to warm up the A/T fluid to approximately 80

°

 C (176

°

 F).

7. Check the fluid level and condition. If the A/T fluid is still dirty,

repeat steps 2 through 6.

8. Install the A/T fluid level gauge in the A/T fluid charging pipe and install the A/T fluid level gauge bolt.
9. Tighten the A/T fluid level gauge bolt to specification.

Drain plug

Refer to

TM-172, "Removal and

Installation"

.

LLIA0071E

A/T fluid grade and capacity

: Refer to

MA-16, "For North America"

.

A/T fluid level gauge bolt

: Refer to

TM-191, "2WD : Exploded View"



(2WD) or

TM-194, "4WD : Exploded View"



(4WD).

LLIA0071E

2010 Pathfinder

MA-42

< ON-VEHICLE MAINTENANCE >

CHASSIS AND BODY MAINTENANCE

TRANSFER FLUID
TRANSFER FLUID : ATX14B

INFOID:0000000005255696

TRANSFER FLUID : Inspection

INFOID:0000000005255697

CAUTION:

If using the vehicle for towing, the transfer fluid must be replaced as specified. Refer to

MA-9, "For

North America"

.

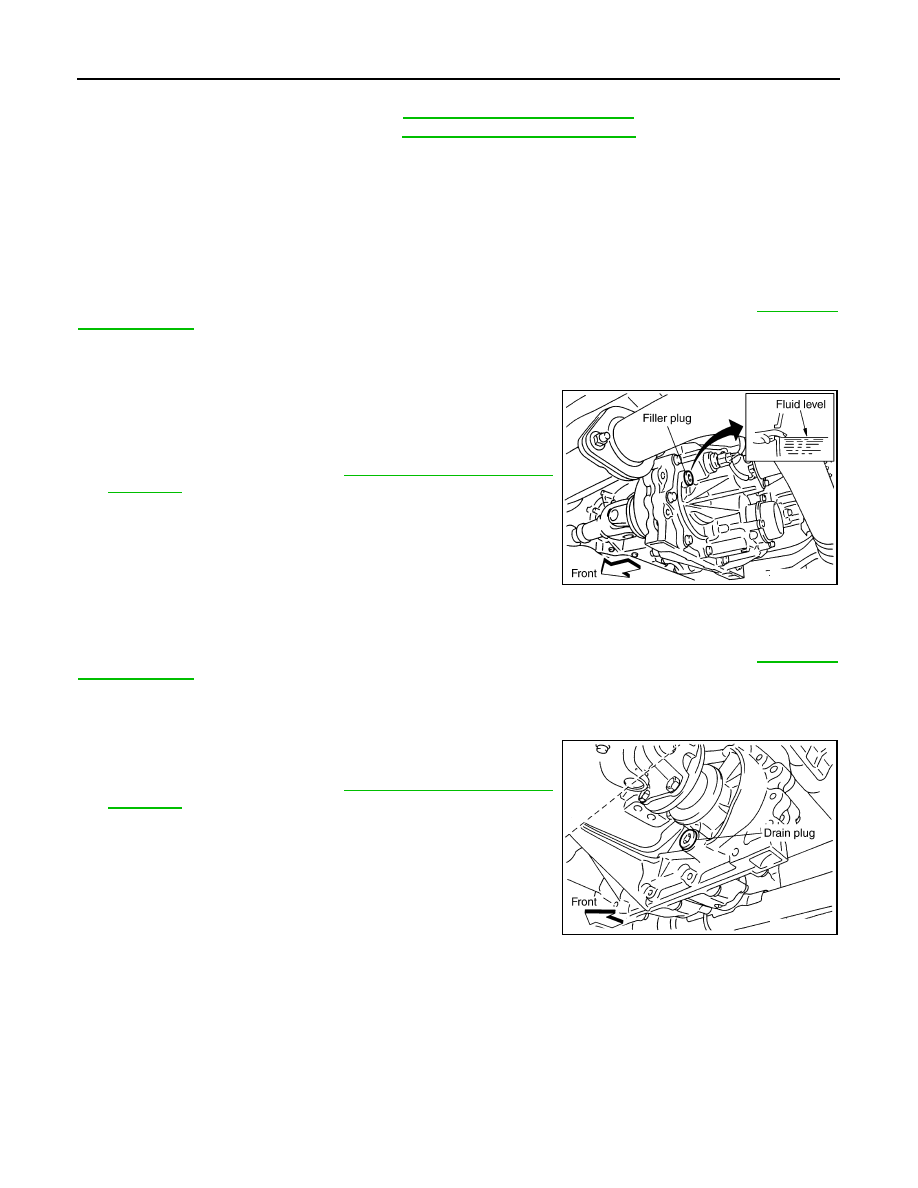

FLUID LEAKAGE AND FLUID LEVEL

1. Make sure that fluid is not leaking from the transfer assembly or around it.
2. Check fluid level from the filler plug hole as shown.

CAUTION:

Do not start engine while checking fluid level.

3. Install the filler plug with a new gasket to the transfer. Tighten to

the specified torque. Refer to

DLN-154, "Disassembly and

Assembly"

.

CAUTION:

Do not reuse gasket.

TRANSFER FLUID : Replacement

INFOID:0000000005255698

CAUTION:

If using the vehicle for towing, the transfer fluid must be replaced as specified. Refer to

MA-9, "For

North America"

.

DRAINING

1. Stop engine.
2. Remove the drain plug and gasket and drain the fluid.
3. Install the drain plug with a new gasket to the transfer. Tighten to

the specified torque. Refer to

DLN-154, "Disassembly and

Assembly"

.

CAUTION:

Do not reuse gasket.

FILLING

A/T fluid level gauge bolt

: Refer to

TM-191, "2WD : Exploded View"



(2WD) or

TM-194, "4WD : Exploded View"



(4WD).

SDIA3209E

SDIA3208E

2010 Pathfinder















Content      ..     497      498      499      500     ..
