Nissan Pathfinder (2010 year). Manual - part 498

ENGINE MAINTENANCE (VQ40DE)

MA-27

< ON-VEHICLE MAINTENANCE >

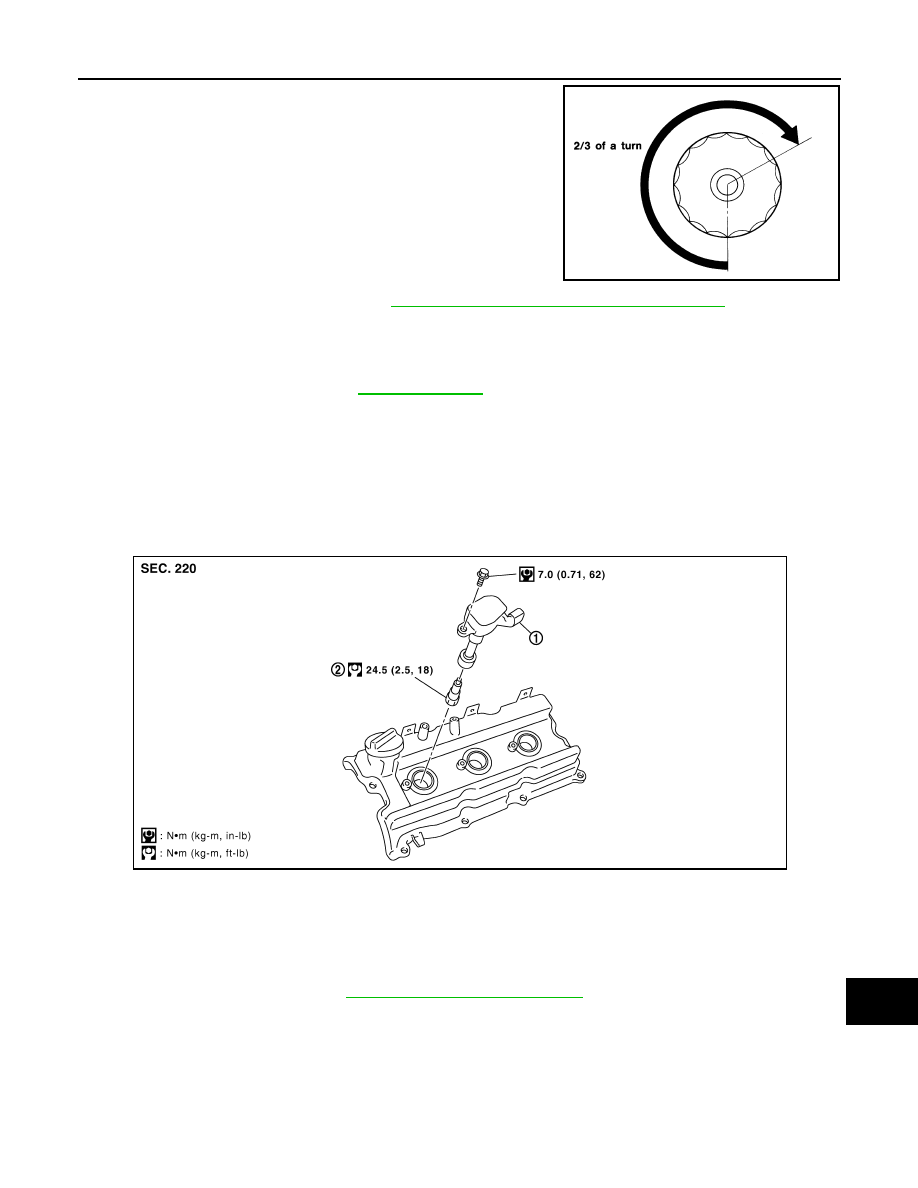

3. Screw on the oil filter manually until it touches the installation

surface, then tighten it by 2/3 turn as shown. Or tighten to speci-

fication.

4. Inspect the engine for oil leaks. Refer to

MA-26, "OIL FILTER : Removal and Installation"

5. Install the engine front undercover using power tool.

INSPECTION AFTER INSTALLATION

1. Check the engine oil level. Refer to

LU-8, "Inspection"

2. Start the engine and check for engine oil leaks.
3. Stop the engine and wait for 10 minutes.
4. Check the engine oil level and add engine oil as required.

SPARK PLUG
SPARK PLUG : Exploded View

INFOID:0000000005255677

SPARK PLUG : Removal and Installation

INFOID:0000000005255678

REMOVAL

1. Remove the ignition coil. Refer to

EM-41, "Removal and Installation"

Oil filter

: 17.7 N·m (1.8 kg-m, 13 ft-lb)

SMA702C

Ignition coil

Spark plug

PBIC2901E

2010 Pathfinder

MA-28

< ON-VEHICLE MAINTENANCE >

ENGINE MAINTENANCE (VQ40DE)

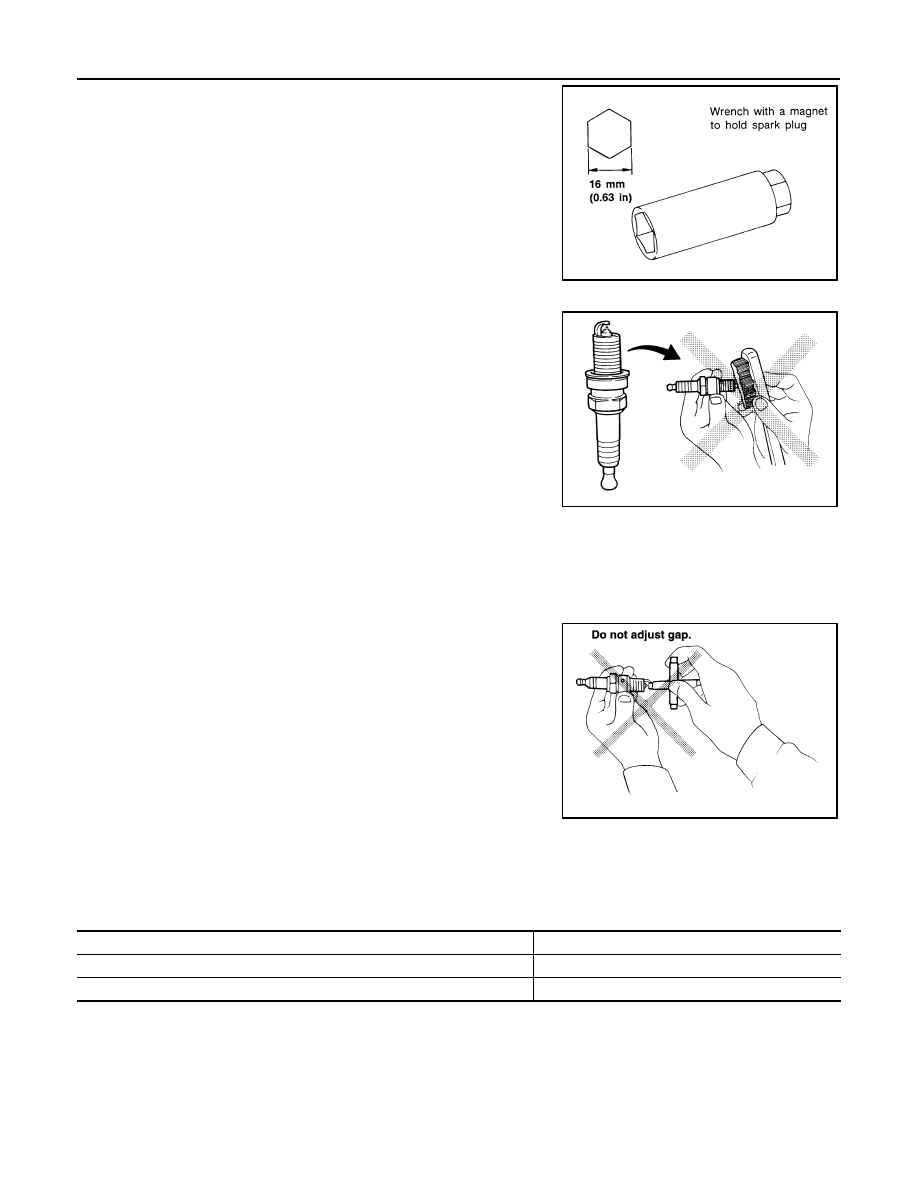

2. Remove the spark plug using a suitable tool.

CAUTION:

Do not drop or shock it.

INSPECTION AFTER REMOVAL

• Do not use a wire brush to clean the spark plug.

• If plug tip is covered with carbon, spark plug cleaner may be used.

• Checking and adjusting plug gap is not required between change

intervals.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not drop or shock the spark plug.

EVAP VAPOR LINES
EVAP VAPOR LINES : Checking EVAP Vapor Line

INFOID:0000000005255679

1. Visually inspect EVAP vapor lines for improper attachment, cracks, damage, loose connections, chafing

or deterioration.

2. Inspect vacuum relief valve of fuel tank filler cap for clogging and sticking.

SEM294A

SMA773C

Cleaner air pressure

: Less than 588 kPa (5.9 bar, 6 kg/cm

, 85 psi)

Cleaning time

: Less than 20 seconds

SMA806CA

Make

NGK

Standard type

DILFR5A-11

Gap (nominal)

1.1 mm (0.043 in)

2010 Pathfinder

ENGINE MAINTENANCE (VQ40DE)

MA-29

< ON-VEHICLE MAINTENANCE >

Refer to

EC-497, "How to Detect Fuel Vapor Leakage"

2010 Pathfinder

MA-30

< ON-VEHICLE MAINTENANCE >

ENGINE MAINTENANCE (VK56DE)

ENGINE MAINTENANCE (VK56DE)

DRIVE BELTS
DRIVE BELTS : Checking Drive Belts

INFOID:0000000005255680

WARNING:

Be sure to perform when the engine is stopped.

1. Remove air duct and resonator assembly when inspecting drive belt.
2. Make sure that indicator (single line notch) of each auto tensioner is within the allowable working range

“A” (between three line notches) as shown.

NOTE:

• Check the drive belt auto tensioner indication when the engine is cold.

• The indicator notch is located on the moving side of the drive belt auto tensioner.

3. Visually check entire belt for wear, damage or cracks.
4. If the indicator is out of allowable working range or belt is damaged, replace the belt. Refer to

EM-149,

"Removal and Installation"

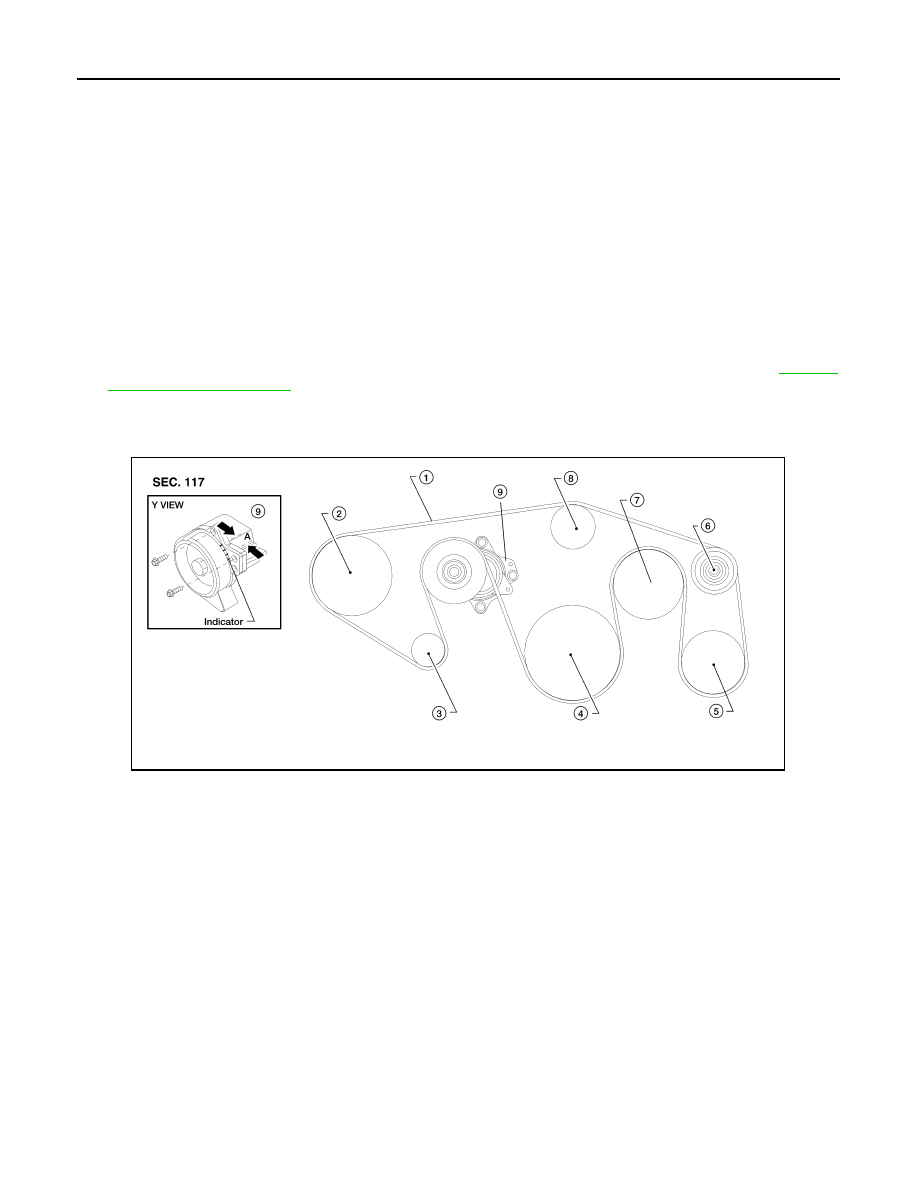

DRIVE BELTS : Exploded View

INFOID:0000000005255681

ENGINE COOLANT
ENGINE COOLANT : Changing Engine Coolant

INFOID:0000000005255682

WARNING:

• To avoid being scalded, never change the coolant when the engine is hot.

• Wrap a thick cloth around the cap to carefully remove the cap. First, turn the cap a quarter of a turn

to release any built-up pressure, then push down and turn the cap all the way to remove it.

DRAINING ENGINE COOLANT

1. Turn ignition switch ON and set temperature control lever all the way to HOT position or the highest tem-

perature position. Wait 10 seconds and turn ignition switch OFF.

2. Remove the engine front undercover using power tool.

Drive belt

Power steering pump pulley

Generator pulley

Crankshaft pulley

A/C compressor

Idler pulley

Cooling fan pulley

Water pump pulley

Drive belt auto tensioner

Allowable working range

LBIA0391E

2010 Pathfinder

ENGINE MAINTENANCE (VK56DE)

MA-31

< ON-VEHICLE MAINTENANCE >

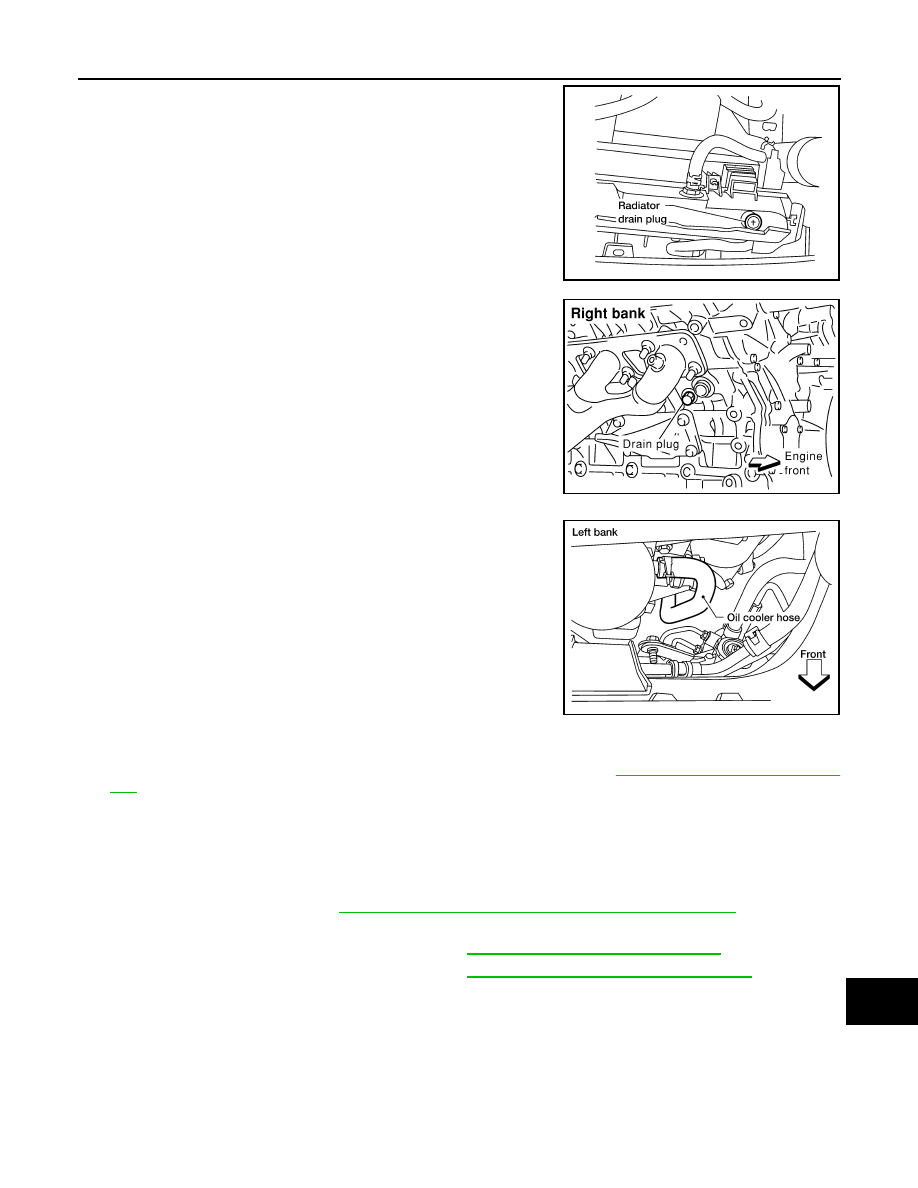

3. Open the radiator drain plug at the bottom of the radiator, and

remove the radiator filler cap. This is the only step required

when partially draining the cooling system (radiator only).

CAUTION:

Do not to allow the coolant to contact the drive belts.

4. When draining all of the coolant in the system for engine

removal or repair, it is necessary to drain the cylinder block.

Remove the RH cylinder block drain plug to drain the right bank,

the oil cooler hose to drain the left bank as shown and the block

heater if equipped.

5. Remove the reservoir tank to drain the engine coolant, then clean the reservoir tank before installing it.
6. Check the drained coolant for contaminants such as rust, corrosion or discoloration.

If the coolant is contaminated, flush the engine cooling system. Refer to

CO-40, "Changing Engine Cool-

ant"

REFILLING ENGINE COOLANT

1. Close the radiator drain plug. Install the reservoir tank, cylinder block drain plug, the oil cooler hose and

block heater if equipped, if removed for a total system drain or for engine removal or repair.

• The radiator must be completely empty of coolant and water.

• Apply sealant to the threads of the cylinder block drain plug. Use Genuine High Performance Thread

Sealant or equivalent. Refer to

2. Set the vehicle heater controls to the full HOT and heater ON position. Turn the vehicle ignition ON with

the engine OFF as necessary to activate the heater mode.

3. Remove the vented reservoir cap and replace it with a non-vented reservoir cap before filling the cooling

system.

LLIA0070E

PBIC0146E

WBIA0392E

Radiator drain plug

: Refer to

CO-44, "Removal and Installation"

RH cylinder block drain plug

: Refer to

EM-219, "Disassembly and Assembly"

2010 Pathfinder

MA-32

< ON-VEHICLE MAINTENANCE >

ENGINE MAINTENANCE (VK56DE)

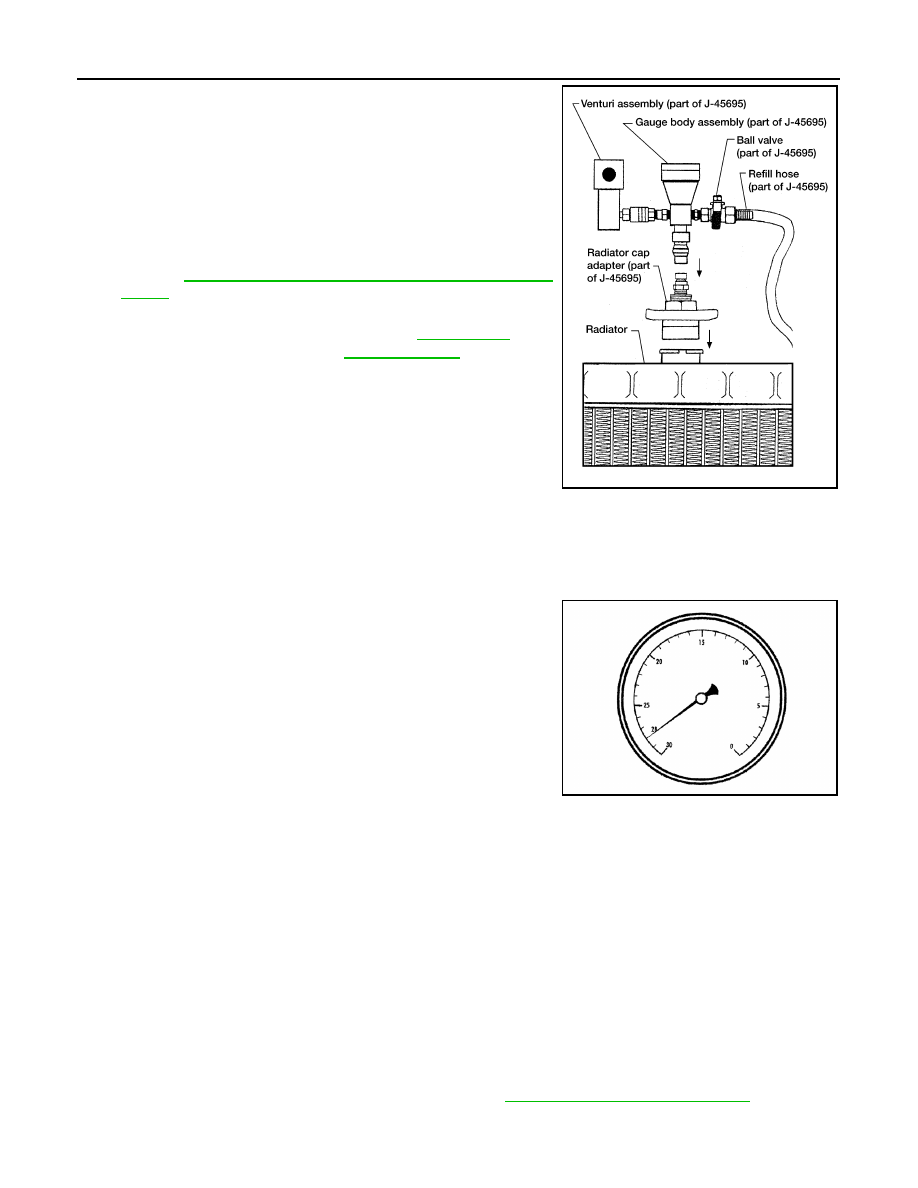

4. Install the Tool by installing the radiator cap adapter onto the

radiator neck opening. Then attach the gauge body assembly

with the refill tube and the venturi assembly to the radiator cap

adapter.

5. Insert the refill hose into the coolant mixture container that is

placed at floor level. Make sure the ball valve is in the closed

position.

• Use recommended coolant or equivalent.

Refer to

MA-17, "For North America: Engine Oil Recommen-

dation"

6. Install an air hose to the venturi assembly, the air pressure must

be within specification.

CAUTION:

The compressed air supply must be equipped with an air

dryer.

7. The vacuum gauge will begin to rise and there will be an audible hissing noise. During this process open

the ball valve on the refill hose slightly. Coolant will be visible rising in the refill hose. Once the refill hose is

full of coolant, close the ball valve. This will purge any air trapped in the refill hose.

8. Continue to draw the vacuum until the gauge reaches 28 inches

of vacuum. The gauge may not reach 28 inches in high altitude

locations, use the vacuum specifications based on the altitude

above sea level.

9. When the vacuum gauge has reached the specified amount, disconnect the air hose and wait 20 seconds

to see if the system loses any vacuum. If the vacuum level drops, perform any necessary repairs to the

system and repeat steps 6 - 8 to bring the vacuum to the specified amount. Recheck for any leaks.

10. Place the coolant container (with the refill hose inserted) at the same level as the top of the radiator. Then

open the ball valve on the refill hose so the coolant will be drawn up to fill the cooling system. The cooling

system is full when the vacuum gauge reads zero.

CAUTION:

Do not allow the coolant container to get too low when filling, to avoid air from being drawn into

the cooling system.

11. Remove the Tool from the radiator neck opening and install the radiator cap.
12. Remove the non-vented reservoir cap.
13. Fill the cooling system reservoir tank to the specified level. Run the engine to warm up the cooling system

and top up the system as necessary before installing the vented reservoir cap.

FLUSHING COOLING SYSTEM

1. Drain the water from the engine cooling system. Refer to

CO-12, "Changing Engine Coolant"

2. Fill the radiator and the reservoir tank (to the “MAX” line), with water. Reinstall the radiator cap and leave

the vented reservoir cap off.

Tool number

: KV991J0070 (J-45695)

Cooling system capacity
(with reservoir)

: Refer to

MA-16, "For

North America"

Compressed air
supply pressure

: 549 - 824 kPa (5.6 - 8.4 kg/cm

80 - 119 psi)

LLIA0058E

Altitude above sea level

Vacuum gauge reading

0 - 100 m (328 ft)

: 28 inches of vacuum

300 m (984 ft)

: 27 inches of vacuum

500 m (1,641 ft)

: 26 inches of vacuum

1,000 m (3,281 ft)

: 24 - 25 inches of vacuum

LLIA0057E

2010 Pathfinder

ENGINE MAINTENANCE (VK56DE)

MA-33

< ON-VEHICLE MAINTENANCE >

3. Run the engine until it reaches normal operating temperature.
4. Press the engine accelerator two or three times under no-load.
5. Stop the engine and wait until it cools down.
6. Drain the water from the engine cooling system. Refer to

CO-12, "Changing Engine Coolant"

7. Repeat steps 2 through 6 until clear water begins to drain from the radiator.

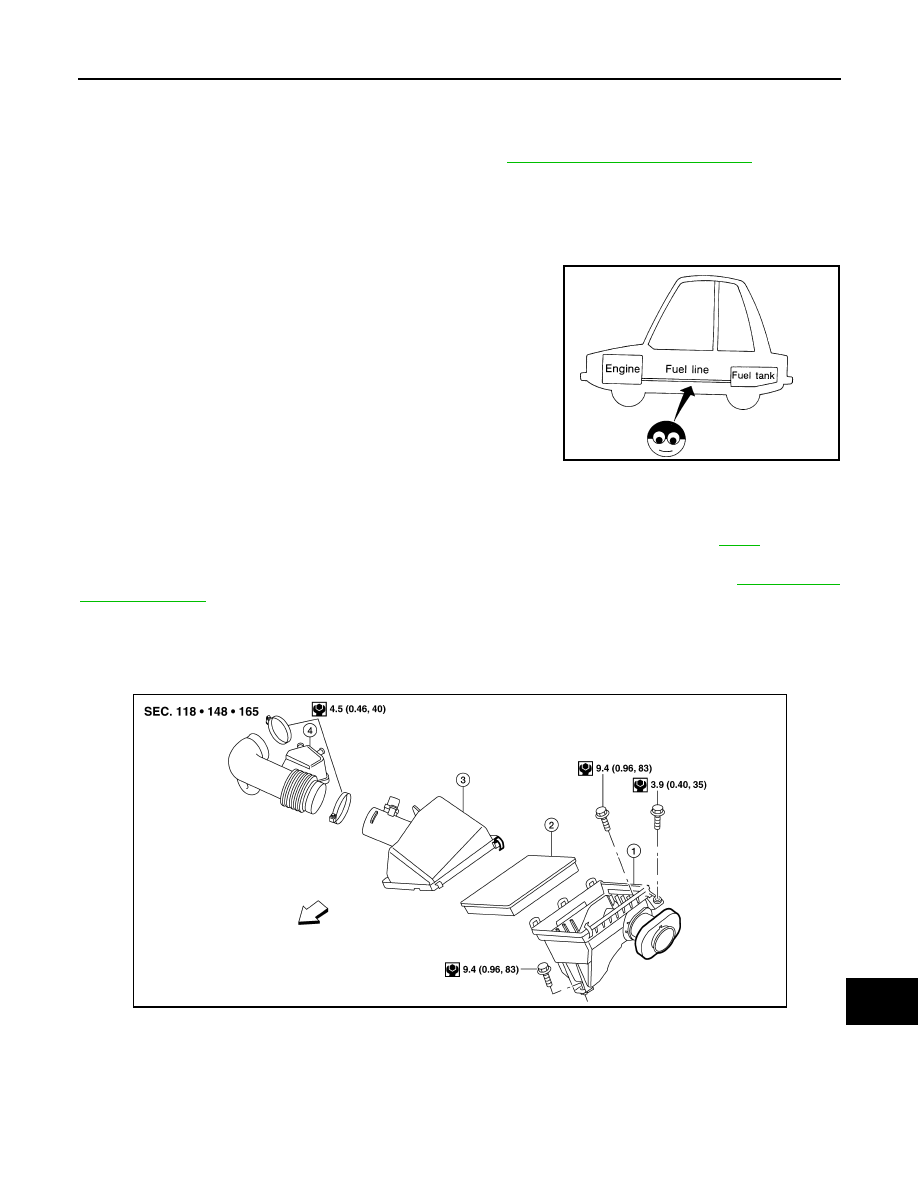

FUEL LINES
FUEL LINES : Checking Fuel Line

INFOID:0000000005255683

Inspect fuel lines, fuel filler cap and fuel tank for improper attach-

ment, leaks, cracks, damage, loose connections, chafing or deterio-

ration.

If necessary, repair or replace damaged parts.

FUEL FILTER
FUEL FILTER : Changing Fuel Filter

INFOID:0000000005255684

The fuel filter is part of the fuel level sensor unit, fuel filter and fuel pump assembly. Refer to

FL-16

WARNING:

Before replacing the fuel filter, release the fuel pressure from the fuel system. Refer to

EC-958, "Fuel

Pressure Check"

AIR CLEANER FILTER
AIR CLEANER FILTER : Exploded View

INFOID:0000000005255685

AIR CLEANER FILTER : Removal and Installation

INFOID:0000000005255686

REMOVAL

SMA803A

Air cleaner case (lower)

Air cleaner filter

Air cleaner case (upper)

Air duct and resonator assembly

⇐

Front

ALBIA0413GB

2010 Pathfinder

MA-34

< ON-VEHICLE MAINTENANCE >

ENGINE MAINTENANCE (VK56DE)

NOTE:

• The viscous paper type filter does not need cleaning between replacement intervals.

• Replace the air filter as necessary for periodic maintenance. Refer to

MA-9, "For North America"

1. Unhook clips, and lift air cleaner case (upper).
2. Remove the air cleaner filter.

INSTALLATION

1. Installation is in the reverse order of removal.

ENGINE OIL
ENGINE OIL : Changing Engine Oil

INFOID:0000000005255687

WARNING:

• Be careful not to burn yourself, as the engine and engine oil may be hot.

• Prolonged and repeated contact with used engine oil may cause skin cancer; try to avoid direct skin

contact with used oil. If skin contact is made, wash thoroughly with soap or hand cleaner as soon as

possible.

1. Warm up the engine, and check for any oil leaks.
2. Stop the engine and wait for at least 10 minutes.
3. Remove the oil drain plug and oil filler cap to drain the old oil.
4. Install a new washer on the oil drain plug, then install the oil drain plug in the oil pan.

CAUTION:

Clean the drain plug and install with a new washer.

5. Refill the engine with new specified engine oil.

CAUTION:

The refill capacity depends on the oil temperature and drain time. Use the “Refill oil capacity” val-

ues as a reference and check the oil level using the dipstick when filling the engine with oil.

6. Warm up the engine and check the area around the drain plug and oil filter for any oil leaks.
7. Stop the engine and wait for more than 10 minutes.

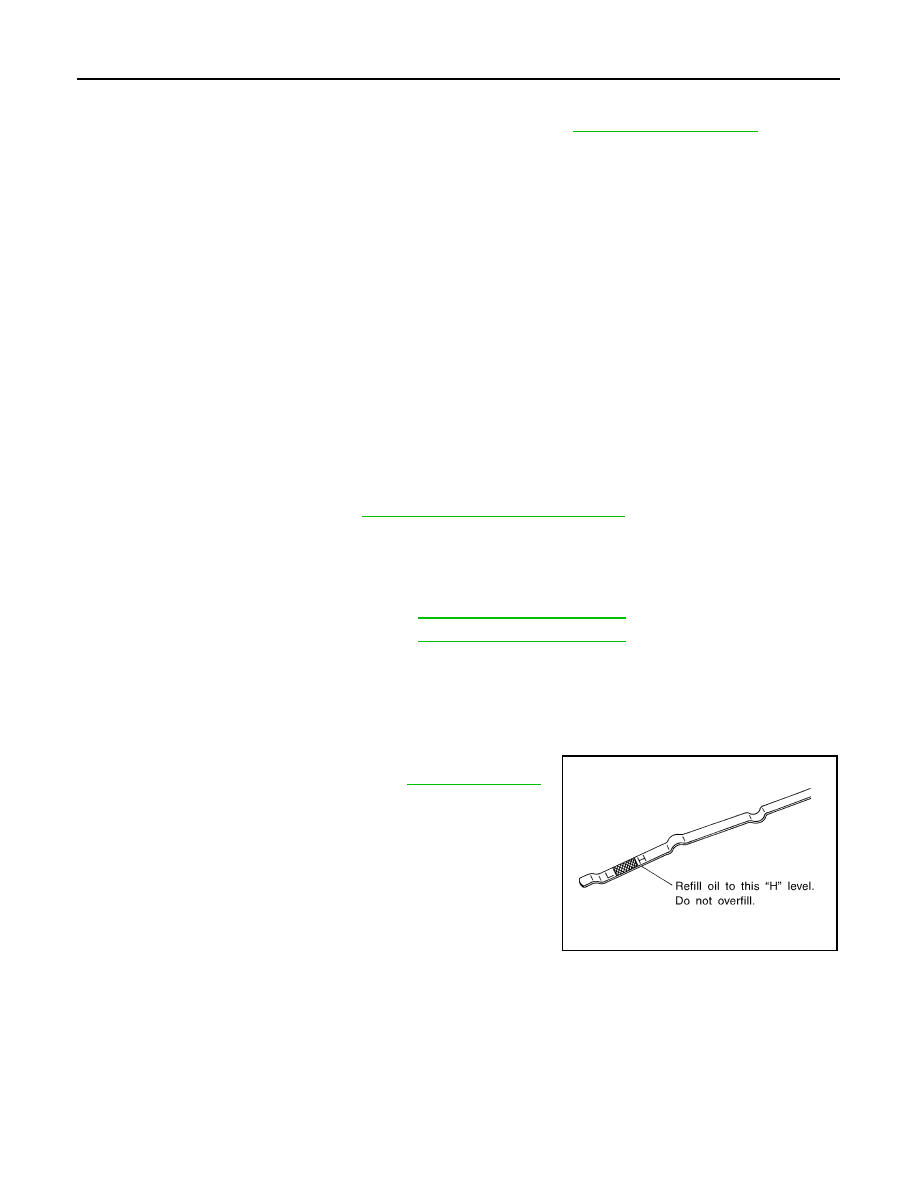

8. Check the oil level using the dipstick as shown. Add oil as nec-

essary and install the oil filler cap. Refer to

LU-24, "Inspection"

CAUTION:

Do not overfill the engine with oil.

OIL FILTER
OIL FILTER : Removal and Installation

INFOID:0000000005255688

REMOVAL

1. Remove the engine front undercover access plate using power tool.

Oil drain plug

: Refer to

EM-169, "Removal and Installation"

Oil grade and viscosity
