IP-20

< DISASSEMBLY AND ASSEMBLY >

CENTER CONSOLE ASSEMBLY

12. Remove wire harness bracket.

Assembly

Assembly is in the reverse order of disassembly.

2010 Pathfinder

LAN

LAN-1

ELECTRICAL & POWER CONTROL

C

D

E

F

G

H

I

J

K

L

B

SECTION

LAN

A

O

P

N

CONTENTS

LAN SYSTEM

CAN FUNDAMENTAL

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Trouble Diagnosis ..............................

3

Precaution for Harness Repair ..................................

3

FUNCTION DIAGNOSIS ...............................

4

CAN COMMUNICATION SYSTEM  .....................

4

System Description  ...................................................

4

System Diagram ........................................................

4

CAN Communication Control Circuit .........................

5

DIAG ON CAN .....................................................

6

Description ................................................................

6

System Diagram ........................................................

6

TROUBLE DIAGNOSIS  ......................................

7

Condition of Error Detection ......................................

7

Symptom When Error Occurs in CAN Communi-
cation System ............................................................

7

Self-Diagnosis .........................................................

11

CAN Diagnostic Support Monitor  ............................

11

BASIC INSPECTION  ...................................

13

DIAGNOSIS AND REPAIR WORKFLOW  .........

13

Information Needed for Trouble Diagnosis  .............

13

How to Use CAN Communication Signal Chart  ......

13

Trouble Diagnosis Flow Chart .................................

14

Trouble Diagnosis Procedure ..................................

14

CAN

HOW TO USE THIS MANUAL .....................

36

HOW TO USE THIS SECTION ...........................

36

Caution ....................................................................

36

Abbreviation List ......................................................

36

PRECAUTION ..............................................

37

PRECAUTIONS .................................................

37

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

37

Precautions for Trouble Diagnosis  ..........................

37

Precautions for Harness Repair  ..............................

37

BASIC INSPECTION  ...................................

39

DIAGNOSIS AND REPAIR WORKFLOW  ........

39

Interview Sheet ........................................................

39

Diagnosis Sheet (CAN Type 1)  ...............................

40

Diagnosis Sheet (CAN Type 2)  ...............................

41

Diagnosis Sheet (CAN Type 3)  ...............................

42

Diagnosis Sheet (CAN Type 4)  ...............................

43

Diagnosis Sheet (CAN Type 5)  ...............................

44

Diagnosis Sheet (CAN Type 6)  ...............................

45

Diagnosis Sheet (CAN Type 7)  ...............................

46

Diagnosis Sheet (CAN Type 8)  ...............................

47

Diagnosis Sheet (CAN Type 9)  ...............................

48

Diagnosis Sheet (CAN Type 10)  .............................

49

Diagnosis Sheet (CAN Type 11)  .............................

50

Diagnosis Sheet (CAN Type 12)  .............................

51

FUNCTION DIAGNOSIS ..............................

52

CAN COMMUNICATION SYSTEM ...................

52

CAN System Specification Chart .............................

52

CAN Communication Signal Chart  ..........................

53

TROUBLE DIAGNOSIS  ....................................

56

CAN Diagnostic Support Monitor .............................

56

DTC Index  ...............................................................

60

COMPONENT DIAGNOSIS .........................

61

CAN COMMUNICATION SYSTEM ...................

61

Component Parts Location  ......................................

61

Wiring Diagram - CAN SYSTEM -  ...........................

62

MALFUNCTION AREA CHART ........................

70

Main Line  .................................................................

70

2010 Pathfinder

LAN-2

Branch Line  ............................................................

70

Short Circuit ............................................................

70

MAIN LINE BETWEEN TCM AND A-BAG
CIRCUIT .............................................................

71

Diagnosis Procedure  ..............................................

71

MAIN LINE BETWEEN A-BAG AND DLC CIR-
CUIT ...................................................................

73

Diagnosis Procedure  ..............................................

73

MAIN LINE BETWEEN DLC AND ABS CIR-
CUIT ...................................................................

74

Diagnosis Procedure  ..............................................

74

ECM BRANCH LINE CIRCUIT  ..........................

75

Diagnosis Procedure  ..............................................

75

TCM BRANCH LINE CIRCUIT  ..........................

76

Diagnosis Procedure  ..............................................

76

AV BRANCH LINE CIRCUIT  .............................

77

Diagnosis Procedure  ..............................................

77

I-KEY BRANCH LINE CIRCUIT  ........................

78

Diagnosis Procedure  ..............................................

78

4WD BRANCH LINE CIRCUIT  ..........................

79

Diagnosis Procedure ...............................................

79

ADP BRANCH LINE CIRCUIT  ..........................

80

Diagnosis Procedure ...............................................

80

BCM BRANCH LINE CIRCUIT ..........................

81

Diagnosis Procedure ...............................................

81

DLC BRANCH LINE CIRCUIT  ..........................

82

Diagnosis Procedure ...............................................

82

HVAC BRANCH LINE CIRCUIT ........................

83

Diagnosis Procedure ...............................................

83

M&A BRANCH LINE CIRCUIT ..........................

84

Diagnosis Procedure ...............................................

84

STRG BRANCH LINE CIRCUIT ........................

85

Diagnosis Procedure ...............................................

85

ABS BRANCH LINE CIRCUIT  ..........................

86

Diagnosis Procedure ...............................................

86

IPDM-E BRANCH LINE CIRCUIT  .....................

87

Diagnosis Procedure ...............................................

87

CAN COMMUNICATION CIRCUIT  ...................

88

Diagnosis Procedure ...............................................

88

2010 Pathfinder

LAN

PRECAUTIONS

LAN-3

< PRECAUTION >

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

PRECAUTION

PRECAUTIONS

Precaution for Trouble Diagnosis

INFOID:0000000005530656

CAUTION:

• Never apply 7.0 V or more to the measurement terminal.

• Use a tester with open terminal voltage of 7.0 V or less.

• Turn the ignition switch OFF and disconnect the battery cable from the negative terminal when

checking the harness.

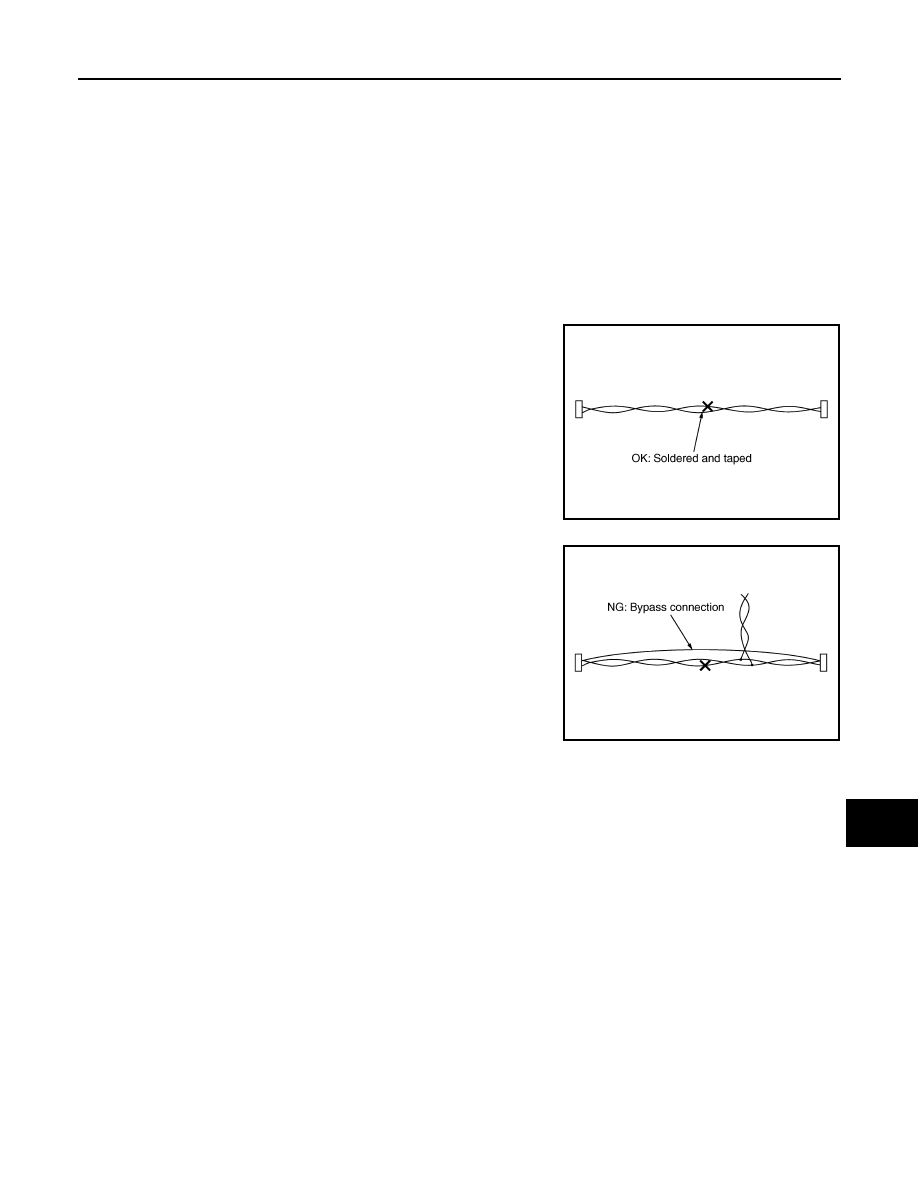

Precaution for Harness Repair

INFOID:0000000005530657

• Solder the repaired area and wrap tape around the soldered area.

NOTE:

A fray of twisted lines must be within 110 mm (4.33 in).

• Bypass connection is never allowed at the repaired area.

NOTE:

Bypass connection may cause CAN communication error. The

spliced wire becomes separated and the characteristics of twisted

line are lost.

• Replace the applicable harness as an assembly if error is detected on the shield lines of CAN communica-

tion line.

SKIB8766E

SKIB8767E

2010 Pathfinder

LAN-4

< FUNCTION DIAGNOSIS >

[CAN FUNDAMENTAL]

CAN COMMUNICATION SYSTEM

FUNCTION DIAGNOSIS

CAN COMMUNICATION SYSTEM

System Description

INFOID:0000000005530658

• CAN communication is a multiplex communication system. This enables the system to transmit and receive

large quantities of data at high speed by connecting control units with two communication lines (CAN-H and

CAN-L).

• Control units on the CAN network transmit signals using the CAN communication control circuit. They

receive only necessary signals from other control units to operate various functions.

• CAN communication lines adopt twisted-pair line style (two lines twisted) for noise immunity.

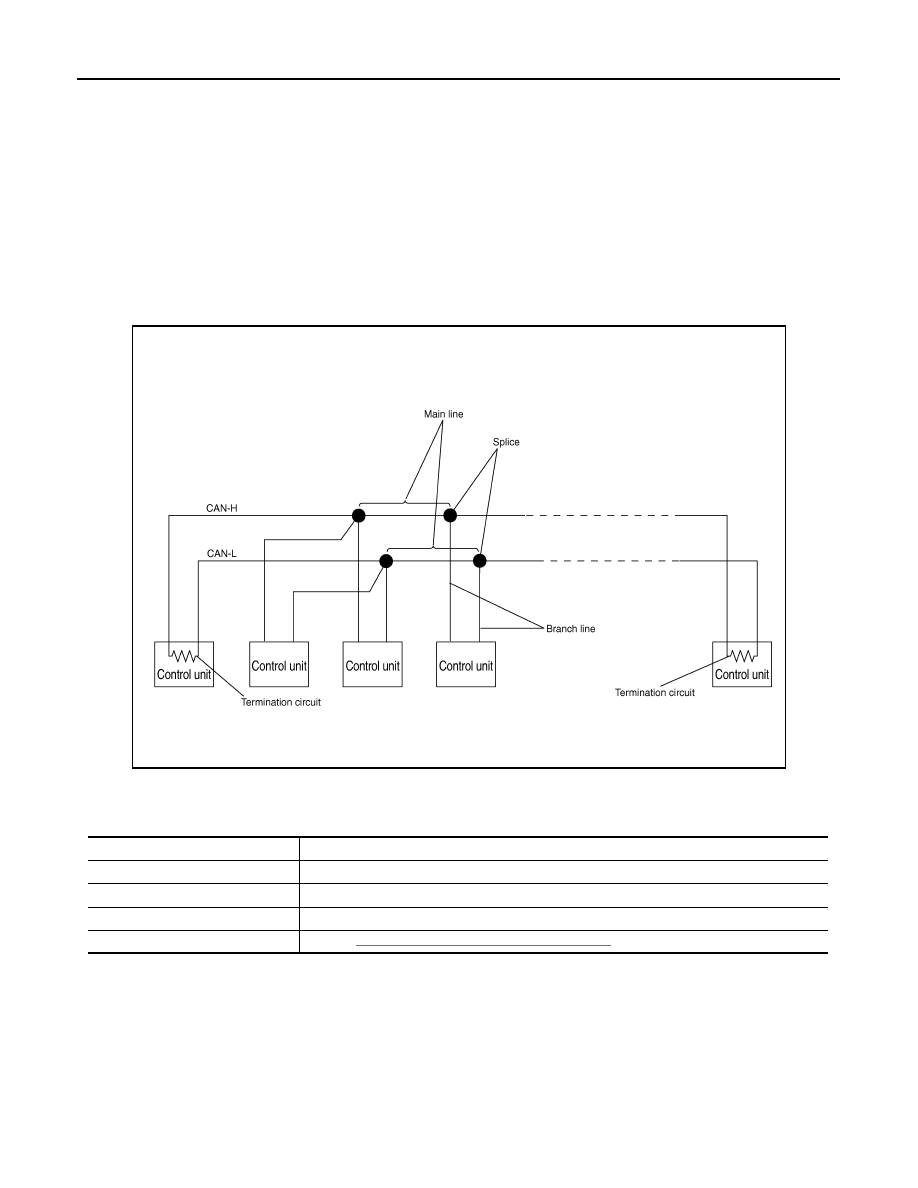

System Diagram

INFOID:0000000005530659

Each control unit passes an electric current to the termination circuits when transmitting CAN communication

signal. The termination circuits produce an electrical potential difference between CAN-H and CAN-L. CAN

communication system transmits and receives CAN communication signals by the potential difference.

SKIB8887E

Component

Description

Main line

CAN communication line between splices

Branch line

CAN communication line between splice and a control unit

Splice

A point connecting a branch line with a main line

Termination circuit

Refer to

LAN-5, "CAN Communication Control Circuit"

.

2010 Pathfinder

LAN

CAN COMMUNICATION SYSTEM

LAN-5

< FUNCTION DIAGNOSIS >

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

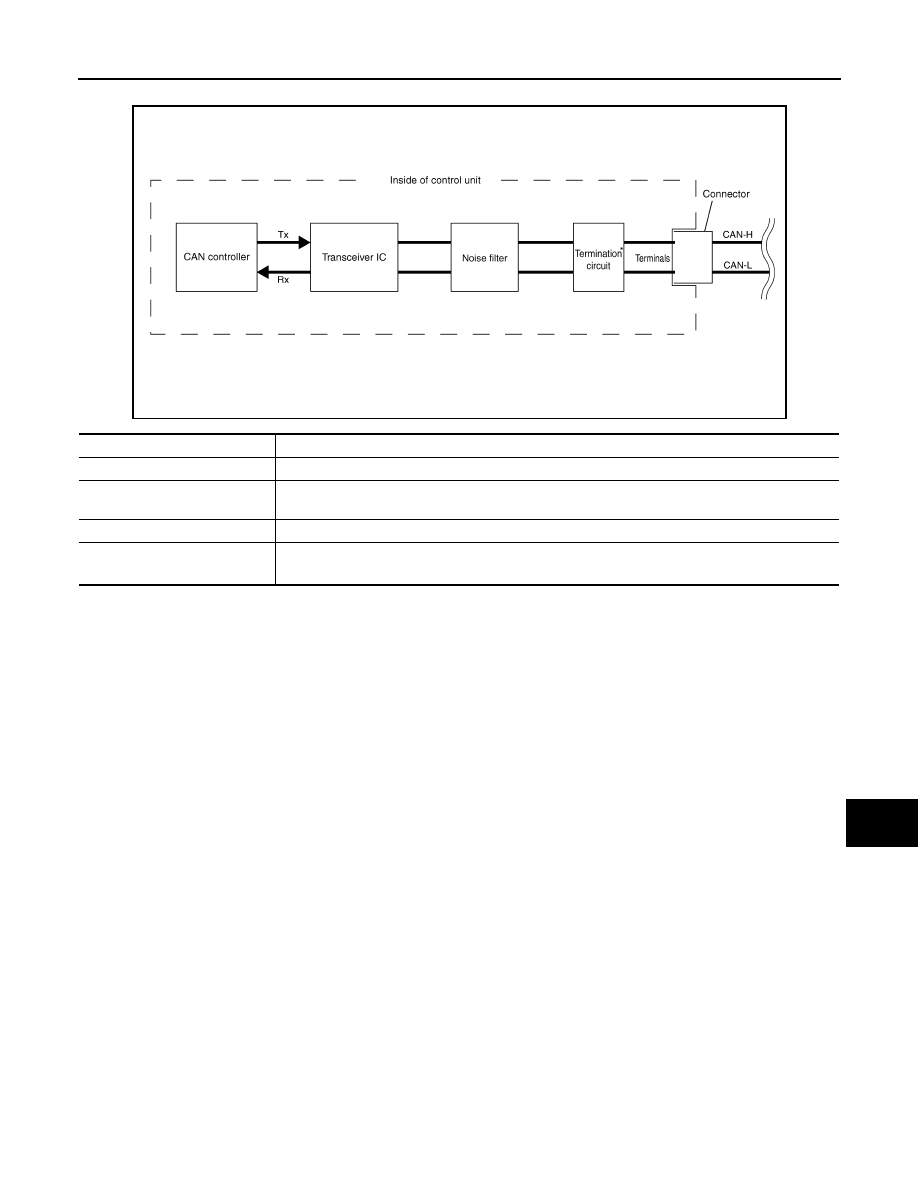

CAN Communication Control Circuit

INFOID:0000000005530660

*: These are the only control units wired with both ends of CAN communication system.

SKIB8713E

Component

System description

CAN controller

It controls CAN communication signal transmission and reception, error detection, etc.

Transceiver IC

It converts digital signal into CAN communication signal, and CAN communication signal into digital
signal.

Noise filter

It eliminates noise of CAN communication signal.

Termination circuit

*

(Resistance of approx. 120

Ω

)

It produces potential difference.

2010 Pathfinder

LAN-6

< FUNCTION DIAGNOSIS >

[CAN FUNDAMENTAL]

DIAG ON CAN

DIAG ON CAN

Description

INFOID:0000000005530661

“Diag on CAN” is a diagnosis using CAN communication instead of previous DDL1 and DDL2 communication

lines, between control units and diagnosis unit.

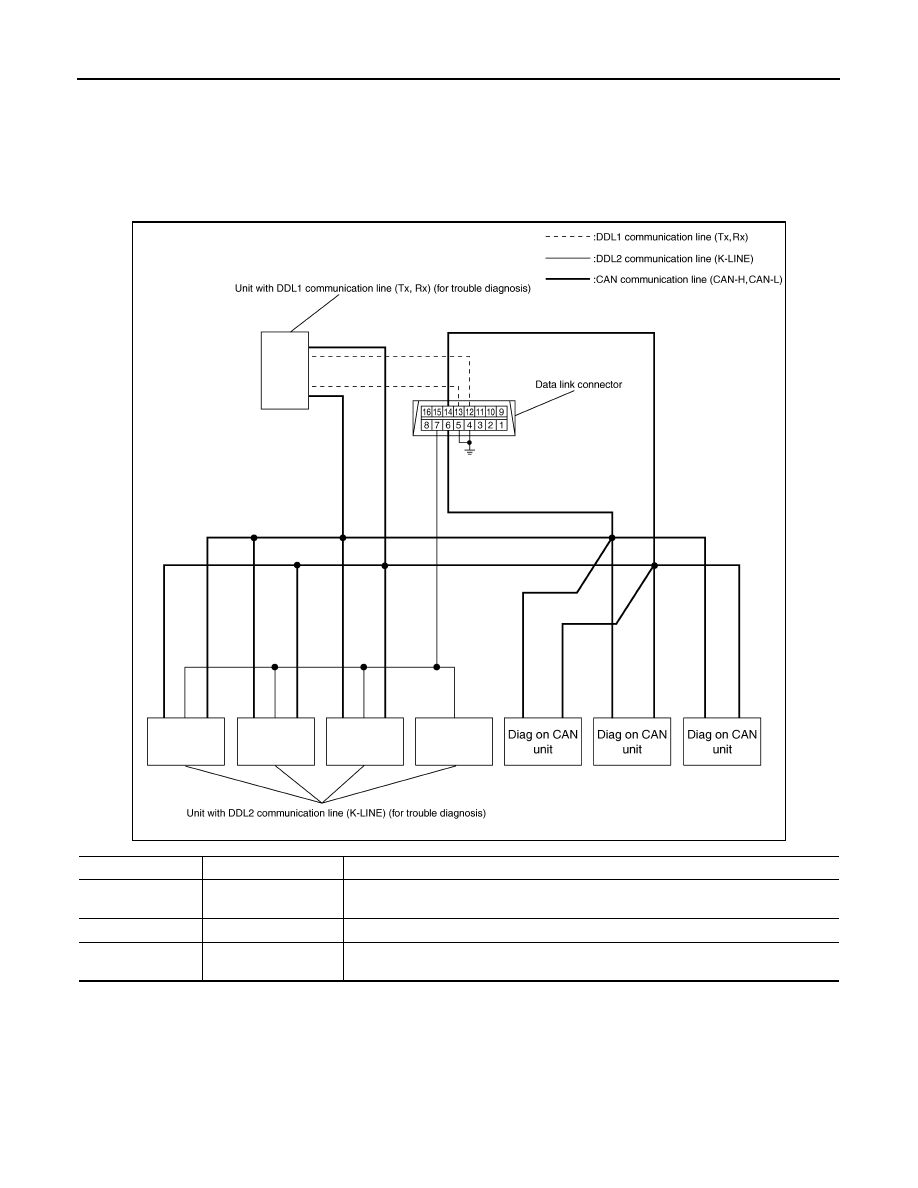

System Diagram

INFOID:0000000005530662

SKIB8714E

Name

Harness

Description

DDL1

Tx
Rx

It is used for trouble diagnosis. (CAN-H and CAN-L are used for controlling)

DDL2

K-LINE

It is used for trouble diagnosis. (CAN-H and CAN-L are used for controlling)

Diag on CAN

CAN-H
CAN-L

It is used for trouble diagnosis and control.

2010 Pathfinder

LAN

TROUBLE DIAGNOSIS

LAN-7

< FUNCTION DIAGNOSIS >

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

TROUBLE DIAGNOSIS

Condition of Error Detection

INFOID:0000000005530663

DTC of CAN communication is indicated on SELF-DIAG RESULTS on CONSULT-III if a CAN communication

signal is not transmitted or received between units for 2 seconds or more.

NOTE:

DTCs of CAN communication are as follows:

• U0101

• U0140

• U0164

• U1000

• U1001

CAN COMMUNICATION SYSTEM ERROR

• CAN communication line open (CAN-H, CAN-L, or both)

• CAN communication line short (ground, between CAN communication lines, other harnesses)

• Error of CAN communication control circuit of the unit connected to CAN communication line

WHEN DTC OF CAN COMMUNICATION IS INDICATED EVEN THOUGH CAN COMMUNICATION
SYSTEM IS NORMAL

• Removal/installation of parts: Error may be detected when removing and installing CAN communication unit

and related parts while turning the ignition switch ON. (A DTC except for CAN communication may be

detected.)

• Fuse blown out (removed): CAN communication of the unit may cease.

• Voltage drop: Error may be detected if voltage drops due to discharged battery when turning the ignition

switch ON (Depending on the control unit which carries out CAN communication).

• Error may be detected if the power supply circuit of the control unit, which carries out CAN communication,

malfunctions (Depending on the control unit which carries out CAN communication).

• Error may be detected if reprogramming is not completed normally.

CAUTION:

CAN communication system is normal if DTC of CAN communication is indicated on SELF-DIAG

RESULTS of CONSULT-III under the above conditions. Erase the memory of the self-diagnosis of each

unit.

Symptom When Error Occurs in CAN Communication System

INFOID:0000000005530664

In CAN communication system, multiple units mutually transmit and receive signals. Each unit cannot transmit

and receive signals if any error occurs on CAN communication line. Under this condition, multiple control units

related to the root cause malfunction or go into fail-safe mode.

ERROR EXAMPLE

NOTE:

• Each vehicle differs in symptom of each unit under fail-safe mode and CAN communication line wiring.

• Refer to

LAN-36, "Abbreviation List"

 for the unit abbreviation.

2010 Pathfinder
