5. When the repair work is completed, return the ignition switch to the

″

LOCK

″

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT-III.

Service Notice

INFOID:0000000005256490

• When removing or installing various parts, place a cloth or padding on the vehicle body to prevent scratches.

• Handle trim, molding, instruments, grille, etc. carefully during removing or installing. Be careful not to soil or

damage them.

• Apply sealing compound where necessary when installing parts.

• When applying sealing compound, be careful that the sealing compound does not protrude from parts.

• When replacing any metal parts (for example body outer panel, members, etc.), be sure to take rust preven-

tion measures.

2010 Pathfinder

PREPARATION

INT-13

< PREPARATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000005256491

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000005256492

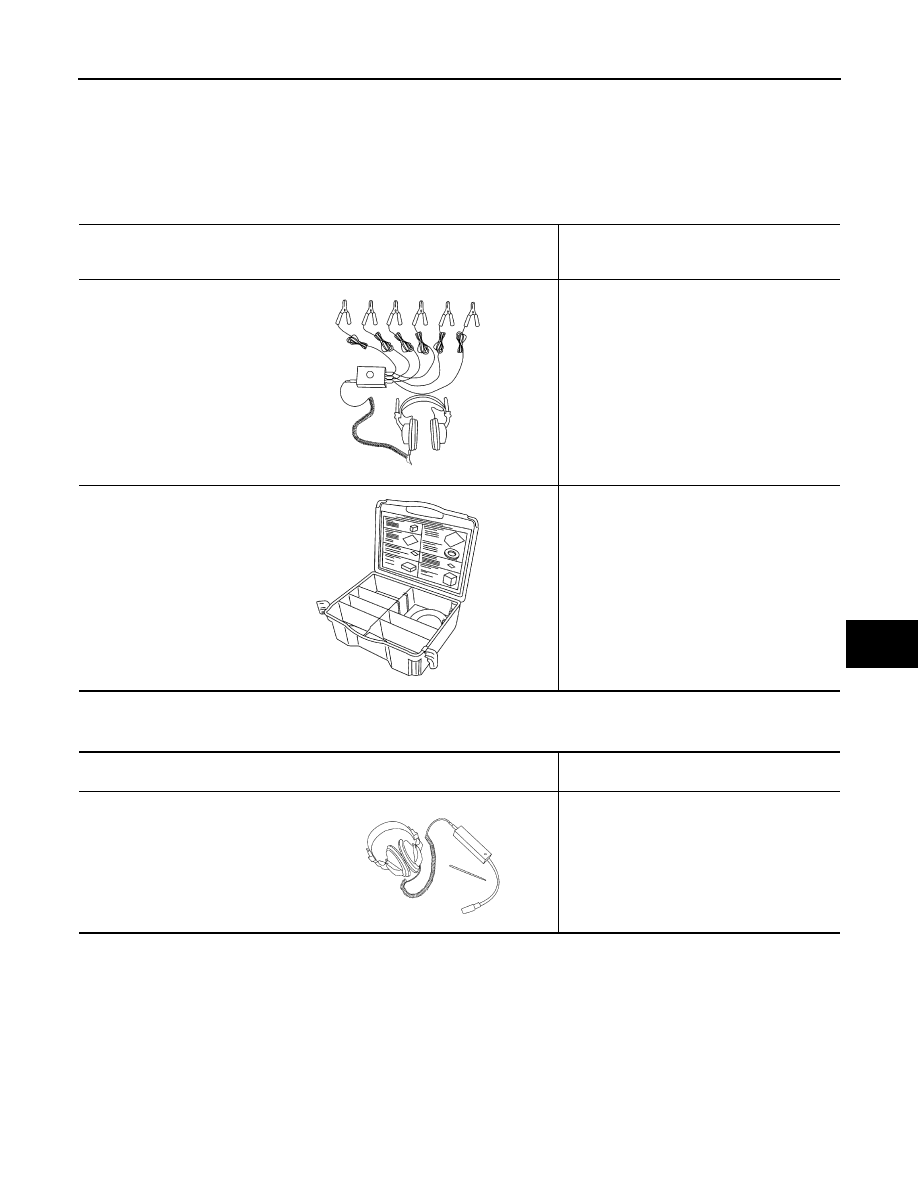

Tool number
(Kent-Moore No.)
Tool name

Description

—

(J-39570)
Chassis ear

Locating the noise

—

(J-43980)
NISSAN Squeak and Rattle kit

Repairing the cause of noise

SBT839

SBT840

(Kent-Moore No.)
Tool name

Description

(J-39565)
Engine ear

Locating the noise

SIIA0995E

2010 Pathfinder

INT-14

< ON-VEHICLE REPAIR >

DOOR FINISHER

ON-VEHICLE REPAIR

DOOR FINISHER

Removal and Installation

INFOID:0000000005256493

FRONT DOOR

Removal

1. Remove the power window switch assembly.

• Disconnect the harness connectors.

2. Remove the pull handle escutcheon.
3. Remove the pull handle cover and remove screw.
4. Lift the armrest upward to release clips and remove armrest.

• Remove the screws behind armrest.

5. Release the clips and remove the door finisher.

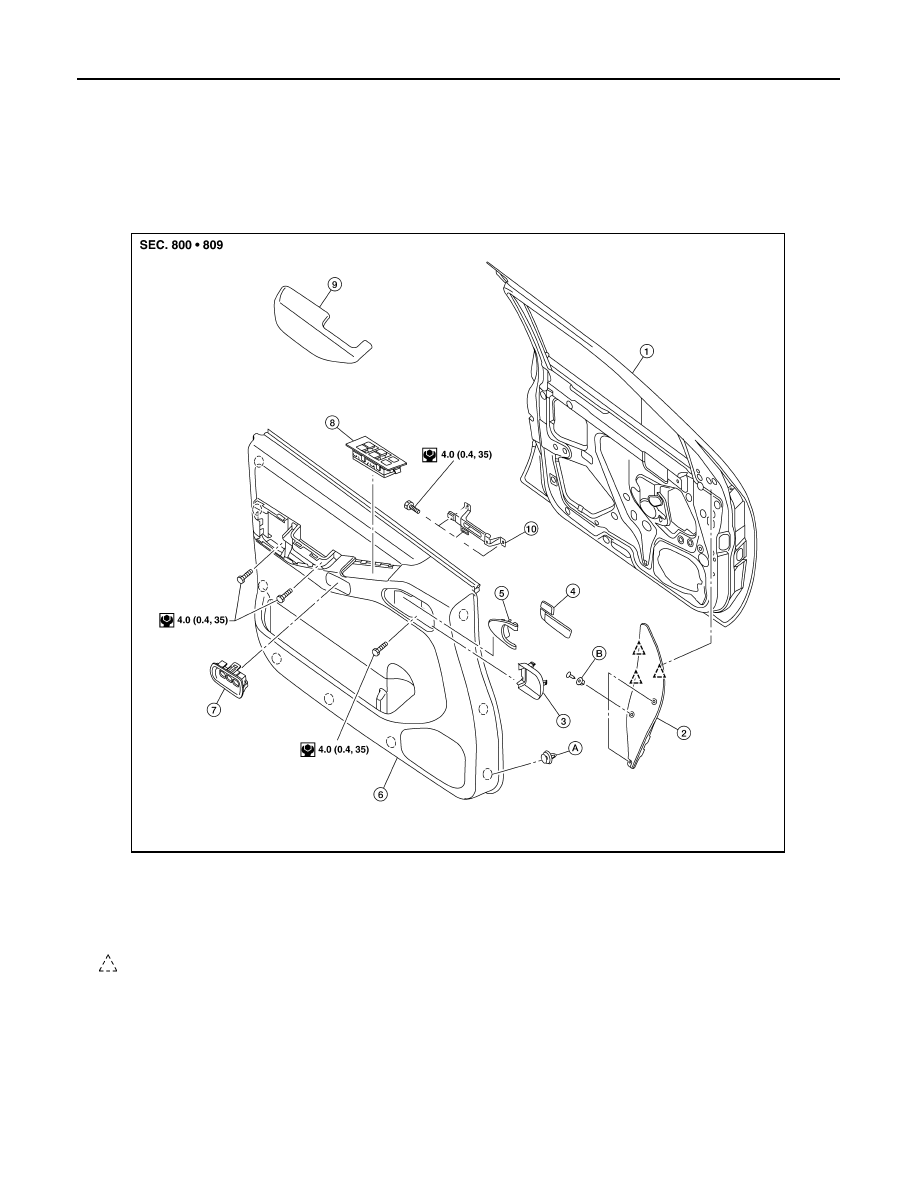

1.

Front door

2.

Mirror bolt cover LH

3.

Pull handle escutcheon

4.

Pull handle/lock lever assembly

5.

Pull handle cover

6.

Front door finisher LH

7.

Seat memory switch (if equipped)

8.

Power window/lock switch assembly 9.

Armrest

10. Front door handle bracket

A.

 Clip C101

B.

Clip C205

Clip

AWJIA0049GB

2010 Pathfinder

DOOR FINISHER

INT-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

• Disconnect lock cable and handle cable from door handle assembly. Refer to

DLK-199, "Removal and

Installation"

.

6. Remove the memory seat switch (if equipped).

• Disconnect the harness connector.

7. Remove the pull handle/lock lever assembly.

Installation

Installation is in the reverse order of removal.

REAR DOOR

Removal

1. Remove the power window switch assembly.

• Disconnect the harness connector.

2. Remove the pull handle cover.

• Remove the screw behind the pull handle cover.

3. Remove the pull handle escutcheon.
4. Lift upward to release clips and remove the armrest.

• Remove the screws behind armrest.

5. Release the clips and remove the rear door finisher.

• Disconnect the rear door tweeter connector, then remove the rear door tweeter screws and remove the

rear door tweeter.

Installation

Installation is in the reverse order of removal.

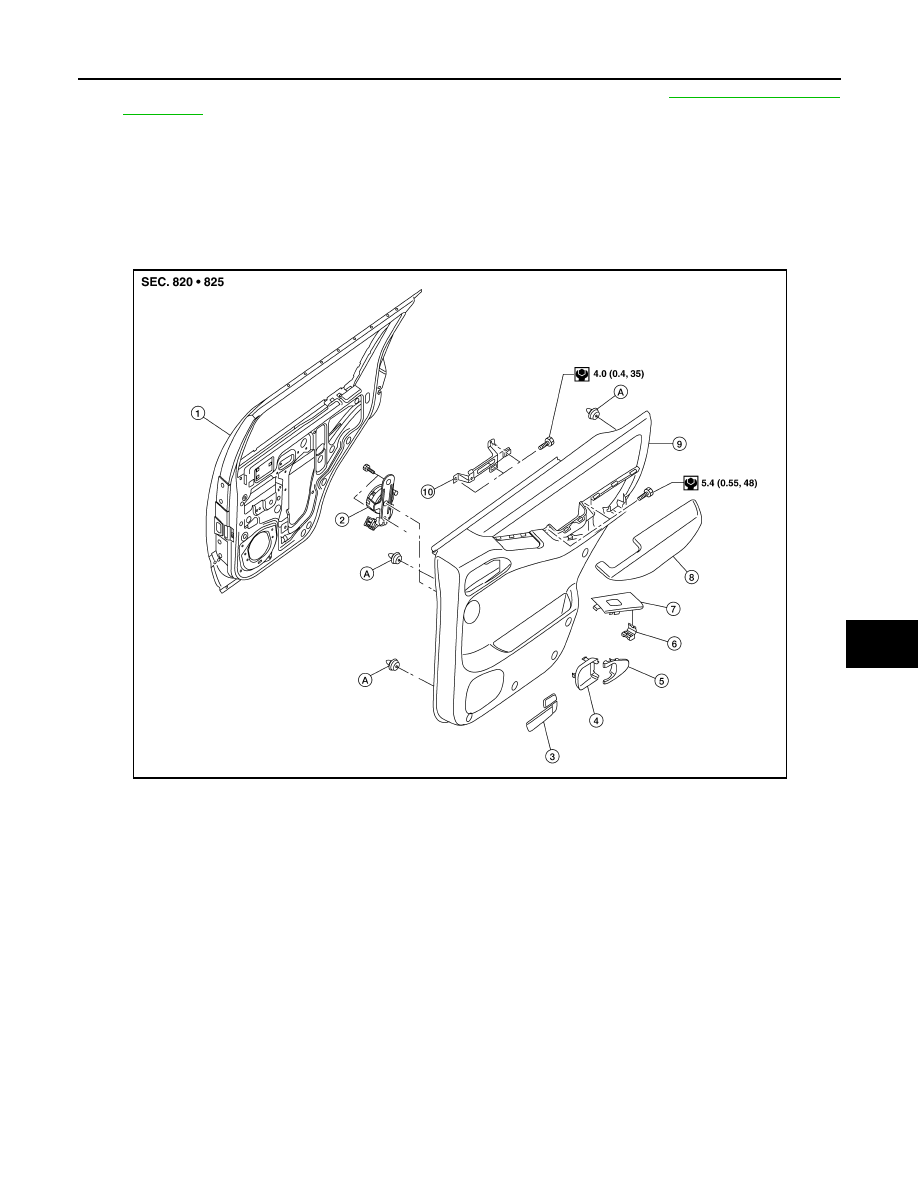

1.

Rear door

2.

Rear door tweeter

3.

Pull handle/lock lever assembly

4.

Pull handle escutcheon

5.

Pull handle cover

6.

Metal clip

7.

Power window switch assembly

8.

Armrest

9.

Rear door finisher (RH shown)

10. Rear door handle bracket

A.

Clip C101

AWJIA0050GB

2010 Pathfinder

INT-16

< ON-VEHICLE REPAIR >

BODY SIDE TRIM

BODY SIDE TRIM

Component

INFOID:0000000005256494

CAUTION:

• Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from finishers.

• When removing or installing body side welts, do not allow butyl seal to come in contact with pillar

finisher.

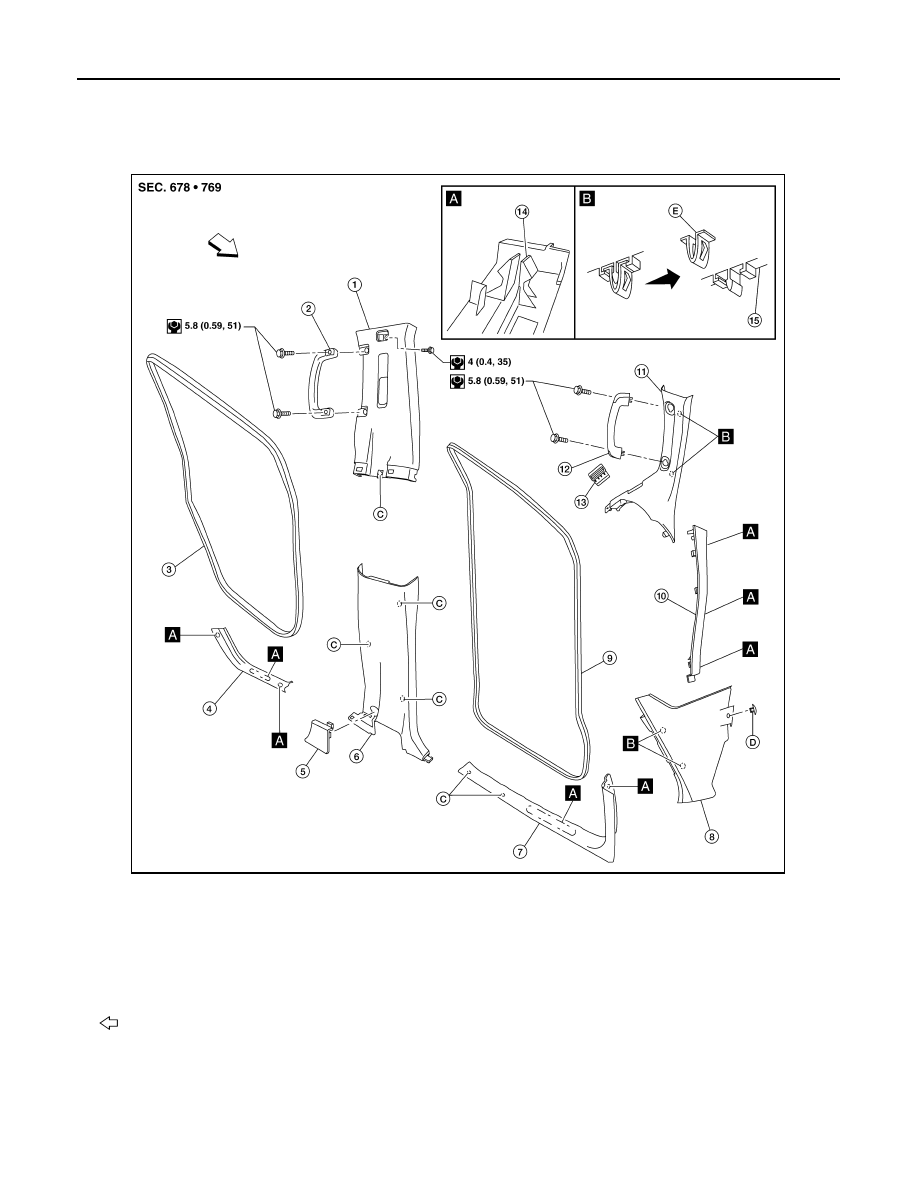

1.

Center pillar upper finisher

2.

Center pillar assist grip

3.

Rear door welt

4.

Rear kick plate

5.

Access cover (RH side only)

6.

Center pillar lower finisher

7.

Front kick plate

8.

Lower dash side finisher

9.

Front door welt

10. Front pillar lower finisher

11.  Front pillar upper finisher

12. Front pillar assist grip

13. LH side demister grille

14. Molded plastic clip

15. Garnish

C.

Clip C101

D.

Clip C111

E.

Metal clip

Vehicle front

AWJIA0051GB

2010 Pathfinder

BODY SIDE TRIM

INT-17

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

Removal and Installation

INFOID:0000000005256495

LOWER DASH SIDE FINISHER

Removal

1. Remove the push pin from lower dash side finisher.
2. Remove the front kick plate from center pillar lower finisher.
3. Remove the lower dash side finisher and the front kick plate together.
4. Remove the lower dash side finisher from the front kick plate.

Installation

Installation is in the reverse order of removal.

CENTER PILLAR LOWER FINISHER

Removal

1. Remove the seat belt anchor. Refer to

SB-12, "Removal and Installation"

.

• On RH side, disconnect seat belt tension sensor.

2. Remove the front and rear kick plates.
3. Remove the center pillar lower finisher.

Installation

Installation is in the reverse order of removal.

CENTER PILLAR UPPER FINISHER

Removal

1. Remove the front and rear door welts.
2. Remove the seat belt shoulder anchor and D-ring. Refer to

SB-12, "Removal and Installation"

.

3. Remove the front and rear kick plates.
4. Remove the center pillar lower finisher.
5. Remove the center pillar assist grip.
6. Remove the center pillar upper finisher.

Installation

Installation is in the reverse order of removal.

FRONT PILLAR UPPER FINISHER

Removal

1. Remove the front pillar assist grip.
2. Remove the front pillar upper finisher bolt.
3. Remove the front pillar upper finisher.

Installation

Installation is in the reverse order of removal.

FRONT PILLAR LOWER FINISHER

Removal

1. Partially remove the front door welt.
2. Remove the front pillar lower finisher.

Installation

Installation is in the reverse order of removal.

KICK PLATES

Removal

Release clips and remove the front and/or rear kick plates.

Installation

Installation is in the reverse order of removal.

2010 Pathfinder

INT-18

< ON-VEHICLE REPAIR >

FLOOR TRIM

FLOOR TRIM

Removal and Installation

INFOID:0000000005256496

Front and Rear Floor Carpet

REMOVAL

Front Carpet

1. Remove the front seats. Refer to

SE-30, "Removal and Installation"

.

2. Remove the lower seat belt anchors. Refer to

SB-12, "Removal and Installation"

.

3. Remove the lower body side trim panels. Refer to

INT-17, "Removal and Installation"

.

4. Remove the center console. Refer to

IP-12, "Removal and Installation"

.

5. Remove the floor mat hooks from the front carpet.
6. Remove the front carpet.

Rear Carpet

1. Remove the second and third row seats. Refer to

SE-31, "Removal and Installation"

.

2. Remove the luggage side lower finisher RH and LH. Refer to

INT-22, "Removal and Installation"

.

3. Remove the flipper doors and the floor tray. Refer to

INT-22, "Removal and Installation"

.

4. Remove the bolts and the storage box. Refer to

INT-22, "Removal and Installation"

.

5. Remove the rear carpet.

INSTALLATION

Installation is in the reverse order of removal.

AWJIA0411ZZ

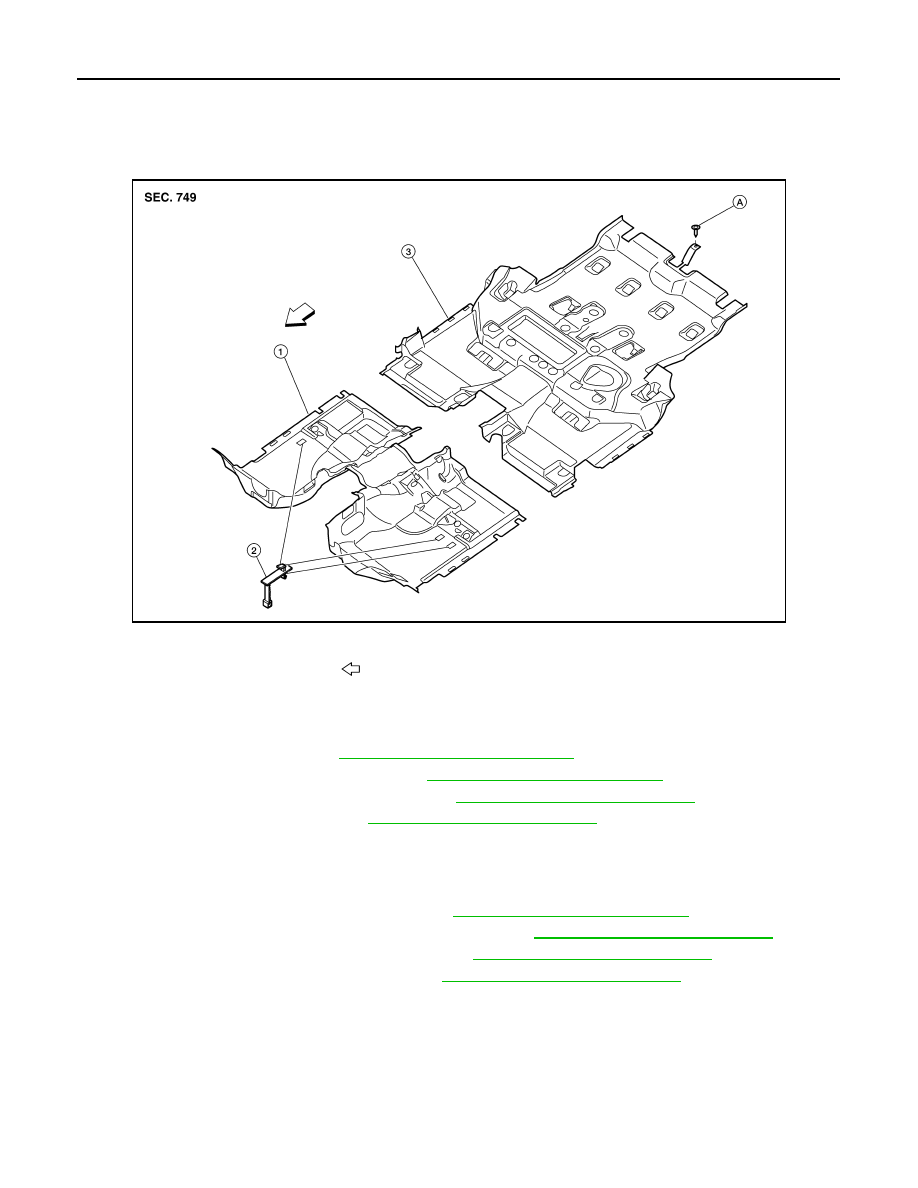

1.

Front carpet

2.

Floor mat hooks

3.

Rear carpet

A.

Clip C103

Vehicle front

2010 Pathfinder

HEADLINING

INT-19

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

HEADLINING

Removal and Installation

INFOID:0000000005256497

REMOVAL

1. Remove the body side trim panels. Refer to

INT-16, "Component"

.

2. Remove the luggage floor trim upper panels. Refer to

INT-21, "Component"

.

3. Remove the sun visor assemblies, both LH and RH.
4. Remove the sun visor holders LH and RH.
5. Remove the sunroof welt (if equipped).
6. Remove the DVD video monitor assembly (if equipped). Refer to

AV-148, "Removal and Installation of

Video Monitor"

 (Mid audio),

AV-301, "Removal and Installation of Video Monitor"

 (BOSE audio without

navigation) and

AV-468, "Removal and Installation of Video Monitor"

 (BOSE audio with navigation).

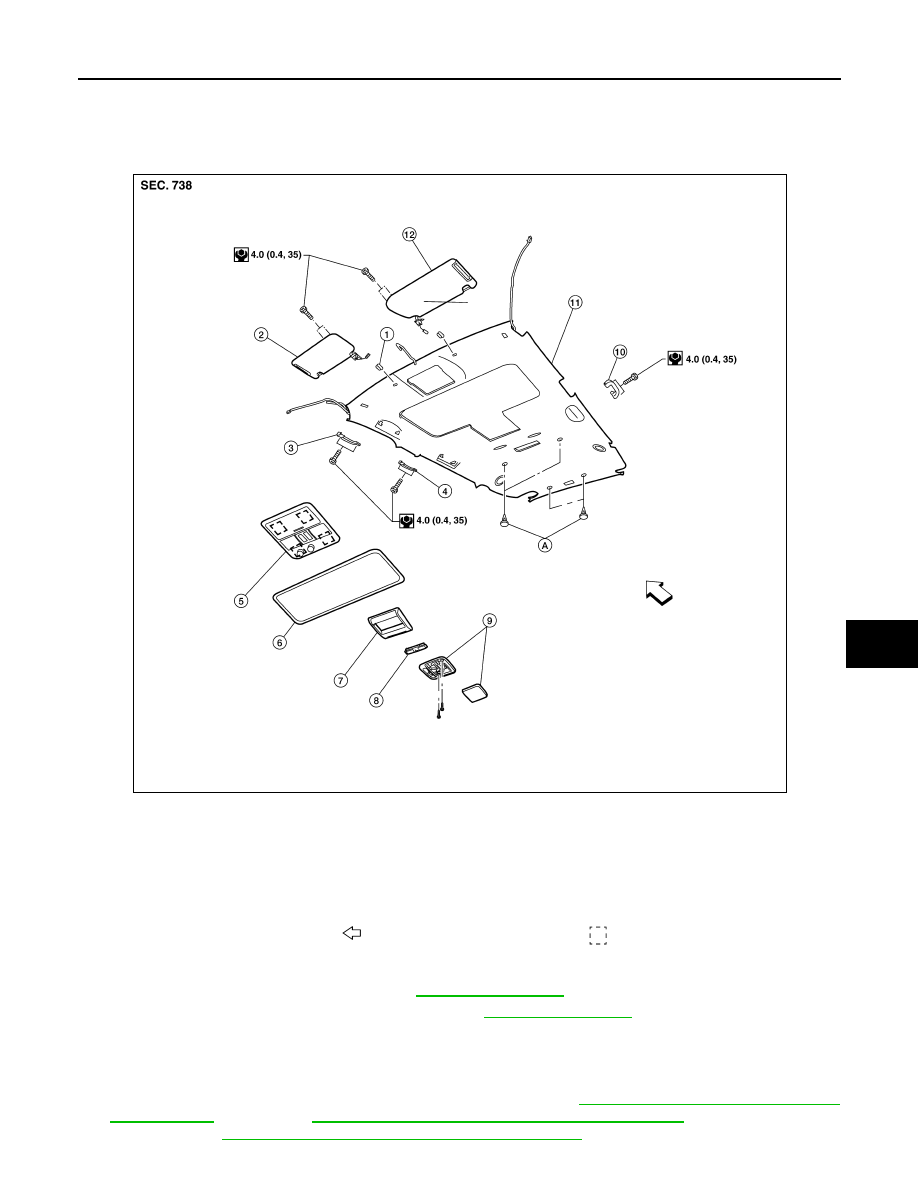

1.

Sun visor holder LH/RH

2.

Sun visor assembly RH

3.

Front assist grip RH

4.

Rear assist grip RH

5.

Front roof console with front room
lamp assembly and sunglass bin

6.

Sunroof welt (if equipped)

7.

DVD video monitor finisher (if
equipped)

8.

Center room lamp assembly

9.

Rear room lamp assembly

10. Rear assist grip LH

11. Headlining

12. Sun visor assembly LH

A.

Clip C103

Vehicle front

Metal clip

AWJIA0052GB
