Nissan Pathfinder (2010 year). Manual - part 426





GI-14

< HOW TO USE THIS MANUAL >

RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS

RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS

Recommended Chemical Products and Sealants

INFOID:0000000005255341

Refer to the following chart for help in selecting the appropriate chemical product or sealant.

Product Description

Purpose

Nissan North America

Part No. (USA)

Nissan Canada Part

No. (Canada)

Aftermarket Cross-

reference Part Nos.

1

Rear View Mirror Adhe-
sive

Used to permanently re-
mount rear view mirrors to
windows.

999MP-AM000P

99998-50505

Permatex 81844

2

Anaerobic Liquid Gas-
ket

For metal-to-metal flange
sealing.
Can fill a 0.38 mm (0.015
inch) gap and provide in-
stant sealing for most pow-
ertrain applications.

999MP-AM001P

99998-50503

Permatex 51813 and
51817

3

High Performance
Thread Sealant

Provides instant sealing on
any threaded straight or
parallel threaded fitting.
(Thread sealant only, no
locking ability.)
• Do not use on plastic.

999MP-AM002P

999MP-AM002P

Permatex 56521

4

Silicone RTV

Gasket Maker

999MP-AM003P
(Ultra Grey)

99998-50506
(Ultra Grey)

Permatex Ultra Grey
82194;
Three Bond
1207,1215, 1216,
1217F, 1217G and
1217H
Nissan RTV Part No.
999MP-A7007

Gasket Maker for Maxima/
Quest 5-speed automatic
transmission
(RE5F22A)

Three Bond 1281B
or exact equivalent in
its quality

5

High Temperature,
High Strength Thread
Locking Sealant (Red)

Threadlocker

999MP-AM004P

999MP-AM004P

Permatex 27200;
Three Bond 1360,
1360N, 1305 N&P,
1307N, 1335,
1335B, 1363B,
1377C, 1386B, D&E
and 1388
Loctite 648

6

Medium Strength
Thread Locking Seal-
ant (Blue)

Threadlocker (service tool
removable)

999MP-AM005P

999MP-AM005P

Permatex 24200,
24206, 24240,
24283 and 09178;
Three Bond 1322,
1322N, 1324 D&N,
1333D, 1361C,
1364D, 1370C and
1374

2010 Pathfinder

TERMINOLOGY

GI-15

< HOW TO USE THIS MANUAL >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

TERMINOLOGY

ISO 15031-2 Terminology List

INFOID:0000000005255342

All emission related terms used in this publication in accordance with ISO 15031-2 are listed. Accordingly, new

terms, new acronyms/abbreviations and old terms are listed in the following chart.

NEW TERM

NEW ACRONYM /

ABBREVIATION

OLD TERM

Air cleaner

ACL

Air cleaner

Barometric pressure

BARO

***

Barometric pressure sensor-BCDD

BAROS-BCDD

BCDD

Camshaft position

CMP

***

Camshaft position sensor

CMPS

Crank angle sensor

Canister

***

Canister

Carburetor

CARB

Carburetor

Charge air cooler

CAC

Intercooler

Closed loop

CL

Closed loop

Closed throttle position switch

CTP switch

Idle switch

Clutch pedal position switch

CPP switch

Clutch switch

Continuous fuel injection system

CFI system

***

Continuous trap oxidizer system

CTOX system

***

Crankshaft position

CKP

***

Crankshaft position sensor

CKPS

***

Data link connector

DLC

***

Data link connector for CONSULT-III

DLC for CONSULT-III

Diagnostic connector for CONSULT-III

Diagnostic test mode

DTM

Diagnostic mode

Diagnostic test mode selector

DTM selector

Diagnostic mode selector

Diagnostic test mode I

DTM I

Mode I

Diagnostic test mode II

DTM II

Mode II

Diagnostic trouble code

DTC

Malfunction code

Direct fuel injection system

DFI system

***

Distributor ignition system

DI system

Ignition timing control

Early fuel evaporation-mixture heater

EFE-mixture heater

Mixture heater

Early fuel evaporation system

EFE system

Mixture heater control

Electrically erasable programmable read
only memory

EEPROM

***

Electronic ignition system

EI system

Ignition timing control

Engine control

EC

***

Engine control module

ECM

ECCS control unit

Engine coolant temperature

ECT

Engine temperature

Engine coolant temperature sensor

ECTS

Engine temperature sensor

Engine modification

EM

***

Engine speed

RPM

Engine speed

Erasable programmable read only memory EPROM

***

Evaporative emission canister

EVAP canister

Canister

Evaporative emission system

EVAP system

Canister control solenoid valve

Exhaust gas recirculation valve

EGR valve

EGR valve

2010 Pathfinder

GI-16

< HOW TO USE THIS MANUAL >

TERMINOLOGY

Exhaust gas recirculation control-BPT
valve

EGRC-BPT valve

BPT valve

Exhaust gas recirculation control-solenoid
valve

EGRC-solenoid valve

EGR control solenoid valve

Exhaust gas recirculation temperature sen-
sor

EGRT sensor

Exhaust gas temperature sensor

EGR temperature sensor

Flash electrically erasable programmable
read only memory

FEEPROM

***

Flash erasable programmable read only
memory

FEPROM

***

Flexible fuel sensor

FFS

***

Flexible fuel system

FF system

***

Fuel pressure regulator

***

Pressure regulator

Fuel pressure regulator control solenoid
valve

***

PRVR control solenoid valve

Fuel trim

FT

***

Heated Oxygen sensor

HO2S

Exhaust gas sensor

Idle air control system

IAC system

Idle speed control

Idle air control valve-air regulator

IACV-air regulator

Air regulator

Idle air control valve-auxiliary air control
valve

IACV-AAC valve

Auxiliary air control (AAC) valve

Idle air control valve-FICD solenoid valve

IACV-FICD solenoid valve

FICD solenoid valve

Idle air control valve-idle up control sole-
noid valve

IACV-idle up control solenoid valve

Idle up control solenoid valve

Idle speed control-FI pot

ISC-FI pot

FI pot

Idle speed control system

ISC system

***

Ignition control

IC

***

Ignition control module

ICM

***

Indirect fuel injection system

IFI system

***

Intake air

IA

Air

Intake air temperature sensor

IAT sensor

Air temperature sensor

Knock

***

Detonation

Knock sensor

KS

Detonation sensor

Malfunction indicator lamp

MIL

Check engine light

Manifold absolute pressure

MAP

***

Manifold absolute pressure sensor

MAPS

***

Manifold differential pressure

MDP

***

Manifold differential pressure sensor

MDPS

***

Manifold surface temperature

MST

***

Manifold surface temperature sensor

MSTS

***

Manifold vacuum zone

MVZ

***

Manifold vacuum zone sensor

MVZS

***

Mass air flow sensor

MAFS

Air flow meter

Mixture control solenoid valve

MC solenoid valve

Air-fuel ratio control solenoid valve

Multiport fuel injection System

MFI system

Fuel injection control

NEW TERM

NEW ACRONYM /

ABBREVIATION

OLD TERM

2010 Pathfinder

TERMINOLOGY

GI-17

< HOW TO USE THIS MANUAL >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

Nonvolatile random access memory

NVRAM

***

On board diagnostic system

OBD system

Self-diagnosis

Open loop

OL

Open loop

Oxidation catalyst

OC

Catalyst

Oxidation catalytic converter system

OC system

***

Oxygen sensor

O2S

Exhaust gas sensor

Park position switch

***

Park switch

Periodic trap oxidizer system

PTOX system

***

Positive crankcase ventilation

PCV

Positive crankcase ventilation

Positive crankcase ventilation valve

PCV valve

PCV valve

Powertrain control module

PCM

***

Programmable read only memory

PROM

***

Pulsed secondary air injection control sole-
noid valve

PAIRC solenoid valve

AIV control solenoid valve

Pulsed secondary air injection system

PAIR system

Air induction valve (AIV) control

Pulsed secondary air injection valve

PAIR valve

Air induction valve

Random access memory

RAM

***

Read only memory

ROM

***

Scan tool

ST

***

Secondary air injection pump

AIR pump

***

Secondary air injection system

AIR system

***

Sequential multiport fuel injection system

SFI system

Sequential fuel injection

Service reminder indicator

SRI

***

Simultaneous multiport fuel injection sys-
tem

***

Simultaneous fuel injection

Smoke puff limiter system

SPL system

***

Supercharger

SC

***

Supercharger bypass

SCB

***

System readiness test

SRT

***

Thermal vacuum valve

TVV

Thermal vacuum valve

Three way catalyst

TWC

Catalyst

Three way catalytic converter system

TWC system

***

Three way + oxidation catalyst

TWC + OC

Catalyst

Three way + oxidation catalytic converter
system

TWC + OC system

***

Throttle body

TB

Throttle chamber
SPI body

Throttle body fuel injection system

TBI system

Fuel injection control

Throttle position

TP

Throttle position

Throttle position sensor

TPS

Throttle sensor

Throttle position switch

TP switch

Throttle switch

Torque converter clutch solenoid valve

TCC solenoid valve

Lock-up cancel solenoid
Lock-up solenoid

Transmission range switch

***

Park/neutral position switch

Transmission control module

TCM

A/T control unit

NEW TERM

NEW ACRONYM /

ABBREVIATION

OLD TERM

2010 Pathfinder

GI-18

< HOW TO USE THIS MANUAL >

TERMINOLOGY

***: Not applicable

Turbocharger

TC

Turbocharger

Vehicle speed sensor

VSS

Vehicle speed sensor

Volume air flow sensor

VAFS

Air flow meter

Warm up oxidation catalyst

WU-OC

Catalyst

Warm up oxidation catalytic converter sys-
tem

WU-OC system

***

Warm up three way catalyst

WU-TWC

Catalyst

Warm up three way catalytic converter sys-
tem

WU-TWC system

***

Wide open throttle position switch

WOTP switch

Full switch

NEW TERM

NEW ACRONYM /

ABBREVIATION

OLD TERM

2010 Pathfinder

TIGHTENING TORQUE OF STANDARD BOLTS

GI-19

< HOW TO USE THIS MANUAL >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

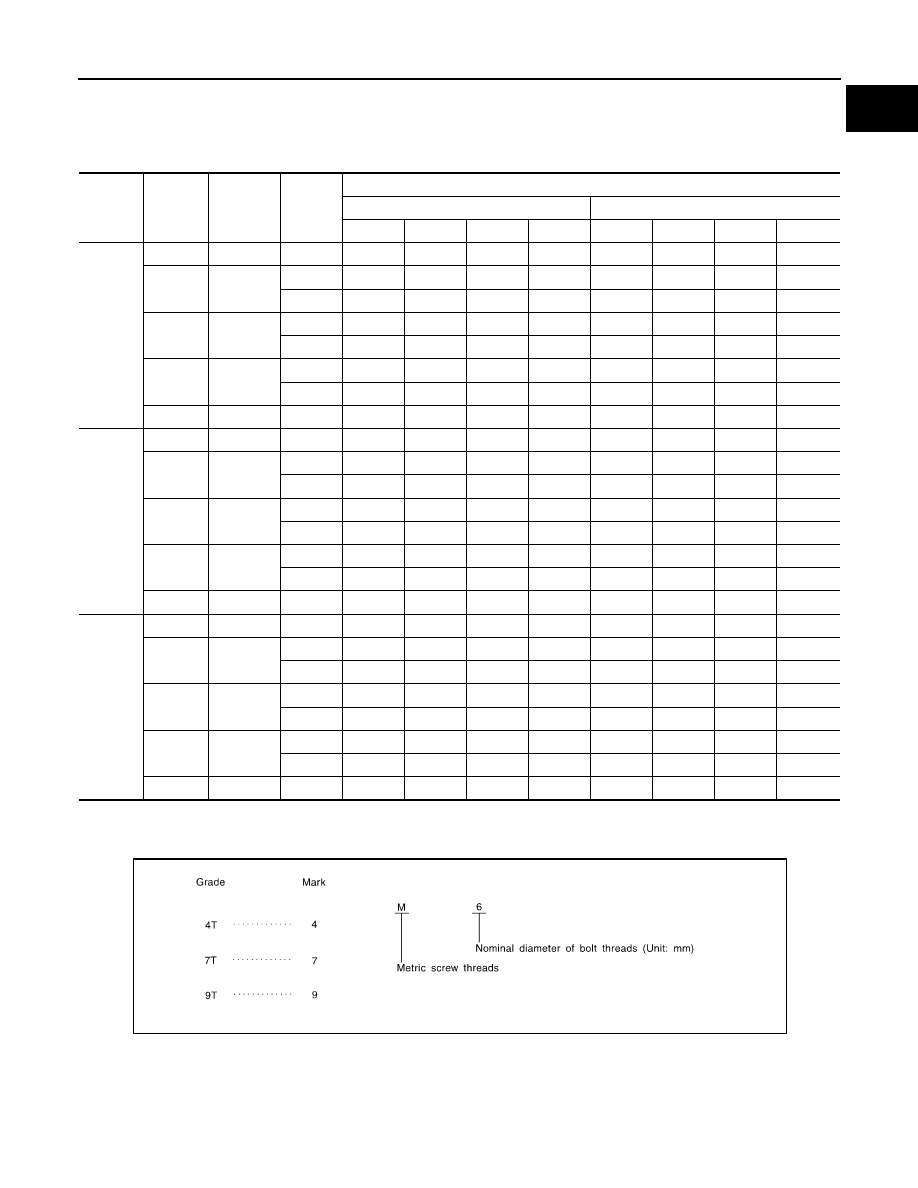

TIGHTENING TORQUE OF STANDARD BOLTS

Tightening Torque Table

INFOID:0000000005255343

*: Nominal diameter
1.

Special parts are excluded.

2.

This standard is applicable to bolts having the following marks embossed on the bolt head.

Grade

Bolt size

Bolt diam-

eter *

mm

Pitch

mm

Tightening torque (Without lubricant)

Hexagon head bolt

Hexagon flange bolt

N·m

kg-m

ft-lb

in-lb

N·m

kg-m

ft-lb

in-lb

4T

M6

6.0

1.0

5.5

0.56

4

49

7

0.71

5

62

M8

8.0

1.25

13.5

1.4

10

17

1.7

13

1.0

13.5

1.4

10

17

1.7

13

M10

10.0

1.5

28

2.9

21

35

3.6

26

1.25

28

2.9

21

35

3.6

26

M12

12.0

1.75

45

4.6

33

55

5.6

41

1.25

45

4.6

33

65

6.6

48

M14

14.0

1.5

80

8.2

59

100

10

74

7T

M6

6.0

1.0

9

0.92

7

80

11

1.1

8

97

M8

8.0

1.25

22

2.2

16

28

2.9

21

1.0

22

2.2

16

28

2.9

21

M10

10.0

1.5

45

4.6

33

55

5.6

41

1.25

45

4.6

33

55

5.6

41

M12

12.0

1.75

80

8.2

59

100

10

74

1.25

80

8.2

59

100

10

74

M14

14.0

1.5

130

13

96

170

17

125

9T

M6

6.0

1.0

11

1.1

8

13.5

1.4

10

M8 8.0

1.25

28

2.9

21

35

3.6

26

1.0

28

2.9

21

35

3.6

26

M10

10.0

1.5

55

5.6

41

80

8.2

59

1.25

55

5.6

41

80

8.2

59

M12

12.0

1.75

100

10

74

130

13

96

1.25

100

10

74

130

13

96

M14

14.0

1.5

170

17

125

210

21

155

MGI044A

2010 Pathfinder

GI-20

< FEATURES OF NEW MODEL >

IDENTIFICATION INFORMATION

FEATURES OF NEW MODEL

IDENTIFICATION INFORMATION

Model Variation

INFOID:0000000005255344

2WD Model

4WD Model

Position

Character

Qualifier

Definition

1

J

Body type

J: Wagon

2

LK

Engine

LK: VQ40DE
PK: VK56DE

3

4

Z

Axle

A: 2WD

Z: 4WD Part Time

W: 4WD Full Time

5

L

Drive

L:  LH

6

R

Grade

R: S

T: SE

V: LE

7

N

Transmission

N: 5-speed automatic transmission

8

P25

Model

P25: Pathfinder

9

10

11

E

Intake

E: EGI

12

U

Zone

N: Canda
U: Federal
J: Mexico

13

A

Equipment

A: Standard

14

XXXXX

Option Codes

Option Codes

15

16

17

18

Body

Engine

Transmission

Destination

Grade

Model

Wagon

VQ40DE

RE5R05A (5A/T)

U.S.A.

S JLKALRN-EUA

SE

JLKALTN-EUA

LE JLKALVN-EUA

Mexico

 SE

JLKALTN-EJA

Body

Engine

Transmission

Destination

Grade

Model

Wagon

VQ40DE

RE5R05A (5A/T)

U.S.A.

S JLKZLRN-EUA

SE JLKZLTN-EUA

LE JLKWLVN-EUA

VK56DE

LE JPKWLVN-EUA

VQ40DE

Canada

S

JLKWLRN-ENA

SE JLKWLTN-ENA

LE JLKWLVN-ENA

VQ40DE

Mexico

LE JLKWLVN-EJA

2010 Pathfinder

IDENTIFICATION INFORMATION

GI-21

< FEATURES OF NEW MODEL >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

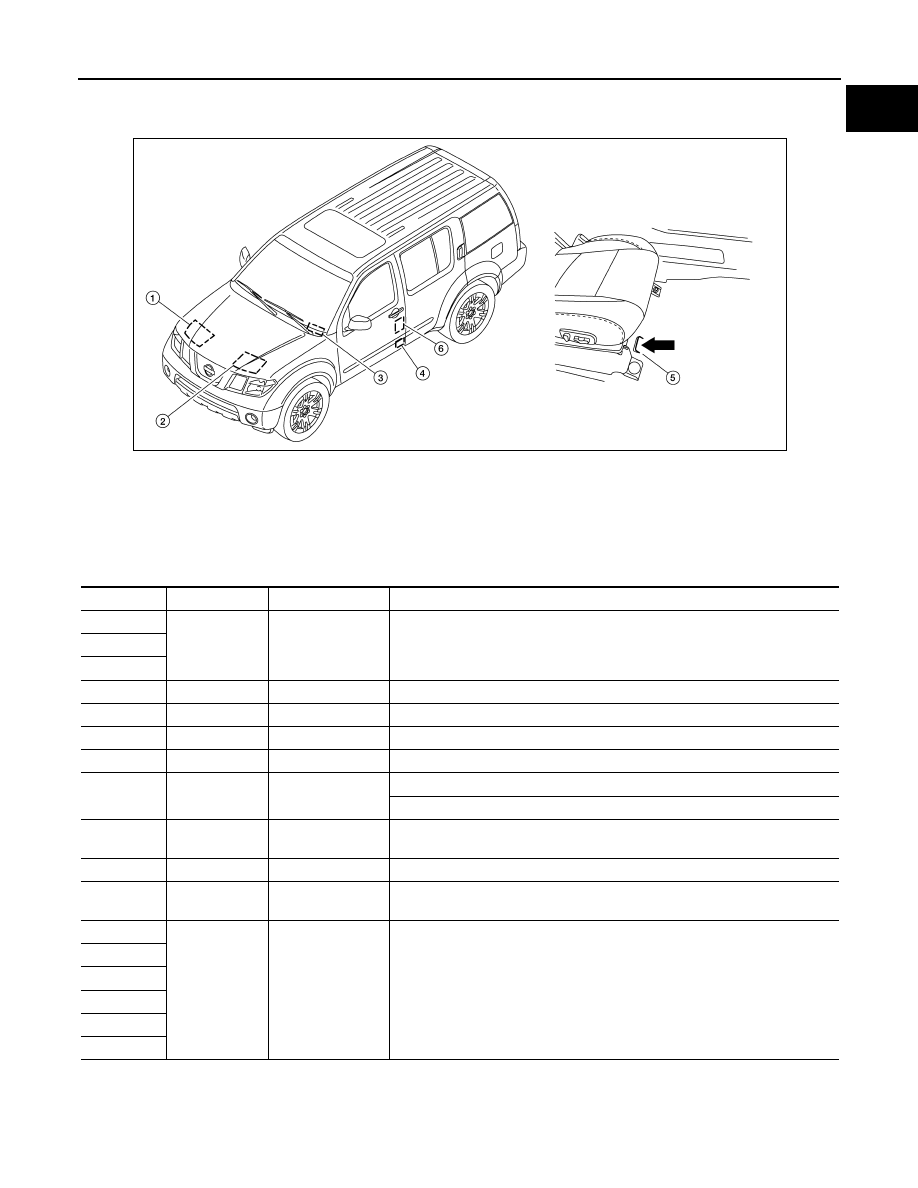

Identification Number

INFOID:0000000005255345

VEHICLE IDENTIFICATION NUMBER ARRANGEMENT

ENGINE SERIAL NUMBER

VQ40DE

1.

Emission control information label

2.

Air conditioner specifica-
tion label

3.

Vehicle identification number(VIN)
plate

4.

F.M.V.S.S./C.M.V.S.S. certification label

5.

Vehicle identification num-
ber plate (chassis number)

6.

Tire and loading information label

AWAIA0031ZZ

Position

Character

Qualifier

Definition

1

5N1

Manufacturer

5N1: USA produced multi-purpose vehicle

2

3

4

A

Engine type

A: VQ40DE  B: VK56DE

5

R

Vehicle line

R: R51 NISSAN Pathfinder

6

1

Model  change

(0-9)

7

N

Body type

N: 4 Door wagon

8

B

Gross vehicle
weight rating

B: 4WD, 4-wheel ABS, Class E

N: 2WD, 4- wheel ABS, Class D

9

*

Check digit

(0 to 9 or X) The code for the check digit is determined by a mathematical com-
putation.

10

A

Model year

A: 2010

11

C

Manufacturing
plant

C: Smyrna Tennessee

12

XXXXXX

Vehicle serial num-
ber

Chassis number

13

14

15

16

17

2010 Pathfinder















Content      ..     424      425      426      427     ..
