Nissan Pathfinder (2010 year). Manual - part 409

EXL-138

< SYMPTOM DIAGNOSIS >

NORMAL OPERATING CONDITION

NORMAL OPERATING CONDITION

Description

INFOID:0000000005259781

AUTO LIGHT SYSTEM

The auto light system may not turn the headlamp ON/OFF immediately after passing a dark area or a bright

area (short tunnel, sky bridge, shadowed area etc.). This is normal.

2010 Pathfinder

BOTH SIDE HEADLAMPS DO NOT SWITCH TO HIGH BEAM

EXL-139

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

BOTH SIDE HEADLAMPS DO NOT SWITCH TO HIGH BEAM

Description

INFOID:0000000005259782

The headlamps (both sides) do not switch to high beam when the lighting switch is in the HI or PASS setting.

Diagnosis Procedure

INFOID:0000000005259783

1.

COMBINATION SWITCH INSPECTION

Check the combination switch. Refer to

BCS-7, "System Description"

.

Is the combination switch normal?

YES

>> GO TO 2

NO

>> Repair or replace the malfunctioning part.

2.

CHECK HEADLAMP (HI) REQUEST SIGNAL INPUT

CONSULT-III DATA MONITOR

1. Select "HL HI REQ" of IPDM E/R DATA MONITOR item.

2. With operating the lighting switch, check the monitor status.

Is the monitor item status normal?

YES

>> GO TO 3

NO

>> Replace BCM. Refer to

BCS-59, "Removal and Installation"

.

3.

HEADLAMP (HI) CIRCUIT INSPECTION

Check the headlamp (HI) circuit. Refer to

EXL-38, "Description"

.

Is the headlamp (HI) circuit normal?

YES

>> Replace IPDM E/R. Refer to

PCS-33, "Removal and Installation of IPDM E/R"

.

NO

>> Repair or replace the malfunctioning part.

Monitor item

Condition

Monitor status

HL HI REQ

Lighting switch
(2ND)

HI or PASS

ON

Except for HI or
PASS

OFF

2010 Pathfinder

EXL-140

< SYMPTOM DIAGNOSIS >

BOTH SIDE HEADLAMPS (LO) ARE NOT TURNED ON

BOTH SIDE HEADLAMPS (LO) ARE NOT TURNED ON

Description

INFOID:0000000005259784

The headlamps (both sides) do not turn ON in any lighting switch setting.

Diagnosis Procedure

INFOID:0000000005259785

1.

CHECK COMBINATION SWITCH

Check the combination switch. Refer to

BCS-7, "System Description"

.

Is the combination switch normal?

YES

>> GO TO 2

NO

>> Repair or replace the malfunctioning part.

2.

CHECK HEADLAMP (LO) REQUEST SIGNAL INPUT

CONSULT-III DATA MONITOR

1. Select "HL LO REQ" of IPDM E/R DATA MONITOR item.

2. With operating the lighting switch, check the monitor status.

Is the monitor item status normal?

YES

>> GO TO 3

NO

>> Replace BCM. Refer to

BCS-59, "Removal and Installation"

 .

3.

HEADLAMP (LO) CIRCUIT INSPECTION

Check the headlamp (LO) circuit. Refer to

EXL-40, "Description"

.

Is the headlamp (LO) circuit normal?

YES

>> Replace IPDM E/R. Refer to

PCS-33, "Removal and Installation of IPDM E/R"

 .

NO

>> Repair or replace the malfunctioning part.

Monitor item

Condition

Monitor status

HL LO REQ

Lighting switch

2ND

ON

OFF

OFF

2010 Pathfinder

PARKING, LICENSE PLATE AND TAIL LAMPS ARE NOT TURNED ON

EXL-141

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

PARKING, LICENSE PLATE AND TAIL LAMPS ARE NOT TURNED ON

Description

INFOID:0000000005259786

The parking, license plate and tail lamps do not turn ON in with any lighting switch setting.

Diagnosis Procedure

INFOID:0000000005259787

1.

COMBINATION SWITCH INSPECTION

Check the combination switch. Refer to

BCS-7, "System Description"

.

Is the combination switch normal?

YES

>> GO TO 2

NO

>> Repair or replace the malfunctioning part.

2.

CHECK TAIL LAMP RELAY REQUEST SIGNAL INPUT

CONSULT-III DATA MONITOR

1. Select "TAIL&CLR REQ" of IPDM E/R DATA MONITOR item.

2. With operating the lighting switch, check the monitor status.

Is the monitor item status normal?

YES

>> GO TO 3

NO

>> Replace BCM. Refer to

BCS-59, "Removal and Installation"

.

3.

PARK LAMP CIRCUIT INSPECTION

Check the parking lamp circuit. Refer to

EXL-44, "Description"

.

Is the tail lamp circuit normal?

YES

>> Replace IPDM E/R. Refer to

PCS-33, "Removal and Installation of IPDM E/R"

.

NO

>> Repair or replace the malfunctioning part.

Monitor item

Condition

Monitor status

TAIL&CLR REQ

Lighting switch

1ST

ON

OFF

OFF

2010 Pathfinder

EXL-142

< SYMPTOM DIAGNOSIS >

BOTH SIDE FRONT FOG LAMPS ARE NOT TURNED ON

BOTH SIDE FRONT FOG LAMPS ARE NOT TURNED ON

Description

INFOID:0000000005259788

The front fog lamps do not turn ON in any setting.

Diagnosis Procedure

INFOID:0000000005259789

1.

COMBINATION SWITCH INSPECTION

Check the combination switch. Refer to

BCS-7, "System Description"

.

Is the combination switch normal?

YES

>> GO TO 2

NO

>> Repair or replace the malfunctioning part.

2.

CHECK FRONT FOG LAMP REQUEST SIGNAL INPUT

CONSULT-III DATA MONITOR

1. Select "FR FOG REQ" of IPDM E/R DATA MONITOR item.

2. With operating the front fog lamp switch, check the monitor status.

Is the monitor item status normal?

YES

>> GO TO 3

NO

>> Replace BCM. Refer to

BCS-59, "Removal and Installation"

.

3.

FRONT FOG LAMP CIRCUIT INSPECTION

Check the front fog lamp circuit. Refer to

EXL-42, "Description"

.

Is the front fog lamp circuit normal?

YES

>> Replace IPDM E/R. Refer to

PCS-33, "Removal and Installation of IPDM E/R"

.

NO

>> Repair or replace the malfunctioning part.

Monitor item

Condition

Monitor status

FR FOG REQ

Front fog lamp switch
(Lighting switch 2ND)

ON

ON

OFF

OFF

2010 Pathfinder

PRECAUTIONS

EXL-143

< PRECAUTION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000005503163

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000005550749

NOTE:

• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

″

LOCK

″

 position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-

anism is adopted on the key cylinder.

For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and

steering wheel rotation will become impossible.

If steering wheel rotation is required when battery power is interrupted, follow the procedure below before

starting the repair operation.

OPERATION PROCEDURE

1. Connect both battery cables.

NOTE:

Supply power using jumper cables if battery is discharged.

2. Use the Intelligent Key or mechanical key to turn the ignition switch to the

″

ACC

″

 position. At this time, the

steering lock will be released.

3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be

rotated.

4. Perform the necessary repair operation.

2010 Pathfinder

EXL-144

< PRECAUTION >

PRECAUTIONS

5. When the repair work is completed, return the ignition switch to the

″

LOCK

″

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT-III.

2010 Pathfinder

ADJUSTMENT AND INSPECTION

EXL-145

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

ON-VEHICLE REPAIR

ADJUSTMENT AND INSPECTION

HEADLAMP
HEADLAMP : Aiming Adjustment

INFOID:0000000005259791

For details, refer to the regulations in your area.

NOTE:

If vehicle front body has been repaired and /or the headlamp assembly has been replaced, check headlamp

aiming.

• Before performing aiming adjustment, check the following:

- Confirm headlamp aiming switch is set to "0" (zero) position.

- Ensure all tires are inflated to correct pressure.

- Place vehicle and screen on level surface.

- Ensure there is no load in vehicle other than the driver (or equivalent weight placed in driver's position).

Coolant and engine oil filled to correct level, and fuel tank full.

- Confirm spare tire, jack and tools are properly stowed.

- Aim each headlamp individually and ensure other headlamp beam pattern is blocked from screen.

- Use adjusting screw to perform aiming adjustment

LOW BEAM AND HIGH BEAM

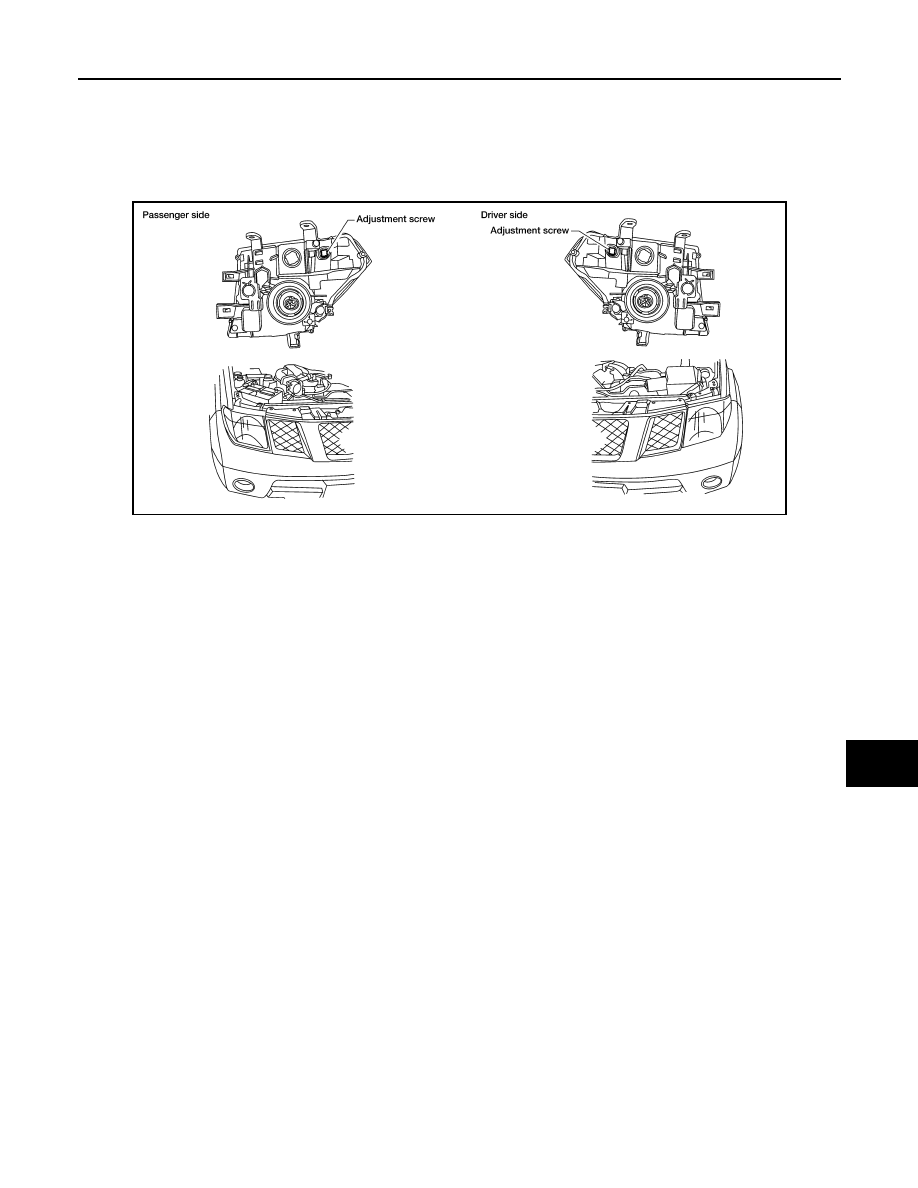

LKIA0568E
