Nissan Pathfinder (2010 year). Manual - part 391





EX-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000005531980

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000005260541

NOTE:

• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

LOCK

 position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-

anism is adopted on the key cylinder.

For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and

steering wheel rotation will become impossible.

If steering wheel rotation is required when battery power is interrupted, follow the procedure below before

starting the repair operation.

OPERATION PROCEDURE

1. Connect both battery cables.

NOTE:

Supply power using jumper cables if battery is discharged.

2. Use the Intelligent Key or mechanical key to turn the ignition switch to the

ACC

 position. At this time, the

steering lock will be released.

3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be

rotated.

4. Perform the necessary repair operation.

2010 Pathfinder

PRECAUTIONS

EX-3

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

5. When the repair work is completed, return the ignition switch to the

LOCK

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT-III.

2010 Pathfinder

EX-4

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

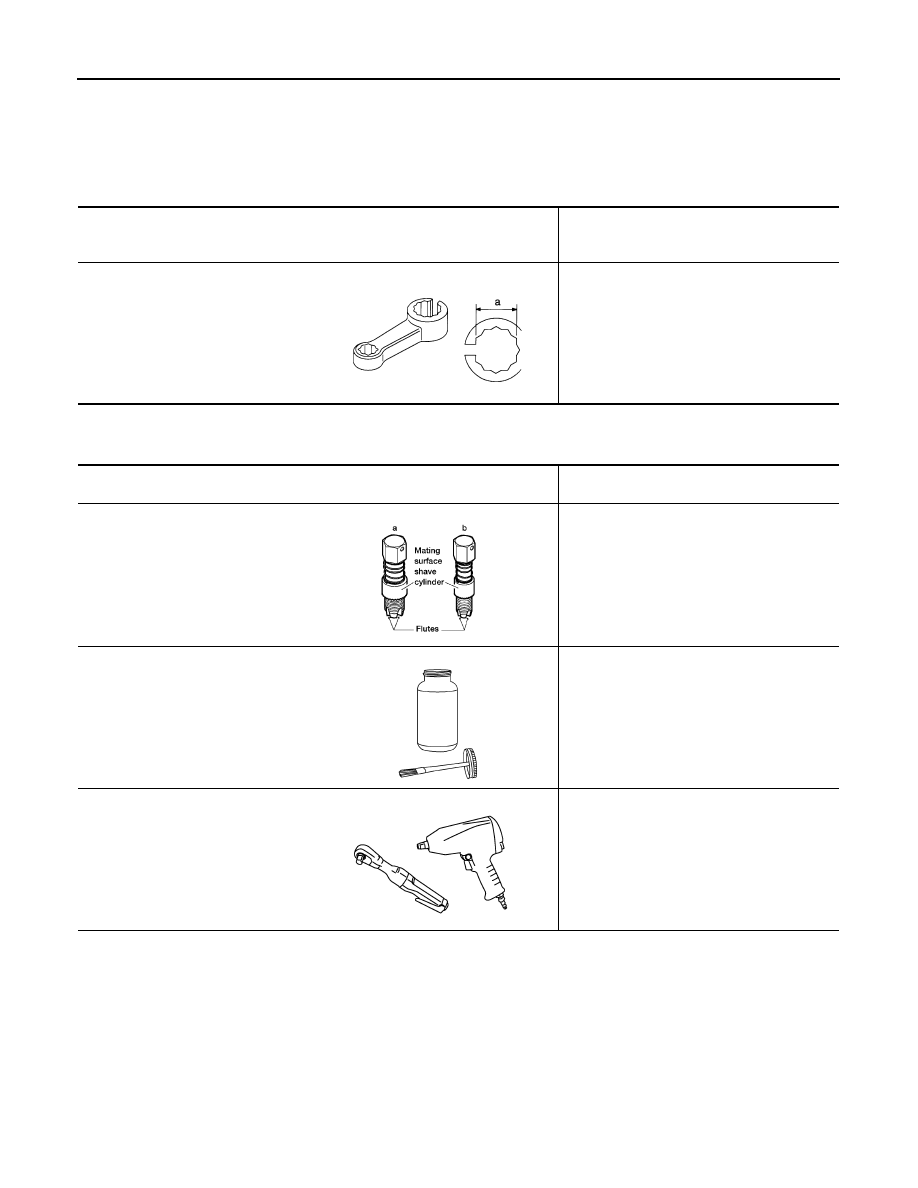

Special Service Tool

INFOID:0000000005260542

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000005260543

Tool number
(Kent-Moore No.)
Tool name

Description

KV10114400
(J-38365)
Heated oxygen sensor wrench

Loosening or tightening heated oxygen sen-
sors:

a: 22 mm (0.87 in)

S-NT636

(Kent-Moore No.)
Tool name

Description

 (J-43897-18)
 (J-43897-12)
Oxygen sensor thread cleaner

Reconditioning the exhaust system threads
before installing a new heated oxygen sensor
(Use with anti-seize lubricant shown below):

a: J-43897-18 (18 mm, 0.71 in) dia. for zirco-
nia oxygen sensor
b: J-43897-12 (12 mm, 0.47 in) dia. for tita-
nia oxygen sensor

Anti-seize lubricant (Permatex 133AR
or equivalent meeting MIL specifica-
tion MIL-A-907)

Lubricating oxygen sensor thread cleaning
tool when reconditioning exhaust system
threads

Power tool

Loosening nuts and bolts

AEM488

AEM489

PBIC0190E

2010 Pathfinder

EXHAUST SYSTEM

EX-5

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

ON-VEHICLE MAINTENANCE

EXHAUST SYSTEM

Checking Exhaust System

INFOID:0000000005260544

Check exhaust pipes, muffler and mounting for improper attachment, leaks, cracks, damage or deterioration.

• If anything is found, repair or replace damaged parts.

SMA211A

2010 Pathfinder

EX-6

< ON-VEHICLE REPAIR >

EXHAUST SYSTEM

ON-VEHICLE REPAIR

EXHAUST SYSTEM

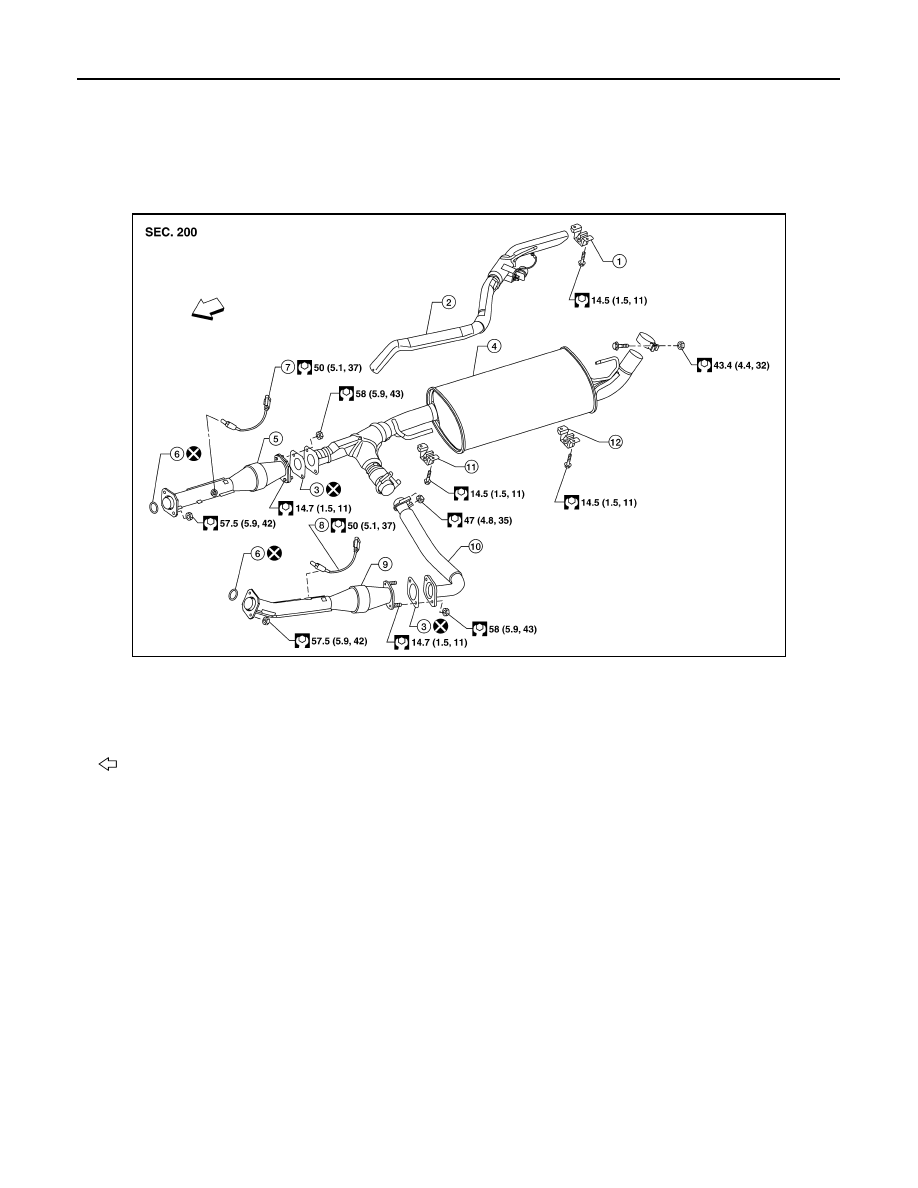

Exploded View

INFOID:0000000005260545

VQ40DE Exhaust System

AWBIA0855GB

1.

Tailpipe hanger bracket

2.

Tailpipe

3.

Gasket

4.

Main muffler

5.

Right front exhaust tube

6.

Ring gasket

7.

Heated oxygen sensor 2 (bank 2)

8.

Heated oxygen sensor 2 (bank 1)

9.

Left front exhaust tube

10. Center exhaust tube

11. Muffler hanger bracket front

12. Muffler hanger bracket rear

Front

2010 Pathfinder

EXHAUST SYSTEM

EX-7

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

A

EX

N

P

O

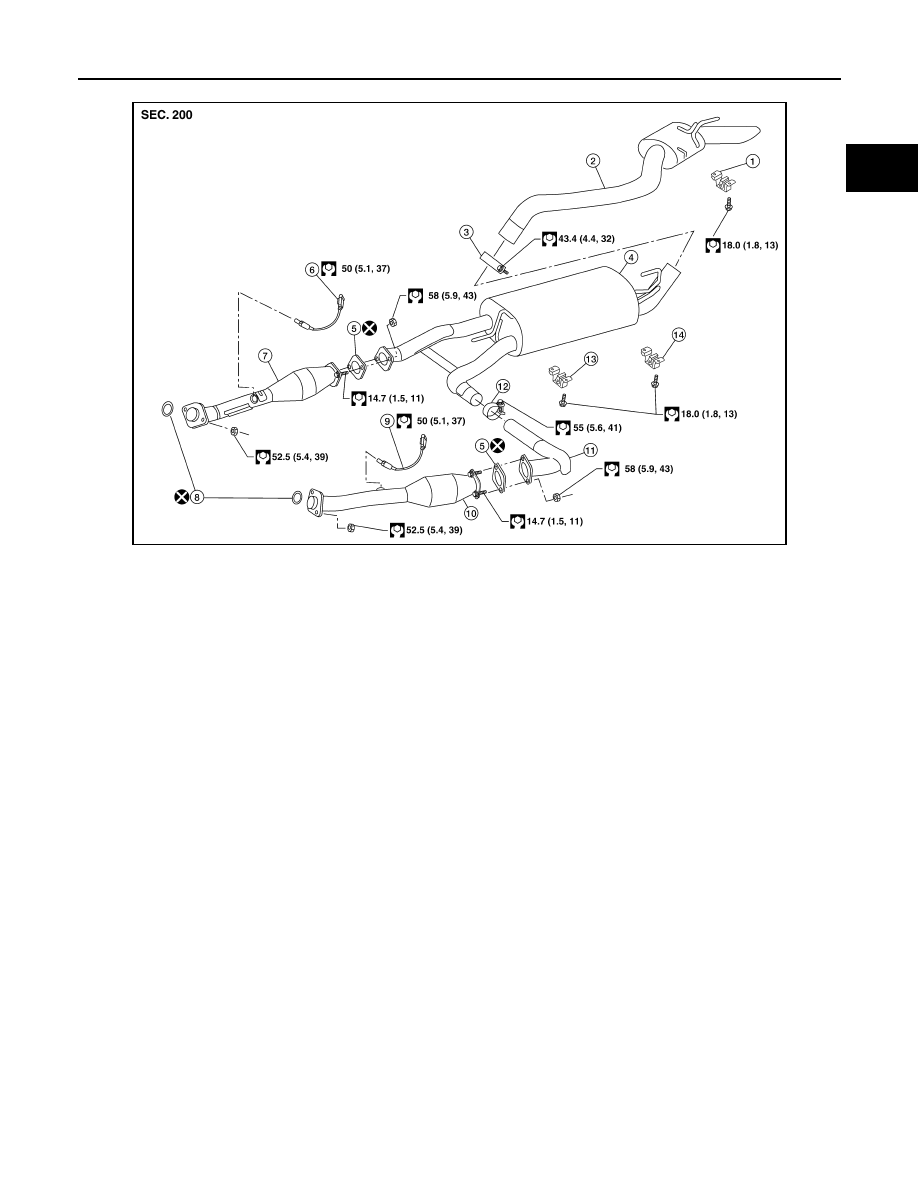

VK56DE Exhaust System

Removal and Installation

INFOID:0000000005260546

WARNING:

• Perform the operation with the exhaust system fully cooled. The system will be hot just after the

engine stops.

• Be careful not to cut your hand on the heat insulator edge.

CAUTION:

• Be sure to use genuine exhaust system parts or equivalents which are specially designed for heat

resistance, corrosion resistance, and shape.

REMOVAL

Remove exhaust system components using power tool.

• Remove heated oxygen sensor using Tool as needed.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Always replace exhaust gaskets with new ones when reassembling.

• Before installing a new heated oxygen sensor, clean and lube the exhaust tube threads using suit-

able tool.

AWBIA0080GB

1.

Tailpipe hanger bracket

2.

Tailpipe

3.

Clamp

4.

Main muffler

5.

Gasket

6.

Heated oxygen sensor 2 (bank 2)

7.

Right front exhaust tube

8.

Ring gasket

9.

Heated oxygen sensor 2 (bank 1)

10. Left front exhaust tube

11. Center exhaust tube

12. Clamp

13. Muffler hanger bracket front

14. Muffler hanger bracket rear

Tool number

: KV10114400 (J-38365)

Oxygen sensor thread cleaner

:  — (J-43897-18)

Oxygen sensor thread cleaner

:  — (J-43897-12)

2010 Pathfinder

EX-8

< ON-VEHICLE REPAIR >

EXHAUST SYSTEM

• Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7

in) onto a hard surface such as a concrete floor; install a new one.

• Do not over-tighten the heated oxygen sensor. Doing so may damage the heated oxygen sensor,

resulting in the MIL coming on.

• If any mounting insulator is badly deformed, repair or replace it. If deposits such as mud pile up on

the mounting insulators, clean and inspect them.

• Temporarily tighten the nuts on the exhaust manifold side and the bolts on the vehicle side. Check

each part for interference with other components, and then tighten the nuts and bolts to specifica-

tion.

INSPECTION AFTER INSTALLATION

• With the engine running, check exhaust tube joints for gas leakage and unusual noises.

• Check to ensure that mounting brackets and mounting rubbers are installed properly and free from undue

stress. Improper installation could result in excessive noise and vibration.

2010 Pathfinder

EXL-1

DRIVER CONTROLS

C

D

E

F

G

H

I

J

K

M

SECTION

EXL

A

B

EXL

N

O

P

CONTENTS

EXTERIOR LIGHTING SYSTEM

BASIC INSPECTION  ....................................

4

DIAGNOSIS AND REPAIR WORKFLOW  ..........

4

Work Flow  .................................................................

4

FUNCTION DIAGNOSIS ...............................

7

HEADLAMP .........................................................

7

System Diagram ........................................................

7

System Description  ...................................................

7

Component Parts Location ........................................

7

Component Description .............................................

8

DAYTIME RUNNING LIGHT SYSTEM  ...............

9

System Diagram ........................................................

9

System Description  ...................................................

9

Component Parts Location ......................................

10

Component Description ...........................................

10

AUTO LIGHT SYSTEM  ......................................

12

System Diagram ......................................................

12

System Description  .................................................

12

Component Parts Location ......................................

13

Component Description ...........................................

13

FRONT FOG LAMP ............................................

15

System Diagram ......................................................

15

System Description  .................................................

15

Component Parts Location ......................................

15

Component Description ...........................................

16

TURN SIGNAL AND HAZARD WARNING
LAMPS ...............................................................

17

System Diagram ......................................................

17

System Description  .................................................

17

Component Parts Location ......................................

17

Component Description ...........................................

18

PARKING, LICENSE PLATE AND TAIL
LAMPS ...............................................................

19

System Diagram ......................................................

19

System Description  .................................................

19

Component Parts Location  ......................................

19

Component Description  ...........................................

20

COMBINATION SWITCH READING SYSTEM

...

21

System Diagram  ......................................................

21

System Description ..................................................

21

Component Parts Location  ......................................

24

TRAILER TOW ..................................................

26

System Diagram  ......................................................

26

System Description ..................................................

26

Component Parts Location  ......................................

27

Component Description  ...........................................

27

DIAGNOSIS SYSTEM (BCM)  ...........................

28

HEADLAMP ...............................................................

28

HEADLAMP : CONSULT-III Function (BCM -
HEAD LAMP) ...........................................................

28

FLASHER ...................................................................

29

FLASHER : CONSULT-III Function (BCM -
FLASHER) ...............................................................

29

COMB SW ..................................................................

29

COMB SW : CONSULT-III Function (BCM -
COMB SW) ..............................................................

29

DIAGNOSIS SYSTEM (IPDM E/R)  ...................

31

Diagnosis Description ..............................................

31

CONSULT - III Function (IPDM E/R)  .......................

33

COMPONENT DIAGNOSIS .........................

35

POWER SUPPLY AND GROUND CIRCUIT  ....

35

BCM (BODY CONTROL MODULE)  ..........................

35

BCM (BODY CONTROL MODULE) : Diagnosis
Procedure ................................................................

35

IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM)  ..............................

36

2010 Pathfinder















Content      ..     389      390      391      392     ..
