EM-240

< DISASSEMBLY AND ASSEMBLY >

[VK56DE]

HOW TO SELECT PISTON AND BEARING

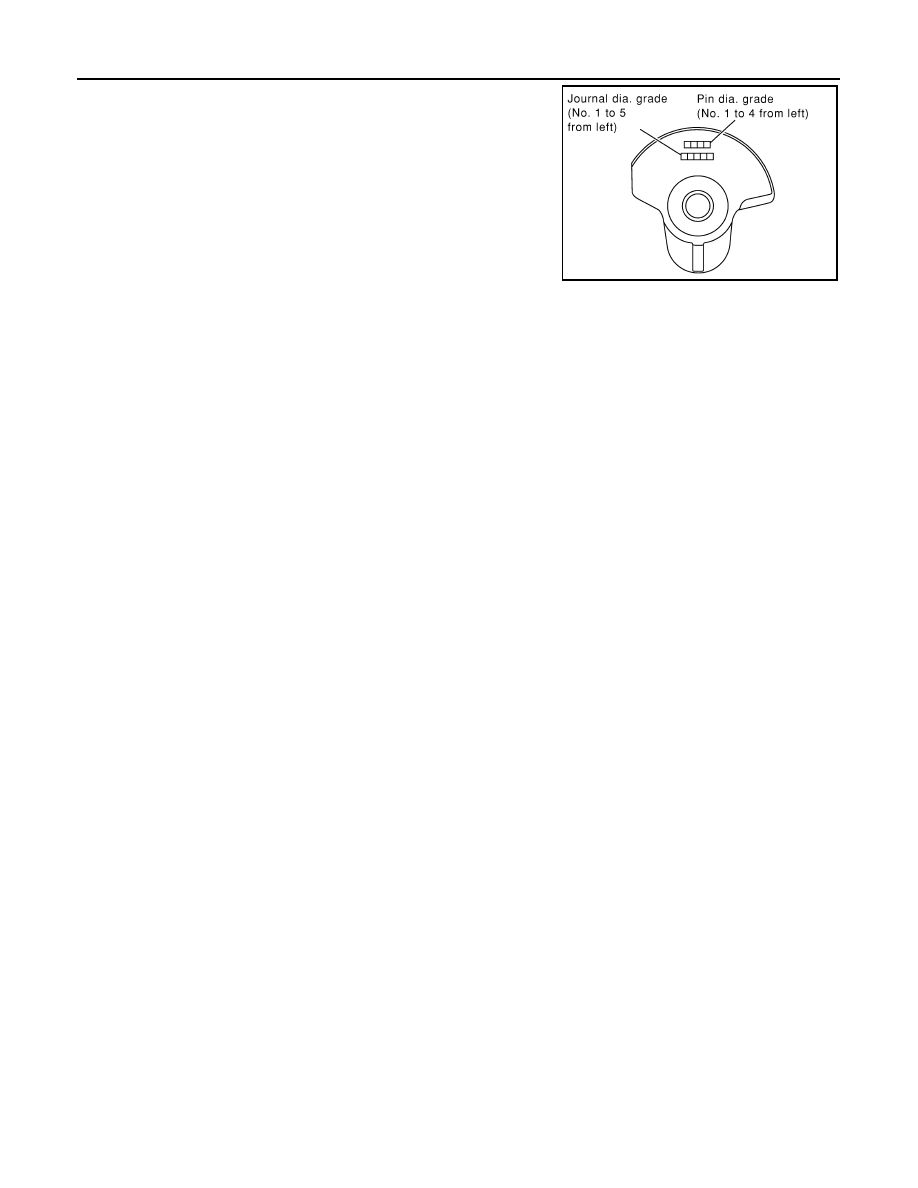

2. Apply the journal diameter grade on the crankshaft front to the

column in "Main Bearings Selection Table".

3. Read the symbol at the cross point of the selected row and column in the "Main Bearings Selection Table".

CAUTION:

• Initial clearance for No. 1, 5 journal and No. 2, 3, 4 journal is different. Use two different selection

lists for each part.

• No. 1, 5 journal and No. 2, 3, 4 journal have the same signs but different measures. Do not con-

fuse them.

4. Apply the symbol to the "Main Bearings Grade Table" to select.

NOTE:

• Grade list applies to all journals.

• Service parts are available as a set of both upper and lower.

When Cylinder Block and Crankshaft are Reused

1. Measure the inside diameter of the cylinder block main bearings housing and the outside diameter of the

crankshaft journal.

2. Apply measurement in above step 1 to "Main Bearings Selection Table".
3. The following steps are same as in “When New Cylinder Block and Crankshaft are Used”.

PBIC0110E

2010 Pathfinder

HOW TO SELECT PISTON AND BEARING

EM-241

< DISASSEMBLY AND ASSEMBLY >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

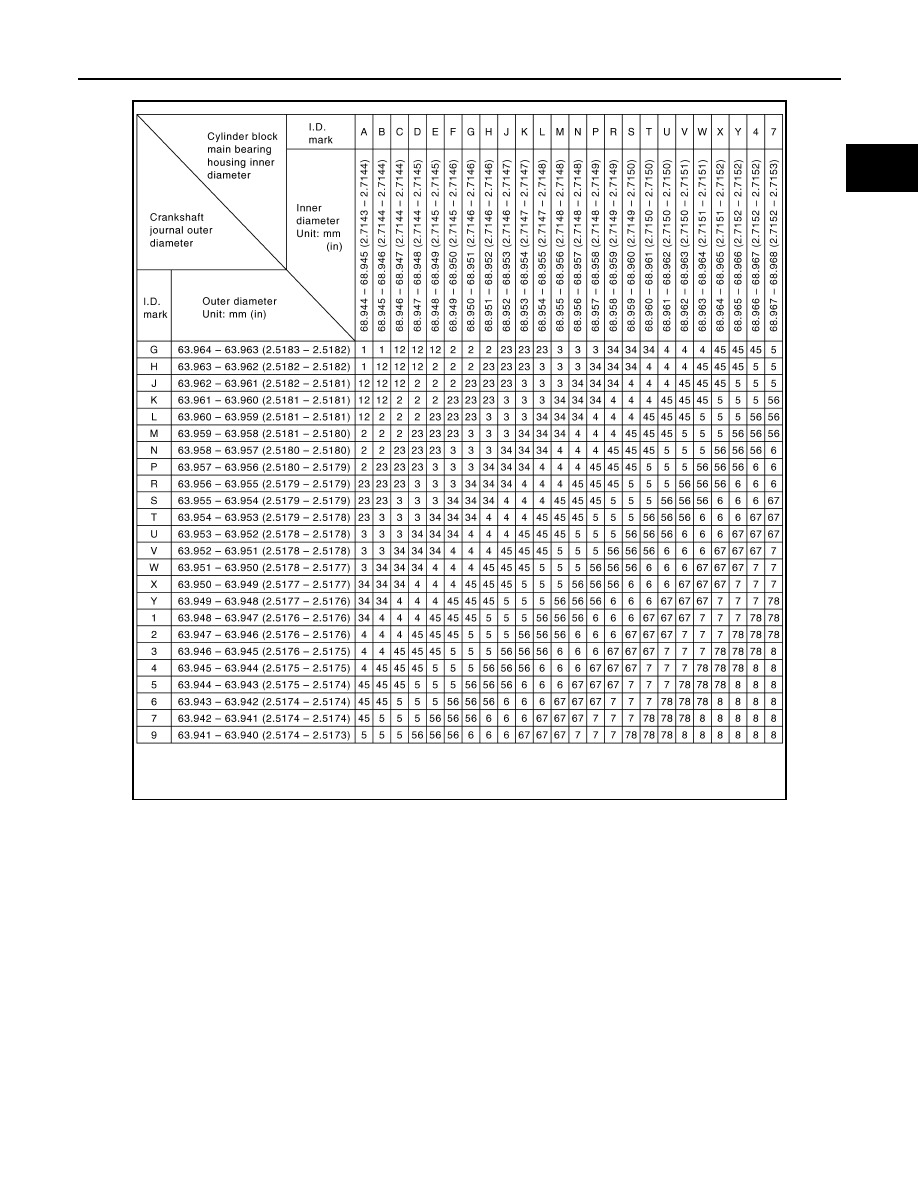

Main Bearings Selection Table (No. 1 and No. 5 journal)

WBIA0608E

2010 Pathfinder

EM-242

< DISASSEMBLY AND ASSEMBLY >

[VK56DE]

HOW TO SELECT PISTON AND BEARING

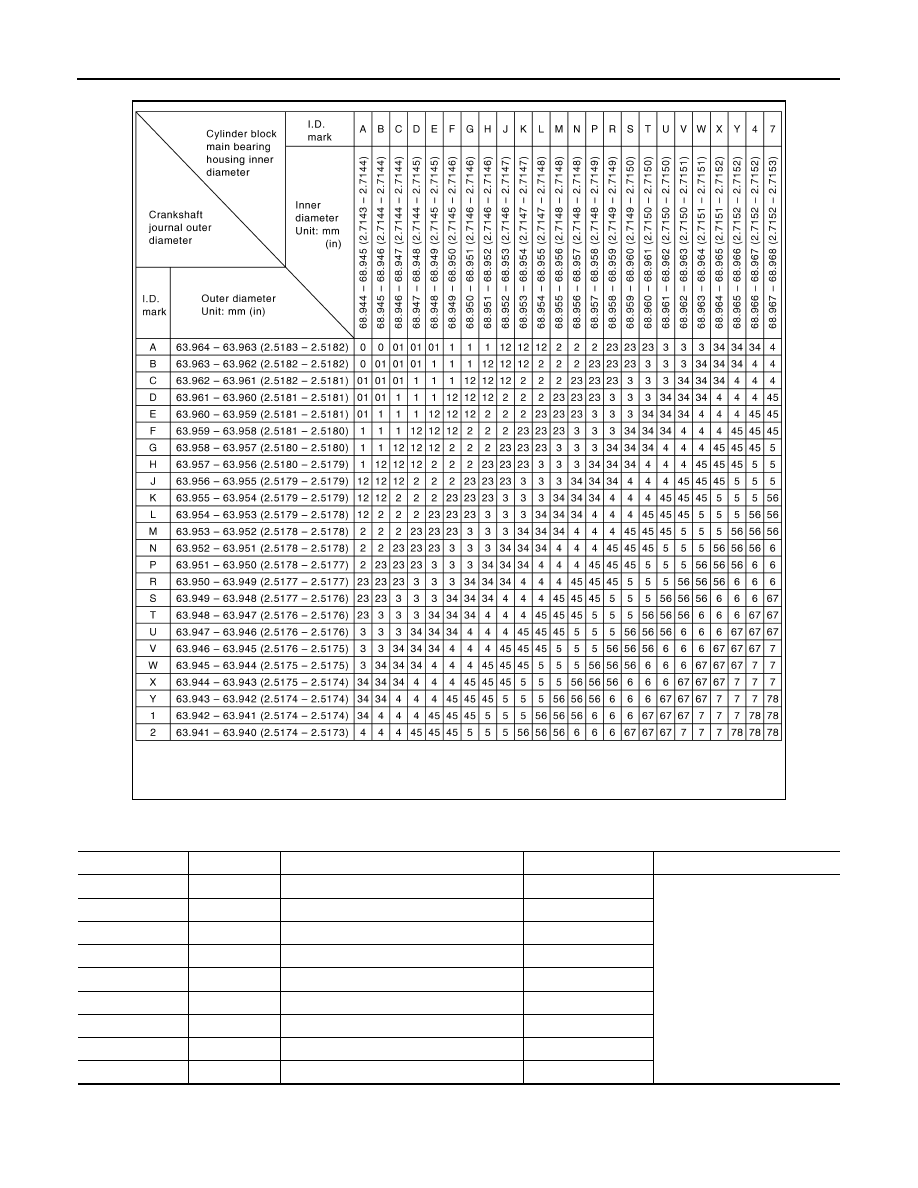

Main Bearings Selection Table (No. 2, 3 and 4 journal)

Main Bearings Grade Table (All Journals)

Unit: mm (in)

WBIA0609E

Grade number

UPR/LWR

Thickness

Identification color

Remarks

0

—

2.483 - 2.486 (0.0978 - 0.0979)

Black

Grade is the same for upper
and lower bearings.

1

—

2.486 - 2.489 (0.0979 - 0.0980)

Brown

2

—

2.489 - 2.492 (0.0980 - 0.0981)

Green

3

—

2.492 - 2.495 (0.0981 - 0.0982)

Yellow

4

—

2.495 - 2.498 (0.0982 - 0.0983)

Blue

5

—

2.498 - 2.501 (0.0983 - 0.0985)

Pink

6

—

2.501 - 2.504 (0.0985 - 0.0986)

Purple

7

—

2.504 - 2.507 (0.0986 - 0.0987)

White

8

—

2.507 - 2.510 (0.0987 - 0.0988)

Red

2010 Pathfinder

HOW TO SELECT PISTON AND BEARING

EM-243

< DISASSEMBLY AND ASSEMBLY >

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

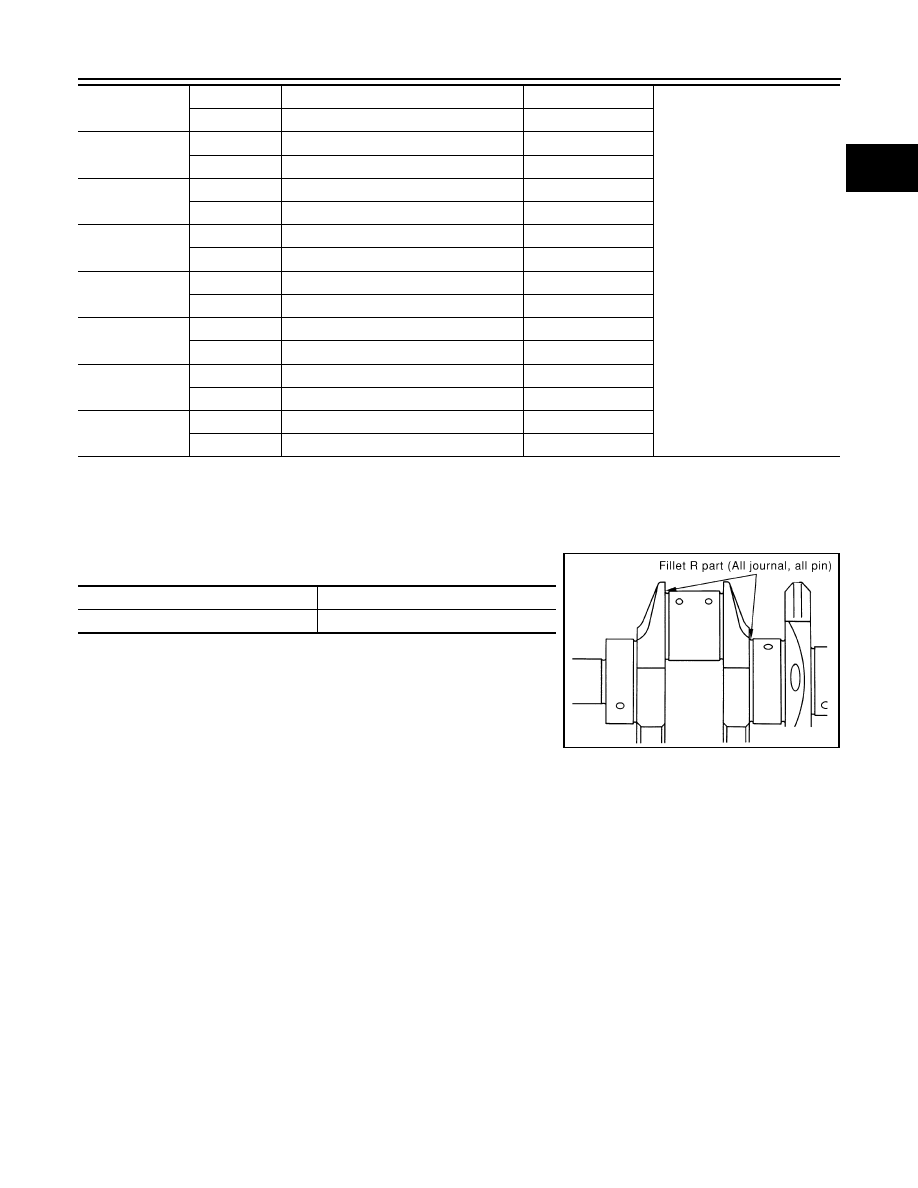

Use Undersize Bearing Usage Guide

• Use undersize (US) bearing when the oil clearance with standard size main bearing is not within specifica-

tion.

• When using undersize (US) bearing, measure the inside diameter of the bearing installed and grind the jour-

nal until the oil clearance falls within specification.

Bearing undersize table

Unit: mm (in)

CAUTION:

Do not damage fillet R when grinding crankshaft journal in

order to use undersized bearing (All journals).

01

UPR

2.483 - 2.486 (0.0978 - 0.0979)

Black

Grade and color are different
for upper and lower bearings.

LWR

2.486 - 2.489 (0.0979 - 0.0980)

Brown

12

UPR

2.486 - 2.489 (0.0979 - 0.0980)

Brown

LWR

2.489 - 2.492 (0.0980 - 0.0981)

Green

23

UPR

2.489 - 2.492 (0.0980 - 0.0981)

Green

LWR

2.492 - 2.495 (0.0981 - 0.0982)

Yellow

34

UPR

2.492 - 2.495 (0.0981 - 0.0982)

Yellow

LWR

2.495 - 2.498 (0.0982 - 0.0983)

Blue

45

UPR

2.495 - 2.498 (0.0982 - 0.0983)

Blue

LWR

2.498 - 2.501 (0.0983 - 0.0985)

Pink

56

UPR

2.498 - 2.501 (0.0983 - 0.0985)

Pink

LWR

2.501 - 2.504 (0.0985 - 0.0986)

Purple

67

UPR

2.501 - 2.504 (0.0985 - 0.0986)

Purple

LWR

2.504 - 2.507 (0.0986 - 0.0987)

White

78

UPR

2.504 - 2.507 (0.0986 - 0.0987)

White

LWR

2.507 - 2.510 (0.0987 - 0.0988)

Red

Undersize

Thickness

0.25 (0.0098)

2.618 - 2.626 (0.1031 - 0.1034)

Fillet R

: 1.5 - 1.7 mm (0.059 - 0.067 in)

PBIC0111E

2010 Pathfinder

EM-244

< SERVICE DATA AND SPECIFICATIONS (SDS)

[VK56DE]

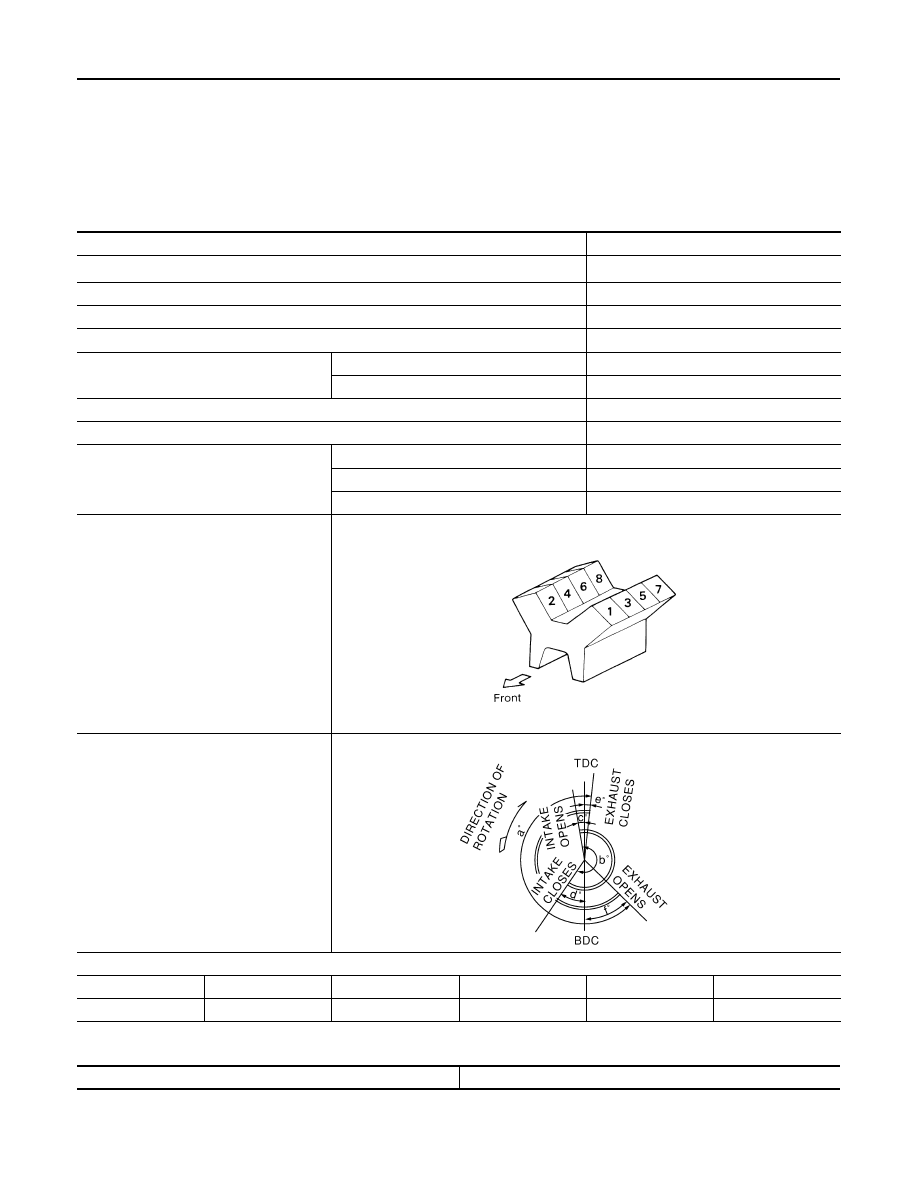

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Standard and Limit

INFOID:0000000005260539

GENERAL SPECIFICATIONS

DRIVE BELTS

EXHAUST MANIFOLD

Cylinder arrangement

V-8

Displacement cm

3

 (in

3

)

5,552 (338.80)

Bore and stroke mm (in)

98 x 92 (3.86 x 3.62)

Valve arrangement

DOHC

Firing order

1-8-7-3-6-5-4-2

Number of piston rings

Compression

2

Oil

1

Number of main bearings

5

Compression ratio

9.8:1

Compression pressure
 kPa (kg/cm

2

, psi)/rpm

Standard

1,520 (15.5, 220)/200

Minimum

1,324 (13.5, 192)/200

Differential limit between cylinders

98 (1.0, 14)/200

Cylinder number

Valve timing

Unit: degree

a

b

c

d

e

f

244

°

232

°

8

°

60

°

10

°

54

°

SEM957C

PBIC0187E

Tension of drive belts

Auto adjustment by auto tensioner

2010 Pathfinder

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-245

< SERVICE DATA AND SPECIFICATIONS (SDS)

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Unit: mm (in)

SPARK PLUG

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information

CAMSHAFT AND CAMSHAFT BEARING

Unit: mm (in)

*: Total indicator reading

Valve Seal

Unit: mm (in)

Valve Lifter

Unit: mm (in)

Valve Clearance

Items

Limit

Surface distortion

Exhaust manifold

0.3 (0.012)

Make

NGK

Standard type*

DILFR5A-11

Gap (nominal)

1.1 (0.043)

Items

Standard

Camshaft runout [TIR*]

Less than 0.02 (0.0008)

Camshaft cam height “A”

Intake

44.865 - 45.055 (1.7663 - 1.7738)

Exhaust

45.075 - 45.265 (1.7746 - 1.7821)

Cam wear limit

0.02 (0.0008)

Outside diameter of camshaft journal

25.950 - 25.970 (1.0217 - 1.0224)

Camshaft bracket inside diameter

26.000 - 26.021 (1.0236 - 1.0244)

Camshaft journal clearance

0.030 - 0.071 (0.0012 - 0.0028)

Camshaft end play

0.115 - 0.188 (0.0045 - 0.0074)

Camshaft dimension (A) for No. 1 journal

30.500 - 30.548 (1.2008 - 1.2027)

Cylinder head dimension (B) for No. 1 journal

30.360 - 30.385 (1.1953 - 1.1963)

Camshaft sprocket runout [TIR*]

Less than 0.15 (0.0059)

SEM671

Items

Standard

Height (H) (without valve spring installed)

14.300 - 14.900 (0.5630 - 0.5870)

Items

Standard

Valve lifter diameter

33.977 - 33.987 (1.3377 - 1.3381)

Valve lifter hole diameter

34.000 - 34.016 (1.3386 - 1.3392)

Clearance between lifter and lifter guide

0.013 - 0.039 (0.0005 - 0.0015)

2010 Pathfinder

EM-246

< SERVICE DATA AND SPECIFICATIONS (SDS)

[VK56DE]

SERVICE DATA AND SPECIFICATIONS (SDS)

Unit: mm (in)

*: Approximately 80

°

C (176

°

F)

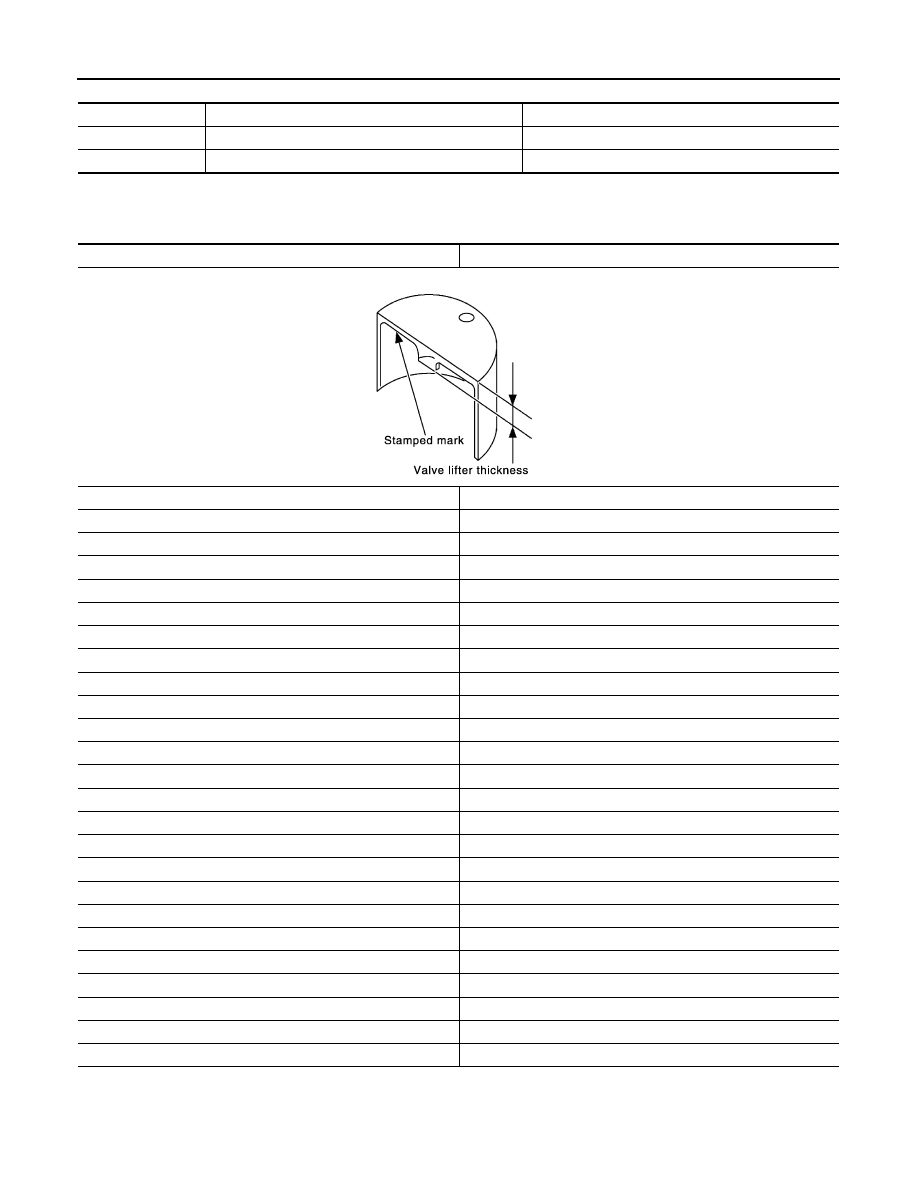

Available Valve Lifter

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information

CYLINDER HEAD

Items

Hot*

Cold

Intake

0.304 - 0.416 (0.012 - 0.016)

0.26 - 0.34 (0.010 - 0.013)

Exhaust

0.308 - 0.432 (0.012 - 0.017)

0.29 - 0.37 (0.011 - 0.015)

Identification (stamped) Mark*

Thickness

N788

7.88 (0.3102)

N790

7.90 (0.3110)

N792

7.92 (0.3118)

N794

 7.94 (0.3126)

N796

7.96 (0.3134)

N798

7.98 (0.3142)

N800

8.00 (0.3150)

N802

8.02 (0.3157)

N804

8.04 (0.3165)

N806

8.06 (0.3173)

N808

8.08 (0.3181)

N810

8.10 (0.3189)

N812

8.12 (0.3197)

N814

8.14 (0.3205)

 N816

8.16 (0.3213)

N818

8.18 (0.3220)

N820

8.20 (0.3228)

N822

8.22 (0.3236)

N824

8.24 (0.3244)

N826

8.26 (0.3252)

N828

8.28 (0.3260)

N830

8.30 (0.3268)

N832 8.32

(0.3276)

N834

8.34 (0.3283)

N836

8.36 (0.3291)

SEM758G

2010 Pathfinder

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-247

< SERVICE DATA AND SPECIFICATIONS (SDS)

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

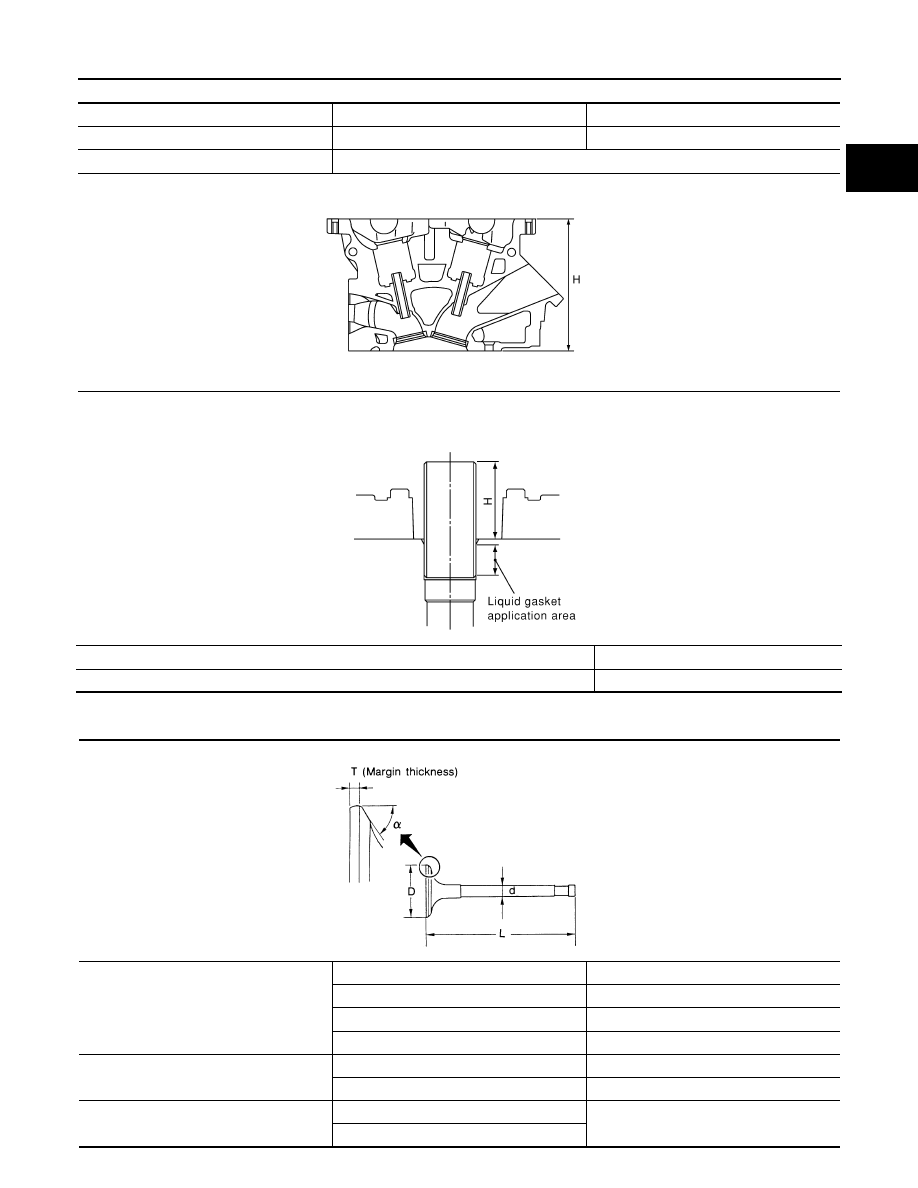

Unit: mm (in)

Spark Plug Tube

Unit: mm (in)

Valve Dimensions

Unit: mm (in)

Items

Standard

Limit

Head surface distortion

0.03 (0.0012)

0.1 (0.004)

Nominal cylinder head height “H”

126.3 (4.97)

KBIA2554E

Items

Standard

Press fit height "H"

38.400 - 39.400 (1.512 - 1.551)

KBIA1248E

Valve head diameter “D”

Intake

37.0 - 37.3 (1.457 - 1.469)

Exhaust

31.2 - 31.5 (1.228 - 1.240)

Valve length “L”

Intake

 96.21- 96.71 (3.7878 - 3.8075)

Exhaust

93.74 - 94.24 (3.6905 - 3.7102)

Valve stem diameter “d”

Intake

5.965 - 5.980 (0.2348 - 0.2354)

Exhaust

5.955 - 5.970 (0.2344 - 0.2350)

Valve seat angle “

α

”

Intake

45

°

15

′

 - 45

°

45

′

Exhaust

SEM188
