Nissan Pathfinder (2010 year). Manual - part 298

EC-476

< ECU DIAGNOSIS >

[VQ40DE]

ECM

CATA-
LYST

21H

Three way catalyst function
(Bank1)

P0420

80H

01H

O2 storage index

P0420

82H

01H

Switching time lag engine exhaust index
value

P2423

83H

0CH

Difference in 3rd O2 sensor output volt-
age

P2423

84H

O2 storage index in HC trap catalyst

22H

Three way catalyst function
(Bank2)

P0430

80H

01H

O2 storage index

P0430

82H

01H

Switching time lag engine exhaust index
value

P2424

83H

0CH

Difference in 3rd O2 sensor output volt-
age

P2424

84H

O2 storage index in HC trap catalyst

EGR
SYSTEM

31H

EGR function

P0400

80H

96H

Low Flow Faults: EGR temp change
rate (short term)

P0400

81H

96H

Low Flow Faults: EGR temp change
rate (long term)

P0400

82H

96H

Low Flow Faults: Difference between
max EGR temp and EGR temp under
idling condition

P0400

83H

96H

Low Flow Faults: Max EGR temp

P1402

84H

96H

High Flow Faults: EGR temp increase
rate

VVT
SYSTEM

35H

VVT Monitor (Bank1)

P0011

80H

9DH

VTC intake function diagnosis (VTC
alignment check diagnosis)

P0014

81H

9DH

VTC exhaust function diagnosis (VTC
alignment check diagnosis)

P0011

82H

9DH

VTC intake function diagnosis (VTC
drive failure diagnosis)

P0014

83H

9DH

VTC exhaust function diagnosis (VTC
drive failure diagnosis)

36H

VVT Monitor (Bank2)

P0021

80H

9DH

VTC intake function diagnosis (VTC
alignment check diagnosis)

P0024

81H

9DH

VTC exhaust function diagnosis (VTC
alignment check diagnosis)

P0021

82H

9DH

VTC intake function diagnosis (VTC
drive failure diagnosis)

P0024

83H

9DH

VTC exhaust function diagnosis (VTC
drive failure diagnosis)

Item

OBD-

MID

Self-diagnostic test item

DTC

Test value and Test

limit

(GST display)

Description

TID

Unit and

Scaling

2010 Pathfinder

ECM

EC-477

< ECU DIAGNOSIS >

[VQ40DE]

EVAP
SYSTEM

39H

EVAP control system leak
(Cap Off)

P0455

80H

0CH

Difference in pressure sensor output
voltage before and after pull down

3BH

EVAP control system leak
(Small leak)

P0442

80H

05H

Leak area index (for more than 0.04
inch)

3CH

EVAP control system leak
(Very small leak)

P0456

80H

05H

Leak area index (for more than 0.02
inch)

P0456

81H

FDH

Maximum internal pressure of EVAP
system during monitoring

P0456

82H

FDH

Internal pressure of EVAP system at the
end of monitoring

3DH

Purge flow system

P0441

83H

0CH

Difference in pressure sensor output
voltage before and after vent control
valve close

O2 SEN-
SOR
HEATER

41H

A/F sensor 1 heater
(Bank 1)

Low Input:P0031

High Input:P0032

81H

0BH

Converted value of Heater electric cur-
rent to voltage

42H

Heated oxygen sensor 2 heat-
er (Bank 1)

Low Input:P0037

High Input:P0038

80H

0CH

Converted value of Heater electric cur-
rent to voltage

43H

Heated oxygen sensor 3 heat-
er (Bank 1)

P0043

80H

0CH

Converted value of Heater electric cur-
rent to voltage

45H

A/F sensor 1 heater
(Bank 2)

Low Input:P0051

High Input:P0052

81H

0BH

Converted value of Heater electric cur-
rent to voltage

46H

Heated oxygen sensor 2 heat-
er (Bank 2)

Low Input:P0057

High Input:P0058

80H

0CH

Converted value of Heater electric cur-
rent to voltage

47H

Heated oxygen sensor 3 heat-
er (Bank 2)

P0063

80H

0CH

Converted value of Heater electric cur-
rent to voltage

Second-
ary Air

71H

Secondary Air system

P0411

80H

01H

Secondary Air Injection System Incor-
rect Flow Detected

Bank1: P0491
Bank2: P0492

81H

01H

Secondary Air Injection System Insuffi-
cient Flow

P2445

82H

01H

Secondary Air Injection System Pump
Stuck Off

P2448

83H

01H

Secondary Air Injection System High
Airflow

Bank1: P2440
Bank2: P2442

84H

01H

Secondary Air Injection System Switch-
ing Valve Stuck Open

P2440

85H

01H

Secondary Air Injection System Switch-
ing Valve Stuck Open

P2444

86H

01H

Secondary Air Injection System Pump
Stuck On

FUEL
SYSTEM

81H

Fuel injection system function
(Bank 1)

P0171 or P0172

80H

2FH

Long term fuel trim

P0171 or P0172

81H

24H

The number of lambda control clamped

82H

Fuel injection system function
(Bank 2)

P0174 or P0175

80H

2FH

Long term fuel trim

P0174 or P0175

81H

24H

The number of lambda control clamped

Item

OBD-

MID

Self-diagnostic test item

DTC

Test value and Test

limit

(GST display)

Description

TID

Unit and

Scaling

2010 Pathfinder

EC-478

< ECU DIAGNOSIS >

[VQ40DE]

ECM

MISFIRE

A1H

Multiple Cylinder Misfires

P0301

80H

24H

Misfiring counter at 1000 revolution of
the first cylinder

P0302

81H

24H

Misfiring counter at 1000 revolution of
the second cylinder

P0303

82H

24H

Misfiring counter at 1000 revolution of
the third cylinder

P0304

83H

24H

Misfiring counter at 1000 revolution of
the fourth cylinder

P0305

84H

24H

Misfiring counter at 1000 revolution of
the fifth cylinder

P0306

85H

24H

Misfiring counter at 1000 revolution of
the sixth cylinder

P0307

86H

24H

Misfiring counter at 1000 revolution of
the seventh cylinder

P0308

87H

24H

Misfiring counter at 1000 revolution of
the eighth cylinder

P0300

88H

24H

Misfiring counter at 1000 revolution of
the multiple cylinders

P0301

89H

24H

Misfiring counter at 200 revolution of the
first cylinder

P0302

8AH

24H

Misfiring counter at 200 revolution of the
second cylinder

P0303

8BH

24H

Misfiring counter at 200 revolution of the
third cylinder

P0304

8CH

24H

Misfiring counter at 200 revolution of the
fourth cylinder

P0305

8DH

24H

Misfiring counter at 200 revolution of the
fifth cylinder

P0306

8EH

24H

Misfiring counter at 200 revolution of the
sixth cylinder

P0307

8FH

24H

Misfiring counter at 200 revolution of the
seventh cylinder

P0308

90H

24H

Misfiring counter at 200 revolution of the
eighth cylinder

P0300

91H

24H

Misfiring counter at 1000 revolution of
the single cylinder

P0300

92H

24H

Misfiring counter at 200 revolution of the
single cylinder

P0300

93H

24H

Misfiring counter at 200 revolution of the
multiple cylinders

Item

OBD-

MID

Self-diagnostic test item

DTC

Test value and Test

limit

(GST display)

Description

TID

Unit and

Scaling

2010 Pathfinder

ECM

EC-479

< ECU DIAGNOSIS >

[VQ40DE]

HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION

How to Erase DTC

With CONSULT-III

The emission related diagnostic information in the ECM can be erased by selecting “ALL Erase” in the

“Description” of “FINAL CHECK” mode with CONSULT-III.

With GST

The emission related diagnostic information in the ECM can be erased by selecting Service $04 with GST.

1. If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once. Wait at least 10

seconds and then turn it ON (engine stopped) again.

2. Perform

TM-34, "OBD-II Diagnostic Trouble Code (DTC)"

. (The DTC in TCM will be erased.)

MISFIRE

A2H

No. 1 Cylinder Misfire

P0301

0BH

24H

EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles

P0301

0CH

24H

Misfire counts for last/current driving cy-
cles

A3H

No. 2 Cylinder Misfire

P0302

0BH

24H

EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles

P0302

0CH

24H

Misfire counts for last/current driving cy-
cles

A4H

No. 3 Cylinder Misfire

P0303

0BH

24H

EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles

P0303

0CH

24H

Misfire counts for last/current driving cy-
cles

A5H

No. 4 Cylinder Misfire

P0304

0BH

24H

EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles

P0304

0CH

24H

Misfire counts for last/current driving cy-
cles

A6H

No. 5 Cylinder Misfire

P0305

0BH

24H

EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles

P0305

0CH

24H

Misfire counts for last/current driving cy-
cles

A7H

No. 6 Cylinder Misfire

P0306

0BH

24H

EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles

P0306

0CH

24H

Misfire counts for last/current driving cy-
cles

A8H

No. 7 Cylinder Misfire

P0307

0BH

24H

EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles

P0307

0CH

24H

Misfire counts for last/current driving cy-
cles

A9H

No. 8 Cylinder Misfire

P0308

0BH

24H

EWMA (Exponential Weighted Moving
Average) misfire counts for last 10 driv-
ing cycles

P0308

0CH

24H

Misfire counts for last/current driving cy-
cles

Item

OBD-

MID

Self-diagnostic test item

DTC

Test value and Test

limit

(GST display)

Description

TID

Unit and

Scaling

2010 Pathfinder

EC-480

< ECU DIAGNOSIS >

[VQ40DE]

ECM

3. Select Service $04 with GST (Generic Scan Tool).

No Tools

1. If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once.

Wait at least 10 seconds and then turn it ON (engine stopped) again.

2. Perform

TM-34, "OBD-II Diagnostic Trouble Code (DTC)"

. (The DTC in TCM will be erased.)

3. Change the diagnostic test mode from Mode II to Mode I by depressing the accelerator pedal. Refer to

EC-71, "Malfunction Indicator Lamp (MIL)"

•

If the battery is disconnected, the emission-related diagnostic information will be lost within 24

hours.

•

The following data are cleared when the ECM memory is erased.

- Diagnostic trouble codes

- 1st trip diagnostic trouble codes

- Freeze frame data

- 1st trip freeze frame data

- System readiness test (SRT) codes

- Test values

Actual work procedures are explained using a DTC as an example. Be careful so that not only the DTC, but all

of the data listed above, are cleared from the ECM memory during work procedures.

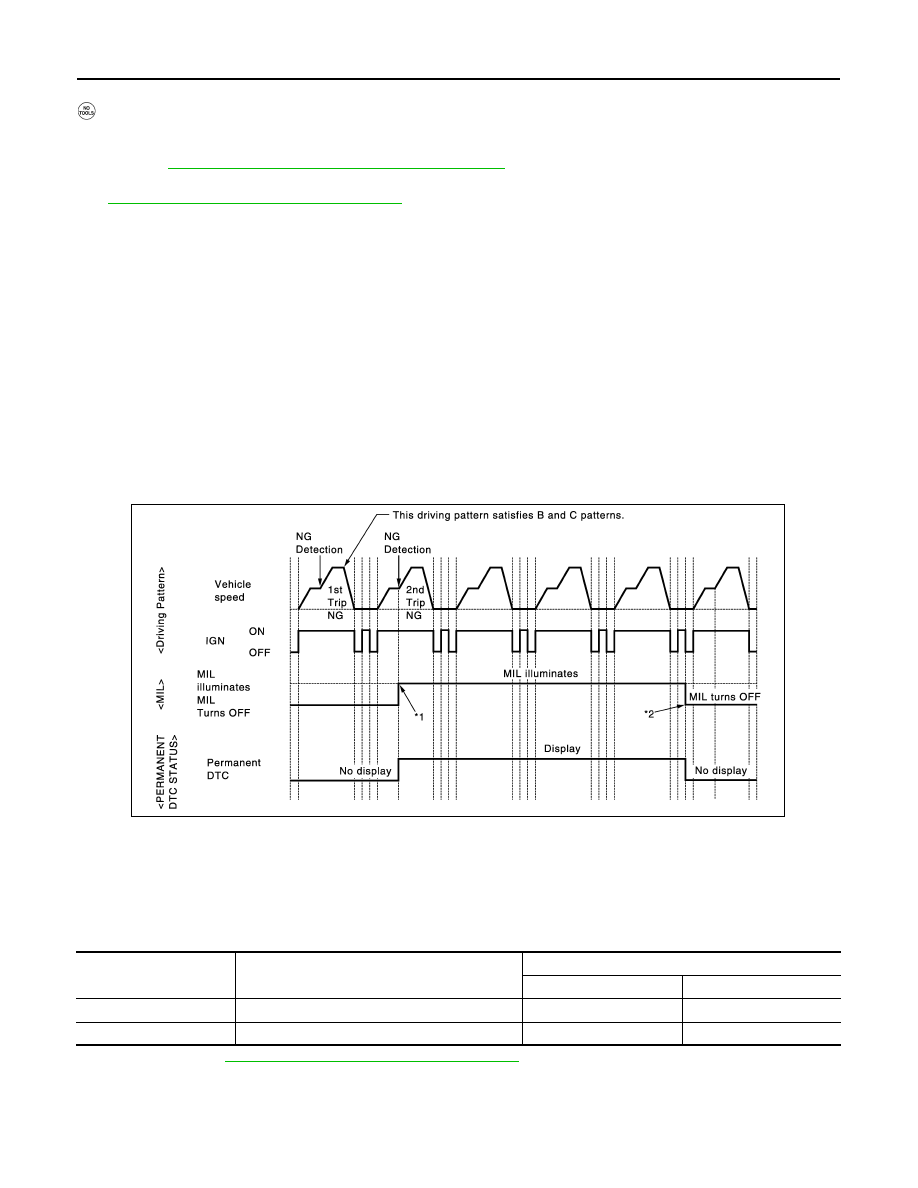

How to Erase Permanent DTC

When a DTC is stored in ECM

• When a DTC is stored in ECM and MIL is ON, a permanent DTC is erased with MIL shutoff if the same mal-

function is not detected after performing the driving pattern for MIL shutoff three times in a raw.

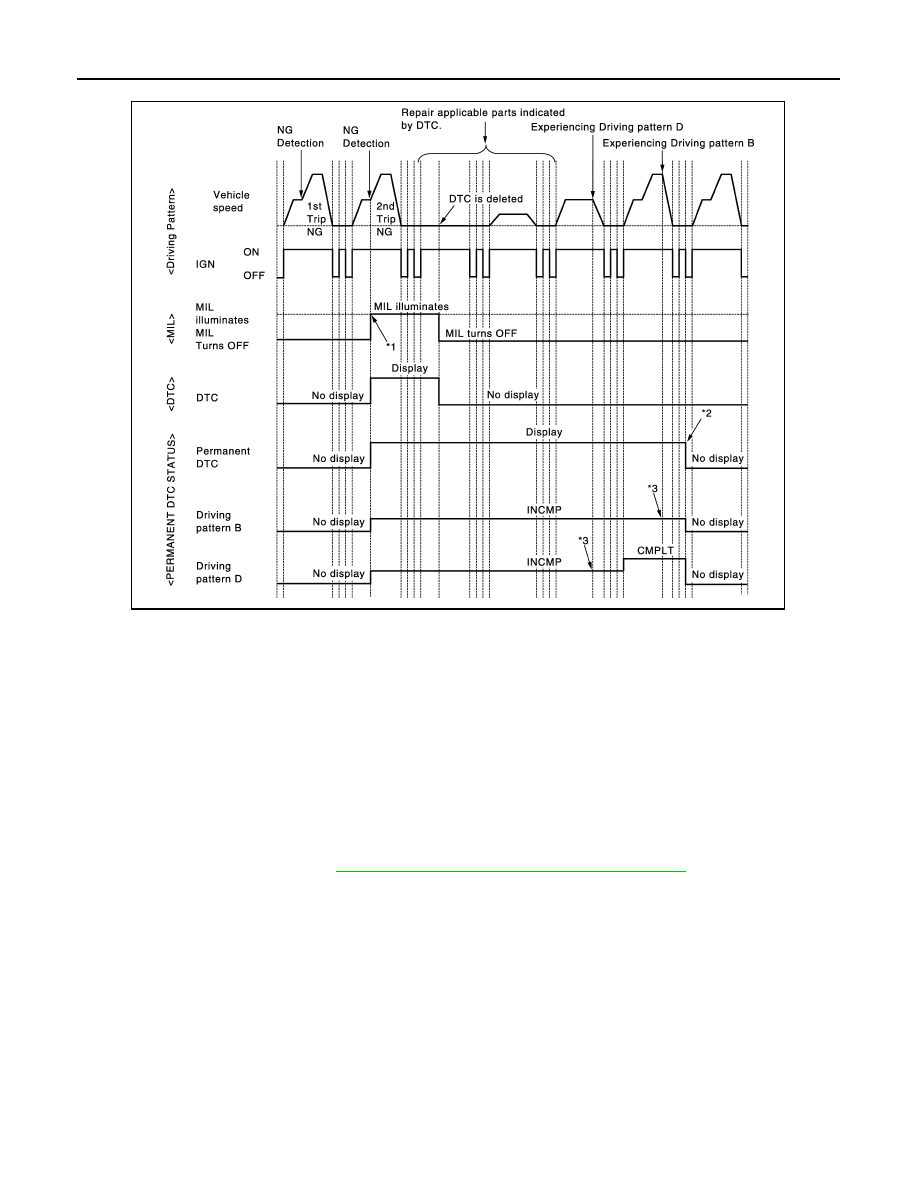

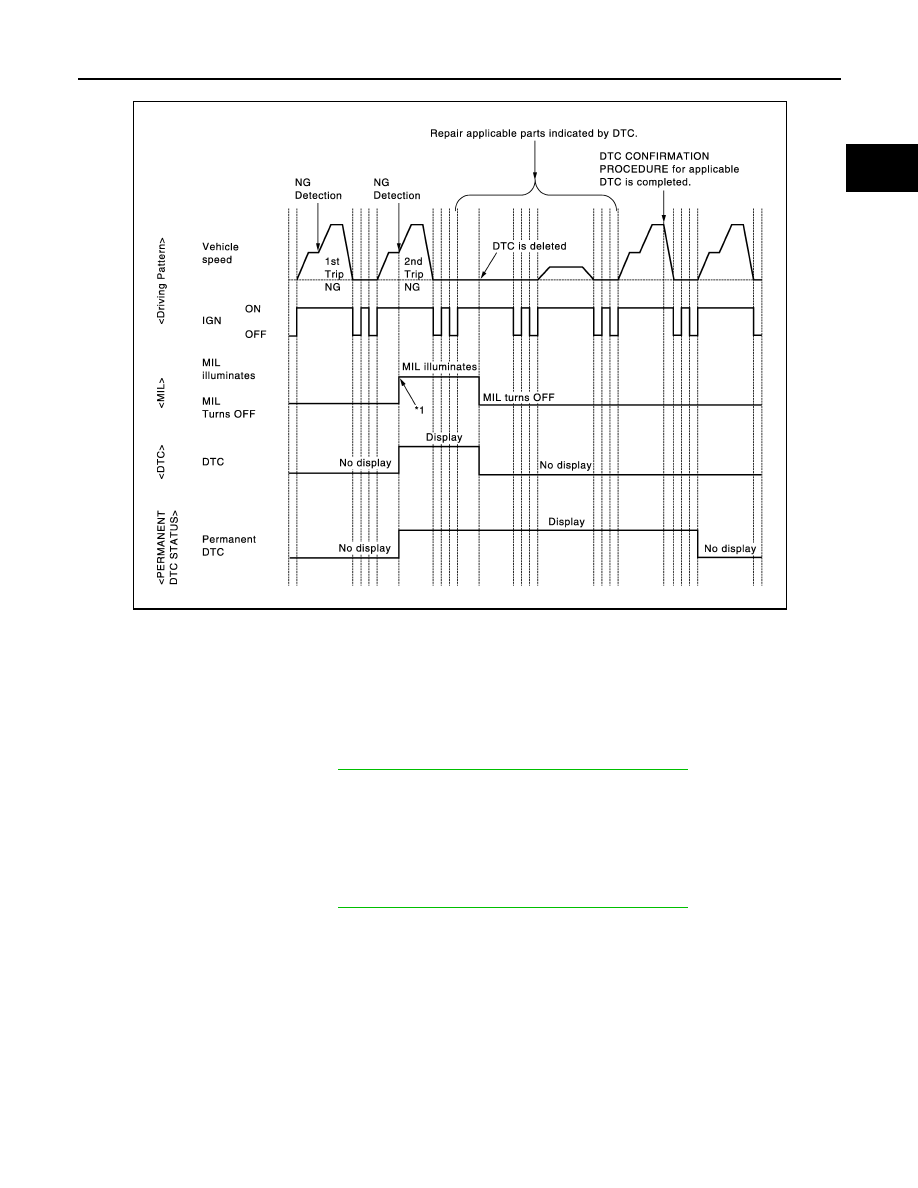

When a DTC is not stored in ECM

• The erasing method depends on a permanent DTC stored in ECM. Refer to the following table.

: Applicable —: Not applicable

*: For group, refer to

EC-464, "Emission-related Diagnostic Information"

, “EMISSION-RELATED DIAGNOSTIC INFORMATION

ITEMS”.

Group A

*1: When the same malfunction is de-

tected in two consecutive trips, MIL
will illuminate.

*2: MIL will turn off after vehicle is driven

3 times (pattern B) without any mal-
functions.

JSBIA0063GB

Group

Perform “DTC CONFIRMATION PROCEDURE”

for applicable DTCs.

Driving pattern

—

2010 Pathfinder

ECM

EC-481

< ECU DIAGNOSIS >

[VQ40DE]

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

4. Turn ignition switch ON.

5. Check permanent DTC. Refer to

EC-464, "Emission-related Diagnostic Information"

, “How to Display Per-

manent DTC Status”.

6. Perform “DTC CONFIRMATION PROCEDURE” for DTCs which are the same as permanent DTCs stored

in ECM.

7. Turn ignition switch OFF and wait at least 10 seconds.

8. Turn ignition switch ON.

9. Turn ignition switch OFF and wait at least 10 seconds.

10. Turn ignition switch ON.

11. Check permanent DTC. Refer to

EC-464, "Emission-related Diagnostic Information"

, “How to Display Per-

manent DTC Status”.

12. Check that the permanent DTCs have been erased.

Group B

*1: When the same malfunction is de-

tected in two consecutive trips, MIL
will illuminate.

JSBIA0064GB

2010 Pathfinder

EC-482

< ECU DIAGNOSIS >

[VQ40DE]

ECM

NOTE:

• Drive the vehicle according to only driving patterns indicating “INCMP” in driving patterns B and D on the

“PERMANENT DTC STATUS” screen.

• When experiencing both driving pattern B and D during the same trip, the experience of driving pattern D is

counted by priority.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

4. Turn ignition switch ON.

5. Check permanent DTC. Refer to

EC-464, "Emission-related Diagnostic Information"

, “How to Display Per-

manent DTC Status”.

6. Start engine and warm it up to normal operating temperature.

7. Drive the vehicle according to driving pattern D.

CAUTION:

• Always drive at a safe speed.

• Never erase self-diagnosis results.

• If self-diagnosis results are erased during the trip of driving pattern B or D, the counter of driving

pattern B or D is reset.

• If self-diagnosis results are erased during the trip of driving pattern B or D, an experience of driv-

ing pattern B and D during the same trip is not counted up.

8. Turn ignition switch OFF and wait at least 10 seconds.

9. Turn ignition switch ON.

10. Turn ignition switch OFF and wait at least 10 seconds.

11. Turn ignition switch ON.

12. Use “PERMANENT DTC WORK SUPPORT” to drive the vehicle according to driving pattern B.

*1: When the same malfunction is de-

tected in two consecutive trips, MIL
will illuminate.

*2: After experiencing Driving pattern B

and D, permanent DTC is erased.

*3: Indication does not change unless

the ignition switch is turned from ON
to OFF twice even after experiencing
Driving pattern B or D.

JSBIA0068GB

2010 Pathfinder

ECM

EC-483

< ECU DIAGNOSIS >

[VQ40DE]

CAUTION:

• Always drive at a safe speed.

• Never erase self-diagnosis results.

• If self-diagnosis results are erased during the trip of driving pattern B or D, the counter of driving

pattern B or D is reset.

• If self-diagnosis results are erased during the trip of driving pattern B or D, an experience of driv-

ing pattern B and D during the same trip is not counted up.

13. Turn ignition switch OFF and wait at least 10 seconds.

14. Turn ignition switch ON.

15. Turn ignition switch OFF and wait at least 10 seconds.

16. Turn ignition switch ON.

17. Check permanent DTC. Refer to

EC-464, "Emission-related Diagnostic Information"

, “How to Display Per-

manent DTC Status”.

18. Check that the permanent DTCs have been erased.

2010 Pathfinder

Content .. 296 297 298 299 ..
