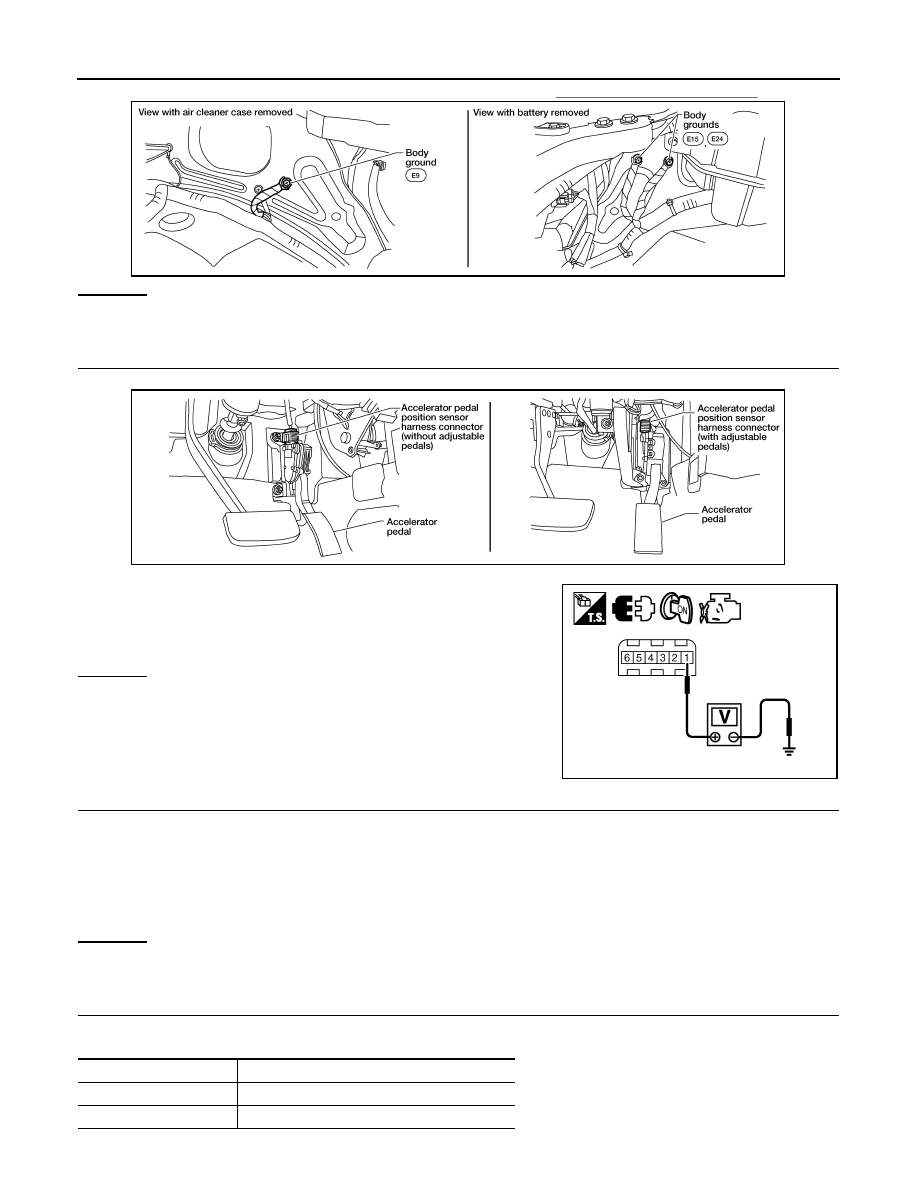

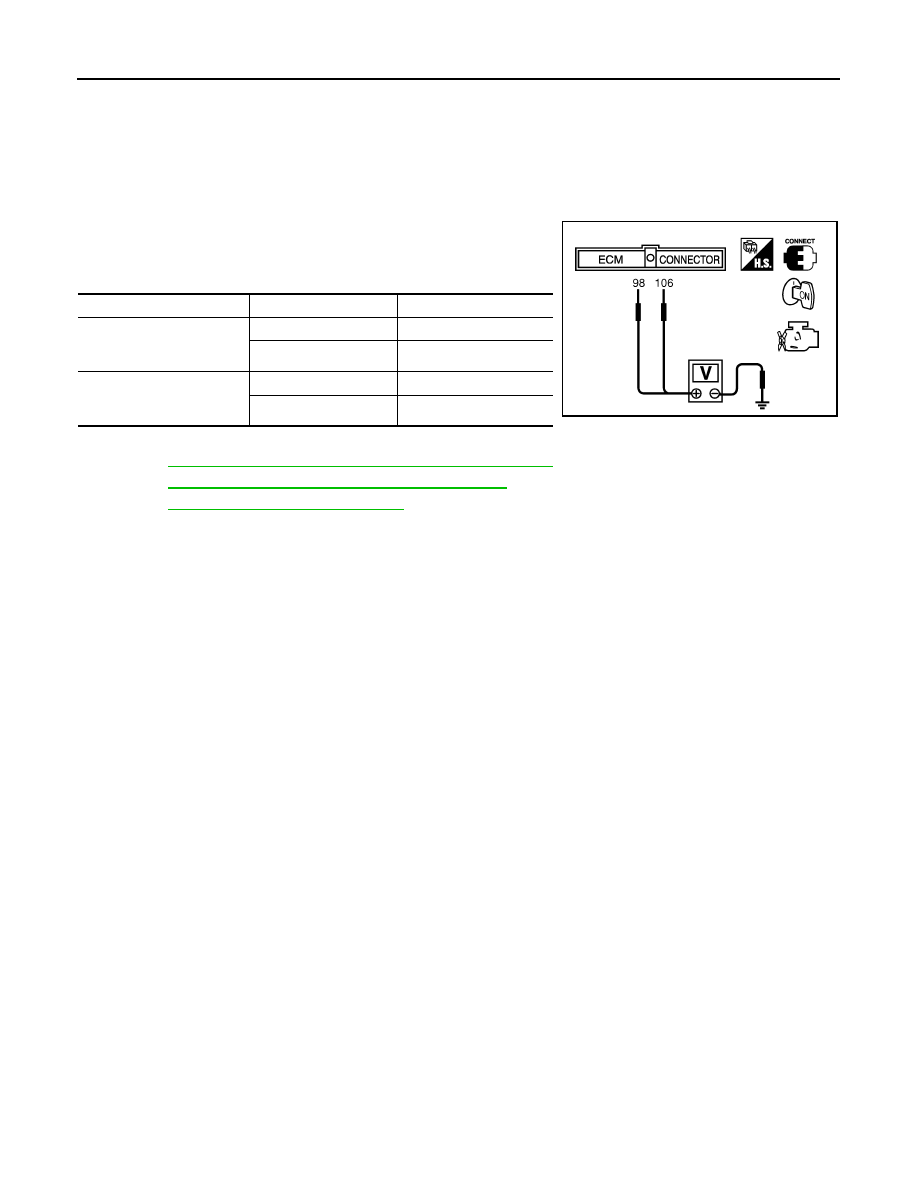

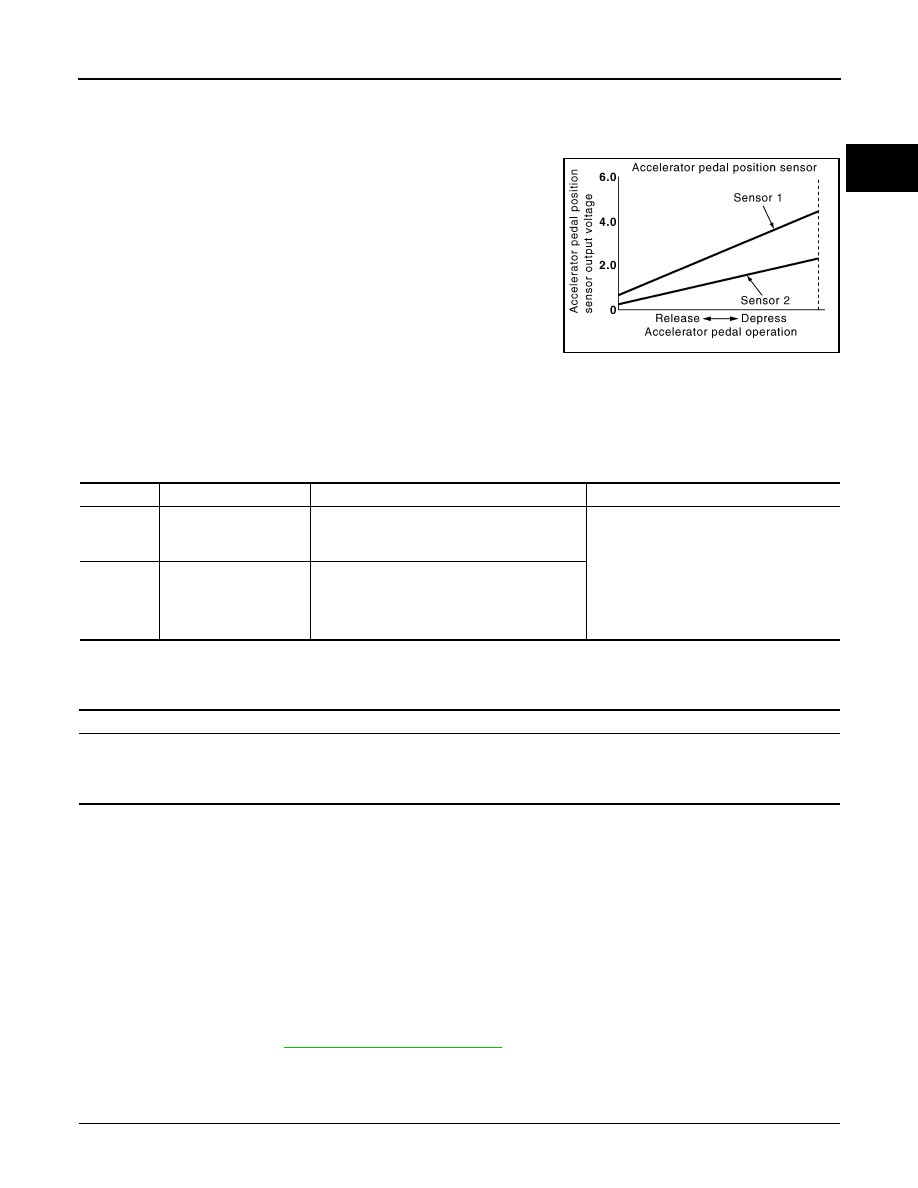

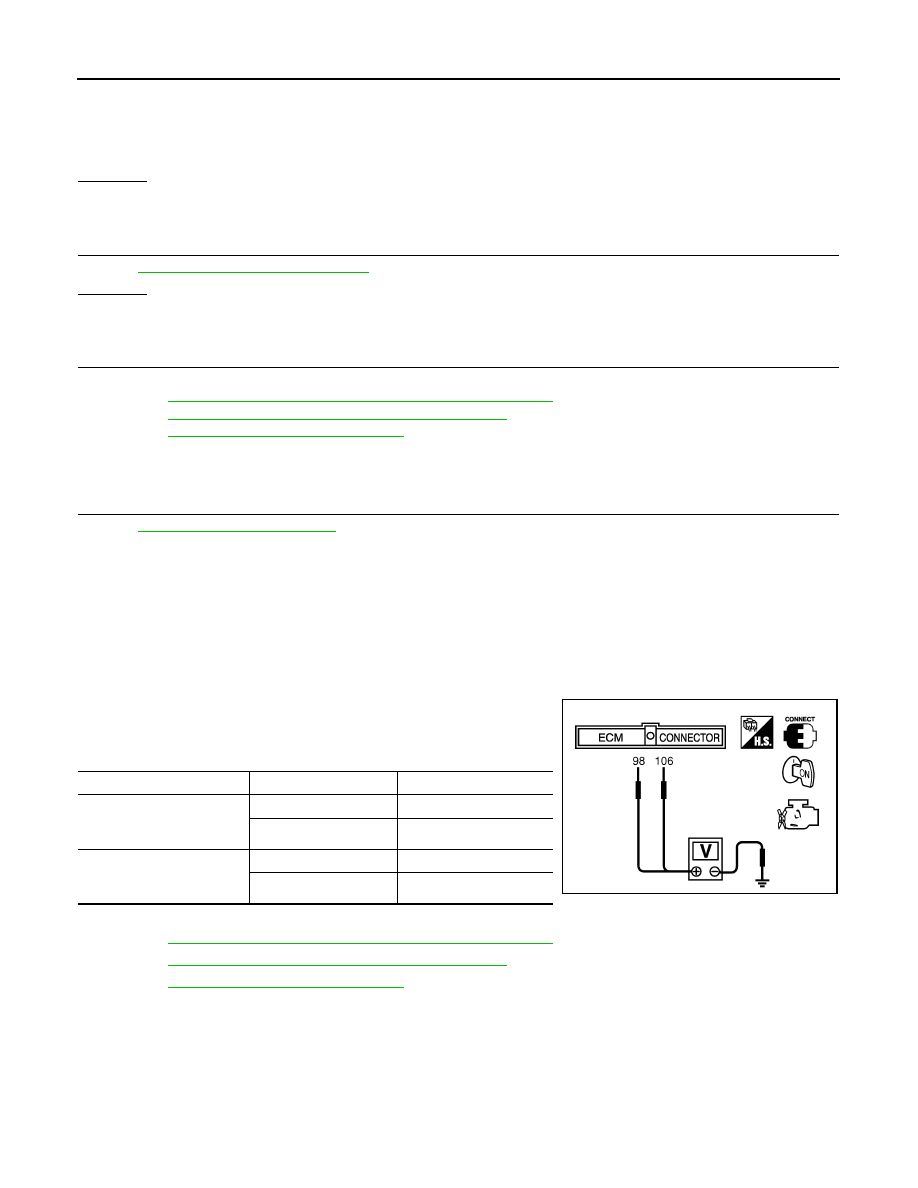

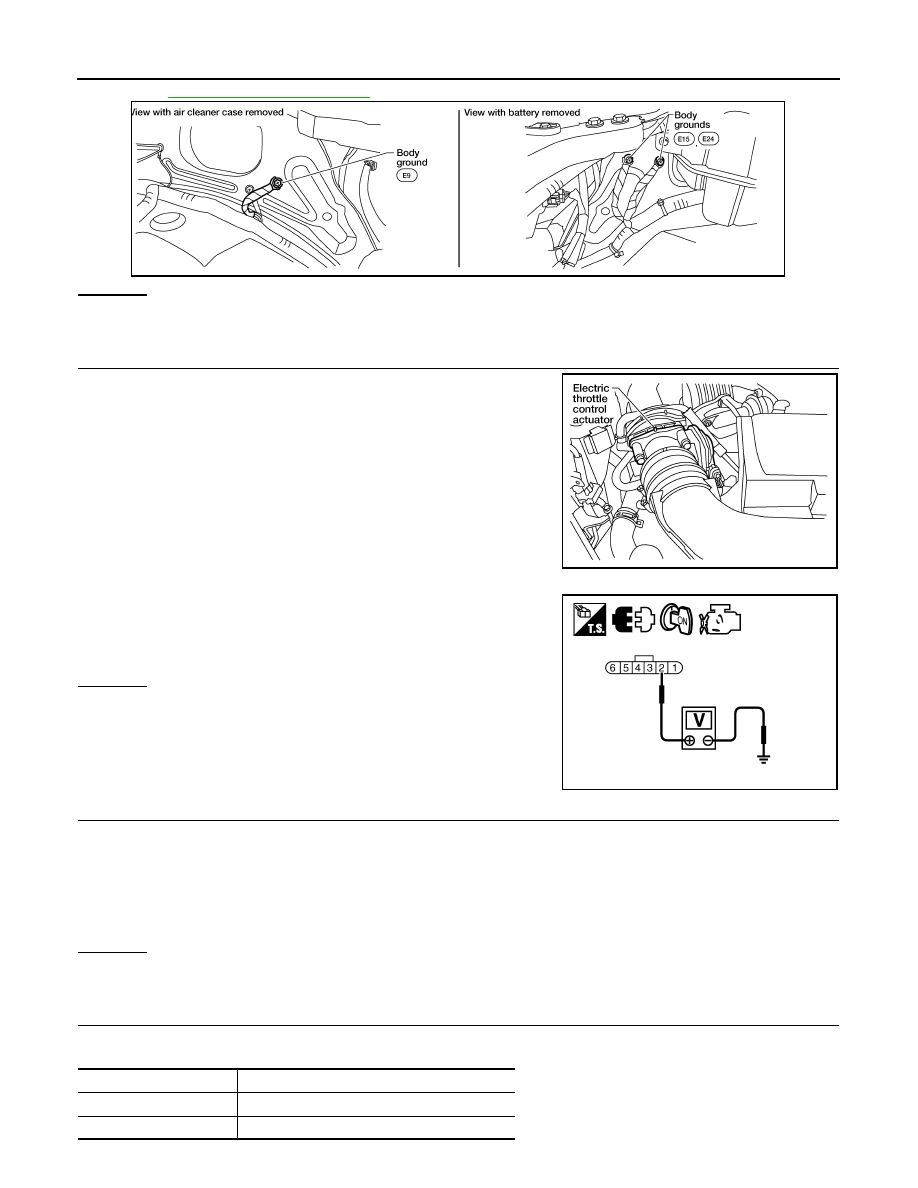

EC-372 < COMPONENT DIAGNOSIS > [VQ40DE] P2122, P2123 APP SENSOR Refer to Wiring Diagram. 2. Also check harness for short to ground and short to power. OK >> GO TO 5. NG >> Repair open circuit or short to ground or short to power in harness or connectors. 5. CHECK APP SENSOR EC-372, "Component Inspection" OK or NG OK >> GO TO 7. NG >> GO TO 6. 6. REPLACE ACCELERATOR PEDAL ASSEMBLY 1. Replace accelerator pedal assembly. 2. Perform EC-25, "Accelerator Pedal Released Position Learning" 3. Perform EC-25, "Throttle Valve Closed Position Learning" . 4. Perform EC-25, "Idle Air Volume Learning" >> INSPECTION END 7. CHECK INTERMITTENT INCIDENT GI-37, "Intermittent Incident" >> INSPECTION END Component Inspection INFOID:0000000005257408 ACCELERATOR PEDAL POSITION SENSOR 1. Reconnect all harness connectors disconnected. nal), 98 (APP sensor 2 signal) and ground under the following conditions. 4. If NG, replace accelerator pedal assembly and go to next step. EC-25, "Accelerator Pedal Released Position Learning" 6. Perform EC-25, "Throttle Valve Closed Position Learning" . 7. Perform EC-25, "Idle Air Volume Learning" Continuity should exist. Terminal Accelerator pedal Voltage 106 Fully released 0.65 - 0.87V Fully depressed More than 4.3V 98 Fully released 0.28 - 0.48V Fully depressed More than 2.0V MBIB0023E 2010 Pathfinder |
