EC-84

< FUNCTION DIAGNOSIS >

[VQ40DE]

ON BOARD DIAGNOSTIC (OBD) SYSTEM

VHCL SPEED SE

km/h or

mph

• The vehicle speed computed from the vehicle

speed signal sent from TCM is displayed.

SET VHCL SPD

km/h or

mph

• The preset vehicle speed is displayed.

MAIN SW

ON/OFF

• Indicates [ON/OFF] condition from MAIN switch

signal.

CANCEL SW

ON/OFF

• Indicates [ON/OFF] condition from CANCEL switch

signal.

RESUME/ACC SW

ON/OFF

• Indicates [ON/OFF] condition from RESUME/AC-

CELERATE switch signal.

SET SW

ON/OFF

• Indicates [ON/OFF] condition from SET/COAST

switch signal.

BRAKE SW1

ON/OFF

• Indicates [ON/OFF] condition from ASCD brake

switch signal.

BRAKE SW2

ON/OFF

• Indicates [ON/OFF] condition of stop lamp switch

signal.

VHCL SPD CUT

NON/

CUT

• Indicates the vehicle cruise condition.

NON: Vehicle speed is maintained at the ASCD set
speed.
CUT: Vehicle speed increased to excessively high
compared with the ASCD set speed, and ASCD op-
eration is cut off.

LO SPEED CUT

NON/

CUT

• Indicates the vehicle cruise condition.

NON: Vehicle speed is maintained at the ASCD set
speed.
CUT: Vehicle speed decreased to excessively low
compared with the ASCD set speed, and ASCD op-
eration is cut off.

AT OD MONITOR

ON/OFF

• Indicates [ON/OFF] condition of A/T O/D according

to the input signal from the TCM.

AT OD CANCEL

ON/OFF

• Indicates [ON/OFF] condition of A/T O/D cancel

signal sent from the TCM.

CRUISE LAMP

ON/OFF

• Indicates [ON/OFF] condition of CRUISE lamp de-

termined by the ECM according to the input sig-
nals.

SET LAMP

ON/OFF

• Indicates [ON/OFF] condition of SET lamp deter-

mined by the ECM according to the input signals.

ALT DUTY

%

• Indicates the duty ratio of the power generation

command value. The ratio is calculated by ECM
based on the battery current sensor signal.

BAT CUR SEN

mV

• The signal voltage of battery current sensor is dis-

played.

ALT DUTY SIG

ON/OFF

• The control condition of the power generation volt-

age variable control (determined by ECM accord-
ing to the input signals) is indicated.
ON: Power generation voltage variable control is
active
OFF: Power generation voltage variable control is
inactive.

A/F ADJ-B1

• Indicates the correction factor saved in ECM. The

factor is calculated from the difference between the
target air-fuel ratio saved in ECM and the air-fuel
ratio calculated from A/F sensor 1 signal.

A/F ADJ-B2

HO2 S2 DIAG1 (B1)

INCMP/

CMPLT

• Indicates DTC P0139 self-diagnosis (delayed re-

sponce) condition.
INCMP: Self-diagnosis is incomplete.
CMPLT: Self-diagnosis is complete.

Monitored item

Unit

Description

Remarks

2010 Pathfinder

ON BOARD DIAGNOSTIC (OBD) SYSTEM

EC-85

< FUNCTION DIAGNOSIS >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

NOTE:

Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.

ACTIVE TEST MODE

Test Item

HO2 S2 DIAG1 (B2)

INCMP/

CMPLT

• Indicates DTC P0159 self-diagnosis (delayed re-

sponce) condition.
INCMP: Self-diagnosis is incomplete.
CMPLT: Self-diagnosis is complete.

HO2 S2 DIAG2 (B1)

INCMP/

CMPLT

• Indicates DTC P0139 self-diagnosis (slow re-

sponce) condition.
INCMP: Self-diagnosis is incomplete.
CMPLT: Self-diagnosis is complete.

HO2 S2 DIAG2 (B2)

INCMP/

CMPLT

• Indicates DTC P0159 self-diagnosis (slow re-

sponce) condition.
INCMP: Self-diagnosis is incomplete.
CMPLT: Self-diagnosis is complete.

Monitored item

Unit

Description

Remarks

TEST ITEM

CONDITION

JUDGEMENT

CHECK ITEM (REMEDY)

FUEL INJEC-
TION

• Engine: Return to the original

non-standard condition

• Change the amount of fuel injec-

tion using CONSULT-III.

If malfunctioning symptom disap-
pears, see CHECK ITEM.

• Harness and connectors
• Fuel injector
• Air fuel ratio (A/F) sensor 1

IGNITION TIM-
ING

• Engine: Return to the original

non-standard condition

• Timing light: Set
• Retard the ignition timing using

CONSULT-III.

If malfunctioning symptom disap-
pears, see CHECK ITEM.

• Perform Idle Air Volume Learning.

POWER BAL-
ANCE

• Engine: After warming up, idle the

engine.

• A/C switch: OFF
• Shift lever: P or N
• Cut off each fuel injector signal

one at a time using CONSULT-III.

Engine runs rough or stops.

• Harness and connectors
• Compression
• Fuel injector
• Power transistor
• Spark  plug
• Ignition coil

COOLING FAN*

• Ignition switch: ON
• Turn the cooling fan HI, LOW and

OFF using CONSULT-III.

Cooling fan moves and stops.

• Harness and connectors
• Cooling fan motor
• IPDM  E/R

ENG COOLANT
TEMP

• Engine: Return to the original

non-standard condition

• Change the engine coolant tem-

perature using CONSULT-III.

If malfunctioning symptom disap-
pears, see CHECK ITEM.

• Harness and connectors
• Engine coolant temperature sen-

sor

• Fuel injector

FUEL PUMP RE-
LAY

• Ignition switch: ON (Engine

stopped)

• Turn the fuel pump relay ON and

OFF using CONSULT-III and lis-
ten to operating sound.

Fuel pump relay makes the operat-
ing sound.

• Harness and connectors
• Fuel pump relay

VIAS SOL VALVE

• Ignition switch: ON
• Turn solenoid valve ON and OFF

with CONSULT-III and listen for
operating sound.

Solenoid valve makes an operating
sound.

• Harness and connectors
• Solenoid valve

PURG VOL
CONT/V

• Engine: After warming up, run en-

gine at 1,500 rpm.

• Change the EVAP canister purge

volume control solenoid valve
opening percent using CON-
SULT-III.

Engine speed changes according to
the opening percent.

• Harness and connectors
• Solenoid valve

FUEL/T TEMP
SEN

• Change the fuel tank temperature using CONSULT-III.

2010 Pathfinder

EC-86

< FUNCTION DIAGNOSIS >

[VQ40DE]

ON BOARD DIAGNOSTIC (OBD) SYSTEM

*: Leaving cooling fan OFF with CONSULT-III while engine is running may cause the engine to overheat.

DTC & SRT CONFIRMATION MODE

SRT STATUS Mode

For details, refer to

EC-53, "Emission-related Diagnostic Information"

.

PERMANENT DTC STATUS Mode

For details, refer to

EC-464, "Emission-related Diagnostic Information"

.

NOTE:

This mode is not used in regions that permanent DTCs are not regulated by law.

SRT Work Support Mode

This mode enables a technician to drive a vehicle to set the SRT while monitoring the SRT status.

PERMANENT DTC WORK SUPPORT Mode

This mode enables a technician to drive a vehicle to complete the driving pattern that is reguired for erasing

permanent DTC.

NOTE:

This mode is not used in regions that permanent DTCs are not regulated by law.

DTC Work Support Mode

*: DTC P1442 and P1456 does not apply to R51 models but appears in DTC Work Support Mode screens.

Generic Scan Tool (GST) Function

INFOID:0000000005257053

DESCRIPTION

VENT CON-
TROL/V

• Ignition switch: ON (Engine

stopped)

• Turn solenoid valve ON and OFF

with the CONSULT-III and listen
to operating sound.

Solenoid valve makes an operating
sound.

• Harness and connectors
• Solenoid valve

V/T ASSIGN AN-
GLE

• Engine: Return to the original

non-standard condition

• Change intake valve timing using

CONSULT-III.

If malfunctioning symptom disap-
pears, see CHECK ITEM.

• Harness and connectors
• Intake valve timing control sole-

noid valve

ALTERNATOR
DUTY

• Engine:  Idle
• Change duty ratio using CON-

SULT-III.

Battery voltage changes.

• Harness and connectors
• IPDM E/R
• Alternator

TEST ITEM

CONDITION

JUDGEMENT

CHECK ITEM (REMEDY)

Test mode

Test item

Corresponding DTC No.

Reference page

EVAPORATIVE SYS-
TEM

EVP SML LEAK P0442/P1442*

P0442

EC-236

P0455

EC-272

EVP V/S LEAK P0456/P1456*

P0456

EC-279

PURG VOL CN/V P1444

P0443

EC-243

PURG FLOW P0441

P0441

EC-231

A/F SEN1

A/F SEN1 (B1) P1278/P1279

P0133

EC-161

A/F SEN1 (B1) P1276

P0130

EC-149

A/F SEN1 (B2) P1288/P1289

P0153

EC-161

A/F SEN1 (B2) P1286

P0150

EC-149

HO2S2

HO2S2 (B1) P1146

P0138

EC-172

HO2S2 (B1) P1147

P0137

EC-166

HO2S2 (B1) P0139

P0139

EC-180

HO2S2 (B2) P1166

P0158

EC-172

HO2S2 (B2) P1167

P0157

EC-166

HO2S2 (B2) P0159

P0159

EC-180

2010 Pathfinder

ON BOARD DIAGNOSTIC (OBD) SYSTEM

EC-87

< FUNCTION DIAGNOSIS >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

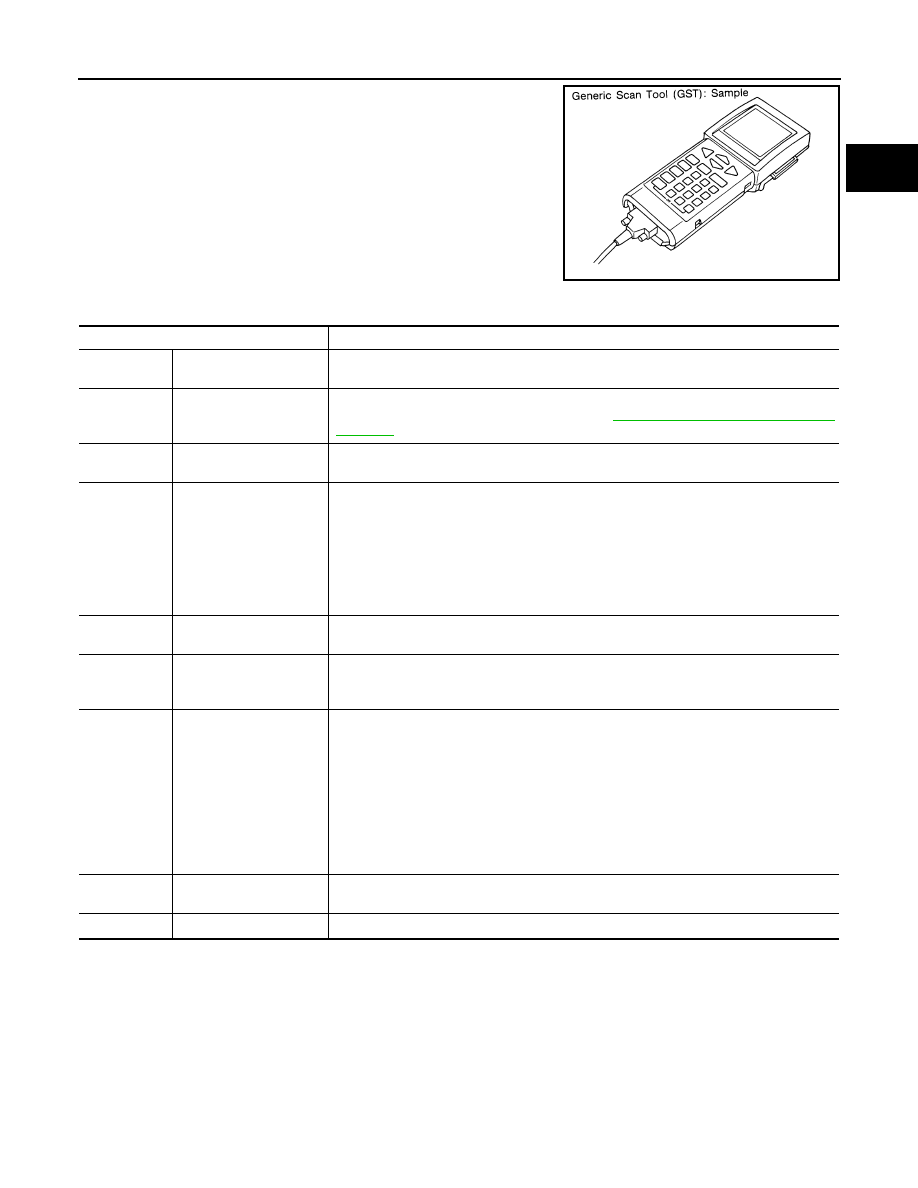

Generic Scan Tool (OBDII scan tool) complying with SAE J1978/ISO

15031-4 has several functions explained below.

ISO15765-4 is used as the protocol.

The name GST or Generic Scan Tool is used in this service manual.

FUNCTION

NOTE:

*: Service $0A is not applied for regions where it is not mandated.

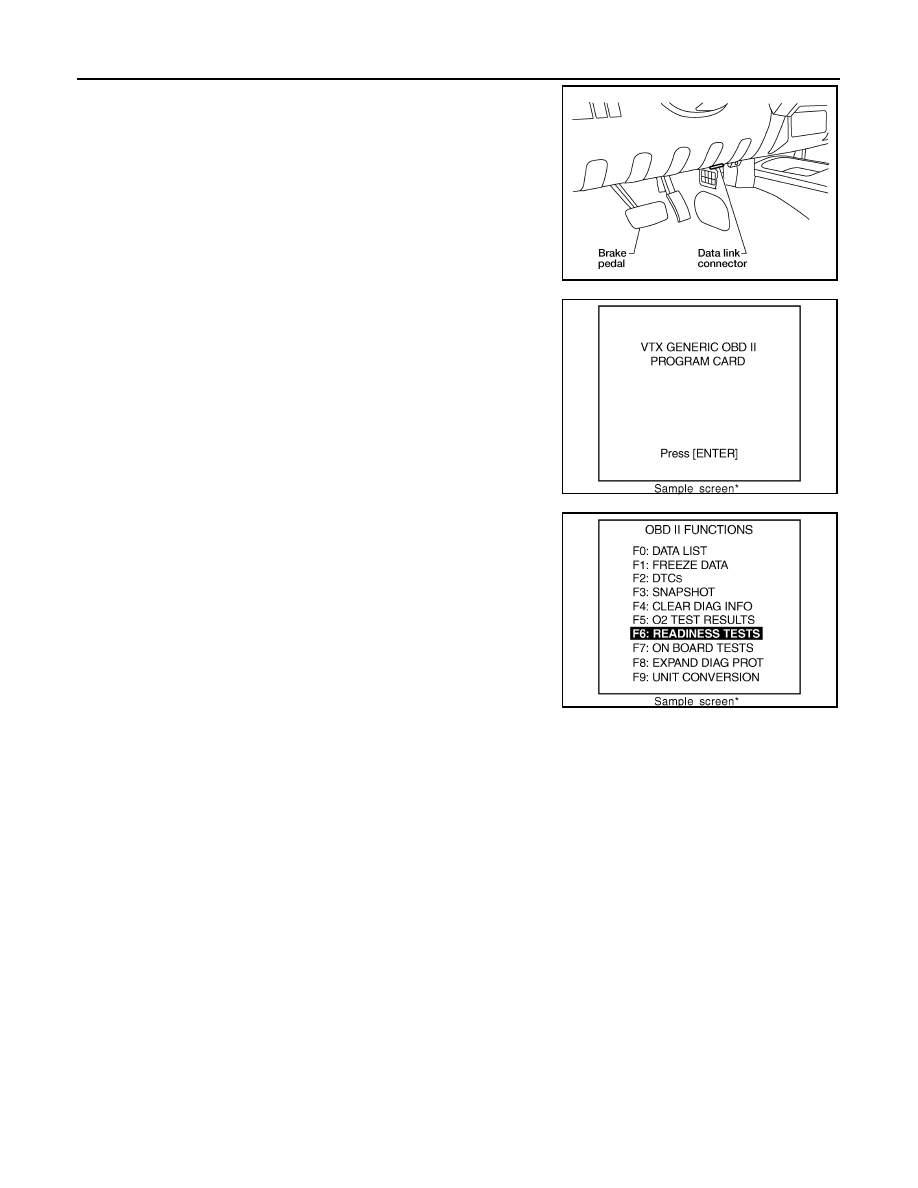

INSPECTION PROCEDURE

1. Turn ignition switch OFF.

SEF139P

Diagnostic test mode

Function

Service $01

READINESS TESTS

This diagnostic service gains access to current emission-related data values, including an-
alog inputs and outputs, digital inputs and outputs, and system status information.

Service $02

(FREEZE DATA)

This diagnostic service gains access to emission-related data value that were saved by
ECM during the freeze frame. For details, refer to

EC-53, "Emission-related Diagnostic In-

formation"

 .

Service $03

DTCs

This diagnostic service gains access to emission-related power train trouble codes which
were saved by ECM.

Service $04

CLEAR DIAG INFO

This diagnostic service can clear all emission-related diagnostic information. This in-
cludes:
• Clear number of diagnostic trouble codes (Service $01)
• Clear diagnostic trouble codes (Service $03)
• Clear trouble code for freeze frame data (Service $01)
• Clear freeze frame data (Service $02)
• Reset status of system monitoring test (Service $01)
• Clear on board monitoring test results (Service $06 and $07)

Service $06

(ON BOARD TESTS)

This diagnostic service accesses the results of on board diagnostic monitoring tests of
specific components/systems that are not continuously monitored.

Service $07

(ON BOARD TESTS)

This diagnostic service enables the off board test drive to obtain test results for emission-
related powertrain components/systems that are continuously monitored during normal
driving conditions.

Service $08

This diagnostic service can close EVAP system in ignition switch ON position (Engine
stopped). When this diagnostic service is performed, the EVAP canister vent control valve
can be closed.
In the following conditions, this diagnostic service cannot function.
• Low ambient temperature
• Low battery voltage
• Engine running
• Ignition switch OFF
• Low fuel temperature
• Too much pressure is applied to EVAP system

Service $09

(CALIBRATION ID)

This diagnostic service enables the off-board test device to request specific vehicle infor-
mation such as Vehicle Identification Number (VIN) and Calibration IDs.

Service $0A

*

PERMANENT DTCs

This diagnostic service gains access to permanent DTCs which were stored by ECM.

2010 Pathfinder

EC-88

< FUNCTION DIAGNOSIS >

[VQ40DE]

ON BOARD DIAGNOSTIC (OBD) SYSTEM

2. Connect GST to data link connector, which is located under LH

dash panel near the hood opener handle.

3. Turn ignition switch ON.
4. Enter the program according to instruction on the screen or in

the operation manual.

(*: Regarding GST screens in this section, sample screens are

shown.)

5. Perform each diagnostic mode according to each service proce-

dure.

For further information, see the GST Operation Manual of

the tool maker.

BBIA0538E

SEF398S

SEF416S

2010 Pathfinder

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

EC-89

< COMPONENT DIAGNOSIS >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

COMPONENT DIAGNOSIS

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

Description

INFOID:0000000005257054

The specification (SP) value indicates the tolerance of the value that is displayed in “SPEC” of “DATA MONI-

TOR” mode of CONSULT-III during normal operation of the Engine Control System. When the value in “SPEC”

of “DATA MONITOR” mode is within the SP value, the Engine Control System is confirmed OK. When the

value “SPEC” of “DATA MONITOR” mode is NOT within the SP value, the Engine Control System may have

one or more malfunctions.

The SP value is used to detect malfunctions that may affect the Engine Control System, but will not illuminate

the MIL.

The SP value will be displayed for the following three items:

• B/FUEL SCHDL (The fuel injection pulse width programmed into ECM prior to any learned on board correc-

tion)

• A/F ALPHA-B1/B2 (The mean value of air-fuel ratio feedback correction factor per cycle)

• MAS A/F SE-B1 (The signal voltage of the mass air flow sensor)

Testing Condition

INFOID:0000000005257055

• Vehicle driven distance: More than 5,000 km (3,107 miles)
• Barometric pressure: 98.3 - 104.3 kPa (1.003 - 1.064 kg/cm

2

, 14.25 - 15.12 psi)

• Atmospheric temperature: 20 - 30

°

C (68 - 86

°

F)

• Engine coolant temperature: 75 - 95

°

C (167 - 203

°

F)

• Transmission: Warmed-up*

1

• Electrical load: Not applied*

2

• Engine speed: Idle

*1: After the engine is warmed up to normal operating temperature, drive vehicle until “FLUID TEMP SE” (A/T

fluid temperature sensor signal) indicates more than 60

°

C (140

°

F).

*2: Rear window defogger switch, air conditioner switch lighting switch are OFF. Steering wheel is straight

ahead.

Inspection Procedure

INFOID:0000000005257056

NOTE:

Perform “SPEC” of “DATA MONITOR” mode in maximum scale display.
1. Perform

EC-20, "Basic Inspection"

.

2. Confirm that the testing conditions indicated above are met.
3. Select “B/FUEL SCHDL”, “A/F ALPHA-B1”, “A/F ALPHA-B2” and “MAS A/F SE-B1” in “SPEC” of “DATA

MONITOR” mode with CONSULT-III.

4. Make sure that monitor items are within the SP value.
5. If NG, go to

EC-89, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005257057

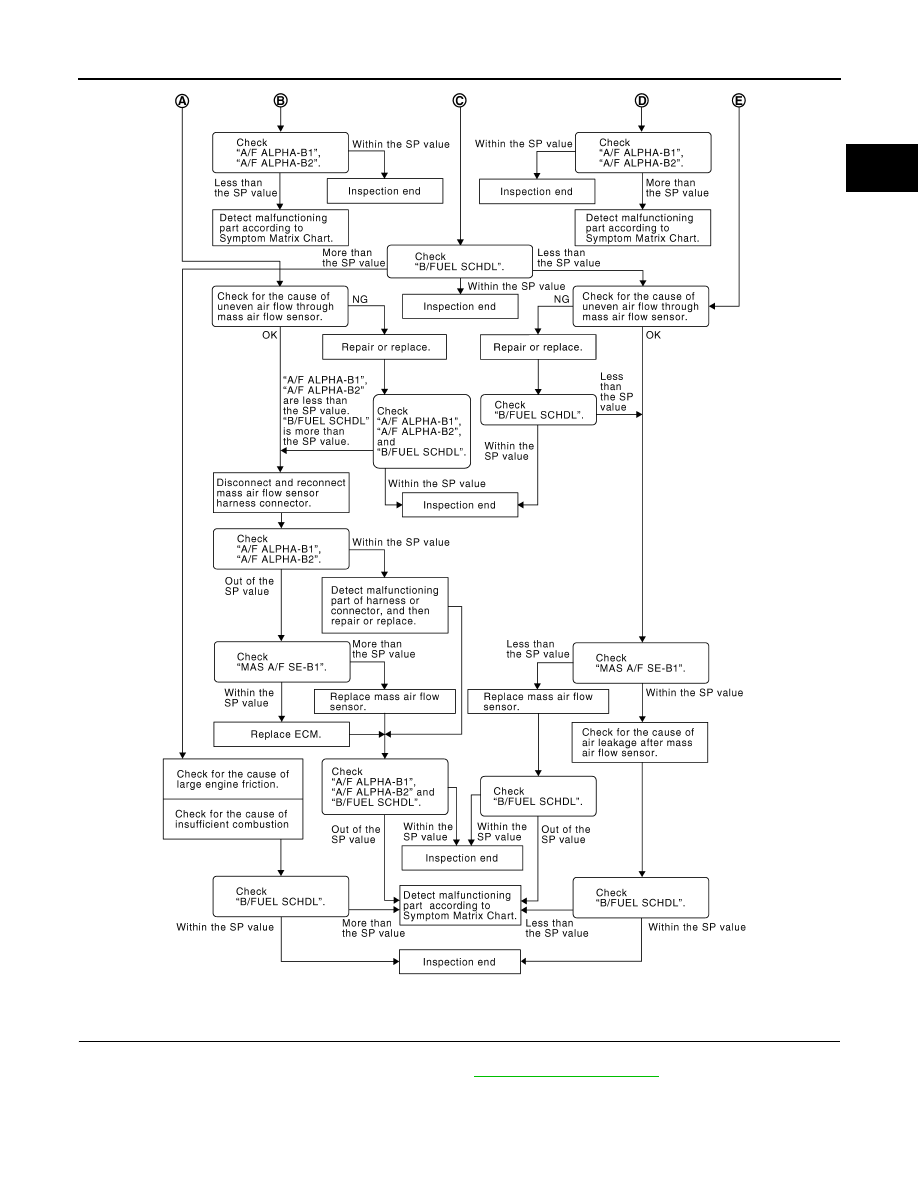

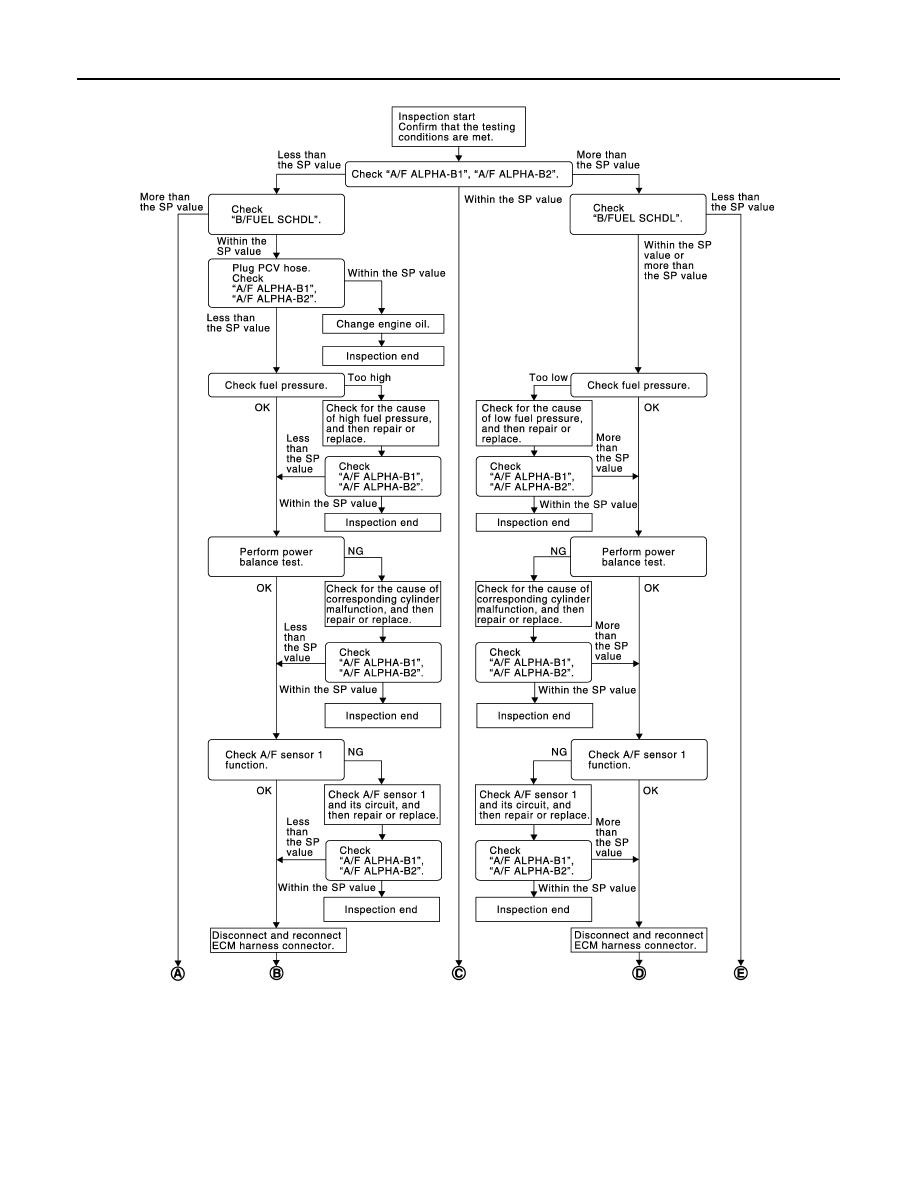

OVERALL SEQUENCE

2010 Pathfinder

EC-90

< COMPONENT DIAGNOSIS >

[VQ40DE]

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

JMBIA1468GB

2010 Pathfinder

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

EC-91

< COMPONENT DIAGNOSIS >

[VQ40DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

DETAILED PROCEDURE

1.

CHECK “A/F ALPHA-B1”, “A/F ALPHA-B2”

1. Start engine.

2. Confirm that the testing conditions are met. Refer to

EC-89, "Testing Condition"

.

3. Select “A/F ALPHA-B1”, “A/F ALPHA-B2” in “SPEC” of “DATA MONITOR” mode, and make sure that

each indication is within the SP value.

NOTE:

PBIB3214E

2010 Pathfinder















Content      ..     247      248      249      250     ..
