Nissan Pathfinder (2010 year). Manual - part 248

EC-76

< FUNCTION DIAGNOSIS >

[VQ40DE]

ON BOARD DIAGNOSTIC (OBD) SYSTEM

EXPLANATION FOR DRIVING PATTERNS FOR “MISFIRE <EXHAUST QUALITY DETERIORA-
TION>”, “FUEL INJECTION SYSTEM”

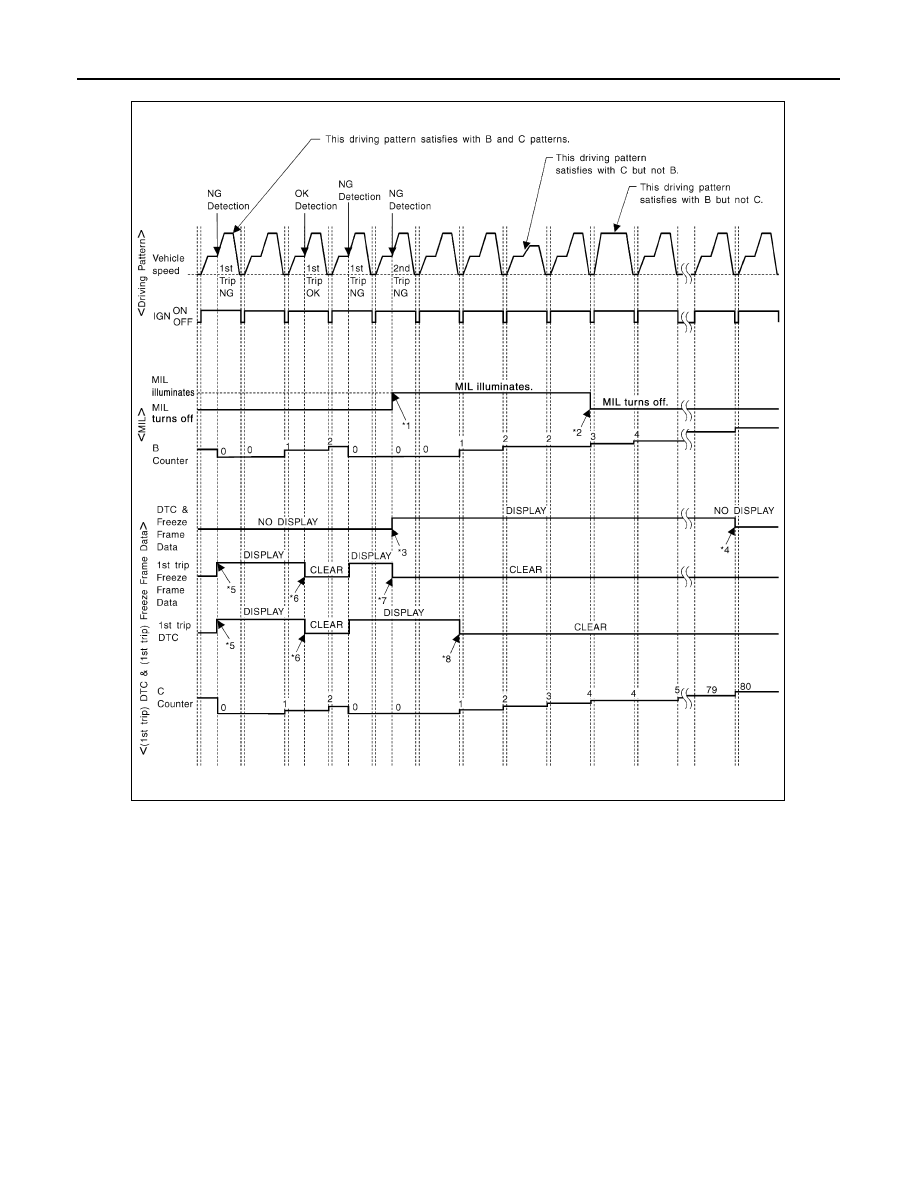

Driving pattern B means the vehicle operation as par the following:

*1: When the same malfunction is de-

tected in two consecutive trips, MIL
will illuminate.

*2: MIL will turn off after vehicle is driven

3 times (pattern B) without any mal-
functions.

*3: When the same malfunction is de-

tected in two consecutive trips, the
DTC and the freeze frame data will be
saved in ECM.

*4: The DTC and the freeze frame data

will not be displayed any longer after
vehicle is driven 80 times (pattern C)
without the same malfunction. (The
DTC and the freeze frame data still
remain in ECM.)

*5: When a malfunction is detected for

the first time, the 1st trip DTC and the
1st trip freeze frame data will be
saved in ECM.

*6: The 1st trip DTC and the 1st trip

freeze frame data will be cleared at
the moment OK is detected.

*7: When the same malfunction is de-

tected in the 2nd trip, the 1st trip
freeze frame data will be cleared.

*8: 1st trip DTC will be cleared when ve-

hicle is driven once (pattern C) with-
out the same malfunction after DTC
is saved in ECM.

JMBIA1417GB

2010 Pathfinder

ON BOARD DIAGNOSTIC (OBD) SYSTEM

EC-77

< FUNCTION DIAGNOSIS >

[VQ40DE]

All components and systems should be monitored at least once by the OBD system.

• The B counter will be cleared when the malfunction is detected once regardless of the driving pattern.

• The B counter will be counted up when driving pattern B is satisfied without any malfunction.

• The MIL will turn off when the B counter reaches 3. (*2 in “OBD SYSTEM OPERATION CHART”)

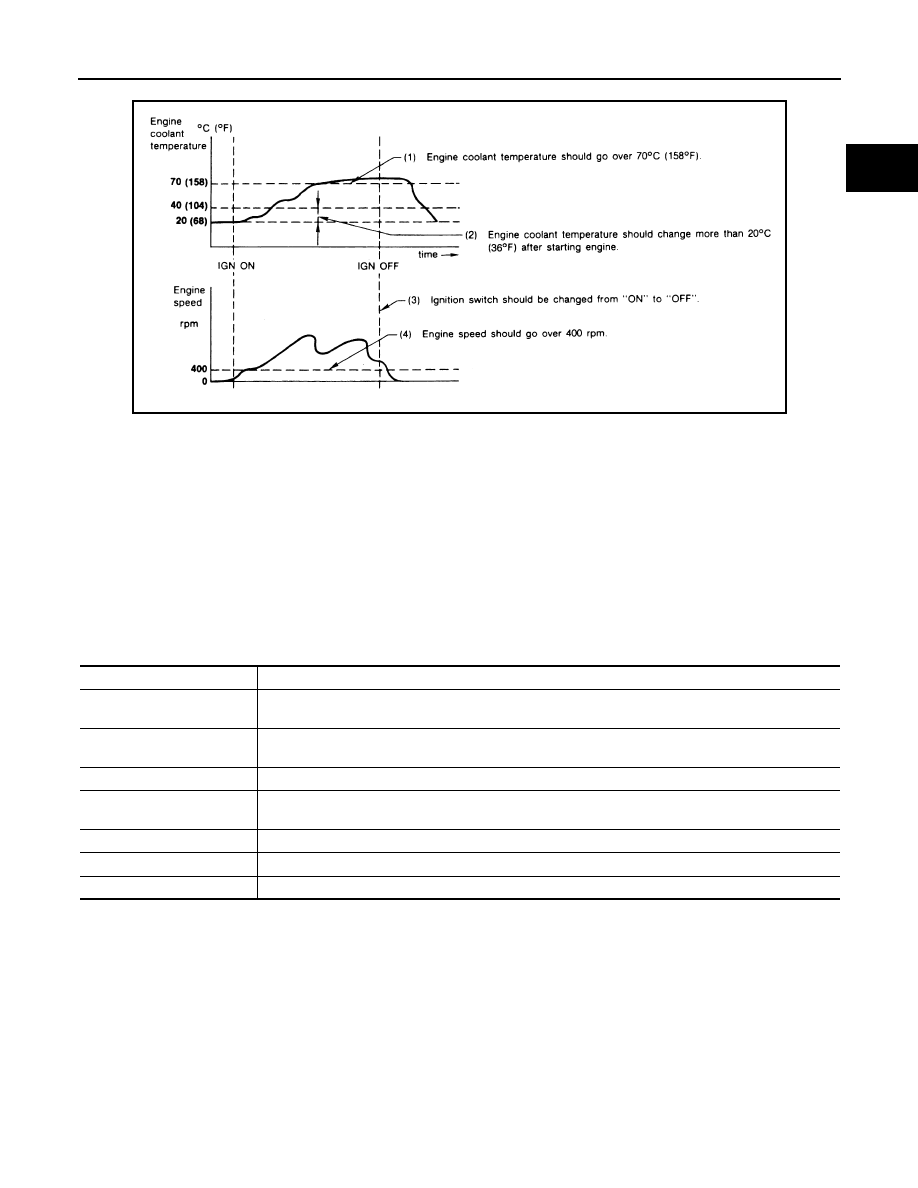

Driving pattern C means the operating vehicle as par the following:

The following conditions should be satisfied at the same time:

Engine speed: (Engine speed in the freeze frame data)

375 rpm

Calculated load value: (Calculated load value in the freeze frame data) x (1

0.1) [%]

Engine coolant temperature (T) condition:

• When the freeze frame data shows lower than 70

C (158

F), T should be lower than 70

C (158

F).

• When the freeze frame data shows higher than or equal to 70

C (158

F), T should be higher than or equal to

C (158

F).

Example:

If the saved freeze frame data is as par the following:

Engine speed: 850 rpm, Calculated load value: 30%, Engine coolant temperature: 80

C (176

To be satisfied with driving pattern C, the vehicle should run under the following conditions:

Engine speed: 475 - 1,225 rpm, Calculated load value: 27 - 33%, Engine coolant temperature: more than 70

(158

• The C counter will be cleared when the malfunction is detected regardless of vehicle conditions above.

• The C counter will be counted up when vehicle conditions above are satisfied without the same malfunction.

• The DTC will not be displayed after C counter reaches 80.

• The 1st trip DTC will be cleared when C counter is counted once without the same malfunction after DTC is

saved in ECM.

RELATIONSHIP BETWEEN MIL, DTC, 1ST TRIP DTC AND DRIVING PATTERNS EXCEPT FOR
“MISFIRE <EXHAUST QUALITY DETERIORATION>”, “FUEL INJECTION SYSTEM”

2010 Pathfinder

EC-78

< FUNCTION DIAGNOSIS >

[VQ40DE]

ON BOARD DIAGNOSTIC (OBD) SYSTEM

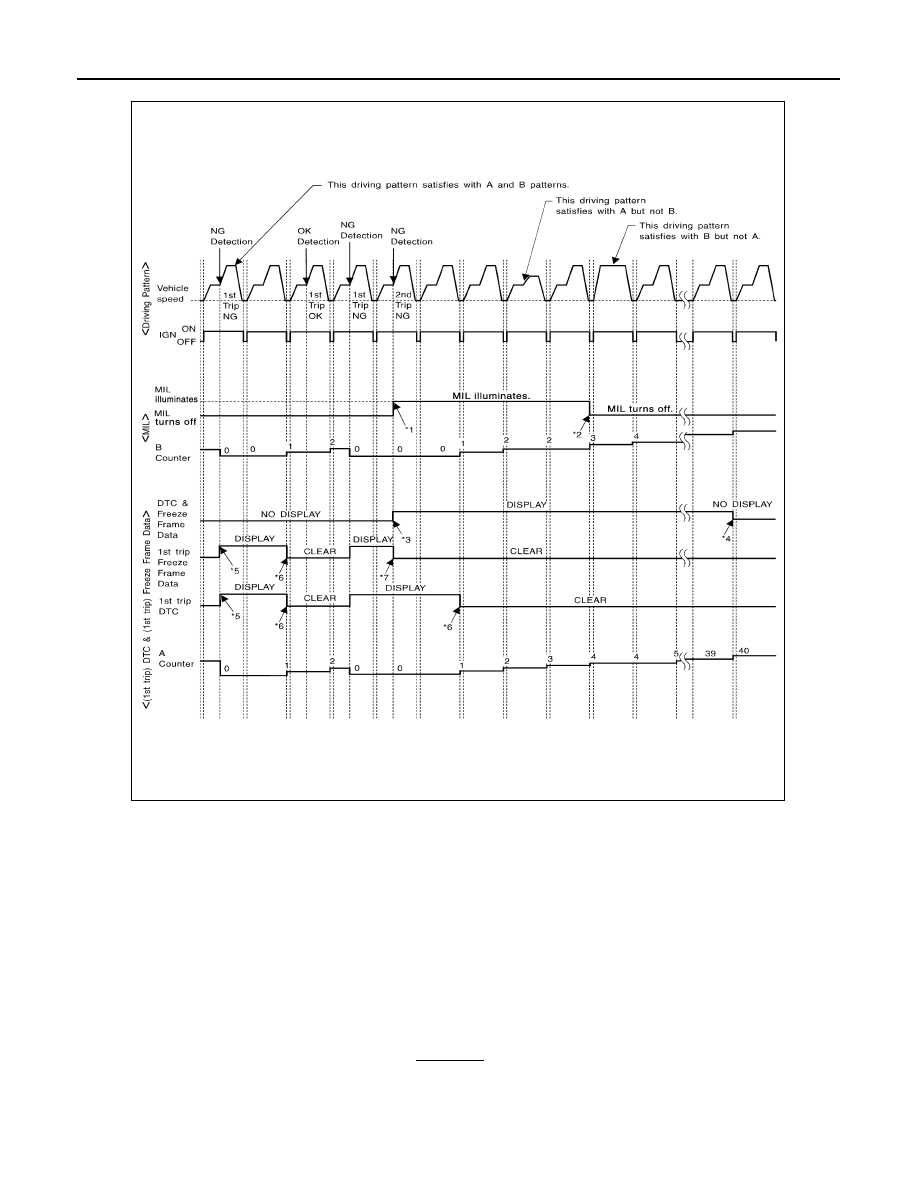

EXPLANATION FOR DRIVING PATTERNS EXCEPT FOR “MISFIRE <EXHAUST QUALITY DETE-
RIORATION>”, “FUEL INJECTION SYSTEM”

*1: When the same malfunction is de-

tected in two consecutive trips, MIL
will illuminate.

*2: MIL will turn off after vehicle is driven

3 times (pattern B) without any mal-
functions.

*3: When the same malfunction is de-

tected in two consecutive trips, the
DTC and the freeze frame data will be
saved in ECM.

*4: The DTC and the freeze frame data

will not be displayed any longer after
vehicle is driven 40 times (pattern A)
without the same malfunction.
(The DTC and the freeze frame data
still remain in ECM.)

*5: When a malfunction is detected for

the first time, the 1st trip DTC and the
1st trip freeze frame data will be
saved in ECM.

*6: 1st trip DTC will be cleared after vehi-

cle is driven once (pattern B) without
the same malfunction.

*7: When the same malfunction is de-

tected in the 2nd trip, the 1st trip
freeze frame data will be cleared.

JMBIA1418GB

2010 Pathfinder

ON BOARD DIAGNOSTIC (OBD) SYSTEM

EC-79

< FUNCTION DIAGNOSIS >

[VQ40DE]

• The A counter will be cleared when the malfunction is detected regardless of (1) - (4).

• The A counter will be counted up when (1) - (4) are satisfied without the same malfunction.

• The DTC will not be displayed after the A counter reaches 40.

Driving pattern B means operating vehicle as per the following:

All components and systems should be monitored at least once by the OBD system.

• The B counter will be cleared when the malfunction is detected once regardless of the driving pattern.

• The B counter will be counted up when driving pattern B is satisfied without any malfunctions.

• The MIL will turn off when the B counter reaches 3 (*2 in OBD SYSTEM OPERATION CHART).

CONSULT-III Function (ENGINE)

INFOID:0000000005257052

FUNCTION

*: The following emission-related diagnostic information is cleared when the ECM memory is erased.
• Diagnostic trouble codes
• 1st trip diagnostic trouble codes
• Freeze frame data
• 1st trip freeze frame data
• System readiness test (SRT) codes
• Test values

WORK SUPPORT MODE

Work Item

JMBIA1920GB

Diagnostic test mode

Function

Work support

This mode enables a technician to adjust some devices faster and more accurately by following the in-
dications on the CONSULT-III unit.

Self-diagnostic results

Self-diagnostic results such as 1st trip DTC, DTCs and 1st trip freeze frame data or freeze frame data
can be read and erased quickly.*

Data monitor

Input/Output data in the ECM can be read.

Active test

Diagnostic Test Mode in which CONSULT-III drives some actuators apart from the ECMs and also shifts
some parameters in a specified range.

Function test

This mode is used to inform customers when the vehicle requires periodic maintenance.

DTC & SRT confirmation

The status of system monitoring tests and the self-diagnosis status/results can be confirmed.

ECU identification

ECM part number can be read.

2010 Pathfinder

EC-80

< FUNCTION DIAGNOSIS >

[VQ40DE]

ON BOARD DIAGNOSTIC (OBD) SYSTEM

*: This function is not necessary in the usual service procedure.

SELF-DIAG RESULTS MODE

Self Diagnostic Item

Regarding items of DTC and 1st trip DTC, refer to

EC-461, "DTC Index"

Freeze Frame Data and 1st Trip Freeze Frame Data

WORK ITEM

CONDITION

USAGE

FUEL PRESSURE RELEASE

• FUEL PUMP WILL STOP BY TOUCHING “START” DUR-

ING IDLING.
CRANK A FEW TIMES AFTER ENGINE STALLS.

When releasing fuel pressure from
fuel line

IDLE AIR VOL LEARN

• THE IDLE AIR VOLUME THAT KEEPS THE ENGINE

WITHIN THE SPECIFIED RANGE IS MEMORIZED IN
ECM.

When learning the idle air volume

SELF-LEARNING CONT

• THE COEFFICIENT OF SELF-LEARNING CONTROL

MIXTURE RATIO RETURNS TO THE ORIGINAL COEF-
FICIENT.

When clearing the coefficient of
self-learning control value

EVAP SYSTEM CLOSE

CLOSE THE EVAP CANISTER VENT CONTROL VALVE IN
ORDER TO MAKE EVAP SYSTEM CLOSE UNDER THE
FOLLOWING CONDITIONS.
• IGN SW ON
• ENGINE NOT RUNNING
• AMBIENT TEMPERATURE IS ABOVE 0

C (32

F).

• NO VACUUM AND NO HIGH PRESSURE IN EVAP SYS-

TEM

• FUEL TANK TEMP. IS MORE THAN 0

C (32

F).

• WITHIN 10 MINUTES AFTER STARTING “EVAP SYS-

TEM CLOSE”

• WHEN TRYING TO EXECUTE “EVAP SYSTEM CLOSE”

UNDER THE CONDITION EXCEPT ABOVE, CONSULT-
III WILL DISCONTINUE IT AND DISPLAY APPROPRI-
ATE INSTRUCTION.

NOTE:
WHEN STARTING ENGINE, CONSULT-III MAY DIS-
PLAY “BATTERY VOLTAGE IS LOW. CHARGE BAT-
TERY”, EVEN WHEN USING A CHARGED BATTERY.

When detecting EVAP vapor leak
in the EVAP system

VIN REGISTRATION

• IN THE MODE, VIN IS REGISTERED IN ECM.

When registering VIN in ECM

TARGET IDLE RPM ADJ*

• IDLE CONDITION

When setting target idle speed

TARGET IGN TIM ADJ*

• IDLE CONDITION

When adjusting target ignition tim-
ing

Freeze frame data

item*

Description

DIAG TROUBLE
CODE
[PXXXX]

• The engine control component part/control system has a trouble code, that is displayed as PXXXX. (Refer

EC-461, "DTC Index"

FUEL SYS-B1

• “Fuel injection system status” at the moment a malfunction is detected is displayed.
• One of in the following made is displayed.

Mode2: Open loop due to detected system malfunction
Mode3: Open loop due to driving conditions (power enrichment, deceleration enleanment)
Mode4: Closed loop - using oxygen sensor(s) as feedback for fuel control
Mode5: Open loop - has not yet satisfied condition to go to closed loop

FUEL SYS-B2

CAL/LD VALUE [%]

• The calculated load value at the moment a malfunction is detected is displayed.

COOLANT TEMP [

or [

• The engine coolant temperature at the moment a malfunction is detected is displayed.

L-FUEL TRM-B1 [%]

• “Long-term fuel trim” at the moment a malfunction is detected is displayed.
• The long-term fuel trim indicates much more gradual feedback compensation to the base fuel schedule than

short-term fuel trim.

L-FUEL TRM-B2 [%]

2010 Pathfinder

ON BOARD DIAGNOSTIC (OBD) SYSTEM

EC-81

< FUNCTION DIAGNOSIS >

[VQ40DE]

*: The items are the same as those of 1st trip freeze frame data.

DATA MONITOR MODE

Monitored Item

S-FUEL TRM-B1 [%]

• “Short-term fuel trim” at the moment a malfunction is detected is displayed.
• The short-term fuel trim indicates dynamic or instantaneous feedback compensation to the base fuel sched-

ule.

S-FUEL TRM-B2 [%]

ENGINE SPEED [rpm] • The engine speed at the moment a malfunction is detected is displayed.

VEHICL SPEED [km/
h] or [mph]

• The vehicle speed at the moment a malfunction is detected is displayed.

ABSOL TH-P/S [%]

• The throttle valve opening angle at the moment a malfunction is detected is displayed.

B/FUEL SCHDL
[msec]

• The base fuel schedule at the moment a malfunction is detected is displayed.

INT/A TEMP SE [

or [

• The intake air temperature at the moment a malfunction is detected is displayed.

INT MANI PRES [kPa]

• Always a certain value is displayed.
• These items are displayed but are not applicable to this model.

COMBUST CONDI-
TION

Freeze frame data

item*

Description

Monitored item

Unit

Description

Remarks

ENG SPEED

rpm

• Indicates the engine speed computed from the sig-

nal of the crankshaft position sensor (POS) and
camshaft position sensor (PHASE).

• Accuracy becomes poor if engine speed

drops below the idle rpm.

• If the signal is interrupted while the en-

gine is running, an abnormal value may
be indicated.

MAS A/F SE-B1

• The signal voltage of the mass air flow sensor is

displayed.

• When the engine is stopped, a certain

value is indicated.

• When engine is runnning specification

range is indicated in “SPEC”.

B/FUEL SCHDL

• “Base fuel schedule” indicates the fuel injection

pulse width programmed into ECM, prior to any
learned on board correction.

• When engine is runnning specification

range is indicated in “SPEC”.

A/F ALPHA-B1

• The mean value of the air-fuel ratio feedback cor-

rection factor per cycle is indicated.

• When the engine is stopped, a certain

value is indicated.

• When engine is runnning specification

range is indicated in “SPEC”.

• This data also includes the data for the

air-fuel ratio learning control.

A/F ALPHA-B2

COOLAN TEMP/S

C or

• The engine coolant temperature (determined by

the signal voltage of the engine coolant tempera-
ture sensor) is displayed.

• When the engine coolant temperature

sensor is open or short-circuited, ECM
enters fail-safe mode. The engine cool-
ant temperature determined by the ECM
is displayed.

A/F SEN1 (B1)

• The A/F signal computed from the input signal of

the Air fuel ratio (A/F) sensor 1 is displayed.

A/F SEN1 (B2)

HO2S2 (B1)

• The signal voltage of the heated oxygen sensor 2

is displayed.

HO2S2 (B2)

HO2S2 MNTR(B1)

RICH/

LEAN

• Display of heated oxygen sensor 2 signal:

RICH: Means the amount of oxygen after three way
catalyst is relatively small.
LEAN: Means the amount of oxygen after three
way catalyst is relatively large.

• When the engine is stopped, a certain

value is indicated.

HO2S2 MNTR(B2)

RICH/

LEAN

2010 Pathfinder

EC-82

< FUNCTION DIAGNOSIS >

[VQ40DE]

ON BOARD DIAGNOSTIC (OBD) SYSTEM

VHCL SPEED SE

km/h or

mph

• The vehicle speed computed from the vehicle

speed signal sent from combination meter is dis-
played.

BATTERY VOLT

• The power supply voltage of ECM is displayed.

ACCEL SEN 1

• The accelerator pedal position sensor signal volt-

age is displayed.

• ACCEL SEN 2 signal is converted by

ECM internally. Thus, it differs from ECM
terminal voltage signal.

ACCEL SEN 2

TP SEN 1-B1

• The throttle position sensor signal voltage is dis-

played.

• THRTL SEN 2 signal is converted by

ECM internally. Thus, it differs from ECM
terminal voltage signal.

TP SEN 2-B1

FUEL T/TMP SE

C or

• The fuel temperature (determined by the signal

voltage of the fuel tank temperature sensor) is dis-
played.

INT/A TEMP SE

C or

• The intake air temperature (determined by the sig-

nal voltage of the intake air temperature sensor) is
indicated.

EVAP SYS PRES

FUEL LEVEL SE

START SIGNAL

ON/OFF

• Indicates start signal status [ON/OFF] computed by

the ECM according to the signals of engine speed
and battery voltage.

• After starting the engine, [OFF] is dis-

played regardless of the starter signal.

CLSD THL POS

ON/OFF

• Indicates idle position [ON/OFF] computed by ECM

according to the accelerator pedal position sensor
signal.

AIR COND SIG

ON/OFF

• Indicates [ON/OFF] condition of the air conditioner

switch as determined by the air conditioner signal.

P/N POSI SW

ON/OFF

• Indicates [ON/OFF] condition from the park/neutral

position (PNP) signal.

PW/ST SIGNAL

ON/OFF

• [ON/OFF] condition of the power steering system

(determined by the signal voltage of the power
steering pressure sensor signal) is indicated.

LOAD SIGNAL

ON/OFF

• Indicates [ON/OFF] condition from the electrical

load signal.
ON: Rear window defogger switch is ON and/or
lighting switch is in 2nd position.
OFF: Both rear window defogger switch and light-
ing switch are OFF.

IGNITION SW

ON/OFF

• Indicates [ON/OFF] condition from ignition switch

signal.

HEATER FAN SW

ON/OFF

• Indicates [ON/OFF] condition from the heater fan

switch signal.

BRAKE SW

ON/OFF

• Indicates [ON/OFF] condition from the stop lamp

switch signal.

INJ PULSE-B1

msec

• Indicates the actual fuel injection pulse width com-

pensated by ECM according to the input signals.

• When the engine is stopped, a certain

computed value is indicated.

INJ PULSE-B2

msec

IGN TIMING

BTDC

• Indicates the ignition timing computed by ECM ac-

cording to the input signals.

• When the engine is stopped, a certain

value is indicated.

CAL/LD VALUE

• Calculated load value indicates the value of the

current air flow divided by peak air flow.

MASS AIRFLOW

g·m/s

• Indicates the mass air flow computed by ECM ac-

cording to the signal voltage of the mass air flow
sensor.

Monitored item

Unit

Description

Remarks

2010 Pathfinder

ON BOARD DIAGNOSTIC (OBD) SYSTEM

EC-83

< FUNCTION DIAGNOSIS >

[VQ40DE]

PURG VOL C/V

• Indicates the EVAP canister purge volume control

solenoid valve control value computed by the ECM
according to the input signals.

• The opening becomes larger as the value increas-

es.

INT/V TIM(B1)

• Indicates [

CA] of intake camshaft advanced angle.

INT/V TIM(B2)

INT/V SOL(B1)

• The control condition of the intake valve timing con-

trol solenoid valve (determined by ECM according
to the input signals) is indicated.

• The advance angle becomes larger as the value in-

creases.

INT/V SOL(B2)

VIAS S/V-1

ON/OFF

• The control condition of the VIAS control solenoid

valve (determined by ECM according to the input
signals) is indicated.
ON: VIAS control solenoid valve is operating.
OFF: VIAS control solenoid valve is not operating.

AIR COND RLY

ON/OFF

• The air conditioner relay control condition (deter-

mined by ECM according to the input signals) is in-
dicated.

FUEL PUMP RLY

ON/OFF

• Indicates the fuel pump relay control condition de-

termined by ECM according to the input signals.

VENT CONT/V

ON/OFF

• The control condition of the EVAP canister vent

control valve (determined by ECM according to the
input signals) is indicated.
ON: Closed
OFF: Open

THRTL RELAY

ON/OFF

• Indicates the throttle control motor relay control

condition determined by the ECM according to the
input signals.

COOLING FAN

HI/LOW/

OFF

• The control condition of the cooling fan (deter-

mined by ECM according to the input signals) is in-
dicated.
HI: High speed operation
LOW: Low speed operation
OFF: Stop

HO2S2 HTR (B1)

ON/OFF • Indicates [ON/OFF] condition of heated oxygen

sensor 2 heater determined by ECM according to
the input signals.

HO2S2 HTR (B2)

ON/OFF

I/P PULLY SPD

rpm

• Indicates the engine speed computed from thein-

put speed sensor signal.

VEHICLE SPEED

km/h or

mph

• Indicates the vehicle speed computed from the out-

put speed sensor signal.

IDL A/V LEARN

YET/

CMPLT

• Displays the condition of idle air volume learning

YET: Idle air volume learning has not been per-
formed yet.
CMPLT: Idle air volume learning has already been
performed successfully.

TRVL AFTER MIL

km or

mile

• Distance traveled while MIL is activated.

A/F S1 HTR(B1)

• Air fuel ratio (A/F) sensor 1 heater control value

computed by ECM according to the input signals.

• The current flow to the heater becomes larger as

the value increases.

A/F S1 HTR(B2)

AC PRESS SEN

• The signal voltage from the refrigerant pressure

sensor is displayed.

Monitored item

Unit

Description

Remarks

2010 Pathfinder

Content .. 246 247 248 249 ..
