GI-14, "Recommended Chemical Prod-

• Use High Performance Thread Sealant or equivalent. Refer to

ucts and Sealants"

FILLING

1. Remove the filler plug from the front final drive assembly.
2. Fill the front final drive assembly with new differential gear oil

until the level reaches the specified level near the filler plug hole.

3. Install the filler plug with sealant applied on the threads to the

front final drive assembly. Tighten to the specified torque. Refer

• Use High Performance Thread Sealant or equivalent. Refer to

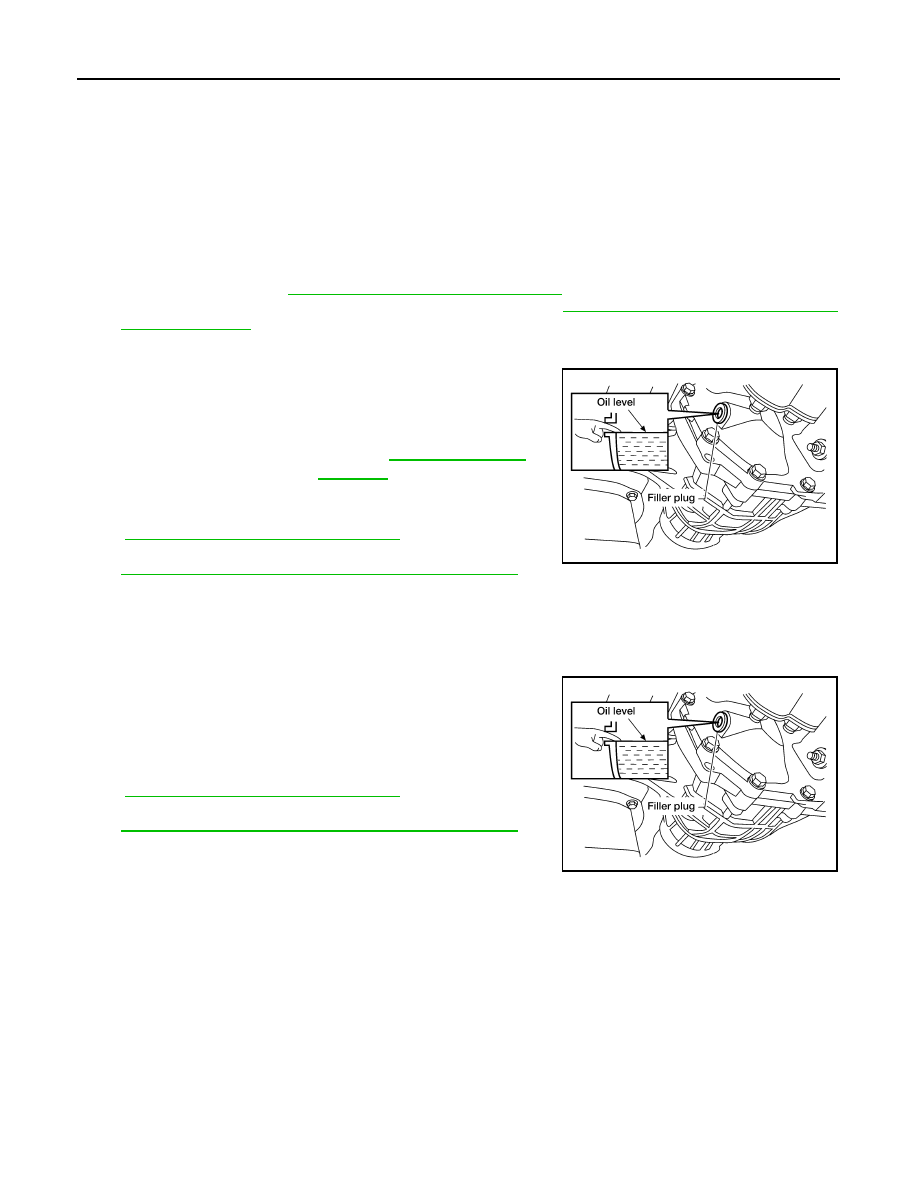

Checking Differential Gear Oil

INFOID:0000000005258489

DIFFERENTIAL GEAR OIL LEAKAGE AND LEVEL

1. Make sure that differential gear oil is not leaking from the front final drive assembly or around it.
2. Check the differential gear oil level from the filler plug hole as

shown.

CAUTION:

Do not start engine while checking differential gear oil level.

3. Install the filler plug with sealant applied on the threads to the

front final drive assembly. Tighten to the specified torque. Refer

DLN-387, "Removal and Installation"

• Use High Performance Thread Sealant or equivalent. Refer to

Differential gear oil
grade and capacity

: Refer to

MA-16, "For North

America"

LDIA0176E

2010 Pathfinder

SIDE OIL SEAL

DLN-383

< ON-VEHICLE REPAIR >

[FRONT FINAL DRIVE: M205]

DLN

ON-VEHICLE REPAIR

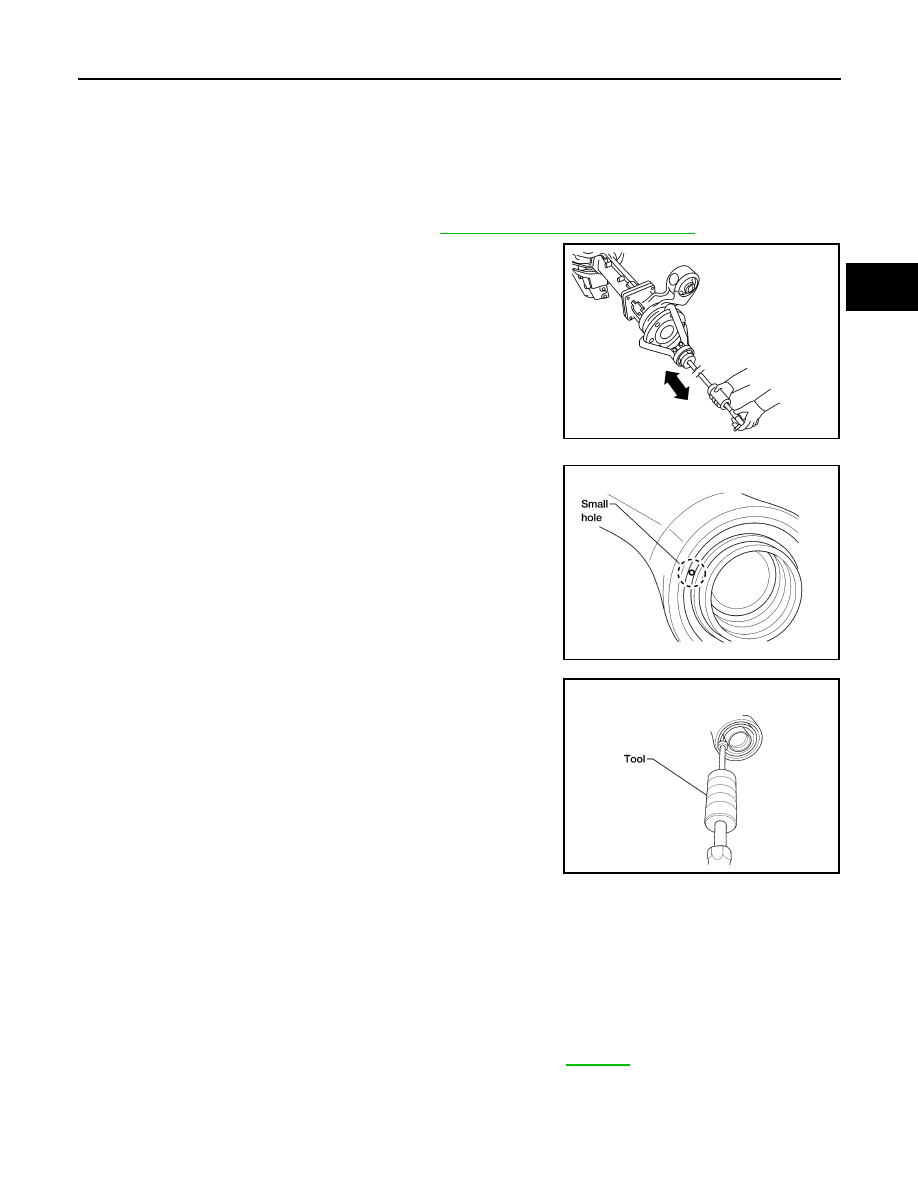

SIDE OIL SEAL

Removal and Installation

INFOID:0000000005258490

REMOVAL

1. Remove the front final drive assembly. Refer to

2. Remove the differential side shaft and differential side flange

using suitable tool.

3. Place a small hole in the side oil seal case using suitable tool.

4. Remove the side oil seal using Tool as shown.

INSTALLATION

1. Apply multi-purpose grease to the lips of the new side oil seal. Then drive the new side oil seal in evenly to

the gear carrier using suitable tool.

CAUTION:

• Do not reuse side oil seal.

• Do not incline the new side oil seal when installing.

• Apply multi-purpose grease to the lips of the new side oil seal.

2. Installation of the remaining components is in the reverse order of removal.

CAUTION:

Check the differential gear oil level after installation. Refer to

FAX-7, "VQ40DE : Removal and

BDIA0006E

LDIA0129E

Tool number

: SP8P

LDIA0130E

2010 Pathfinder

DLN-384

< ON-VEHICLE REPAIR >

[FRONT FINAL DRIVE: M205]

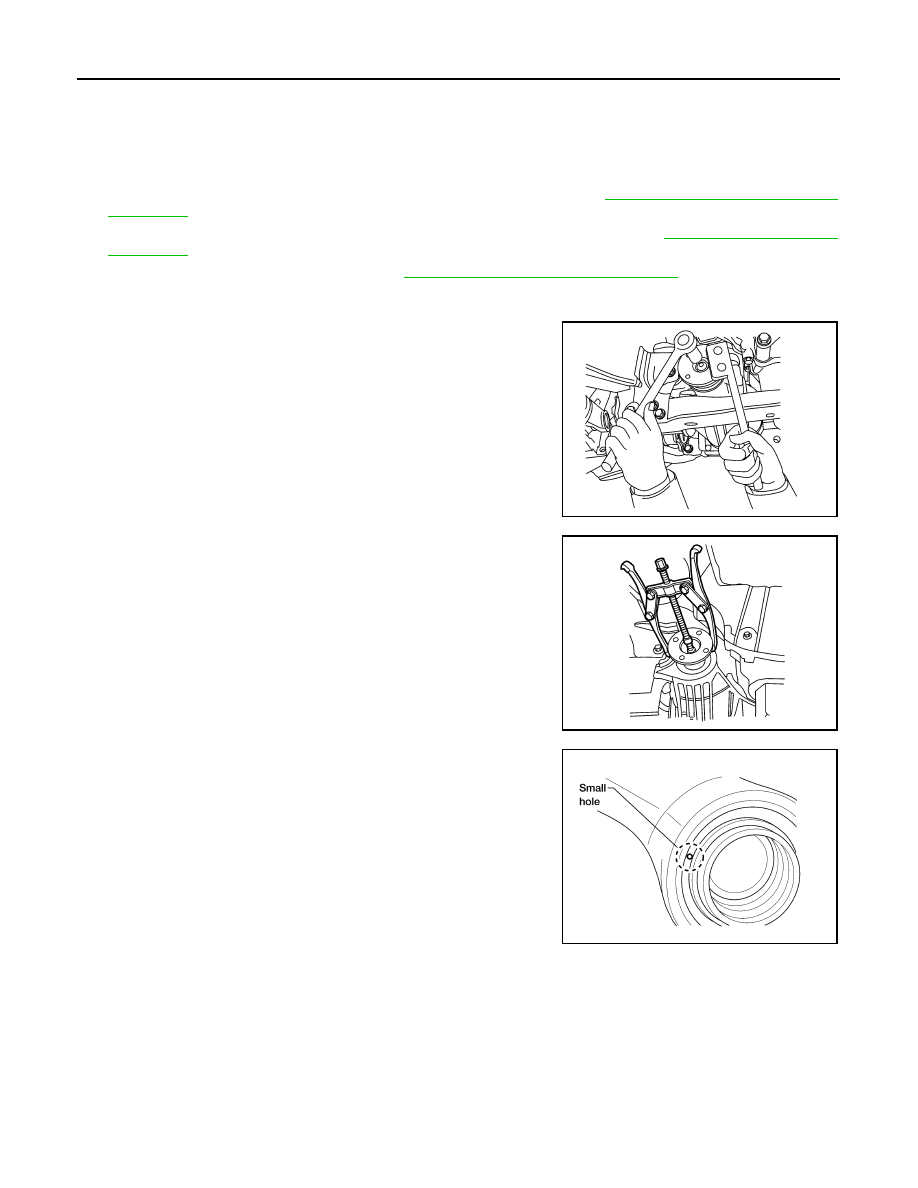

FRONT OIL SEAL

FRONT OIL SEAL

Removal and Installation

INFOID:0000000005258491

REMOVAL

1. Remove the drive shafts from the front final drive assembly. Refer to

2. Remove the front propeller shaft from the front final drive assembly. Refer to

DLN-315, "Removal and

3. Measure the total preload torque. Refer to

specified torque. Refer to

NOTE:

Record the total preload torque measurement.

4. Remove the drive pinion lock nut using suitable tool.
5. Put matching marks on the companion flange and drive pinion

using paint.

CAUTION:

Use paint to make the matching marks. Do not damage the

companion flange or drive pinion.

6. Remove companion flange using suitable tool.

7. Place a small hole in the front oil seal case using suitable tool.

BDIA0001E

LDIA0171E

LDIA0129E

2010 Pathfinder

FRONT OIL SEAL

DLN-385

< ON-VEHICLE REPAIR >

[FRONT FINAL DRIVE: M205]

DLN

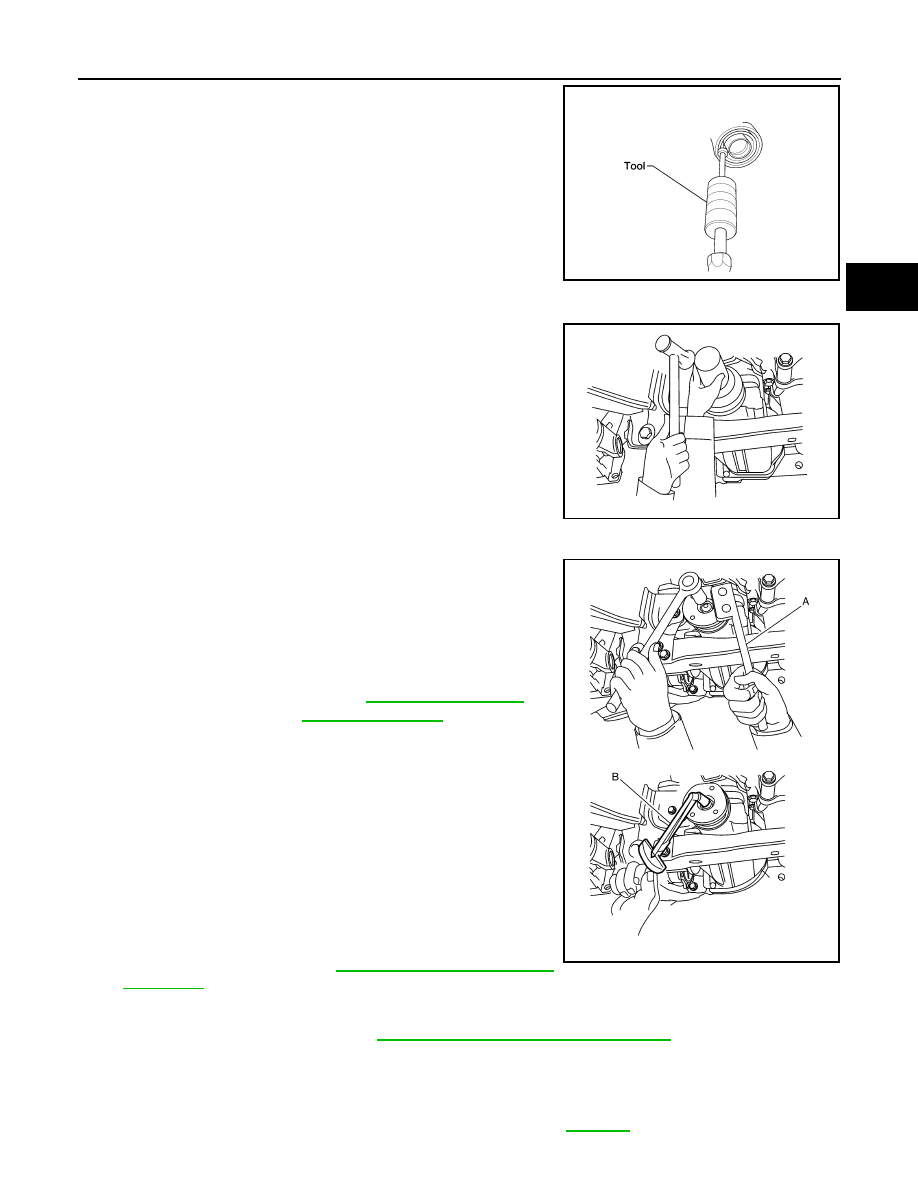

8. Remove the front oil seal using Tool as shown.

INSTALLATION

1. Apply multi-purpose grease to the lips of the new front oil seal.

Then drive the new front oil seal in evenly to the gear carrier

using Tool.

CAUTION:

• Do not reuse front oil seal.

• Do not incline the new front oil seal when installing.

• Apply multi-purpose grease to the lips of the new front oil

seal.

2. Install the companion flange to the drive pinion while aligning the matching marks.
3. Apply anti-corrosive oil to the threads of the drive pinion and the

seating surface of the new drive pinion lock nut. Then adjust the

drive pinion lock nut tightening torque using suitable tool A, and

check the total preload torque using Tool B.

• The total preload torque should be within the total preload

torque specification. When not replacing the collapsible

spacer, it should also be equal to the measurement taken dur-

ing removal plus an additional 0.56 N·m (0.06 Kg-m, 5 in-lb).

• If the total preload torque is low, tighten the drive pinion lock

nut in 6.8 N·m (0.69 Kg-m, 5ft-lb) increments until the total pre-

load torque is met.

CAUTION:

• Do not reuse drive pinion lock nut.

• Apply anti-corrosive oil to the threads of the drive pinion

and the seating surface of the new drive pinion lock nut.

• Adjust the drive pinion lock nut tightening torque to the

lower limit first. Do not exceed the drive pinion lock nut

DLN-390, "Disassembly and

Assembly"

• Do not loosen drive pinion lock nut to adjust the total preload torque. If the drive pinion lock nut

torque or the total preload torque exceeds the specifications, replace the collapsible spacer and

tighten it again to adjust. Refer to

DLN-390, "Disassembly and Assembly"

• After adjustment, rotate drive pinion back and forth 2 to 3 times to check for unusual noise, rota-

tion malfunction, and other malfunctions.

4. Installation of the remaining components is in the reverse order of removal.

CAUTION:

Check the differential gear oil level after installation. Refer to

DLN-387, "Removal and Installation"

Tool number

: SP8P

LDIA0130E

Tool number

: KV38100500 (J-25273)

BDIA0003E

Tool number

B: ST3127S000 (J-25765-A)

Total preload torque: Refer to

DLN-390, "Disassem-

bly and Assembly"

WDIA0381E

2010 Pathfinder

DLN-386

< ON-VEHICLE REPAIR >

[FRONT FINAL DRIVE: M205]

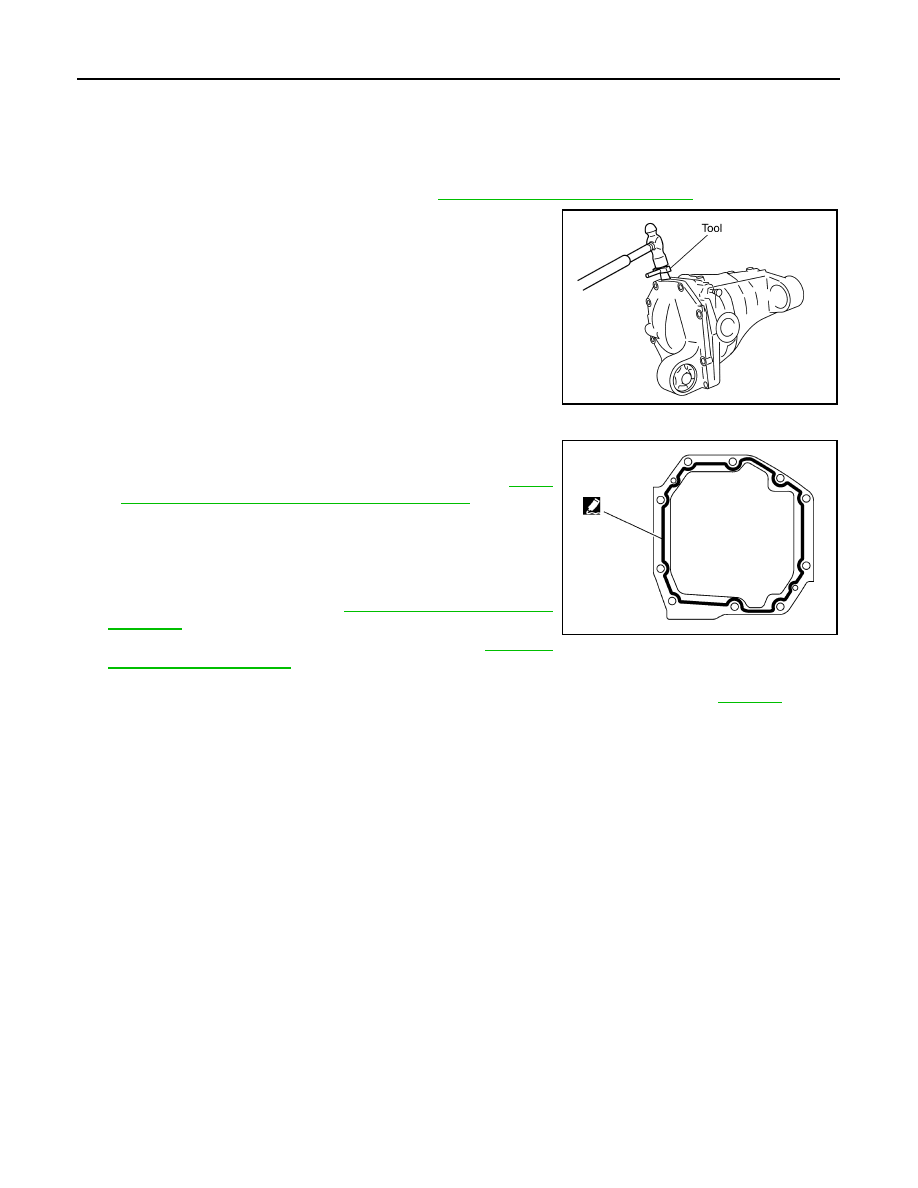

CARRIER COVER

CARRIER COVER

Removal and Installation

INFOID:0000000005258492

REMOVAL

1. Remove the front final drive assembly. Refer to

2. Remove the carrier cover bolts and separate the carrier cover

from the gear carrier using Tool.

CAUTION:

• Do not damage the mating surface.

• Do not insert flat-bladed screwdriver, this will damage the

mating surface.

INSTALLATION

1. Apply 3 mm (0.12 in) bead of sealant to the mating surface of

the carrier cover as shown.

• Use Genuine Silicone RTV or equivalent. Refer to

GI-14,

CAUTION:

Remove any old sealant adhering to the mating surfaces.

Also remove any moisture, oil, or foreign material adhering

to the application and mating surfaces.

2. Install the carrier cover to the gear carrier. Tighten the bolts to

the specified torque. Refer to

DLN-390, "Disassembly and

Assembly"

3. Install the front final drive assembly. Refer to

DLN-387,

"Removal and Installation"

CAUTION:

Fill the front final drive assembly with recommended differential gear oil. Refer to

FAX-7, "VQ40DE : Removal and

Tool number

: KV10111100 (J-37228)

PDIA0699E

SDIA3204E

2010 Pathfinder

FRONT FINAL DRIVE

DLN-387

< REMOVAL AND INSTALLATION >

[FRONT FINAL DRIVE: M205]

DLN

REMOVAL AND INSTALLATION

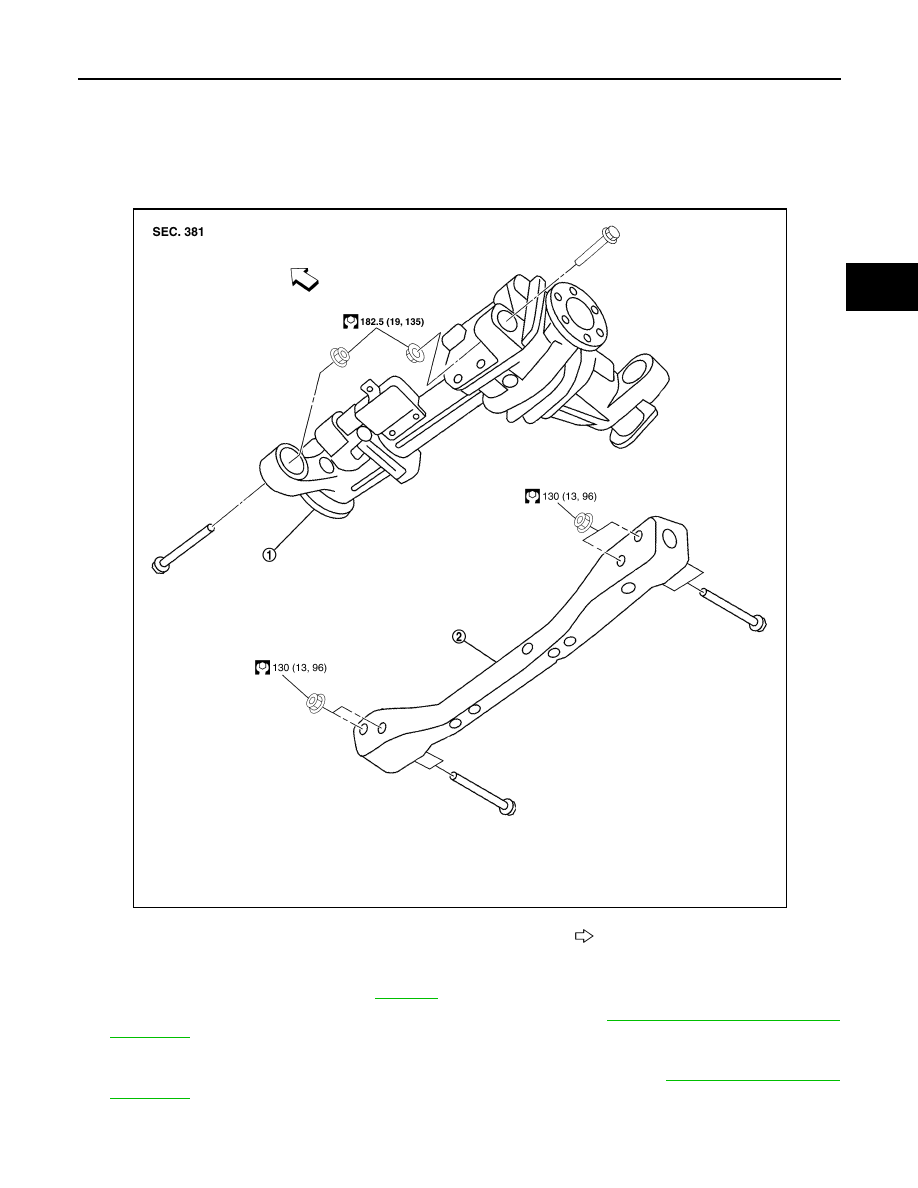

FRONT FINAL DRIVE

Removal and Installation

INFOID:0000000005258493

REMOVAL

1. Drain the differential gear oil. Refer to

DLN-382

2. Remove the drive shafts from the front final drive assembly. Refer to

3. Remove the front cross member.
4. Remove the front propeller shaft from the front final drive assembly. Refer to

DLN-315, "Removal and

5. Disconnect the vent hose from the front final drive assembly.
6. Support the front final drive assembly using a suitable jack.

Front final drive assembly

Front cross member

Front

AWDIA0019GB

2010 Pathfinder

DLN-388

< REMOVAL AND INSTALLATION >

[FRONT FINAL DRIVE: M205]

FRONT FINAL DRIVE

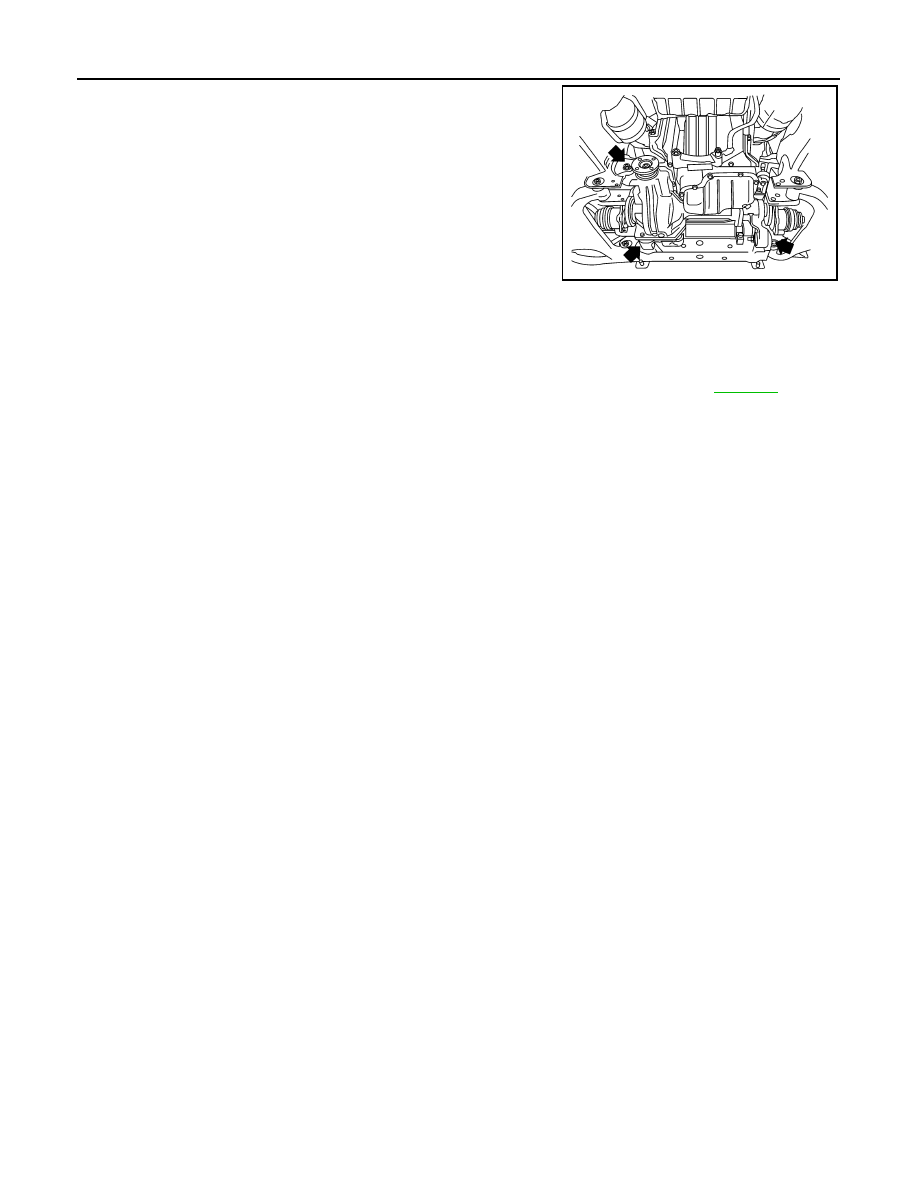

7. Remove the front final drive assembly bolts, then remove the

front final drive assembly.

CAUTION:

Support the front final drive assembly while removing using

a suitable jack.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Make sure there are no pinched or restricted areas on the breather hose caused by folding or bend-

ing when installing it.

• Fill the front final drive assembly with differential gear oil after installation. Refer to
