FRONT FINAL DRIVE

DLN-365

< DISASSEMBLY AND ASSEMBLY >

[FRONT FINAL DRIVE: R180A]

DLN

•

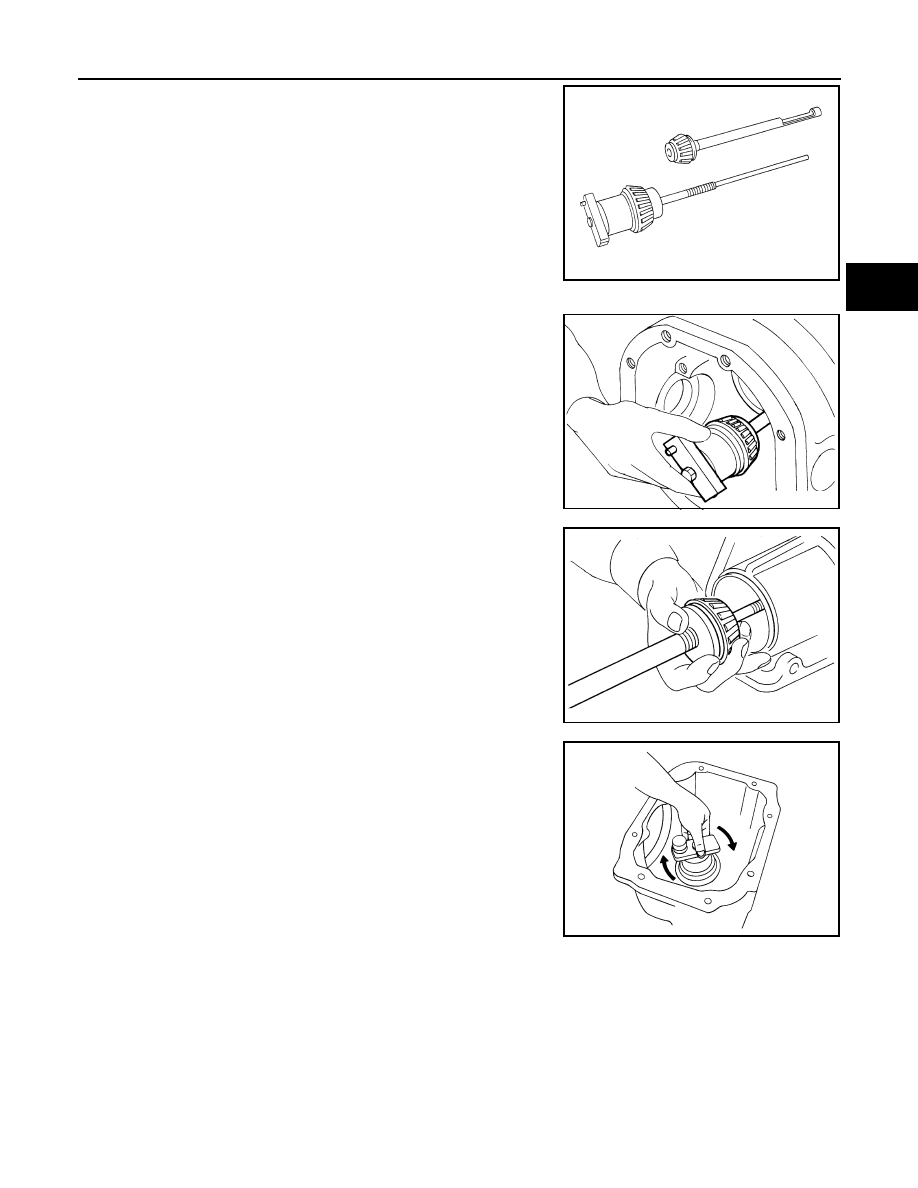

Drive pinion front bearing;

make sure the J-34309-3 drive

pinion front bearing seat is secured tightly against the J-

34309-2 gauge anvil. Then turn the J-34309-7 drive pinion

front bearing pilot to secure the drive pinon front bearing in its

proper position.

•

Drive pinion rear bearing;

the J-34309-8 drive pinion rear

bearing pilot is used to center the drive pinion rear bearing

only. The J-34309-4 drive pinion rear bearing locking seat is

used to lock the drive pinion rear bearing to the assembly.

•

Installation of J-34309-9 and J-34309-16;

place a suitable

2.5 mm (0.098 in) thick plain washer between J-34309-9 and

J-34309-16. Both surfaces of J-34309-9 and J-34309-16 must

be parallel with a clearance of 2.5 mm (0.098 in).

3. Install the drive pinion rear bearing inner race into the gear car-

rier. Then insert the drive pinion height adjusting washer selec-

tor tool, J-34309-1, gauge screw assembly.

4. Assemble the drive pinion front bearing inner race and the J-

34309-2 gauge anvil. Assemble them together with the J-34309-

1 gauge screw in the gear carrier. Make sure that the drive pin-

ion height gauge plate, J-34309-16, will turn a full 360

. Tighten

the two sections together by hand.

5. Turn the assembly several times to seat the drive pinon bear-

ings.

SPD197A

SPD893

SPD199A

SPD770

2010 Pathfinder

DLN-366

< DISASSEMBLY AND ASSEMBLY >

[FRONT FINAL DRIVE: R180A]

FRONT FINAL DRIVE

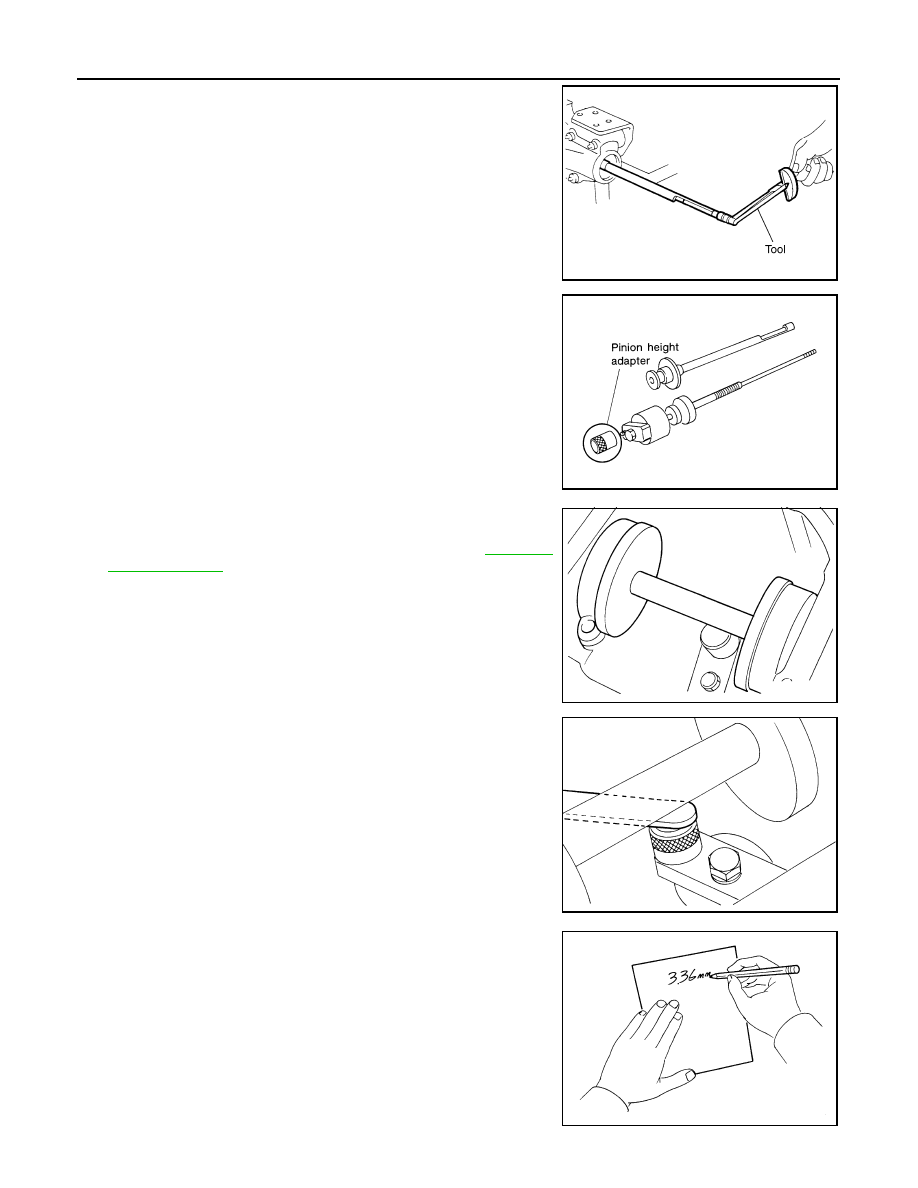

6. Measure the turning torque at the end of the J-34309-2 gauge

anvil using Tool.

7. Place the J-34309-10 “R180A” drive pinion height adapter onto

the gauge plate and tighten it by hand.

CAUTION:

Make sure all machined surfaces are clean.

8. Position the side bearing discs, Tool, and arbor firmly into the

side bearing bores. Install the side bearing caps and tighten the

side bearing cap bolts to the specified torque. Refer to

DLN-355,

"Exploded View"

9. Select the correct standard drive pinion height adjusting washer

thickness. Select by using a standard gauge of 3 mm (0.12 in)

and your J-34309-101 feeler gauge. Measure the distance

between the J-34309-10 drive pinion height adapter, including

the standard gauge and the arbor.

10. Write down the exact measurement (the value of feeler gauge).

Tool number

: ST3127S000 (J-25765- A)

Turning torque specification:

1.0 - 1.6 N·m (0.11 - 0.16 kg-m, 9 - 14 in-lb)

PDIA0566E

SPD208A

Tool number

—

(J-25269-18)

SPD211A

SPD204A

SPD775

2010 Pathfinder

FRONT FINAL DRIVE

DLN-367

< DISASSEMBLY AND ASSEMBLY >

[FRONT FINAL DRIVE: R180A]

DLN

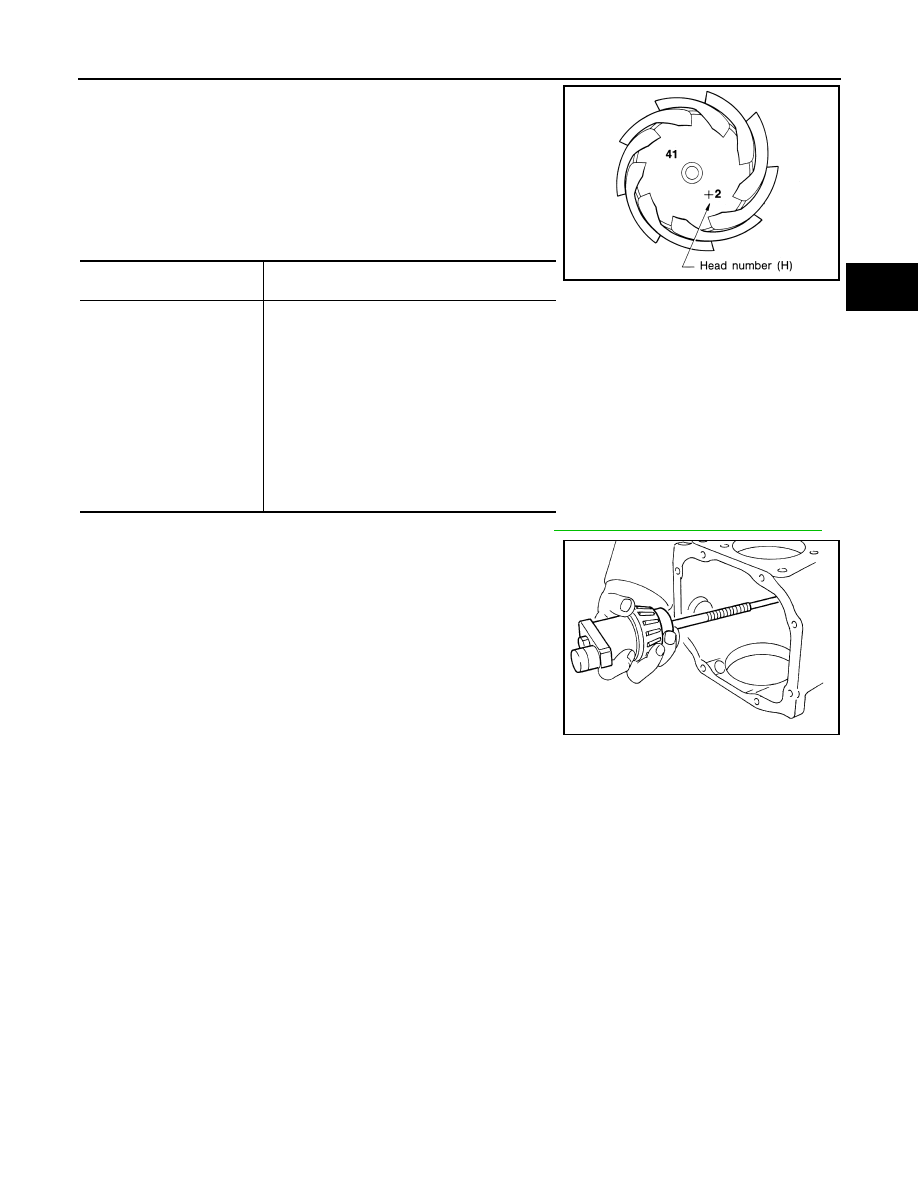

11. Correct the drive pinion height adjusting washer size by referring

to the drive pinion “head number”.

There are two numbers painted on the drive pinion. The first

one refers to the drive pinion and drive gear as a matched

set. This number should be the same as the number on the

drive gear. The second number is the drive pinion “head

number”. It refers to the ideal drive pinion height from stan-

dard for quietest operation. Use the following chart to

determine the correct drive pinion height adjusting washer.

12. Select the correct drive pinion height adjusting washer. Refer to

DLN-374, "Inspection and Adjustment"

13. Remove the Tool from the gear carrier and disassemble to

retrieve the drive pinion bearings.

ASSEMBLY

Drive Pinion Assembly

Head number

Add or remove from the standard drive pinion

height adjusting washer thickness measurement

- 6
- 5
- 4
- 3
- 2
- 1

+1
+2
+3
+4
+5
+6

Add 0.06 mm (0.0024 in)
Add 0.05 mm (0.0020 in)
Add 0.04 mm (0.0016 in)
Add 0.03 mm (0.0012 in)
Add 0.02 mm (0.0008 in)
Add 0.01 mm (0.0004 in)

Use the selected washer thickness

Subtract 0.01 mm (0.0004 in)
Subtract 0.02 mm (0.0008 in)
Subtract 0.03 mm (0.0012 in)
Subtract 0.04 mm (0.0016 in)
Subtract 0.05 mm (0.0020 in)
Subtract 0.06 mm (0.0024 in)

Tool number

—

(J-34309)

SPD542

SPD205A

2010 Pathfinder

DLN-368

< DISASSEMBLY AND ASSEMBLY >

[FRONT FINAL DRIVE: R180A]

FRONT FINAL DRIVE

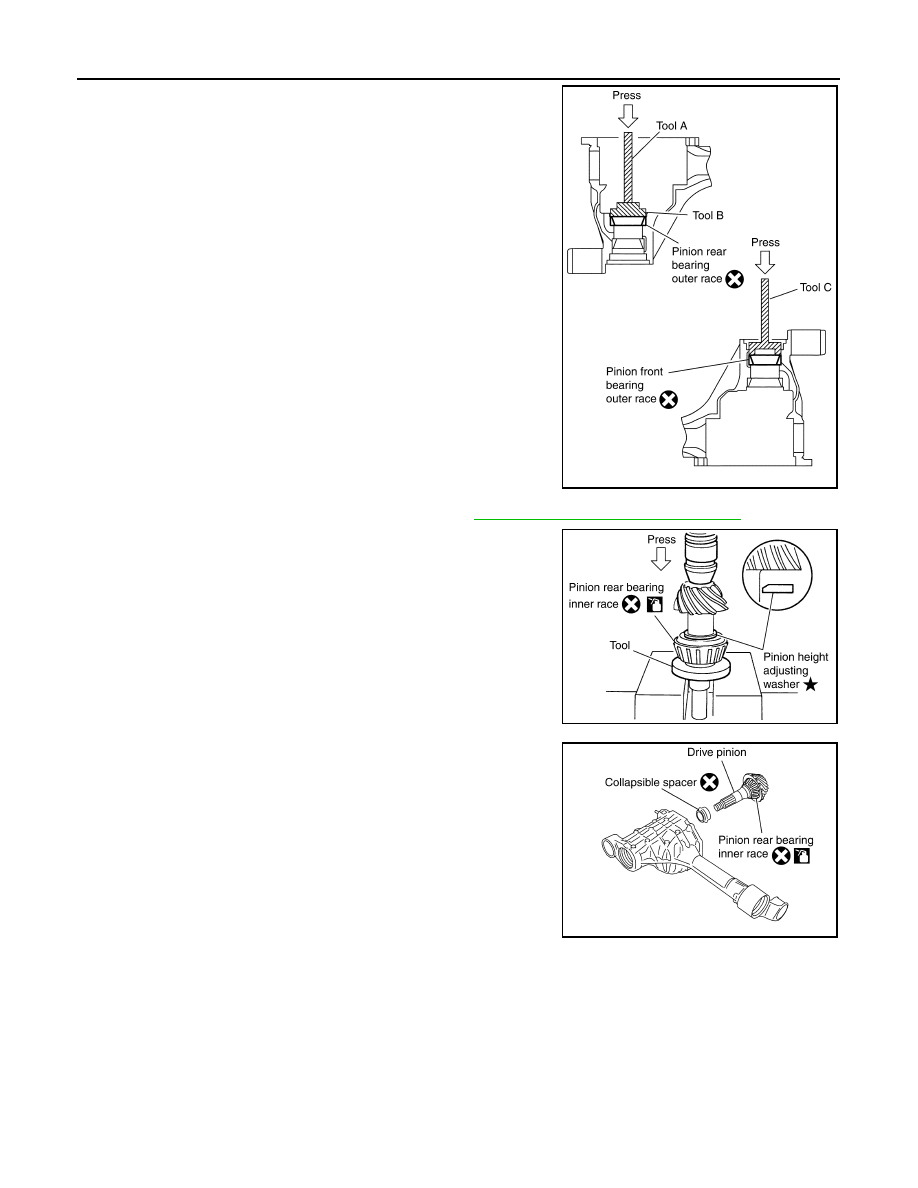

1. Install drive pinion rear bearing outer race and drive pinion front

bearing outer race using Tools.

CAUTION:

• First tap the drive pinion bearing outer race until it

becomes flush with the gear carrier.

• Do not reuse drive pinion front and rear bearing outer

race.

2. Select drive pinion height adjusting washer. Refer to

DLN-374, "Inspection and Adjustment"

3. Install the selected drive pinion height adjusting washer to the

drive pinion. Press the drive pinion rear bearing inner race to it

using Tool.

CAUTION:

• Install the drive pinion height adjusting washer in the

proper direction as shown.

• Do not reuse drive pinion rear bearing inner race.

4. Install the collapsible spacer to the drive pinion.

CAUTION:

Do not reuse collapsible spacer.

5. Apply differential gear oil to the drive pinion rear bearing, and

install the drive pinion assembly to the gear carrier.

6. Apply differential gear oil to the drive pinion front bearing, and

install the drive pinion front bearing inner race to the drive pinion

assembly.

CAUTION:

Do not reuse drive pinion front bearing inner race.

Tool number

A: ST30611000 (J-25742-1)
B: ST30613000 (J-25742-3)
C: KV38100200 (J-26233)

PDIA0707E

Tool number

: ST30901000 (J-26010-01)

SDIA0048E

PDIA0708E

2010 Pathfinder

FRONT FINAL DRIVE

DLN-369

< DISASSEMBLY AND ASSEMBLY >

[FRONT FINAL DRIVE: R180A]

DLN

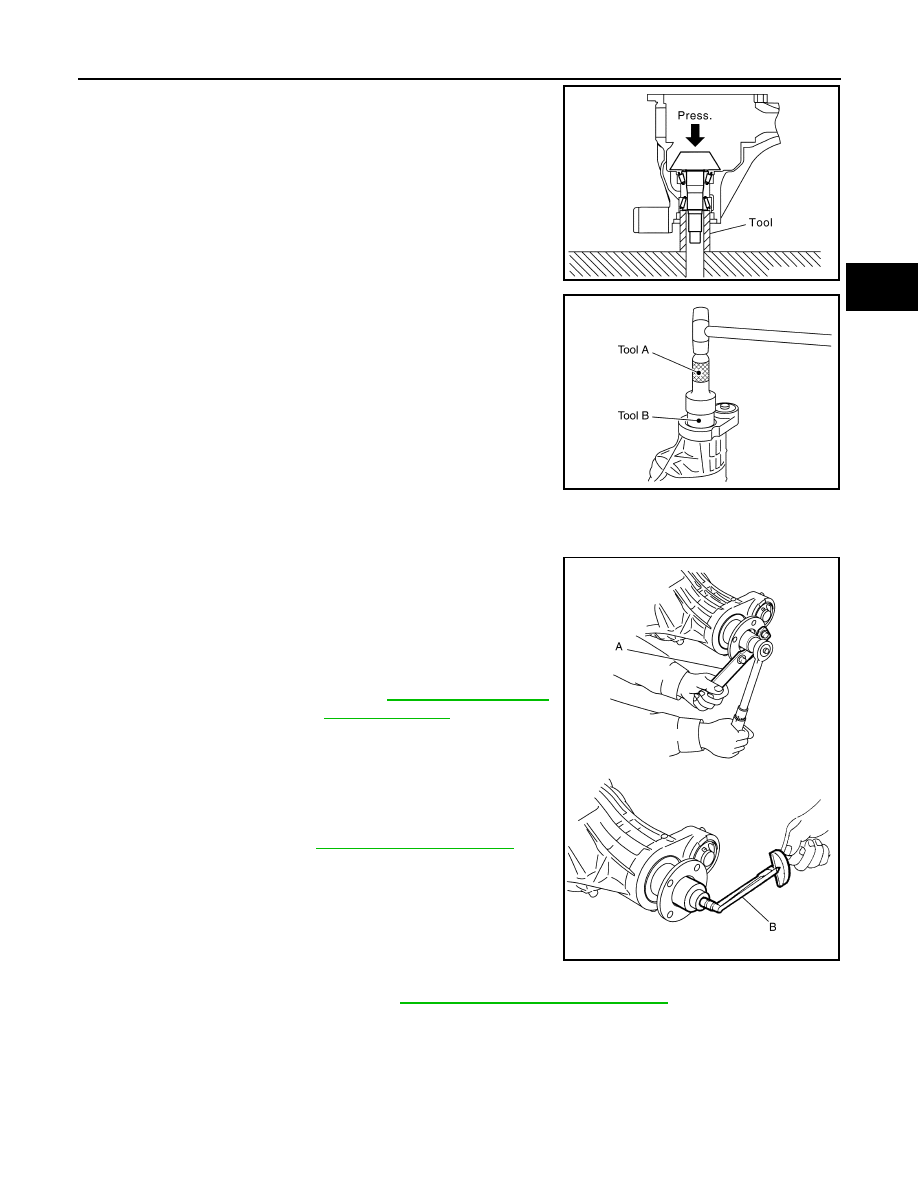

7. Press the drive pinion front bearing inner race to the drive pinion

as far as drive pinion lock nut can be tightened using Tool.

8. Apply multi-purpose grease to the lips and differential gear oil to

the circumference of the new front oil seal. Then drive the new

front oil seal in evenly until it becomes flush with the gear carrier

using Tools.

CAUTION:

• Do not reuse front oil seal.

• Do not incline the new front oil seal when installing.

• Apply multi-purpose grease to the lips and differential

gear oil to the circumference of the new front oil seal.

9. Install the companion flange to the drive pinion while aligning the matching marks.
10. Apply anti-corrosive oil to the threads of the drive pinion and the

seating surface of the new drive pinion lock nut. Then adjust the

drive pinion lock nut tightening torque using suitable tool A, and

check the drive pinion bearing preload torque using Tool B.

CAUTION:

• Do not reuse drive pinion lock nut.

• Apply anti-corrosive oil to the threads of the drive pinion

and the seating surface of the new drive pinion lock nut.

• Adjust the drive pinion lock nut tightening torque to the

lower limit first. Do not exceed the drive pinion lock nut

specified torque. Refer to

DLN-355, "Exploded View"

• If the drive pinion bearing preload torque exceeds the

specified value, replace collapsible spacer and tighten it

again to adjust. Do not loosen drive pinion lock nut to

adjust the drive pinion bearing preload torque.

• After adjustment, rotate drive pinion back and forth 2 to 3

times to check for unusual noise, rotation malfunction,

and other malfunctions.

11. Check companion flange runout. Refer to

DLN-374, "Inspection and Adjustment"

12. Install the differential case assembly.

Differential Assembly

Tool number

: ST33200000 (J-26082)

PDIA0709E

Tool number

A: ST30720000 (J-25405)
B: ST27863000 ( — )

PDIA0717E

Tool number

B: ST3127S000 (J-25765-A)

Drive pinion bearing
preload torque

Refer to

DLN-374, "Inspection

and Adjustment"

WDIA0382E

2010 Pathfinder

DLN-370

< DISASSEMBLY AND ASSEMBLY >

[FRONT FINAL DRIVE: R180A]

FRONT FINAL DRIVE

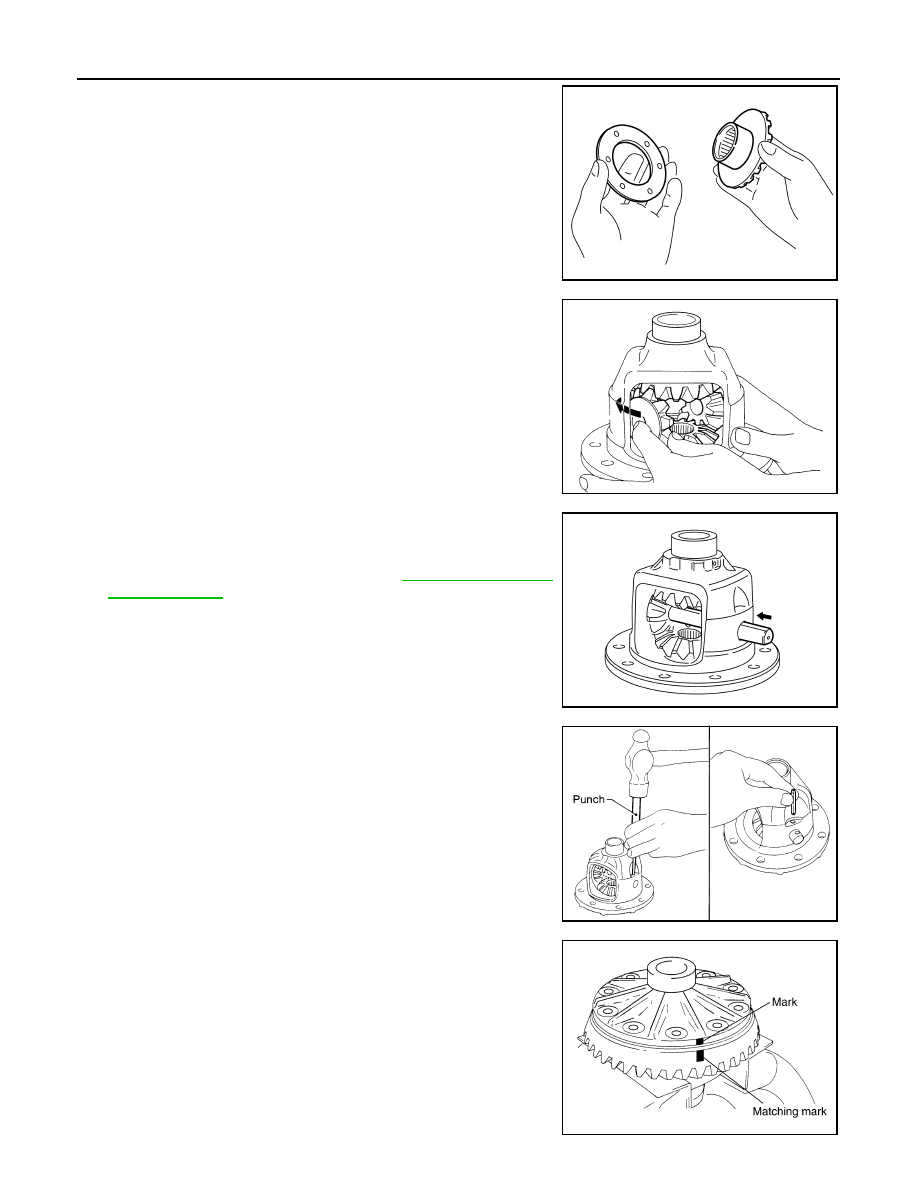

1. Install side gear thrust washers with the same thickness as the

ones installed prior to disassembly, or reinstall the old ones on

the side gears.

2. Install the side gears and side gear thrust washers into the dif-

ferential case.

3. Install the pinion mate thrust washers to the two pinion mate

gears. Then install the pinion mate gears with the pinion mate

thrust washers by aligning them in diagonally opposite positions

and rotating them into the differential case.

4. Install the pinion mate shaft and align the lock pin hole on the

pinion mate shaft with the lock pin hole on the differential case.

5. Measure the side gear end play. If necessary, select the appro-

priate side gear thrust washers. Refer to

DLN-374, "Inspection

and Adjustment"

6. Drive a new lock pin into the pinion mate shaft until it is flush

with the differential case using suitable tool.

CAUTION:

Do not reuse lock pin.

7. Align the matching mark of the differential case with the mark of

the drive gear, then place the drive gear onto the differential

case.

SDIA0193J

SDIA2025E

SDIA0195J

SPD030

SDIA2593E

2010 Pathfinder

FRONT FINAL DRIVE

DLN-371

< DISASSEMBLY AND ASSEMBLY >

[FRONT FINAL DRIVE: R180A]

DLN

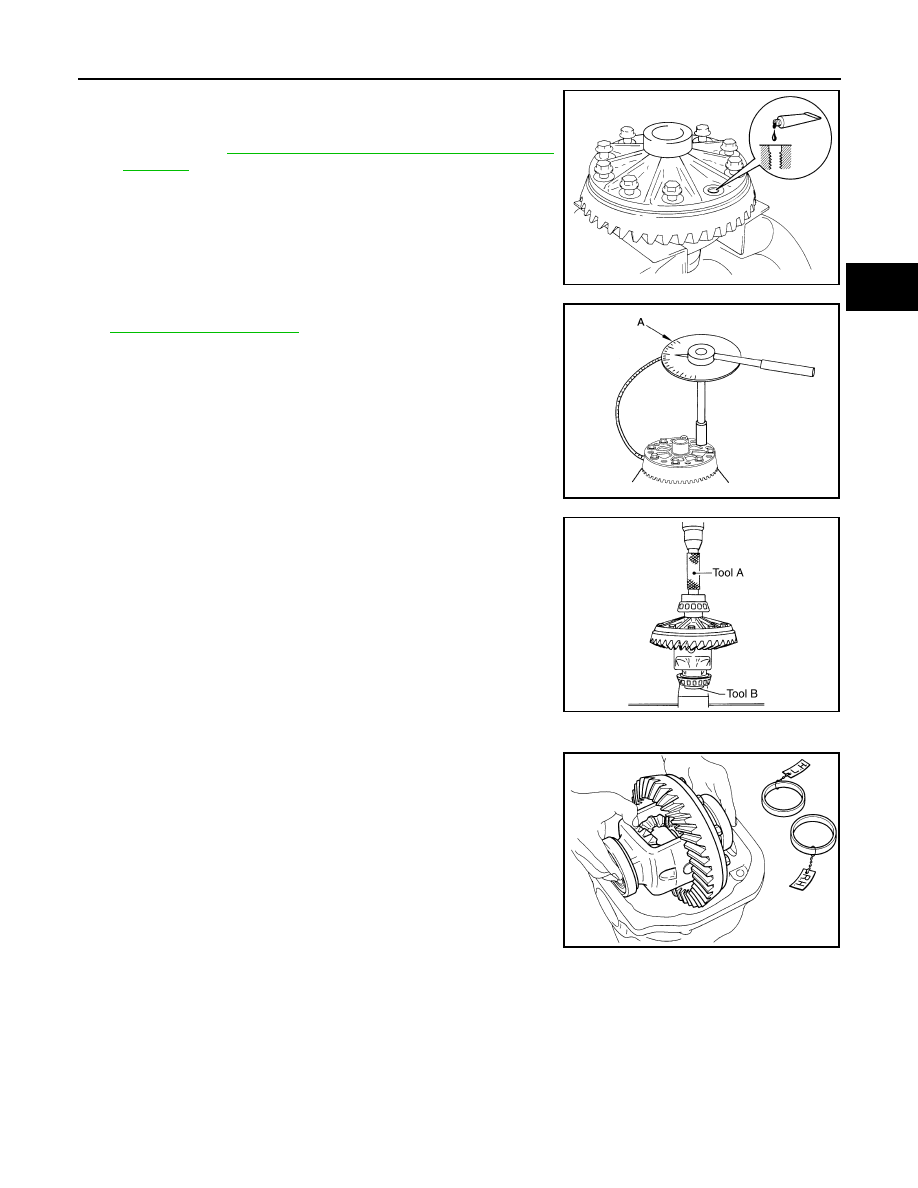

8. Apply thread locking sealant into the threaded holes of the drive

gear and install the new drive gear bolts.

• Use Genuine High Strength Thread Locking Sealant or equiv-

alent. Refer to

Sealants"

CAUTION:

Make sure the drive gear back and threaded holes are

clean.

9. Tighten the new drive gear bolts to the specified torque. Refer to

DLN-355, "Exploded View"

. After tightening the new drive gear

bolts to the specified torque, tighten an additional 34

to 39

using Tool (A).

CAUTION:

• Always use Tool. Avoid tightening based on visual check

alone.

• Tighten new drive gear bolts in a crisscross pattern.

10. Press the new side bearing inner races to the differential case

using Tools.

CAUTION:

Do not reuse side bearing inner races.

11. Install housing spacer into gear carrier.
12. Apply differential gear oil to the side bearings, and install the dif-

ferential case assembly with the side bearing outer races into

the gear carrier.

CAUTION:

Do not reuse side bearing outer race when replacing side

bearing inner race (replace as a set).

SDIA2594E

Tool number

A: KV10112100-A (BT-8653-A)

AWBIA0722ZZ

Tool number

A: ST33230000 (J-35867)
B: ST33061000 (J-8107-2)

SPD353

SPD527

2010 Pathfinder

DLN-372

< DISASSEMBLY AND ASSEMBLY >

[FRONT FINAL DRIVE: R180A]

FRONT FINAL DRIVE

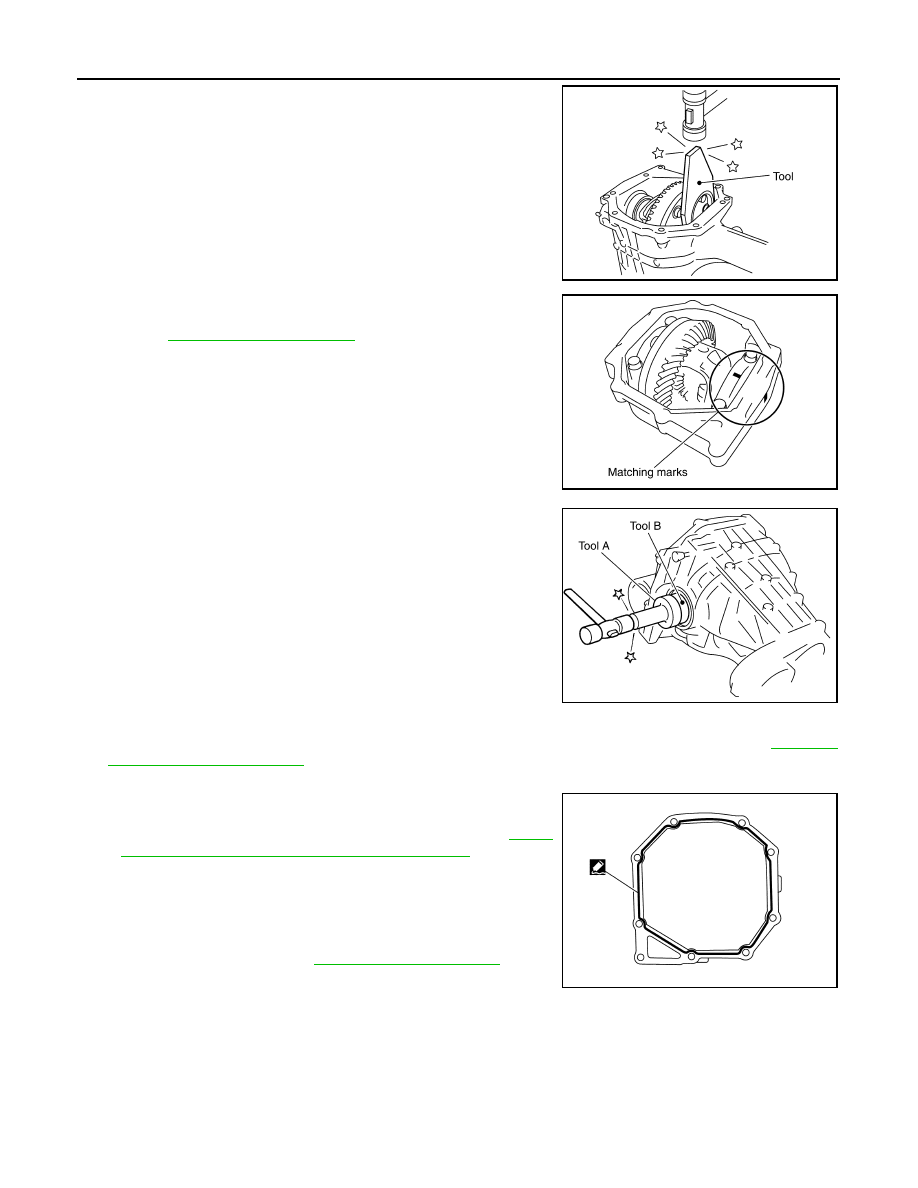

13. Insert left and right original side bearing adjusting washers in

place between side bearings and gear carrier using Tool.

14. Install the side bearing caps with the matching marks aligned

and tighten the side bearing cap bolts to the specified torque.

Refer to

DLN-355, "Exploded View"

15. Apply multi-purpose grease to the lips and differential gear oil to

the circumference of the new side oil seal. Then drive the new

side oil seal in evenly until it becomes flush with the gear carrier

using Tools.

CAUTION:

• Do not reuse side oil seal.

• Do not incline the new side oil seal when installing.

• Apply multi-purpose grease to the lips and differential

gear oil to the circumference of the new side oil seal.

16. Check and adjust tooth contact, backlash, drive gear runout and total preload torque. Refer to

DLN-374,

"Inspection and Adjustment"

Recheck above items.

17. Apply a 3 mm (0.12 in) bead of sealant to the mating surface of

the carrier cover as shown.

• Use Genuine Silicone RTV or equivalent. Refer to

GI-14,

CAUTION:

Remove any old sealant adhering to the mating surfaces.

Also remove any moisture, oil, or foreign material adhering

to the application and mating surfaces.

18. Install the carrier cover to the gear carrier. Tighten the bolts to

the specified torque. Refer to

DLN-355, "Exploded View"

Differential side shaft

Tool number

: KV38100600 (J-25267)

PDIA0706E

PDIA0700E

Tool number

A: ST30720000 (J-25405)
B: ST27863000 ( — )

PDIA0711E

PDIA0712E

2010 Pathfinder

Content .. 222 223 224 225 ..
