Nissan Pathfinder (2010 year). Manual - part 221





PRECAUTIONS

DLN-341

< PRECAUTION >

[FRONT FINAL DRIVE: R180A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000005550722

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000005550723

NOTE:

• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

LOCK

 position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-

anism is adopted on the key cylinder.

For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and

steering wheel rotation will become impossible.

If steering wheel rotation is required when battery power is interrupted, follow the procedure below before

starting the repair operation.

OPERATION PROCEDURE

1. Connect both battery cables.

NOTE:

Supply power using jumper cables if battery is discharged.

2. Use the Intelligent Key or mechanical key to turn the ignition switch to the

ACC

 position. At this time, the

steering lock will be released.

3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be

rotated.

4. Perform the necessary repair operation.

2010 Pathfinder

DLN-342

< PRECAUTION >

[FRONT FINAL DRIVE: R180A]

PRECAUTIONS

5. When the repair work is completed, return the ignition switch to the

LOCK

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6. Perform a self-diagnosis check of all control units using CONSULT-III.

Precaution for Servicing Front Final Drive

INFOID:0000000005258470

• Before starting diagnosis of the vehicle, understand the symptoms well. Perform correct and systematic

operations.

• Check for the correct installation status prior to removal or disassembly. When matching marks are required,

be certain they do not interfere with the function of the parts they are applied to.

• Overhaul should be done in a clean work area, a dust proof area is recommended.

• Before disassembly, completely remove sand and mud from the exterior of the unit, preventing them from

entering into the unit during disassembly or assembly.

• Always use shop paper for cleaning the inside of components.

• Avoid using cotton gloves or a shop cloth to prevent the entering of lint.

• Check appearance of the disassembled parts for damage, deformation, and abnormal wear. Replace them

with new ones if necessary.

• Gaskets, seals and O-rings should be replaced any time the unit is disassembled.

• Clean and flush the parts sufficiently and blow them dry.

• Be careful not to damage sliding surfaces and mating surfaces.

• When applying sealant, remove the old sealant from the mating surface; then remove any moisture, oil, and

foreign materials from the application and mating surfaces.

• In principle, tighten nuts or bolts gradually in several steps working diagonally from inside to outside. If a

tightening sequence is specified, observe it.

• During assembly, observe the specified tightening torque.

• Add new differential gear oil, petroleum jelly, or multi-purpose grease, as specified.

2010 Pathfinder

PREPARATION

DLN-343

< PREPARATION >

[FRONT FINAL DRIVE: R180A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

PREPARATION

PREPARATION

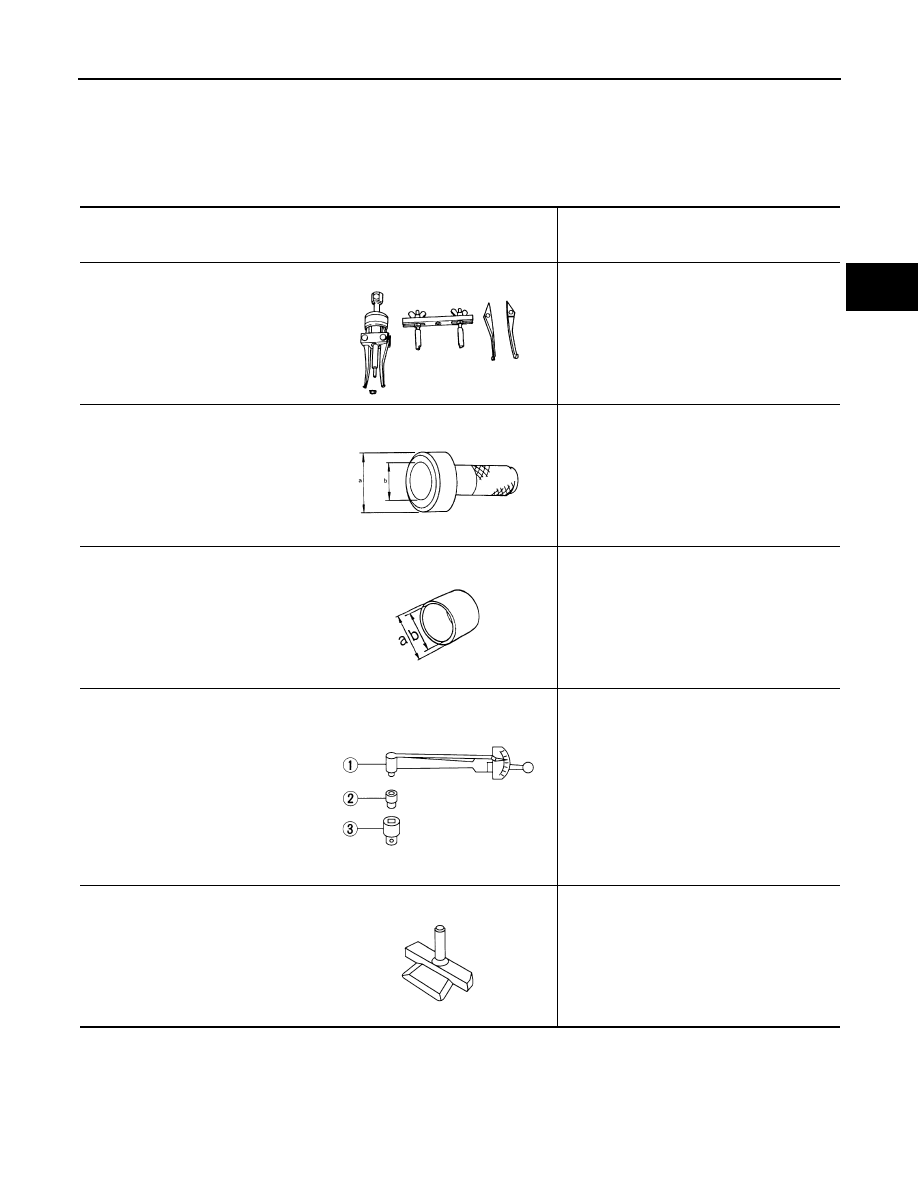

Special Service Tool

INFOID:0000000005258471

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

KV381054S0
(J-34286)
Puller

Removing front oil seal

ST30720000
(J-25405)
Drift

• Installing front oil seal
• Installing side oil seal

a: 77 mm (3.03 in) dia.
b: 55.5 mm (2.185 in) dia.

ST27863000
(

)

Drift

• Installing front oil seal
• Installing side oil seal

a: 74.5 mm (2.933 in) dia.
b: 62.5 mm (2.461 in) dia.

ST3127S000
(J-25765-A)
Preload gauge
1: GG91030000

(J-25765)
Torque wrench

2: HT62940000

(

)

Socket adapter (1/2

)

3: HT62900000

(

)

Socket adapter (3/8

)

Measuring drive pinion bearing preload torque
and total preload torque

KV10111100
(J-37228)
Seal cutter

Removing carrier cover

ZZA0601D

ZZA0811D

ZZA1003D

NT124

S-NT046

2010 Pathfinder

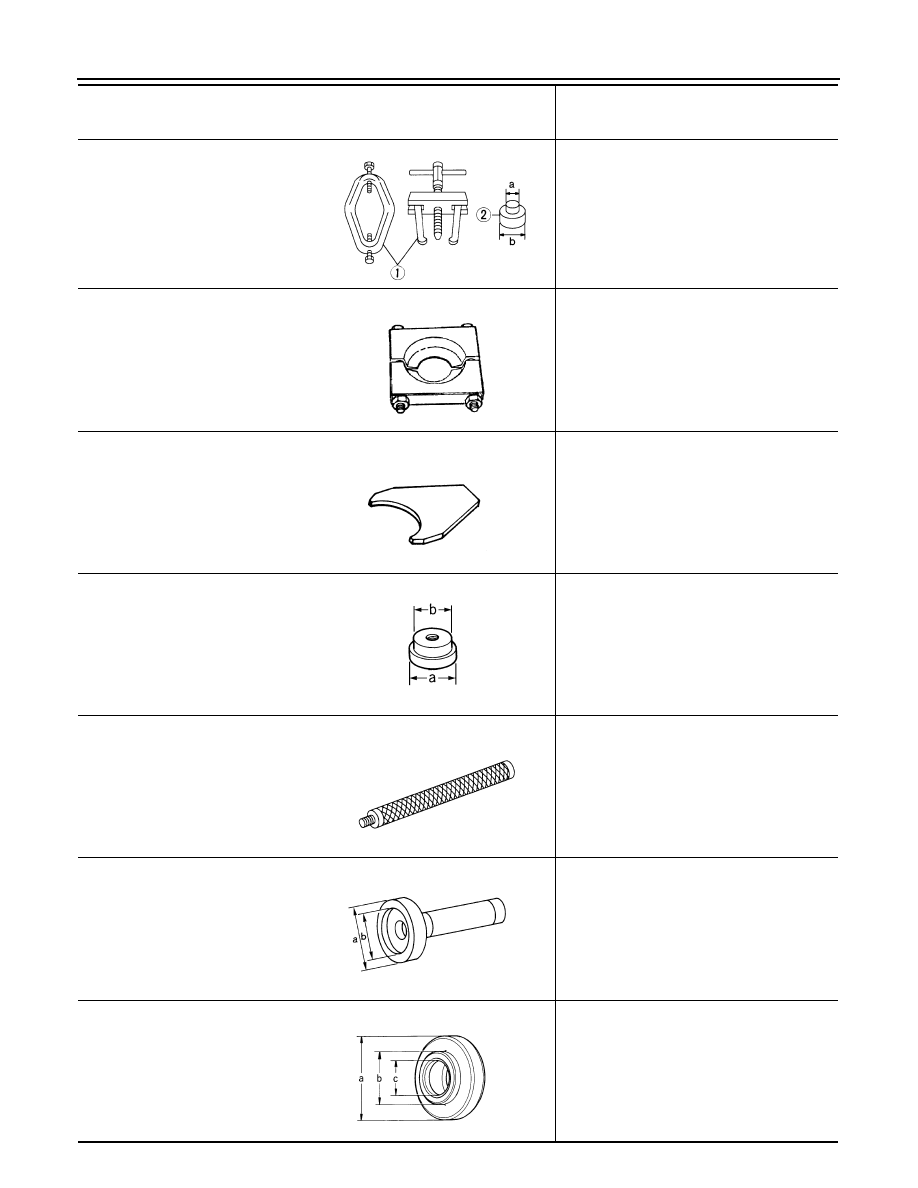

DLN-344

< PREPARATION >

[FRONT FINAL DRIVE: R180A]

PREPARATION

ST3306S001
(

)

Differential side bearing puller set
1: ST33051001

(J-22888-20)
Puller

2: ST33061000

(J-8107-2)
Base

Removing and installing side bearing inner
race

a: 28.5 mm (1.122 in) dia.
b: 38 mm (1.50 in) dia.

ST30031000
(J-22912-01)
Replacer

Removing drive pinion rear bearing inner race

KV38100600
(J-25267)
Drift

Installing side bearing adjusting washer

ST30613000
(J-25742-3)
Drift

Installing drive pinion rear bearing outer race

a: 72 mm (2.83 in) dia.
b: 48 mm (1.89 in) dia.

ST30611000
(J-25742-1)
Drift bar

Installing drive pinion rear bearing outer race
(Use with ST30613000)

KV38100200
(J-26233)
Drift

Installing drive pinion front bearing outer race

a: 65 mm (2.56 in) dia.
b: 49 mm (1.93 in) dia.

ST30901000
(J-26010-01)
Drift

Installing drive pinion rear bearing inner race

a: 79 mm (3.11 in) dia.
b: 45 mm (1.77 in) dia.
c: 35.2 mm (1.386 in) dia.

Tool number
(Kent-Moore No.)
Tool name

Description

NT072

ZZA0700D

SDIA0429J

ZZA1000D

S-NT090

ZZA1143D

ZZA0978D

2010 Pathfinder

PREPARATION

DLN-345

< PREPARATION >

[FRONT FINAL DRIVE: R180A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

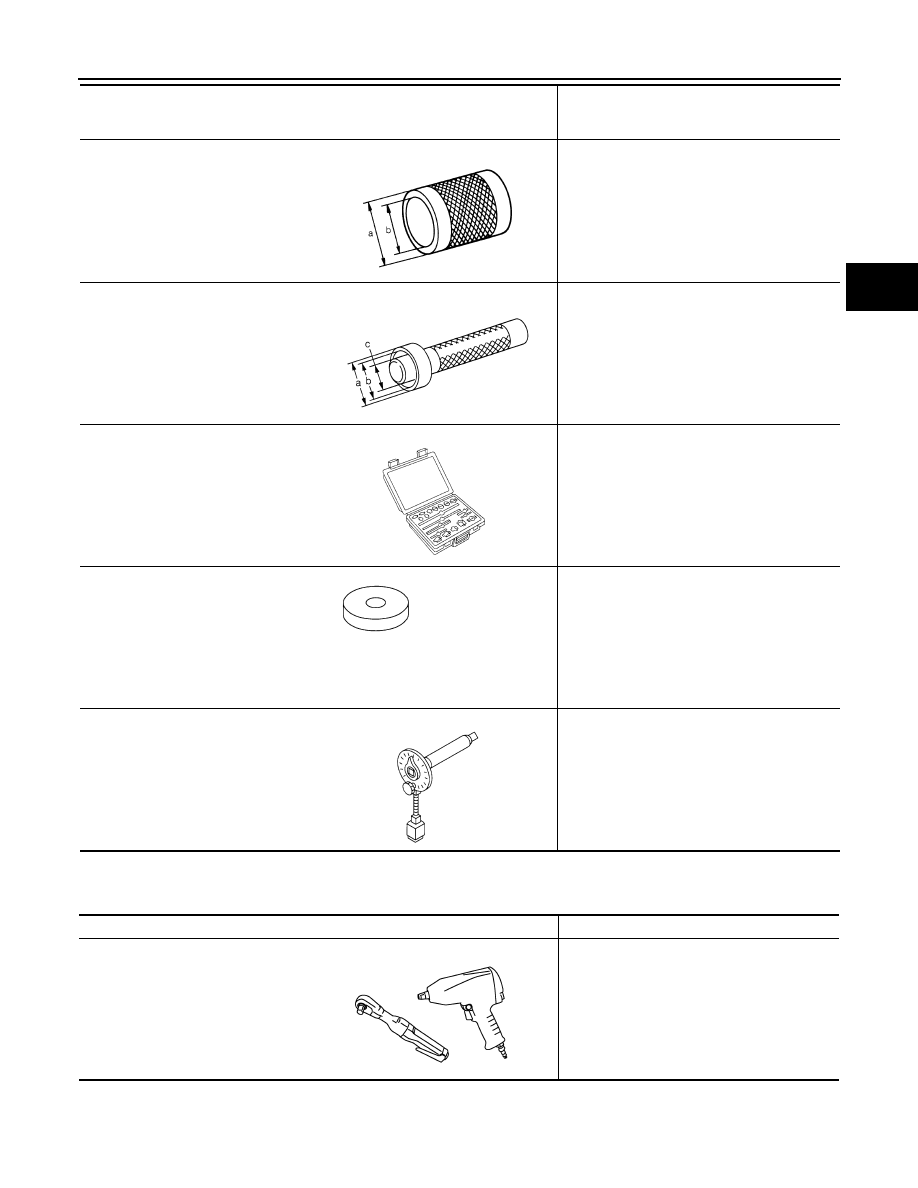

Commercial Service Tool

INFOID:0000000005258472

ST33200000
(J-26082)
Drift

Installing drive pinion front bearing inner race

a: 60 mm (2.36 in) dia.
b: 44.5 mm (1.752 in) dia.

ST33230000
(J-35867)
Drift

Installing side bearing inner race

a: 51 mm (2.01 in) dia.
b: 41 mm (1.61 in) dia.
c: 28 mm (1.10 in) dia.

(

)

(J-34309)
Differential shim selector tool

Adjusting bearing preload and drive pinion
height

(

)

(J-25269-18)
Side bearing disc (2 Req'd)

Selecting drive pinion height adjusting washer

KV10112100
(BT-8653-A)
Angle wrench

Tightening bolts for drive gear

Tool number
(Kent-Moore No.)
Tool name

Description

ZZA1002D

ZZA1046D

NT134

NT135

NT014

Tool name

Description

Power tool

Loosening nuts and bolts

PBIC0190E

2010 Pathfinder

DLN-346

< FUNCTION DIAGNOSIS >

[FRONT FINAL DRIVE: R180A]

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

FUNCTION DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000005258473

Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

×

: Applicable

Reference page

DLN-356

DLN-356

DLN-356

DLN-356

DLN-356

DLN-348

DL

N-33

4, "

NVH T

rou

bl

es

ho

ot

in

g Ch

art

"

F

AX-5, "

NVH T

rou

bl

es

ho

ot

in

g Cha

rt

"

FSU-5,

 "

NVH T

ro

ub

les

ho

ot

ing

 Ch

art

"

WT

-46, "

NVH T

rou

bl

es

ho

ot

ing

 Cha

rt

"

WT

-46, "

NVH T

rou

bl

es

ho

ot

ing

 Cha

rt

"

RA

X

-5, "

NVH T

rou

bl

es

ho

ot

ing

 Cha

rt

"

BR-6, "

NVH T

rou

bl

es

ho

oti

ng

 Cha

rt

"

ST

-12, "

NVH T

rou

bl

es

ho

oti

ng

 Cha

rt

"

Possible cause and SUSPECTED PARTS

G

e

ar t

oo

th

rou

gh

Gea

r co

nt

ac

t i

mp

rop

er

To

ot

h s

u

rf

ac

es

 w

o

rn

Ba

ck

la

sh

 in

co

rrec

t

Co

mp

an

io

n f

lan

ge

 e

xc

es

si

ve

 run

ou

t

Gea

r oi

l i

mp

rop

er

PR

OP

EL

LE

R

 S

H

A

F

T

FRO

N

T A

X

L

E

F

R

ONT

 SUSPENSI

ON

TI

RE

S

ROAD W

H

EEL

DRIV

E SHAFT

BR

AK

E

S

S

T

EERING

Symptom

Noise

×

×

×

×

×

×

×

×

×

×

×

×

×

×

2010 Pathfinder

DESCRIPTION

DLN-347

< FUNCTION DIAGNOSIS >

[FRONT FINAL DRIVE: R180A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

DESCRIPTION

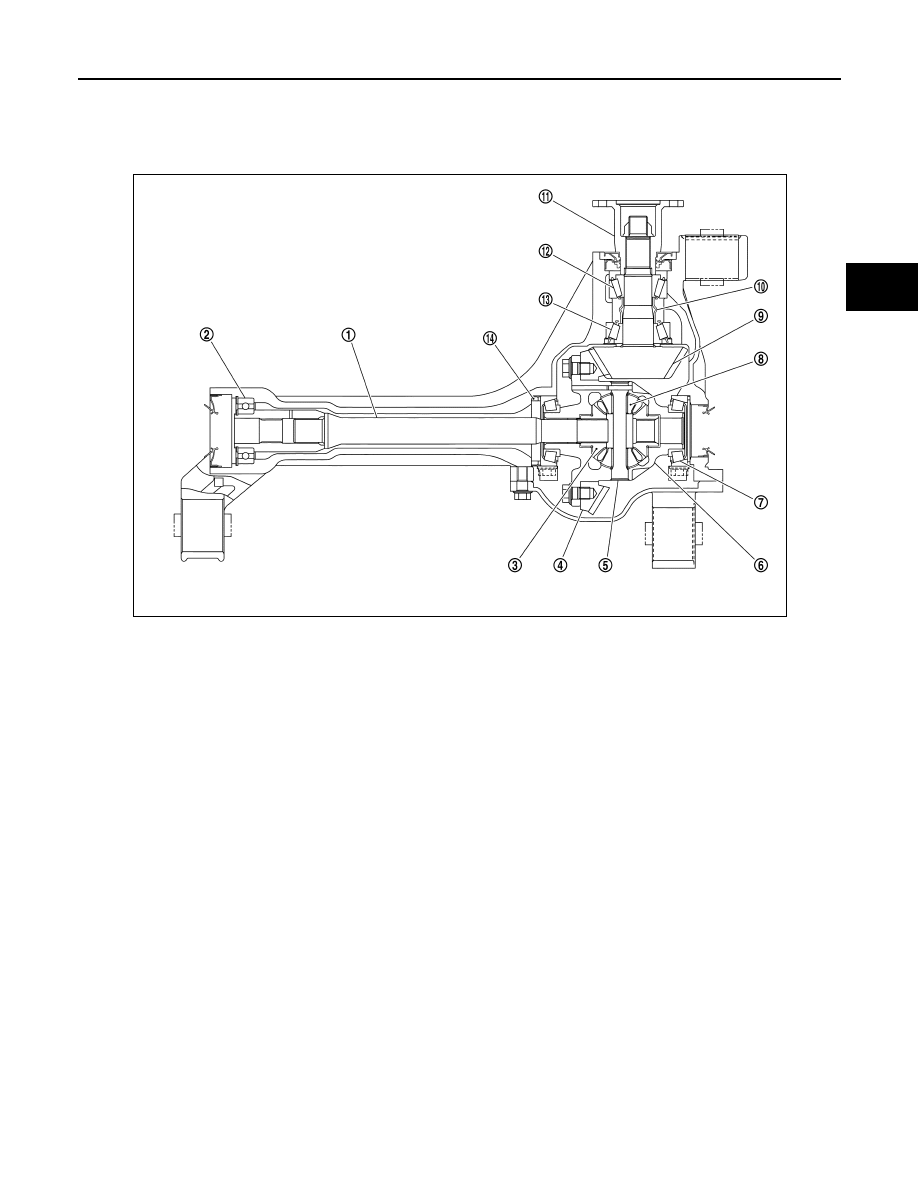

Cross-Sectional View

INFOID:0000000005258474

1.

Differential side shaft

2.

Differential side shaft bearing

3.

Side gear

4.

Drive gear

5.

Pinion mate shaft

6.

Differential case

7.

Side bearing

8.

Pinion mate gear

9.

Drive pinion

10. Collapsible spacer

11. Companion flange

12. Drive pinion front bearing

13. Drive pinion rear bearing

14. Housing spacer

PDIA0695E

2010 Pathfinder

DLN-348

< ON-VEHICLE MAINTENANCE >

[FRONT FINAL DRIVE: R180A]

DIFFERENTIAL GEAR OIL

ON-VEHICLE MAINTENANCE

DIFFERENTIAL GEAR OIL

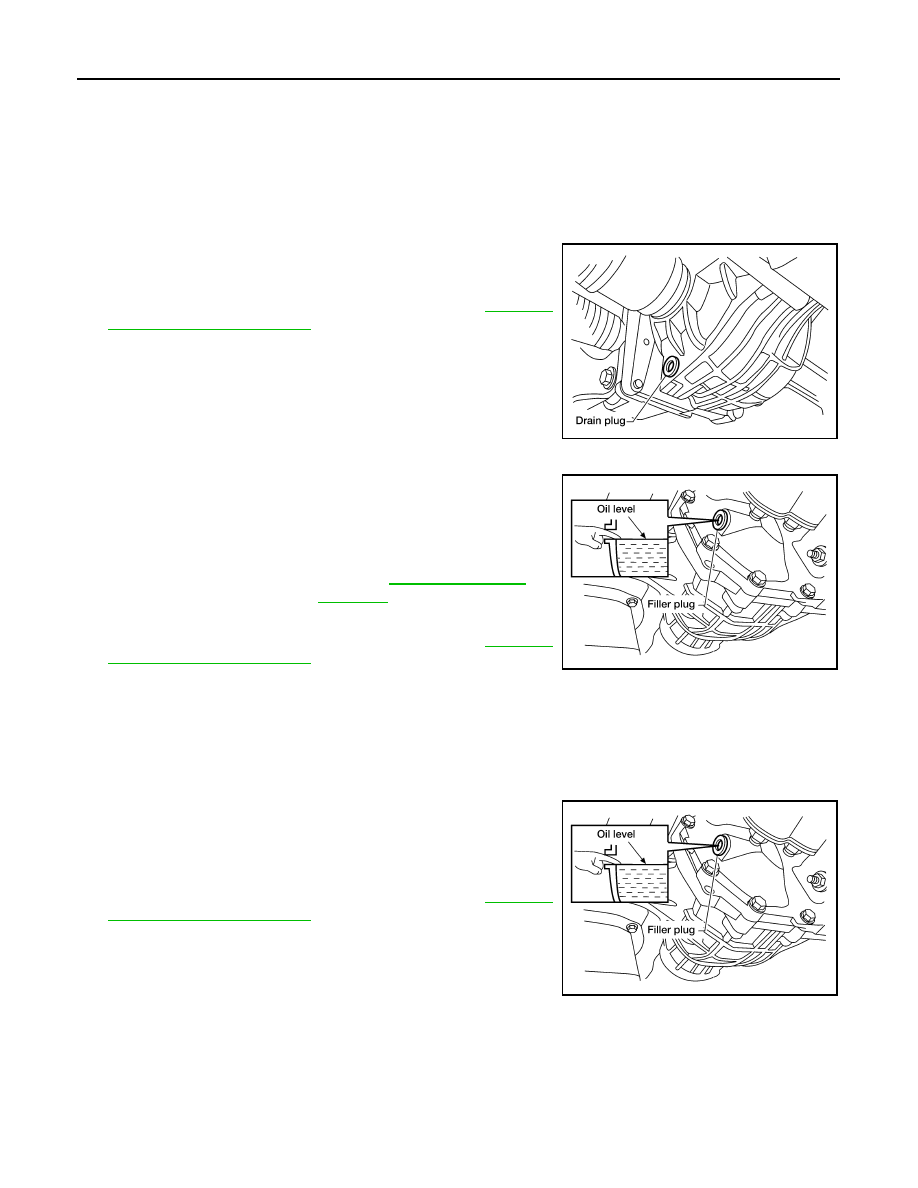

Changing Differential Gear Oil

INFOID:0000000005258475

DRAINING

1. Stop the engine.
2. Remove the drain plug and gasket from the front final drive

assembly to drain the differential gear oil.

3. Install the drain plug with a new gasket to the front final drive

assembly. Tighten to the specified torque. Refer to

DLN-356,

"Disassembly and Assembly"

.

CAUTION:

Do not reuse gasket.

FILLING

1. Remove the filler plug and gasket from the front final drive

assembly.

2. Fill the front final drive assembly with new differential gear oil

until the level reaches the specified level near the filler plug hole.

3. Install the filler plug with a new gasket on it to the front final drive

assembly. Tighten to the specified torque. Refer to

DLN-356,

"Disassembly and Assembly"

.

CAUTION:

Do not reuse gasket.

Checking Differential Gear Oil

INFOID:0000000005258476

DIFFERENTIAL GEAR OIL LEAKAGE AND LEVEL

1. Make sure that differential gear oil is not leaking from the front final drive assembly or around it.
2. Check the differential gear oil level from the filler plug hole as

shown.

CAUTION:

Do not start engine while checking differential gear oil level.

3. Install the filler plug with a new gasket on it to the front final drive

assembly. Tighten to the specified torque. Refer to

DLN-356,

"Disassembly and Assembly"

.

CAUTION:

Do not reuse gasket.

LDIA0175E

Differential gear oil
grade and capacity

: Refer to

MA-16, "For North

America"

.

LDIA0176E

LDIA0176E

2010 Pathfinder















Content      ..     219      220      221      222     ..
