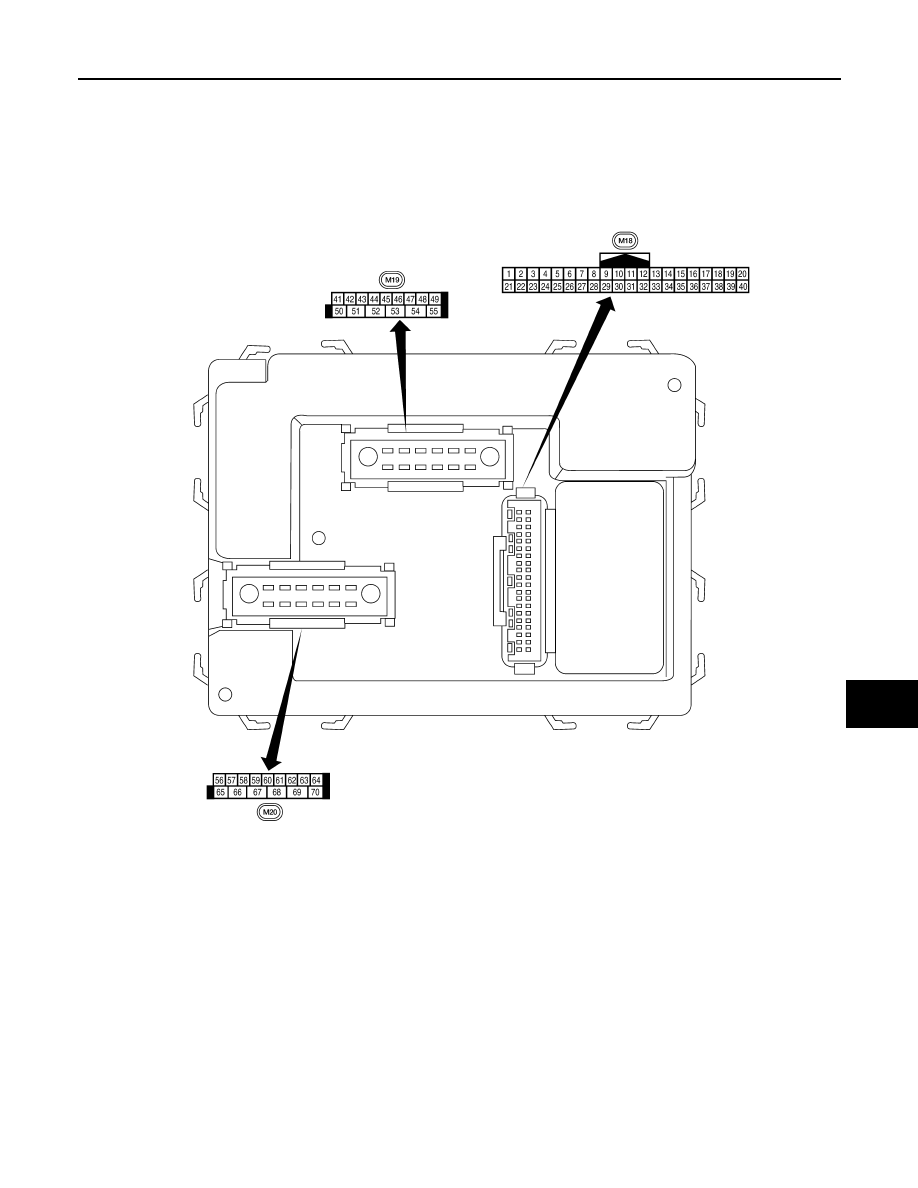

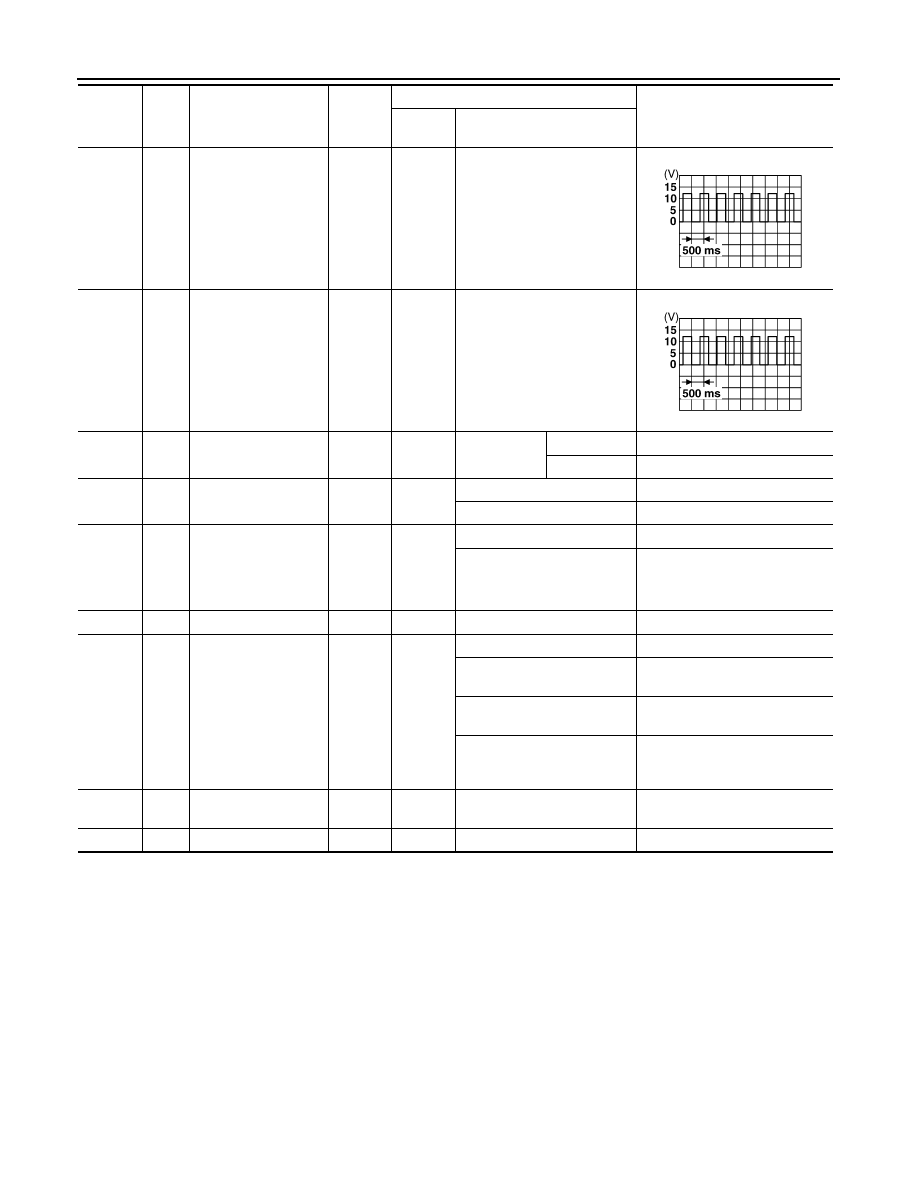

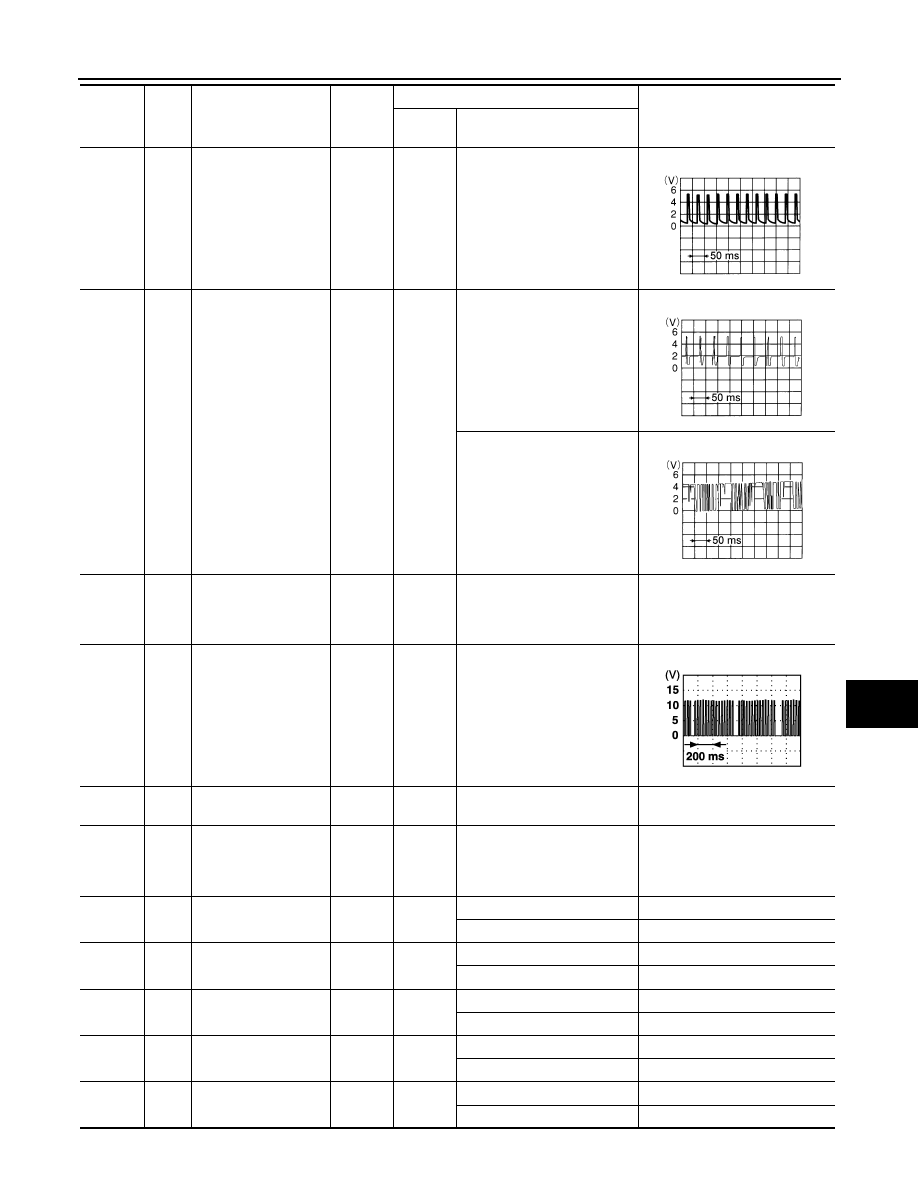

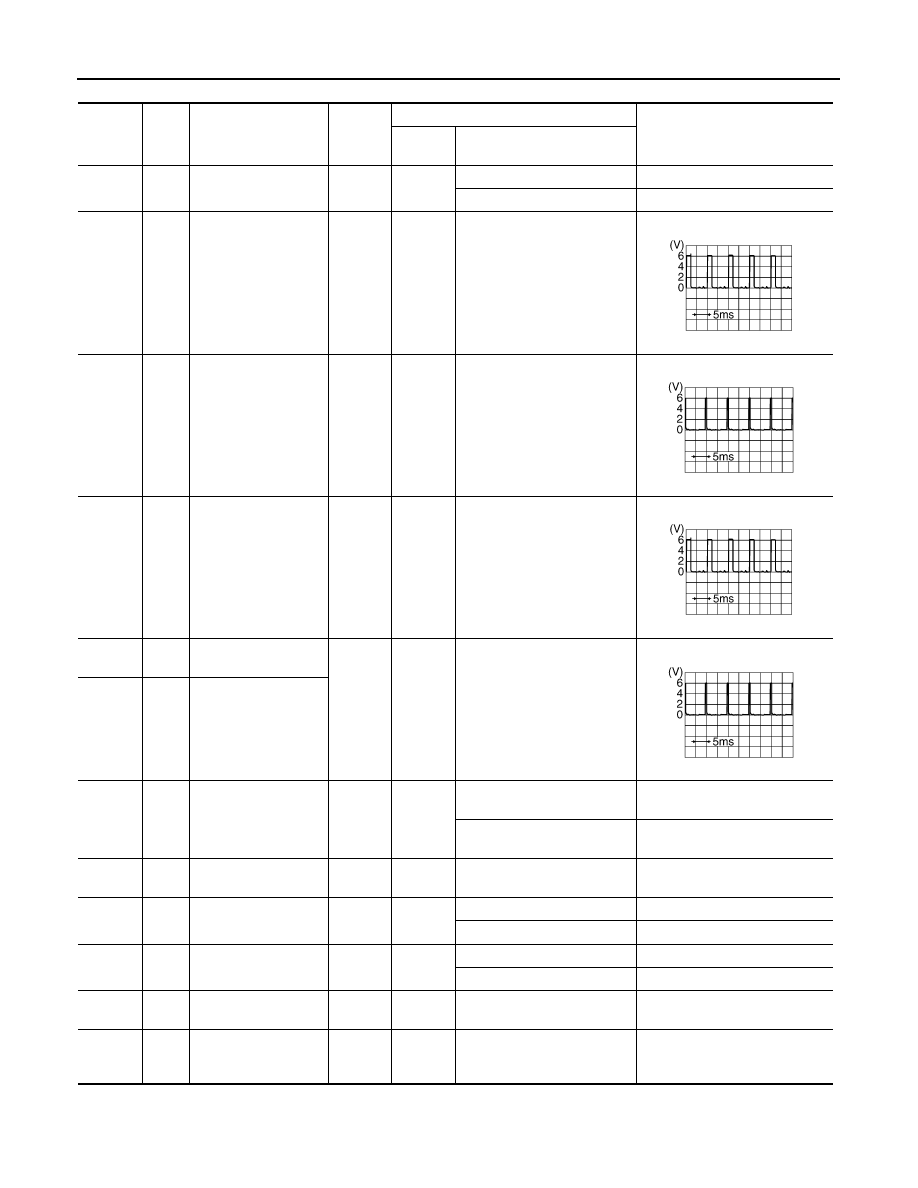

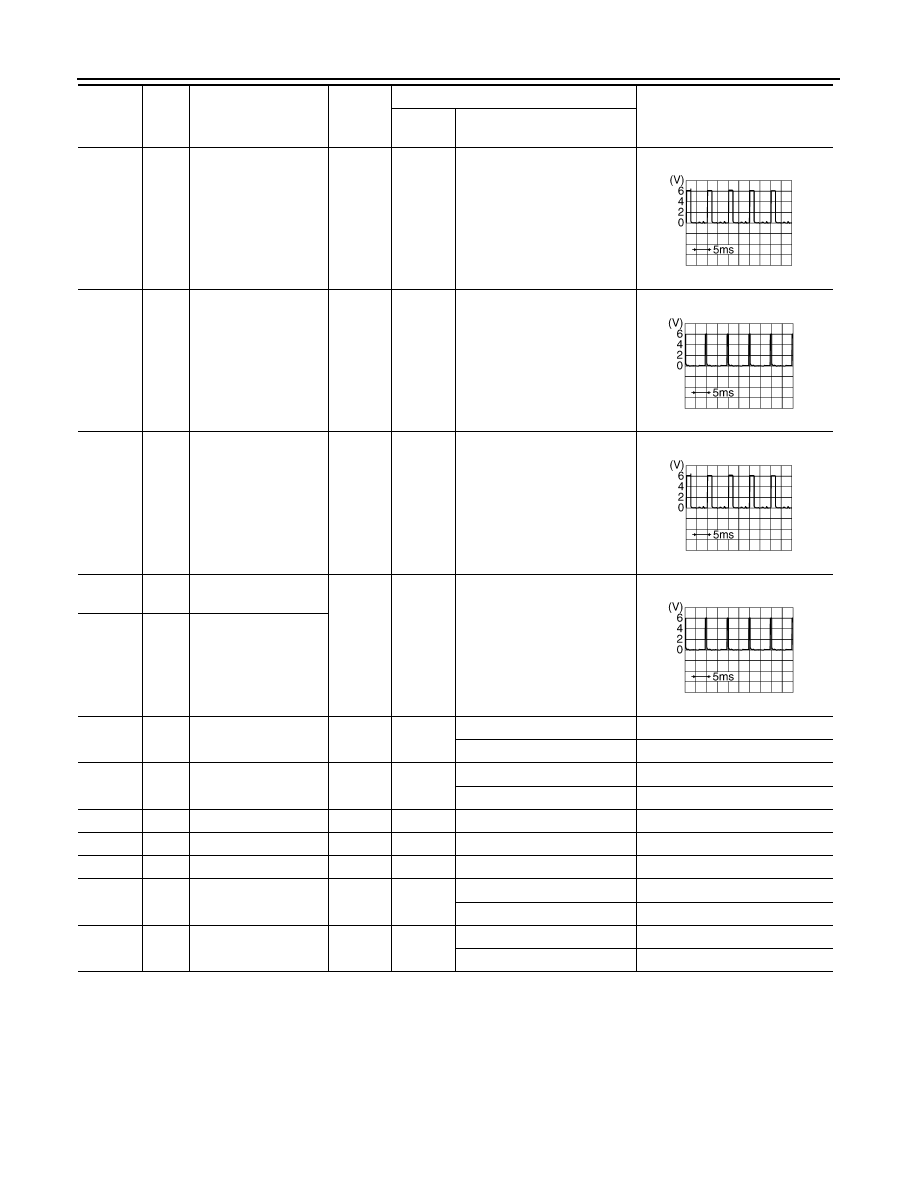

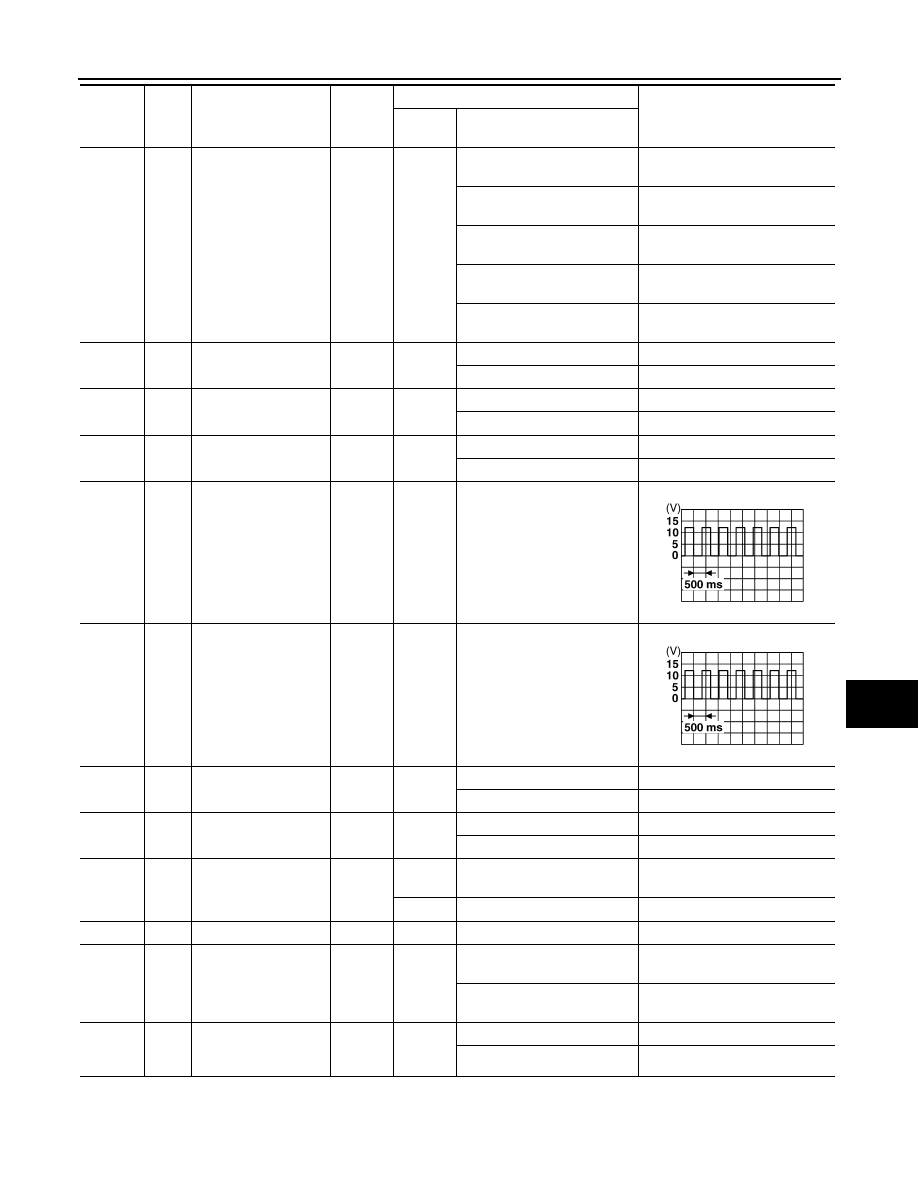

BCM (BODY CONTROL MODULE) DLK-123 < ECU DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM] C D E F G H I J L M A B DLK N O P HEAD LAMP SW1 Headlamp switch OFF OFF Headlamp switch 1st ON HEAD LAMP SW2 Headlamp switch OFF OFF Headlamp switch 1st ON HI BEAM SW High beam switch OFF OFF High beam switch HI ON IGN ON SW Ignition switch OFF or ACC OFF Ignition switch ON ON IGN SW CAN Ignition switch OFF or ACC OFF Ignition switch ON ON INT VOLUME Wiper intermittent dial is in a dial position 1 - 7 1 - 7 I-KEY LOCK 1 LOCK button of Intelligent Key is not pressed OFF LOCK button of Intelligent Key is pressed ON I-KEY UNLOCK 1 UNLOCK button of Intelligent Key is not pressed OFF UNLOCK button of Intelligent Key is pressed ON KEY ON SW Mechanical key is removed from key cylinder OFF Mechanical key is inserted to key cylinder ON KEYLESS LOCK 2 LOCK button of key fob is not pressed OFF LOCK button of key fob is pressed ON KEYLESS UNLOCK 2 UNLOCK button of key fob is not pressed OFF UNLOCK button of key fob is pressed ON OIL PRESS SW • Ignition switch OFF or ACC OFF Ignition switch ON ON PASSING SW Other than lighting switch PASS OFF Lighting switch PASS ON PUSH SW 1 Return to ignition switch to LOCK position OFF Press ignition switch ON REAR DEF SW Rear window defogger switch OFF OFF Rear window defogger switch ON ON RR WASHER SW Rear washer switch OFF OFF Rear washer switch ON ON RR WIPER INT Rear wiper switch OFF OFF Rear wiper switch INT ON RR WIPER ON Rear wiper switch OFF OFF Rear wiper switch ON ON RR WIPER STOP Rear wiper stop position OFF Other than rear wiper stop position ON TAIL LAMP SW Lighting switch OFF OFF Lighting switch 1ST ON TRNK OPNR SW When back door opener switch is not pressed OFF When back door opener switch is pressed ON TURN SIGNAL L Turn signal switch OFF OFF Turn signal switch LH ON Monitor Item Condition Value/Status 2010 Pathfinder |
