KEYFOB ID SET UP WITH CONSULT-III

DLK-115

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

KEYFOB ID SET UP WITH CONSULT-III

ID Code Entry Procedure

INFOID:0000000005259971

KEYFOB ID SET UP WITH CONSULT-III

NOTE:

•

If a keyfob is lost, the ID code of the lost keyfob must be erased to prevent unauthorized use. A spe-

cific ID code can be erased with CONSULT-III. However, when the ID code of a lost keyfob is not

known, all controller ID codes should be erased. After all ID codes are erased, the ID codes of all

remaining and/or new keyfobs must be re-registered.

•

When registering an additional keyfob, the existing ID codes in memory may or may not be erased. If

five ID codes are stored in memory when an additional code is registered, only the oldest code is

erased. If less than five codes are stored in memory when an additional code is registered, the new

ID code is added and no ID codes are erased.

•

Entry of a maximum of five ID codes is allowed. When more than five codes are entered, the oldest ID

code will be erased.

•

Even if the same ID code that is already in memory is input, the same ID code can be entered. The

code is counted as an additional code.

1. Turn ignition switch ON.
2. Select “BCM”.
3. Select “MULTI REMOTE ENT”.
4. Select “WORK SUPPORT”.
5. You can register, erase or confirm a keyfob ID code. To register a new code, select the following option

and follow CONSULT-III instructions:

• “REMO CONT ID REGIST”

Use this mode to register a keyfob ID code.

NOTE:

Register the ID code when keyfob or BCM is replaced, or when additional keyfob is required.

• “REMO CONT ID ERASUR”

Use this mode to erase a keyfob ID code.

• “REMO CONT ID CONFIR”

Use this mode to confirm if a keyfob ID code is registered or not.

2010 Pathfinder

DLK-116

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

KEYFOB ID SET UP WITHOUT CONSULT-III

KEYFOB ID SET UP WITHOUT CONSULT-III

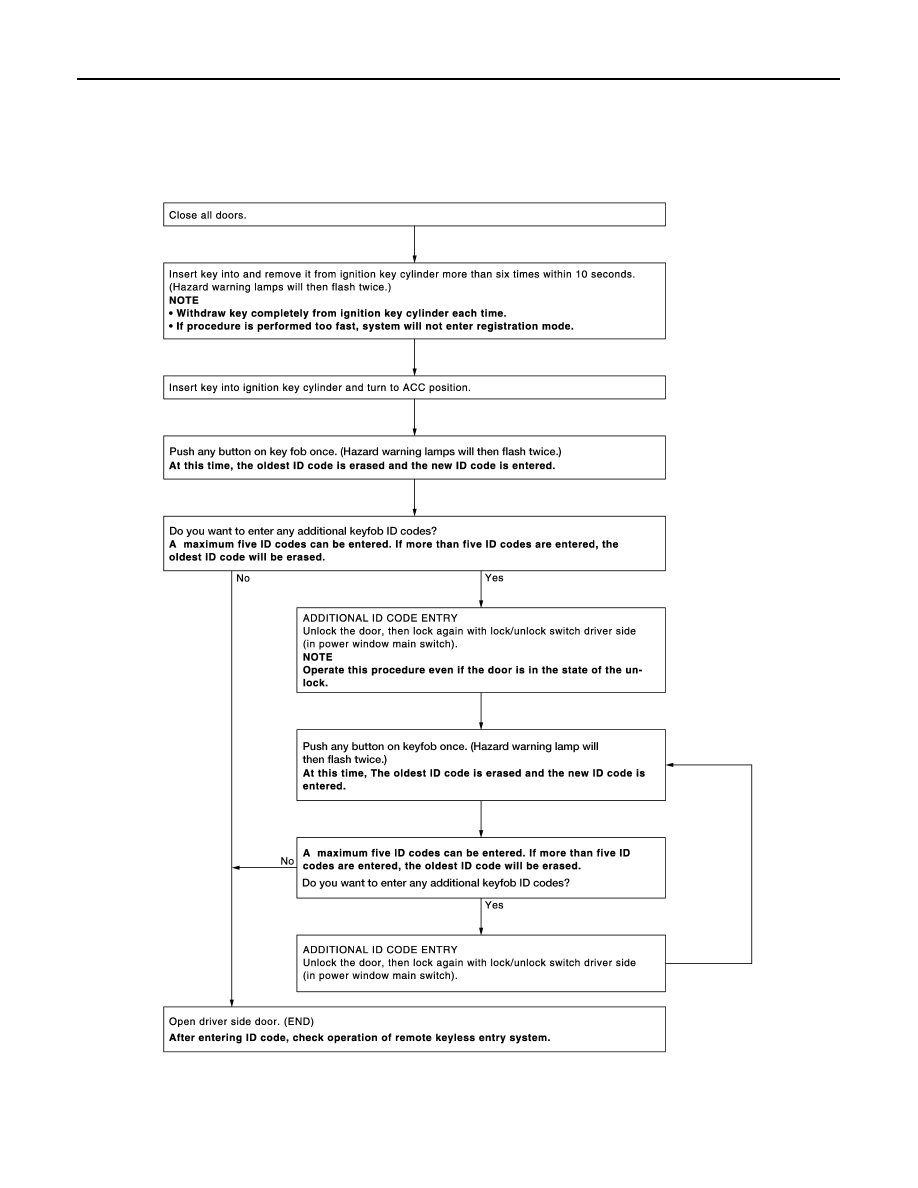

ID Code Entry Procedure

INFOID:0000000005259972

KEYFOB ID SET UP WITHOUT CONSULT-III

NOTE:

• If a keyfob is lost, the ID code of the lost keyfob must be erased to prevent unauthorized use. A specific ID

code can be erased with CONSULT-III. However, when the ID code of a lost keyfob is not known, all control-

LIIA1670E

2010 Pathfinder

KEYFOB ID SET UP WITHOUT CONSULT-III

DLK-117

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ler ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new key-

fobs must be re-registered.

To erase all ID codes in memory, register one ID code (keyfob) five times. After all ID codes are erased, the

ID codes of all remaining and/or new keyfobs must be re-registered.

• When registering an additional keyfob, the existing ID codes in memory may or may not be erased. If five ID

codes are stored in memory, when an additional code is registered, only the oldest code is erased. If less

than five ID codes are stored in memory, when an additional ID code is registered, the new ID code is added

and no ID codes are erased.

• If you need to activate more than two additional new keyfobs, repeat the procedure “Additional ID code

entry” for each new keyfob.

• Entry of maximum five ID codes is allowed. When more than five ID codes are entered, the oldest ID code

will be erased.

• Even if same ID code that is already in the memory is input, the same ID code can be entered. The code is

counted as an additional code.

2010 Pathfinder

DLK-118

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

HOMELINK UNIVERSAL TRANSCEIVER

HOMELINK UNIVERSAL TRANSCEIVER

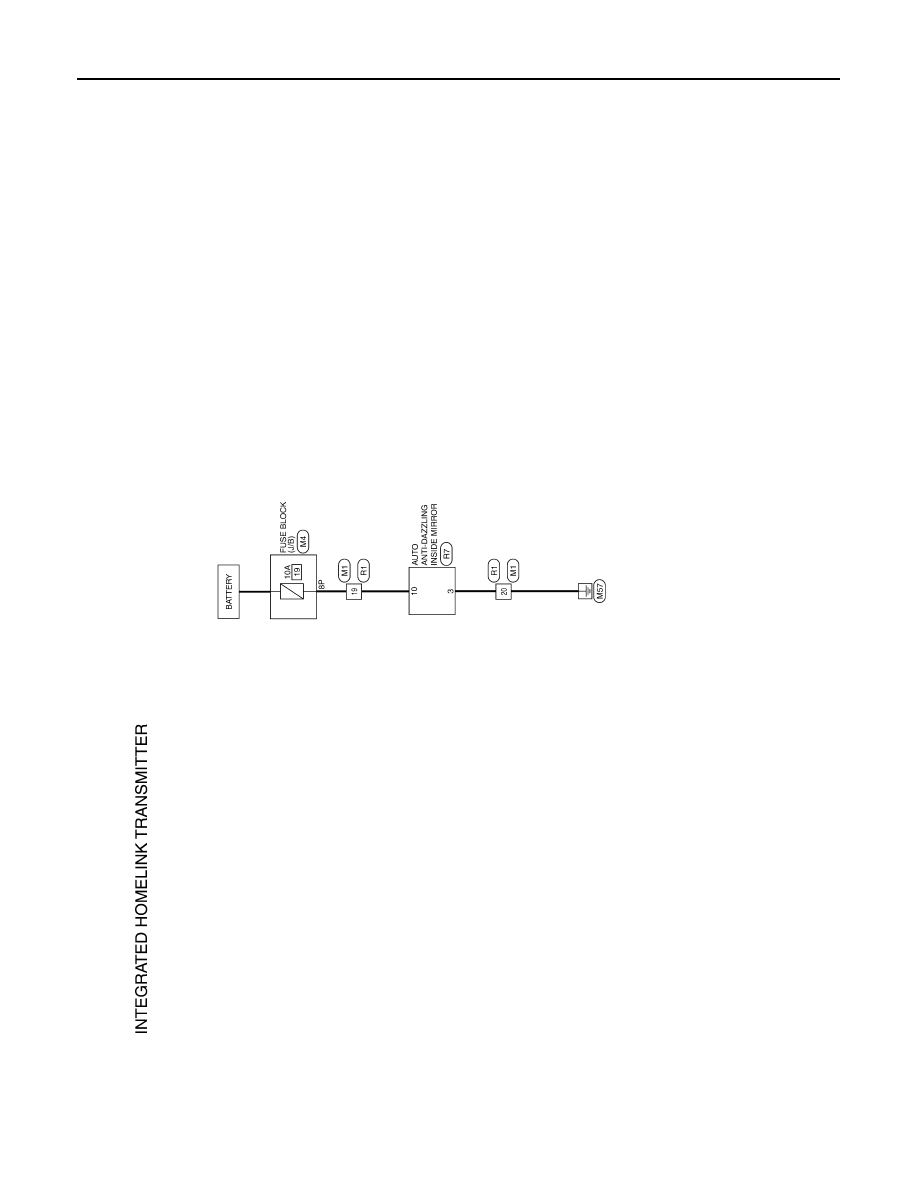

Wiring Diagram

INFOID:0000000005259973

AWKWA0054GB

2010 Pathfinder

HOMELINK UNIVERSAL TRANSCEIVER

DLK-119

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Description

INFOID:0000000005259974

Homelink universal transceiver can store and transmit a maximum of 3 radio signals.

Allows operation of garage doors, gates, home and office lighting, entry door locks and security system, etc.

Homelink universal transceiver power supply uses vehicle battery, which enables it to maintain every program

in case battery is discharged or removed.

ABKIA1720GB

2010 Pathfinder

DLK-120

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

HOMELINK UNIVERSAL TRANSCEIVER

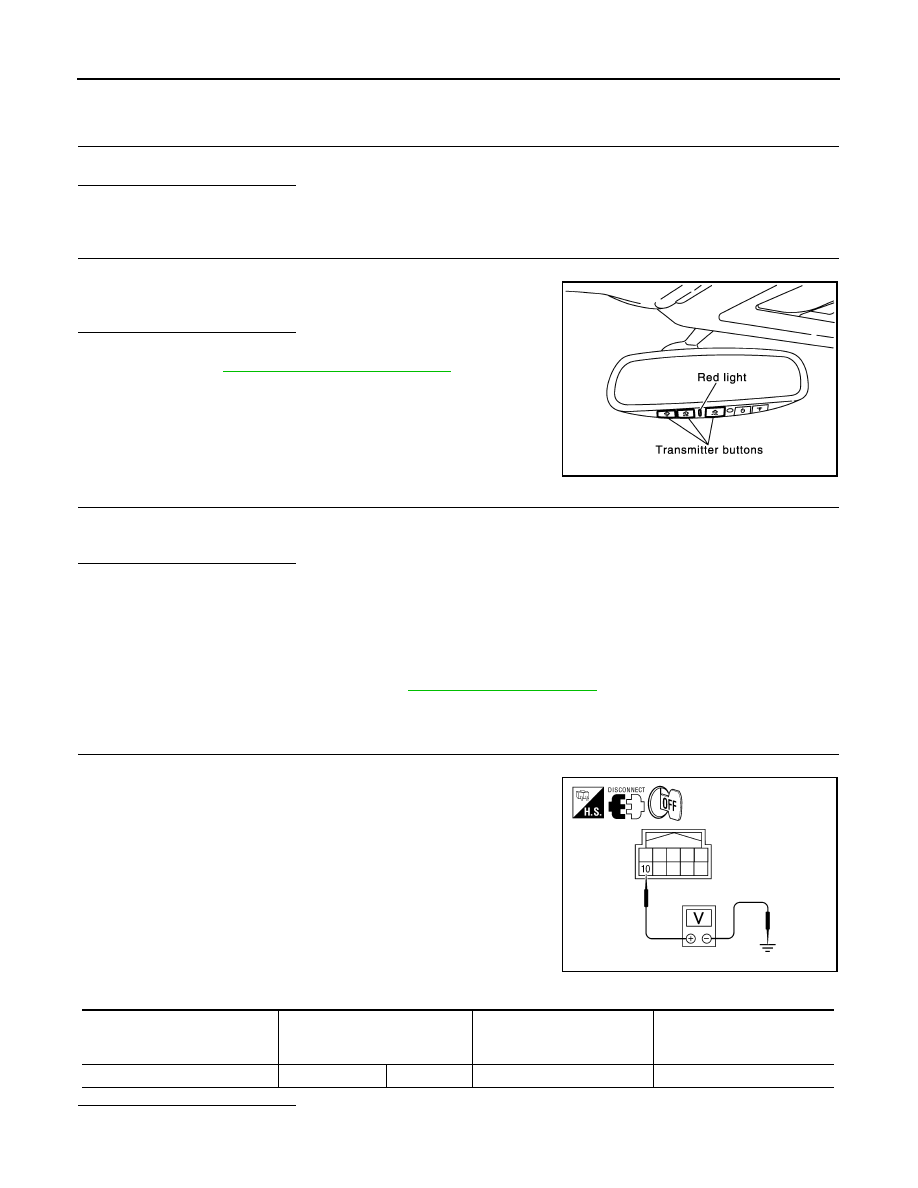

Component Function Check

INFOID:0000000005259975

1.

CHECK FUNCTION

Check that system receiver (garage door opener, etc.) operates with original hand-held transmitter.
Is the inspection result normal?

YES

>> GO TO 2

NO

>> Receiver or hand-held transmitter is malfunctioning.

2.

CHECK ILLUMINATION

1. Turn ignition switch “OFF”.

2. Press each of the transmitter buttons and watch for the red light

to illuminate with each button.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Refer to

DLK-120, "Diagnosis Procedure"

.

3.

CHECK TRANSMITTER

Check transmitter with Tool*.

*:For details, refer to Technical Service Bulletin.
Is the inspection result normal?

YES

>> Receiver or hand-held transmitter malfunction, not vehicle related.

NO

>> Replace auto anti-dazzling inside mirror (homelink universal transceiver).

Diagnosis Procedure

INFOID:0000000005259976

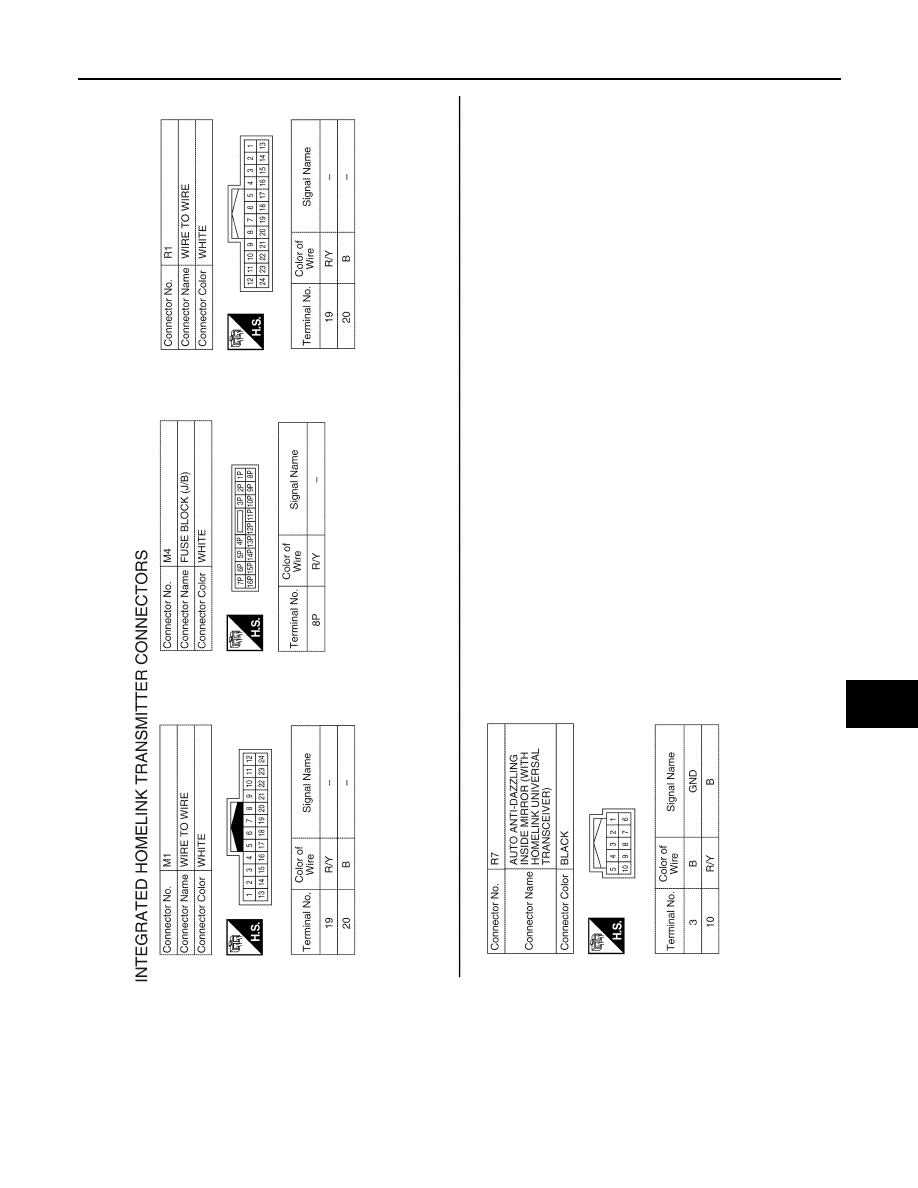

Regarding Wiring Diagram information, refer to

DLK-118, "Wiring Diagram"

.

1.

CHECK POWER SUPPLY

1. Disconnect auto anti-dazzling inside mirror (homelink universal transceiver) connector.

2. Check voltage between auto anti-dazzling inside mirror

(homelink universal transceiver) harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2

PIIA4815E

ALKIA0426ZZ

Auto anti-dazzling inside mirror

(Homelink universal transceiver)

connector

Terminal Condition

Voltage (V)

(Approx.)

R7

10

Ground

Ignition switch position: LOCK

Battery voltage

2010 Pathfinder

HOMELINK UNIVERSAL TRANSCEIVER

DLK-121

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

NO

>> Check the following.

• 10A fuse [No. 19 located in the fuse block (J/B)]

• Harness for open or short between fuse and auto anti-dazzling inside mirror (homelink universal

transceiver).

2.

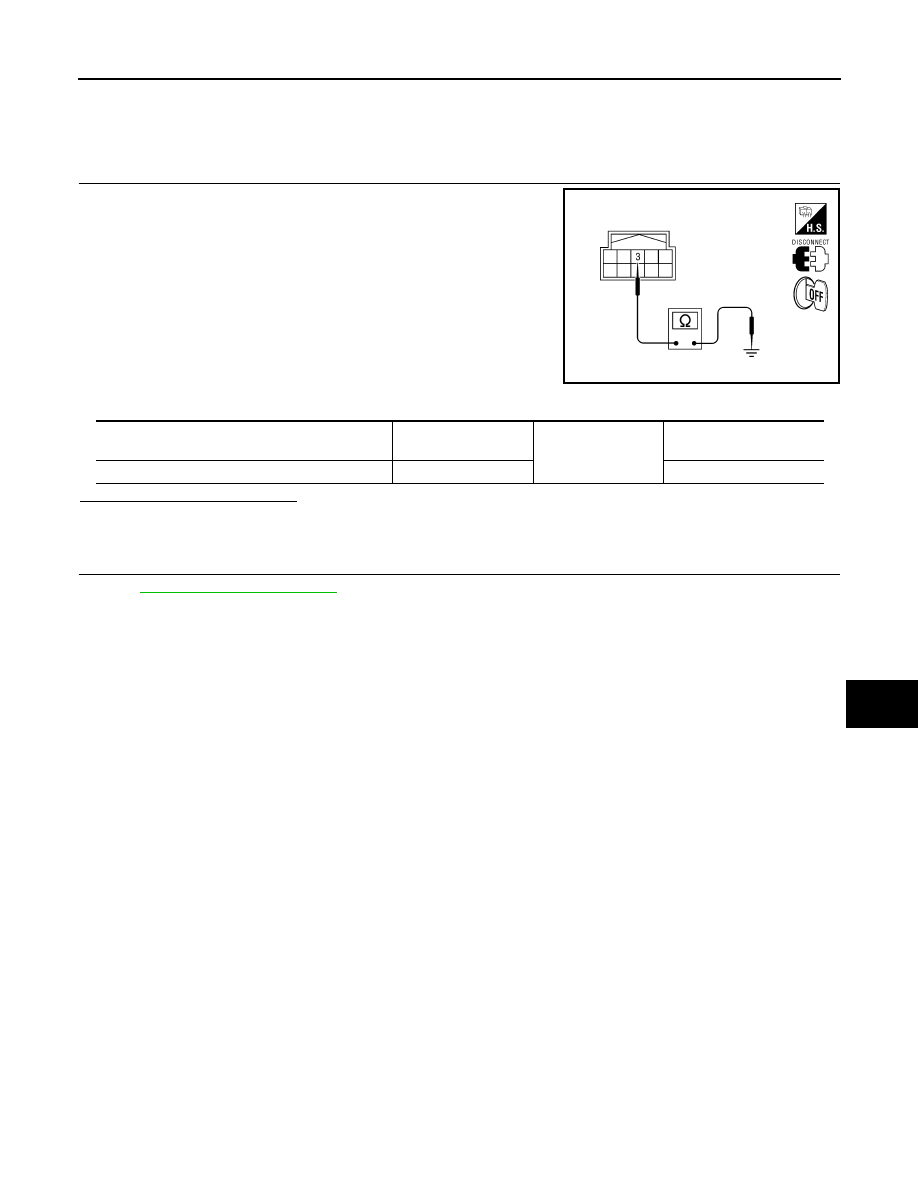

CHECK GROUND CIRCUIT

Check continuity between auto anti-dazzling inside mirror (homelink

universal transceiver) harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair harness.

3.

CHECK INTERMITTENT INCIDENT

Refer to

GI-37, "Intermittent Incident"

.

>> Inspection End.

ALKIA1245ZZ

Auto anti-dazzling inside mirror

(Homelink universal transceiver) connector

Terminal

Ground

Continuity

R7

3

Yes

2010 Pathfinder

DLK-122

< ECU DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

BCM (BODY CONTROL MODULE)

ECU DIAGNOSIS

BCM (BODY CONTROL MODULE)

Reference Value

INFOID:0000000005483723

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

AIR COND SW

A/C switch OFF

OFF

A/C switch ON

ON

AUT LIGHT SYS

Outside of the room is dark

OFF

Outside of the room is bright

ON

AUTO LIGHT SW

Lighting switch OFF

OFF

Lighting switch AUTO

ON

BACK DOOR SW

Back door closed

OFF

Back door opened

ON

CDL LOCK SW

Door lock/unlock switch does not operate

OFF

Press door lock/unlock switch to the LOCK side

ON

CDL UNLOCK SW

Door lock/unlock switch does not operate

OFF

Press door lock/unlock switch to the UNLOCK side

ON

DOOR SW-AS

Front door RH closed

OFF

Front door RH opened

ON

DOOR SW-DR

Front door LH closed

OFF

Front door LH opened

ON

DOOR SW-RL

Rear door LH closed

OFF

Rear door LH opened

ON

DOOR SW-RR

Rear door RH closed

OFF

Rear door RH opened

ON

ENGINE RUN

Engine stopped

OFF

Engine running

ON

FR FOG SW

Front fog lamp switch OFF

OFF

Front fog lamp switch ON

ON

FR WASHER SW

Front washer switch OFF

OFF

Front washer switch ON

ON

FR WIPER LOW

Front wiper switch OFF

OFF

Front wiper switch LO

ON

FR WIPER HI

Front wiper switch OFF

OFF

Front wiper switch HI

ON

FR WIPER INT

Front wiper switch OFF

OFF

Front wiper switch INT

ON

FR WIPER STOP

Any position other than front wiper stop position

OFF

Front wiper stop position

ON

HAZARD SW

When hazard switch is not pressed

OFF

When hazard switch is pressed

ON

LIGHT SW 1ST

Lighting switch OFF

OFF

Lighting switch 1st

ON
