WARNING LAMP

DLK-91

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

WARNING LAMP : "P-SHIFT" Warning Lamp Check

INFOID:0000000005259942

1.

CHECK WARNING LAMP OPERATION

 With CONSULT-III

• Check “INDICATOR” in “ACTIVE TEST” mode with CONSULT-III.

• Select “KNOB ON”.

“P-SHIFT” warning lamp should illuminate.

 Without CONSULT-III

1. Turn ignition switch OFF.

2. While monitoring the combination meter warning lamps, turn ignition switch ON. "P-SHIFT" warning lamp

should illuminate for 1 second to perform a bulb check.

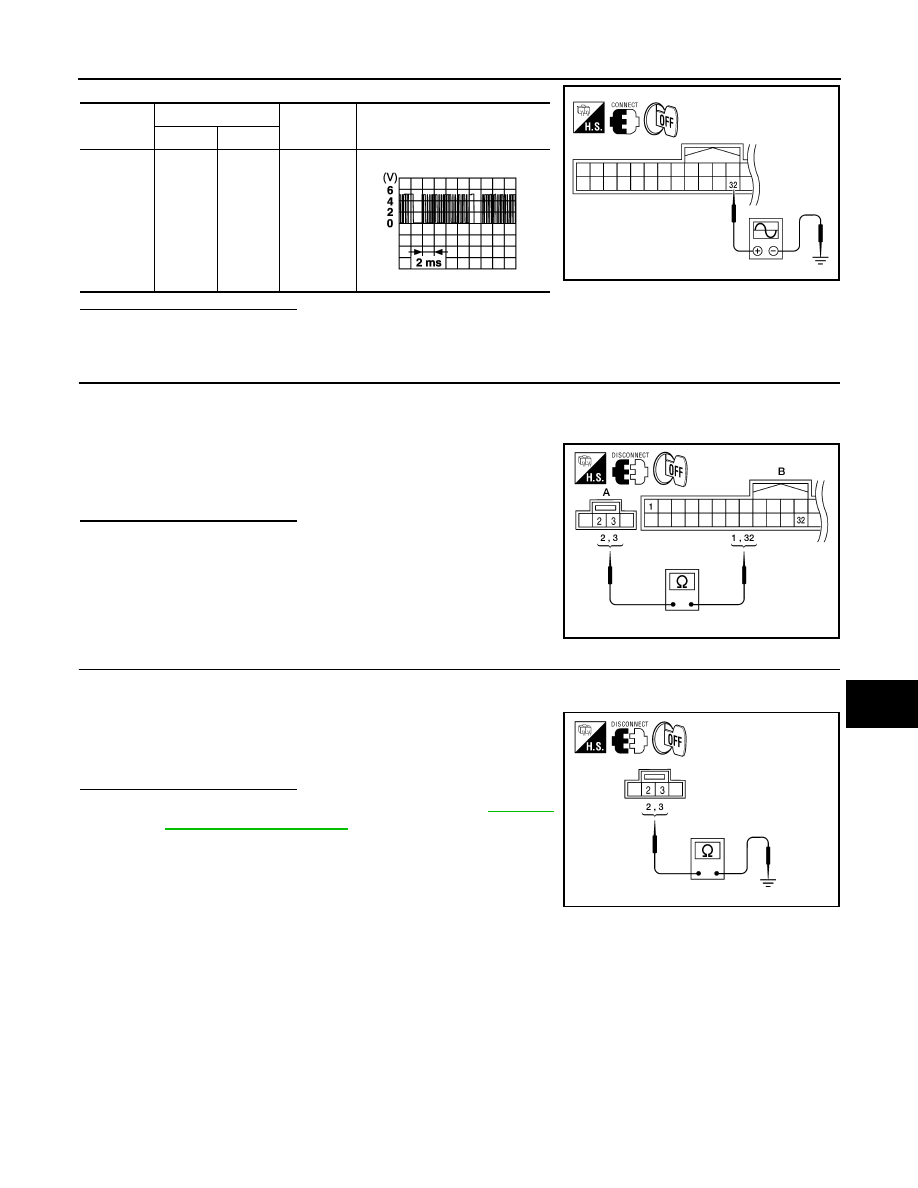

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Check combination meter. Refer to

MWI-3, "Work Flow"

.

2010 Pathfinder

DLK-92

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

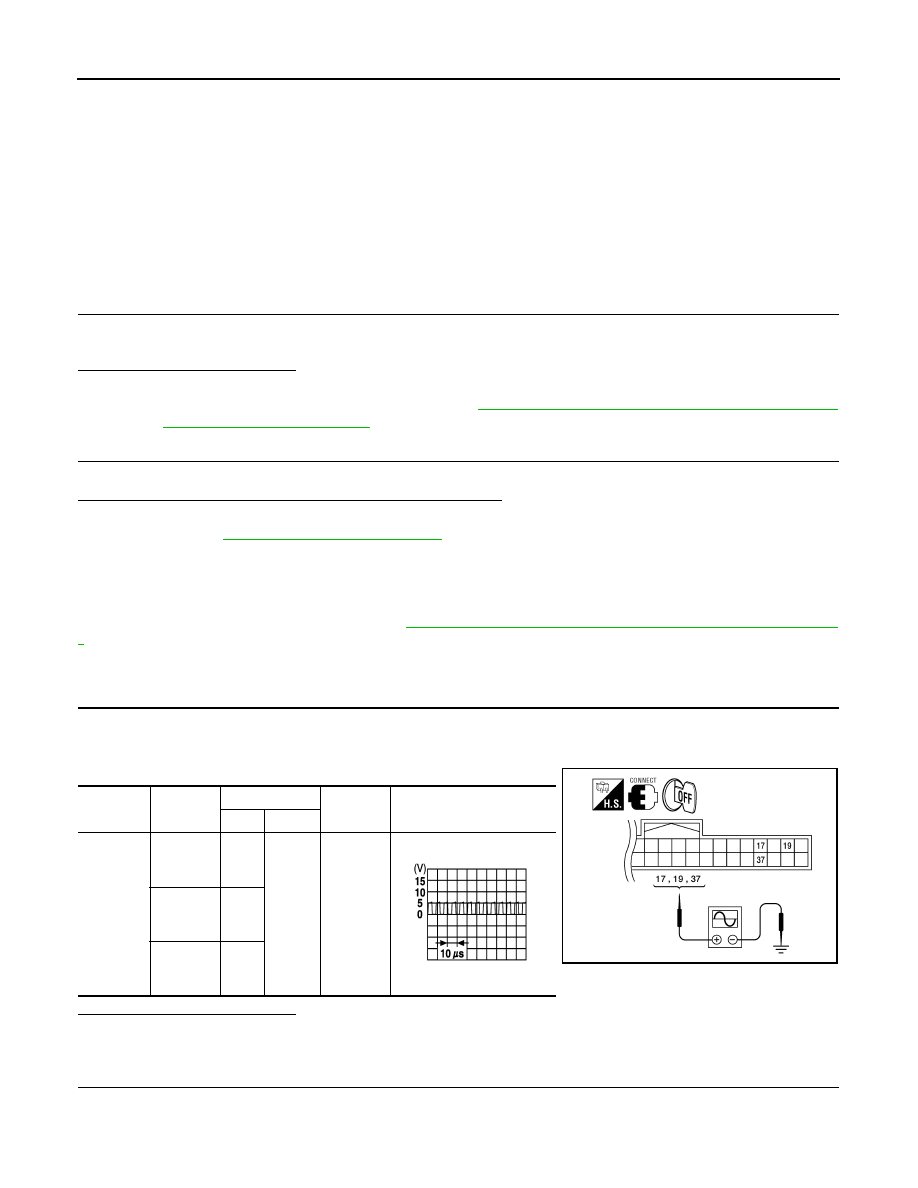

OUTSIDE KEY ANTENNA

OUTSIDE KEY ANTENNA

Description

INFOID:0000000005259943

Detects whether the Intelligent Key is in the operating range of the outside antennas.

Front outside antennas are integrated in front outside door handles (driver side, passenger side) to allow lock-

ing and unlocking of door locks when the Intelligent Key is present.

Rear bumper antenna is mounted on the rear bumper and is used to allow locking and unlocking of door locks

when the Intelligent Key is present.

Component Function Check

INFOID:0000000005259944

1.

CHECK DOOR REQUEST SWITCH

Check that door request switches operate normally.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Inspect door request switches. Refer to

DLK-71, "FRONT DOOR REQUEST SWITCH :

Component Function Check"

.

2.

CHECK FRONT ANTENNAS FUNCTION

Be sure that Intelligent Key is in each outside key antenna detection range.
Does door lock/unlock when each request switch is pressed?

YES

>> Outside key antenna is OK.

NO

>> Refer to

DLK-92, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005259945

Regarding Wiring Diagram information, refer to

DLK-149, "Wiring Diagram — INTELLIGENT KEY SYSTEM —

"

.

1.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL

1. Turn ignition switch OFF.

2. Check signal between Intelligent Key unit connector M164 terminals 17, 19, 37 and ground with an oscil-

loscope.

Is the inspection result normal?

YES

>> Outside key antenna is OK.

NO

>> GO TO 2

2.

CHECK OUTSIDE KEY ANTENNA CIRCUIT

1. Disconnect Intelligent Key unit connector and outside key antenna connector.

Connector

Item

Terminals

Condition

Signal

(Reference value)

(+)

(-)

M164

Rear
bumper
antenna

17

Ground

Request
switch is
pushed

Front out-
side an-
tenna LH

19

Front out-
side an-
tenna RH

37

WIIA1198E

SIIA1910J

2010 Pathfinder

OUTSIDE KEY ANTENNA

DLK-93

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

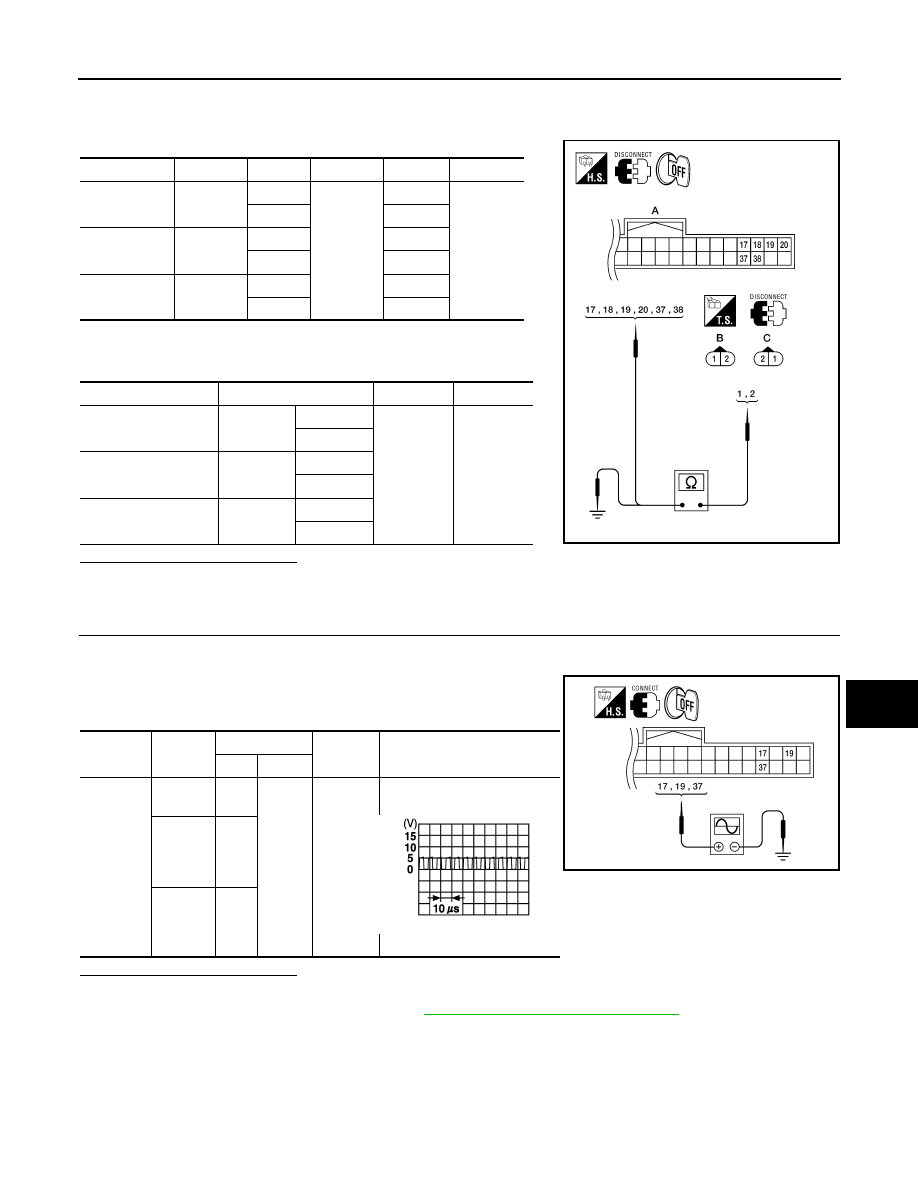

2. Check continuity between each outside key antenna harness connector (B) D15 (driver side) or D115

(passenger side), rear bumper antenna connector (C) C127 terminals 1, 2 and Intelligent Key unit harness

connector (A) M164 terminals 17, 18, 19, 20, 37, and 38.

3. Check continuity between each outside key antenna harness

connector terminals 1, 2 and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness between outside key antenna and Intelligent Key unit.

3.

CHECK OUTSIDE KEY ANTENNA POWER SUPPLY

1. Replace outside key antenna. (New antenna or other antenna)

2. Connect Intelligent Key unit connector and outside key antenna connector.

3. Check signal between Intelligent Key unit connector M164 termi-

nals 17, 19, 37 and ground with an oscilloscope.

Is the inspection result normal?

YES

>> Replace outside key antenna.

NO

>> Replace Intelligent Key unit. Refer to

SEC-118, "Removal and Installation"

.

Item

Connector

Terminal

Connector

Terminal

Continuity

Rear bumper

antenna

C: C127

1

A: M164

17

Yes

2

18

Front outside

antenna LH

B: D15

2

19

1

20

Front outside

antenna RH

B: D115

2

37

1

38

Item

Connector

Terminal

Continuity

Rear bumper antenna

C: C127

1

Ground

No

2

Front outside antenna

LH

B: D15

1

2

Front outside antenna

RH

B: D115

1

2

ALKIA1198ZZ

Connector

Item

Terminals

Condition

Signal

(Reference value)

(+)

(-)

M164

Rear
bumper

17

Ground

Request
switch is
pushed

Front
outside
antenna
LH

19

Front
outside
antenna
RH

37

WIIA1198E

SIIA1910J

2010 Pathfinder

DLK-94

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

STEERING LOCK SOLENOID

STEERING LOCK SOLENOID

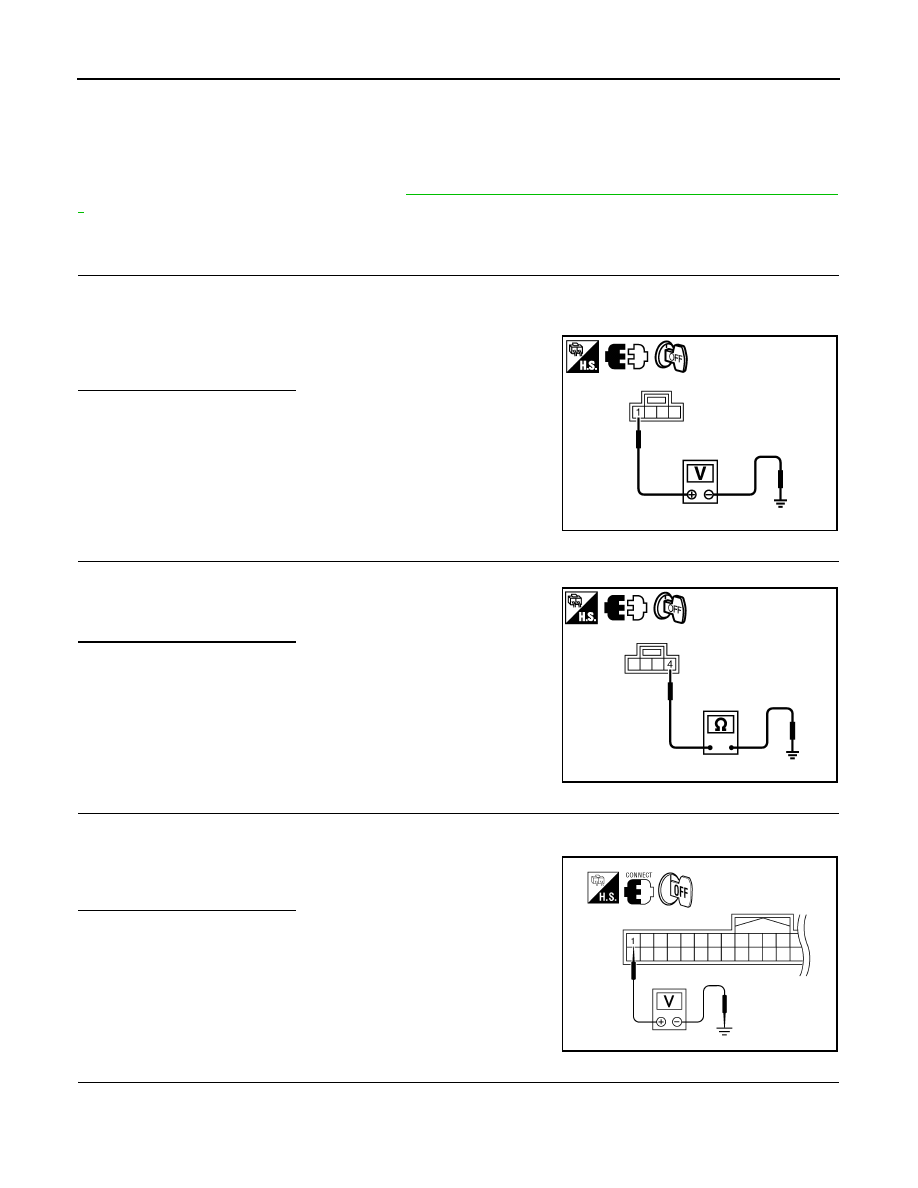

Diagnosis Procedure

INFOID:0000000005259946

Regarding Wiring Diagram information, refer to

DLK-149, "Wiring Diagram — INTELLIGENT KEY SYSTEM —

"

.

1.

CHECK STEERING LOCK SOLENOID POWER SUPPLY

1. Turn ignition switch OFF.

2. Disconnect steering lock solenoid connector.

3. Check voltage between steering lock solenoid harness connector M65 terminal 1 and ground.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair or replace steering lock solenoid power supply

circuit.

2.

CHECK STEERING LOCK SOLENOID GROUND CIRCUIT

Check continuity between steering lock solenoid harness connector M65 terminal 4 and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace the steering lock solenoid ground cir-

cuit.

3.

CHECK INTELLIGENT KEY UNIT OUTPUT SIGNAL

1. Connect steering lock solenoid connector.

2. Check voltage between Intelligent Key unit harness connector M164 terminal 1 and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> GO TO 6

4.

CHECK STEERING LOCK COMMUNICATION SIGNAL

Check signal between Intelligent Key unit connector M164 terminal 32 and ground with oscilloscope.

1 - Ground

: Battery voltage

PIIB6632E

4 - Ground

: Continuity should exist.

PIIB6633E

1 - Ground

: Approx. 5V

WIIA1204E

2010 Pathfinder

STEERING LOCK SOLENOID

DLK-95

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Is the inspection result normal?

YES

>> GO TO 5

NO

>> GO TO 6

5.

CHECK STEERING LOCK SOLENOID COMMUNICATION CIRCUIT FOR OPEN

1. Disconnect Intelligent Key unit and steering lock solenoid connectors.

2. Check continuity between Intelligent Key unit harness connector (B) M164 terminals 1, 32 and steering

lock solenoid connector (A) M65 terminals 2, 3.

Is the inspection result normal?

YES

>> Replace steering lock solenoid.

• After replacing steering lock solenoid, perform regis-

tration procedure. Refer to CONSULT-III Operation

Manual.

NO

>> Repair or replace harness between steering lock sole-

noid and Intelligent Key unit.

6.

CHECK STEERING LOCK SOLENOID COMMUNICATION CIRCUIT FOR SHORT

1. Disconnect Intelligent Key unit and steering lock solenoid connectors.

2. Check continuity between steering lock solenoid connector M65 terminals 2, 3 and ground.

Is the inspection result normal?

YES

>> Replace Intelligent Key unit. Refer to

SEC-118,

"Removal and Installation"

.

NO

>> Repair or replace harness between steering lock sole-

noid and Intelligent Key unit.

Connector

Terminals

Condition

Signal (V)

(Reference value)

(+)

(–)

M164

32

Ground

Ignition
switch is
pushed

WIIA1205E

SIIA1911J

1 - 2

: Continuity should exist.

32 - 3

: Continuity should exist.

ALKIA1199ZZ

2 - Ground

: Continuity should not exist.

3 - Ground

: Continuity should not exist.

ALKIA1200ZZ

2010 Pathfinder

DLK-96

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

A/T SHIFT SELECTOR (PARK POSITION SWITCH)

A/T SHIFT SELECTOR (PARK POSITION SWITCH)

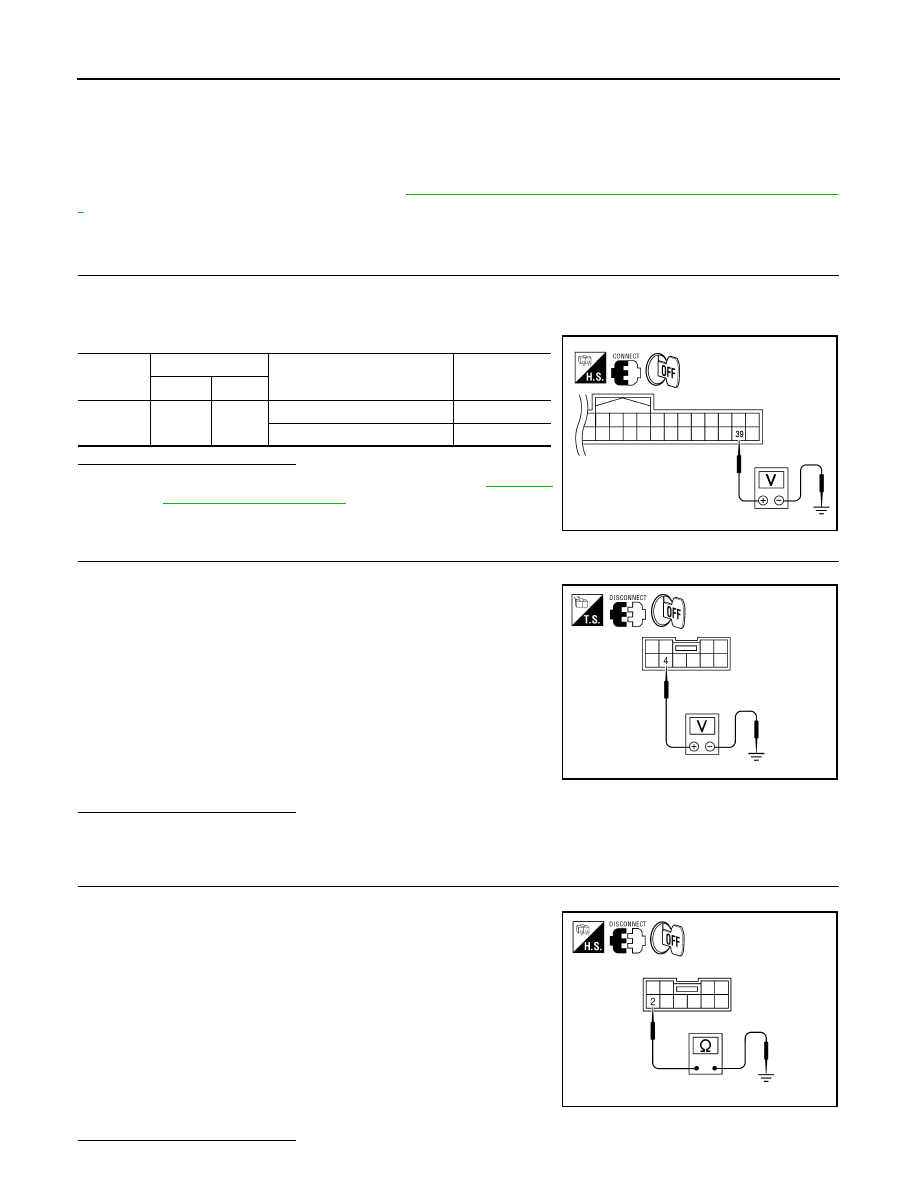

Diagnosis Procedure

INFOID:0000000005259947

Regarding Wiring Diagram information, refer to

DLK-149, "Wiring Diagram — INTELLIGENT KEY SYSTEM —

"

.

1.

CHECK A/T SHIFT SELECTOR (PARK POSITION SWITCH) INPUT SIGNAL

1. Turn ignition switch OFF.

2. While pressing the ignition knob switch, check voltage between Intelligent Key unit harness connector

M164 terminal 39 and ground.

Is the inspection result normal?

YES

>> Replace Intelligent Key unit. Refer to

SEC-118,

"Removal and Installation"

.

NO

>> GO TO 2

2.

CHECK A/T SHIFT SELECTOR (PARK POSITION SWITCH) POWER SUPPLY CIRCUIT

1. Disconnect A/T shift selector (park position switch) connector.

2. While pressing the ignition knob switch, check voltage between

A/T shift selector (park position switch) harness connector M158

terminal 4 and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness or ignition knob switch.

3.

CHECK A/T SHIFT SELECTOR (PARK POSITION SWITCH) GROUND SUPPLY CIRCUIT

Check continuity between A/T shift selector (park position switch) terminal 2 and ground.

Is the inspection result normal?

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

M164

39

Ground

Selector lever is in "P" position Battery voltage

Other than above

0

WIIA1211E

4 – Ground

: Battery voltage.

ALKIA1202ZZ

2 – Ground

: Continuity should exist.

ALKIA1201ZZ

2010 Pathfinder

A/T SHIFT SELECTOR (PARK POSITION SWITCH)

DLK-97

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

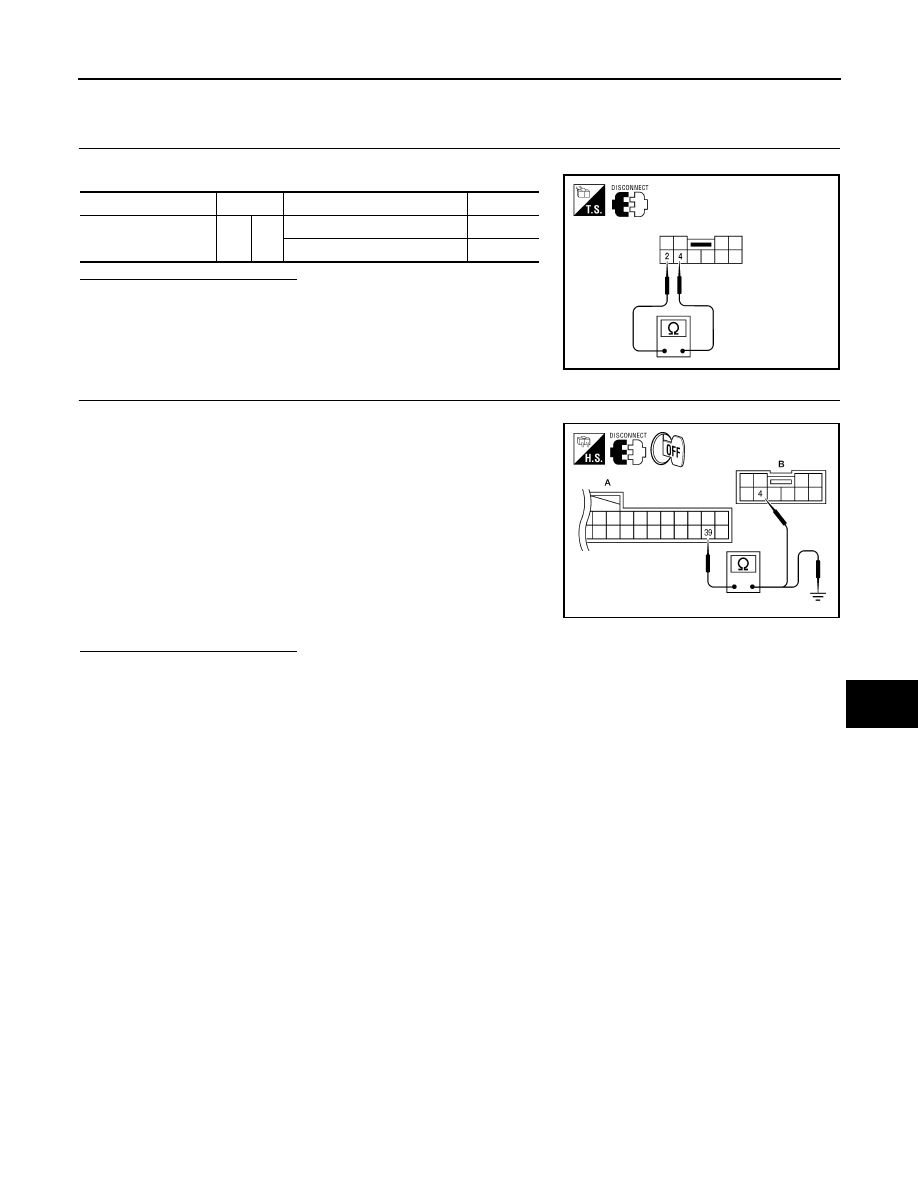

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

CHECK A/T SHIFT SELECTOR (PARK POSITION SWITCH)

Check continuity between A/T shift selector (park position switch) terminals 2 and 4.

Is the inspection result normal?

YES

>> GO TO 5

NO

>> Replace A/T shift selector (park position switch).

5.

CHECK A/T SHIFT SELECTOR (PARK POSITION SWITCH) CIRCUIT

1. Disconnect Intelligent Key unit connector.

2. Check continuity between Intelligent Key unit harness connector

(A) M164 terminal 39 and A/T shift selector (park position

switch) harness connector (B) M158 terminal 4.

3. Check continuity between Intelligent Key unit harness connector

(A) M164 terminal 39 and ground.

Is the inspection result normal?

YES

>> A/T shift selector (park position switch) circuit is OK.

NO

>> Repair or replace harness.

Component

Terminals

Condition

Continuity

A/T shift selector

(park position switch)

2

4

Selector lever is in "P" position

Yes

Other than above

No

ALKIA1203ZZ

39 – 4

: Continuity should exist.

39 – Ground

: Continuity should not exist.

ALKIA1204ZZ

2010 Pathfinder

DLK-98

< COMPONENT DIAGNOSIS >

[WITH INTELLIGENT KEY SYSTEM]

REMOTE KEYLESS ENTRY RECEIVER

REMOTE KEYLESS ENTRY RECEIVER

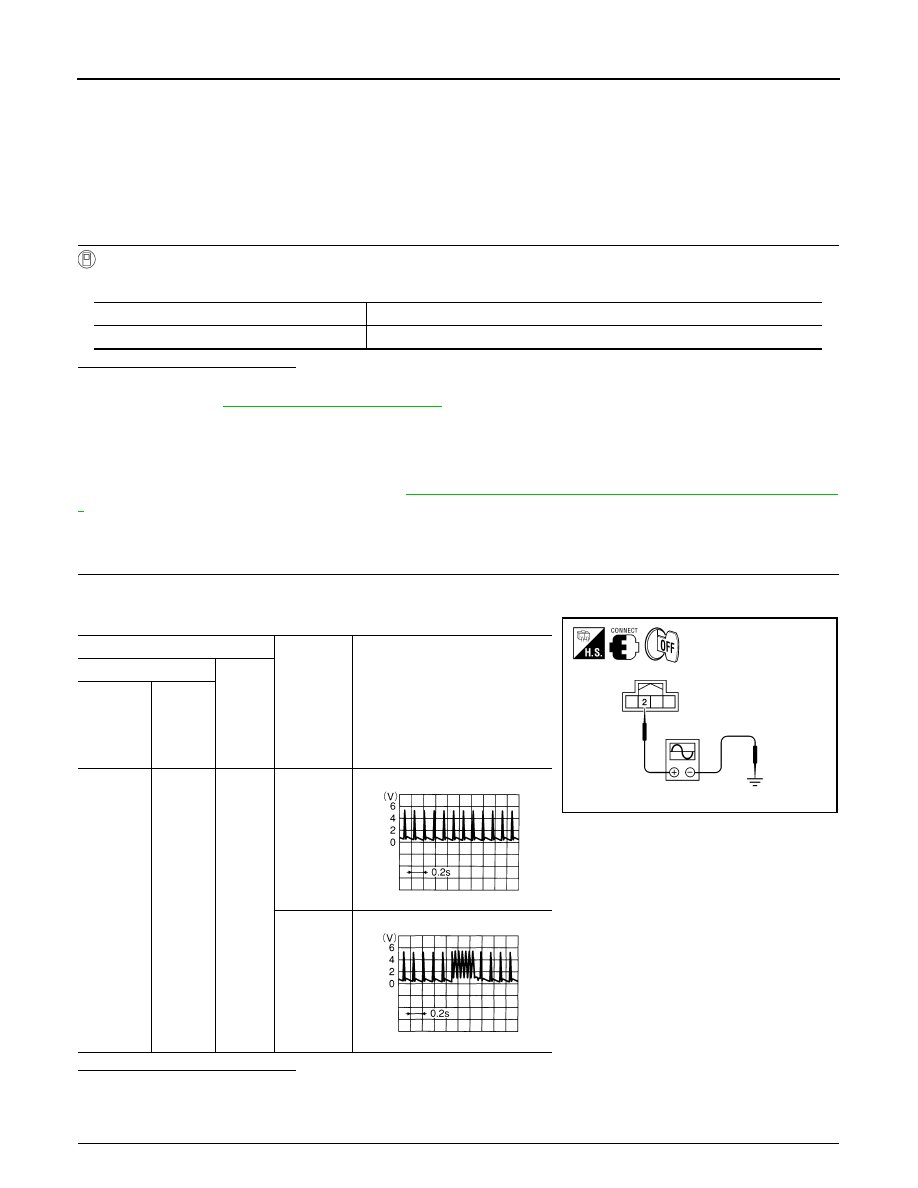

Description

INFOID:0000000005259948

Receives Intelligent Key operation and transmits to Intelligent Key unit.

Component Function Check

INFOID:0000000005259949

1.

CHECK FUNCTION

With CONSULT-III

Check remote keyless entry receiver "RKE OPE COUN1"  in Data Monitor mode with CONSULT-III.

Is the inspection result normal?

YES

>> Remote keyless entry receiver is OK.

NO

>> Refer to

DLK-98, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005259950

Regarding Wiring Diagram information, refer to

DLK-149, "Wiring Diagram — INTELLIGENT KEY SYSTEM —

"

.

1.

CHECK REMOTE KEYLESS ENTRY RECEIVER OUTPUT SIGNAL

1. Turn ignition switch OFF.

2. Check remote keyless entry receiver signal with an oscilloscope.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> GO TO 5

2.

REMOTE KEYLESS ENTRY RECEIVER VOLTAGE CIRCUIT INSPECTION

Monitor item

Condition

RKE OPE COUN1

Checks whether value changes when operating Intelligent Key.

Terminals

Keyfob

condition

Signal

(Reference value)

(+)

(–)

Remote

keyless

entry re-

ceiver

connector

Terminal

M67

2

Ground

No function

Any button
is pressed

WIIA1294E

OCC3879D

OCC3880D

2010 Pathfinder
