Nissan Pathfinder (2010 year). Manual - part 132





CO-54

< ON-VEHICLE REPAIR >

[VK56DE]

THERMOSTAT AND WATER PIPING

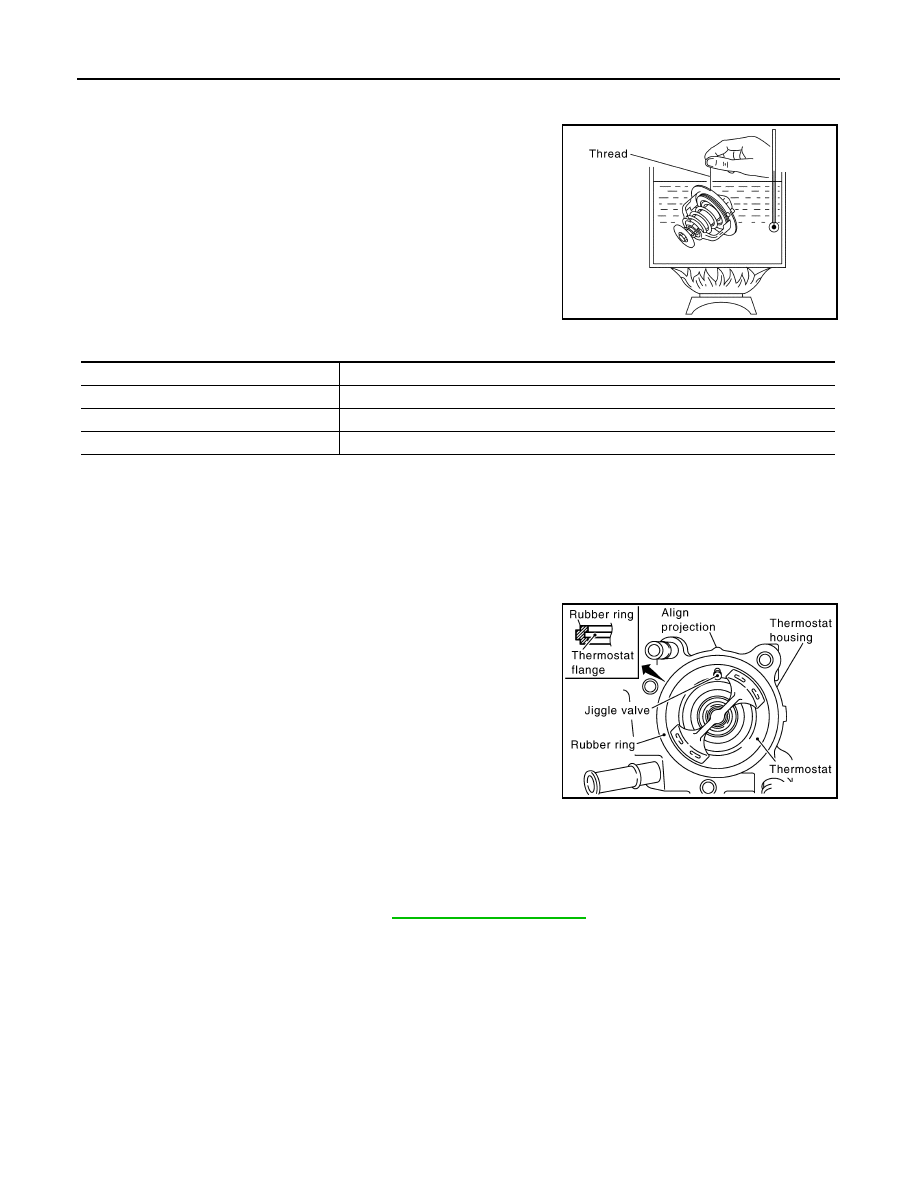

1. Check valve seating condition at ordinary room temperature. It should seat tightly.
2. Check valve operation.

• Place a thread so that it is caught in the valve of the thermo-

stat. Immerse fully in a container filled with water. Heat while

stirring.

• The valve opening temperature is the temperature at which

the valve opens and falls from the thread.

• Continue heating. Check the full-open lift amount.

• After checking the full-open lift amount, lower the water tem-

perature and check the valve closing temperature.

• If valve seating at ordinary room temperature, or measured values are out of standard, replace the thermo-

stat.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not spill engine coolant in engine room. Use a rag to absorb engine coolant.

Installation of Thermostat

• Install the thermostat with the whole circumference of each flange

part fit securely inside the rubber ring as shown.

• Install the thermostat with the jiggle valve facing upwards.

Installation of Water Outlet Pipe and Heater Pipe

First apply a neutral detergent to the O-rings, then quickly insert the insertion parts of the water outlet pipe and

heater pipe into the installation holes.

INSPECTION AFTER INSTALLATION

• Check for leaks of engine coolant. Refer to

CO-39, "System Inspection"

.

• Start and warm up the engine. Visually check for leaks of engine coolant.

SLC252B

Thermostat

                        Standard

Valve opening temperature

               80 - 84

°

C (176 - 183

°

 F)

Full-open lift amount

              More than 10 mm/ 95

°

C (0.39 in/ 203

°

F)

Valve closing temperature

                77

°

C (171

°

F) or higher

KBIA2502E

2010 Pathfinder

SERVICE DATA AND SPECIFICATIONS (SDS)

CO-55

< SERVICE DATA AND SPECIFICATIONS (SDS)

[VK56DE]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Standard and Limit

INFOID:0000000005260591

ENGINE COOLANT CAPACITY (APPROXIMATE)

Unit:   (US qt, Imp qt)

RADIATOR

Unit: kPa (kg/cm

2

, psi)

THERMOSTAT

Engine coolant capacity (With reservoir tank at "MAX" level)

13.4 (14-1/8, 11-3/4)

Reservoir cap relief pressure

Standard

98 - 118 (1.0- 1.2, 14 - 17)

Leakage test pressure

137 (1.4, 20)

Valve opening temperature

80 - 84

°

C (176 - 183

°

F)

Full-open lift amount

More than 10 mm/95

°

C (0.39 in/203

°

F)

Valve closing temperature

77

°

C (171

°

F) or higher

2010 Pathfinder

DEF-1

DRIVER CONTROLS

C

D

E

F

G

H

I

J

K

M

SECTION

DEF

A

B

DEF

N

O

P

CONTENTS

DEFOGGER

BASIC INSPECTION  ....................................

3

DIAGNOSIS AND REPAIR WORKFLOW  ..........

3

Repair Work Flow ......................................................

3

FUNCTION DIAGNOSIS ...............................

4

REAR WINDOW DEFOGGER SYSTEM .............

4

System Diagram ........................................................

4

System Description  ...................................................

4

Component Parts Location ........................................

5

Component Description .............................................

5

DIAGNOSIS SYSTEM (BCM)  .............................

6

COMMON ITEM ...........................................................

6

COMMON ITEM : CONSULT-III Function (BCM -
COMMON ITEM) .....................................................
..

6

REAR WINDOW DEFOGGER .....................................

6

REAR WINDOW DEFOGGER : CONSULT-III
Function (BCM - REAR DEFOGGER)  ....................
..

7

COMPONENT DIAGNOSIS  ..........................

8

REAR WINDOW DEFOGGER SWITCH  .............

8

Description ................................................................

8

Component Function Check ......................................

8

Diagnosis Procedure A/C and AV Switch Assem-
bly ............................................................................
..

8

Diagnosis Procedure Front Air Control  .....................

9

REAR WINDOW DEFOGGER RELAY  ..............

10

Description ..............................................................

10

Component Function Check ....................................

10

Diagnosis Procedure ...............................................

10

REAR WINDOW DEFOGGER POWER SUP-
PLY AND GROUND CIRCUIT ............................

11

Description ..............................................................

11

Component Function Check ....................................

11

Diagnosis Procedure ...............................................

11

Component Inspection  ............................................

12

DOOR MIRROR DEFOGGER LH  .....................

13

Description ...............................................................

13

Component Function Check  ....................................

13

Diagnosis Procedure  ...............................................

13

Component Inspection .............................................

15

DOOR MIRROR DEFOGGER RH .....................

16

Description ...............................................................

16

Component Function Check  ....................................

16

Diagnosis Procedure  ...............................................

16

Component Inspection .............................................

18

ECU DIAGNOSIS .........................................

19

BCM (BODY CONTROL MODULE)  .................

19

Reference Value ......................................................

19

Terminal Layout .......................................................

22

Physical Values  .......................................................

22

Wiring Diagram ........................................................

28

SYMPTOM DIAGNOSIS  ..............................

35

REAR WINDOW DEFOGGER AND DOOR
MIRROR DEFOGGER DO NOT OPERATE.  ....

35

Diagnosis Procedure  ...............................................

35

REAR WINDOW DEFOGGER DOES NOT
OPERATE BUT BOTH OF DOOR MIRROR
DEFOGGER OPERATE. ...................................

36

Diagnosis Procedure  ...............................................

36

BOTH DOORS MIRROR DEFOGGER DON’T
OPERATE BUT REAR WINDOW DEFOG-
GER OPERATES  ..............................................

37

Diagnosis Procedure  ...............................................

37

DRIVER SIDE DOOR MIRROR DEFOGGER
DOES NOT OPERATE. .....................................

38

Diagnosis Procedure  ...............................................

38

PASSENGER SIDE DOOR MIRROR DEFOG-
GER DOES NOT OPERATE. ............................

39

2010 Pathfinder

DIAGNOSIS AND REPAIR WORKFLOW

DEF-3

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Repair Work Flow

INFOID:0000000005256859

DETAILED FLOW

1.

 LISTEN TO CUSTOMER COMPLAINT

Listen to customer complaint. Get detailed information about the conditions and environment when the symp-

tom occurs.

>> GO TO 2

2.

 VERIFY THE SYMPTOM WITH OPERATIONAL CHECK

Verify the symptom with operational check.

>> GO TO 3

3.

 GO TO APPROPRIATE TROUBLE DIAGNOSIS

Go to appropriate trouble diagnosis.

>> GO TO 4

4.

 REPAIR OR REPLACE

Repair or replace the specific parts.

>> GO TO 5

5.

 FINAL CHECK

Final check.
Is inspection result normal?

YES

>> Inspection End

NO

>> Refer to

GI-37, "Intermittent Incident"

.

2010 Pathfinder

DEF-4

< FUNCTION DIAGNOSIS >

REAR WINDOW DEFOGGER SYSTEM

FUNCTION DIAGNOSIS

REAR WINDOW DEFOGGER SYSTEM

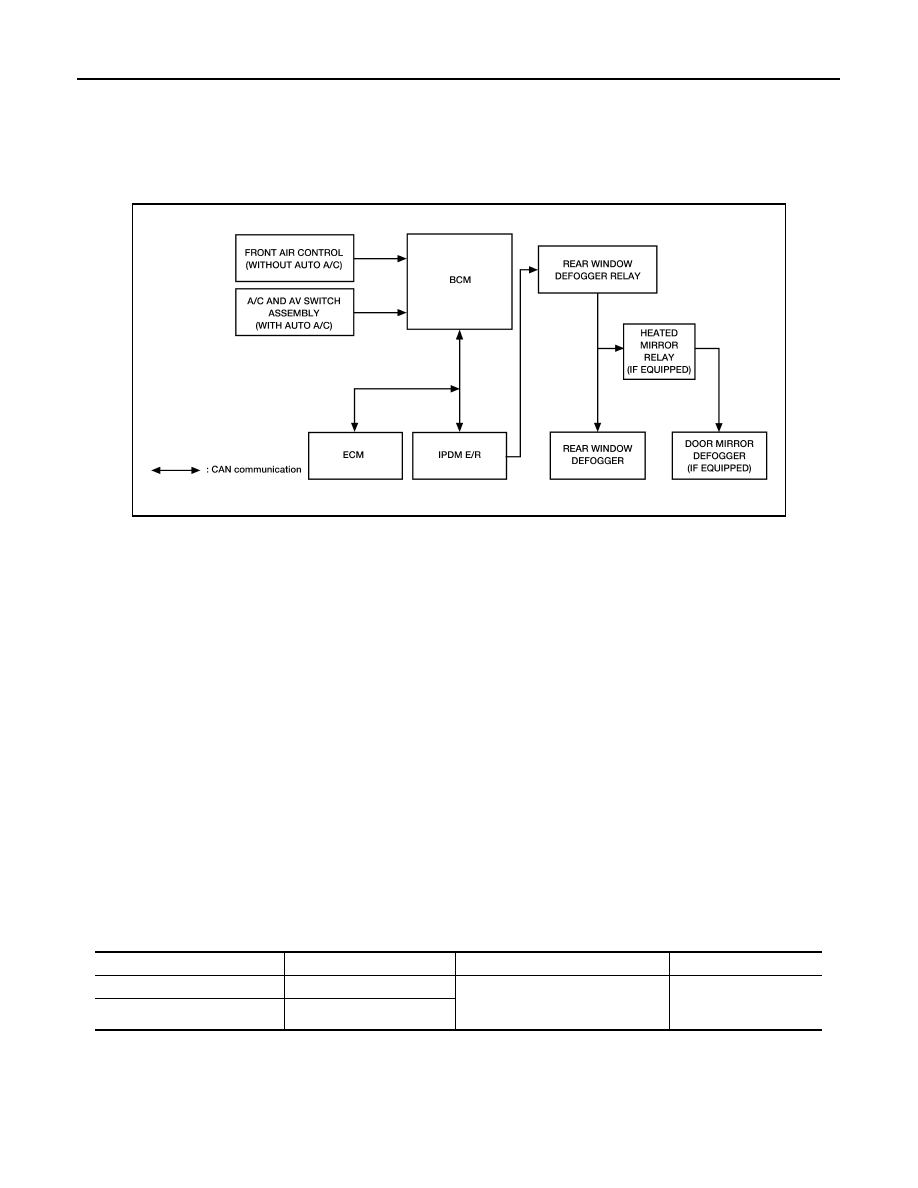

System Diagram

INFOID:0000000005256860

System Description

INFOID:0000000005256861

Operation Description

• When rear window defogger switch is turned ON while ignition switch is ON, the A/C and AV switch assem-

bly (with auto A/C) or front air control (without auto A/C) transmits rear window defogger switch signal to

BCM.

• BCM transmits rear window defogger control signal to IPDM E/R and display unit (with auto A/C only) via

CAN communication when rear window defogger operates.

• IPDM E/R turns rear window defogger relay and heated mirror relay (if equipped) ON when rear window

defogger switch signal is received.

• Rear window defogger and door mirror defogger (if equipped) are supplied with power and operate when

rear window defogger relay and heated mirror relay (if equipped) turn ON.

• Rear window defogger ON is displayed when signal is received.

Timer function

• BCM turns rear window defogger relay and heated mirror relay (if equipped) ON for approximately 15 min-

utes when rear window defogger switch is turned ON while ignition switch is ON. It makes rear window

defogger and door mirror defogger (if equipped) operate.

• Timer is canceled after pressing rear window defogger switch again during timer operation. Then BCM turns

rear window defogger relay and heated mirror relay (if equipped) OFF. The same reaction also occurs during

timer operation, if the ignition switch is turned OFF.

INPUT/OUTPUT SIGNAL CHART

AWLIA1675GB

Switch

Input signal to BCM

BCM function

Actuator

Rear window defogger switch

Defogger switch signal

Rear window defogger & door mirror

defogger (if equipped) control

Rear window defogger

Door mirror defogger (if

equipped)

Ignition switch

Ignition signal

2010 Pathfinder

REAR WINDOW DEFOGGER SYSTEM

DEF-5

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

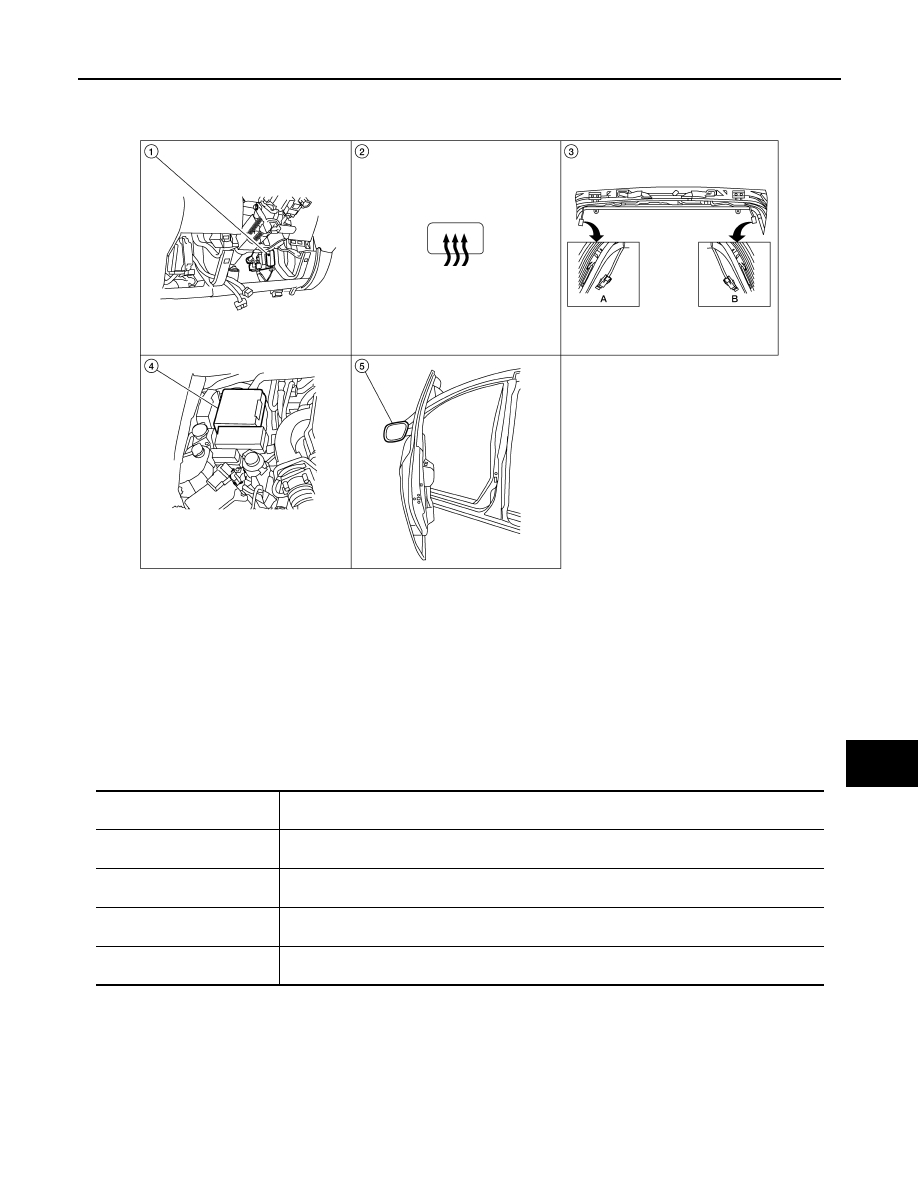

Component Parts Location

INFOID:0000000005256862

Component Description

INFOID:0000000005256863

ALJIA0229ZZ

1.

A. Steering column assembly
B. BCM M18, M20 (view with instru-
ment lower panel LH removed)

2.

Rear window defogger switch M98,
M99 (with auto A/C) or M52 (without
auto A/C)

3.

A. Rear window defogger ground
connector D604
B. Rear window defogger connector
D651

4.

IPDM E/R E120, E122, E124

5.

Door mirror (door mirror defogger)
LH D4 (w/o ADP), D18 (with ADP)
RH D107 (w/o ADP), D118 (with
ADP) (if equipped)

BCM

• Operates the rear window defogger with the operation of rear window defogger switch.
• Performs the timer control of rear window defogger.

Rear window defogger relay

• Operates the rear window defogger and the door mirror defogger (if equipped) with the control

signal from BCM.

Rear window defogger switch

• The rear window defogger switch is turned ON.
• Turns the indicator lamp ON when detecting the operation of rear window defogger.

Rear window defogger

• Heats the heating wire with the power supply from the rear window defogger relay to prevent

the rear window from fogging up.

Door mirror defogger (if
equipped)

• Heats the heating wire with the power supply from the heated mirror relay to prevent the door

mirror from fogging up.

2010 Pathfinder

DEF-6

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000005485381

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.

NOTE:

It can perform the diagnosis modes except the following for all sub system selection items.

1: With remote keyless entry system
2: With Intelligent Key

REAR WINDOW DEFOGGER

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

SELF-DIAG RESULTS

Displays the diagnosis results judged by BCM. Refer to

BCS-54, "DTC Index"

.

CAN DIAG SUPPORT MNTR

Monitors the reception status of CAN communication viewed from BCM.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

ECU IDENTIFICATION

The BCM part number is displayed.

CONFIGURATION

• Enables to read and save the vehicle specification.
• Enables to write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

BCM

BCM

×

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Remote keyless entry system

1

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

Air conditioner

AIR CONDITONER

×

Intelligent Key system

2

INTELLIGENT KEY

×

Combination switch

COMB SW

×

Immobilizer

IMMU

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Back door open

TRUNK

×

×

RAP (retained accessory power)

RETAINED PWR

×

×

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS (tire pressure monitoring sys-
tem)

AIR PRESSURE MONITOR

×

×

×

Vehicle security system

THEFT ALM

×

×

×

Panic alarm

PANIC ALARM

×

2010 Pathfinder















Content      ..     130      131      132      133     ..
