BRC-92

< ECU DIAGNOSIS >

[VDC/TCS/ABS]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

ACCEL POS SIG

Throttle actuator opening/closing is dis-
played (linked with accelerator pedal)

Accelerator pedal not depressed (ignition
switch is ON)

0 %

Accelerator pedal depressed (ignition
switch is ON)

0 - 100 %

SIDE G-SENSOR

Transverse G detected by side G sensor

Vehicle stopped

Approx. 0 m/s

2

Vehicle turning right

Negative value

(m/s

2

)

Vehicle turning left

Positive value

(m/s

2

)

STR ANGLE SIG

Steering angle detected by steering angle
sensor

Straight-ahead

Approx. 0

±

2.5

°

Steering wheel turned

–720 to +720

°

PRESS SENSOR

Brake fluid pressure detected by front pres-
sure sensor

With ignition switch turned ON and brake
pedal released

Approx. 0 bar

With ignition switch turned ON and brake
pedal depressed

–40 to 300 bar

EBD SIGNAL

EBD operation

EBD is active

ON

EBD is inactive

OFF

ABS SIGNAL

ABS operation

ABS is active

ON

ABS is inactive

OFF

TCS SIGNAL

TCS operation

TCS is active

ON

TCS is inactive

OFF

VDC SIGNAL

VDC operation

VDC is active

ON

VDC is inactive

OFF

EBD FAIL SIG

EBD fail-safe signal

In EBD fail-safe

ON

EBD is normal

OFF

ABS FAIL SIG

ABS fail-safe signal

In ABS fail-safe

ON

ABS is normal

OFF

TCS FAIL SIG

TCS fail-safe signal

In TCS fail-safe

ON

TCS is normal

OFF

VDC FAIL SIG

VDC fail-safe signal

In VDC fail-safe

ON

VDC is normal

OFF

CRANKING SIG

Crank operation

Crank is active

ON

Crank is inactive

OFF

FLUID LEV SW

Brake fluid level switch signal status

When brake fluid level switch ON

ON

When brake fluid level switch OFF

OFF

PRESS SEN2

Brake fluid pressure detected by rear pres-
sure sensor

With ignition switch turned ON and brake
pedal released

Approx. 0 bar

With ignition switch turned ON and brake
pedal depressed

–40 to 300 bar

DELTA S SEN

 Value detected by delta stroke sensor

When brake pedal is depressed

1.05 - 1.80 mm

When brake pedal is released

0.00 mm (+0.6/-0.4)

RELEASE SWITCH
NO

 Active booster signal status

When brake pedal is depressed

ON

When brake pedal is released

OFF

RELEASE SWITCH
NC

 Active booster signal status

When brake pedal is depressed

OFF

When brake pedal is released

ON

 Monitor item

Display content

Data monitor

Condition

Reference value in

normal operation

2010 Pathfinder

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-93

< ECU DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

NOTE:

• 1: Confirm tire pressure is normal.
• 2: On and off timing for warning lamp and indicator lamp.
• 3: Only 4WD models.
- ABS warning lamp: Refer to

BRC-84, "Description"

.

- Brake warning lamp: Refer to

BRC-85, "Description"

.

- VDC OFF indicator lamp: Refer to

BRC-86, "Description"

.

- SLIP indicator lamp: Refer to

BRC-88, "Description"

.

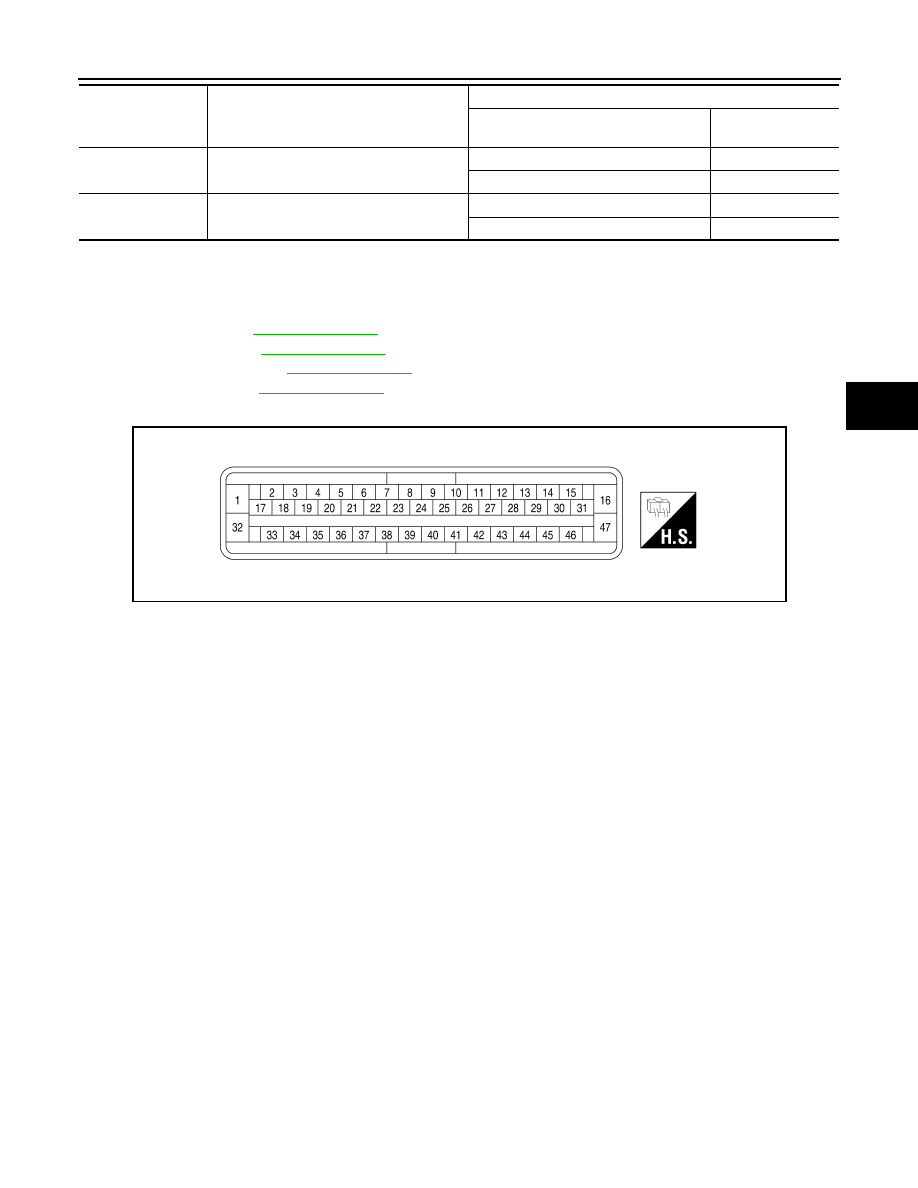

TERMINAL LAYOUT

OHB FAIL

OHB fail safe signal

OHB is active

ON

OHB is inactive

OFF

OHB SIG

OHB operation

In OHB fail-safe

ON

OHB is normal

OFF

 Monitor item

Display content

Data monitor

Condition

Reference value in

normal operation

AWFIA0032ZZ

2010 Pathfinder

BRC-94

< ECU DIAGNOSIS >

[VDC/TCS/ABS]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

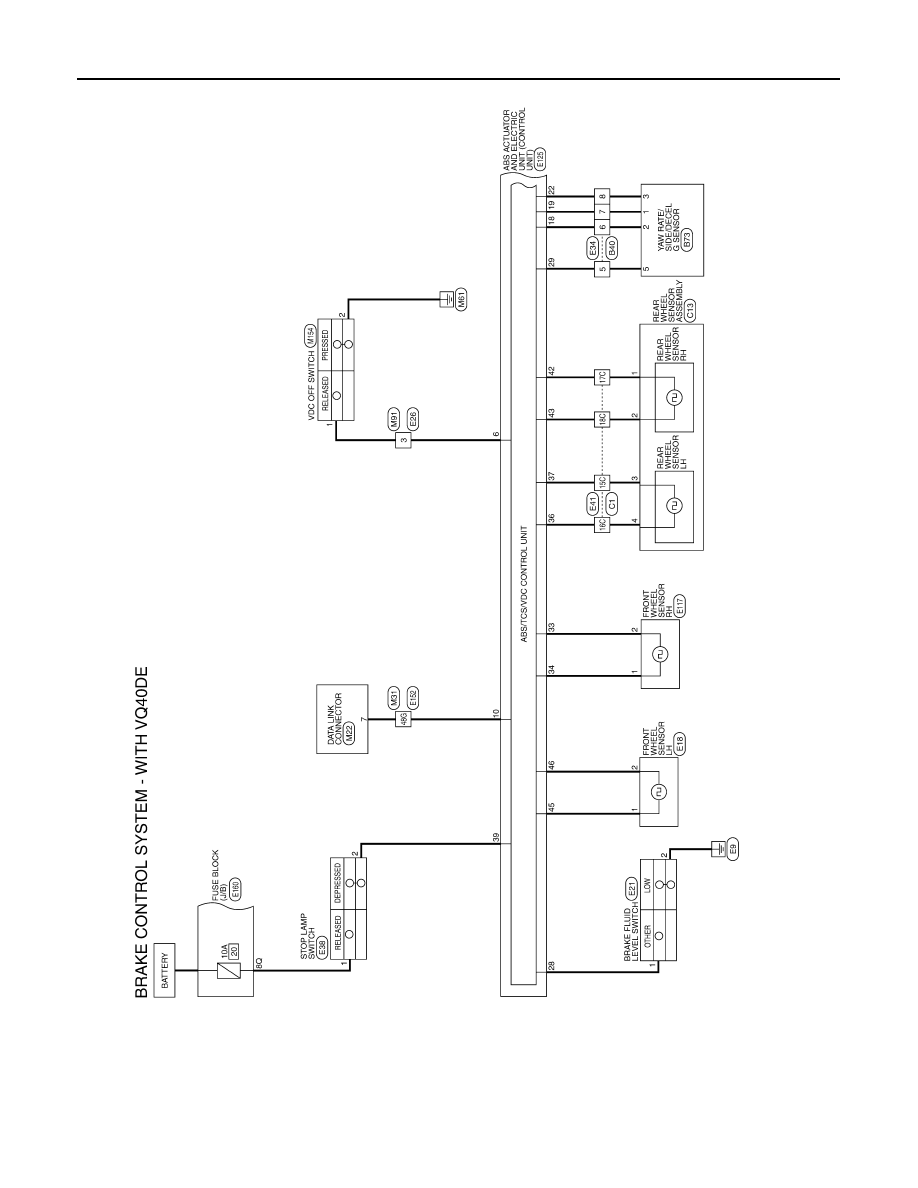

Wiring Diagram - BRAKE CONTROL SYSTEM - WITH VQ40DE

INFOID:0000000005258765

ABFWA0085GB

2010 Pathfinder

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-95

< ECU DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

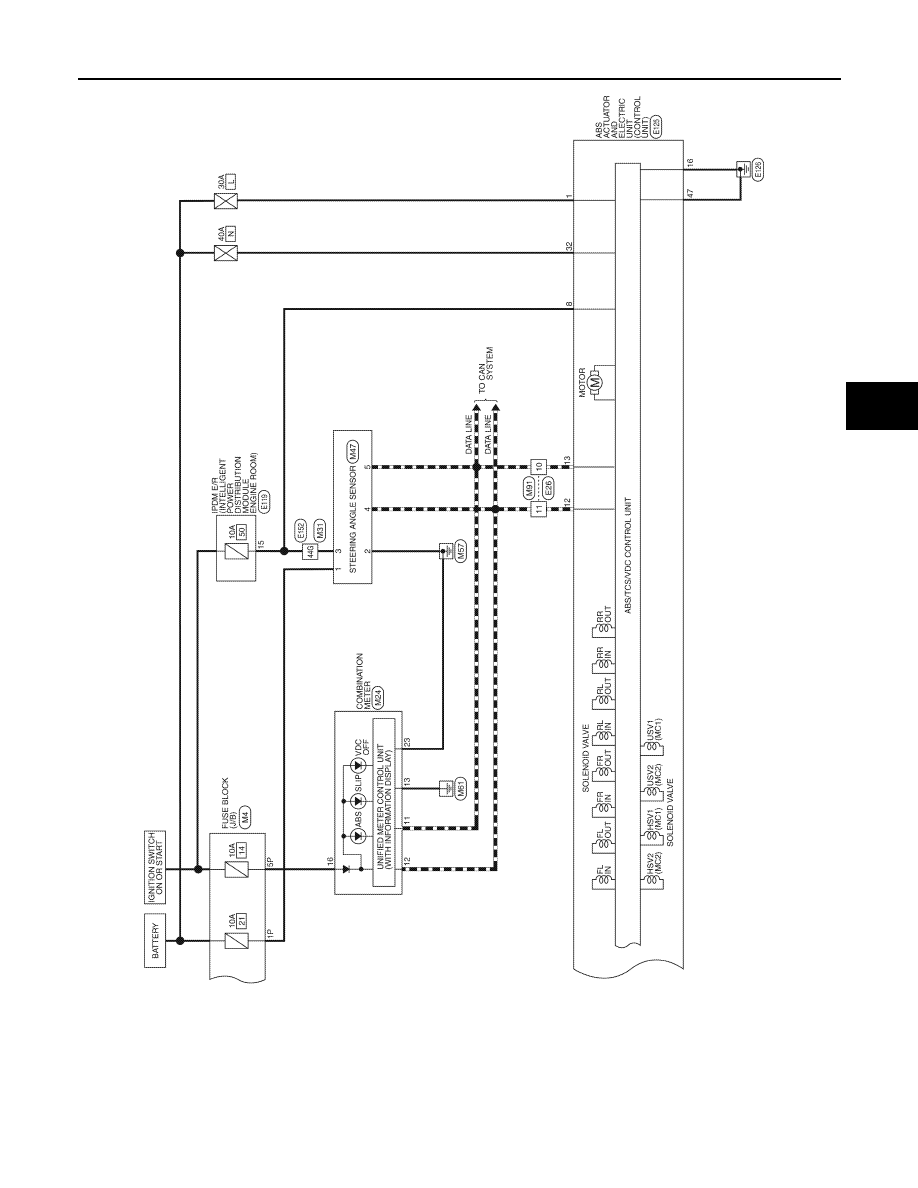

ABFWA0086GB

2010 Pathfinder

BRC-96

< ECU DIAGNOSIS >

[VDC/TCS/ABS]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

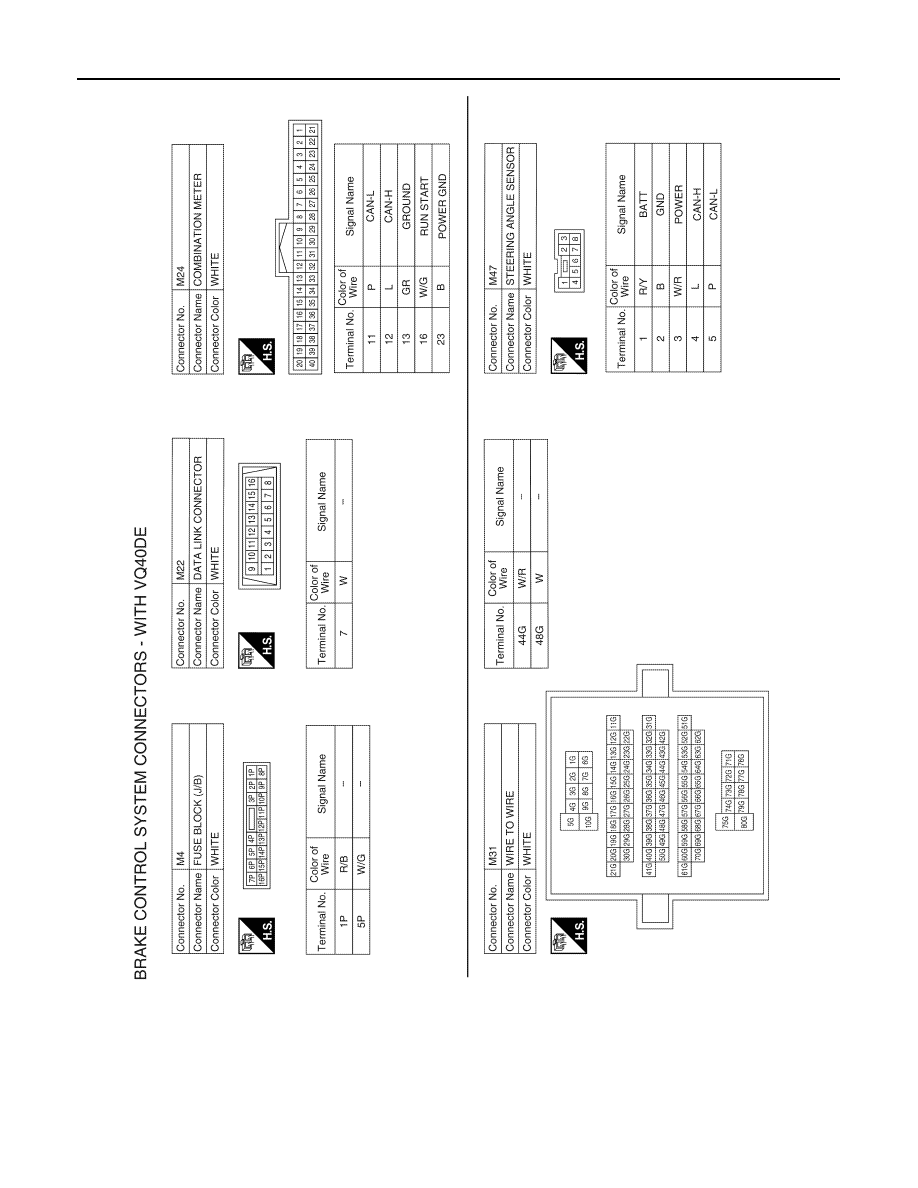

ABFIA0253GB

2010 Pathfinder

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-97

< ECU DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

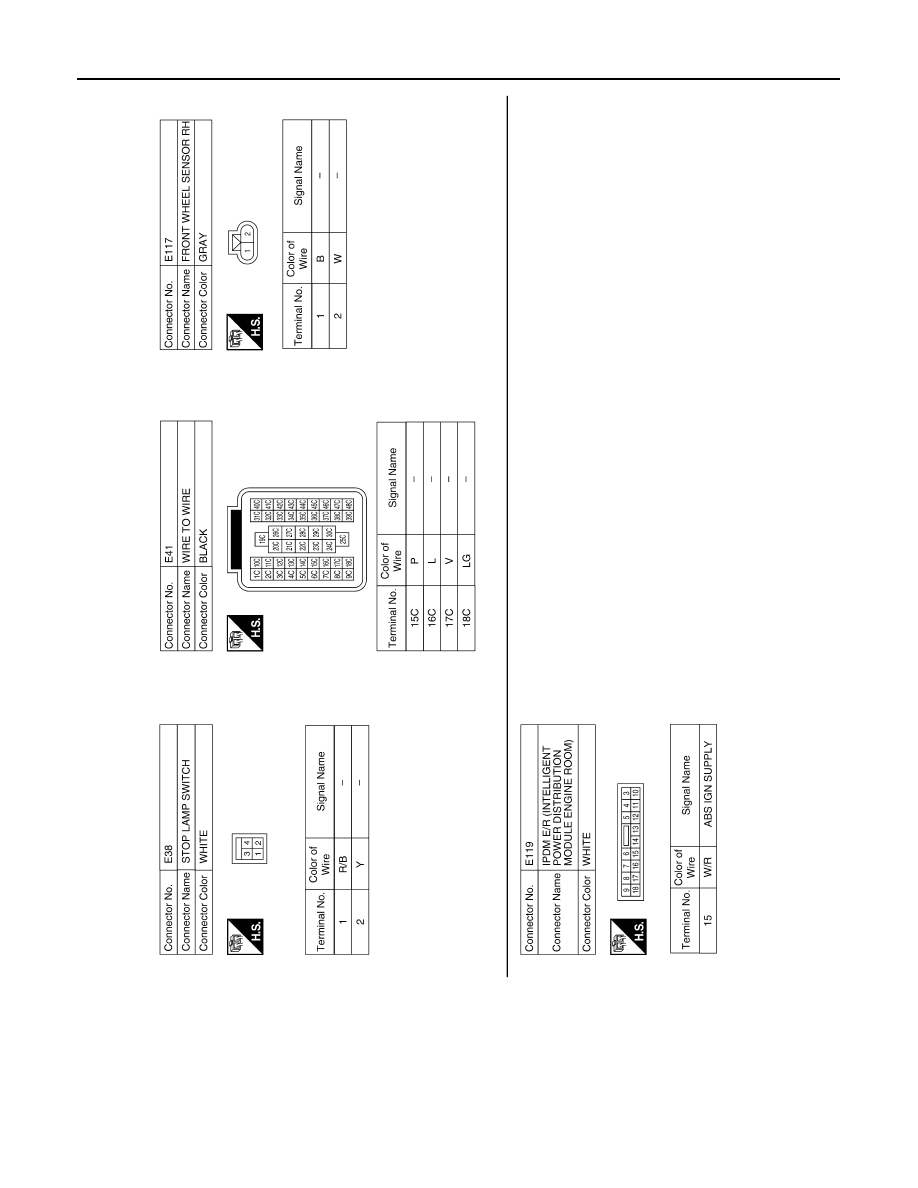

ABFIA0055GB

2010 Pathfinder

BRC-98

< ECU DIAGNOSIS >

[VDC/TCS/ABS]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

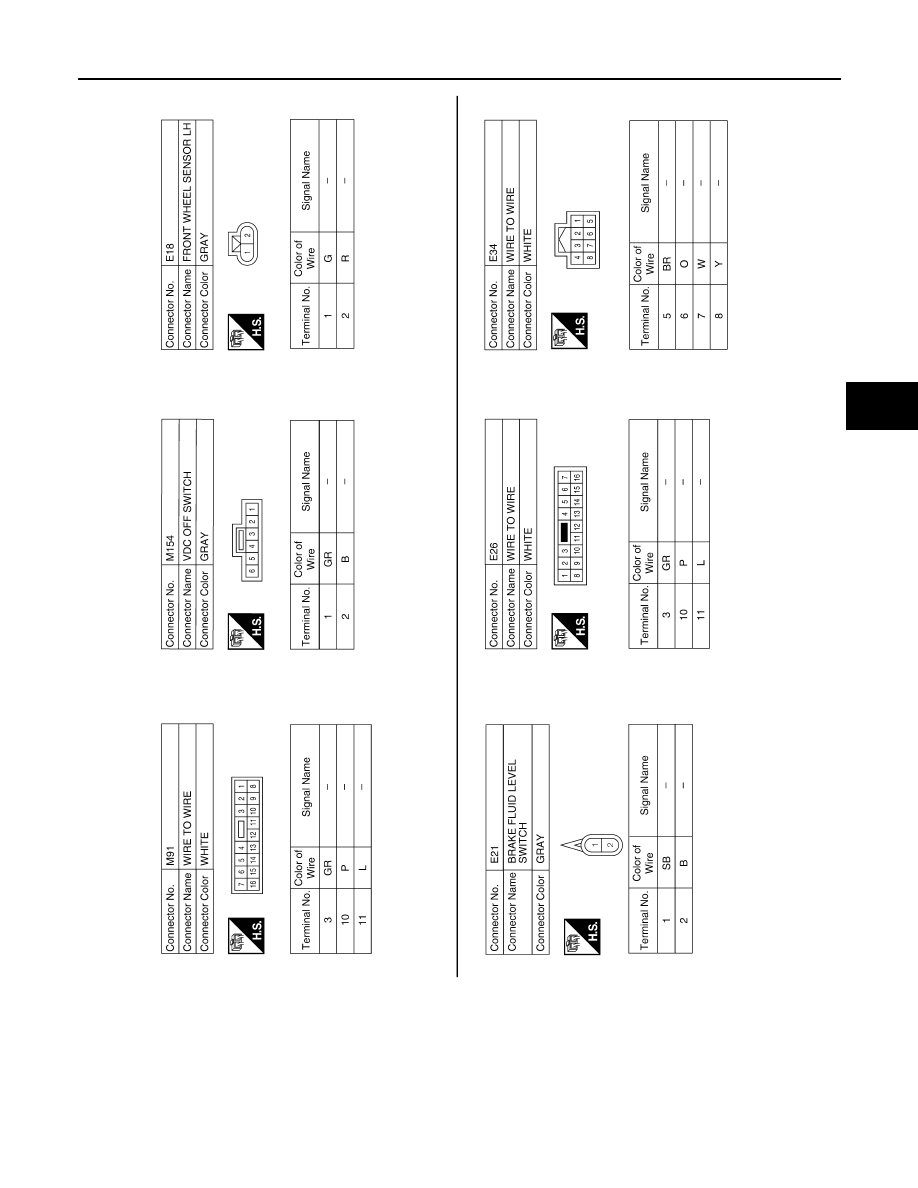

ABFIA0056GB

2010 Pathfinder

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-99

< ECU DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

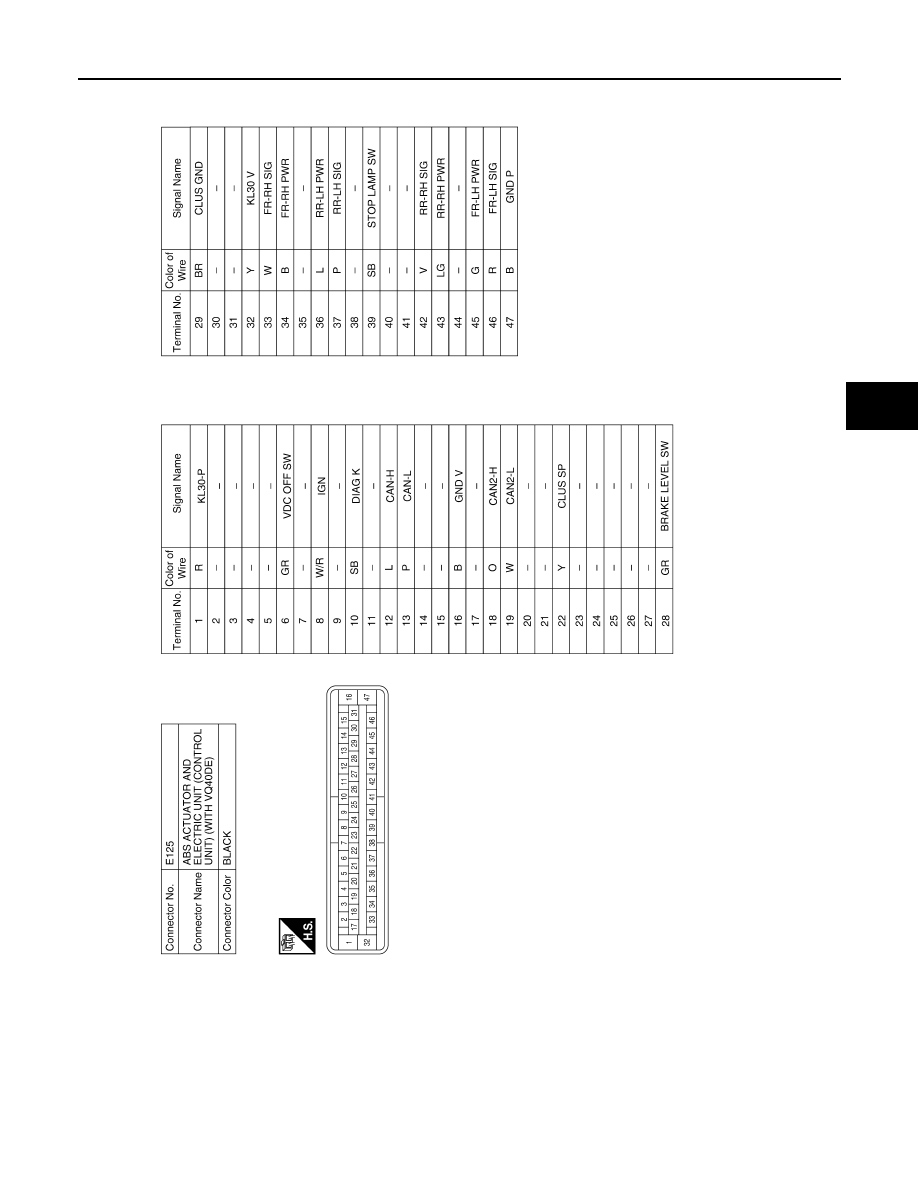

ABFIA0057GB

2010 Pathfinder
