BRC-4

< BASIC INSPECTION >

[VDC/TCS/ABS]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000005258623

PRECAUTIONS FOR DIAGNOSIS

If steering angle sensor, steering system parts, suspension system parts, ABS actuator and electric unit (con-

trol unit) or tires have been replaced, or if wheel alignment has been adjusted, be sure to adjust neutral posi-

tion of steering angle sensor before driving. Refer to

BRC-8, "ADJUSTMENT OF STEERING ANGLE

SENSOR NEUTRAL POSITION : Description"

.

2010 Pathfinder

DIAGNOSIS AND REPAIR WORKFLOW

BRC-5

< BASIC INSPECTION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

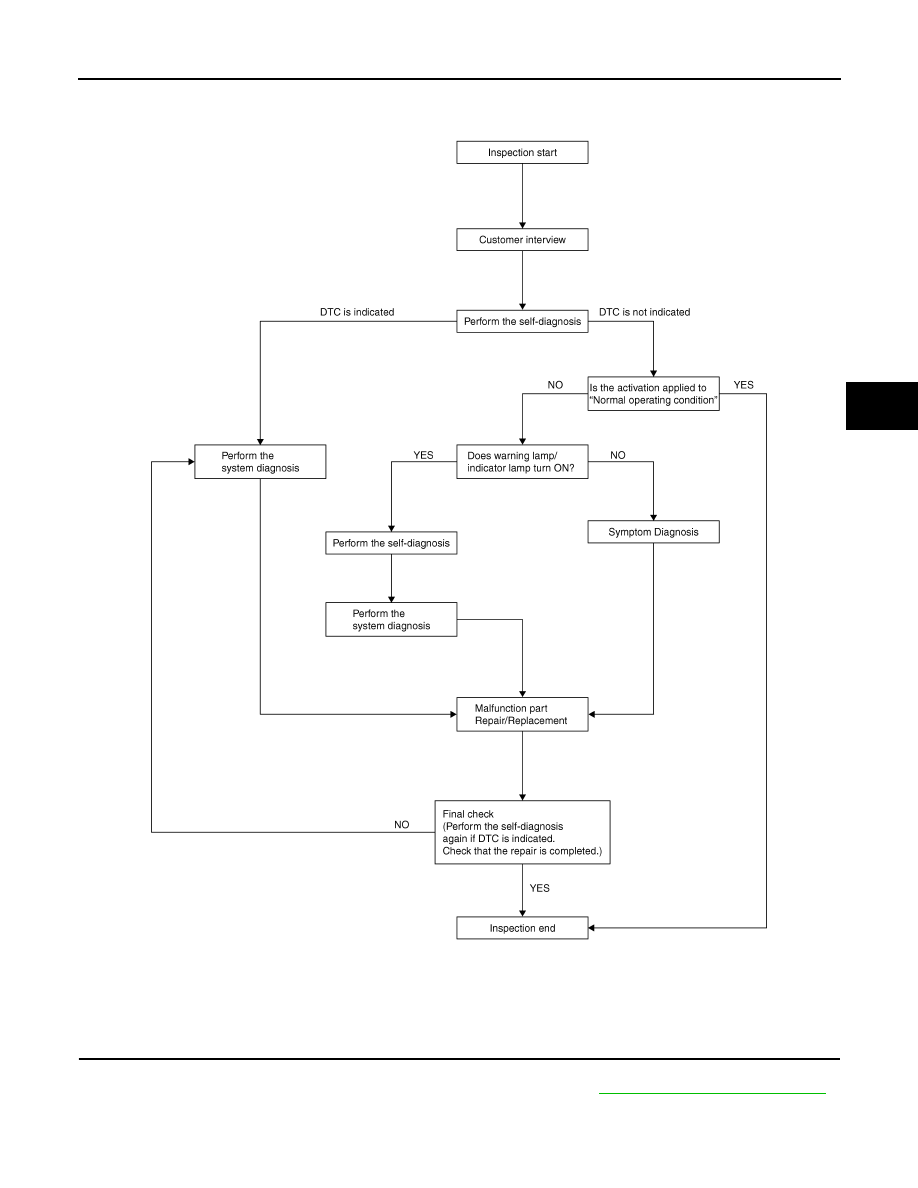

OVERALL SEQUENCE

DETAILED FLOW

1.

COLLECT THE INFORMATION FROM THE CUSTOMER

Get the detailed information from the customer about the symptom (the condition and the environment when

the incident/malfunction occurred) using the diagnosis worksheet. Refer to

BRC-7, "Diagnostic Work Sheet"

.

>> GO TO 2

JSFIA0010GB

2010 Pathfinder

BRC-6

< BASIC INSPECTION >

[VDC/TCS/ABS]

DIAGNOSIS AND REPAIR WORKFLOW

2.

PERFORM THE SELF-DIAGNOSIS

Check the DTC display with the self-diagnosis function. Refer to

BRC-22, "CONSULT-III Function (ABS)"

.

Is there any DTC displayed?

YES

>> GO TO 3

NO

>> GO TO 4

3.

PERFORM THE SYSTEM DIAGNOSIS

Perform the diagnosis applicable to the displayed DTC. Refer to

BRC-110, "DTC No. Index"

.

>> GO TO 7

4.

CHECK THE SYMPTOM THAT IS NOT CONSIDERED A SYSTEM MALFUNCTION

Check that the symptom is a normal operation that is not considered a system malfunction. Refer to

BRC-119,

"Description"

.

Is the symptom a normal operation?

YES

>> Inspection End

NO

>> GO TO 5

5.

CHECK THE WARNING LAMP AND INDICATOR LAMP FOR ILLUMINATION

Check that the warning lamp and indicator lamp illuminate.

• ABS warning lamp: Refer to

BRC-84, "Description"

.

• Brake warning lamp: Refer to

BRC-85, "Description"

.

• VDC OFF indicator lamp: Refer to

BRC-86, "Description"

.

• SLIP indicator lamp: Refer to

BRC-88, "Description"

.

Is ON/OFF timing normal?

YES

>> GO TO 6

NO

>> GO TO 2

6.

PERFORM THE DIAGNOSIS BY SYMPTOM

Perform the diagnosis applicable to the symptom.

>> GO TO 7

7.

REPAIR OR REPLACE THE MALFUNCTIONING PARTS

Repair or replace the specified malfunctioning parts.

>> GO TO 8

8.

FINAL CHECK

Perform the self-diagnosis again, and check that the malfunction is repaired completely. After checking, erase

the self-diagnosis memory. Refer to

BRC-22, "CONSULT-III Function (ABS)"

.

Is no other DTC present and the repair completed?

YES

>> Inspection End

NO

>> GO TO 3

2010 Pathfinder

DIAGNOSIS AND REPAIR WORKFLOW

BRC-7

< BASIC INSPECTION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

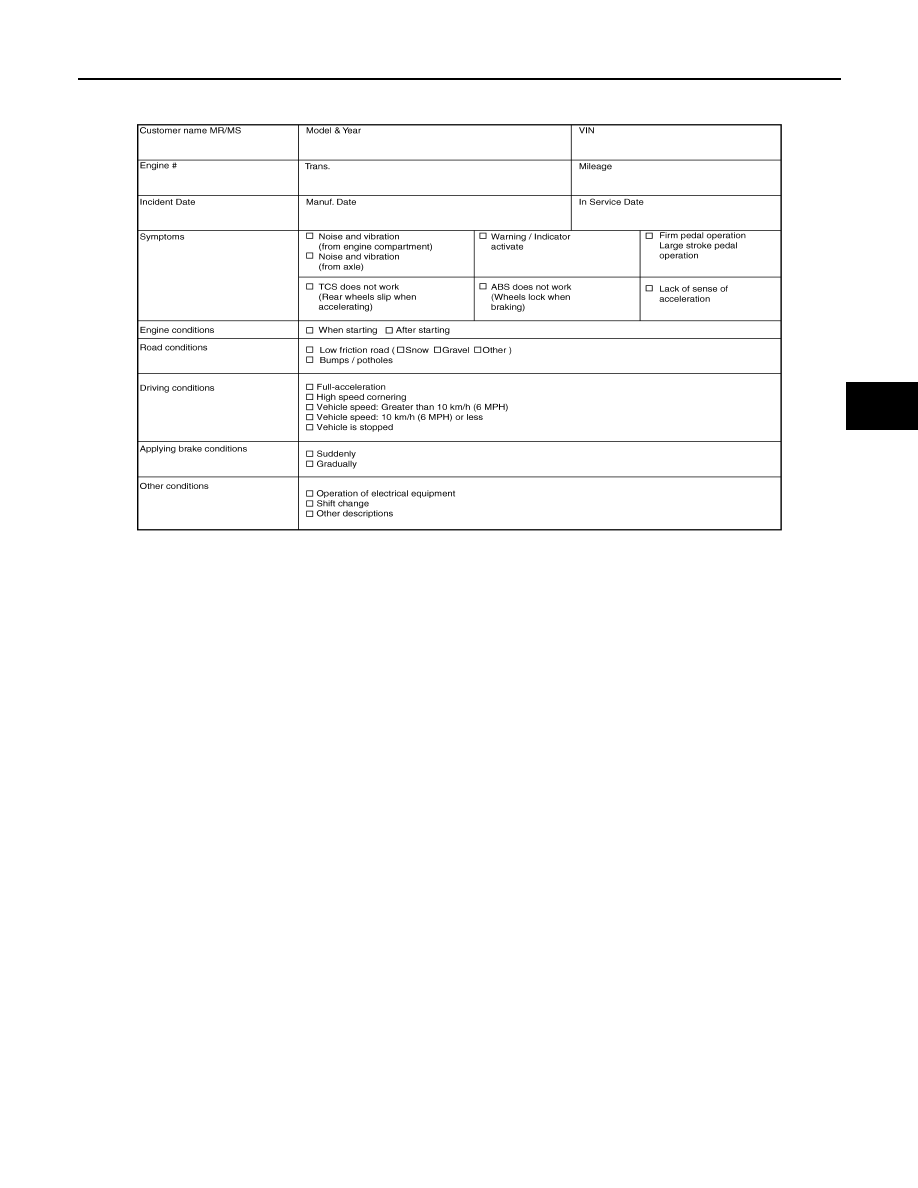

Diagnostic Work Sheet

INFOID:0000000005258624

SFIA3265E

2010 Pathfinder

BRC-8

< BASIC INSPECTION >

[VDC/TCS/ABS]

INSPECTION AND ADJUSTMENT

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description

INFOID:0000000005258625

After replacing the ABS actuator and electric unit (control unit), perform the following procedures:

• Neutral position adjustment for the steering angle sensor

• Calibration of the decel G sensor

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement

INFOID:0000000005258626

1.

PERFORM THE NEUTRAL POSITION ADJUSTMENT FOR THE STEERING ANGLE SENSOR

Perform the neutral position adjustment for the steering angle sensor.

>> Refer to

BRC-8, "ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Spe-

cial Repair Requirement"

, GO TO 2

2.

PERFORM CALIBRATION OF THE DECEL G SENSOR

Perform calibration of the decel G sensor.

>> Refer to

BRC-9, "CALIBRATION OF DECEL G SENSOR : Special Repair Requirement"

.

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION
ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Description

INFOID:0000000005258627

Refer to the table below to determine if adjustment of steering angle sensor neutral position is required.

×

: Required –: Not required

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Special Re-
pair Requirement

INFOID:0000000005258628

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

CAUTION:

To adjust neutral position of steering angle sensor, make sure to use CONSULT-III

(Adjustment cannot be done without CONSULT-III)

1.

ALIGN THE VEHICLE STATUS

Stop vehicle with front wheels in straight-ahead position.

Situation

Adjustment of steering angle sensor neutral position

Removing/Installing ABS actuator and electric unit (control unit)

Replacing ABS actuator and electric unit (control unit)

×

Removing/Installing steering angle sensor

×

Replacing steering angle sensor

×

Removing/Installing steering components

×

Replacing steering components

×

Removing/Installing suspension components

×

Replacing suspension components

×

Change tires to new ones

Tire rotation

Adjusting wheel alignment

×

Battery disconnection

×

2010 Pathfinder

INSPECTION AND ADJUSTMENT

BRC-9

< BASIC INSPECTION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

>> GO TO 2

2.

PERFORM THE NEUTRAL POSITION ADJUSTMENT FOR THE STEERING ANGLE SENSOR

1. On the CONSULT-III screen, touch “WORK SUPPORT” and “ST ANGLE SENSOR ADJUSTMENT” in

order.

2. Touch “START”.

CAUTION:

Do not touch steering wheel while adjusting steering angle sensor.

3. After approximately 10 seconds, touch “END”.

NOTE:

After approximately 60 seconds, it ends automatically.

4. Turn ignition switch OFF, then turn it ON again.

CAUTION:

Be sure to perform above operation.

>> GO TO 3

3.

CHECK DATA MONITOR

1. Run vehicle with front wheels in straight-ahead position, then stop.

2. Select “DATA MONITOR”. Then make sure “STR ANGLE SIG” is within 0

±

2.5

°

.

Is the steering angle within the specified range?

YES

>> GO TO 4

NO

>> Perform the neutral position adjustment for the steering angle sensor again, GO TO 1

4.

ERASE THE SELF-DIAGNOSIS MEMORY

Erase the self-diagnosis memory of the ABS actuator and electric unit (control unit) and ECM.

• ABS actuator and electric unit (control unit): Refer to

BRC-22, "CONSULT-III Function (ABS)"

.

• ECM: Refer to

EC-79, "CONSULT-III Function (ENGINE)"

 (VQ40DE) or

EC-557, "CONSULT-III Function

(ENGINE)"

 (VK56DE).

Are the memories erased?

YES

>> Inspection End

NO

>> Check the items indicated by the self-diagnosis.

CALIBRATION OF DECEL G SENSOR
CALIBRATION OF DECEL G SENSOR : Description

INFOID:0000000005258629

Refer to the table below to determine if calibration of the decel G sensor is required.

×

: Required –: Not required

CALIBRATION OF DECEL G SENSOR : Special Repair Requirement

INFOID:0000000005258630

CALIBRATION OF DECEL G SENSOR

Situation

Calibration of decel G sensor

Removing/Installing ABS actuator and electric unit (control unit)

Replacing ABS actuator and electric unit (control unit)

×

Removing/Installing steering angle sensor

×

Replacing steering angle sensor

×

Removing/Installing steering components

×

Replacing steering components

×

Removing/Installing suspension components

×

Replacing suspension components

×

Change tires to new ones

Tire rotation

Adjusting wheel alignment

×

2010 Pathfinder

BRC-10

< BASIC INSPECTION >

[VDC/TCS/ABS]

INSPECTION AND ADJUSTMENT

CAUTION:

To calibrate the decel G sensor, make sure to use CONSULT-III

(Calibration cannot be done without CONSULT-III)

1.

ALIGN THE VEHICLE STATUS

Stop vehicle with front wheels in straight-ahead position.

>> GO TO 2

2.

PERFORM CALIBRATION OF DECEL G SENSOR

1. On the CONSULT-III screen, touch “WORK SUPPORT” and “DECEL G SEN CALIBRATION” in order.

2. Touch “START”.

3. After approximately 10 seconds, touch “END”.

NOTE:

After approximately 60 seconds, it ends automatically.

4. Turn ignition switch OFF, then turn it ON again.

CAUTION:

Be sure to perform above operation.

>> GO TO 3

3.

CHECK DATA MONITOR

1. Run vehicle with front wheels in straight-ahead position, then stop.

2. Select “DATA MONITOR”. Then make sure “DECEL G SEN” is within

±

 0.08G.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Perform calibration of decel G sensor again, GO TO 1

4.

ERASE THE SELF-DIAGNOSIS MEMORY

Erase the self-diagnosis memory of the ABS actuator and electric unit (control unit) and ECM.

• ABS actuator and electric unit (control unit): Refer to

BRC-22, "CONSULT-III Function (ABS)"

.

• ECM: Refer to

EC-79, "CONSULT-III Function (ENGINE)"

 (VQ40DE) or

EC-557, "CONSULT-III Function

(ENGINE)"

 (VK56DE).

Are the memories erased?

YES

>> Inspection End

NO

>> Check the items indicated by the self-diagnosis.

2010 Pathfinder

VDC

BRC-11

< FUNCTION DIAGNOSIS >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

FUNCTION DIAGNOSIS

VDC

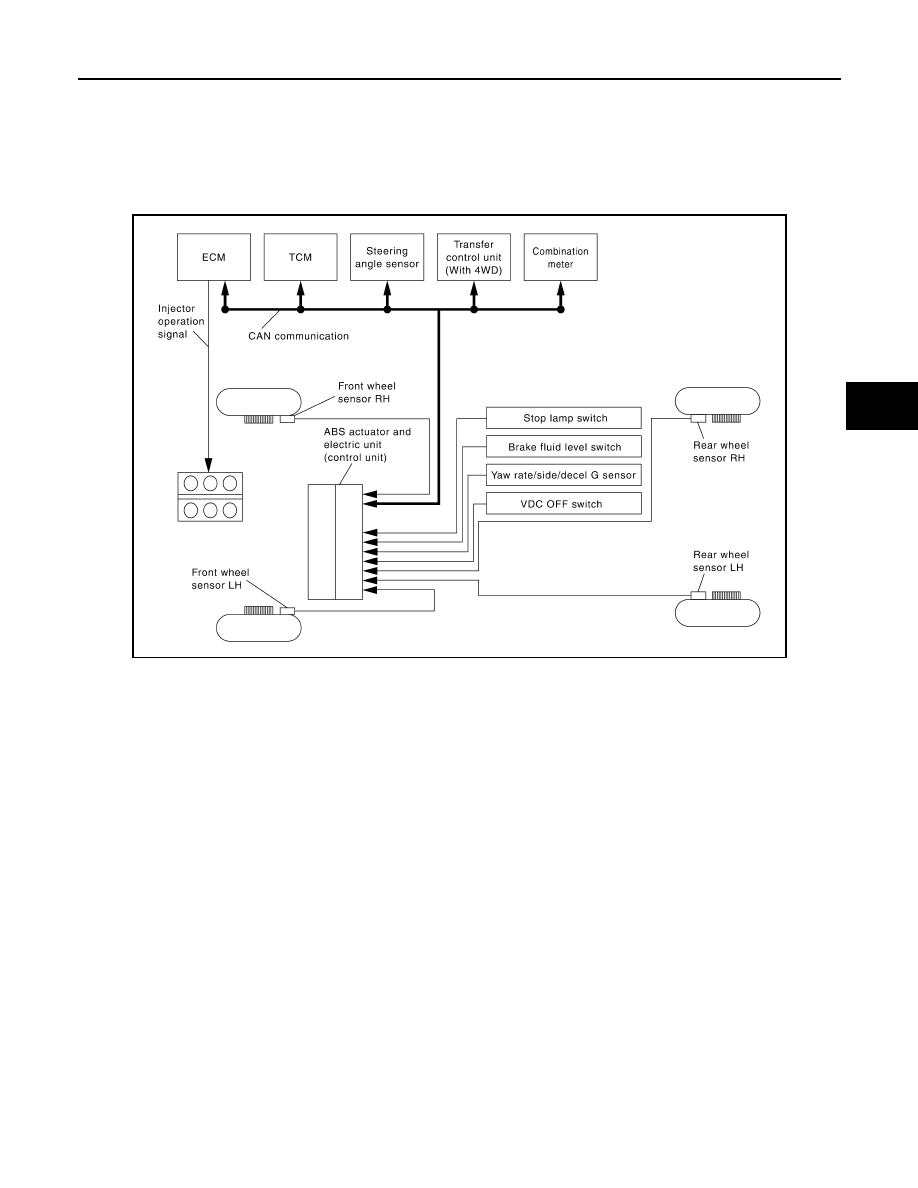

System Diagram

INFOID:0000000005258632

VQ40DE

AWFIA0453GB

2010 Pathfinder
