Nissan Pathfinder (2010 year). Manual - part 96





BR-38

< ON-VEHICLE REPAIR >

FRONT DISC BRAKE

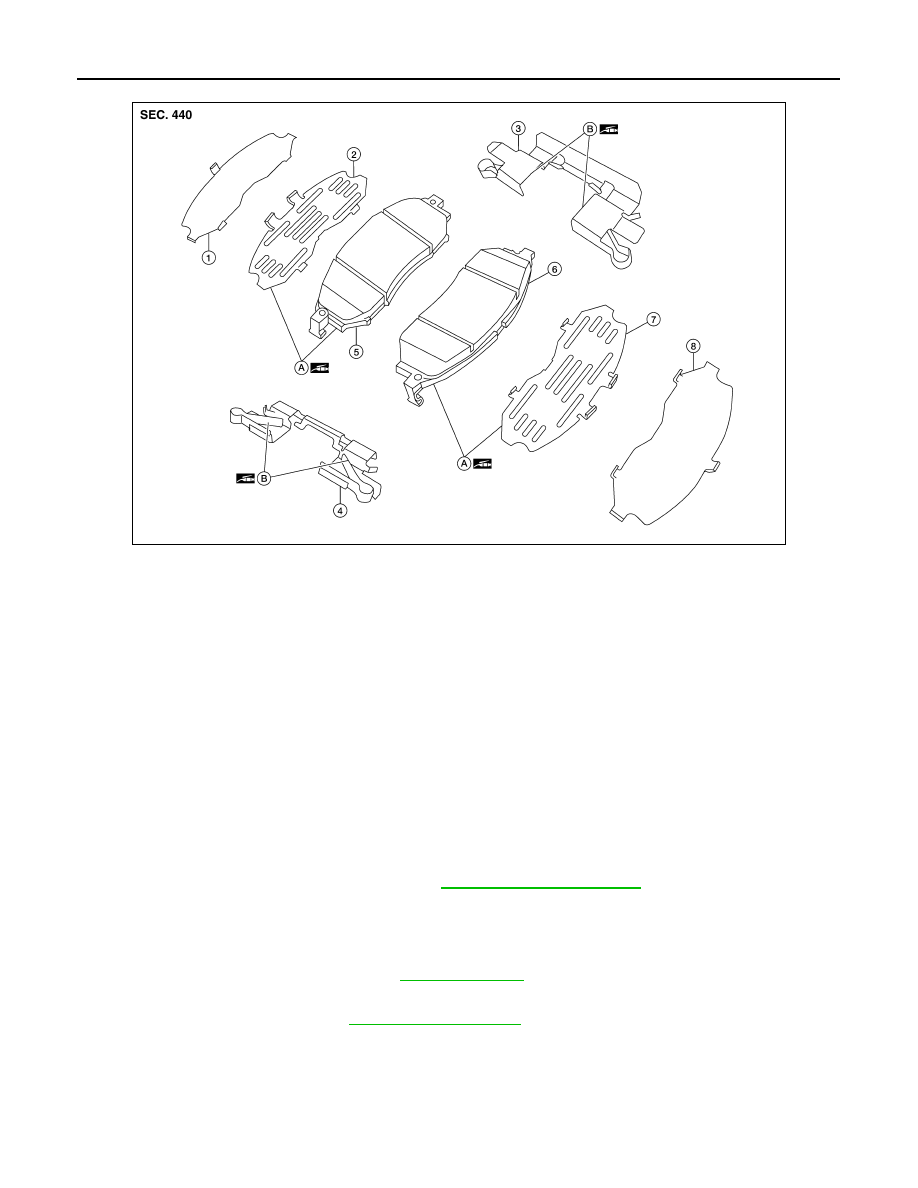

Front Brake Pads, Shims and Retainers VK56

WARNING:

Clean dust on caliper and brake pad with a vacuum dust collector to minimize the hazard of airborne

particles or other materials.

CAUTION:

• While removing brake pads never depress brake pedal because piston will pop out.

• It is not necessary to remove bolts on torque member and brake hose except for disassembly or

replacement of caliper body. In this case, hang caliper body with a wire so as not to stretch the brake

hose.

• Do not damage the piston boot.

• If any shim is subject to serious corrosion, replace it with a new one.

• Always replace shim and shim cover as a set when replacing brake pads.

• Keep rotor free from brake fluid.

• Burnish the brake contact surface after refinishing or replacing rotors, after replacing pads, or if a

soft pedal occurs at very low mileage. Refer to

BR-39, "Brake Burnishing"

.

Removal and Installation of Brake Pad

INFOID:0000000005260216

REMOVAL

1. Remove the front wheel and tire. Refer to

WT-49, "Rotation"

.

2. Remove master cylinder reservoir cap.
3. Partially drain brake fluid. Refer to

BR-20, "Drain and Refill"

.

4. Remove lower sliding pin bolt using power tool and swing the caliper body up to access the brake pads.
5. Support the caliper body with a suitable wire to avoid pulling on the front brake hose.
6. Remove the front inner and outer brake pads, shims, shim covers and retainers from the torque member.

INSTALLATION

AWFIA0595ZZ

1.

Inner shim cover

2.

Inner shim

3.

Upper pad retainer

4.

Lower pad retainer

5.

Inner brake pad

6.

Outer brake pad

7.

Outer shim

8.

Outer shim cover

A.

Molykote AS-880N grease

B.

Molykote 7439 grease

2010 Pathfinder

FRONT DISC BRAKE

BR-39

< ON-VEHICLE REPAIR >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

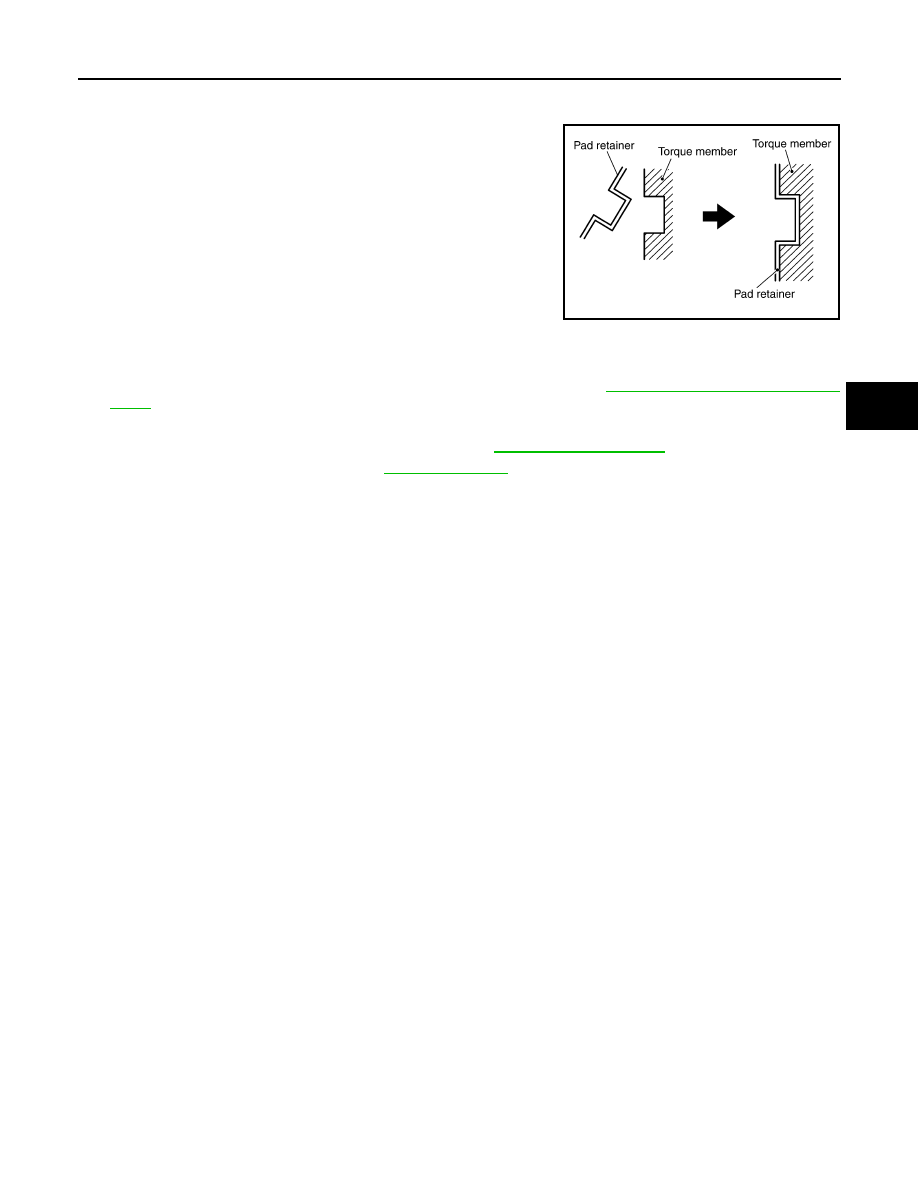

1. Apply Molykote AS-880N grease between the inner and outer brake pad backing and shim, then attach

shim and shim covers to the brake pads.

2. Attach pad retainer to torque member, Apply Molykote 7439

grease, then install the brake pad, shims and shim covers to the

torque member.

CAUTION:

When attaching pad retainer, attach it firmly so that it is

flush with torque member, as shown.

3. Using a suitable tool push pistons into caliper body.

CAUTION:

When pushing in piston, brake fluid returns to master cylin-

der reservoir tank. Watch the level of the brake fluid in the

reservoir tank.

NOTE:

Use a suitable tool to make it easier to push the pistons into the caliper body.

4. Remove the suitable wire, then swing the caliper body down over the brake pad assemblies.
5. Install the lower sliding pin bolt and tighten to specification. Refer to

BR-37, "Exploded View of Brake

Pads"

.

6. Check the brakes for drag.
7. Inspect the brake fluid level, refill if necessary. Refer to

BR-20, "Drain and Refill"

.

8. Install the front wheel and tire. Refer to

WT-49, "Rotation"

.

Brake Burnishing

INFOID:0000000005260217

Burnish brake contact surface according to the following procedure after refinishing or replacing rotors, after

replacing pads, or if a soft pedal occurs at very low mileage.

CAUTION:

Only perform this procedure under safe road and traffic conditions. Use extreme caution.

1. Drive the vehicle on a straight smooth road at 50 km/h (31 MPH).
2. Use medium brake pedal/foot effort to bring the vehicle to a complete stop from 50 km/h (31 MPH). Adjust

brake pedal/foot pressure such that vehicle stopping time equals 3 to 5 seconds.

3. To cool brake system, drive the vehicle at 50 km/h (31 MPH) for 1 minute without stopping.
4. Repeat steps 1 to 3, 10 times or more to complete the burnishing procedure.

PFIA0273E

2010 Pathfinder

BR-40

< ON-VEHICLE REPAIR >

FRONT DISC BRAKE

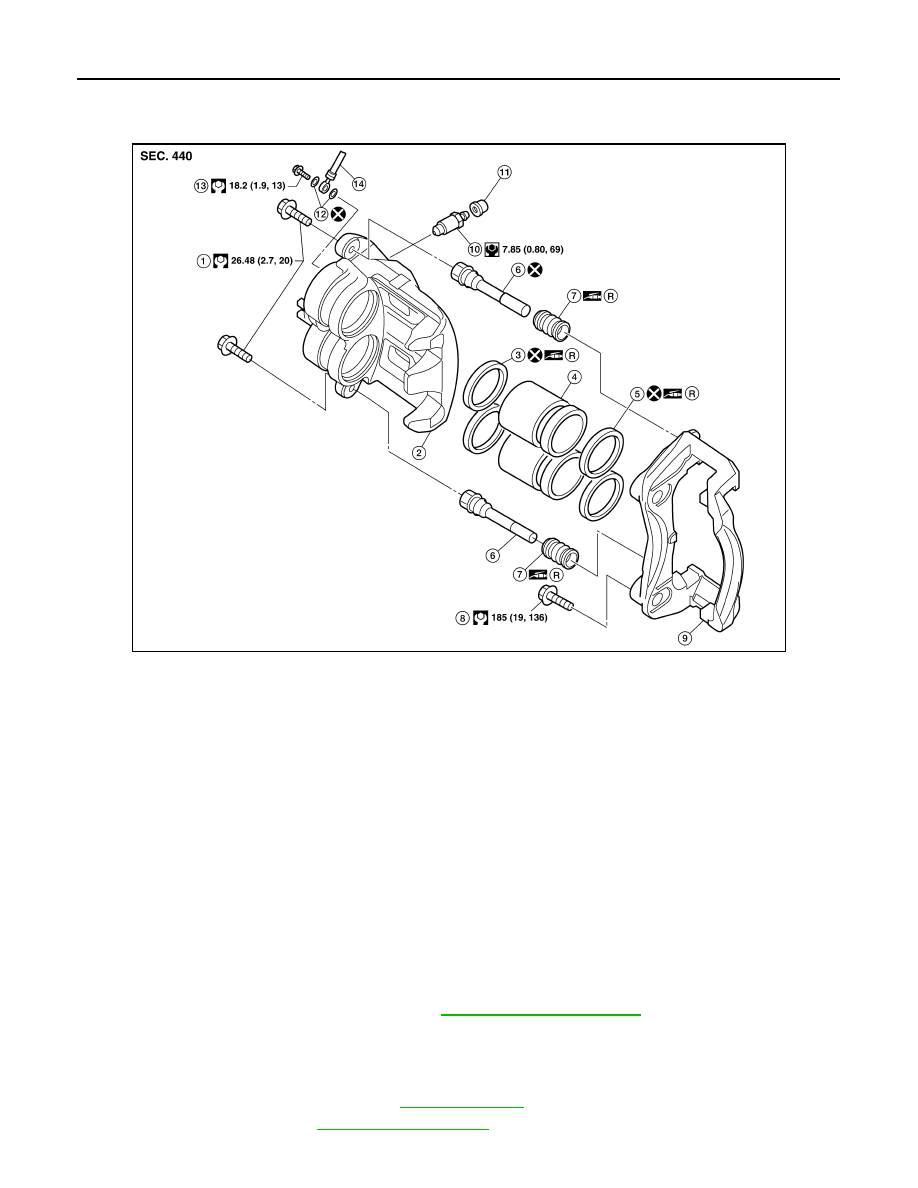

Exploded View of Brake Caliper

INFOID:0000000005260218

Front Disc Brake Caliper

WARNING:

Clean dust on caliper and brake pad with a vacuum dust collector to minimize the hazard of airborne

particles or other materials.

CAUTION:

• While removing caliper body never depress brake pedal because piston will pop out.

• It is not necessary to remove bolts on torque member and brake hose except for disassembly or

replacement of caliper body. In this case, hang caliper body with a wire so as not to stretch the brake

hose.

• Do not damage the piston boot.

• If any shim is subject to serious corrosion, replace it with a new one.

• Always replace shim and shim cover as a set when replacing brake pads.

• Keep rotor free from brake fluid.

• Burnish the brake contact surface after refinishing or replacing rotors, after replacing pads, or if a

soft pedal occurs at very low mileage. Refer to

BR-39, "Brake Burnishing"

.

Removal and Installation of Brake Caliper and Disc Rotor

INFOID:0000000005260219

REMOVAL

1. Remove the front wheel and tire. Refer to

WT-49, "Rotation"

.

2. Drain the brake fluid. Refer to

BR-20, "Drain and Refill"

.

AWFIA0467GB

1.

Sliding pin bolt

2.

Caliper body

3.

Piston seal

4.

Piston

5.

Piston boot

6.

Sliding pin

7.

Sliding pin boot

8.

Torque member bolt

9.

Torque member

10. Bleed valve

11. Cap

12. Copper washers

13. Union bolt

14. Front brake hose

R.

Rubber grease

2010 Pathfinder

FRONT DISC BRAKE

BR-41

< ON-VEHICLE REPAIR >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

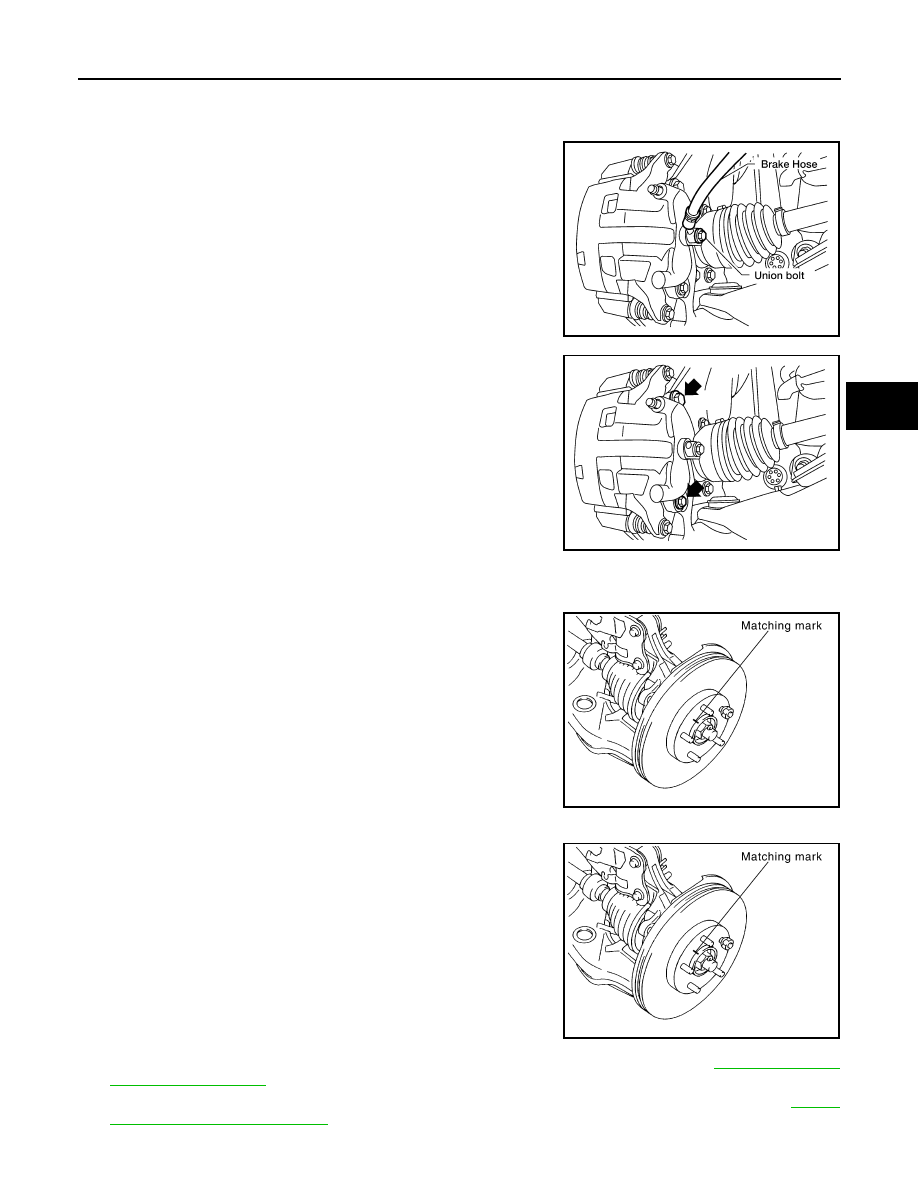

CAUTION:

• Refill with new brake fluid.

• Do not reuse drained brake fluid.

3. Remove the union bolt then disconnect the brake hose and dis-

card the copper washers.

CAUTION:

Discard the copper washers, do not reuse.

4. Remove the sliding pin bolts and remove the caliper body from

the torque member.

5. Remove the brake pads, shims, shim covers and retainers from the torque member.
6. Remove the torque member bolts and remove the torque member.
7. Remove the disc rotor. If reusing the disc rotor, apply a matching

mark as shown for installation.

CAUTION:

Put matching marks on the wheel hub assembly and disc

rotor, if reusing the disc rotor.

INSTALLATION

1. Install the disc rotor. If reusing the disc rotor, align the matching

marks as shown for installation.

CAUTION:

Align the matching marks on the wheel hub assembly and

disc rotor, if reusing the disc rotor.

2. Install torque member and tighten the torque member bolts to specification. Refer to

BR-40, "Exploded

View of Brake Caliper"

.

3. Install the brake pads, shims, shim covers and retainers on the torque member. Refer to

BR-37,

"Exploded View of Brake Pads"

.

LFIA0235E

LFIA0239E

SDIA2608E

SDIA2608E

2010 Pathfinder

BR-42

< ON-VEHICLE REPAIR >

FRONT DISC BRAKE

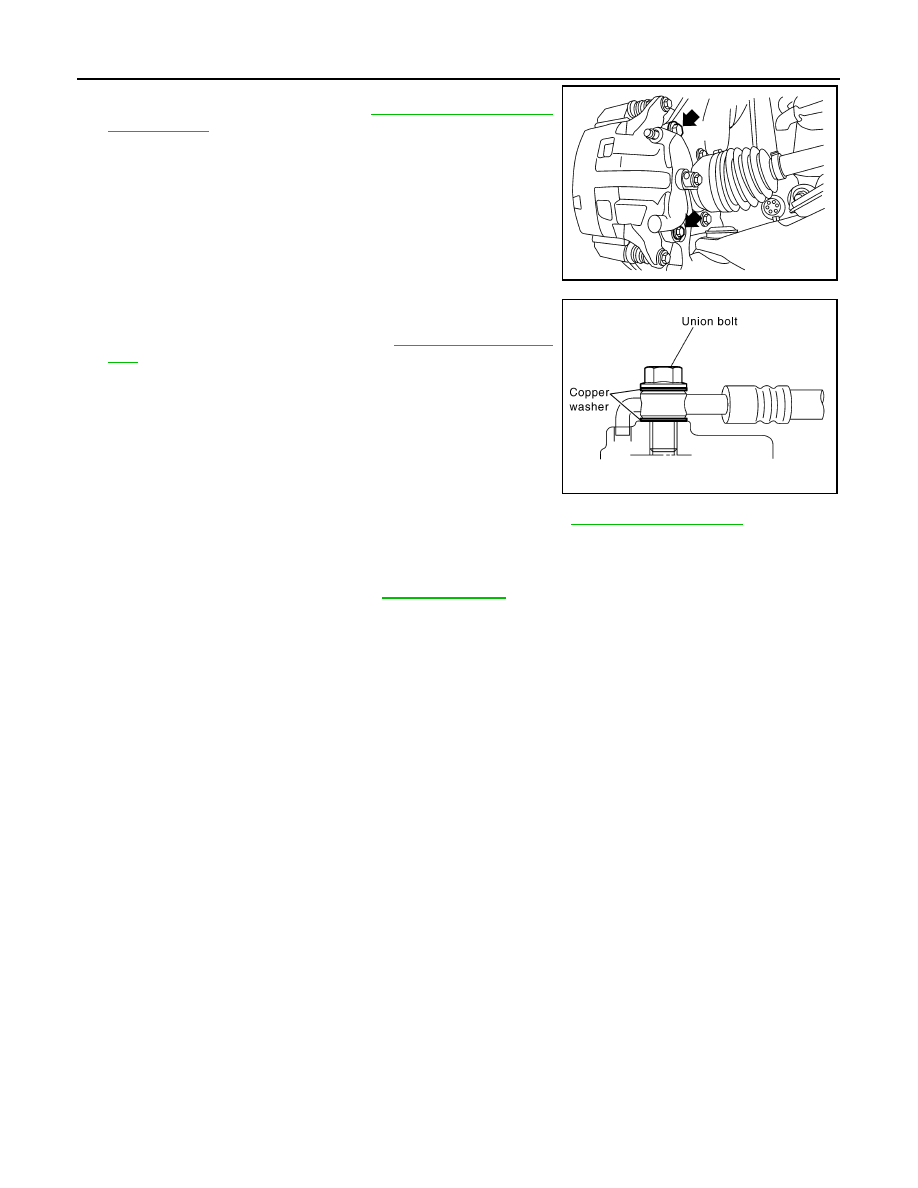

4. Install caliper body and sliding pins, then tighten the sliding pin

bolts to the specified torque. Refer to

BR-40, "Exploded View of

Brake Caliper"

.

CAUTION:

When installing the caliper body to the torque member,

wipe any oil off of the knuckle spindle, washers and caliper

body attachment surfaces.

5. Install brake hose by aligning with the protrusion on caliper

body, then install new copper washers and union bolt. Tighten

union bolt to specified torque. Refer to

BR-26, "Hydraulic Cir-

cuit"

.

CAUTION:

Use new copper washers for installation.

6. Refill with new brake fluid as necessary and bleed the air. Refer to

BR-20, "Drain and Refill"

.

CAUTION:

• Refill with new brake fluid.

• Do not reuse drained brake fluid.

7. Install the front wheel and tire. Refer to

WT-49, "Rotation"

.

LFIA0239E

SFIA1137E

2010 Pathfinder

REAR DISC BRAKE

BR-43

< ON-VEHICLE REPAIR >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

REAR DISC BRAKE

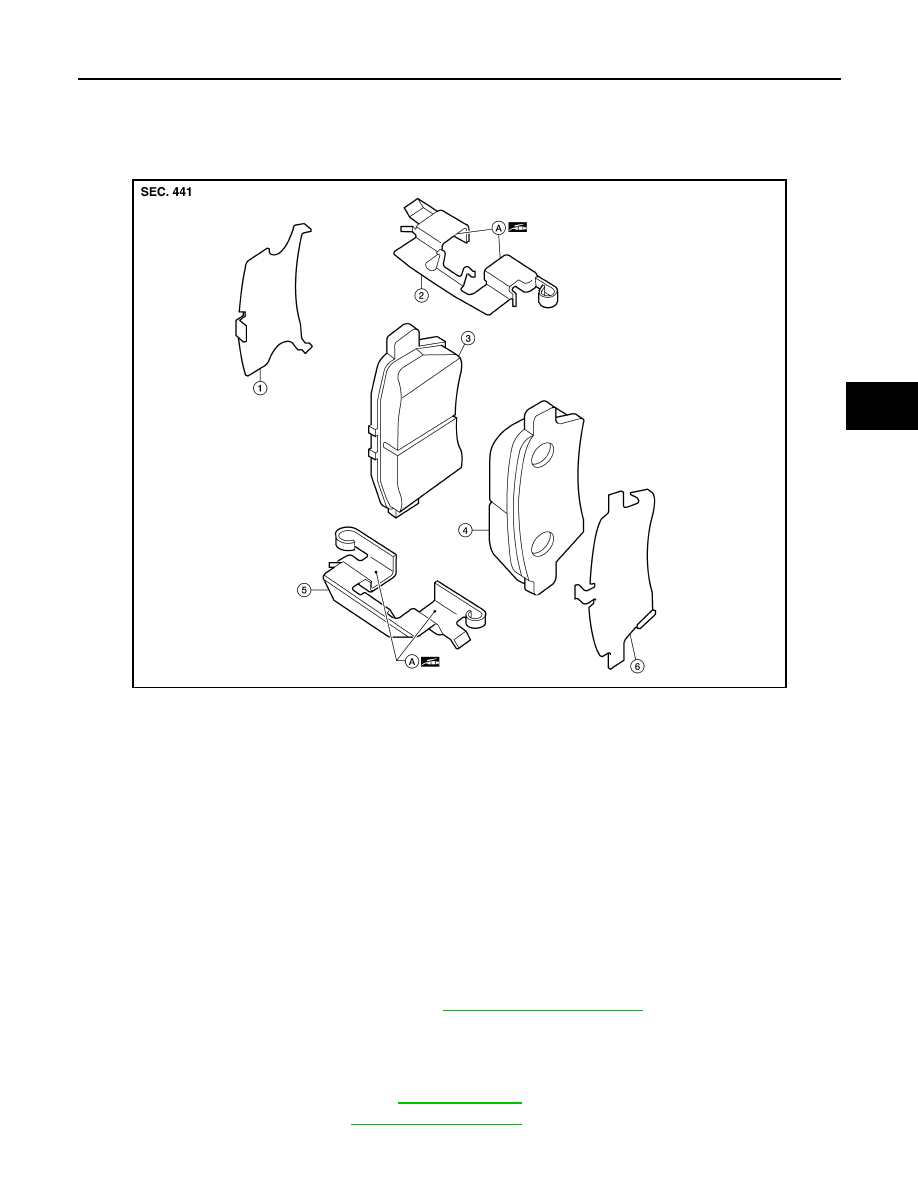

Exploded View of Brake Pad

INFOID:0000000005260220

Rear Brake Pads, Shims and Retainers

WARNING:

Clean dust on caliper and brake pad with a vacuum dust collector to minimize the hazard of airborne

particles or other materials.

CAUTION:

• While removing brake pads never depress brake pedal because piston will pop out.

• It is not necessary to remove bolts on torque member and brake hose except for disassembly or

replacement of caliper body. In this case, hang caliper body with a wire so as not to stretch the brake

hose.

• Do not damage the piston boot.

• If any shim is subject to serious corrosion, replace it with a new one.

• Always replace inner and outer shims as a set when replacing brake pads.

• Keep rotor free from brake fluid.

• Burnish the brake contact surface after refinishing or replacing rotors, after replacing pads, or if a

soft pedal occurs at very low mileage. Refer to

BR-44, "Brake Burnishing"

.

Removal and Installation of Brake Pad

INFOID:0000000005260221

REMOVAL

1. Remove the rear wheel and tire. Refer to

WT-49, "Rotation"

.

2. Partially drain brake fluid. Refer to

BR-20, "Drain and Refill"

.

AWFIA0596ZZ

1.

Inner shim

2.

Upper pad retainer

3.

Inner brake pad

4.

Outer brake pad

5.

Lower pad retainer

6.

Outer shim

A.

Molykote 7439 grease

2010 Pathfinder

BR-44

< ON-VEHICLE REPAIR >

REAR DISC BRAKE

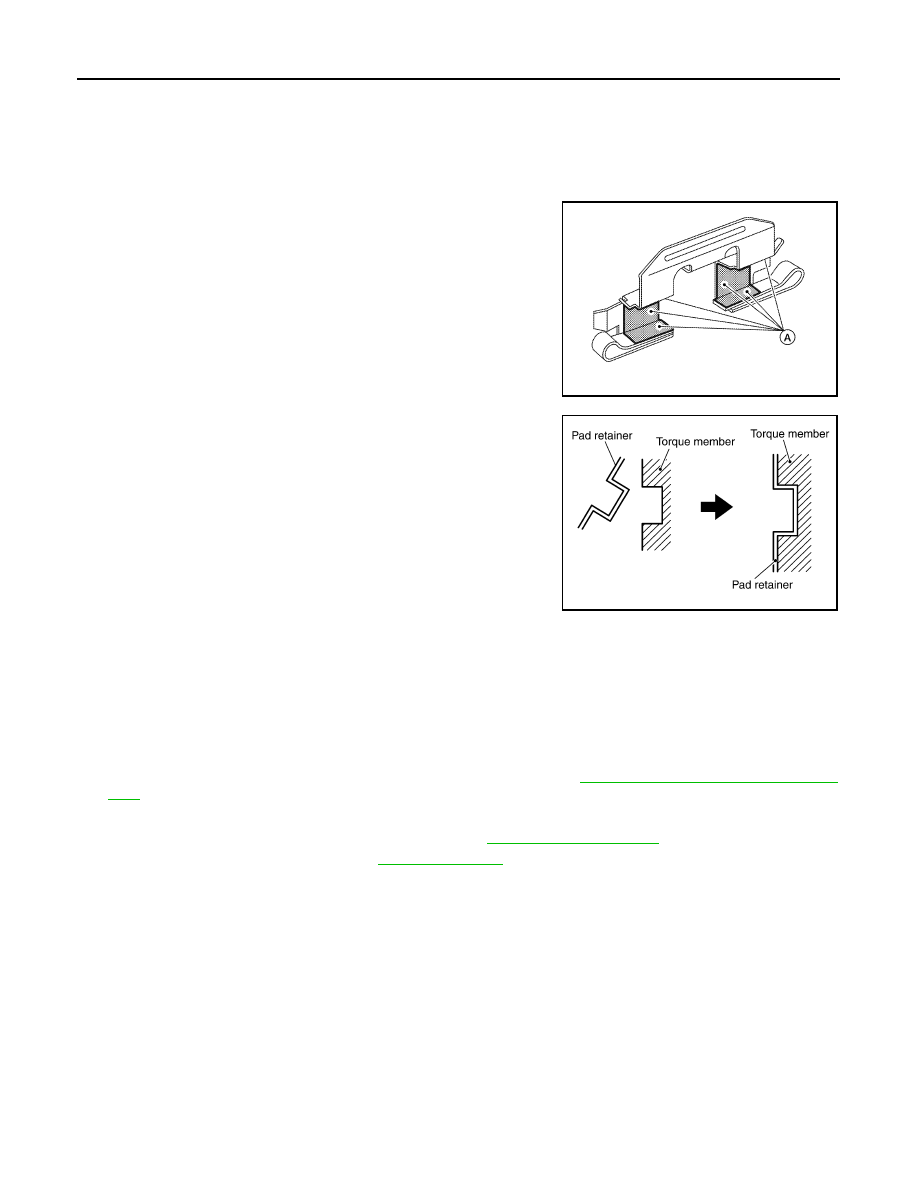

3. Remove lower sliding pin bolt using power tool and swing the caliper body up to access the brake pads.
4. Support the caliper body with a suitable wire to avoid pulling on the rear brake hose.
5. Remove the rear inner and outer brake pads, shims and retainers from the torque member.

INSTALLATION

1. Attach shims to the brake pads.
2. Apply Molykote 7439 grease (A) to the pad retainers as shown

3. Attach pad retainer to torque member, then install brake pad and

shim assemblies.

CAUTION:

When attaching pad retainer, attach it firmly so that it is

flush with torque member, as shown.

4. Using a suitable tool push piston into caliper body.

CAUTION:

By pushing in piston, brake fluid returns to master cylinder reservoir tank. Watch the level of the

surface of reservoir tank.

NOTE:

Use a suitable tool to make it easier to push the piston into the caliper body.

5. Remove the suitable wire then swing the caliper body down over the brake pad assemblies.
6. Install the lower sliding pin bolt and tighten to specification. Refer to

BR-45, "Exploded View of Brake Cal-

iper"

.

7. Check the brakes for drag.
8. Inspect the brake fluid level refill if necessary. Refer to

BR-20, "Drain and Refill"

9. Install the rear wheel and tire. Refer to

WT-49, "Rotation"

.

Brake Burnishing

INFOID:0000000005260222

Burnish brake contact surface according to the following procedure after refinishing or replacing rotors, after

replacing pads, or if a soft pedal occurs at very low mileage.

CAUTION:

Only perform this procedure under safe road and traffic conditions. Use extreme caution.

1. Drive the vehicle on a straight smooth road at 50 km/h (31 MPH).
2. Use medium brake pedal/foot effort to bring the vehicle to a complete stop from 50 km/h (31 MPH). Adjust

brake pedal/foot pressure such that vehicle stopping time equals 3 to 5 seconds.

3. To cool brake system, drive the vehicle at 50 km/h (31 MPH) for 1 minute without stopping.
4. Repeat steps 1 to 3, 10 times or more to complete the burnishing procedure.

AWFIA0039ZZ

PFIA0273E

2010 Pathfinder

REAR DISC BRAKE

BR-45

< ON-VEHICLE REPAIR >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

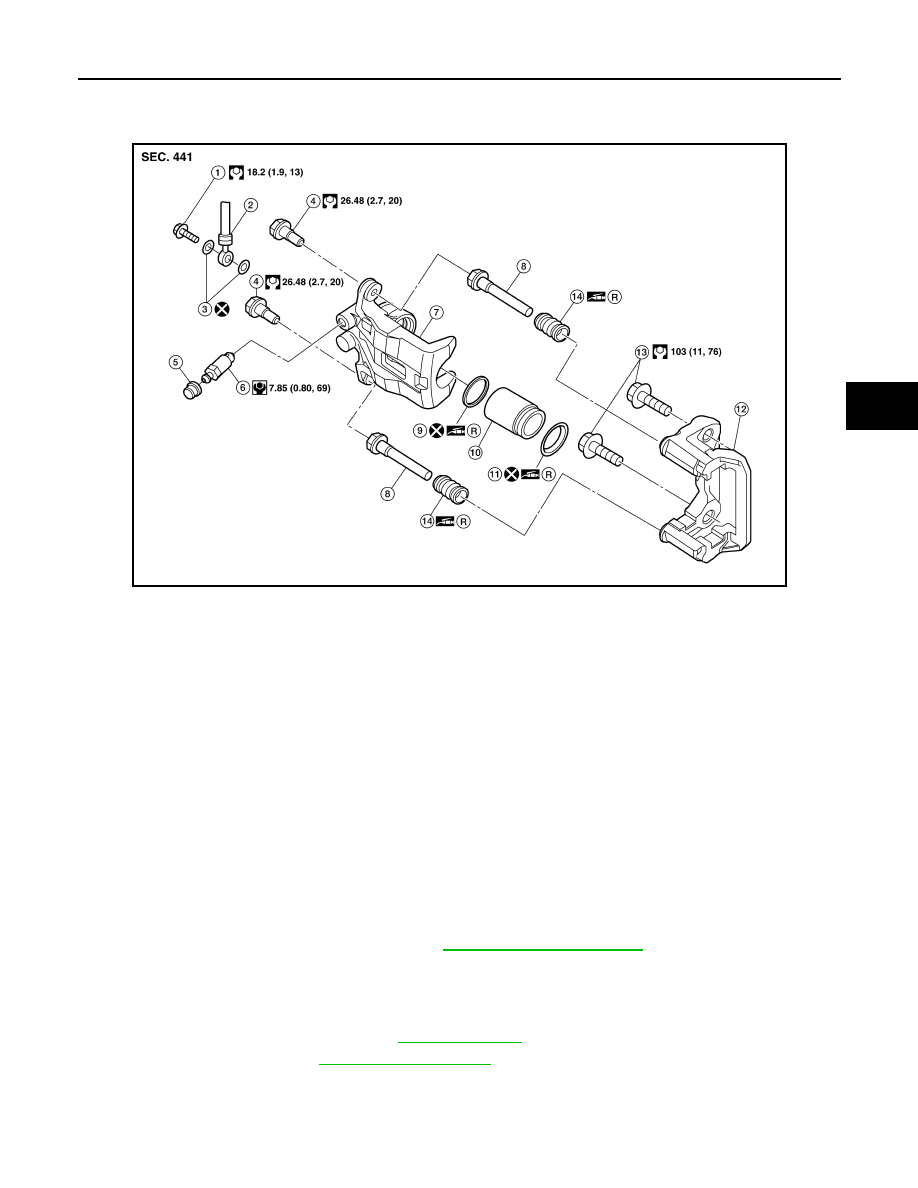

Exploded View of Brake Caliper

INFOID:0000000005260223

Rear Disc Brake Caliper

WARNING:

Clean dust on caliper and brake pad with a vacuum dust collector to minimize the hazard of airborne

particles or other materials.

CAUTION:

• While removing caliper body never depress brake pedal because piston will pop out.

• It is not necessary to remove bolts on torque member and brake hose except for disassembly or

replacement of caliper body. In this case, hang caliper body with a wire so as not to stretch the brake

hose.

• Do not damage the piston boot.

• If any shim is subject to serious corrosion, replace it with a new one.

• Always replace shim and shim cover as a set when replacing brake pads.

• Keep rotor free from brake fluid.

• Burnish the brake contact surface after refinishing or replacing rotors, after replacing pads, or if a

soft pedal occurs at very low mileage. Refer to

BR-44, "Brake Burnishing"

.

Removal and Installation of Brake Caliper and Disc Rotor

INFOID:0000000005260224

REMOVAL

1. Remove the rear wheel and tire. Refer to

WT-49, "Rotation"

.

2. Drain the brake fluid. Refer to

BR-20, "Drain and Refill"

.

AWFIA0471GB

1.

Union bolt

2.

Brake hose

3.

Copper washers

4.

Sliding pin bolt

5.

Cap

6.

Bleed valve

7.

Caliper body

8.

Sliding pin

9.

Piston seal

10. Piston

11. Piston boot

12. Torque member

13. Torque member bolt

14. Sliding pin boot

R.

Rubber grease

2010 Pathfinder















Content      ..     94      95      96      97     ..
