Nissan Pathfinder (2010 year). Manual - part 85





BCS

COMBINATION SWITCH READING SYSTEM

BCS-9

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

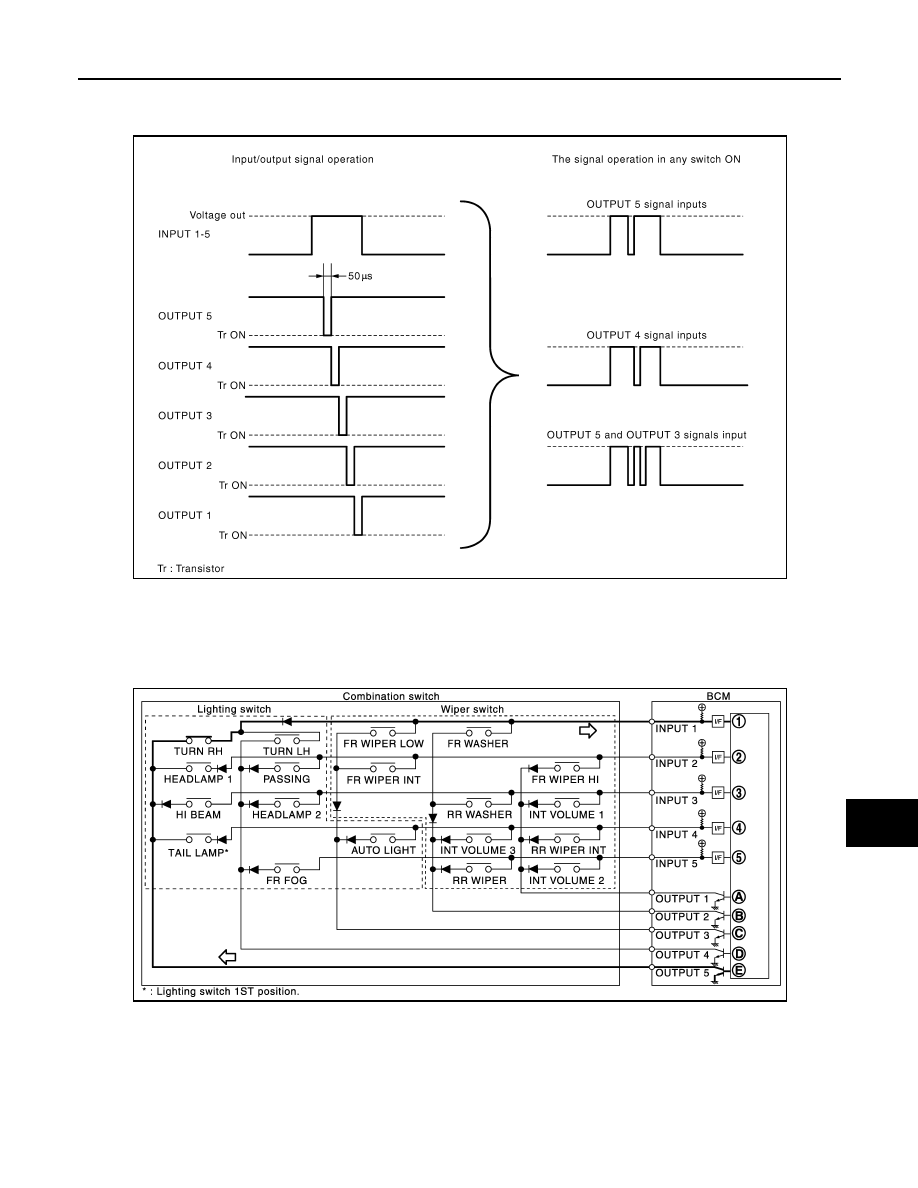

- The voltage waveform of INPUT corresponding to the formed circuit changes according to the operation of

the transistor on OUTPUT side if any (1 or more) switches are ON.

- It reads this change of the voltage as the status signal of the combination switch.

Operation Example

In the following operation example, the combination of the status signals of the combination switch is replaced

as follows: INPUT 1 - 5 to “1 - 5” and OUTPUT 1 - 5 to “A - E”.

Example 1: When a switch (TURN RH switch) is turned ON

• The circuit between INPUT 1 and OUTPUT 5 is formed when the TURN RH switch is turned ON.

• BCM detects the combination switch status signal “1E” when the signal of OUTPUT 5 is input to INPUT 1.

• BCM judges that the TURN RH switch is ON when the signal “1E” is detected.

Example 2: When some switches (turn RH switch, front wiper LO switch) are turned ON

JPMIA0068GB

ALMIA0260GB

2010 Pathfinder

BCS-10

< FUNCTION DIAGNOSIS >

COMBINATION SWITCH READING SYSTEM

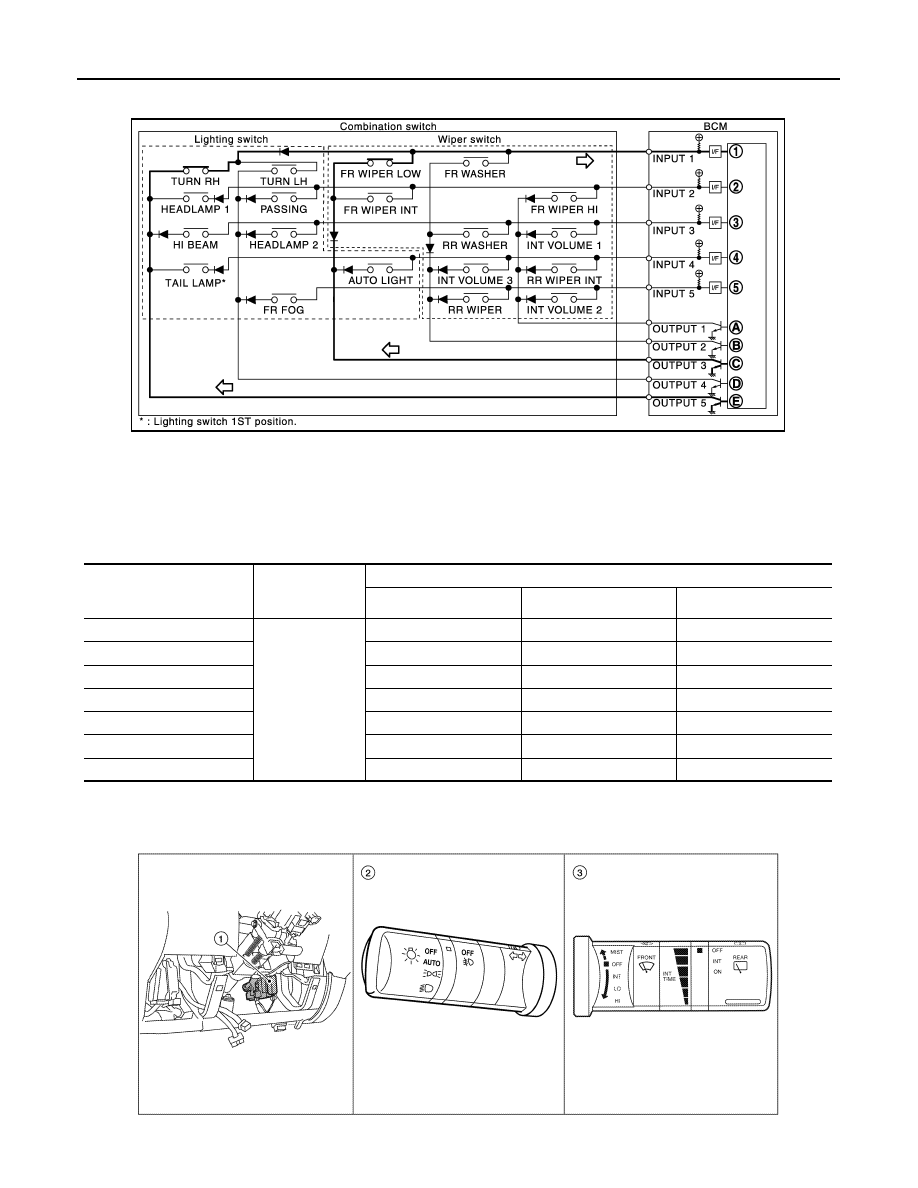

• The circuits between INPUT 1 and OUTPUT 5 and between INPUT 1 and OUTPUT 3 are formed when the

TURN RH switch and FR WIPER LOW switch are turned ON.

• BCM detects the combination switch status signal “1CE” when the signals of OUTPUT 3 and OUTPUT 5 are

input to INPUT 1.

• BCM judges that the TURN RH switch and FR WIPER LOW switch are ON when the signal “1CE” is

detected.

WIPER INTERMITTENT DIAL POSITION SETTING (FRONT WIPER INTERMITTENT OPERATION)

BCM judges the wiper intermittent dial 1 - 7 by the status of INT VOLUME 1, 2 and 3 switches.

Component Parts Location

INFOID:0000000005255734

ALMIA0261GB

Wiper intermittent

dial position

Intermittent

operation delay

interval

INT VOLUME switch ON/OFF status

INT VOLUME 1 switch

INT VOLUME 2 switch

INT VOLUME 3 switch

1

Short

Long

ON

ON

ON

2

ON

ON

OFF

3

ON

OFF

OFF

4

OFF

OFF

OFF

5

OFF

OFF

ON

6

OFF

ON

ON

7

OFF

ON

OFF

ALMIA0308ZZ

2010 Pathfinder

BCS

COMBINATION SWITCH READING SYSTEM

BCS-11

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

1.

BCM M18, M19, M20 (view with low-
er instrument panel LH removed)

2.

Combination switch (lighting and
turn signal switch) M28

3.

Combination switch (wiper and
washer switch) M28

2010 Pathfinder

BCS-12

< FUNCTION DIAGNOSIS >

SIGNAL BUFFER SYSTEM

SIGNAL BUFFER SYSTEM

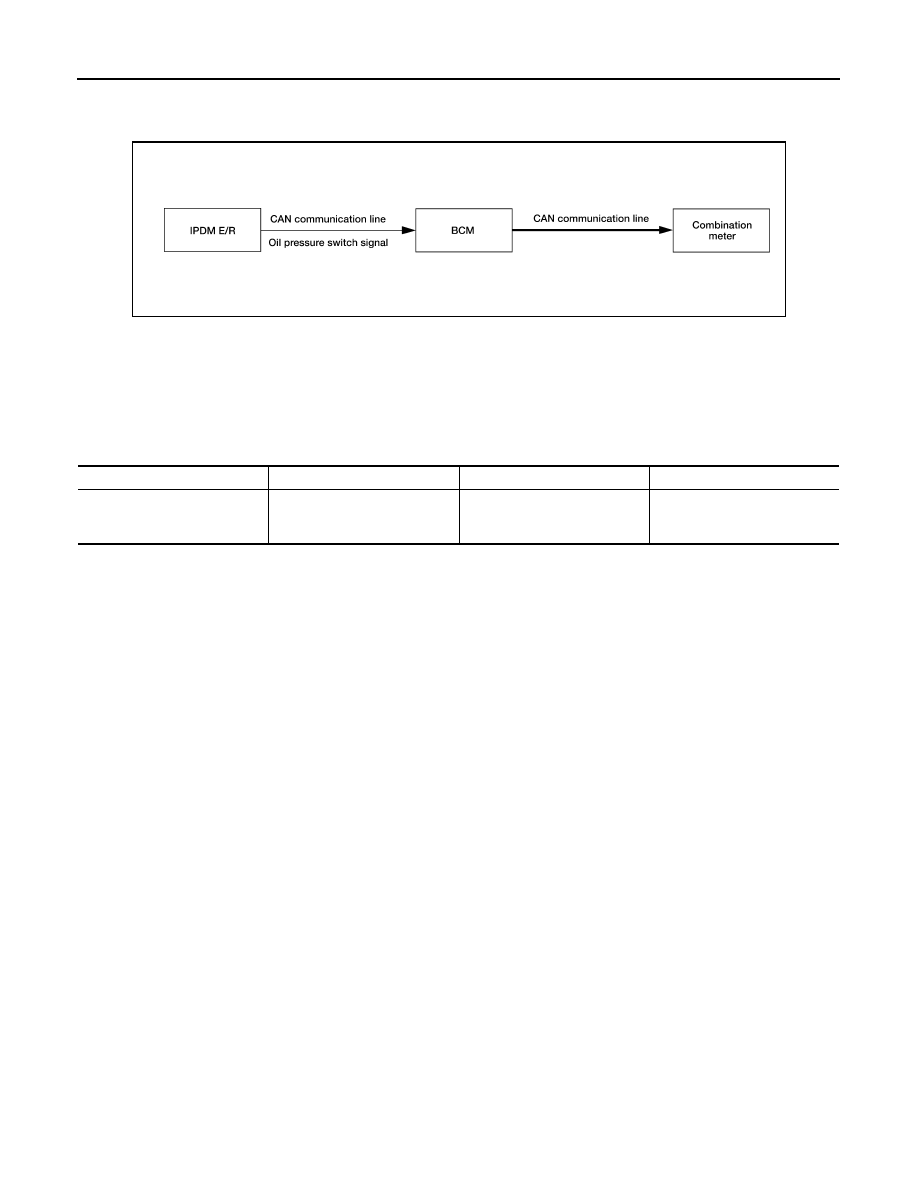

System Diagram

INFOID:0000000005255735

System Description

INFOID:0000000005255736

OUTLINE

BCM has the signal transmission function that outputs/transmits each input/received signal to each unit.

Signal transmission function list

ALMIA0263GB

Signal name

Input

Output

Description

Oil pressure switch signal

IPDM E/R (CAN)

Combination meter (CAN)

Transmits the received oil pres-
sure switch signal via CAN
communication.

2010 Pathfinder

BCS

POWER CONSUMPTION CONTROL SYSTEM

BCS-13

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

POWER CONSUMPTION CONTROL SYSTEM

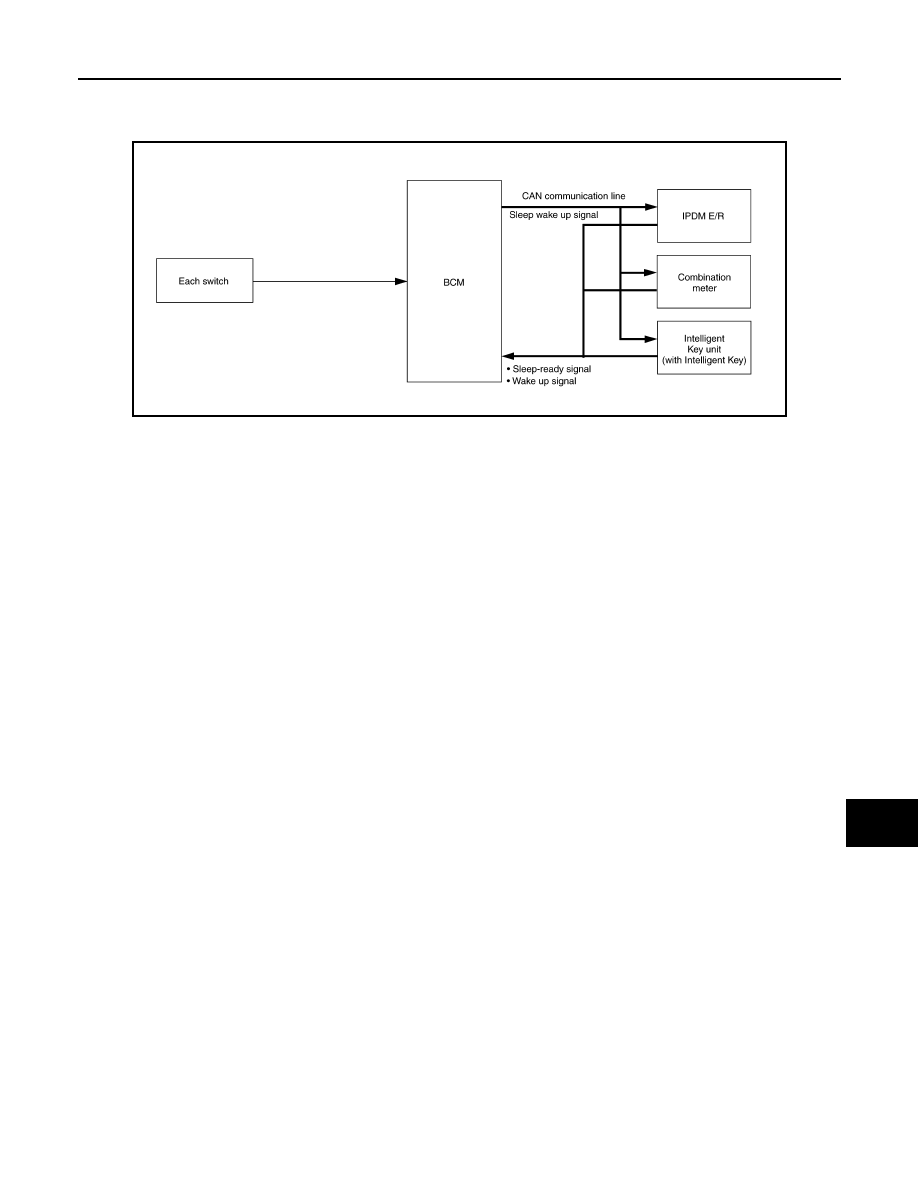

System Diagram

INFOID:0000000005255737

System Description

INFOID:0000000005255738

OUTLINE

• BCM incorporates a power consumption control function that reduces the power consumption according to

the vehicle status.

• BCM switches the status (control mode) by itself with the power saving control function. It performs the sleep

request to each unit [IPDM E/R, combination meter and Intelligent Key unit (with Intelligent Key)] that oper-

ates with the ignition switch OFF.

Normal mode (wake-up)

- CAN communication is normally performed with other units

- Each control with BCM is operating properly

CAN communication sleep mode (CAN sleep)

- CAN transmission is stopped

- Control with BCM only is operating

Low power consumption mode (BCM sleep)

- Low power consumption control is active

- CAN transmission is stopped

LOW POWER CONSUMPTION CONTROL WITH BCM

BCM reduces the power consumption with the following operation in the low power consumption mode.

• The reading interval of the each switches changes from 10 ms interval to 20 ms interval.

Sleep mode activation

• BCM receives the sleep-ready signal (ready) from IPDM E/R, combination meter and Intelligent Key unit

(with Intelligent Key) via CAN communication.

• BCM transmits the sleep wake up signal (sleep) to each unit when all of the CAN sleep conditions are ful-

filled.

• Each unit stops the transmission of CAN communication with the sleep wake up signal. BCM is in CAN com-

munication sleep mode.

• BCM is in the low power consumption mode and perform the low power consumption control when all of the

BCM sleep conditions are fulfilled with CAN sleep condition.

AWMIA0019GB

2010 Pathfinder

BCS-14

< FUNCTION DIAGNOSIS >

POWER CONSUMPTION CONTROL SYSTEM

Sleep condition

Wake-up operation

• BCM transmits sleep wake up signal (wake up) to each unit when any condition listed below is established,

and then goes into normal mode from low power consumption mode.

• Each unit starts transmissions with CAN communication by receiving sleep wake up signals. Each unit trans-

mits wake up signals to BCM with CAN communication to convey the start of CAN communication.

Wake-up condition

CAN sleep condition

BCM sleep condition

• Receiving the sleep-ready signal (ready) from all units
• Ignition switch: OFF
• Vehicle security system alarm: No operation
• Warning lamp: No operation
• Warning chime: No operation
• Stop lamp switch: OFF
• Key switch status: No change for 2 seconds
• Hazard warning lamp: No operation
• Exterior  lamp:  OFF
• Door lock status: No change for 2 seconds
• CONSULT-III communication status: No communication
• Door switch status: No change for 2 seconds

The controls only BCM are completed.
(Interior room lamp battery saver: Time out etc.)

BCM wake-up condition

• Ignition switch: OFF

 ACC or ON

• Stop lamp switch: ON (Depress brake pedal)
• Any door switch: OFF

 ON

• Lighting switch: OFF

 1ST or PASS

• Hazard switch: OFF

 ON

• Back door opener switch OFF

 ON

• Remote keyless entry receiver: Receiving (with remote keyless entry)
• Intelligent Key unit: Receiving (with Intelligent Key)

2010 Pathfinder

BCS

POWER CONSUMPTION CONTROL SYSTEM

BCS-15

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

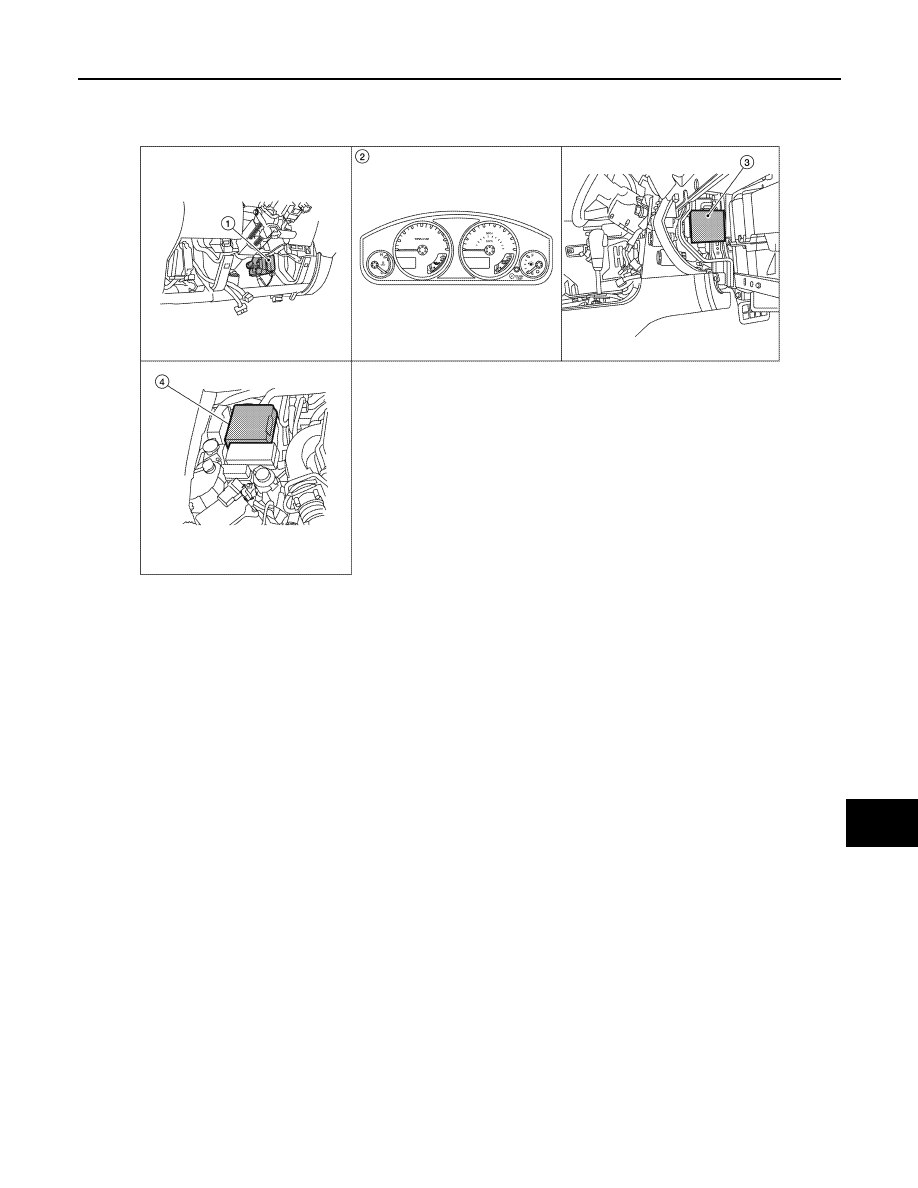

Component Parts Location

INFOID:0000000005255739

1.

BCM M18, M19, M20 (view with low-
er instrument lower panel LH re-
moved)

2.

Combination meter M24

3.

Intelligent Key unit M164 (with Intelli-
gent Key) (view with glove box re-
moved)

4.

IPDM E/R

ALMIA0309ZZ

2010 Pathfinder

BCS-16

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000005255740

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.

NOTE:

It can perform the diagnosis modes except the following for all sub system selection items.

1: With remote keyless entry system
2: With Intelligent Key

BCM

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

SELF-DIAG RESULTS

Displays the diagnosis results judged by BCM. Refer to

BCS-54, "DTC Index"

.

CAN DIAG SUPPORT MNTR

Monitors the reception status of CAN communication viewed from BCM.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

ECU IDENTIFICATION

The BCM part number is displayed.

CONFIGURATION

• Enables to read and save the vehicle specification.
• Enables to write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

BCM

BCM

×

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Remote keyless entry system

1

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

Air conditioner

AIR CONDITONER

×

Intelligent Key system

2

INTELLIGENT KEY

×

Combination switch

COMB SW

×

Immobilizer

IMMU

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Back door open

TRUNK

×

×

RAP (retained accessory power)

RETAINED PWR

×

×

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS (tire pressure monitoring sys-
tem)

AIR PRESSURE MONITOR

×

×

×

Vehicle security system

THEFT ALM

×

×

×

Panic alarm

PANIC ALARM

×

2010 Pathfinder
