DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-343

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

DATA MONITOR

Display Item List

A/C AND AV SWITCH ASSEMBLY
A/C AND AV SWITCH ASSEMBLY : Component Function Check

INFOID:0000000005259518

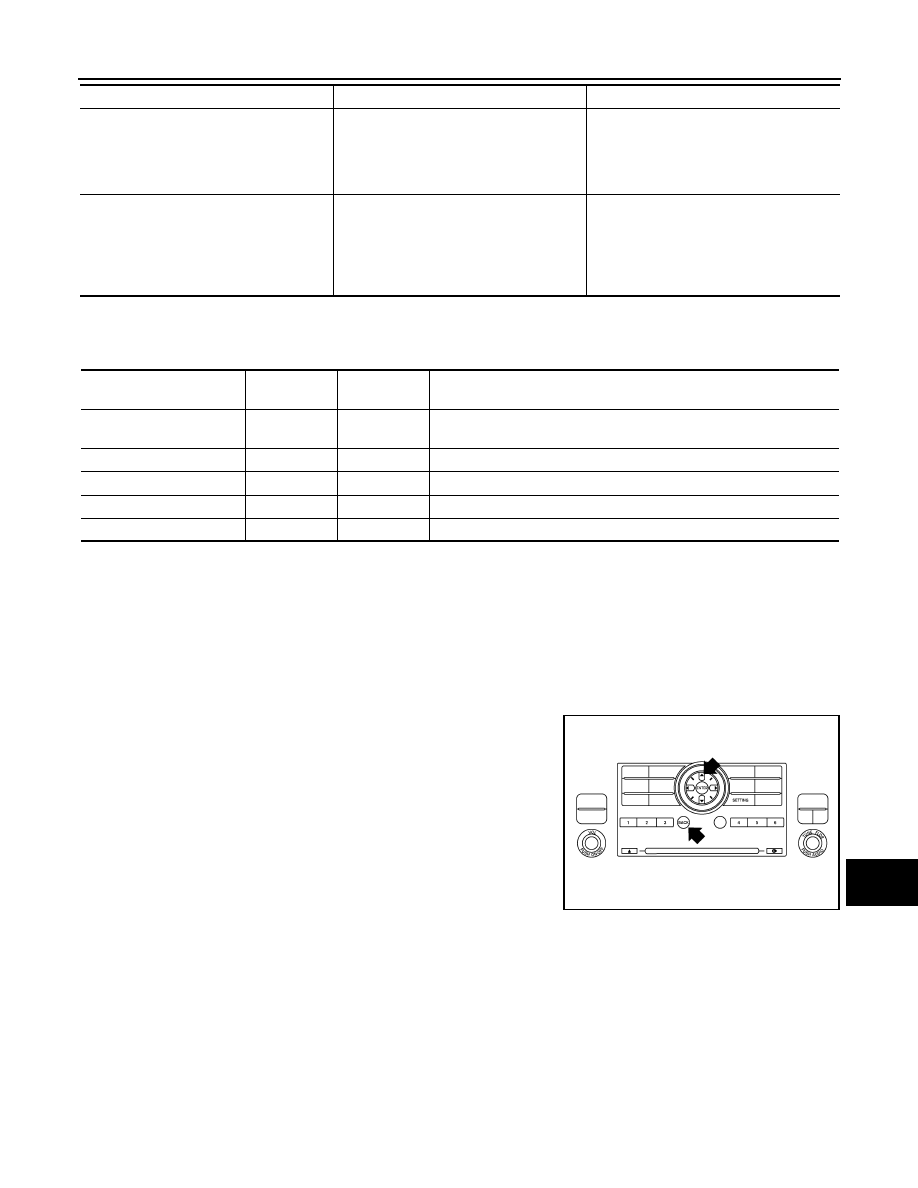

A/C and AV switch assembly self-diagnosis function

Description

The ON/OFF operation (continuity) of each switch in the A/C and AV switch assembly can be checked.

Self-diagnosis mode

• Press the “BACK” button and the “UP” button within 10 seconds

after turning the ignition switch from OFF to ACC and hold them for

3 seconds or more. When the self-diagnosis mode starts, a beep

will sound and all LED indicators of the switch will illuminate.

• The continuity of each switch and control dial of the A/C and AV

switch assembly can be checked. If the switch is operating nor-

mally, the system will beep and the LED's will illuminate when each

switch is operated.

Finishing self-diagnosis mode

Self-diagnosis mode is canceled when the ignition switch is turned OFF.

• AV COMM CIRCUIT [U1300]
• REAR CAMERA LAN CONN [U1252]

• A malfunction is detected in camera con-

trol unit power supply and ground circuits

• Malfunction is detected on AV communi-

cation signal between Camera control
unit and AV control unit

Camera control unit power supply and
ground circuits

• AV COMM CIRCUIT [U1300]
• CAMERA CONT. CONN [U1250]
• REAR CAMERA LAN CONN [U1252]

• Malfunction is detected on AV communi-

cation circuit between camera control
unit and AV control unit

• Malfunction is detected on AV communi-

cation signal between camera control
unit and AV control unit

AV communication circuit between camera
control unit and AV control unit

Error item

Description

Possible malfunction factor/Action to take

Display item [unit]

ALL

SIGNALS

SELECTION

FROM MENU

Description

VHCL SPD SIG [ON/OFF]

Displays “ON” when vehicle speed > 0 km/h. Displays “OFF” when ve-
hicle speed = 0 km/h.

PKB SIG [ON/OFF]

Displays [ON/OFF] condition of parking brake switch.

ILLUM SIG [ON/OFF]

Displays [ON/OFF] condition of lighting switch.

IGN SIG [ON/OFF]

Displays [ON/OFF] condition of ignition switch.

REV SIG [ON/OFF]

Displays [ON/OFF] condition of back-up lamp switch.

AWIIA0171GB

2010 Pathfinder

AV-344

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

U1000 CAN COMM CIRCUIT

COMPONENT DIAGNOSIS

U1000 CAN COMM CIRCUIT

Description

INFOID:0000000005259519

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-

tiplex communication line with high data communication speed and excellent error detection ability. Many elec-

tronic control units are equipped onto a vehicle and each control unit shares information and links with other

control units during operation (not independent). In CAN communication, control units are connected with 2

communication lines (CAN-H, CAN-L) allowing a high rate of information transmission with less wiring. Each

control unit transmits/receives data but selectively reads required data only.

CAN Communication Signal Chart. Refer to

LAN-13, "How to Use CAN Communication Signal Chart"

DTC Logic

INFOID:0000000005259520

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000005259521

PERFORM SELF DIAGNOSTIC

1. Turn ignition switch ON and wait for 2 seconds or more.

2. Check “Self Diagnostic Result” of “MULTI AV”.
Is “CAN COMM CIRCUIT” displayed?

YES

>> Refer to “LAN system”. Refer to

LAN-14, "Trouble Diagnosis Flow Chart"

>> Refer to GI section. Refer to

GI-37, "Intermittent Incident"

DTC

Display contents of CON-

SULT-III

Diagnostic item is detected when ...

Probable malfunction location

U1000

CAN COMM CIRCUIT

When AV control unit is not transmitting or re-
ceiving CAN communication signal for 2 sec-
onds or more.

CAN communication system

2010 Pathfinder

U1010 CONTROL UNIT (CAN)

AV-345

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

U1010 CONTROL UNIT (CAN)

Description

INFOID:0000000005259522

Initial diagnosis of AV control unit.

DTC Logic

INFOID:0000000005259523

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000005259524

REPLACE AV CONTROL UNIT

When DTC U1010 is detected, replace AV control unit. Refer to

AV-289, "Removal and Installation"

>> Inspection End.

DTC

Display contents of CON-

SULT-III

Diagnostic item is detected when ...

Probable malfunction location

U1010

CONTROL UNIT (CAN)

CAN initial diagnosis malfunction is detected

AV control unit

2010 Pathfinder

AV-346

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

U1200 AV CONTROL UNIT

U1200 AV CONTROL UNIT

Description

INFOID:0000000005259525

Replace the AV control unit if this DTC is displayed. Refer to

AV-289, "Removal and Installation"

DTC Logic

INFOID:0000000005259526

Part name

Description

AV CONTROL UNIT

• It is the master unit of the MULTI AV system and it is connected to each control

unit by means of communication. It operates each system according to com-
munication signals from the AV control unit.

• AV control unit includes audio function and vehicle information function.
• It is connected to ECM and combination meter via CAN communication to ob-

tain necessary information for the vehicle information function.

• It inputs the automatic brightness ON/OFF signals that are required for the dis-

play dimming control.

• It inputs the signals for driving status recognition (vehicle speed, reverse and

parking brake).

DTC

Display contents of CONSULT-III

DTC Detection Condition

Action to take

U1200

Control Unit
FLASH- ROM
[U1200]

An internal malfunction is detected in AV control unit
(FLASH-ROM).

Replace AV control unit. Re-
fer to

AV-289, "Removal and

Installation"

2010 Pathfinder

U1201 AV CONTROL UNIT

AV-347

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

U1201 AV CONTROL UNIT

Description

INFOID:0000000005259527

Replace the AV control unit if this DTC is displayed. Refer to

AV-289, "Removal and Installation"

DTC Logic

INFOID:0000000005259528

DTC DETECTION LOGIC

Part name

Description

AV CONTROL UNIT

• It is the master unit of the MULTI AV system and it is connected to each control

unit by means of communication. It operates each system according to com-
munication signals from the AV control unit.

• AV control unit includes audio function and vehicle information function.
• It is connected to ECM and combination meter via CAN communication to ob-

tain necessary information for the vehicle information function.

• It inputs the automatic brightness ON/OFF signals that are required for the dis-

play dimming control.

• It inputs the signals for driving status recognition (vehicle speed, reverse and

parking brake).

DTC

CONSULT-III display

Detection condition

Action to take

U1201

GYRO NO CONN
[U1201]

An internal malfunction is detected in AV control unit (gy-
rocompass disconnection).

Replace AV control unit. Refer
to

AV-289, "Removal and Instal-

lation"

2010 Pathfinder

AV-348

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

U1204 GPS COMM

U1204 GPS COMM

Description

INFOID:0000000005259529

Replace the AV control unit if this DTC is displayed. Refer to

AV-289, "Removal and Installation"

DTC Logic

INFOID:0000000005259530

DTC DETECTION LOGIC

Part name

Description

AV CONTROL UNIT

• It is the master unit of the MULTI AV system and it is connected to each control

unit by means of communication. It operates each system according to com-
munication signals from the AV control unit.

• AV control unit includes audio function and vehicle information function.
• It is connected to ECM and combination meter via CAN communication to ob-

tain necessary information for the vehicle information function.

• It inputs the automatic brightness ON/OFF signals that are required for the dis-

play dimming control.

• It inputs the signals for driving status recognition (vehicle speed, reverse and

parking brake).

DTC

CONSULT-III display

Detection condition

Action to take

U1204

GPS COMM
[U1204]

An internal malfunction is detected in AV control unit (GPS
malfunction).

Replace AV control unit. Refer
to

AV-460, "Removal and Instal-

lation"

2010 Pathfinder

U1205 GPS ROM

AV-349

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

U1205 GPS ROM

Description

INFOID:0000000005259531

Replace the AV control unit if this DTC is displayed. Refer to

AV-289, "Removal and Installation"

DTC Logic

INFOID:0000000005259532

DTC DETECTION LOGIC

Part name

Description

AV CONTROL UNIT

• It is the master unit of the MULTI AV system and it is connected to each control

unit by means of communication. It operates each system according to com-
munication signals from the AV control unit.

• AV control unit includes audio function and vehicle information function.
• It is connected to ECM and combination meter via CAN communication to ob-

tain necessary information for the vehicle information function.

• It inputs the automatic brightness ON/OFF signals that are required for the dis-

play dimming control.

• It inputs the signals for driving status recognition (vehicle speed, reverse and

parking brake).

DTC

CONSULT-III display

Detection condition

Action to take

U1205

GPS ROM
[U1205]

An internal malfunction is detected in AV control unit (GPS
malfunction).

Replace AV control unit. Refer
to

AV-460, "Removal and Instal-

lation"

2010 Pathfinder

AV-350

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITH NAVIGATION]

U1206 GPS RAM

U1206 GPS RAM

Description

INFOID:0000000005259533

Replace the AV control unit if this DTC is displayed. Refer to

AV-289, "Removal and Installation"

DTC Logic

INFOID:0000000005259534

DTC DETECTION LOGIC

Part name

Description

AV CONTROL UNIT

• It is the master unit of the MULTI AV system and it is connected to each control

unit by means of communication. It operates each system according to com-
munication signals from the AV control unit.

• AV control unit includes audio function and vehicle information function.
• It is connected to ECM and combination meter via CAN communication to ob-

tain necessary information for the vehicle information function.

• It inputs the automatic brightness ON/OFF signals that are required for the dis-

play dimming control.

• It inputs the signals for driving status recognition (vehicle speed, reverse and

parking brake).

DTC

CONSULT-III display

Detection condition

Action to take

U1206

GPS RAM
[U1206]

An internal malfunction is detected in AV control unit (GPS
malfunction).

Replace AV control unit. Refer
to

AV-460, "Removal and Instal-

lation"

2010 Pathfinder
