< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000003937647

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000004448896

NOTE:
• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

″

LOCK

″

position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-
anism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.

OPERATION PROCEDURE

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

Use the Intelligent Key or mechanical key to turn the ignition switch to the

″

ACC

″

position. At this time, the

steering lock will be released.

Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.

Perform the necessary repair operation.

When the repair work is completed, return the ignition switch to the

″

LOCK

″

position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

Perform a self-diagnosis check of all control units using CONSULT-III.

Precaution for Rear Suspension

INFOID:0000000003937648

• When installing the rubber bushings, the final tightening must be done under unladen condition and with the

tires on level ground. Oil will shorten the life of the rubber bushings, so wipe off any spilled oil immediately.

2009 Pathfinder

PRECAUTIONS

RSU-3

< PRECAUTION >

RSU

• Unladen condition means the fuel tank, engine coolant and lubricants are at the full specification. The spare

tire, jack, hand tools, and mats are in their designated positions. There are no passengers in the vehicle.

• After installing suspension components, check the wheel alignment.
• Caulking nuts are not reusable. Always use new caulking nuts for installation. New caulking nuts are pre-

oiled, do not apply any additional lubrication.

2009 Pathfinder

RSU-4

< PREPARATION >

PREPARATION

PREPARATION

Commercial Service Tool

INFOID:0000000003937649

Tool name

Description

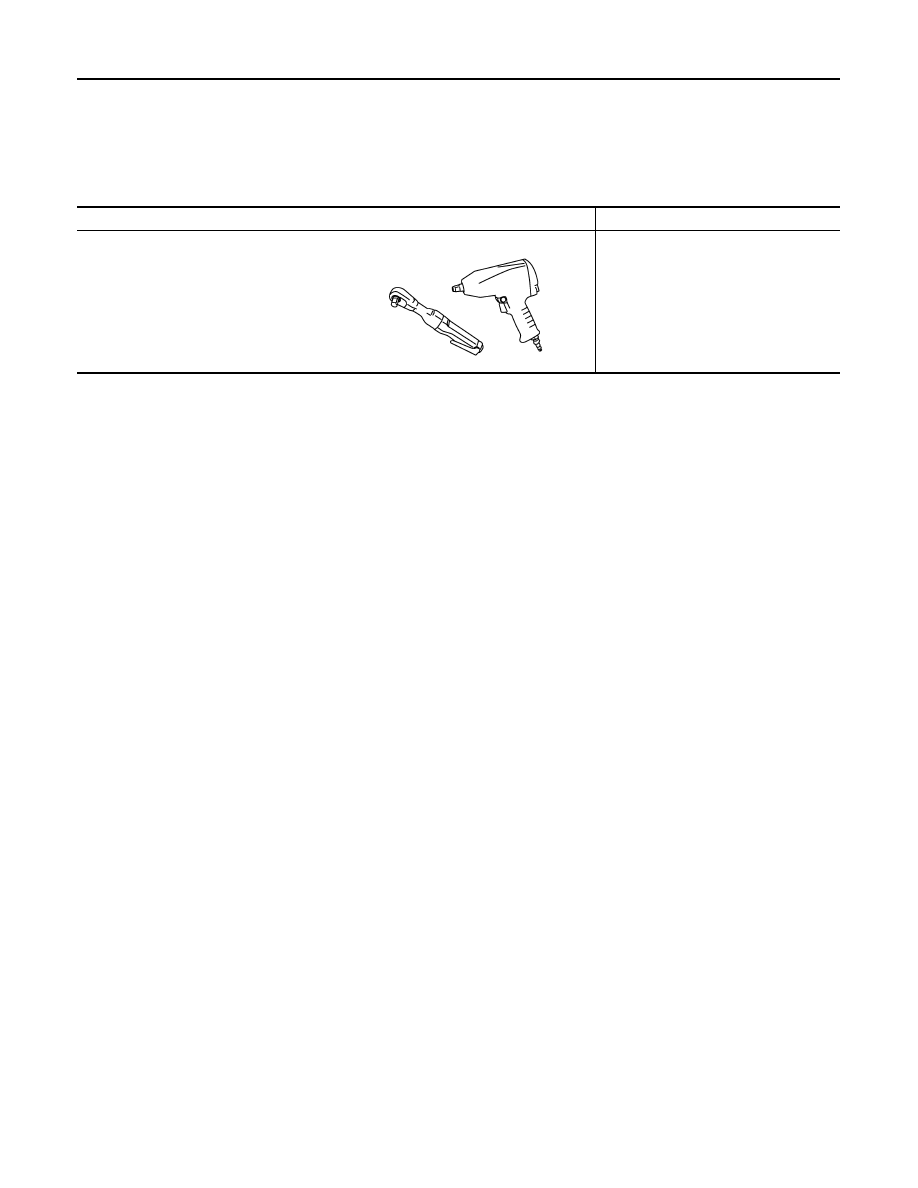

Power tool

Removing bolts and nuts

PBIC0190E

2009 Pathfinder

NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING

RSU-5

< SYMPTOM DIAGNOSIS >

RSU

SYMPTOM DIAGNOSIS

NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000003937650

Use chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

: Applicable

Reference page

(2S

30)

(2S

50)

(R18

0A)

Possible cause and SUSPECTED PARTS

rop

er i

lla

, lo

k abs

rber de

form

g o

r m

oun

teri

ora

tio

Part

s interference

rin

rrec

t wh

l a

lig

tab

ili

r ba

r fa

tig

PROPELLER S

DIFF

ERENTIAL

FRONT S

PENSION

FRONT A

TIRE

ROAD WHEEL

DRIVE SHAFT

BRAKE

STE

RING

Symptom

Noise

Shake

Vibration

Shimmy

Shudder

Poor quality ride or handling

2009 Pathfinder

RSU-6

< ON-VEHICLE MAINTENANCE >

REAR SUSPENSION ASSEMBLY

ON-VEHICLE MAINTENANCE

REAR SUSPENSION ASSEMBLY

On-Vehicle Inspection

INFOID:0000000003937651

• Check all of the component mountings for any excessive looseness, or backlash. Repair or replace the com-

ponents as necessary.

• Check the components for any excessive wear, damage, or abnormal conditions. Repair or replace the com-

ponents as necessary.

• Check the shock absorbers for any oil leaks or damage, and replace as necessary.

Wheel Alignment Inspection

INFOID:0000000003937652

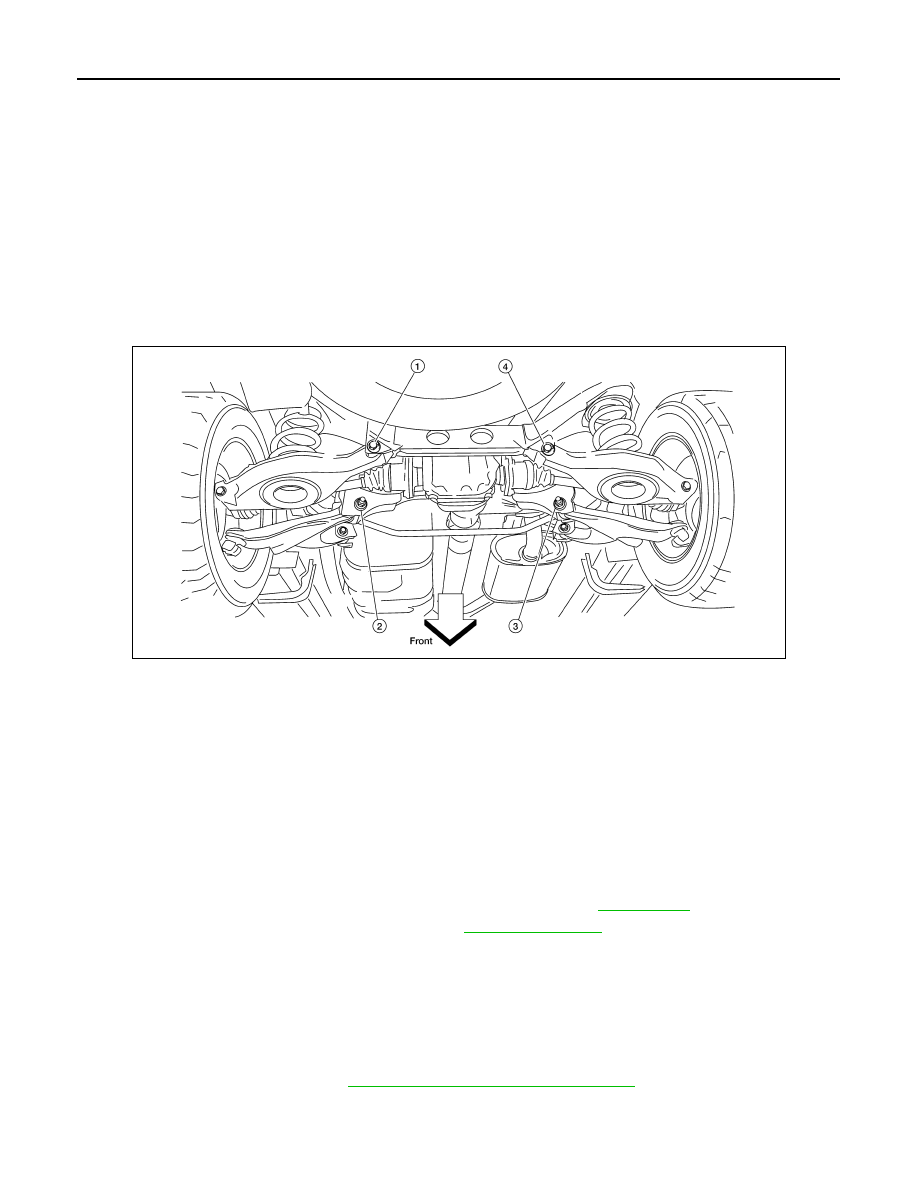

Rear Wheel Alignment Adjusting Bolts

PRELIMINARY INSPECTION

WARNING:

Always adjust the alignment with the vehicle on a flat surface.
NOTE:
If alignment is out of specification, inspect and replace any damaged or worn rear suspension parts before
making any adjustments.
1.

Check and adjust the wheel alignment with the vehicle under unladen conditions. “Unladen conditions”
means that the fuel, coolant, and lubricants are all full, and that the spare tire, jack, hand tools and mats
are in their designated positions, and there are no passengers in the vehicle.

Check the tires for incorrect air pressure and excessive wear. Refer to

WT-52, "Tire"

Check the wheels for runout and damage. Refer to

WT-46, "Inspection"

Check the wheel bearing axial end play.

Check the shock absorbers for any oil leaks or damage.

Check each mounting point of the suspension components for any excessive looseness or damage.

Check each link, arm, and the rear suspension member for any damage.

Check the vehicle height. Refer to

FSU-25, "Wheelarch Height (Unladen*1)"

GENERAL INFORMATION AND RECOMMENDATIONS

A Four-Wheel Thrust Alignment should be performed.

WEIA0102E

Rear lower link adjusting bolt, LH

Front lower link adjusting bolt, LH

Front lower link adjusting bolt, RH

Rear lower link adjusting bolt, RH

Axial end play

: 0 mm (0 in)

2009 Pathfinder

REAR SUSPENSION ASSEMBLY

RSU-7

< ON-VEHICLE MAINTENANCE >

RSU

• This type of alignment is recommended for any NISSAN vehicle.
• The four-wheel “thrust” process helps ensure that the vehicle is properly aligned and the steering wheel

is centered.

• The alignment machine itself should be capable of accepting any NISSAN vehicle.
• The alignment machine should be checked to ensure that it is level.

Make sure the alignment machine is properly calibrated.
• Your alignment machine should be regularly calibrated in order to give correct information.
• Check with the manufacturer of your specific alignment machine for their recommended Service/Cali-

bration Schedule.

THE ALIGNMENT PROCESS

IMPORTANT: Use only the alignment specifications listed in this Service Manual. Refer to

RSU-23, "Wheel

Alignment"

When displaying the alignment settings, many alignment machines use “indicators”: (Green/red, plus or
minus, Go/No Go). Do NOT use these indicators.
• The alignment specifications programmed into your alignment machine that operate these indicators

may not be correct.

• This may result in an ERROR.

Some newer alignment machines are equipped with an optional “Rolling Compensation” method to “com-
pensate” the sensors (alignment targets or head units). Do NOT use this “Rolling Compensation”
method.
• Use the “Jacking Compensation” method. After installing the alignment targets or head units, raise the

vehicle and rotate the wheels 1/2 turn both ways.

• See Instructions in the alignment machine you are using for more information.

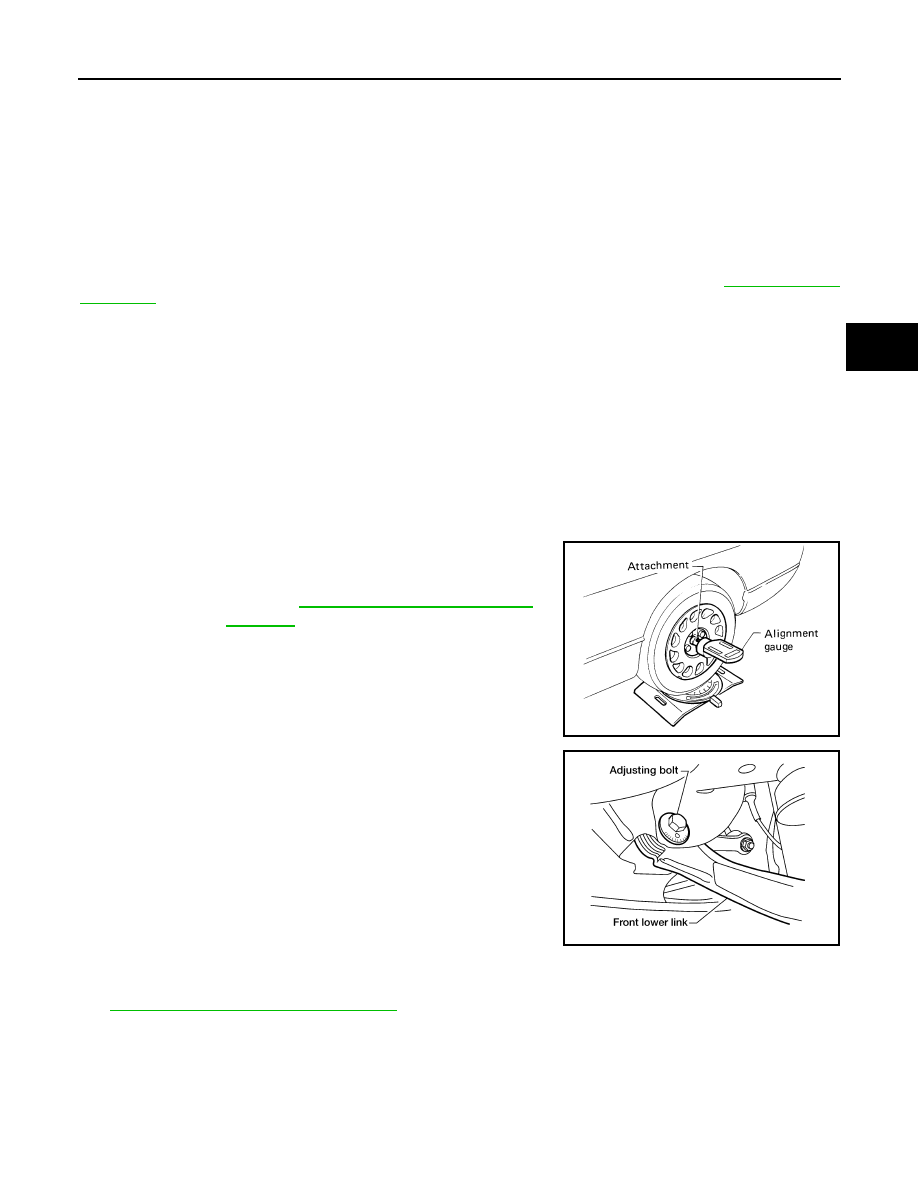

CAMBER

Measure camber of both the right and left wheels with a suitable
alignment gauge and adjust as necessary to specification.

If outside of the specified value, adjust the camber using the
adjusting bolt in the front lower link.

CAUTION:

After adjusting the camber then check the toe-in.
NOTE:
Camber changes about 0

5' with each graduation of the adjust-

ing bolt.

Tighten the adjusting bolt nuts to specification.

TOE-IN

Bounce the rear of the vehicle up and down two to three times to stabilize the vehicle height. Refer to

FSU-25, "Wheelarch Height (Unladen*1)"

Push the vehicle straight ahead about 5 m (16 ft).

Camber

: Refer to

FSU-24, "Wheel Alignment (Un-

laden*1)"

SRA096A

LEIA0041E

2009 Pathfinder

RSU-8

< ON-VEHICLE MAINTENANCE >

REAR SUSPENSION ASSEMBLY

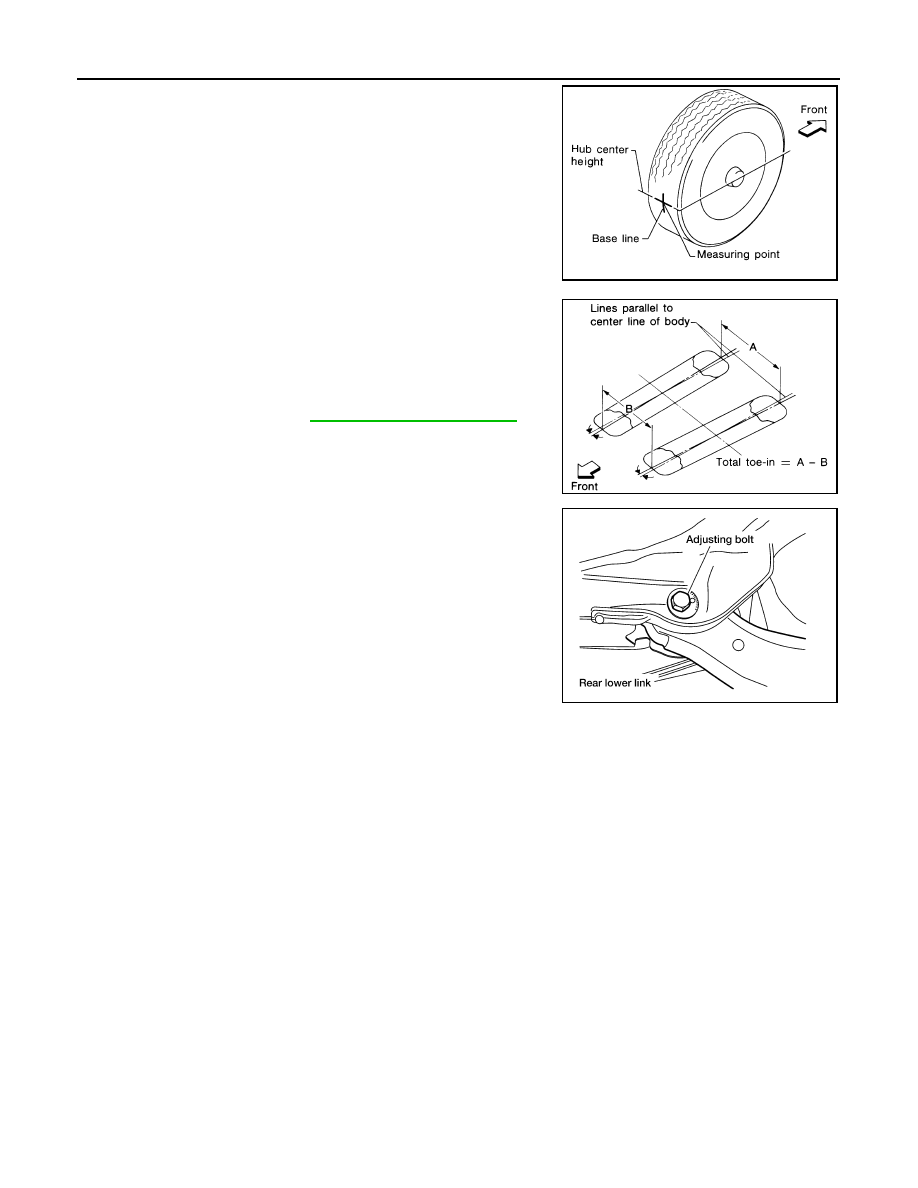

Put a mark on the base line of the tread (rear side) of both of the
tires at the same height as the center of the hub. These will be
the measuring points.

Measure the distance “A” (rear side) across from tire to tire.

Push the vehicle slowly ahead to rotate the wheels 180

degrees (a half turn).
If the wheels are rotated more than 180

degrees (a half turn),

then repeat the above steps. Never push the vehicle backward.

Measure the distance “B” (front side) across from tire to tire.

If the toe-in is outside the specified value, adjust the toe-in using
the adjusting bolt in the rear lower link.

CAUTION:

Be sure to adjust equally on the RH and LH sides using the
adjusting bolt.
NOTE:
Toe changes about 1.5 mm (0.059 in) [one side] with each grad-
uation of the adjusting bolt.

Tighten the adjusting bolt nuts to specification.

SFA614B

Total toe-in

: Refer to

RSU-23, "Wheel Alignment"

SFA234AC

LEIA0009E

2009 Pathfinder

SHOCK ABSORBER

RSU-9

< ON-VEHICLE MAINTENANCE >

RSU

SHOCK ABSORBER

Inspection

INFOID:0000000003937653

• Check for oil leakage on welded or gland packing portions.
• Check the shock absorber for smooth operation through a full stroke, both compression and extension.

2009 Pathfinder
