Nissan Pathfinder (2009 year). Manual - part 553

RAX-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Caution

INFOID:0000000003938792

Observe the following precautions when disassembling and servicing drive shaft.
• Perform work in a location which is as dust-free as possible.
• Before disassembling and servicing, clean the outside of parts.
• Prevention of the entry of foreign objects must be taken into account during disassembly of the service loca-

tion.

• Disassembled parts must be carefully reassembled in the correct order. If work is interrupted, a clean cover

must be placed over parts.

• Paper shop cloths must be used. Fabric shop cloths must not be used because of the danger of lint adhering

to parts.

• Disassembled parts (except for rubber parts) should be cleaned with kerosene which shall be removed by

blowing with air or wiping with paper shop cloths.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000004448894

NOTE:
• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

″

LOCK

″

 position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-
anism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.

OPERATION PROCEDURE

1.

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

2.

Use the Intelligent Key or mechanical key to turn the ignition switch to the

″

ACC

″

 position. At this time, the

steering lock will be released.

3.

Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.

4.

Perform the necessary repair operation.

5.

When the repair work is completed, return the ignition switch to the

″

LOCK

″

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6.

Perform a self-diagnosis check of all control units using CONSULT-III.

2009 Pathfinder

PREPARATION

RAX-3

< PREPARATION >

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000003938793

The actual shapes of the Kent-Moore tools may differ from those of the special service tools illustrated here.

Commercial Service Tool

INFOID:0000000003938794

Tool number
(Kent-Moore No.)
Tool name

Description

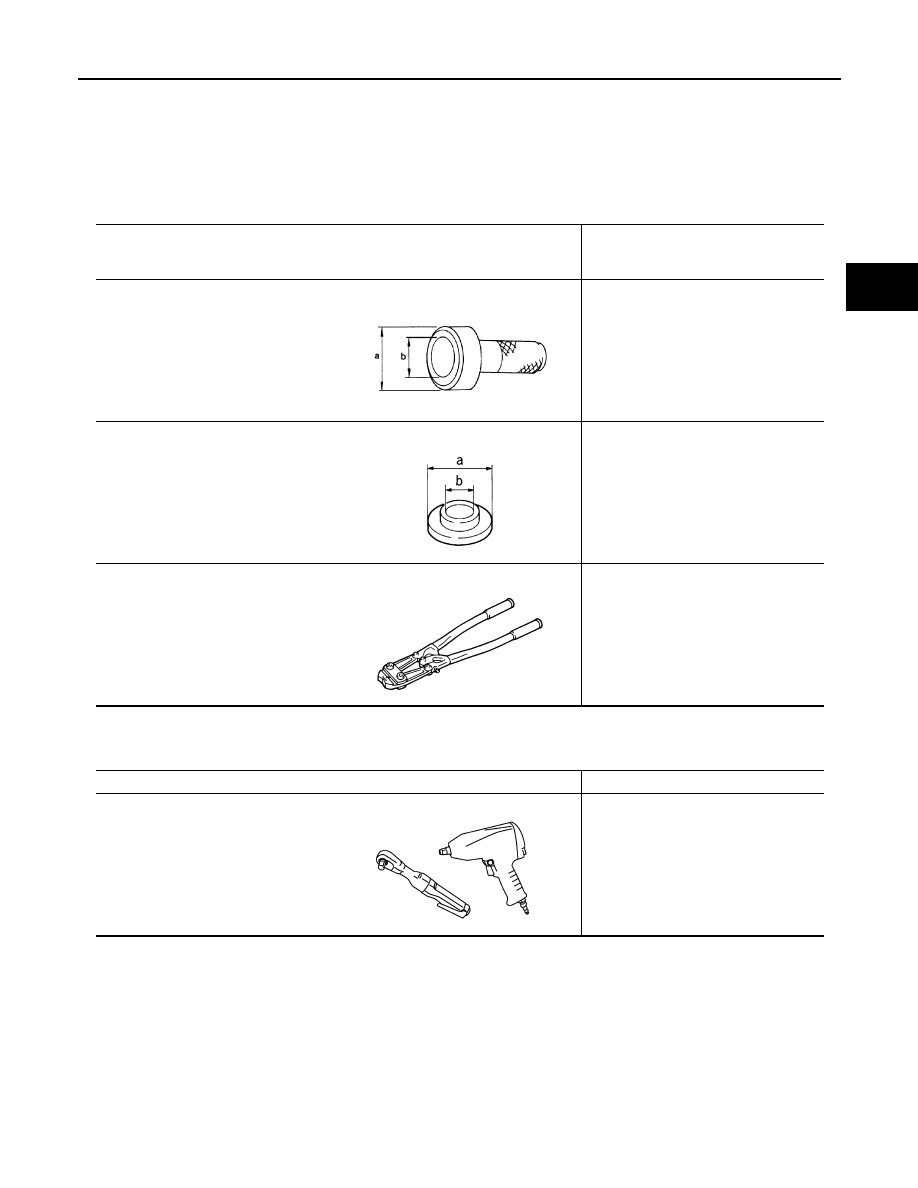

KV38100500
(

—

)

Drift

Installing drive shaft plug
a: 80 mm (3.15 in) dia.
b: 60 mm (2.36 in) dia.

KV38102200
(

—

)

Drift

Installing drive shaft plug
a: 90 mm (3.54 in) dia.
b: 31 mm (1.22 in) dia.

KV40107300
(

—

)

Boot band crimping tool

Installing boot bands

ZZA0701D

ZZA0920D

ZZA1229D

Tool name

Description

Power tools

Removing bolts and nuts

PBIC0190E

2009 Pathfinder

RAX-4

< SYMPTOM DIAGNOSIS >

NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING

SYMPTOM DIAGNOSIS

NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000003938795

Use chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

×

: Applicable

Reference page

—

RAX-9

—

RAX-8

—

DL

N-40

2,

"NVH T

ro

ubl

es

ho

ot

ing

 Cha

rt"

 (R

20

0)

DL

N-43

9,

"NVH T

ro

ubl

es

ho

ot

ing

 Cha

rt"

 (R

23

0)

F

A

X-4,

 "NVH T

ro

u

b

les

ho

ot

ing

 Ch

art"

FS

U-5,

"NVH T

rou

bl

es

ho

oti

n

g

 Cha

rt"

RSU-5

,

"NV

H

 T

rou

ble

s

hoo

ti

ng Cha

rt"

W

T

-4

5, "

N

V

H

 T

rou

bl

es

ho

oti

n

g

 Cha

rt"

W

T

-4

5, "

N

V

H

 T

rou

bl

es

ho

oti

n

g

 Cha

rt"

DL

N-30

7,

 "NVH T

rou

bl

es

ho

ot

in

g

 Cha

rt"

 (2

F1

31

0)

DL

N-31

5,

 "NVH T

rou

bl

es

ho

ot

in

g

 Cha

rt"

 (2S

1

3

30)

DL

N-32

4,

 "NVH T

rou

bl

es

ho

ot

in

g

 Cha

rt"

 (2S

1

3

50)

B

R

-6

, "

N

V

H

 T

rou

bl

es

ho

oti

n

g

 Cha

rt"

ST

-9,

"NVH T

rou

bl

es

ho

ot

ing

 Cha

rt"

Possible cause and SUSPECTED PARTS

Ex

ce

ss

iv

e j

o

in

t an

g

le

Jo

in

t s

lid

in

g re

si

st

an

ce

Im

b

a

lanc

e

Im

pro

p

e

r in

st

al

la

ti

on

,

lo

ose

n

e

ss

P

a

rt

s interference

REA

R

 FINAL DRIVE

FRO

N

T A

X

L

E

F

R

ONT

 SUSPENSI

ON

REA

R

 SUSPENSI

ON

TI

RE

S

ROAD W

H

EEL

PR

OP

EL

LE

R

 S

H

A

F

T

BR

AK

E

S

S

T

EERING

Symptom

Noise

×

×

×

×

×

×

×

×

×

×

×

×

Shake

×

×

×

×

×

×

×

×

×

×

×

Vibration

×

×

×

×

×

×

×

×

×

Shimmy

×

×

×

×

×

×

×

×

Shudder

×

×

×

×

×

×

×

Poor quality ride or handling

×

×

×

×

×

×

×

×

2009 Pathfinder

WHEEL HUB

RAX-5

< ON-VEHICLE MAINTENANCE >

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

ON-VEHICLE MAINTENANCE

WHEEL HUB

On-Vehicle Inspection and Service

INFOID:0000000003938796

Inspect the components for any looseness or backlash. Inspect each component for any excessive wear or
damage. Replace any components as necessary.

WHEEL BEARING INSPECTION

• Move the rear wheel hub and bearing assembly in the axial direction by hand to check the axial end play.

Check that the axial end play is with specification. Replace the rear wheel hub and bearing assembly as
necessary.

• Rotate the rear wheel hub and bearing assembly to check that there are no unusual noises or other abnor-

mal conditions. Replace the rear wheel hub and bearing assembly as necessary.

Axial end play

: 0 mm (0 in)

2009 Pathfinder

RAX-6

< ON-VEHICLE REPAIR >

WHEEL HUB

ON-VEHICLE REPAIR

WHEEL HUB

Component

INFOID:0000000003938797

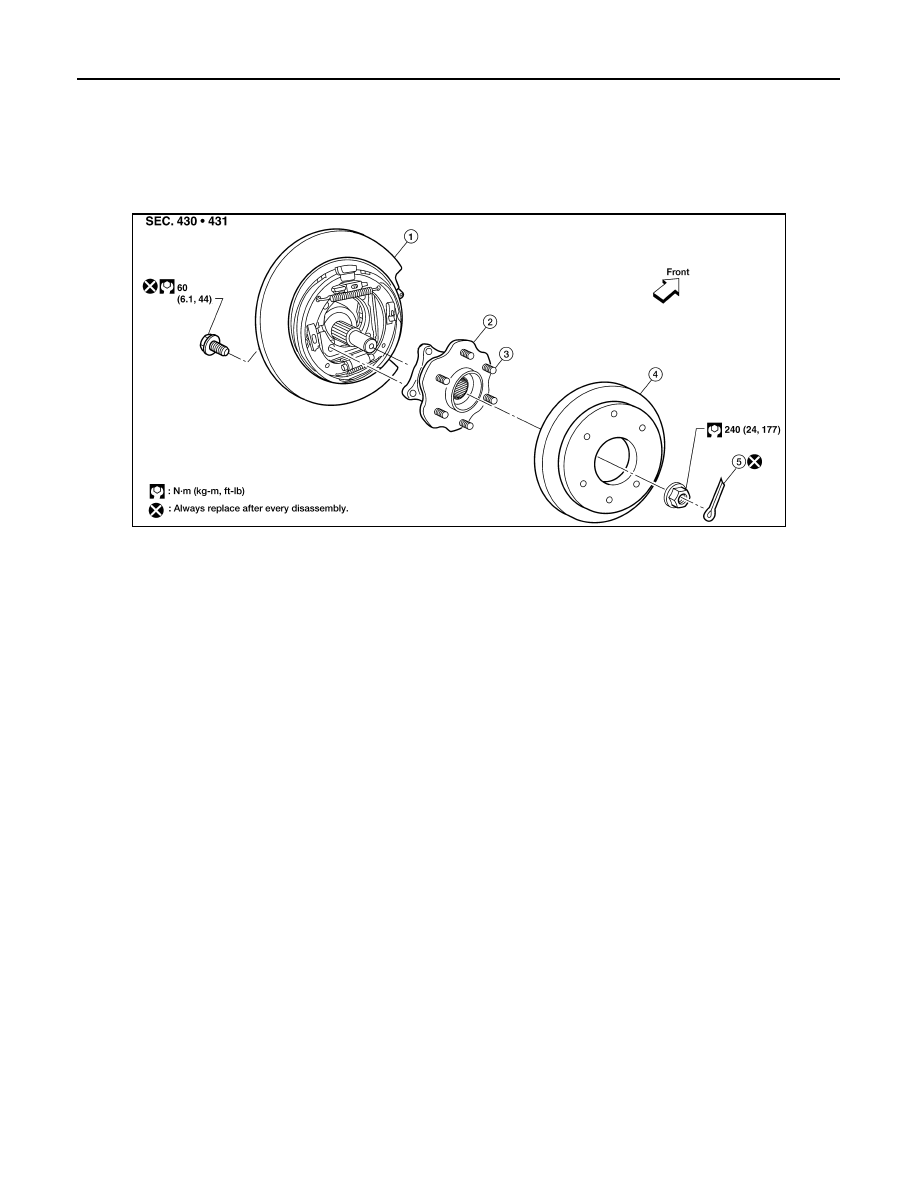

Rear Wheel Hub and Bearing Assembly

WDIA0229E

1.

Back plate

2.

Rear wheel hub and bearing assembly

3.

Wheel stud

4.

Rear disc rotor

5.

Cotter pin

2009 Pathfinder

REAR DRIVE SHAFT

RAX-7

< ON-VEHICLE REPAIR >

C

E

F

G

H

I

J

K

L

M

A

B

2009 Pathfinder

RAX-8

< REMOVAL AND INSTALLATION >

WHEEL HUB

REMOVAL AND INSTALLATION

WHEEL HUB

Removal and Installation

INFOID:0000000003938799

REMOVAL

1.

Remove the wheel and tire assembly using power tool.

2.

Remove the rear brake caliper, without disconnecting the hydraulic hose, using power tool. Reposition the
rear brake caliper aside using suitable wire. Refer to

BR-44, "Removal and Installation of Brake Caliper

and Disc Rotor"

.

NOTE:
Do not depress the brake pedal while the brake caliper is removed.

3.

Remove the rear disc rotor.

4.

Remove the cotter pin, then remove the rear drive shaft nut using power tool.
• Discard the cotter pin, use a new one for installation.

5.

Remove the rear drive shaft. Refer to

RAX-9, "Removal and Installation"

.

6.

Remove the four rear wheel hub and bearing assembly bolts using power tool.
• Discard the four rear wheel hub and bearing assembly bolts, use new ones for installation.

7.

Remove the rear wheel hub and bearing assembly.

INSTALLATION

Installation is in the reverse order of removal.
• Use a new cotter pin for installation.
• Use new rear wheel hub and bearing assembly bolts for installation.
• Apply Genuine NISSAN grease or equivalent to contact surface between wheel hub and drive shaft. Refer to

MA-12, "Fluids and Lubricants"

.

2009 Pathfinder

REAR DRIVE SHAFT

RAX-9

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

REAR DRIVE SHAFT

Removal and Installation

INFOID:0000000003938800

REMOVAL

1.

Remove the wheel and tire assembly using power tool.

2.

Remove the cotter pin and discard, then remove the lock nut from the drive shaft.
• Do not reuse the cotter pin, discard after removal and use a new cotter pin for installation.

3.

Remove the six rear drive shaft bolts from the rear final drive assembly flange using power tool.
• Do not reuse the rear drive shaft bolts, discard after removal and use new bolts for installation.

4.

Separate the rear drive shaft from the rear wheel hub and bearing assembly by lightly tapping the end of
the rear drive shaft with a suitable hammer and wood block. If it is difficult to separate, use a suitable
puller.

5.

Remove the rear drive shaft.

CAUTION:

• When removing the rear drive shaft, do not bend at an excessive angle to the rear drive shaft

joint.

• Do not excessively extend the slide joint.

INSPECTION AFTER REMOVAL

• Move the joint up and down, left and right, and in the axial direc-

tion. Check for any rough movement or significant looseness.

• Check the boot for cracks or other damage, and for any grease

leakage.

• If necessary, disassemble the drive shaft, and repair as necessary.

INSTALLATION

Installation is in the reverse order of removal.
• Do not reuse the drive shaft inside flange bolts and washers, discard after removal and use new bolts and

washers for installation.

• Do not reuse the cotter pin, discard after removal and use a new cotter pin for installation.
• Apply Genuine NISSAN grease or equivalent to contact surface between wheel hub and drive shaft. Refer to

MA-12, "Fluids and Lubricants"

.

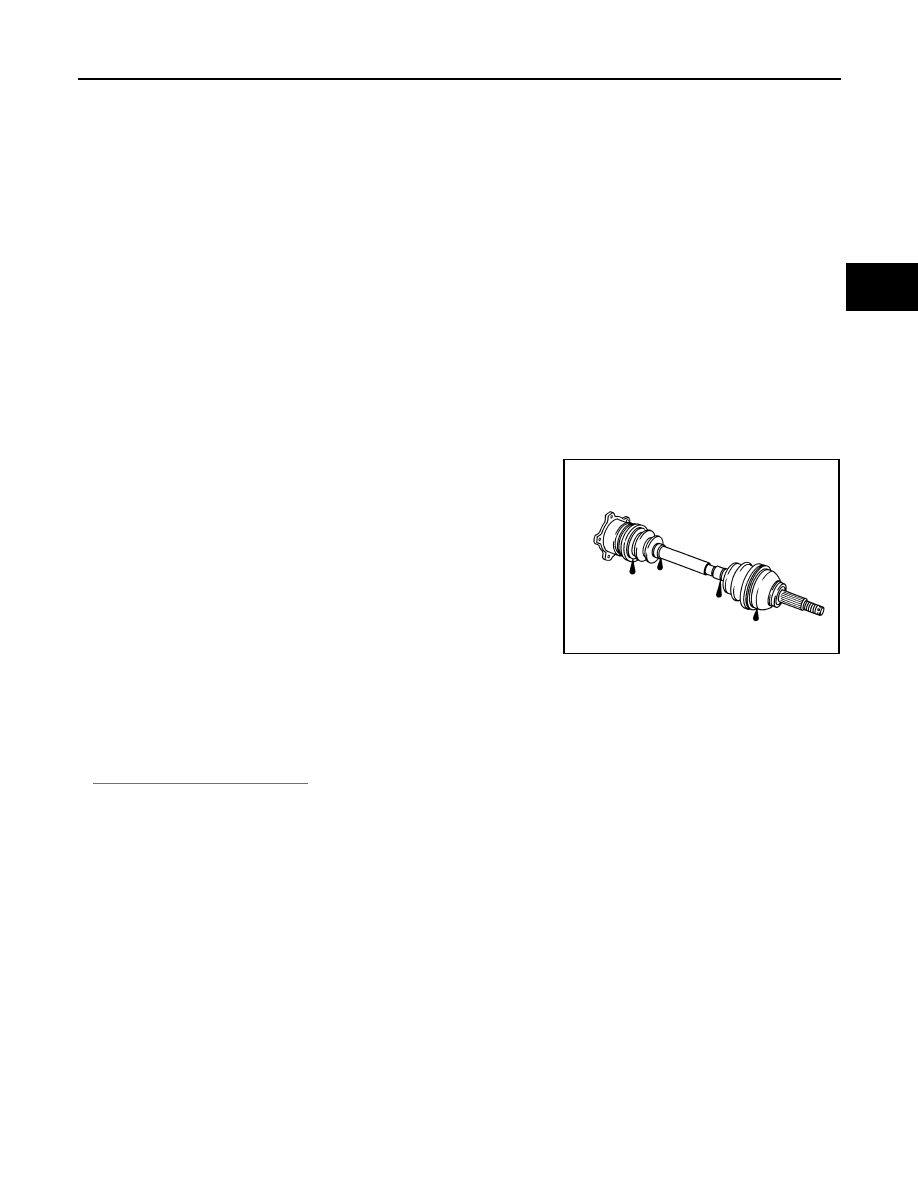

RAA0030D

2009 Pathfinder
