PWC-88

< SYMPTOM DIAGNOSIS >

AUTO OPERATION DOES NOT OPERATE BUT MANUAL OPERATES NORMAL-

LY (PASSENGER SIDE)

AUTO OPERATION DOES NOT OPERATE BUT MANUAL OPERATES
NORMALLY (PASSENGER SIDE)

Diagnosis Procedure

INFOID:0000000003935802

1.

 CHECK ENCODER

Check encoder.
Refer to

PWC-29, "PASSENGER SIDE : Component Function Check"

.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Check intermittent incident. Refer to

GI-49, "Intermittent Incident"

.

2009 Pathfinder

POWER WINDOW RETAINED POWER OPERATION DOES NOT OPERATE

PROPERLY

PWC-89

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

POWER WINDOW RETAINED POWER OPERATION DOES NOT OPER-
ATE PROPERLY

Diagnosis Procedure

INFOID:0000000003935803

1.

 CHECK FRONT DOOR SWITCH

Check front door switch.
Refer to

PWC-33, "Component Function Check"

.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Check intermittent incident. Refer to

GI-49, "Intermittent Incident"

.

2009 Pathfinder

PWC-90

< SYMPTOM DIAGNOSIS >

DOES NOT OPERATE BY KEY CYLINDER SWITCH

DOES NOT OPERATE BY KEY CYLINDER SWITCH

Diagnosis Procedure

INFOID:0000000003935804

1.

 CHECK FRONT DOOR LOCK ASSEMBLY LH (KEY CYLINDER SWITCH)

Check front door lock assembly LH (key cylinder switch).
Refer to

PWC-35, "Component Function Check"

.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Check intermittent incident. Refer to

GI-49, "Intermittent Incident"

.

2009 Pathfinder

KEYLESS POWER WINDOW DOWN DOES NOT OPERATE

PWC-91

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

KEYLESS POWER WINDOW DOWN DOES NOT OPERATE

Diagnosis Procedure

INFOID:0000000003935805

1.

 CHECK INTELLIGENT KEY OR KEYFOB FUNCTION

Check Intelligent Key or keyfob function.
Refer to

BCS-25, "INTELLIGENT KEY : CONSULT-III Function (BCM - INTELLIGENT KEY)"

 with Intelligent

Key or

BCS-20, "MULTIREMOTE ENT : CONSULT-III Function (BCM - MULTIREMOTE ENT)"

 with remote

keyless entry system.
Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-49, "Intermittent Incident"

.

NO

>> Replace BCM. Refer to

BCS-59, "Removal and Installation"

.

2009 Pathfinder

PWC-92

< SYMPTOM DIAGNOSIS >

POWER WINDOW LOCK SWITCH DOES NOT FUNCTION

POWER WINDOW LOCK SWITCH DOES NOT FUNCTION

Diagnosis Procedure

INFOID:0000000003935806

1.

 REPLACE MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

Replace main power window and door lock/unlock switch.
Refer to

PWC-94, "Removal and Installation"

.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Check intermittent incident. Refer to

GI-49, "Intermittent Incident"

.

2009 Pathfinder

PRECAUTIONS

PWC-93

< PRECAUTION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000003935807

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000004414837

NOTE:
• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-

TEM).

• Remove and install all control units after disconnecting both battery cables with the ignition knob in the

″

LOCK

″

 position.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If DTC is detected, perform trouble diagnosis according to self-diagnostic results.

For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-
anism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.

OPERATION PROCEDURE

1.

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

2.

Use the Intelligent Key or mechanical key to turn the ignition switch to the

″

ACC

″

 position. At this time, the

steering lock will be released.

3.

Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.

4.

Perform the necessary repair operation.

5.

When the repair work is completed, return the ignition switch to the

″

LOCK

″

 position before connecting

the battery cables. (At this time, the steering lock mechanism will engage.)

6.

Perform a self-diagnosis check of all control units using CONSULT-III.

2009 Pathfinder

PWC-94

< ON-VEHICLE REPAIR >

POWER WINDOW MAIN SWITCH

ON-VEHICLE REPAIR

POWER WINDOW MAIN SWITCH

Removal and Installation

INFOID:0000000003935808

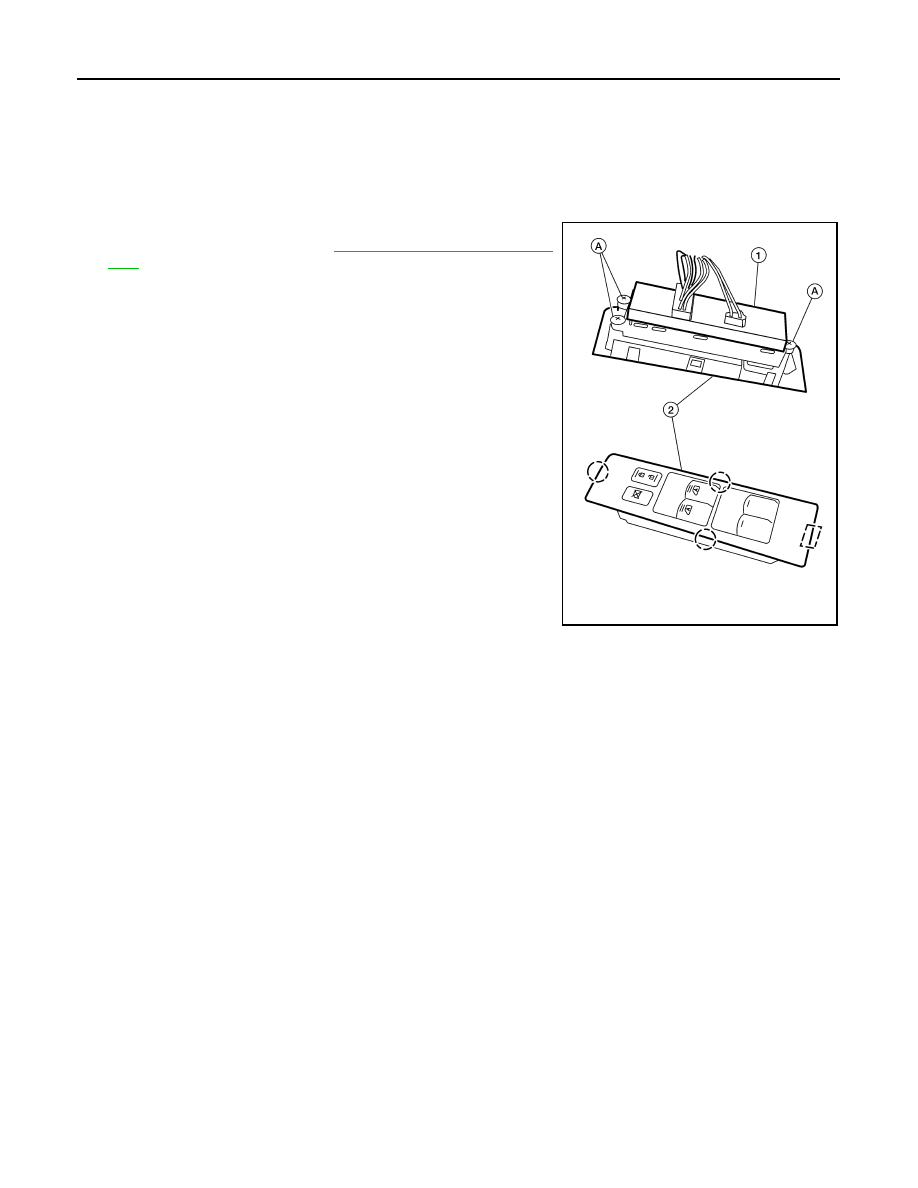

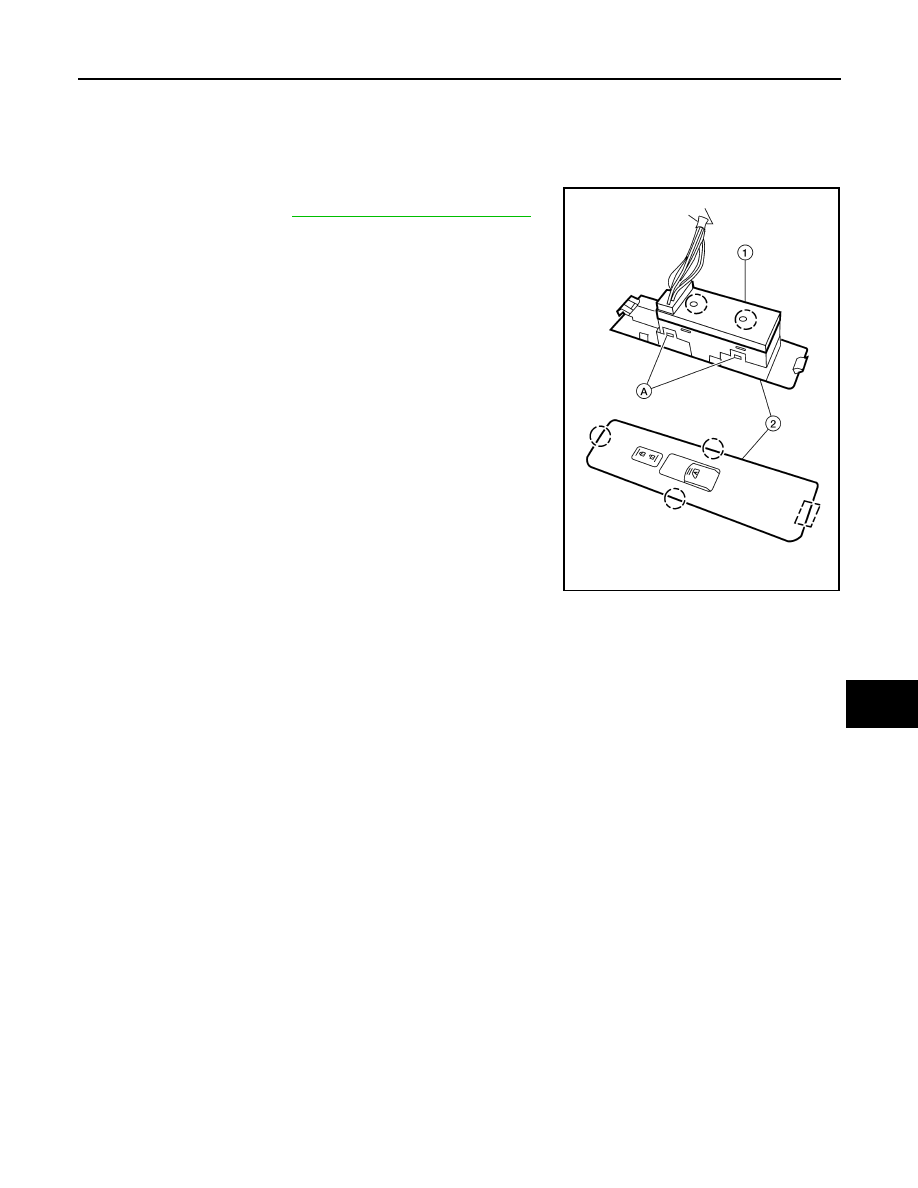

REMOVAL

1.

Remove the power window main switch finisher (2) from the
front door finisher LH. Refer to

INT-14, "Removal and Installa-

tion"

.

2.

Remove the three screws (A) from the power window main
switch (1), then separate from the finisher (2).

INSTALLATION

Installation is in the reverse order of removal.

ALKIA1097ZZ

2009 Pathfinder

FRONT POWER WINDOW SWITCH

PWC-95

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

FRONT POWER WINDOW SWITCH

Removal and Installation

INFOID:0000000003935809

REMOVAL

1.

Remove the front power window switch finisher (2) from the front
door finisher RH. Refer to

INT-14, "Removal and Installation"

.

2.

Release the four tabs (A), two on each side, then separate the
front power window switch (1) from the finisher (2).

INSTALLATION

Installation is in the reverse order of removal.

ALKIA1098ZZ
